SPECIFICATIONS

Product Overview

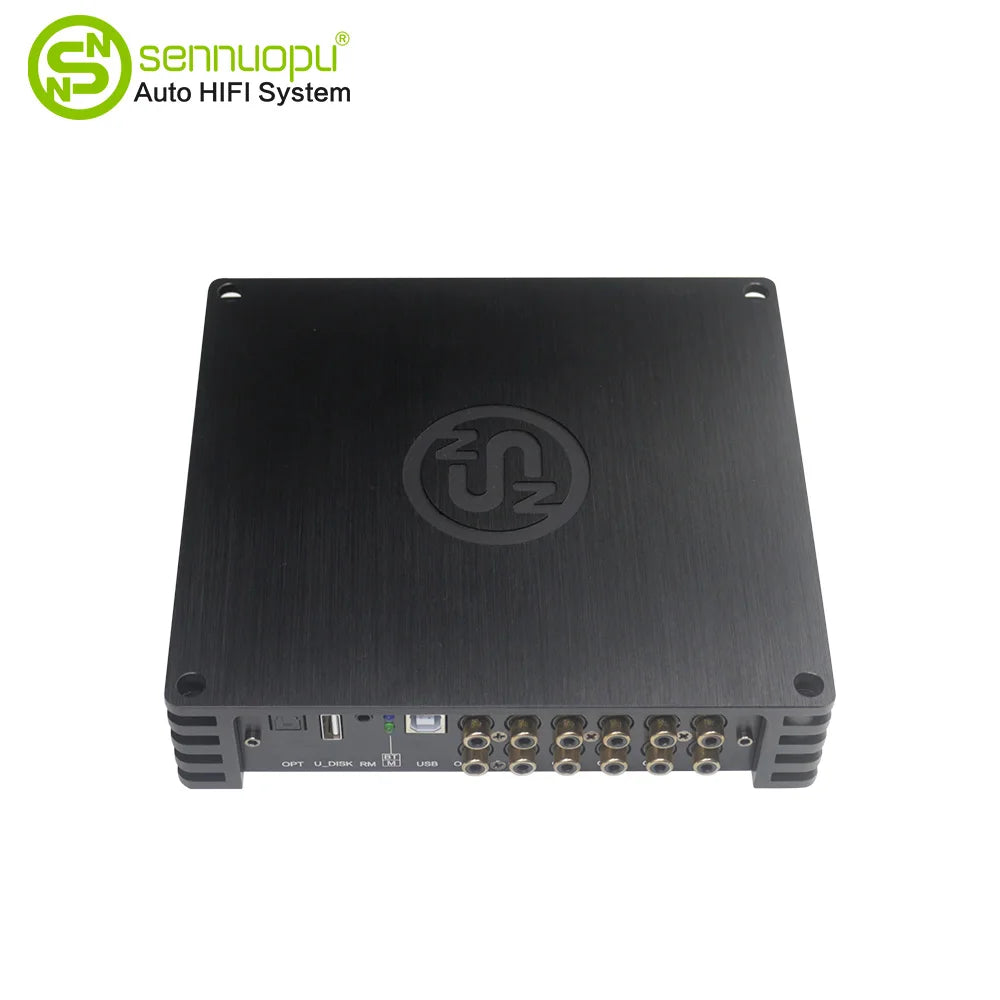

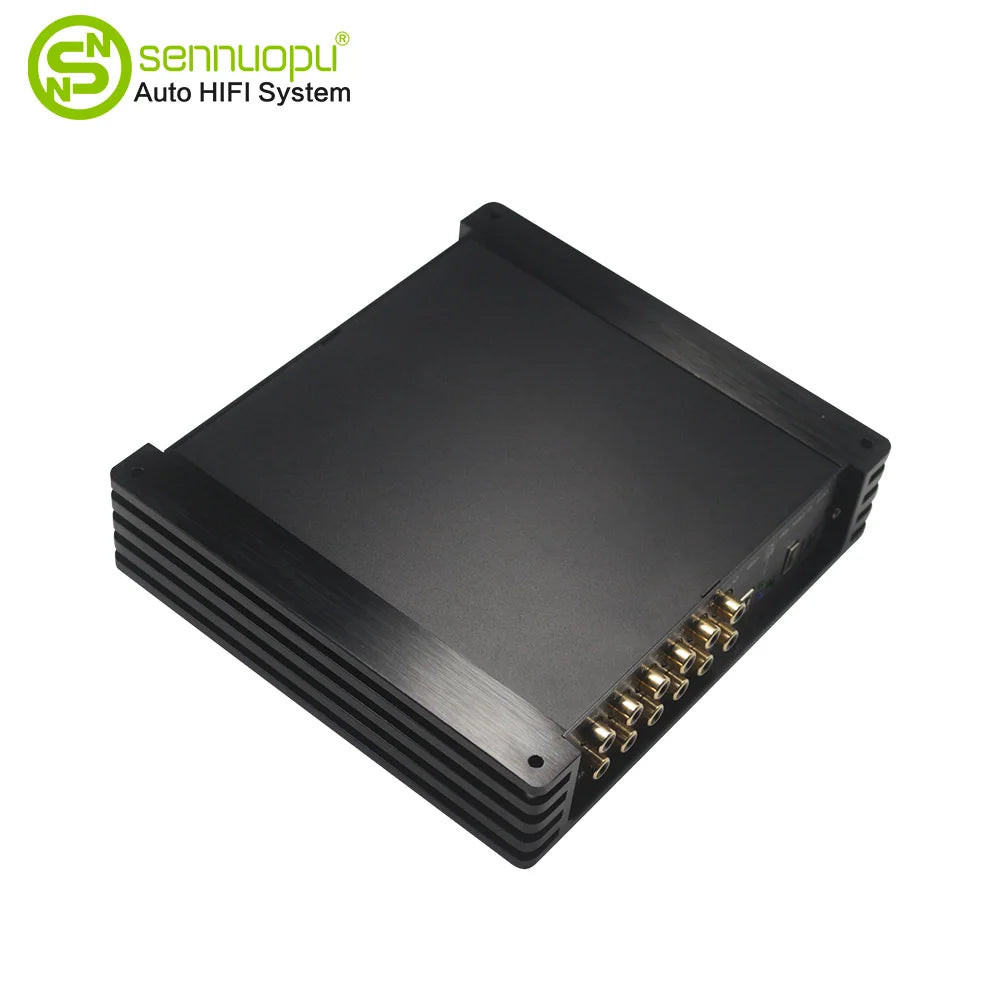

The HIFI-K10 has a built-in 8-channel Class D amplifier, using a Class D amplifier chip (TPA3116) launched by TI, with powerful power output and excellent sound quality. Built-in 10-channel DSP using the SigmaDSP digital audio processor chip (ADAU1452) introduced by Analog Devices, with high performance processing power and stability，Adapt to scenarios with high reliability requirements；

High-Performance Amplifier Specifications

The HIFI-K10 has a built-in 8-channel Class D amplifier, with a peak power of 100 watts per channel,Dynamic range:100dB,SNR:102dB,THD+N:0.1%;The conversion efficiency can reach more than 92%;Exceptional power output guarantees impressive performance and clarity.

High-performance processing capability

The HIFI-K10 uses a HIFI-level processor chip, the operating frequency of the 32Bit DSP core can reach 294MHz, and it can efficiently execute complex audio processing algorithms with a sampling rate of up to 192kHz, ensure high-quality audio output, 10-channel DSP output, allowing you to easily expand a more advanced sound system.

Multi-Source Input Design

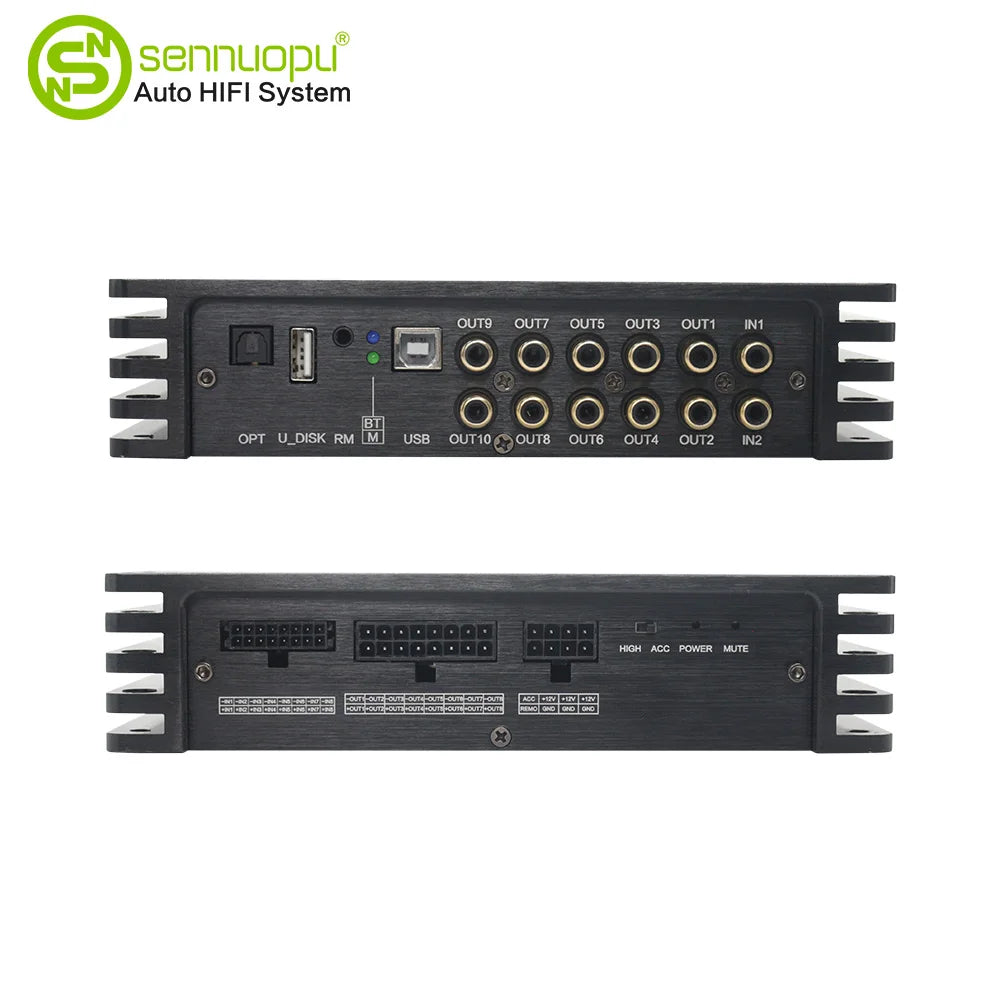

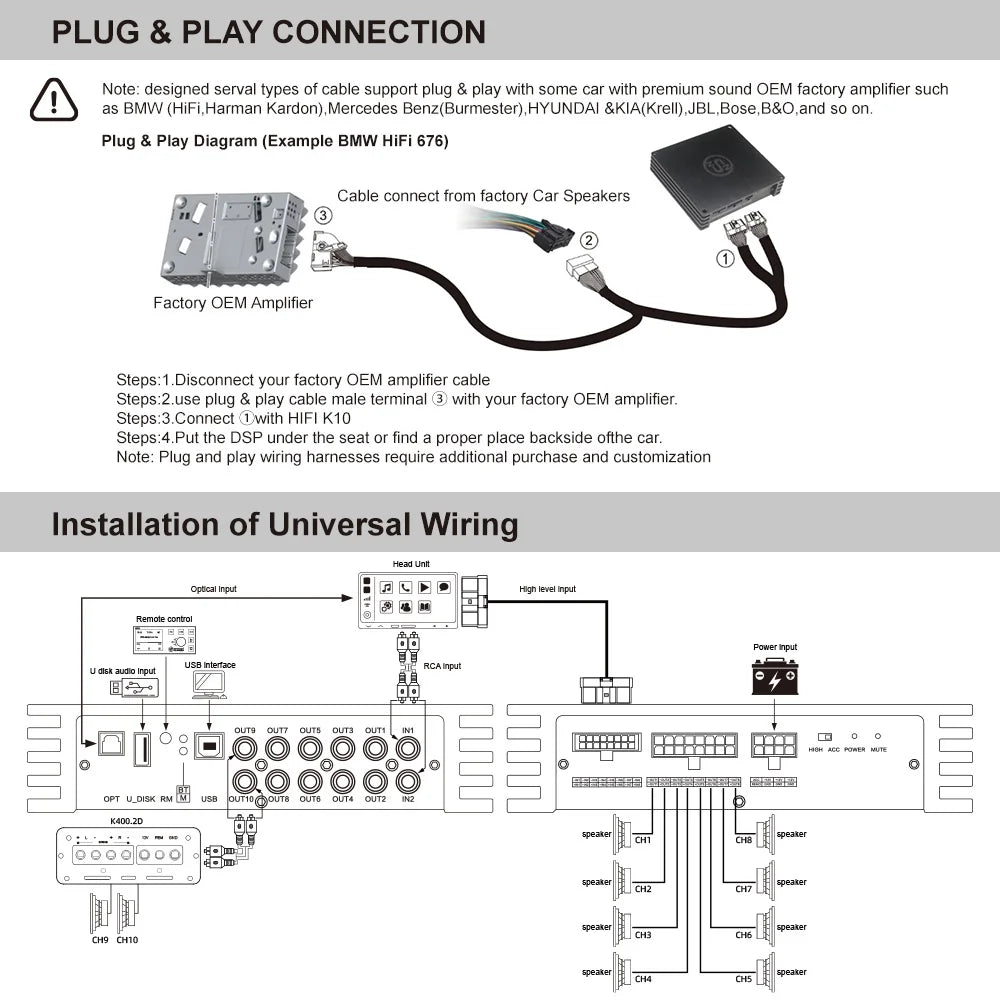

The HIFI-K10 is Built-in 8-channel high-level input/optical fiber audio input/Built-in 2-channel RCA audio input/USB Digital playback module/Bluetooth audio input and Industry-First OTG input,achieve lossless and fast audio transmission.

Stable Power Supply Design

The heart of the HIFI-K10 is its advanced power supply design, which provides efficient and reliable power management. This technology ensures your amplifier runs smoothly and efficiently, delivering consistent performance built with premium materials and meticulous craftsmanship, ensuring it can handle the demands of high-powered audio performance. Its robust construction means it’s designed to last, providing you with long-term reliability and peace of mind

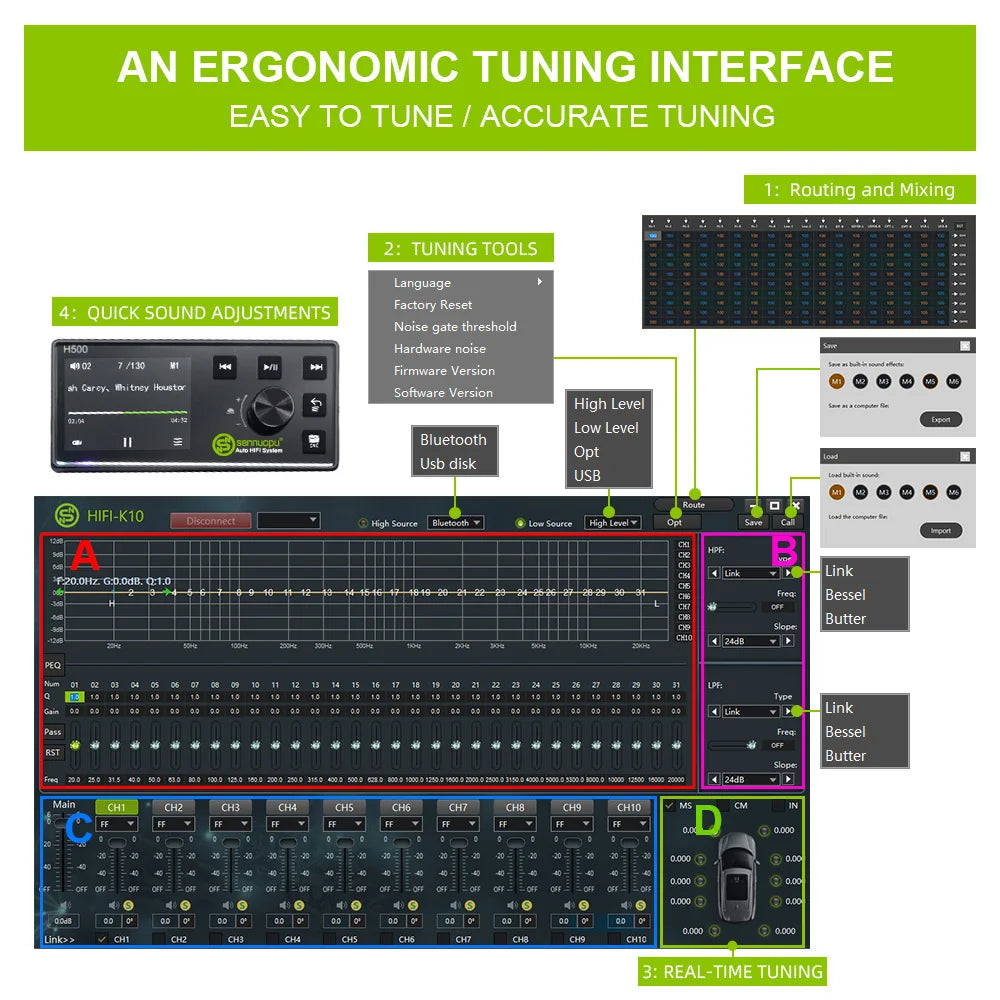

Accurate Tuning

The HIFI-K10 is Built-in 10-channel Intelligent AE algorithm equalizer, 31-band EQ can precisely control the tweeter, midrange, bass, and sub-bass parameters from 20Hz to 20000Hz.simple tuning interface, each channel can be individually adjusted EQ, frequency, slope, phase, delay, etc., through tuning, you can improve the sound quality and volume of the sound system, make the music clearer and more dynamic.
