Serial Port Server Module RS485 to Ethernet Network TCP/IP Converter UDP TCP Client Server Modbus Master Slave

Serial Port Server Module RS485 to Ethernet Network TCP/IP Converter UDP TCP Client Server Modbus Master Slave

$81.32

$81.32 $0.00

Description

SPECIFICATIONS

Brand Name: eletechsup

Choice: yes

Condition: New

Dissipation Power: 0.02W

High-concerned chemical: none

Operating Temperature: -40-85

Origin: Mainland China

Package: SMD

Supply Voltage: DC 12V

Type: Relay

is_customized: Yes

semi_Choice: yes

Product Name:
Serial Port Server Module RS485 to Ethernet Network TCP/IP Converter UDP TCP Client Server Modbus Master Slave

Package inlcuded:

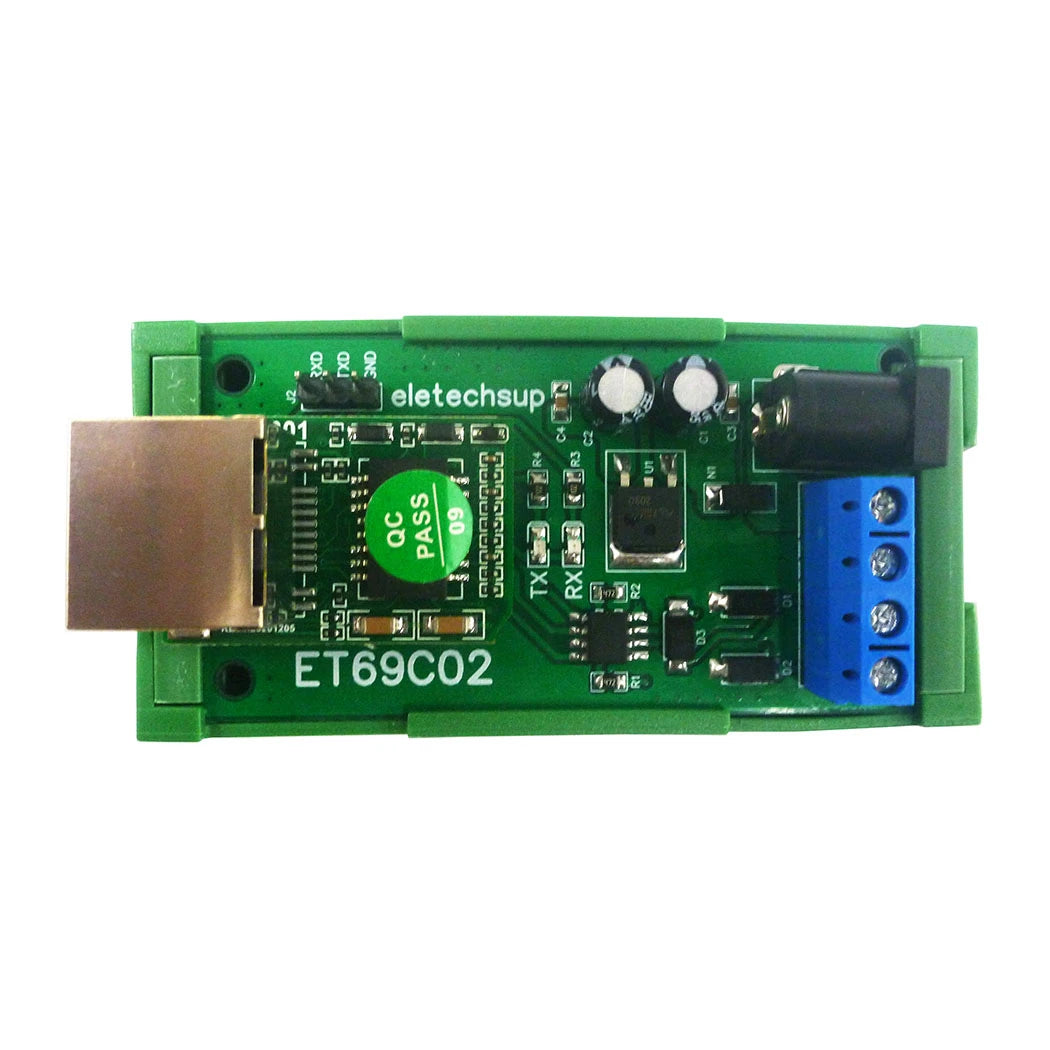

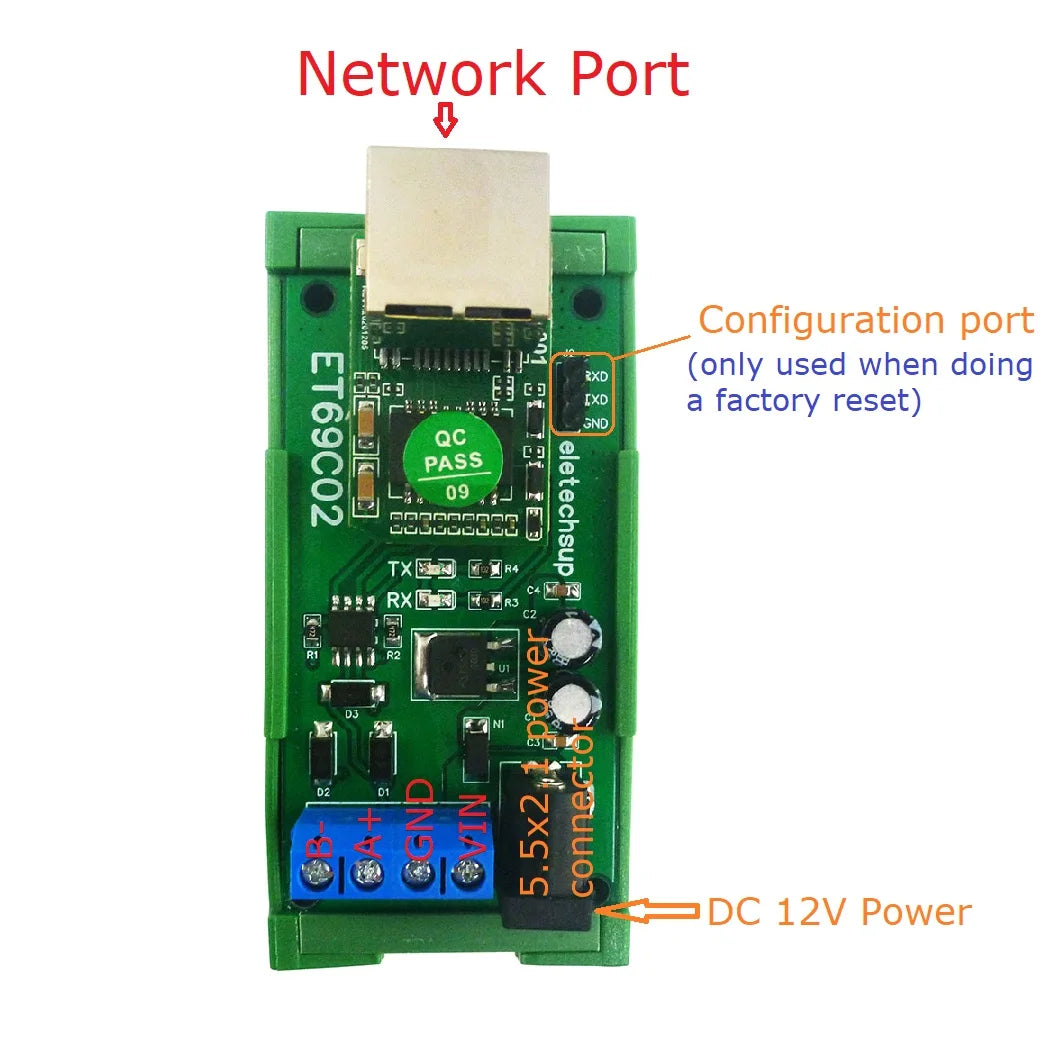

1PCS ET69C02 DC 12V RS485 to Ethernet Network TCP/IP Converter

Description:

Working voltage : DC 12V (DC 6.5-25V)
Working current : 20-25mA
Work Mode: UDP,TCP Client,TCP Server,Modbus Slave,Modbus Master,MQTT
TVS anti-surge protection
The default baud rate is 9600BPS. The baud rate can be selected by WEB settings 1200 2400 4800 9600 19200 38400 57600 115200BPS
The parity can be none parity, even parity and odd parity
Size: 72 * 37 * 24mm(Only PCB Board);82 * 41*40mm(with Din Rail Box)
Weight: 24g(Only PCB Board);58g(with Din Rail Box)

For more information, please open the link and download:
https://1drv.ms/u/s!Av4PLxH_z8f1pD3s49FWyRZvKuBM?e=plpZbr

Application

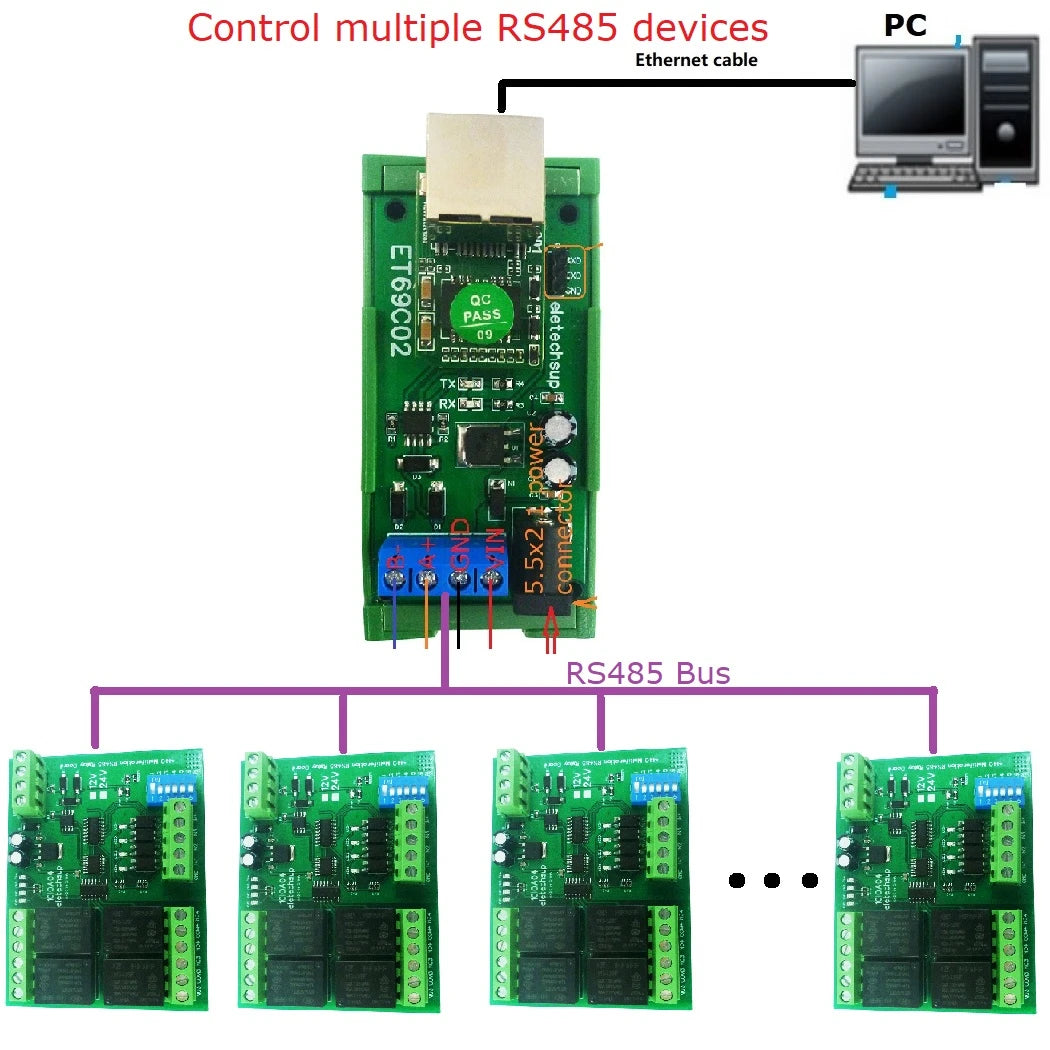

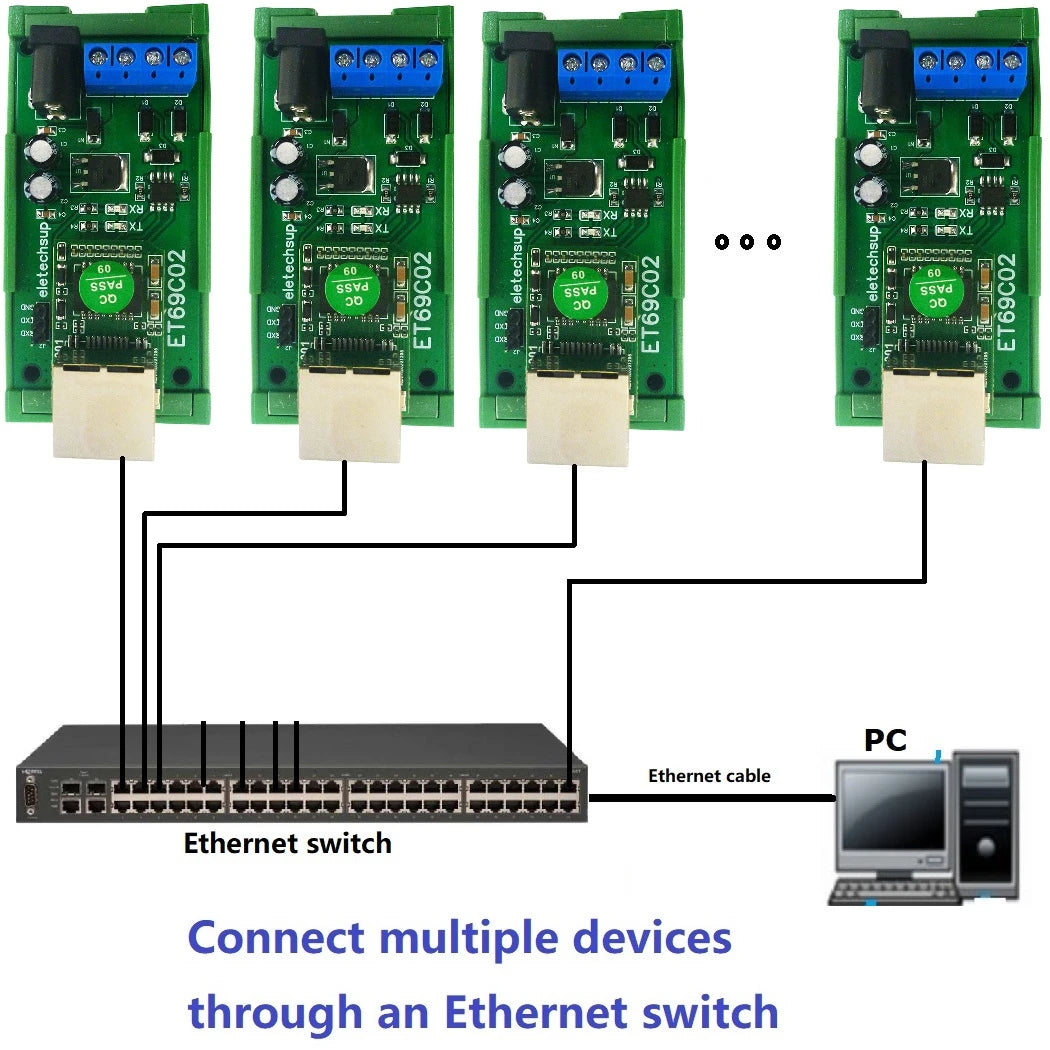

RS485 to Ethernet Network TCP/IP Converter

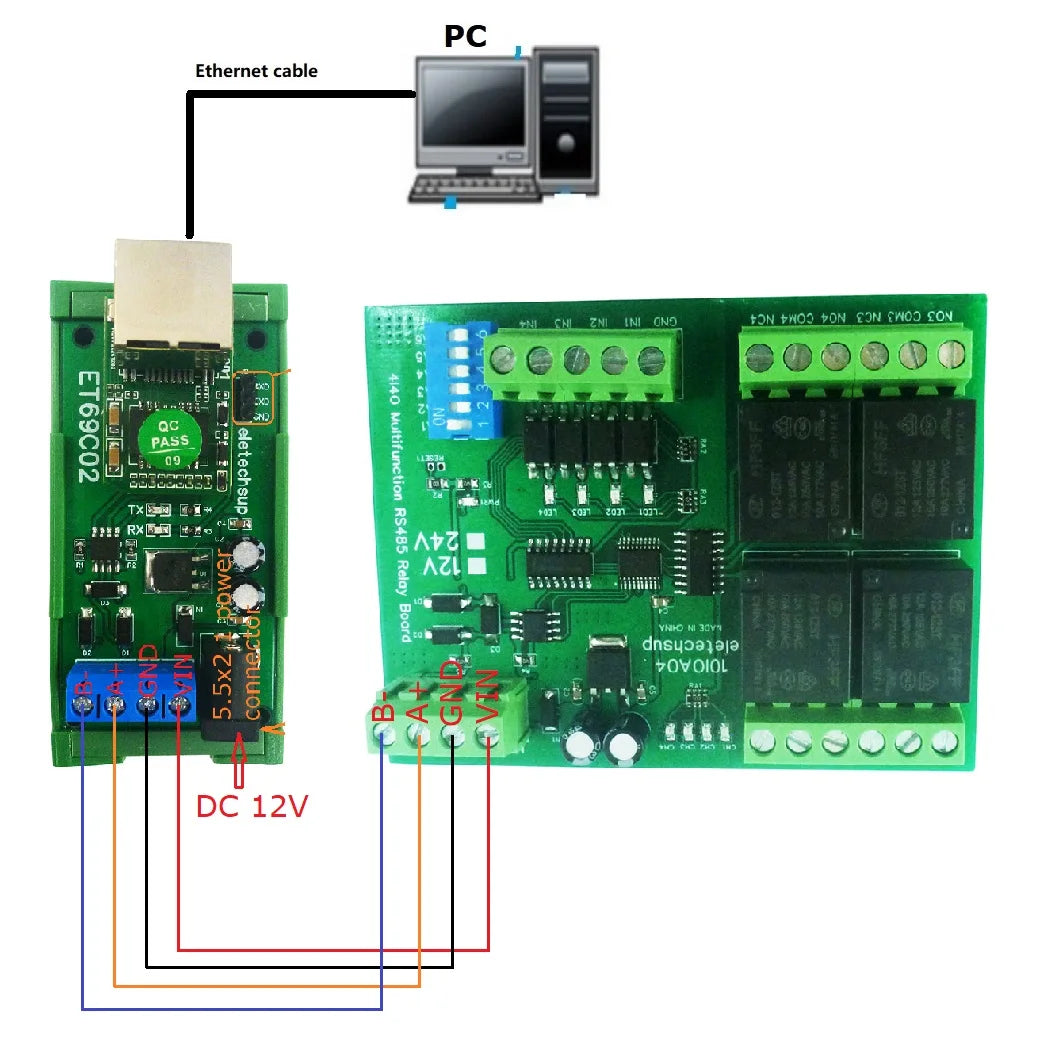

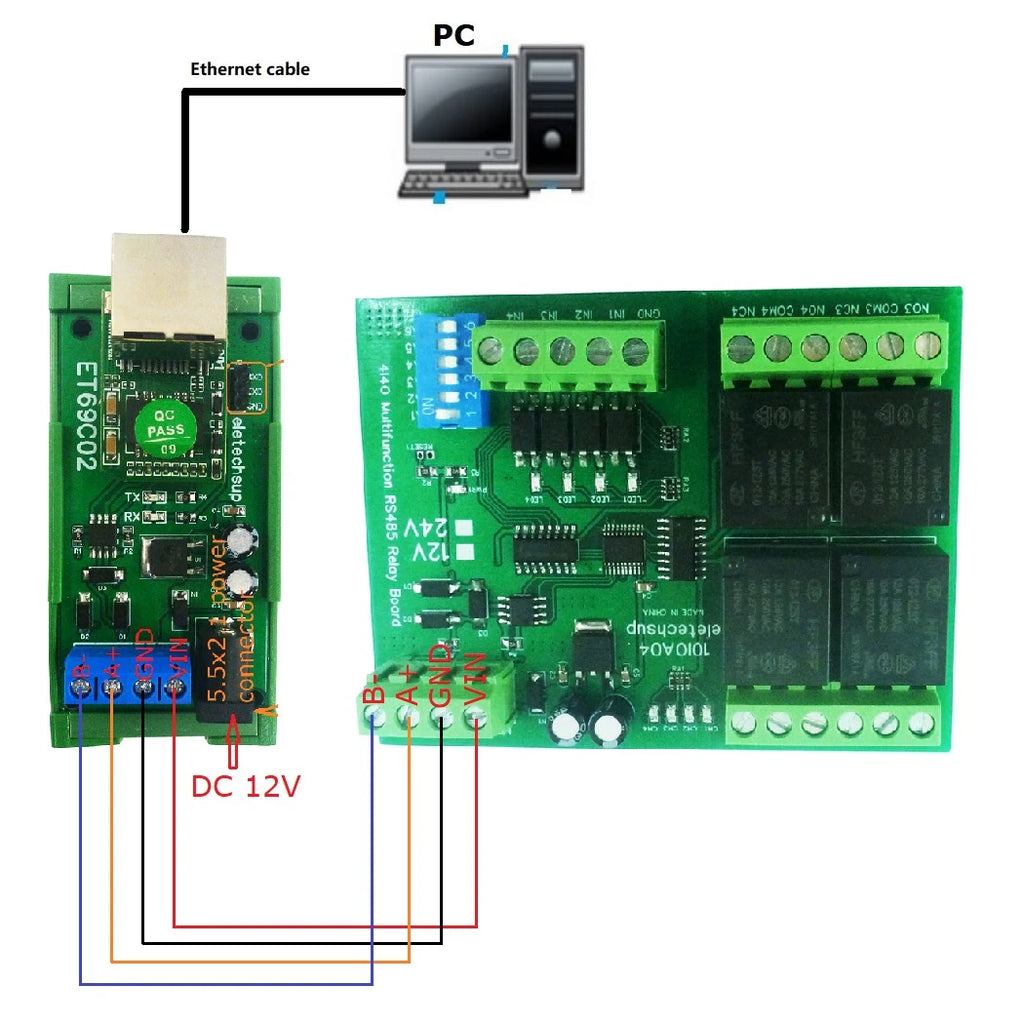

Support all RS485 devices of eletechsup, such as:
10IOA08/R4DCB08/R4D3B16/N4D3E16/N4AIA04
Smart Home,Home Automation ,Wiser Home;
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control

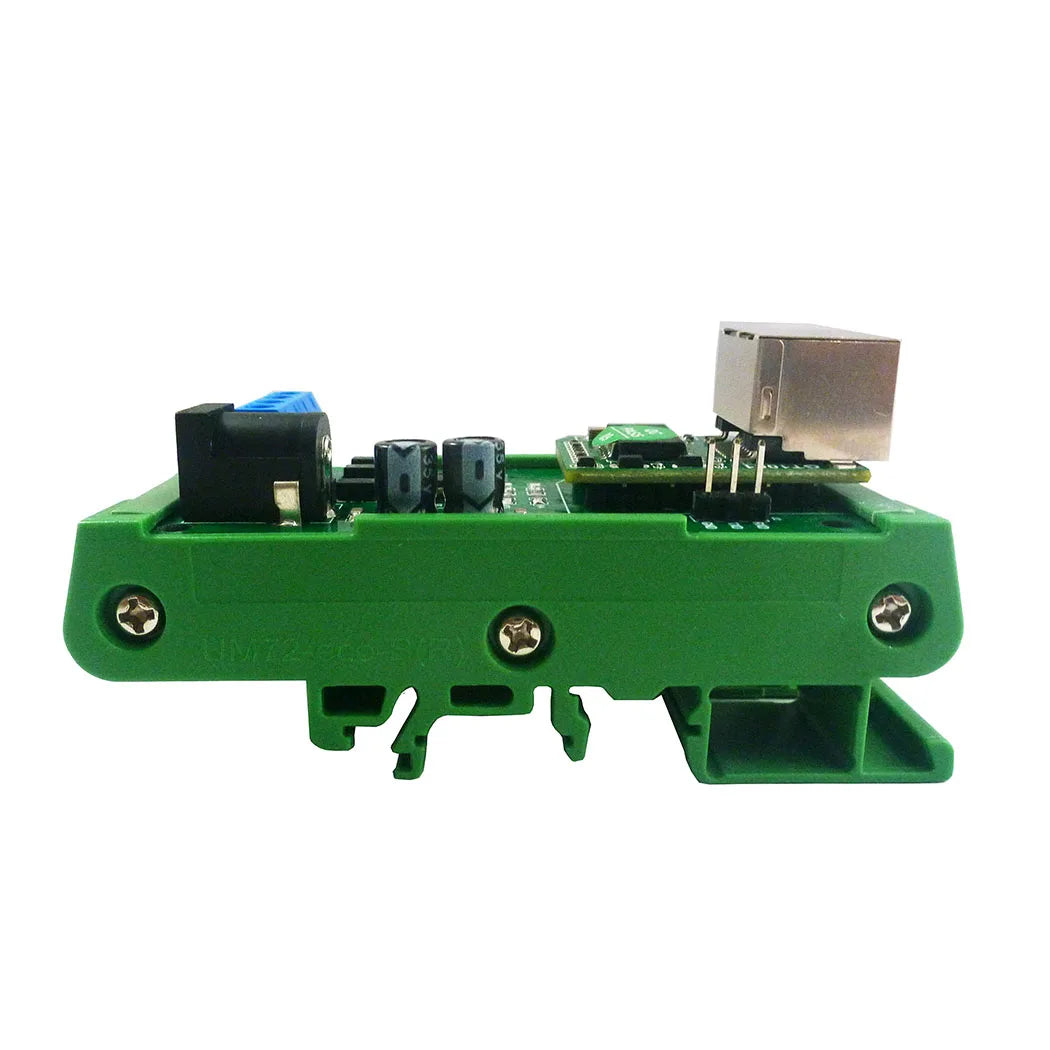

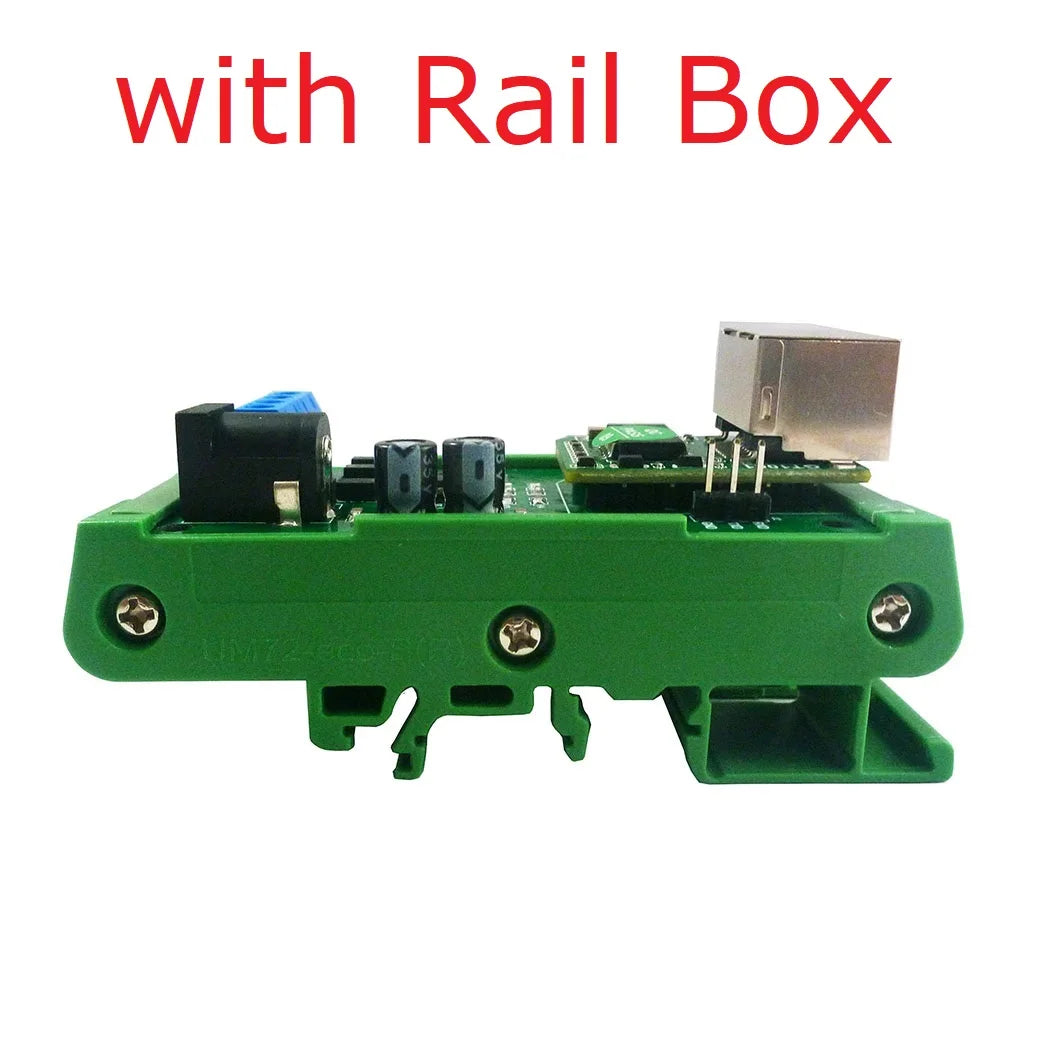

DIN rail Box parameters:
Product model: UM72
Color: Green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 37 mm PCB boards
Net weight: 34g
Installation: DIN35 and C45 rail
