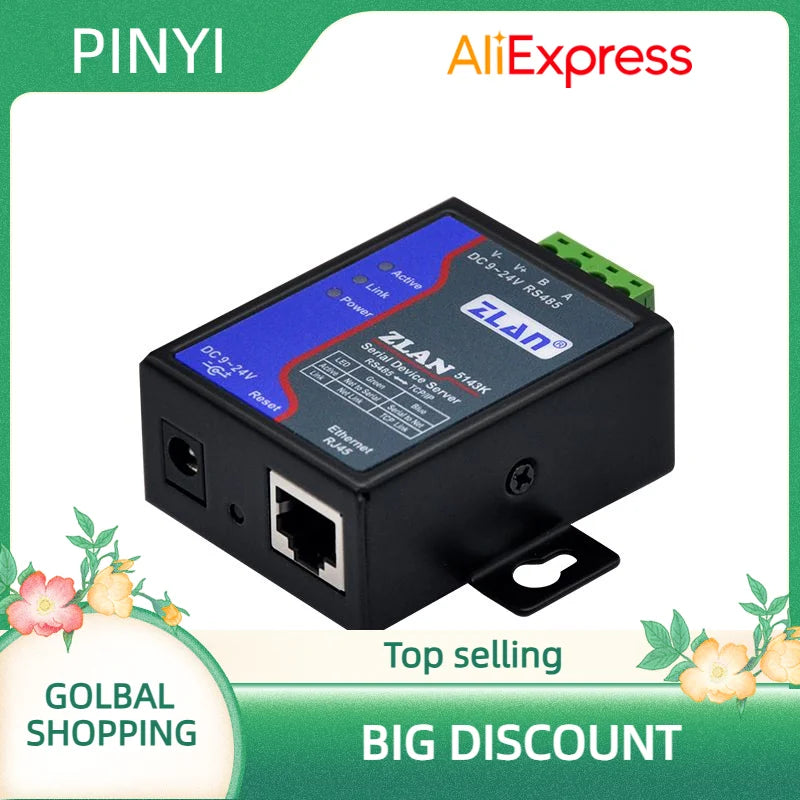

Serial Port Server RS485 to Ethernet Port TCP/IP to Serial Port Module Modbus Gateway MQTT Communication JSON ZLAN5143K

Serial Port Server RS485 to Ethernet Port TCP/IP to Serial Port Module Modbus Gateway MQTT Communication JSON ZLAN5143K

$71.08

$71.08 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Certificate: CE

Certification: CE

Function: industrial serial server - rs485 to rj45 ethernet

High-concerned chemical: none

Interface: 10/100M

MOQ: 1 Set

Model: ZLAN5143D

Origin: Mainland China

Plug Type: UK,AU,EU,US

Port: RS485

Power Supply: DC 9~24V

Product name: serial port terminal server

Serial Port: RS485

Size: 100

Warranty: 3 Years

RS232 RS422 RS485 to Ethernet Converter IOT Modbus RTU to TCP serial server

Product Description

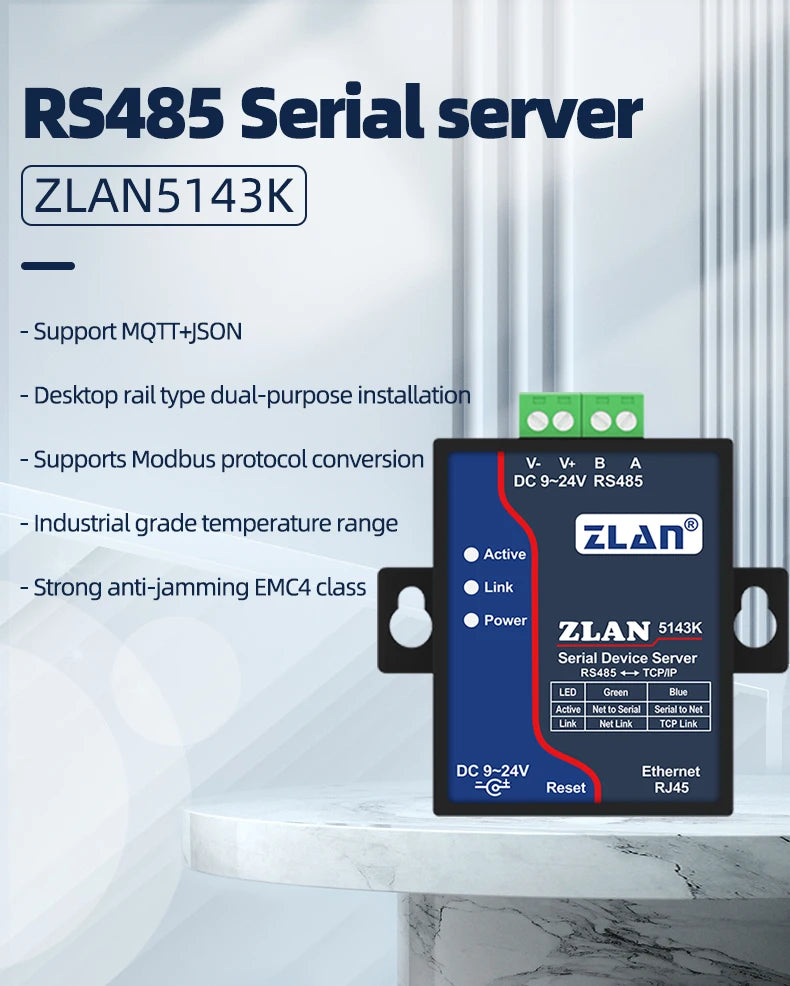

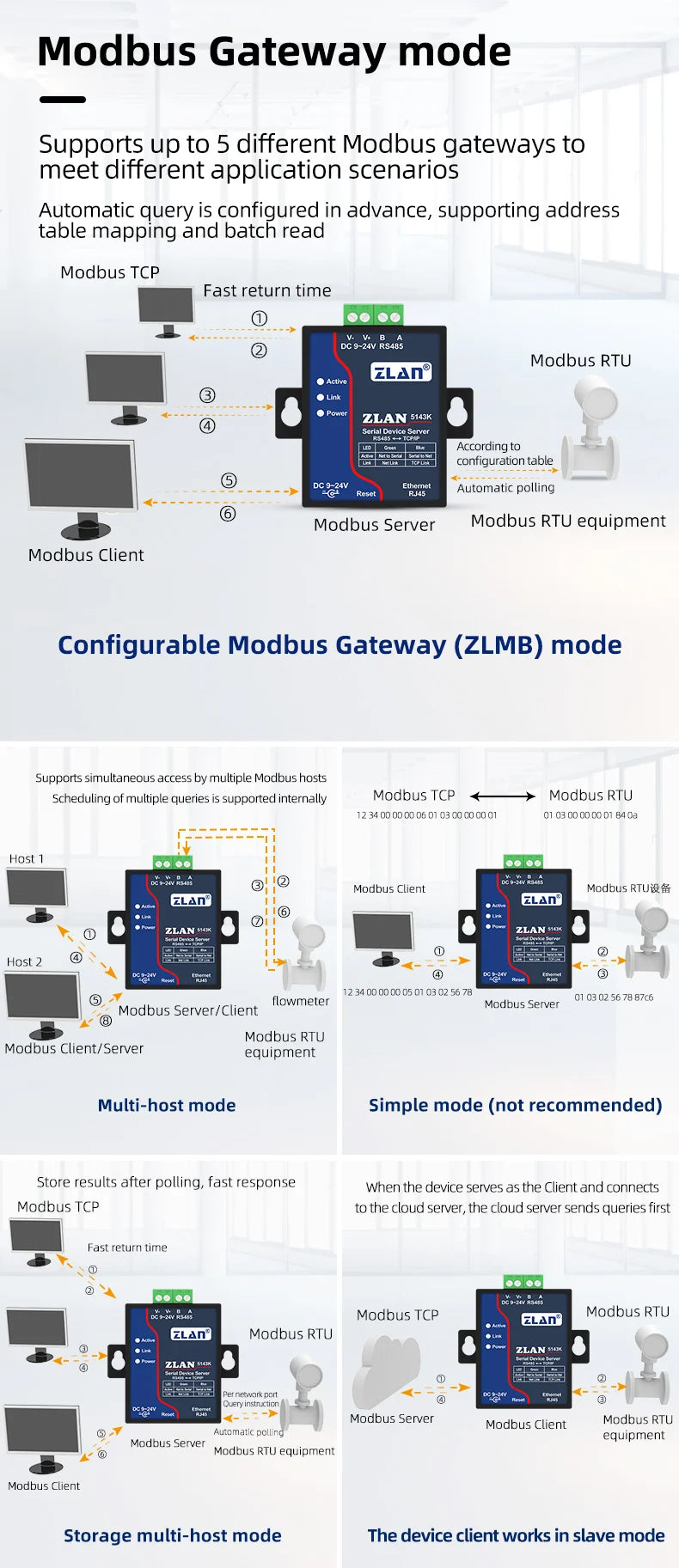

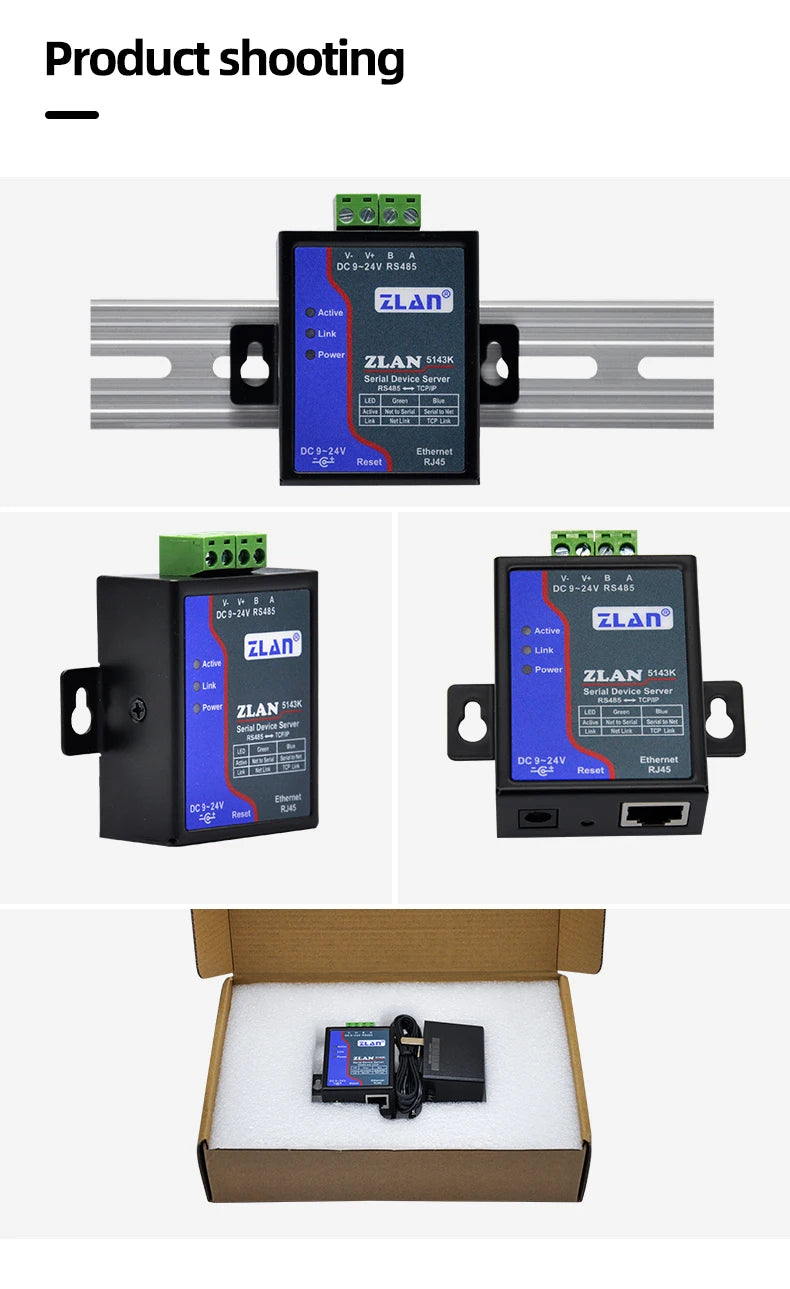

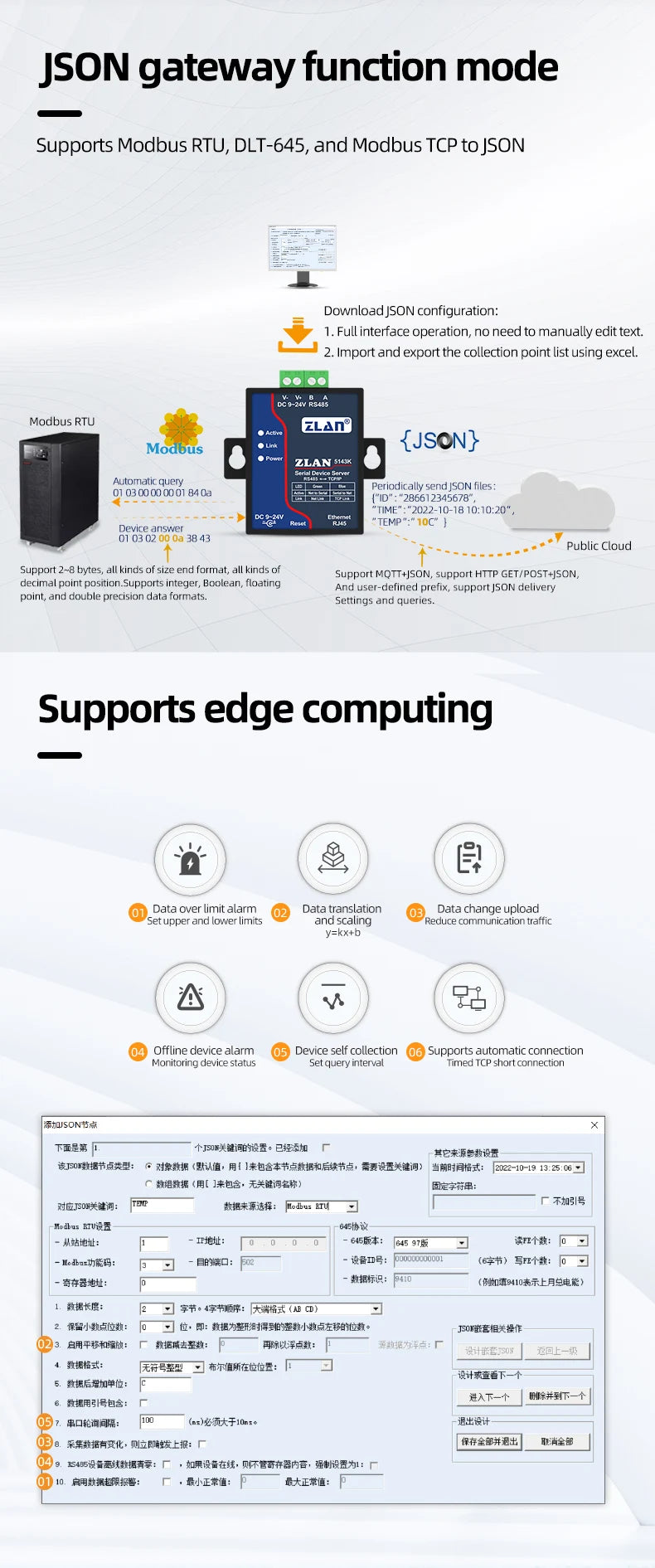

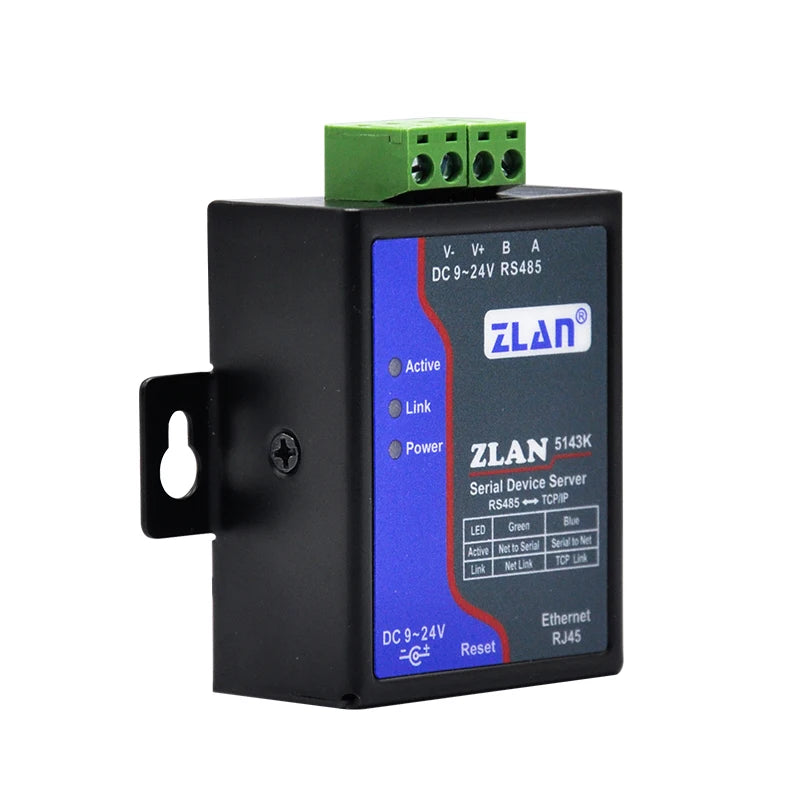

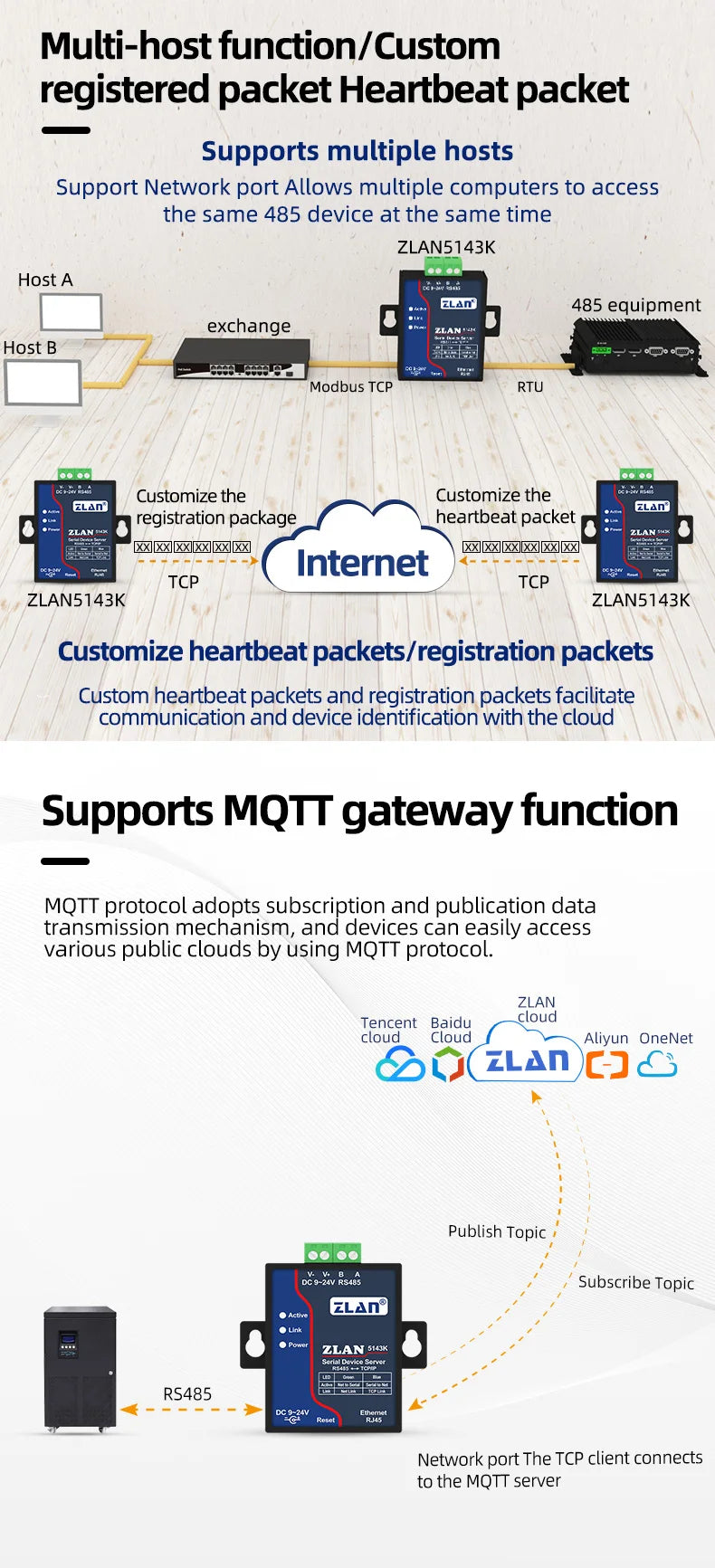

ZLAN5143K is an RS485 device data collector/iot gateway designed specifically for industrial environments, with serial port server, Modbus gateway, MQTT gateway, RS485 to JSON and other functions in one. It has an RS485 interface and an Ethernet interface. It supports rail type installation or desktop type screw hole installation, small size and easy installation. Adopts terminal type power supply, 9 ~ 24V wide voltage input. It saves cost and volume, and has higher cost performance compared with ordinary products.

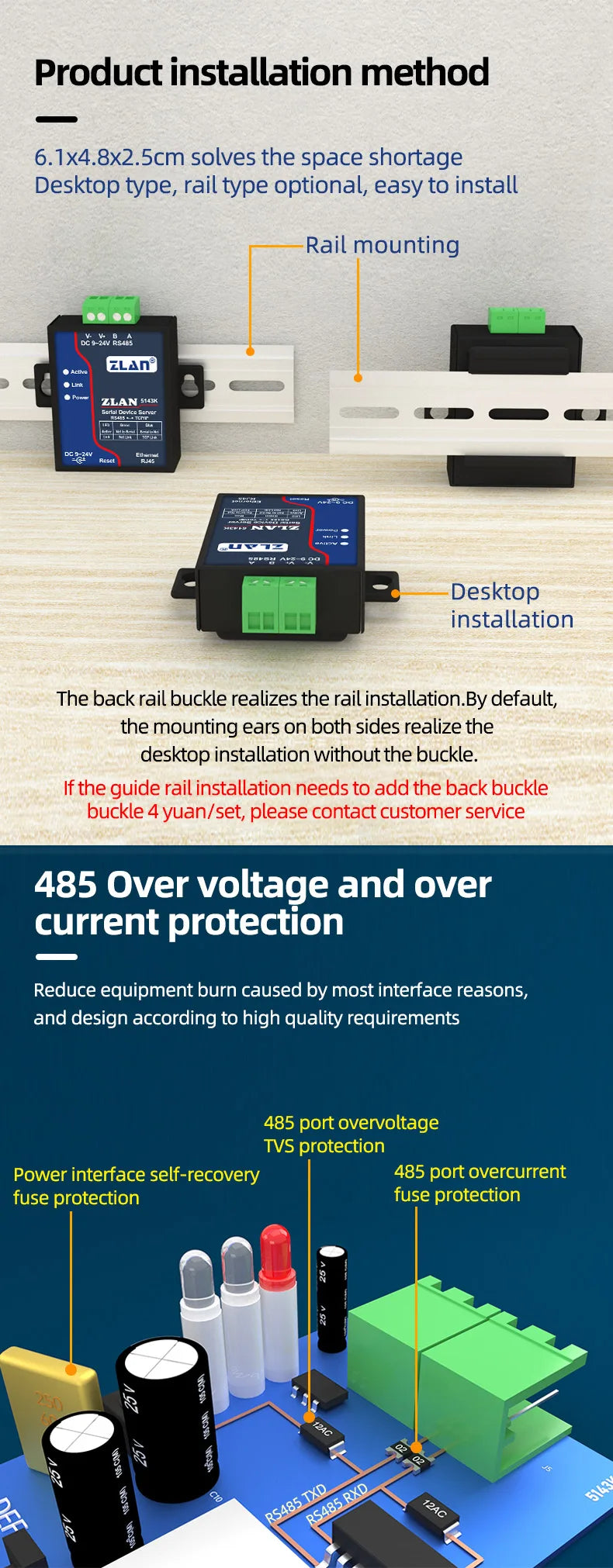

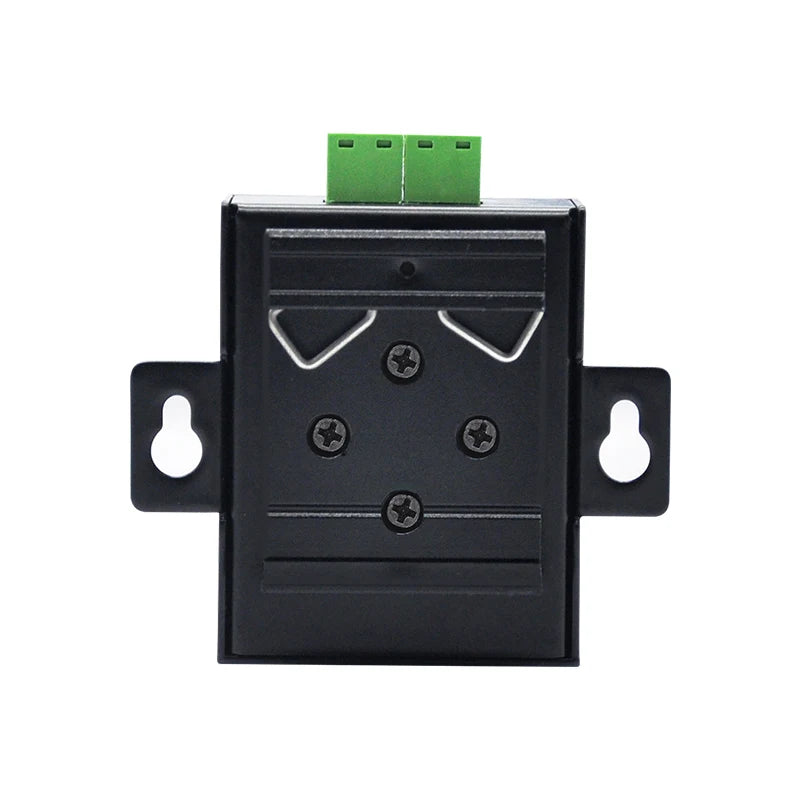

small size Din rail mounted Modbus RTU TCP Ethernet one serial port serial server

all size Din rail mounted Modbus RTU TCP Ethernet one serial port serial server

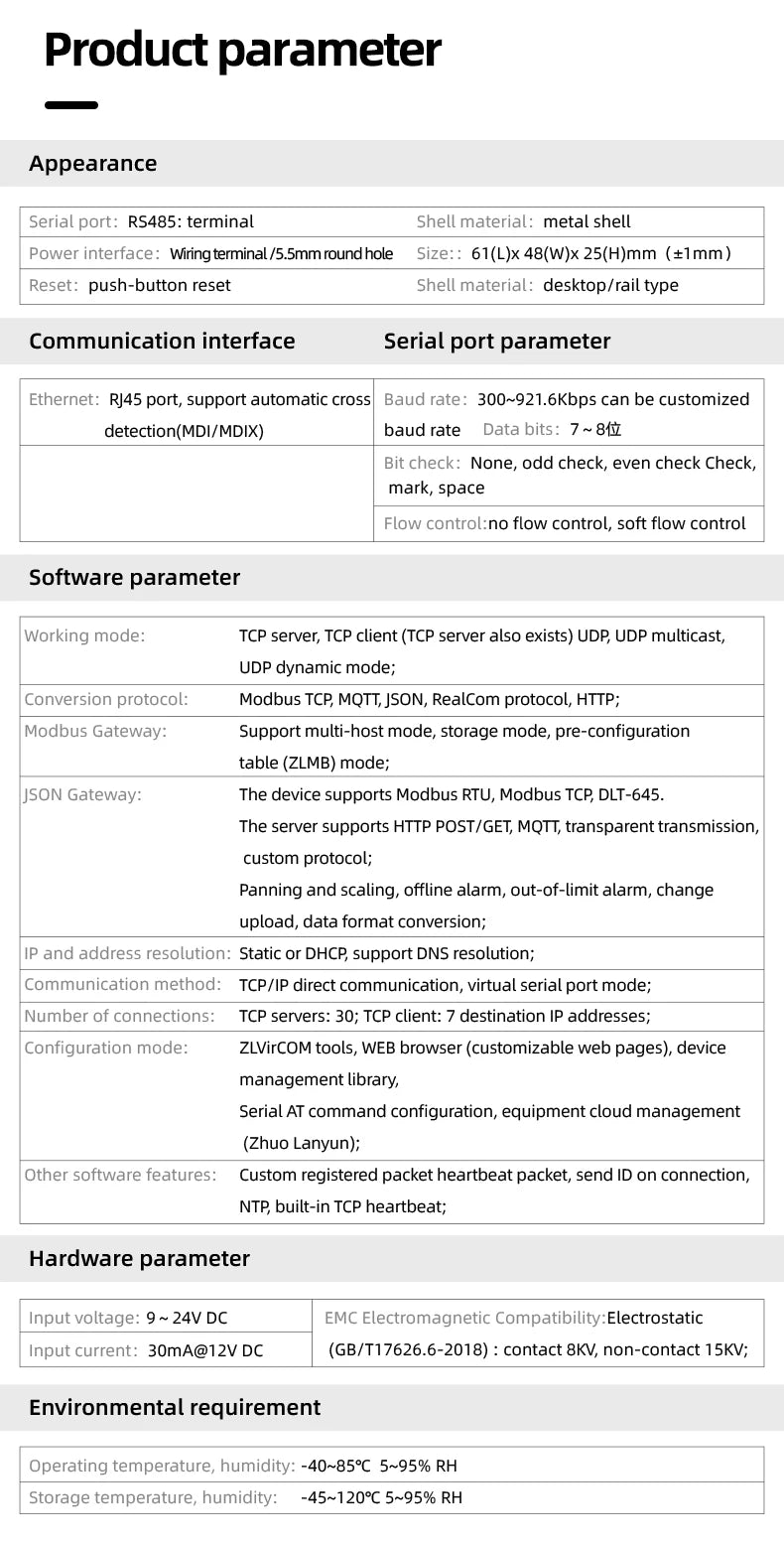

Feature

Figure
Interface:	485: Terminal
Power Supply:	terminal

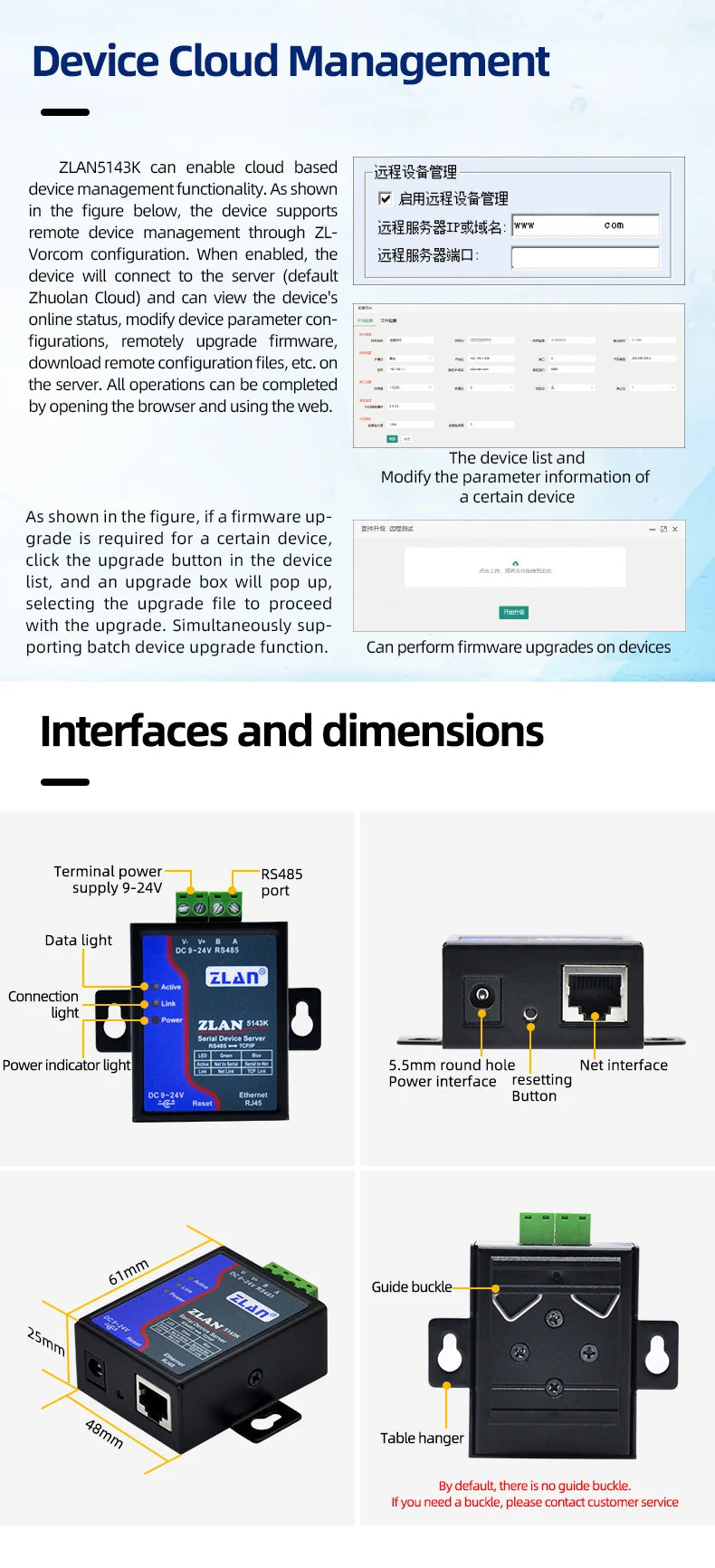

Size:	L x W x H =4.8cm×2.5cm×6.1cm(±1mm)

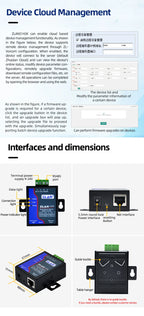

Communication interface
Ethernet:	RJ45 connector
Serial	RS485×1
Serial Parameters
Baud rate:	300~921600bps	Parity:	None, odd check, even check, mark, space
Data bits:	5~9	Flow control:	None
Software
protocol:	ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Setting method :	ZLVirCom, WEB browser, device management library

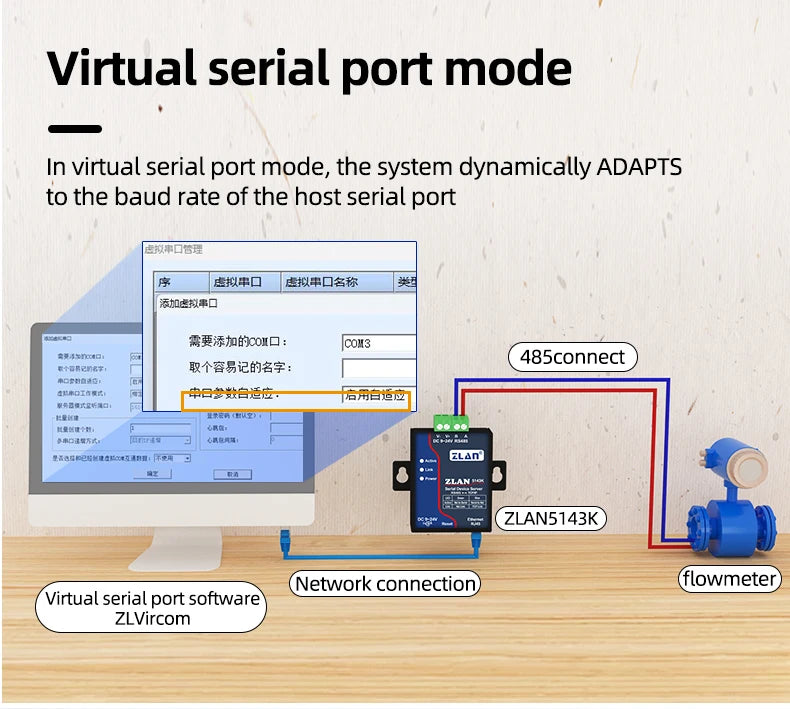

Net communication method:	TCP/IP direct communicate, Virtual serial
Work Mode
TCP server, TCP client, UDP, Real Com Driver
Power Requirement
9~24V DC
Environment
Running temperature:	-40~85℃
Storage temp:	-45~165℃
Humidity:	5~95%RH
