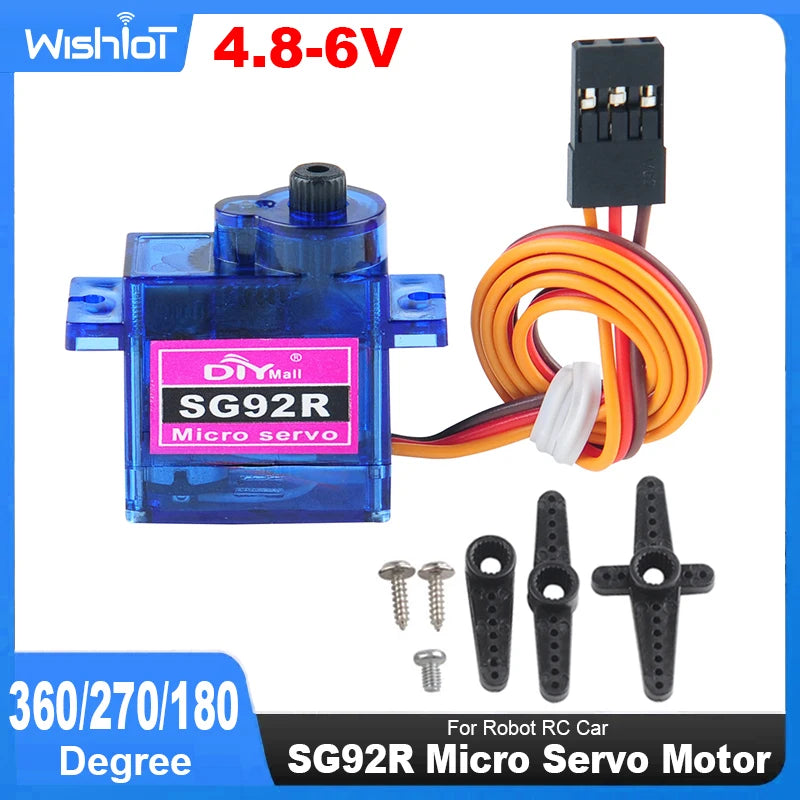

SG92R Micro Servo Motor 4.8-6V 360/270/180 Degree Continuous Rotation Controllable Angle for Robot RC Drone Aircraft Model 9g

SG92R Micro Servo Motor 4.8-6V 360/270/180 Degree Continuous Rotation Controllable Angle for Robot RC Drone Aircraft Model 9g

$15.20

$15.20 $0.00

Description

SPECIFICATIONS

Brand Name: wishiot

Choice: yes

For Vehicle Type: Airplanes

High-concerned chemical: none

Model Number: FZ1468

Origin: Mainland China

Product: Digital/Analog Servo

Quantity: 1 pcs

Recommend Age: 14+y,12+y

Remote Control Peripherals/Devices: Servos

Upgrade Parts/Accessories: Gear

Use: Vehicles & Remote Control Toys

Work for: for Fixed-wing model airplane remote control aircraft

semi_Choice: yes

SG92R 9g Micro Servo Motor 360 Degree Continuous Rotation 270/180/90 Degree Controllable Angle for RC Remote Control Aircraft Model

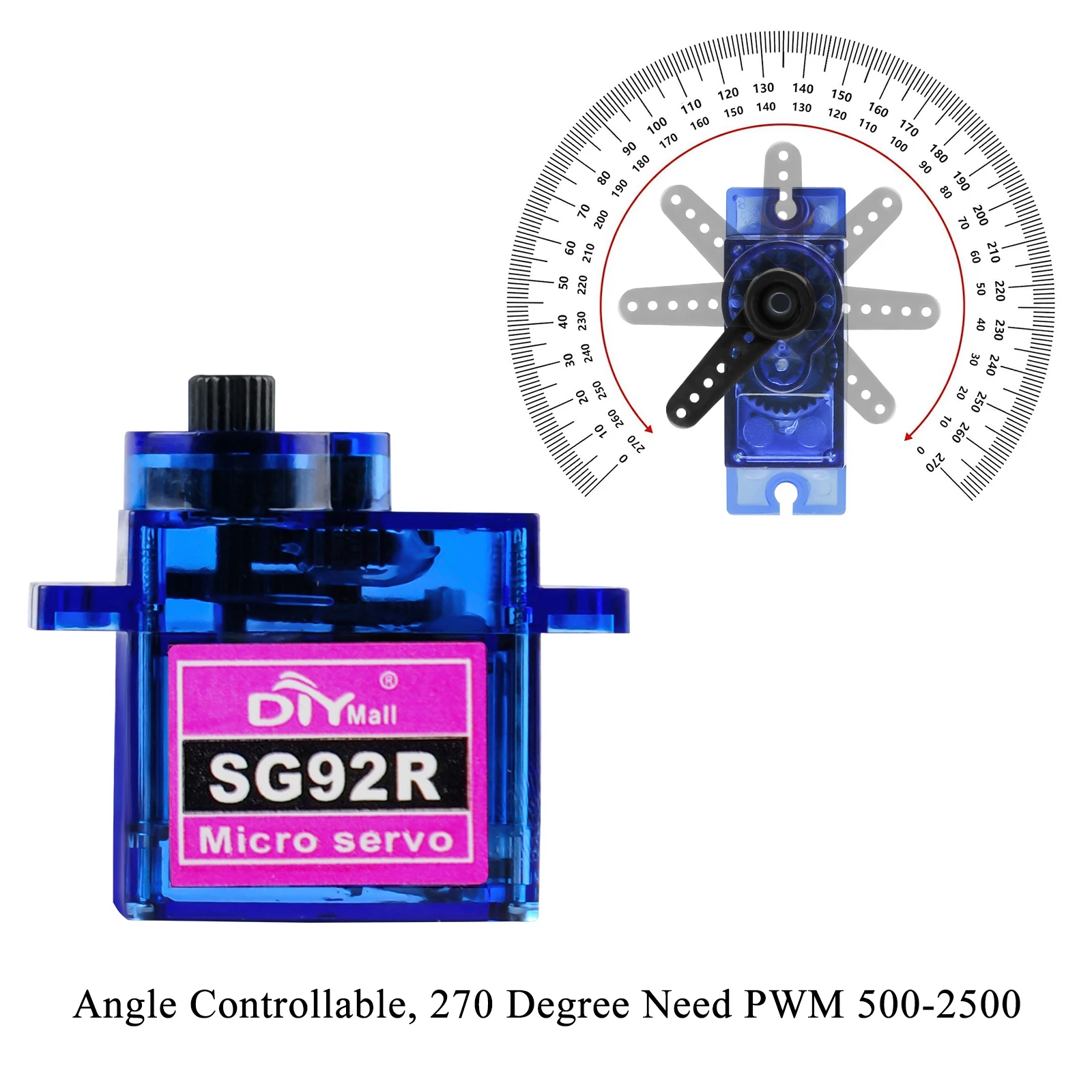

Please note that 180/270 Degree need pulse width 500-2500.

Description of SG92R：
Product Name: SG92R

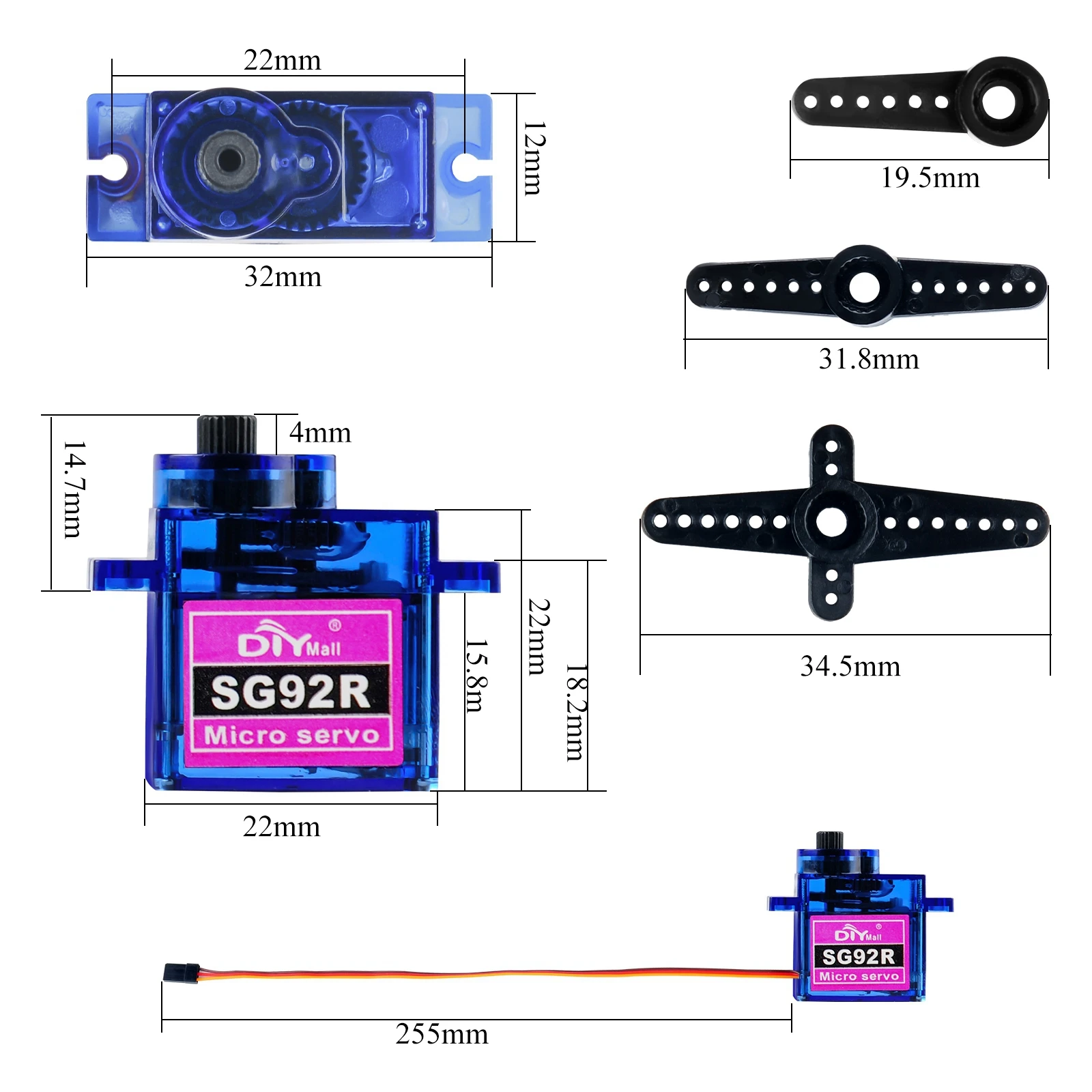

Product size: 22.4*12.5*23.8mm
Product weight: 10 grams of earth 5%
Product line length: 25cm soil 1cm
Working voltage: 4.8V-6V
Blocking torque: 1.3KG.CM-1.8KG.CM
No-load speed: 0.09 sec/60
No-load current: 90MA
Output shaft: 20t

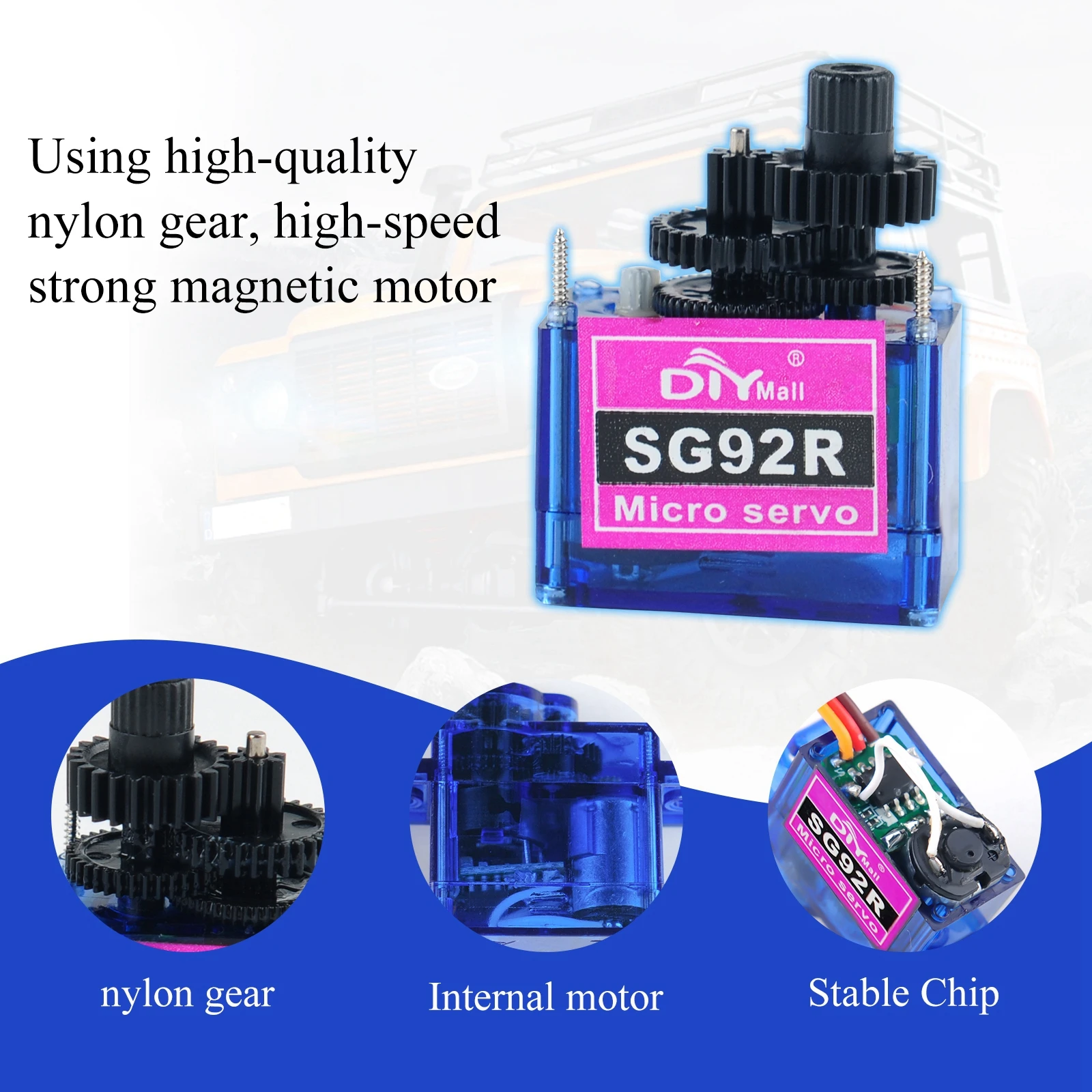

Highlight：
High-quality copper wire
High quality nylon gears
High-speed strong magnetic motor

Kindly Reminder：
- Please use the standard pulse width modulation control signal, the period is 20ms, high level time 0.5~2.5ms
- 270 degrees and 180 degrees is the same, can stop at any angle, is adjustable angle

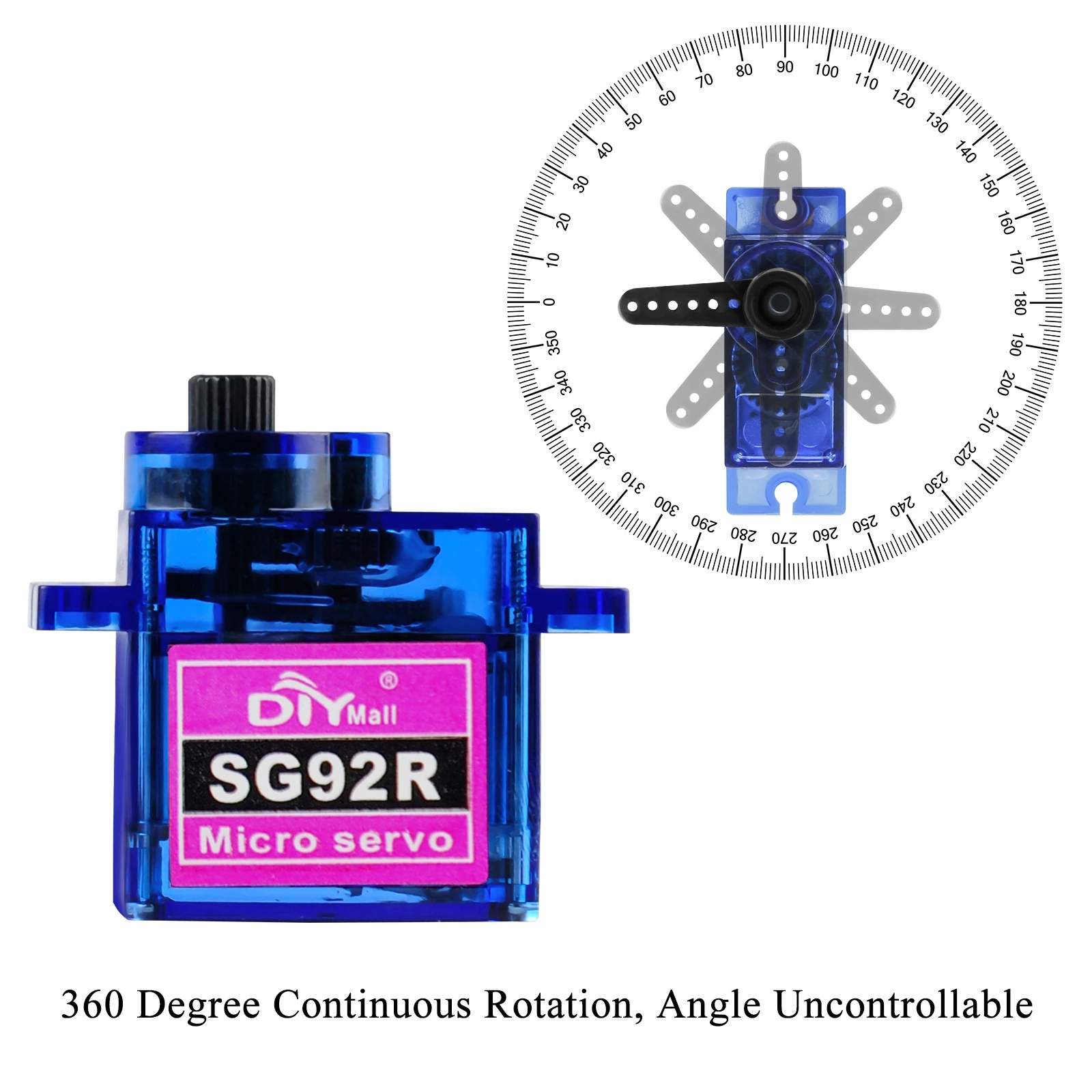

- 360 degrees is a continuous rotation, can not control the angle and speed

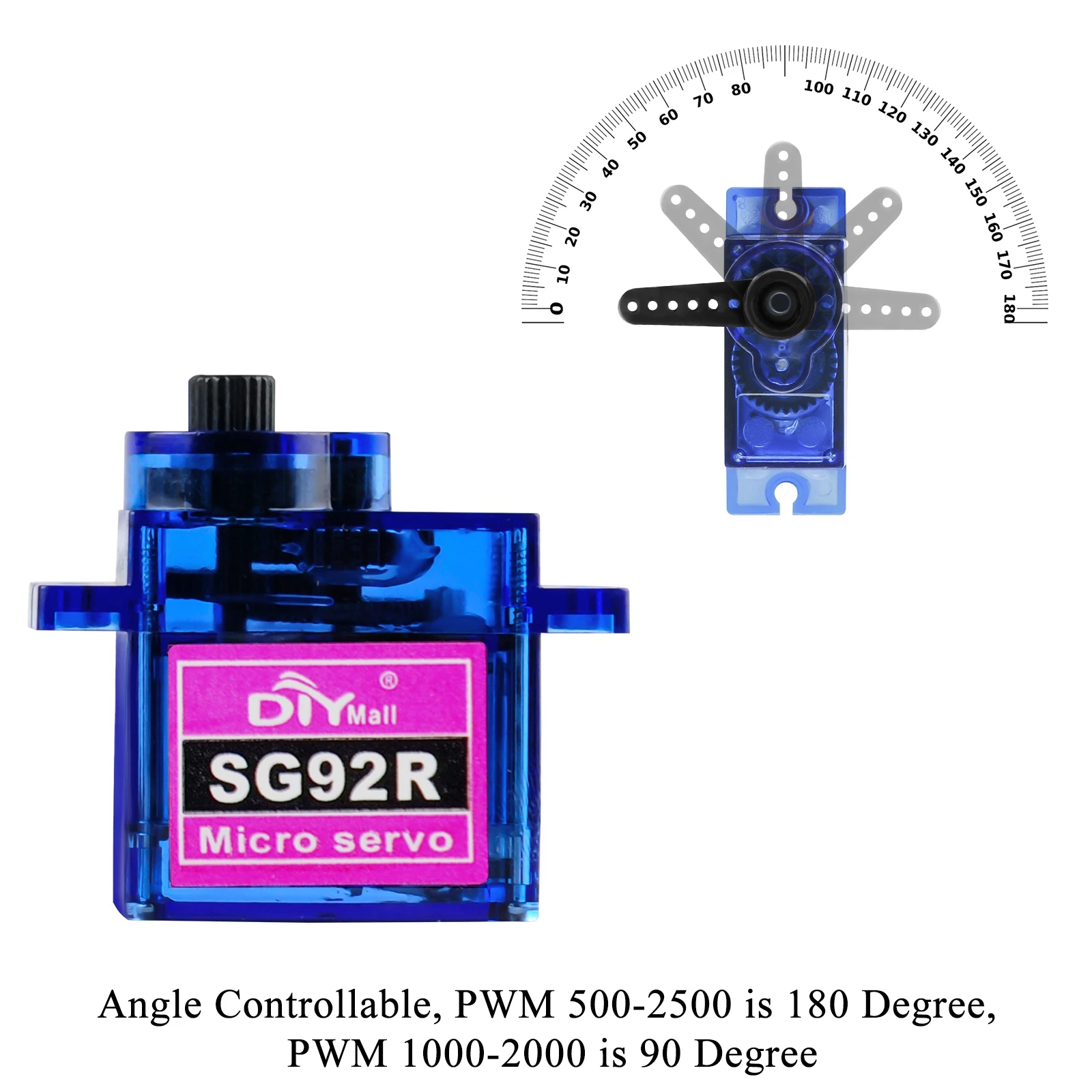

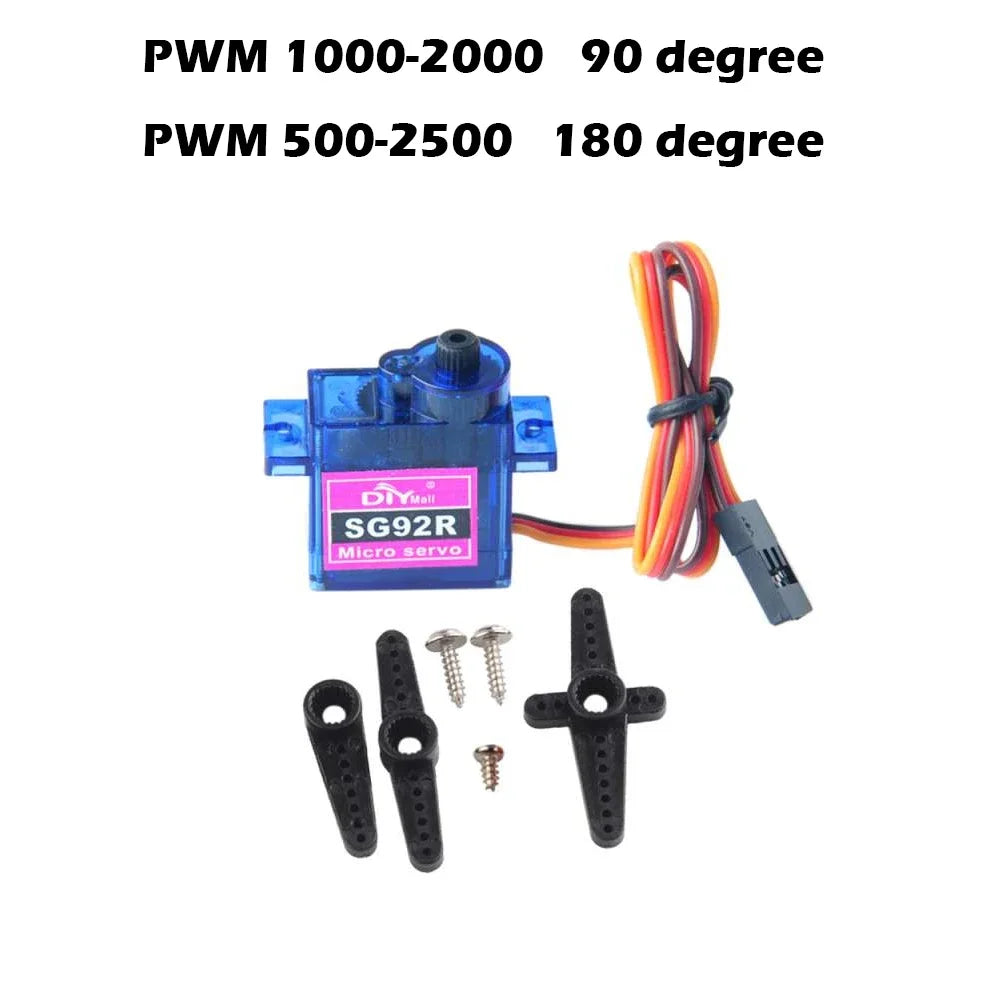

- 180 degrees and 270 degrees can control the angle, PWM 500-2500
- Can be remotely controlled 180 ° and 270 °
- If you need remote control, please contact customer service first

Package：

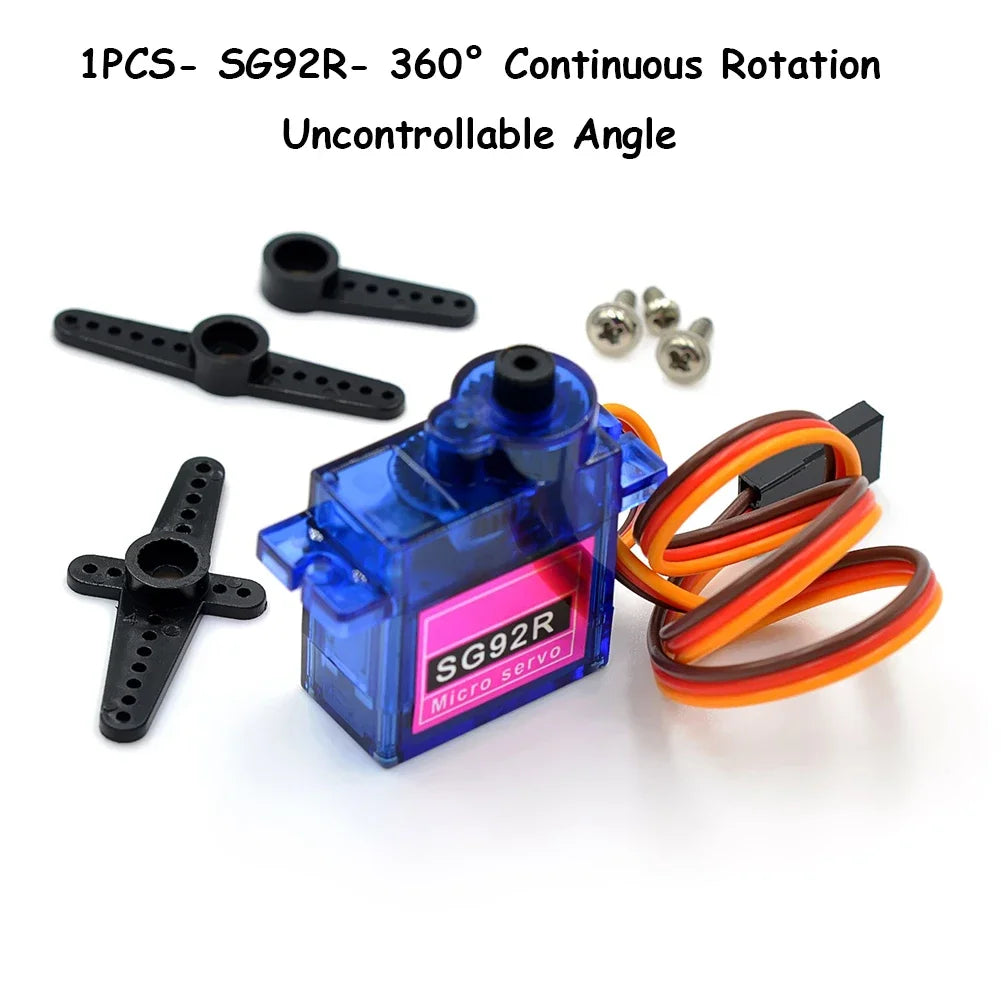

Bundle 1 1PCS- SG92R- 360° continuous rotation

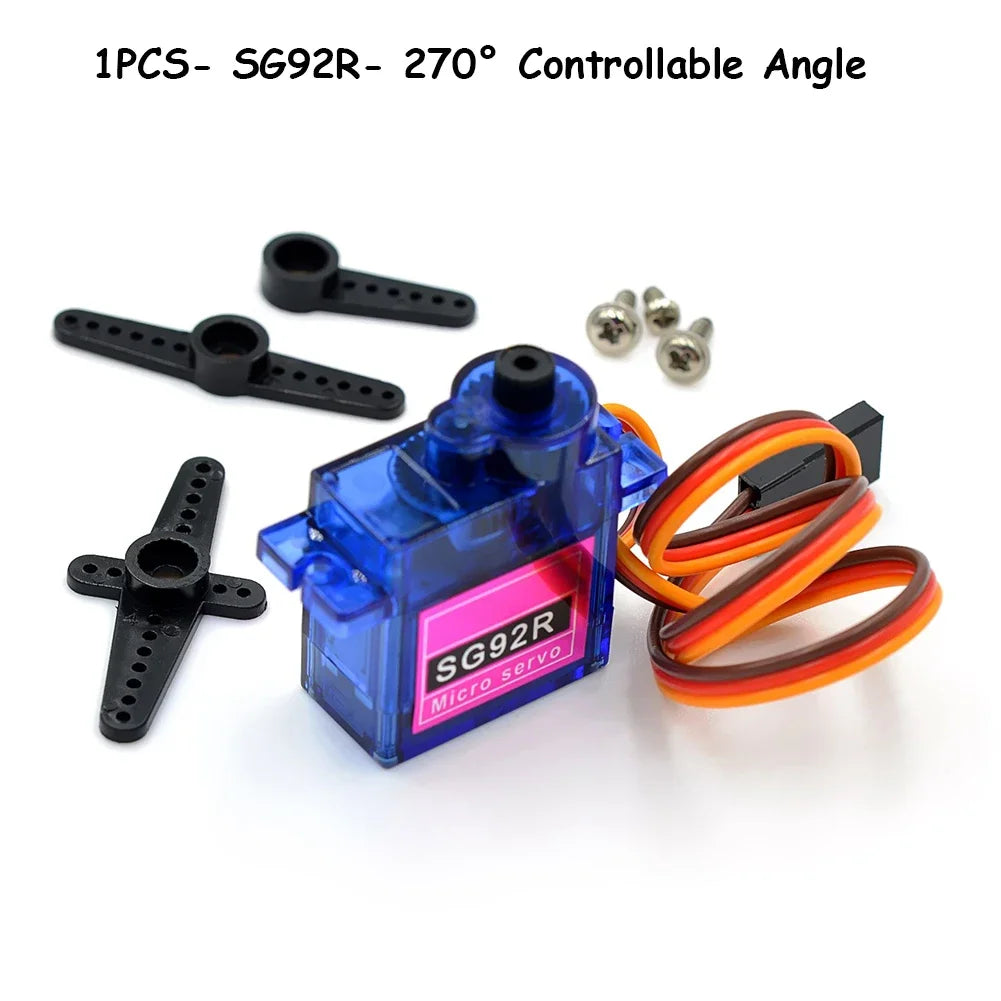

Bundle 2 1PCS- SG92R- 270° controllable angle
Bundle 3 1PCS- SG92R- 180° controllable angle
