SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: Standard

High-concerned chemical: none

Operating Temperature: Standard

Origin: Mainland China

Package: SMD

Quantity: 1

Supply Voltage: Standard

Type: Module

is_customized: Yes

semi_Choice: yes

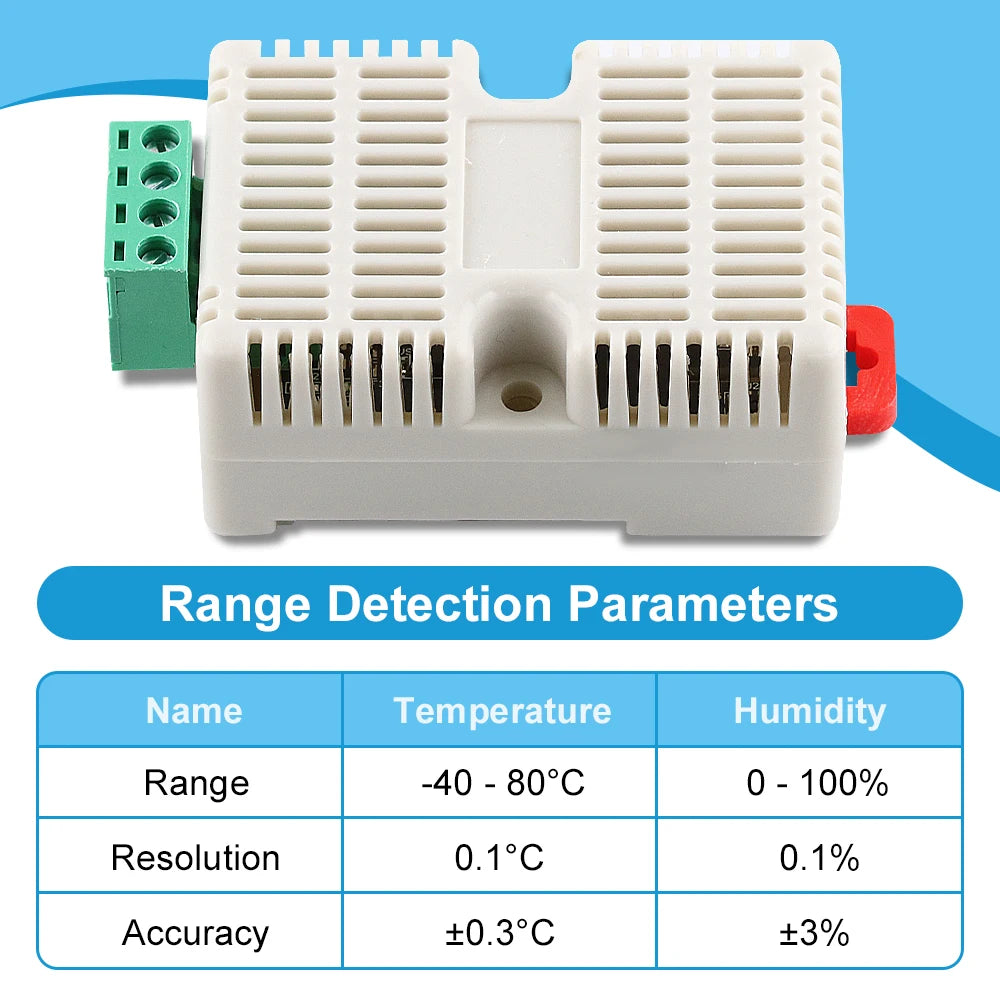

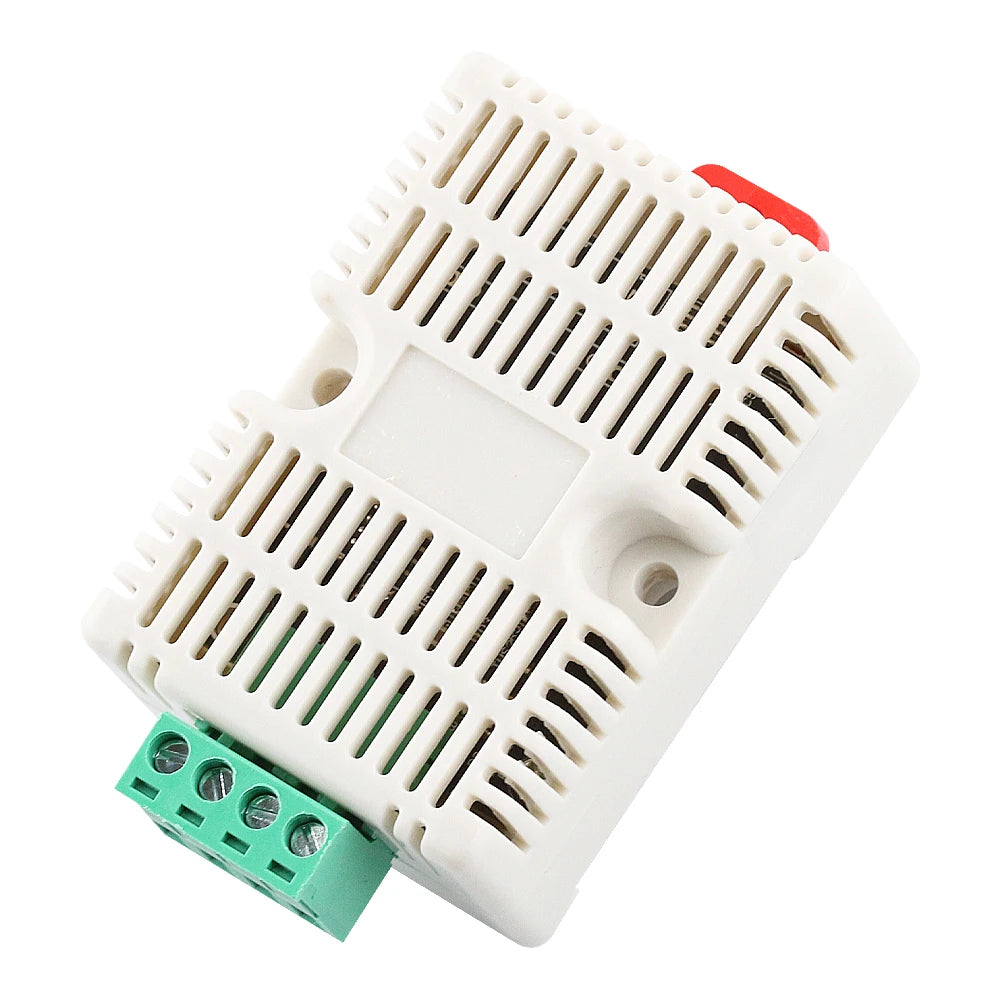

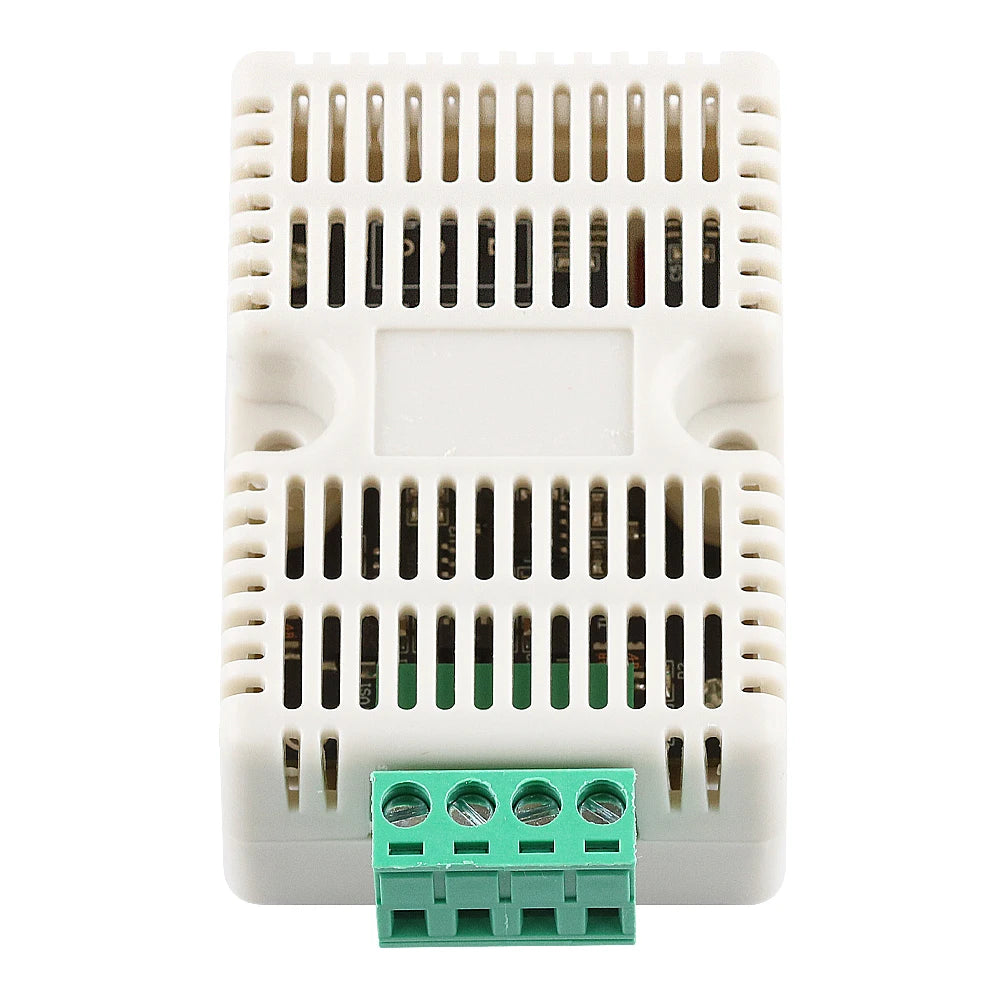

SHTC3 Temperature Humidity Sensor Module Industrial Sensors Monitor Transmitter 4Pin 35MM DIN Tracks RS485 Modbus Protocol

1. Product Overview

The transmitter is widely used in agricultural greenhouses/flower cultivation where temperature and humidity monitoring is required. The input power, induction probe and signal output of the sensor are completely isolated. Safe and reliable, beautiful appearance, easy installation.

2. Functional Characteristics

This product uses high sensitivity digital probe, signal stability, high accuracy. The utility model has the advantages of wide measuring range, good linearity, good waterproof performance, convenient use, convenient installation, long transmission distance, etc.

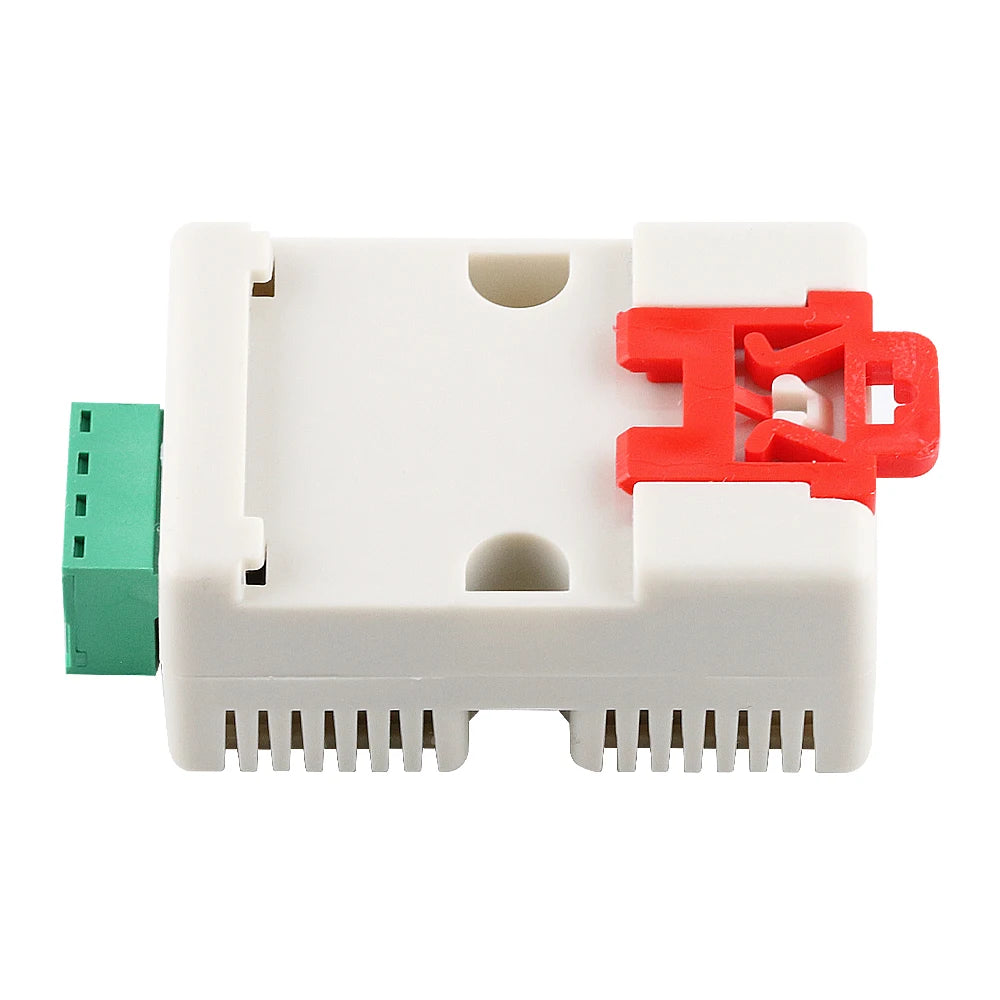

Flat Rail: 65 × 46 × 28.5 mm

3. Equipment inspection before installation

Equipment Inventory:

1 transmitter equipment

‖ USB to 485(optional)

The Certificate of Conformity and Warranty Card

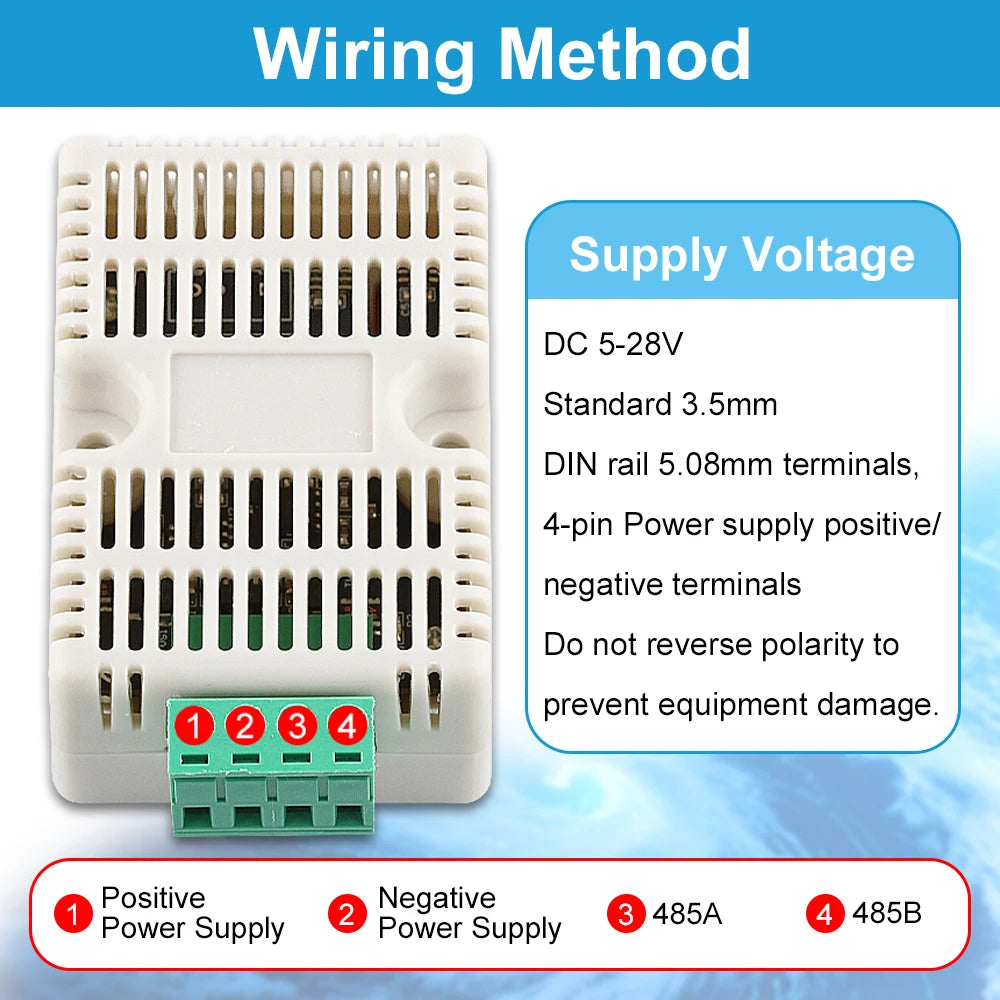

4. Interface description

Power interface for wide voltage power input 10-30V can be. 485 signal line wiring attention to A-B two lines can not be connected back, the bus address between multiple devices can not conflict.
