Silabs CP2102 USB to RJ11 6P4C Serial Debug Console Cable For PYLON-TECH LI-ON BATTERY US2000C US3000C US5000C

Silabs CP2102 USB to RJ11 6P4C Serial Debug Console Cable For PYLON-TECH LI-ON BATTERY US2000C US3000C US5000C

$77.04

$77.04 $0.00

Cable length 1.0M 5.0M 3.0M 1.8M

Description

SPECIFICATIONS

Brand Name: YIDAMA-TONGLE

Certification: CE,RoHS,UL

Choice: yes

High-concerned chemical: none

Model Number: YDM240806E

Origin: Mainland China

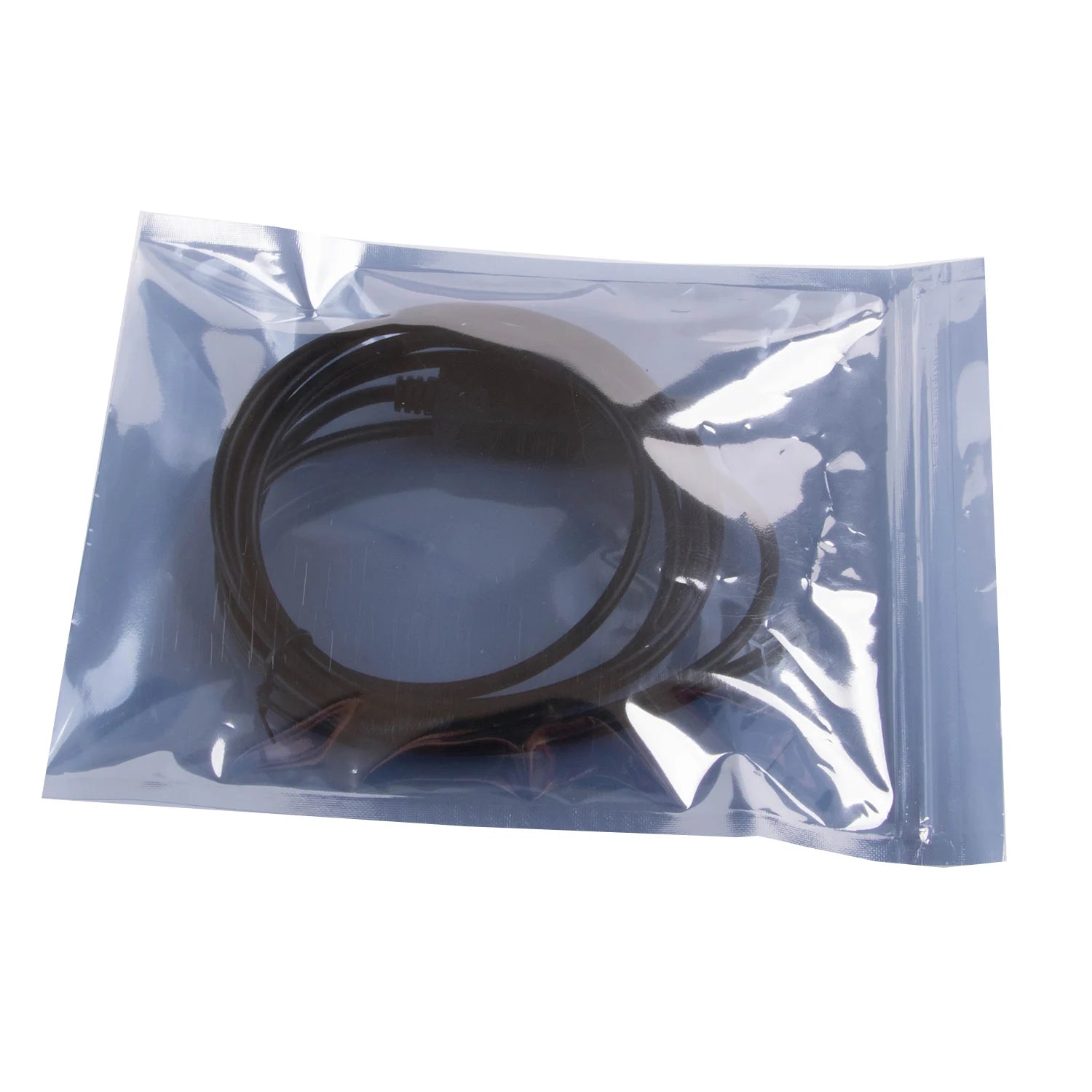

Package: Yes

Type: Serial Cable

semi_Choice: yes

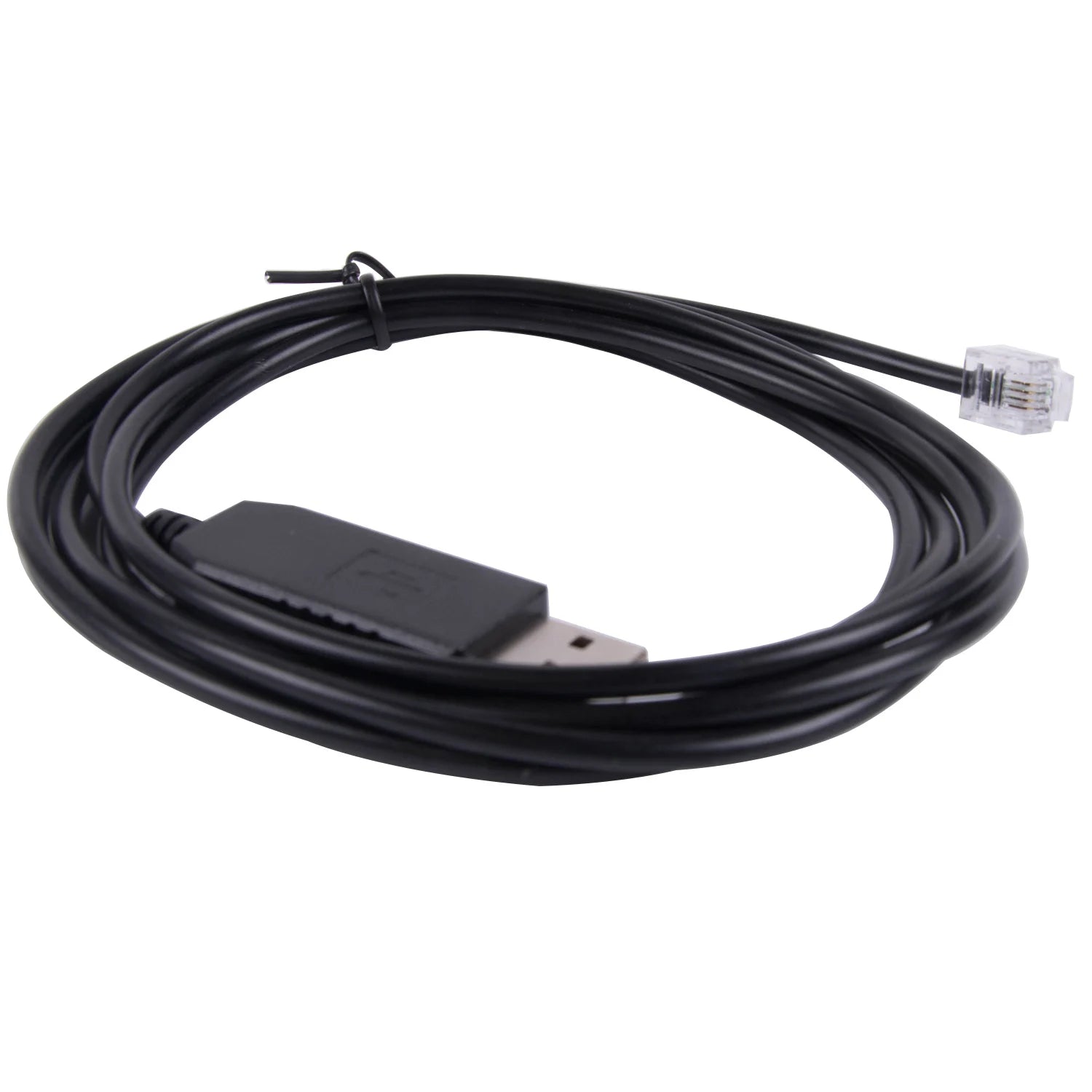

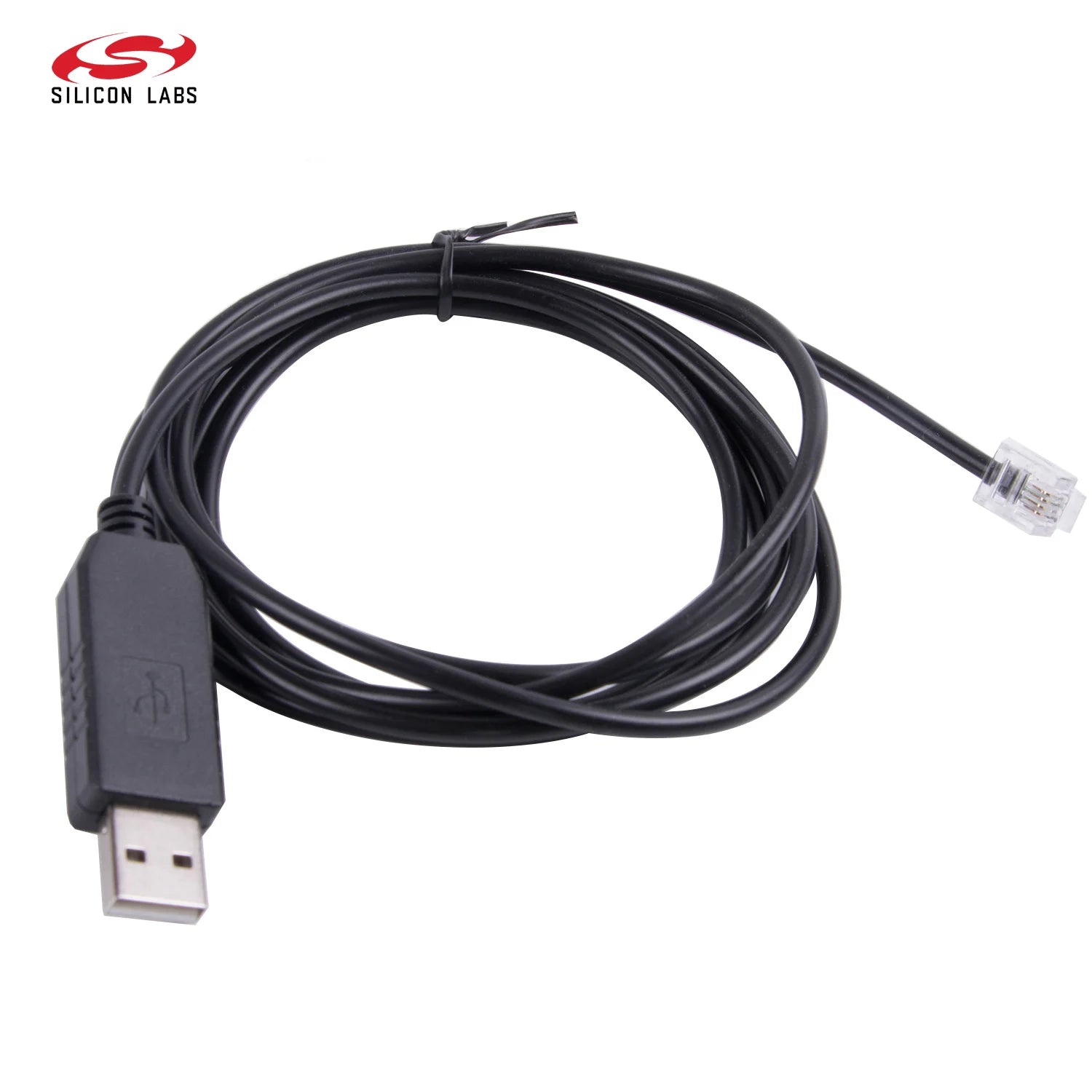

Silabs CP2102 USB to RJ11 6P4C Serial Debug Console Cable For PYLON-TECH LI-ON BATTERY US2000C US3000C US5000C

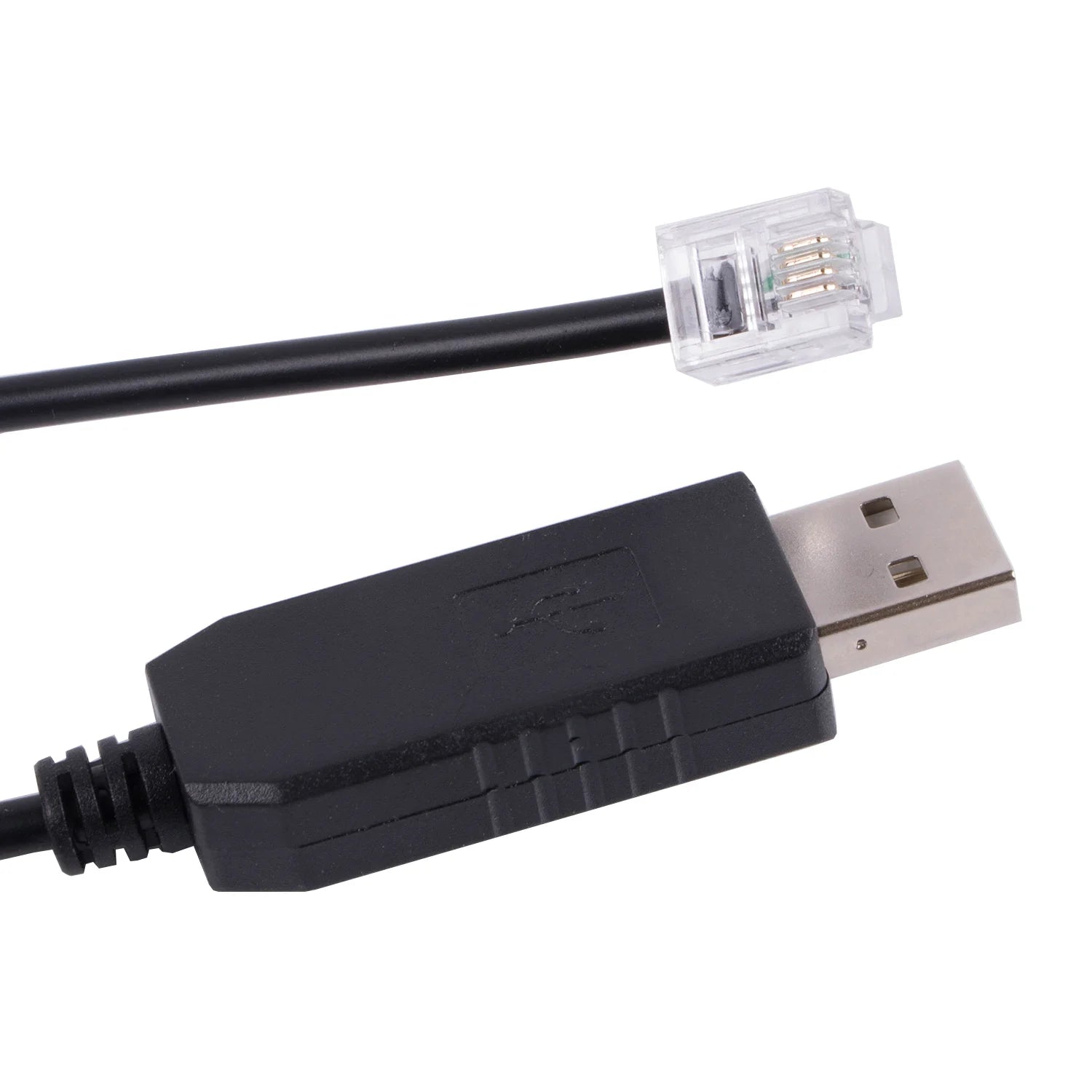

Connector A: USB 2.0 A Male

Connector B: RJ11 6P4C

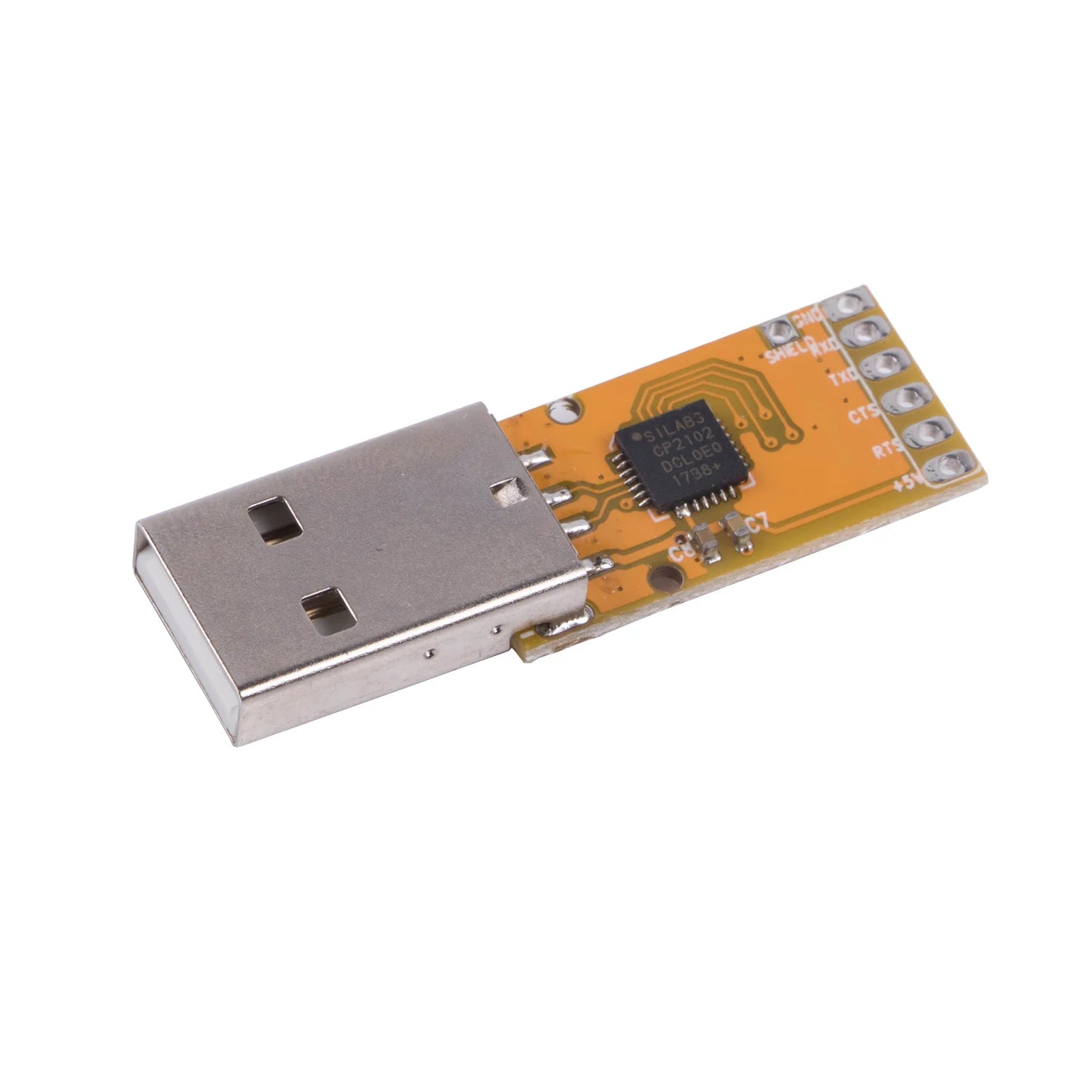

Chipset: Original CP2102 Chip , 100% Quality Guaranteed !

Serial : RS232

Wire Gauge : 28 AWG, Out Diameter: 3.5mm

PVC Jacket, Bare Copper Wires

Support Win7/8/10/XP/Android/Mac os/Linux/Vista/Wince

Support Batteryview software, Pylontech Software .

CE.ROHS Compliance

QC Inspection before Shipment

CP2102 Driver download: https://www.silabs.com/search#q=cp210x%20usb%20to%20uart%20bridge%20vcp%20drivers%20download&t=All&sort=relevancy

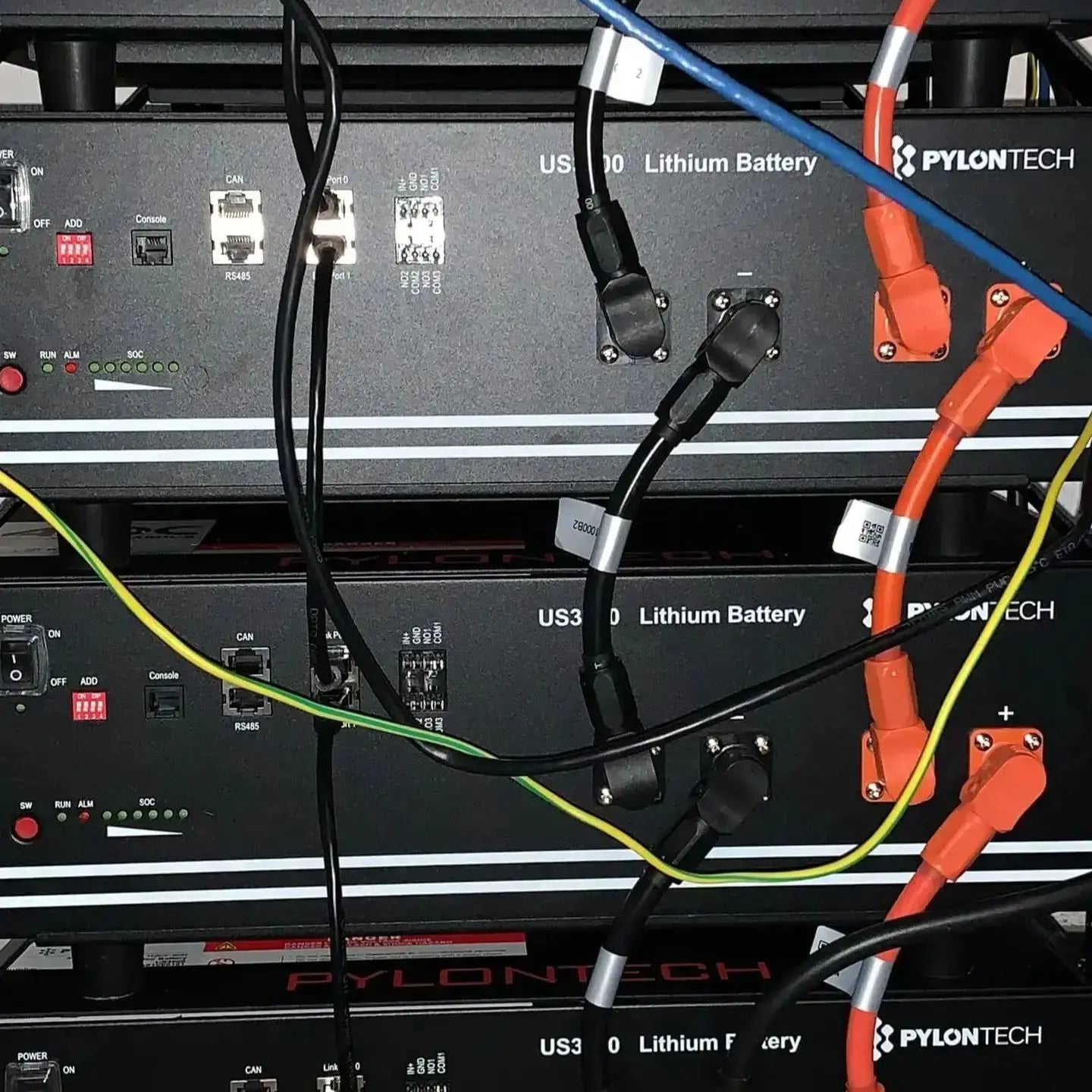

Applicaton : For Pylontech Battery US2000A/B, US3000A/B, UP2500, US2000C, US3000C, US5000

About CP2102

Single-Chip USB to UART Data Transfer

-Integrated USB transceiver; no external resistors required

-Integrated clock; no external crystal required

-Internal 1024-byte programmable ROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings

- EEPROM (CP2102)

- EPROM (One-time programmable) (CP2109)

-On-chip power-on reset circuit

-On-chip voltage regulator

- 3.3 V output (CP2102)

- 3.45 V output (CP2109)

-100% pin and software compatible with CP2101

USB Function Controller

-USB Specification 2.0 compliant; full-speed (12 Mbps)

-USB suspend states supported via SUSPEND pins

Asynchronous Serial Data BUS (UART)

-All handshaking and modem interface signals

-Data formats supported:

- Data bits: 5, 6, 7, and 8

- Stop bits: 1, 1.5, and 2

- Parity: odd, even, mark, space, no parity

-Baud rates: 300 bps to 1 Mbps

-576 Byte receive buffer; 640 byte transmit buffer

-Hardware or X-On/X-Off handshaking supported

-Event character support

-Line break transmission

Virtual COM Port Device Drivers

-Works with existing COM port PC Applications

-Royalty-free distribution license

-Windows 10/8/7/Vista/Server 2003/XP/2000

-Mac OS-X/OS-9

-Linux

USBXpress™ Direct Driver Support

-Royalty-Free Distribution License

-Windows 7/Vista/XP/Server 2003/2000

-Windows CE

Example Applications

-Upgrade of RS-232 legacy devices to USB

-Cellular phone USB interface cable

-USB interface cable

-USB to RS-232 serial adapter

Supply Voltage

-Self-powered: 3.0 to 3.6 V

-USB bus powered: 4.0 to 5.25 V

CP2102 USB to UART Bridge VCP Drivers

The CP210x USB to UART Bridge Virtual COM Port (VCP) drivers are required for device operation as a Virtual COM Port to facilitate host communication with CP210x products. These devices can also interface to a host using the direct access driver. These drivers are static examples detailed in application note 197: The Serial Communications Guide for the CP210x, download an example below:

AN197: The Serial Communications Guide for the CP210x

Download Software

The CP210x Manufacturing DLL and Runtime DLL have been updated and must be used with v6.0 and later of the CP210x Windows VCP Driver. Application Note Software downloads affected are AN144SW.zip, AN205SW.zip and AN223SW.zip. If you are using a 5.x driver and need support you can download archived Application Note Software.

Windows 7/8/8.1/10 (v6.7.3) »

Windows XP/Server 2003/Vista/7/8/8.1 (v6.7) »

Windows 2K (v6.3a) »

WinCE »

Macintosh OSX (v4) »

Linux »

Android »

Download for Windows 7/8/8.1/10 (v6.7.3)
