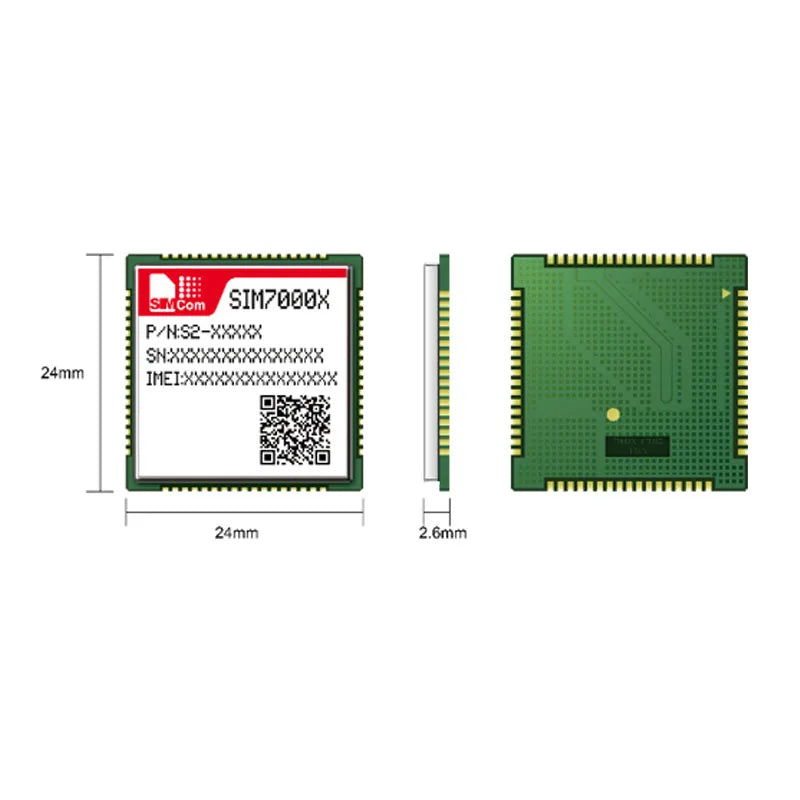

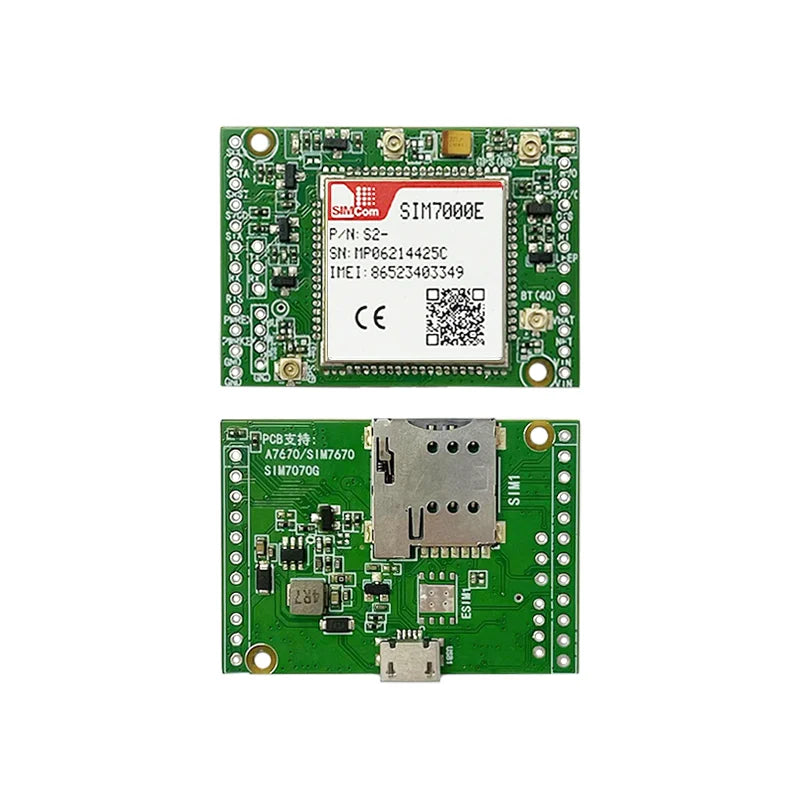

SIM7000E SIM7000G Core Board 24*24mm LPWA IOT Module Dual-row Pin LPWA+NBIOT+CATM+GPS Development Board Kit With Antenna

SIM7000E SIM7000G Core Board 24*24mm LPWA IOT Module Dual-row Pin LPWA+NBIOT+CATM+GPS Development Board Kit With Antenna

$33.96

$33.96 $0.00

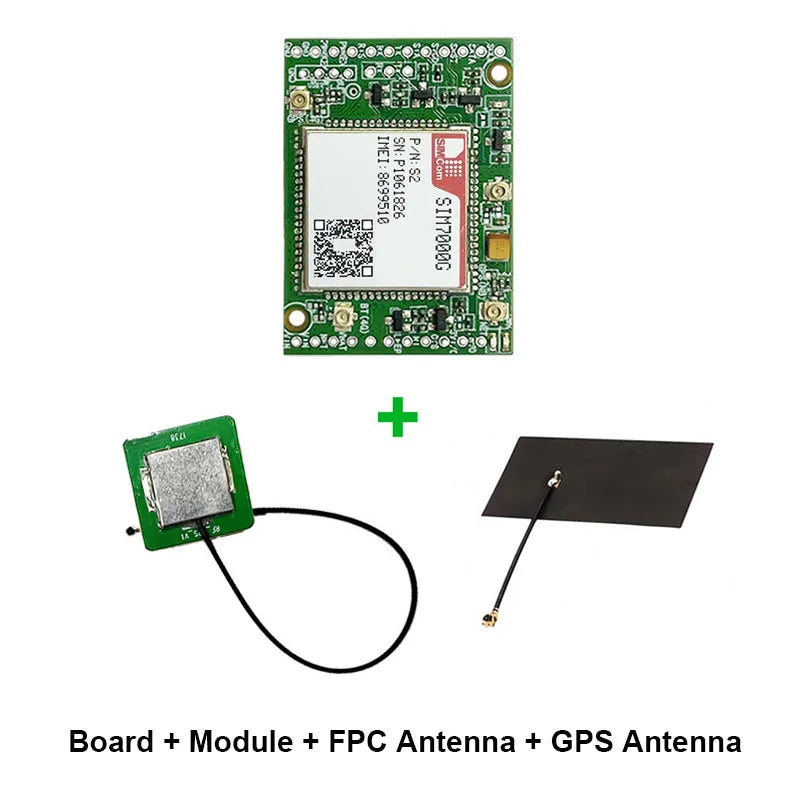

Color only board no module with module FPC GPS

Model Number SIM7000E SIM7000G

Ships FromChina Mainland

Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Operating Temperature: -40℃-85℃

Origin: Mainland China

Quantity: 1

Supply Voltage: USB 5-16V DC

Type: Core Board

is_customized: Yes

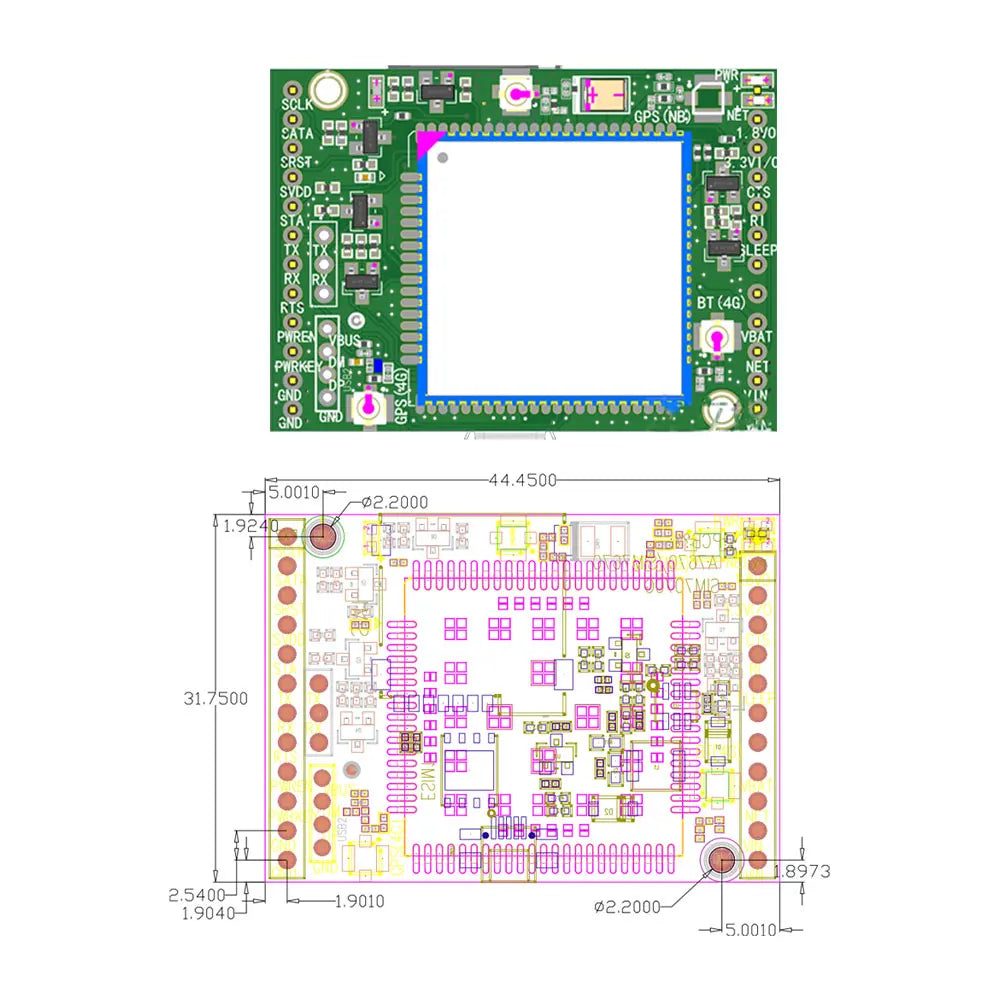

size(mm): 44.45*31.75*12.44(Including pin height)

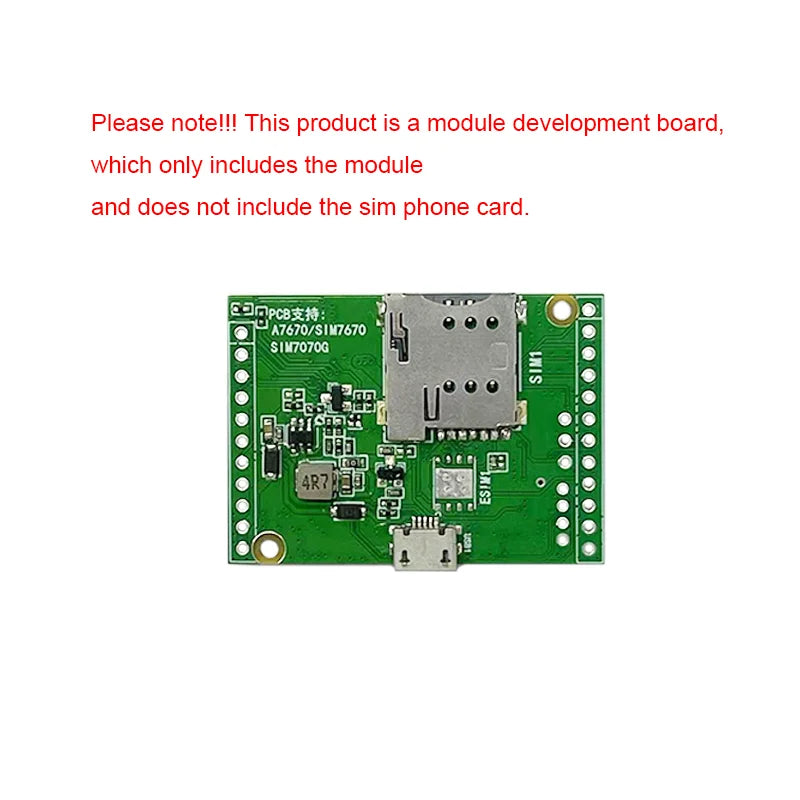

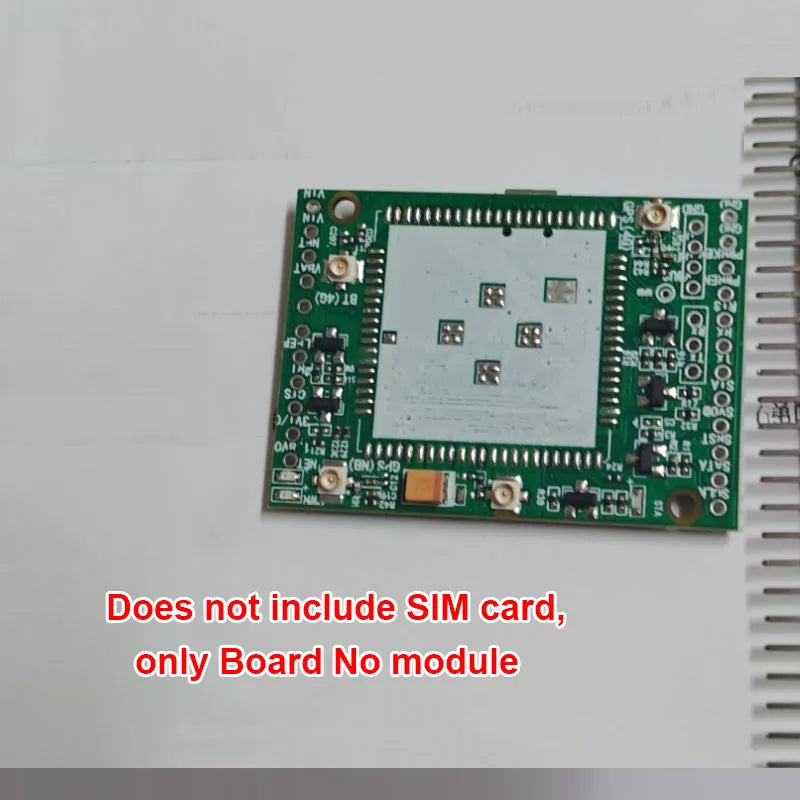

Please note!!! This product is a module development board, which only includes the module and does not include the sim phone card.

The module suffix indicates the applicable country.

SIMCOM

G (Global) E(Europe/Middle East/Africa) NA (North America) C(China)

JC(Japan) SA(New Zealand/Australia/South America)

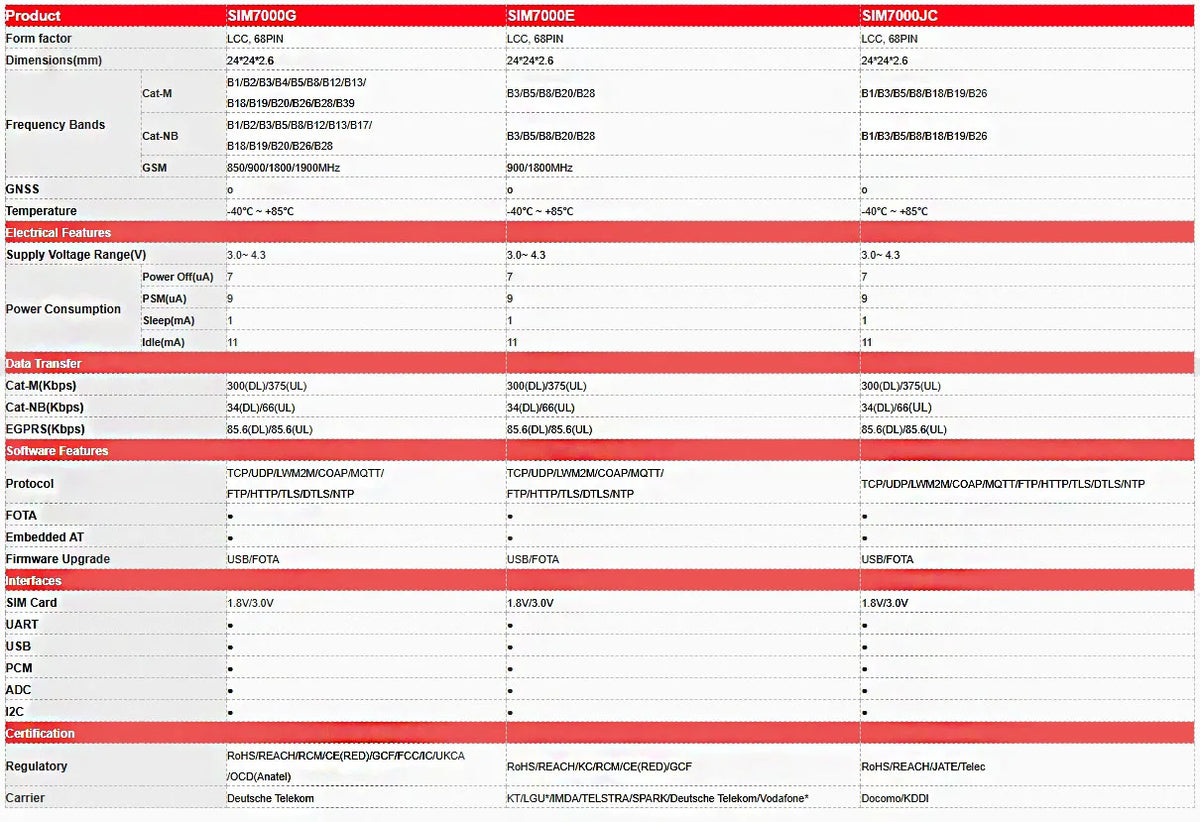

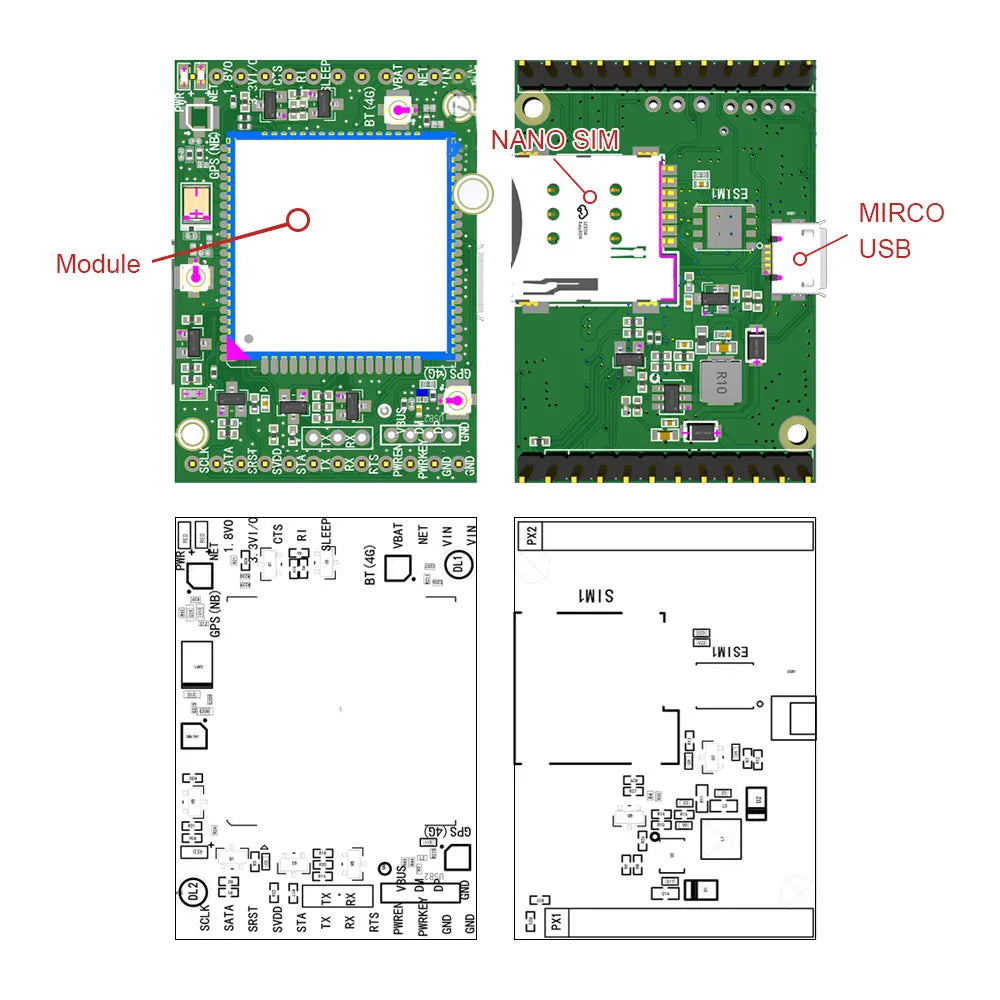

Project	Description
Product Name	LPWA Core Board
Model	CC-MCore-SIM7000E
Package	23PIN(2.54mm)
Power	USB 5-16V DC
UART	3.3-4.3V TTL (Default)
Antenna interface	IPEX 1
SIM Card	MIRCO SIM
LED	Power/Network light
USB	Y
SIZE	44.4531.7512.44(Including pin height)
Operating temperature	-40℃-85℃
Network Band	Cat-M: B3/B5/B8/B20/B28 Cat-NB:B3/B5/B8/B20/B28 GSM:900/1800MHz
Network speed	Cat-M(Kbps) 300(DL)/375(UL) Cat-NB(Kbps) 34(DL)/66(UL) EGPRS(Kbps) 85.6(DL)/85.6(UL)
Network protocol	TCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS /PING/LWM2M/COAP/MQTT

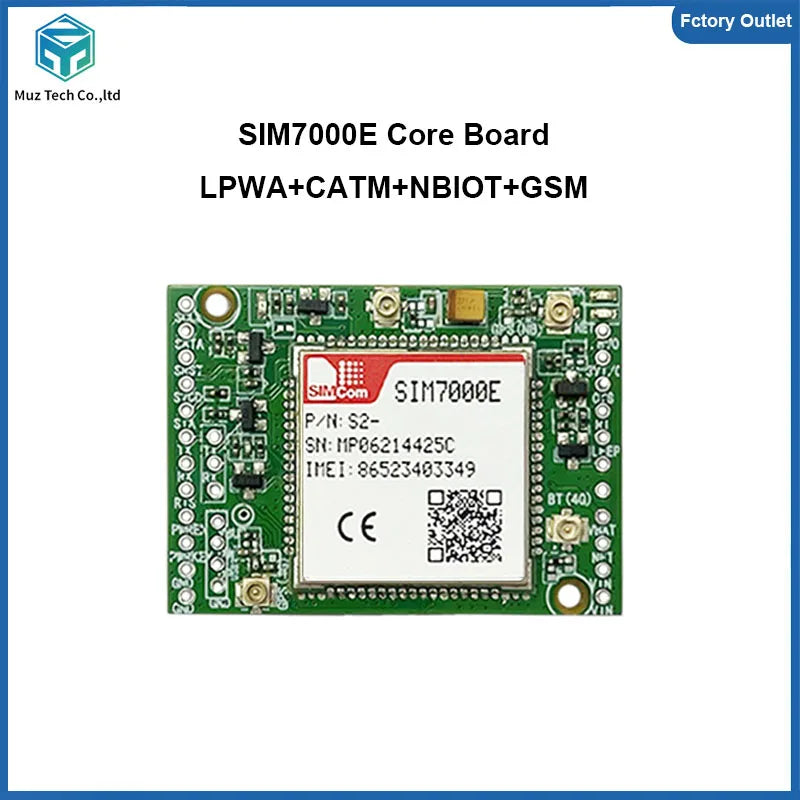

Function	LPWA+CATM+NBIOT+GSM

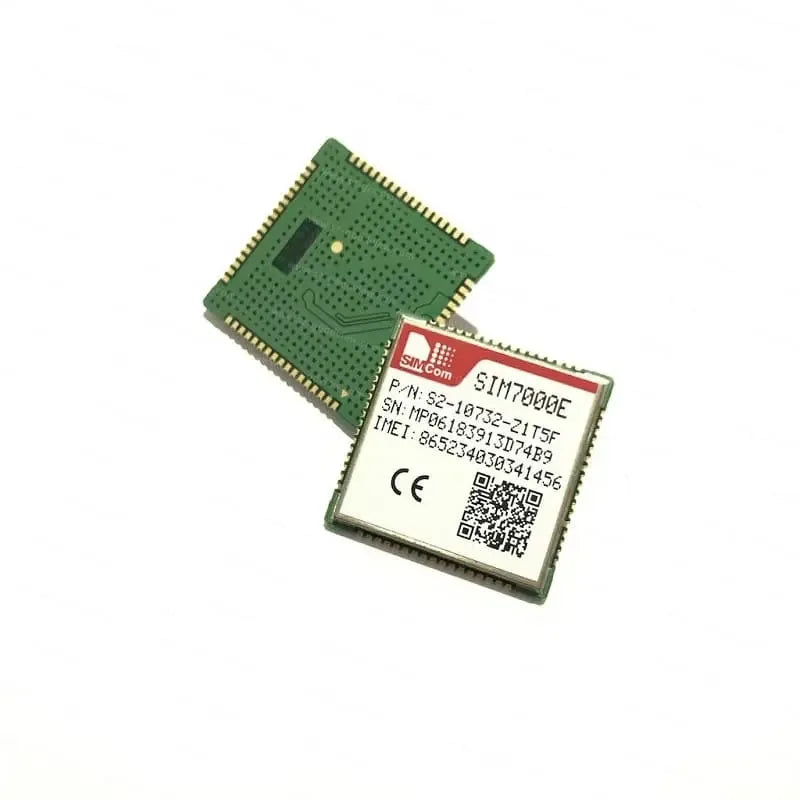

Cat-M/NB-IoT/GSM

The SIM7000 series has powerful expansibility with abundant interfaces including UART, GPIO, PCM, I2C etc. The SIM7000 series is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.

Advantages

1. With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), the SIM7000 series can extend battery life to 10 years

2. SIM7000 series provides deeper coverage enhancement compared to GSM

3. The form factor and AT commands of the SIM7000 series are compatible with SIM900 and SIM800F

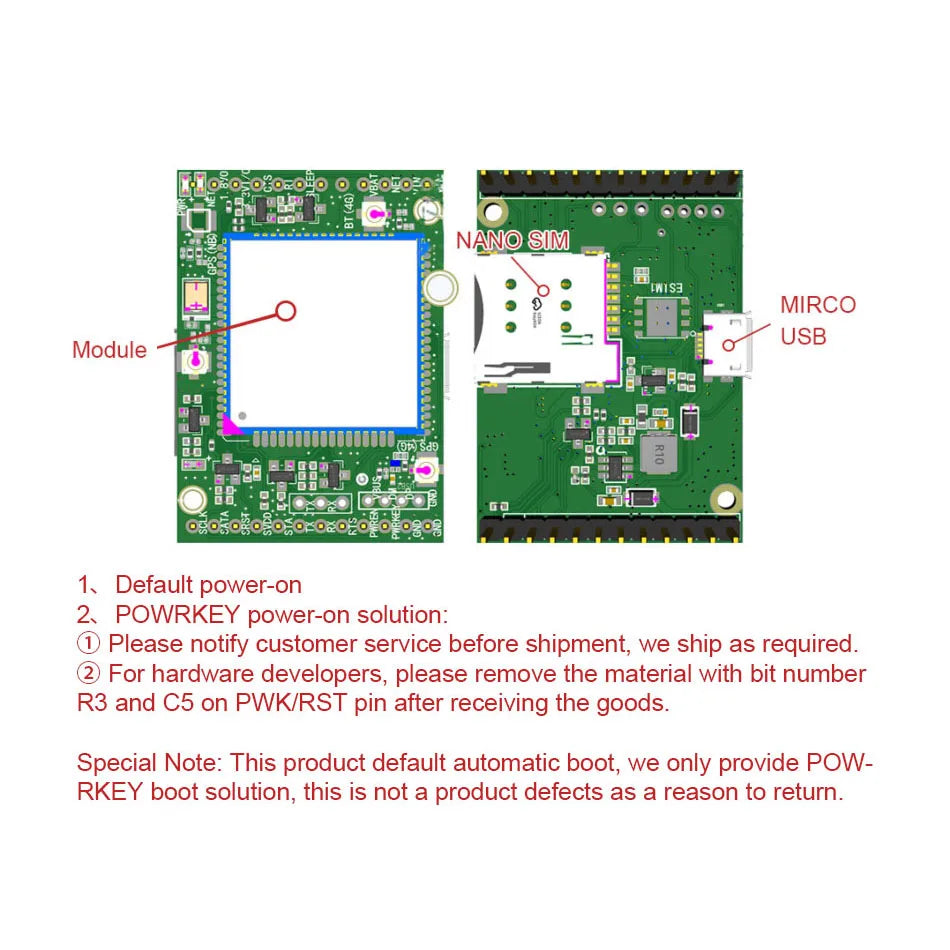

1. Default power-on

2. POWRKEY power-on solution:

(1) Please notify customer service before shipment, we ship as required.

(2) For hardware developers, please remove the material with bit numberR3 and C5 on PWK/RST pin after receiving the goods.

Special Note: This product default automatic boot, we only provide POWRKEY boot solution, this is not a product defects as a reason to return.

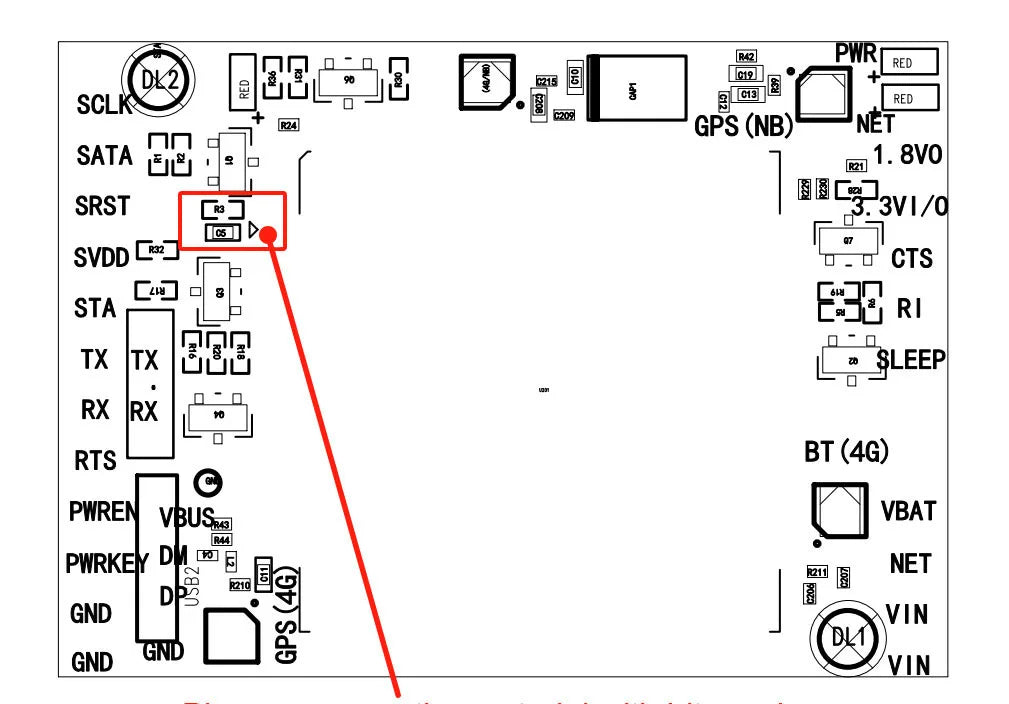

Please remove the material with bit number R3 and C5 short 3.3V on PWK/RST pin.
