SIM7028 SIM7022 SIM7020E SIM7020G SIM7080G Module Core Board Low Power Global Band IoT Core Board for Asset Tracking
$132.48
Sale price
$132.48
Regular price
$0.00
Description

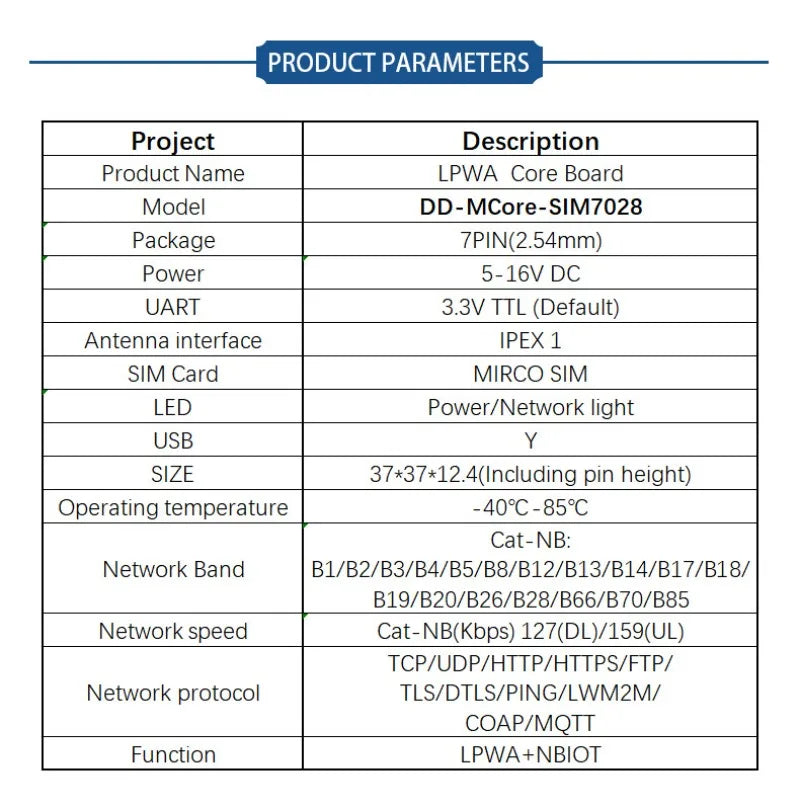

SPECIFICATIONS
Brand Name: NONE
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Module

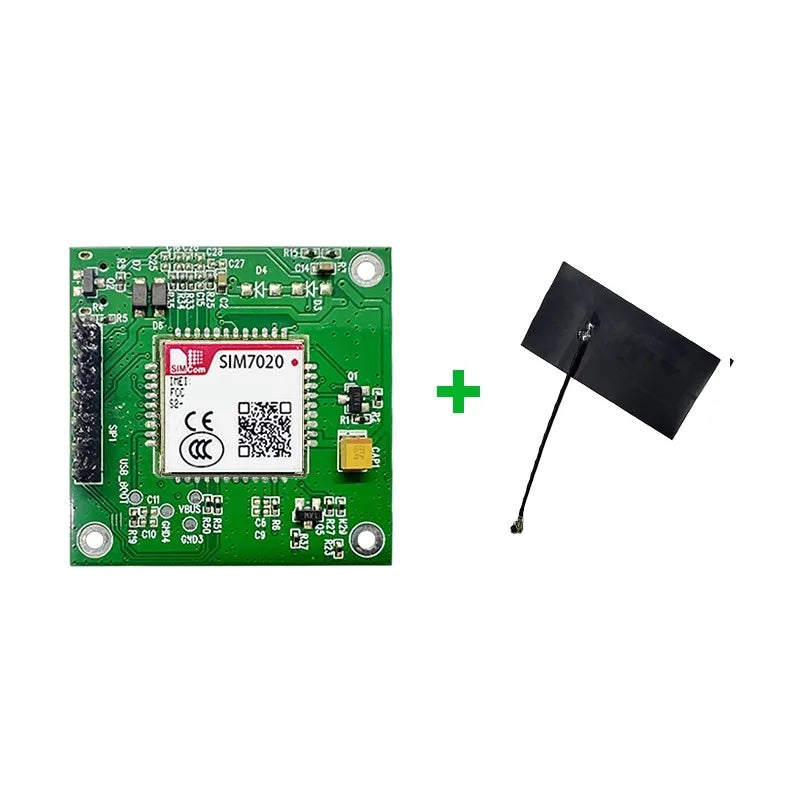

The SIM7020 is Multi-Band NB-IoT module solution in a SMT type .
It has strong extension capability with rich interfaces including UART, GPIO etc. The module provides much flexibility and ease of integration for customer's application.
The package of SIM7020 is compatible with SIM800C. This also minimizes the investments of customers, and enables a short time-to-market.
It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..
Key Benefits
● With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7020 can extend battery life to 10 years
● SIM7020 provides deeper coverage enhancement compared to GSM
● The package and AT commands of SIM7020 mostly are compatible with SIM800C.
|
General features
• SIM7020C: B1/B3/B5/B8
• SIM7020E: B1/B3/B5/B8/B20/B28
• Control Via AT Commands
• Supply voltage range: 2.1V-3.6V
• Operation temperature: -40°C to +85°C
• Dimensions: 17.6 X 15.7 X 2.3mm
• Weight: 1.3g±0.2g
Data
• Uplink: 62.5Kbps
SMS
• Downlink:26.15Kbps
• Text and PDU mode
Consumption
• PSM: 5 uA
* In development
|
Other Features
• Firmware update via UART
• TCP/UDP
• LWM2M/COAP*
• MQTT
• FTP/HTTP/HTTPS*/SSL*/DTLS*
• FOTA *
• PSM/eDRX
Interfaces
• UART
• SIM card (1.8V/3V) GPIO
• ADC
• Netlight
• PSM_EINT
• Reset
• Powerkey
Certifications(plan)
• CCC / TA / CTA (SIM7020C)
• CE/GCF (SIM7020E)
• RoHS / REACH
|
|
|

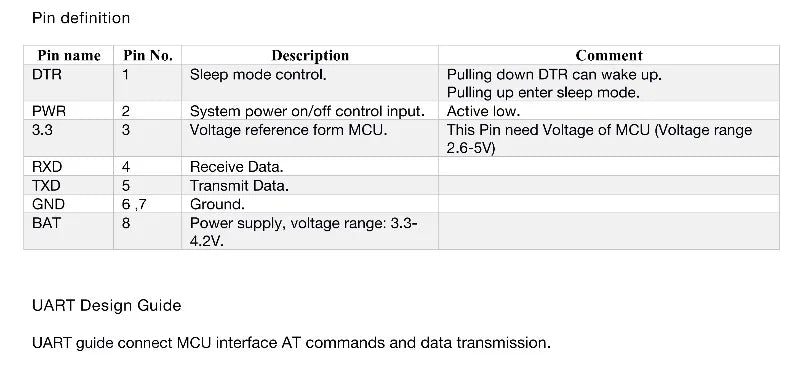

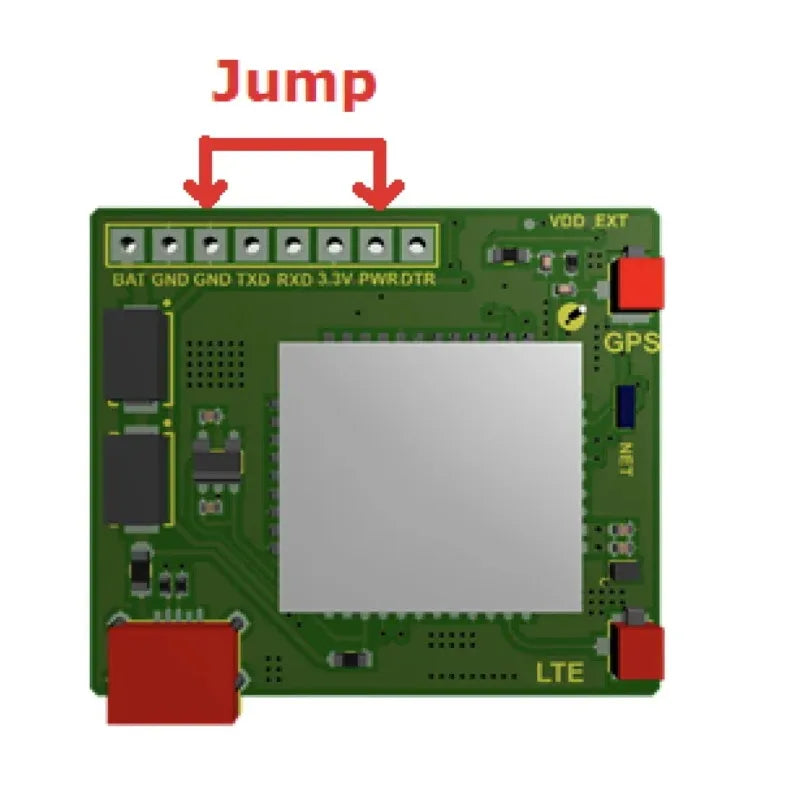

Please short circuit the PWR and GND (like below picture) to boot the board after connecting the computer.

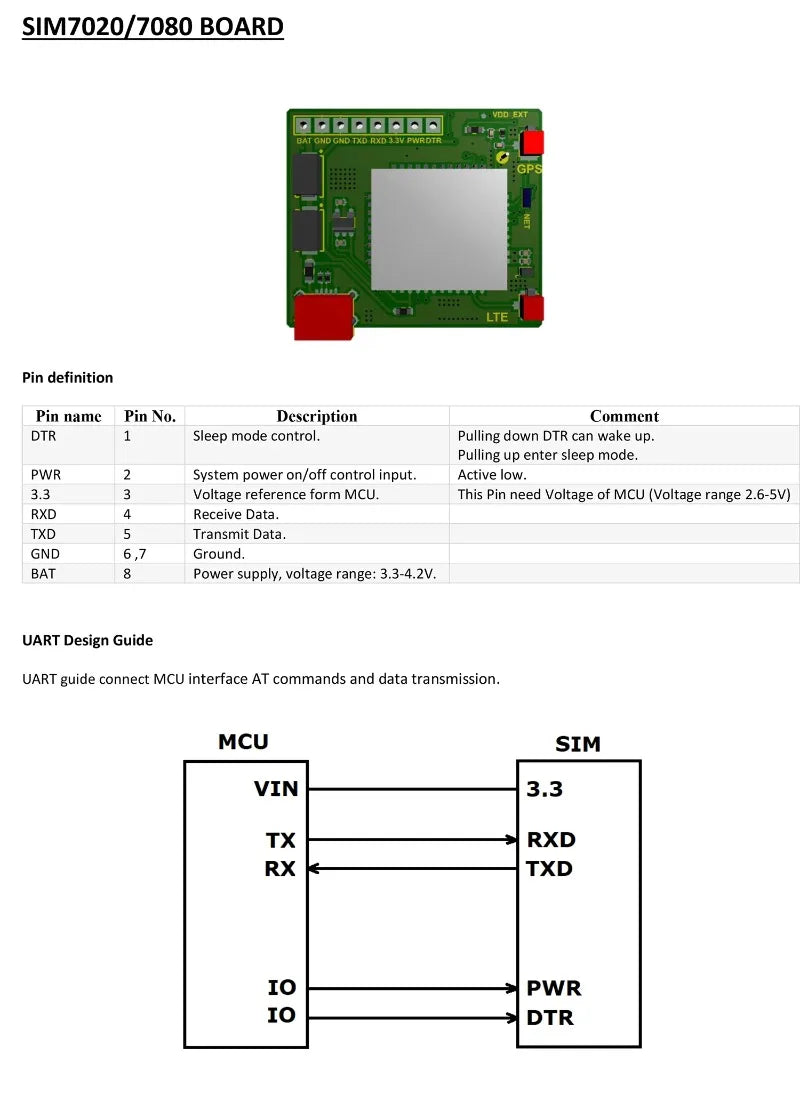

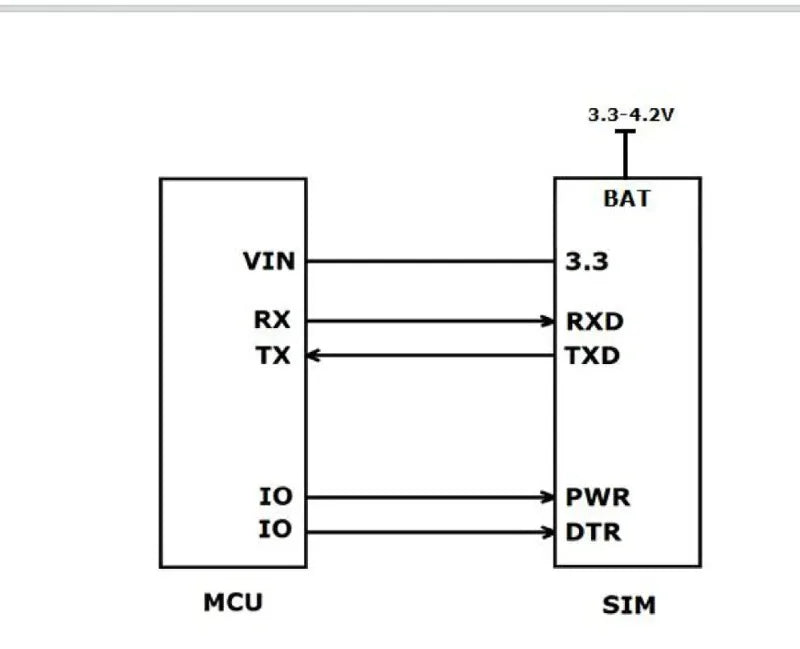

if using UART connecting,
UART- SIM Board
GND-GND
VIN-3.3
RXD-XD
TXD-XD
BAT PIN need voltage 3.3-4.2V
