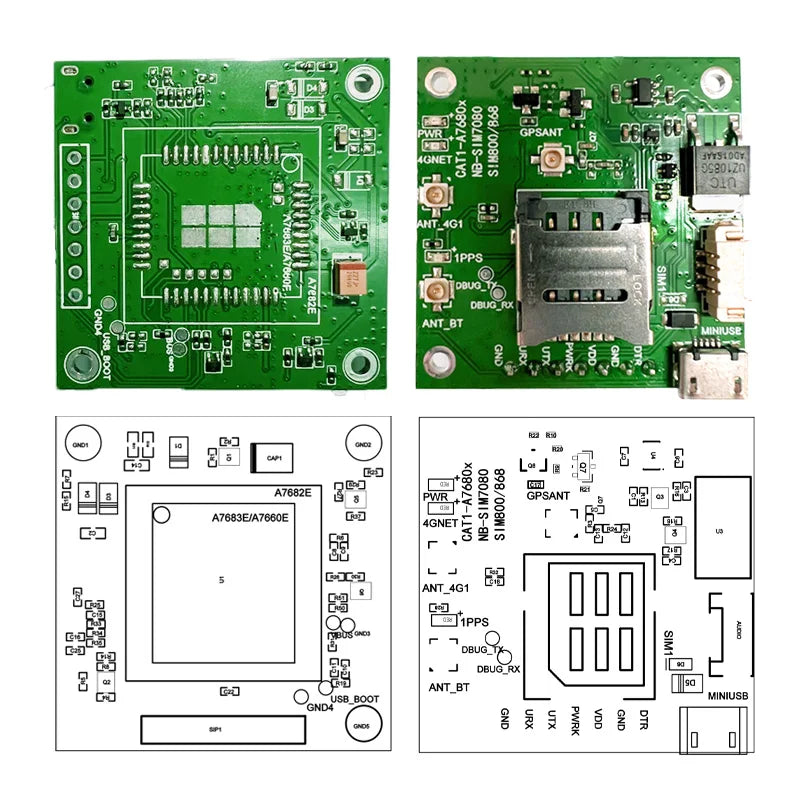

SIM7080G Core Board Multi-Band LPWA Module NBIOT CATM Module IoT Communication Development Board Breakout Kit with Antenna

SIM7080G Core Board Multi-Band LPWA Module NBIOT CATM Module IoT Communication Development Board Breakout Kit with Antenna

$92.92

$92.92 $0.00

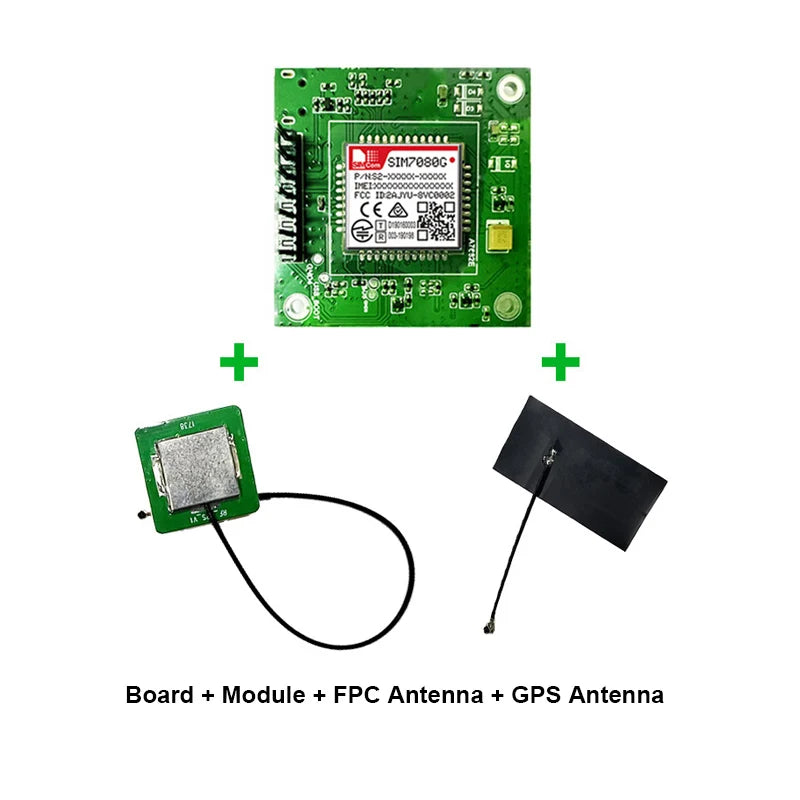

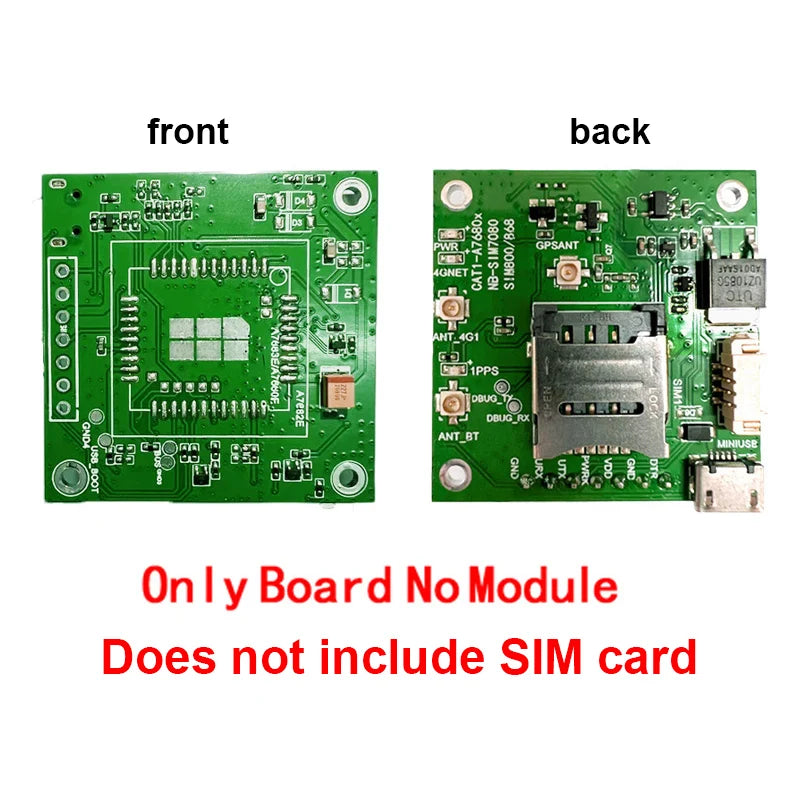

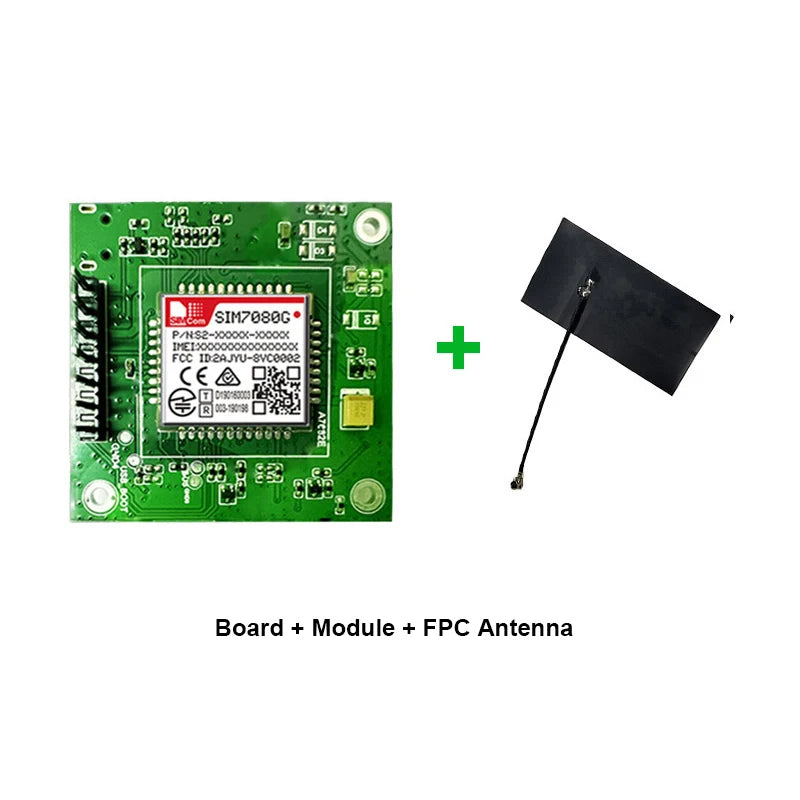

Color with FPC Antenna SIM7080G Core Board Only Board No Module with FPC GPS Antenna SIM7080G Module

Ships FromChina Mainland

Description

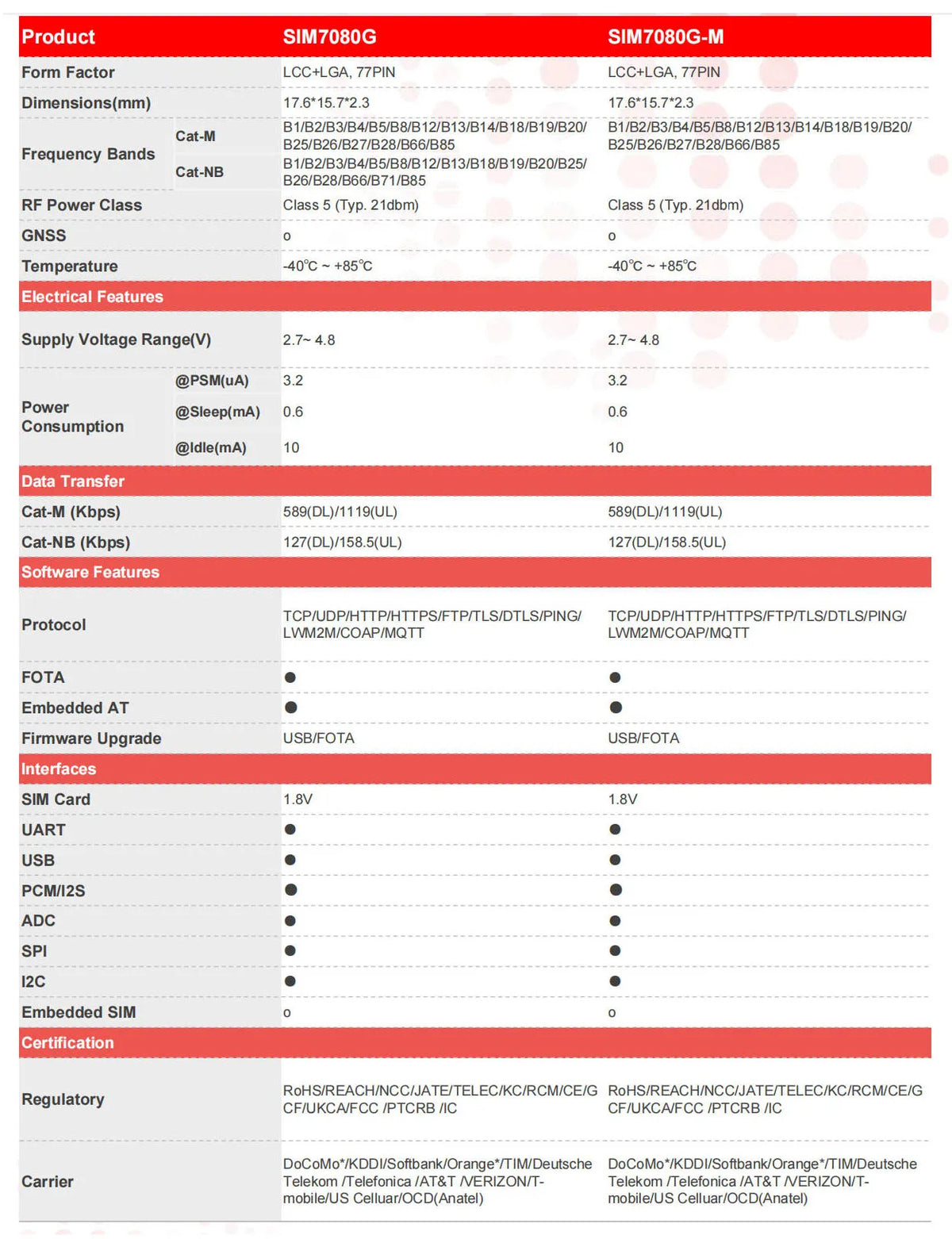

SPECIFICATIONS

Board size: 37*37*12.4(including pin height)

Brand Name: NONE

Condition: New

High-concerned chemical: none

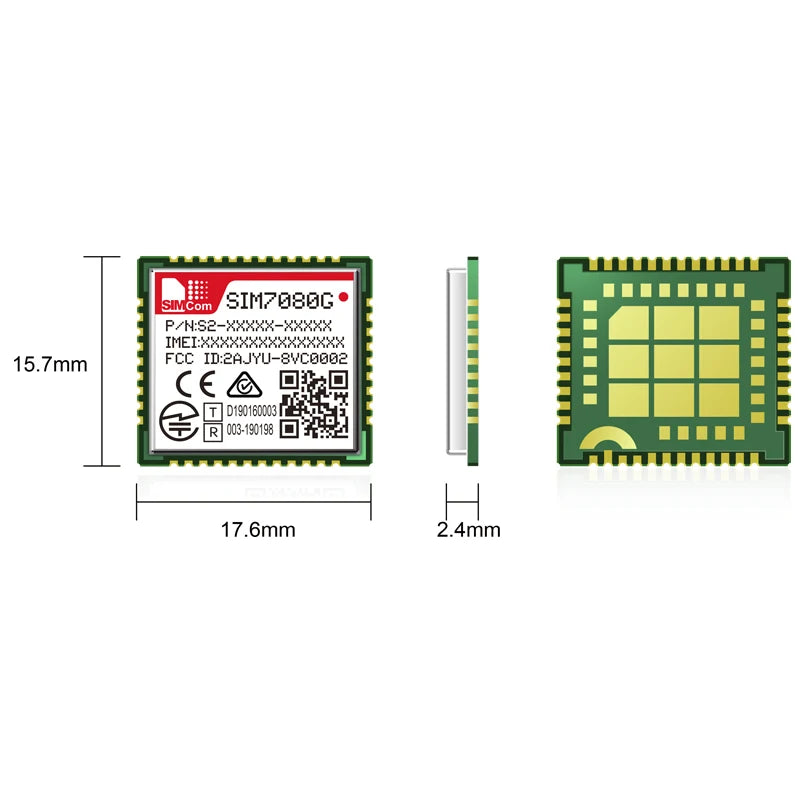

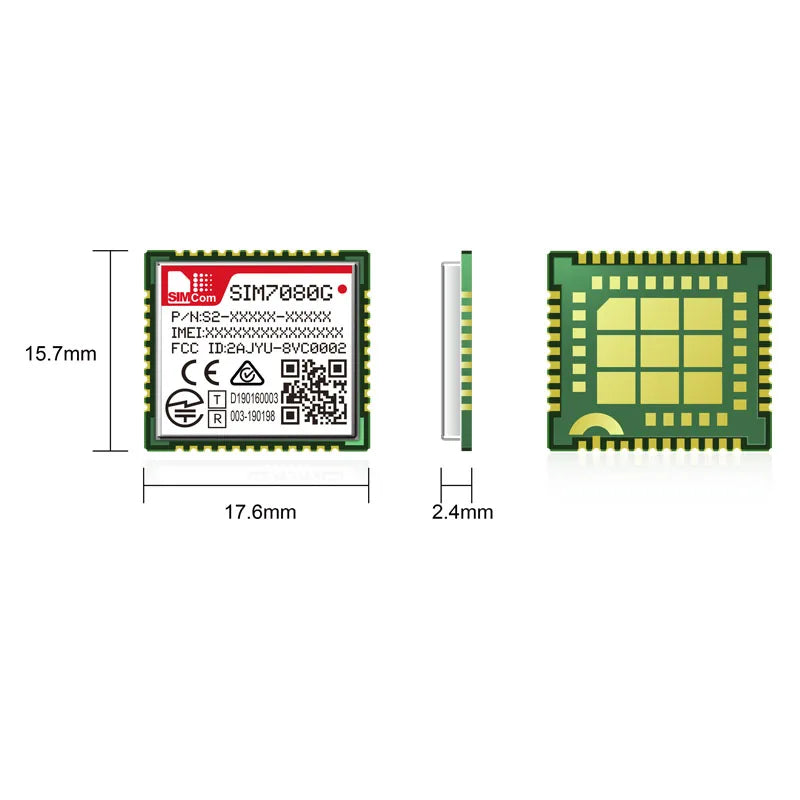

Module size: 17.6*15.7*2.3

Operating Temperature: -40℃-85℃

Origin: Mainland China

RF Power Class: Class 5 (Typ. 21dbm)

Supply Voltage: 2.7~ 4.8

Type: Core Board

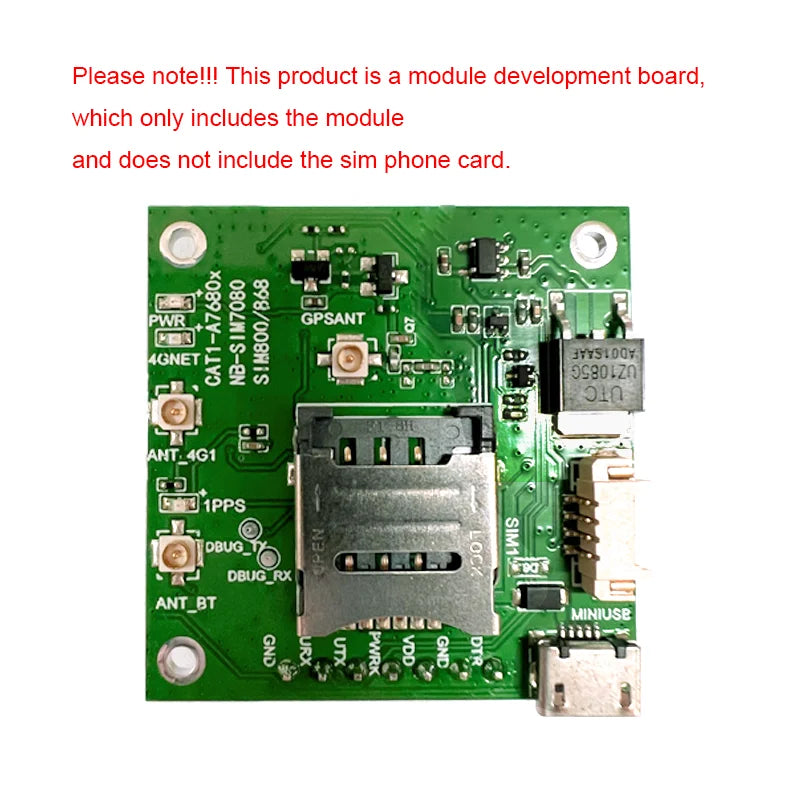

Please note!!! This product is a module Core board, which only includes the module and does not include the sim phone card.

The module suffix indicates the applicable country.

SIMCOM

G (Global) E(Europe/Middle East/Africa) NA (North America) C(China)

JC(Japan) SA(New Zealand/Australia/South America)

Project	Description

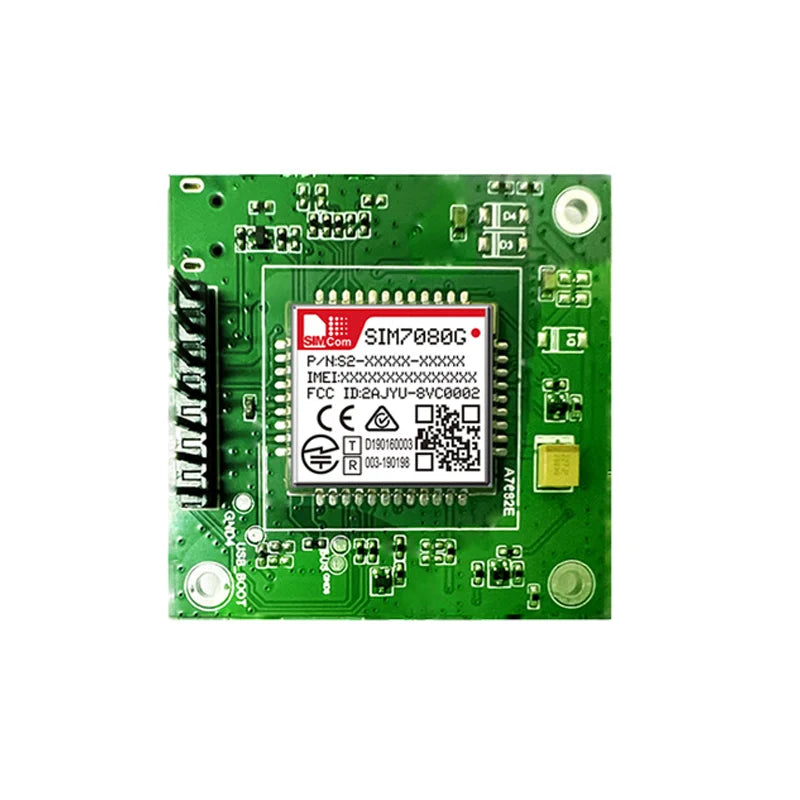

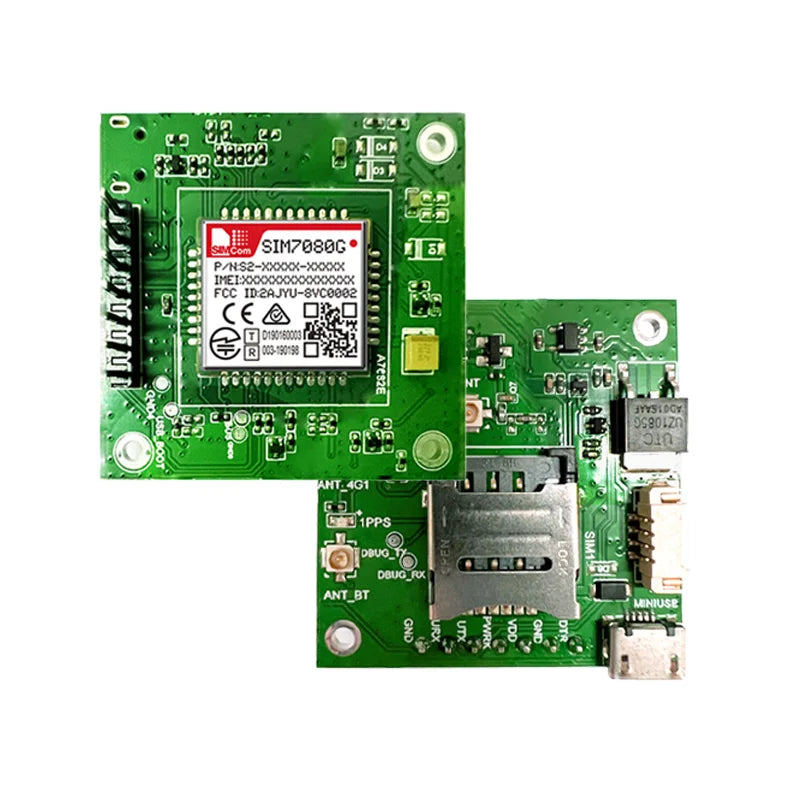

Product Name	LPWA Core Board
Model	DD-MCore-SIM7080G

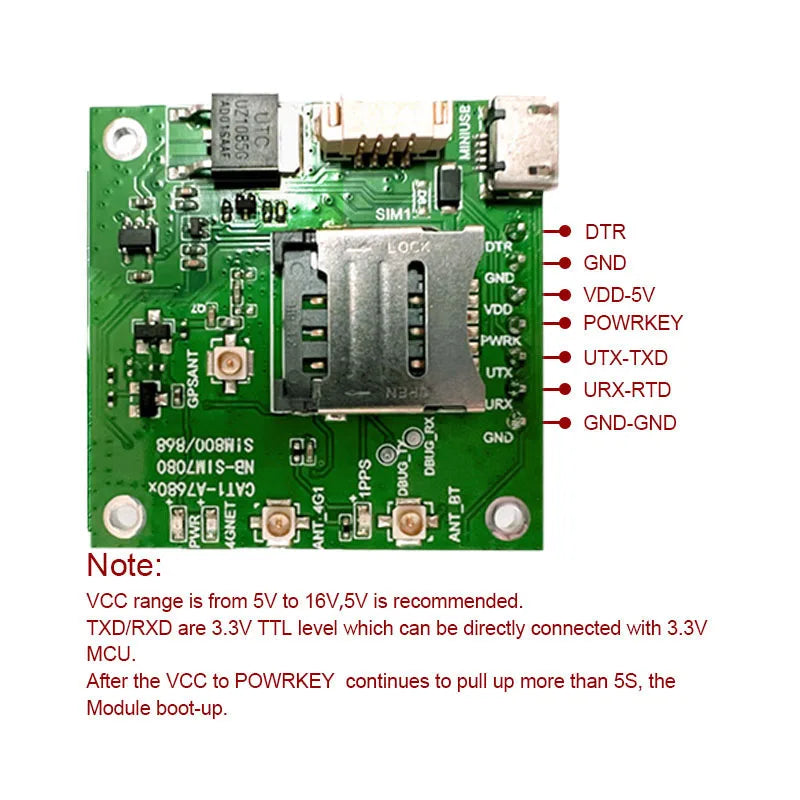

Package	7PIN(2.54mm)
Power	5-16V DC
UART	3.3V TTL (Default)
SIM Card	MIRCO SIM
LED	Power/Network light
USB	Y
SIZE	373712.4(including pin height)
Operating temperature	-40℃-85℃
Network Band	Cat-M:B1/B2/B3/B4/B5/B8/B12/B13/B14 /B18/B19B20/B25/B26/B27/B28/B66/B85 Cat-NB: B1/B2/B3/B4/B5/B8/B12/B13/B25 /B18/B19/B20/B26/B28/B66/B71/B85 GSM: 850/900/1800/1900MHz
Network speed	Cat-NB(Kbps)127(DL)/158.5(UL) CAT-M(Kbps) 589(DL)1119(UL)
Network protocol	TCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS /PING/LWM2M/COAP/MOTT
Function	LPWA+NBIOT+CATM

AT-M&NB-IoT Module

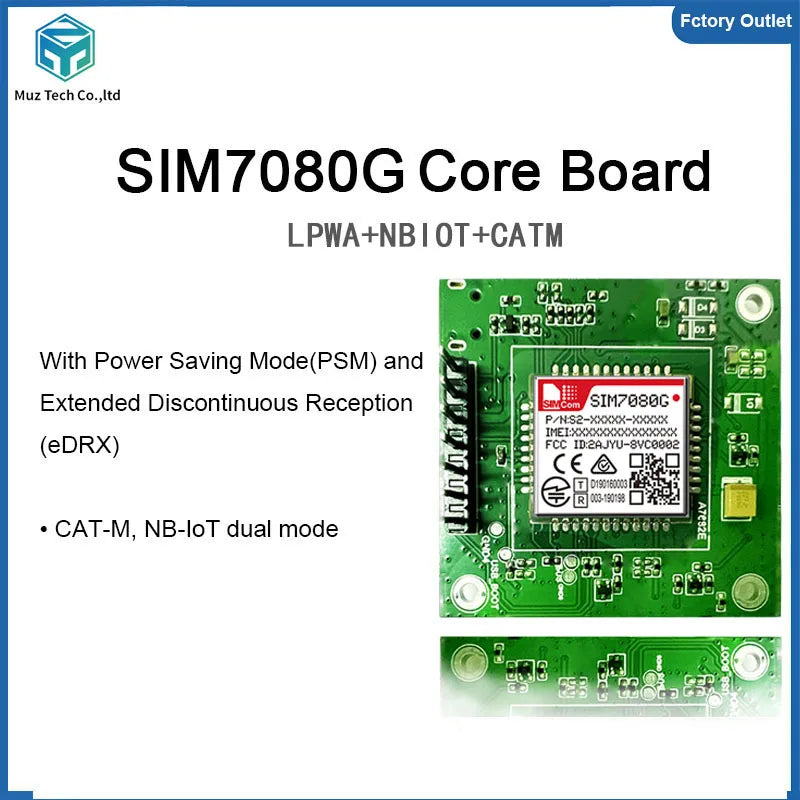

The SIM7080G is Multi-Band CAT-M and NB-IoT module solution in a SMT type .

It has strong extension capability with rich interfaces including UART, GPIO, PCM, SPI, I2C etc. The module provides much flexibility and ease of integration for customer's application.

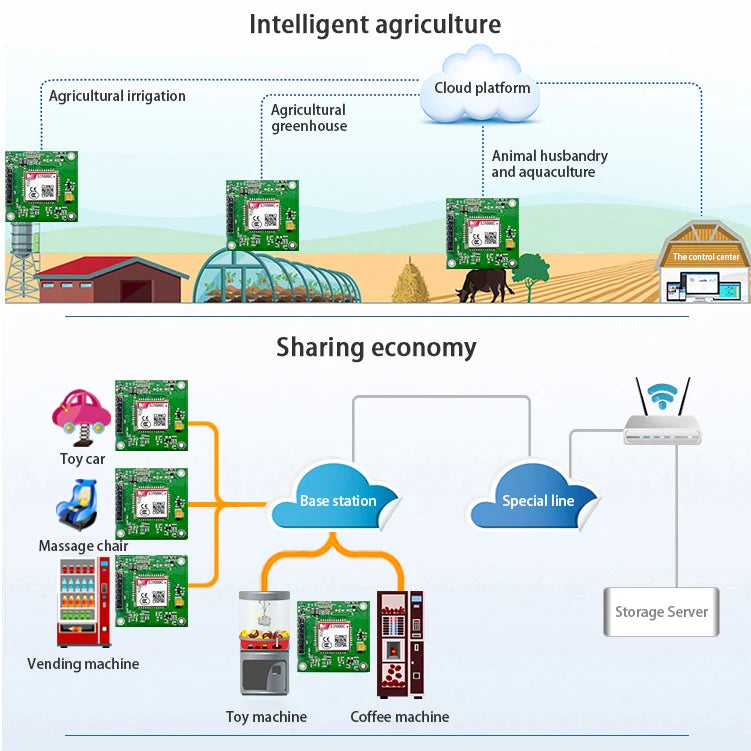

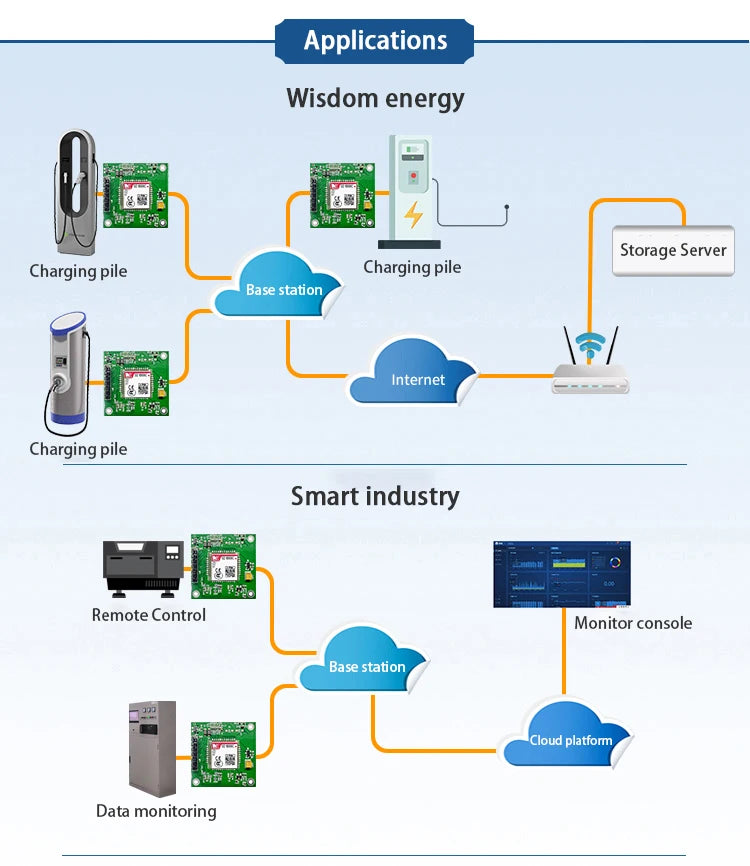

It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, the SIM7080G module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..

Feature

1. With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7080G can extend battery life to 10 years.

2. CAT-M, NB-IoT dual mode

3. The package of SIM7080G is compatible with SIM868
