Model Number: Pico-SIM7080G-Cat-M/NB-IoT (EN)

Origin: Mainland China

Typical Application Fields: Internet of Things (IoT)

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian, Russia

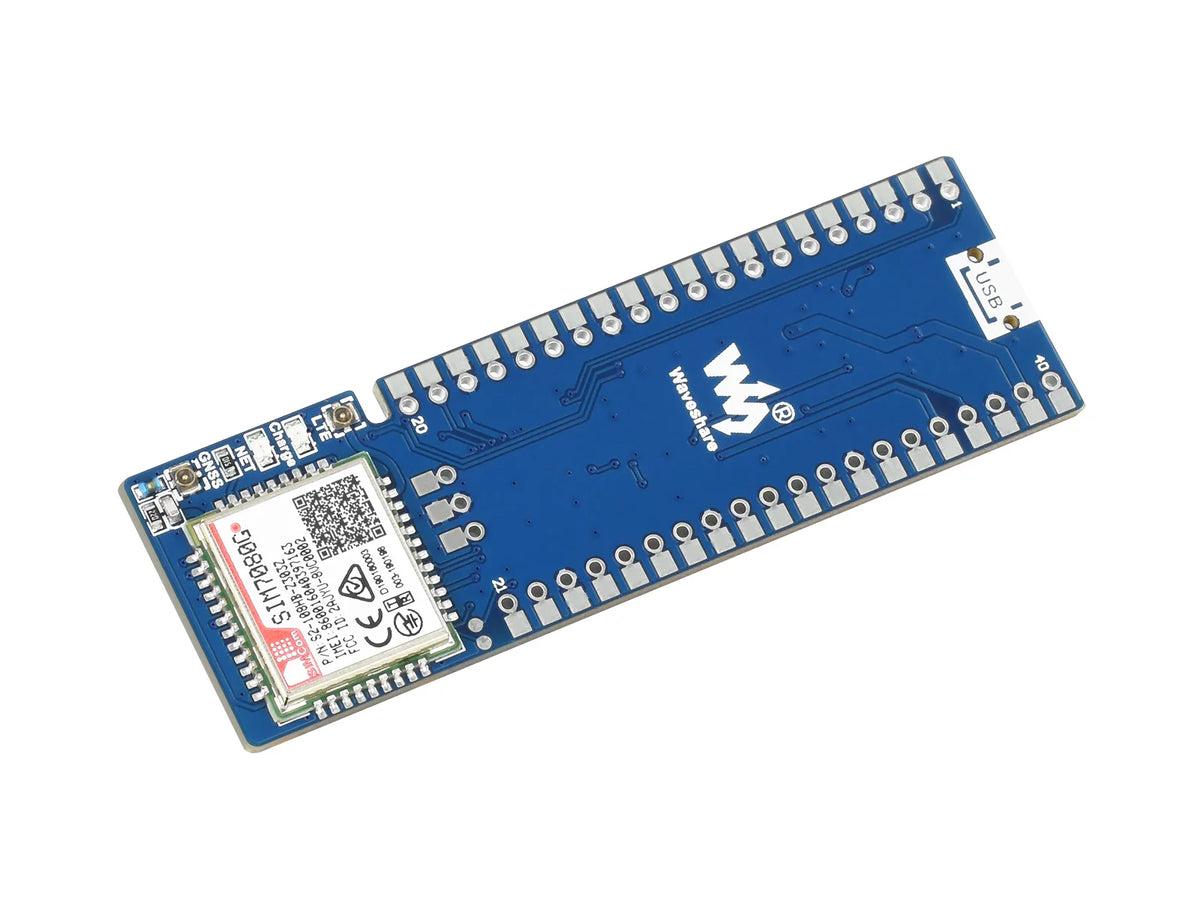

SIM7080G NB-IoT / Cat-M(EMTC) / GNSS Module For Raspberry Pi Pico, Global Band Support

SIM7080G NB-IoT / Cat-M / GNSS
Module For Pico

NB-IoT, Cat-M(EMTC), And GNSS Positioning With Global Band Support

Features At A Glance

The Pico-SIM7080G-Cat-M/NB-IoT is an NB-IoT (NarrowBand-Internet of Things), Cat-M (aka eMTC, enhanced Machine Type Communication), and GNSS (Global Navigation Satellite System) module designed for Raspberry Pi Pico. It supports multiple NB-IoT frequency band, can be controlled via serial AT commands, and supports communication protocols like HTTP/MQTT/LWM2M/COAP, etc. Due to the advantages of low delay, low power, low cost, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, and so on.

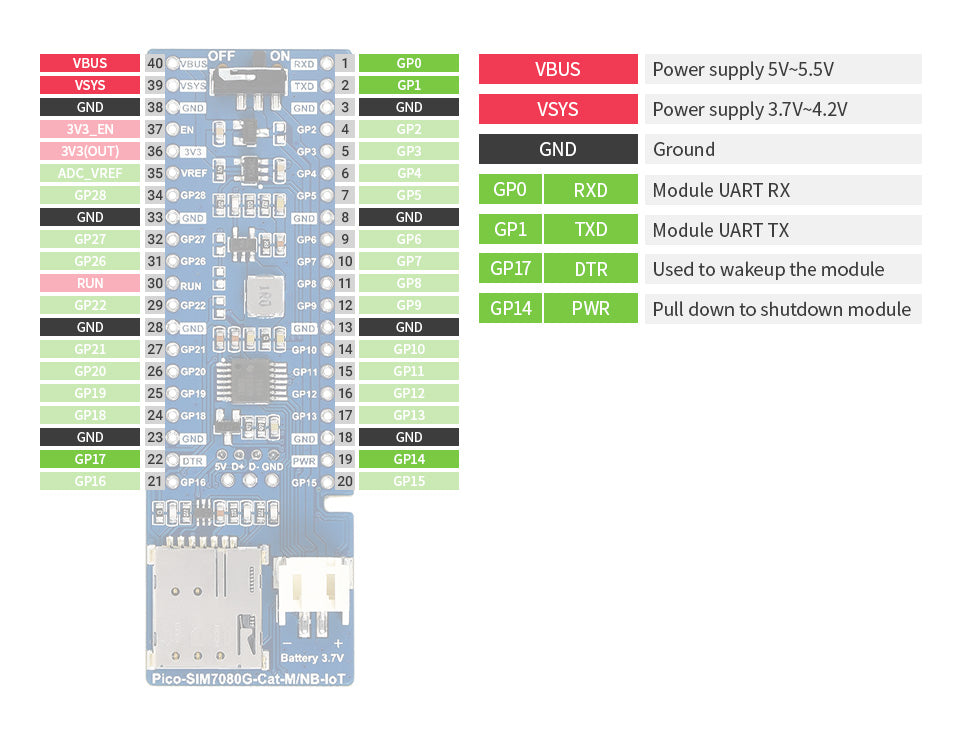

Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards

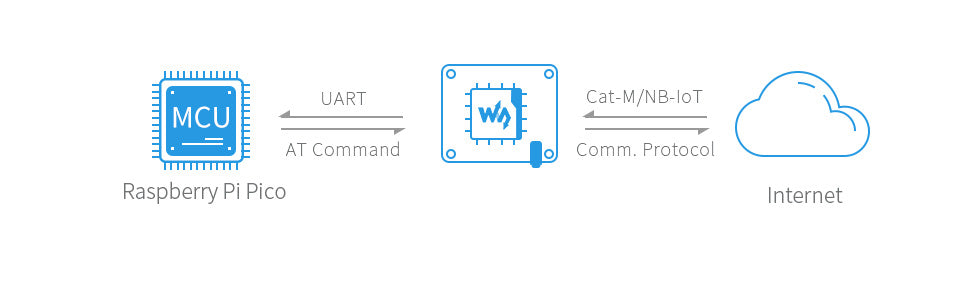

UART communication, serial AT commands control
Communication protocol support: TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT...
GNSS positioning support: GPS, GLONASS, BeiDou, and Galileo

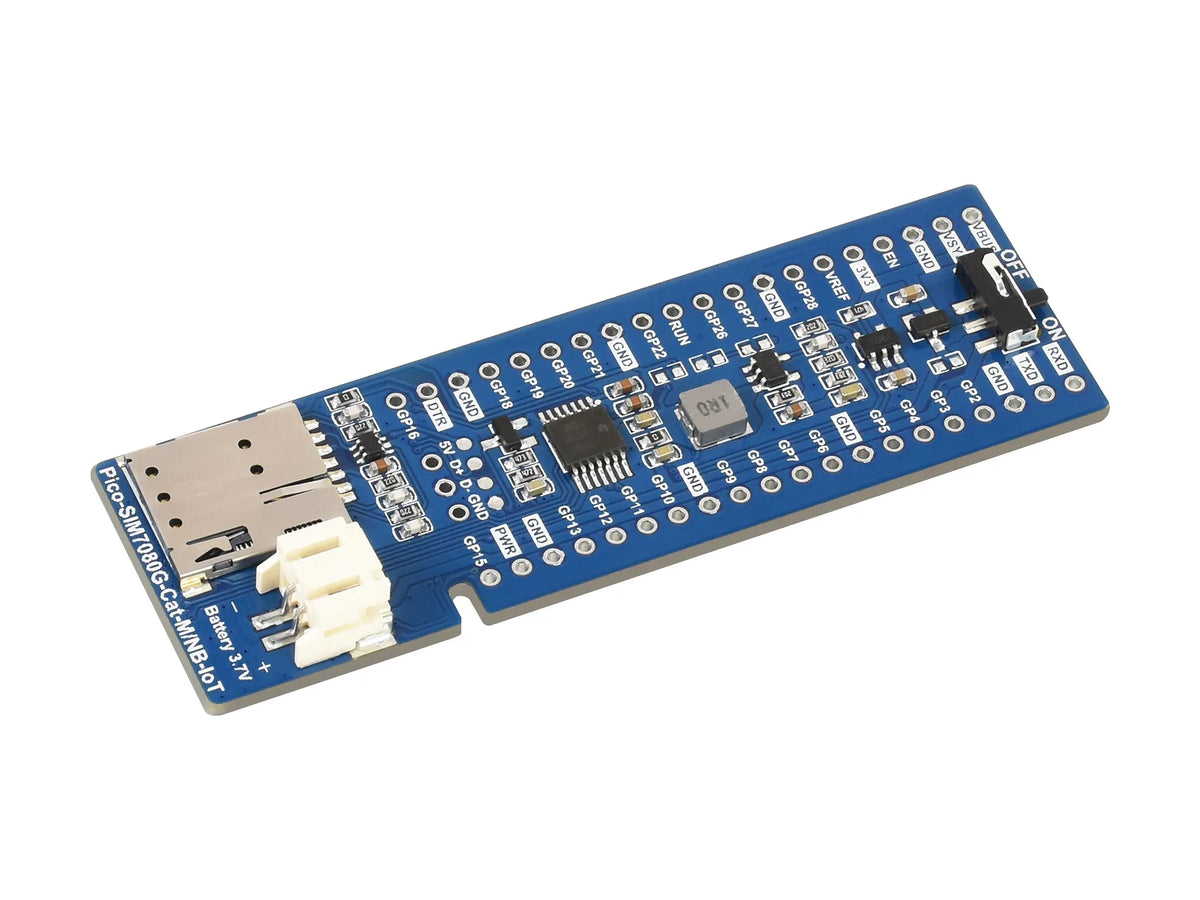

Integrates 3.7V Li-po battery connector and recharge circuit, allows being powered from external rechargeable Li-po battery, or recharging it in turn
2x LED indicators, for monitoring the module operating status
Onboard Nano SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
Comes with development resources and manual (MicroPython examples)

Specifications

	SIM868	SIM7080G	SIM7020E
Applicable region	most countries/regions	global applicable	Asia, Europe, Africa, Australia
FREQUENCY BAND
NB-IoT	N/A	B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B26/B28/B66/B71/B85	LTE-FDD: B1/B3/B5/B8/B20/B28
Cat-M	N/A	B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/ B19/B20/B25/B26/B27/B28/B66/B85	N/A
2G	GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz	N/A	N/A
GNSS	GPS, GLONASS, BeiDou	GPS, GLONASS, BeiDou, Galileo	N/A
DATA RATE
NB-IoT(Kbps)	-	136(DL)/150(UL)	26.15(DL)/62.5(UL)
Cat-M(Kbps)	-	589(DL)/1119(UL)	-
2G(Kbps)	85.6(DL)/85.6(UL)	-	-
OTHERS
Communication protocol	TCP/UDP/HTTP/SSL/FTP /POP3/SMTP/MQTT...	TCP/UDP/HTTP/HTTPS/TLS/DTLS /PING/LWM2M/COAP/MQTT...
Power supply	External Li-po battery OR Raspberry Pi Pico USB port
Battery interface	3.7V ~ 4.2V
Logic level	3.3V
Module standalone current	Idle mode: 12mA	Idle mode: 10mA	Idle mode: 5.6mA
	Sleep mode: 0.65mA	Sleep mode: 1.2mA	Sleep mode: 0.4mA
	Backup mode: 8uA	PSM mode: 3.2uA	PSM mode: 3.4uA
Audio input/output	onboard microphone, with speaker header	N/A
Indicator	NET: network indicator Charge: recharge indicator
Switch	Li-po battery and USB power supply switch	Li-po battery power supply switch
SIM card	2G SIM card (1.8V / 3V)	NB-IoT / Cat-M card (1.8V ONLY)	NB card (1.8V / 3V)
Antenna connector	LTE, GNSS, BT	LTE, GNSS	LTE

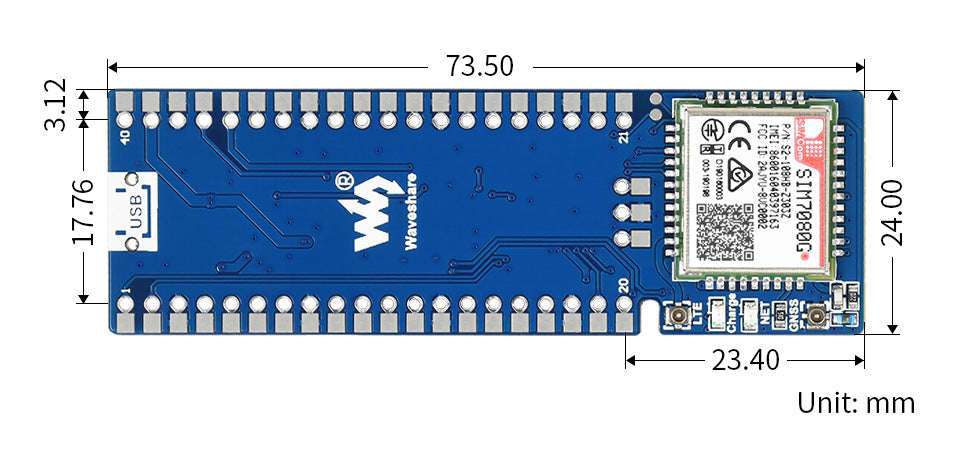

Dimensions	76.15 × 24.00mm	73.5 × 24.00mm

Raspberry Pi Pico Header Compatibility

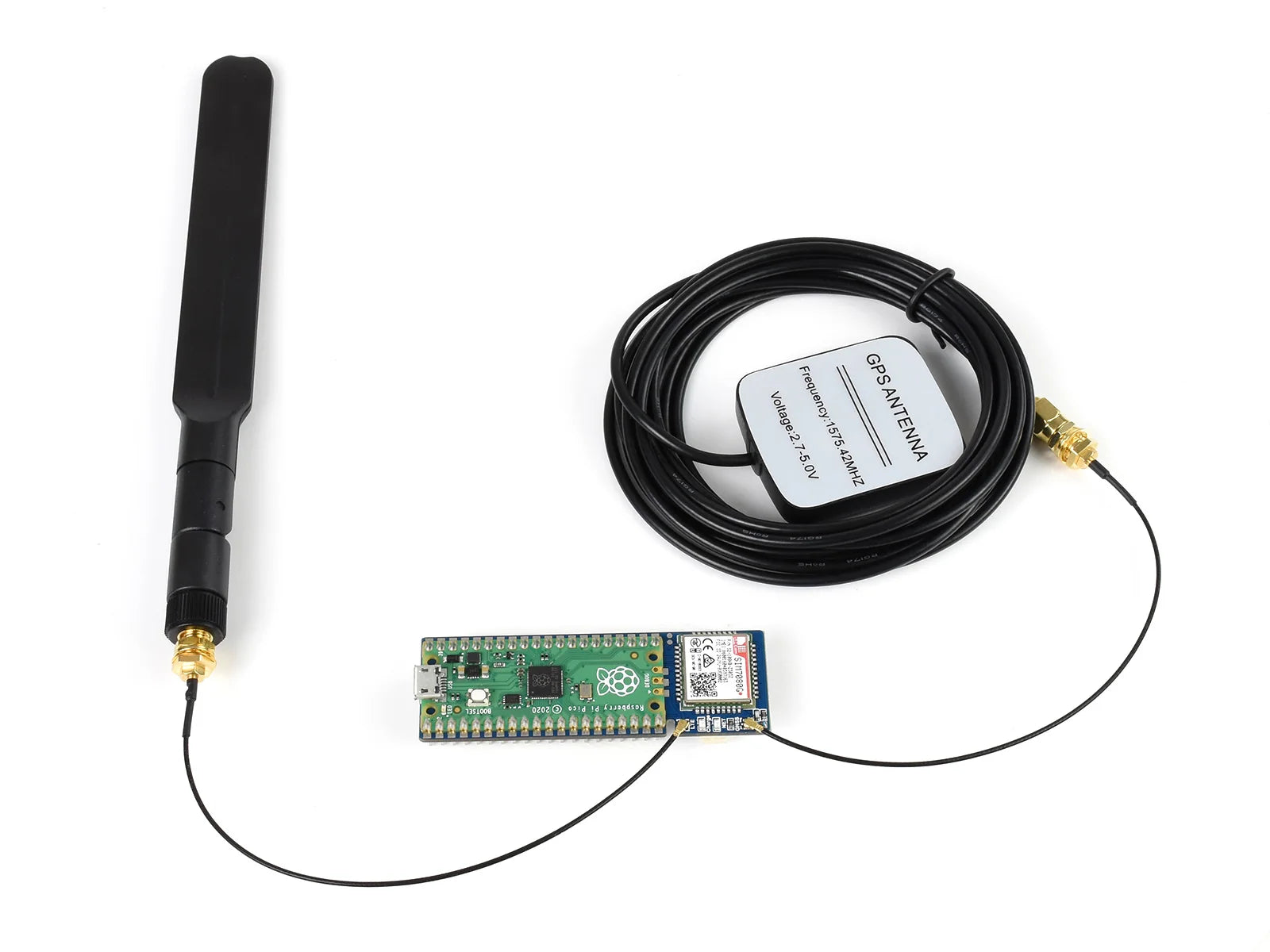

The Pico Can Be SMD-Mounted (Left), Or Attached Via Female Header (Right)

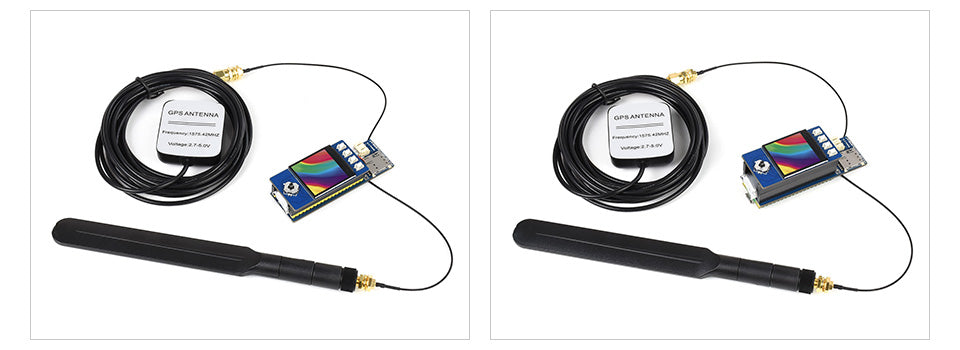

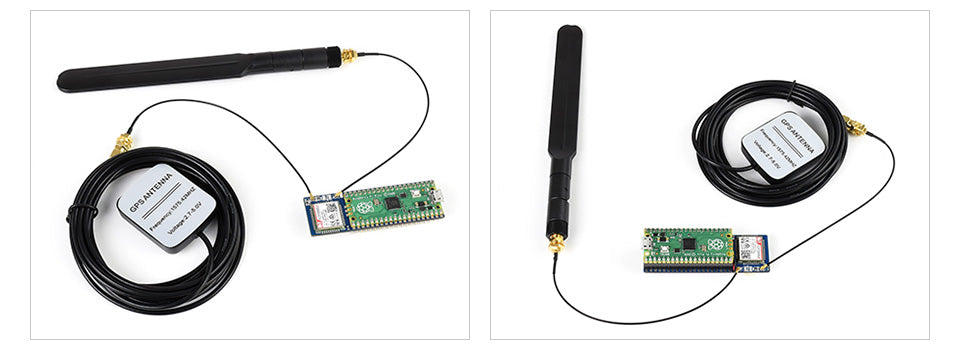

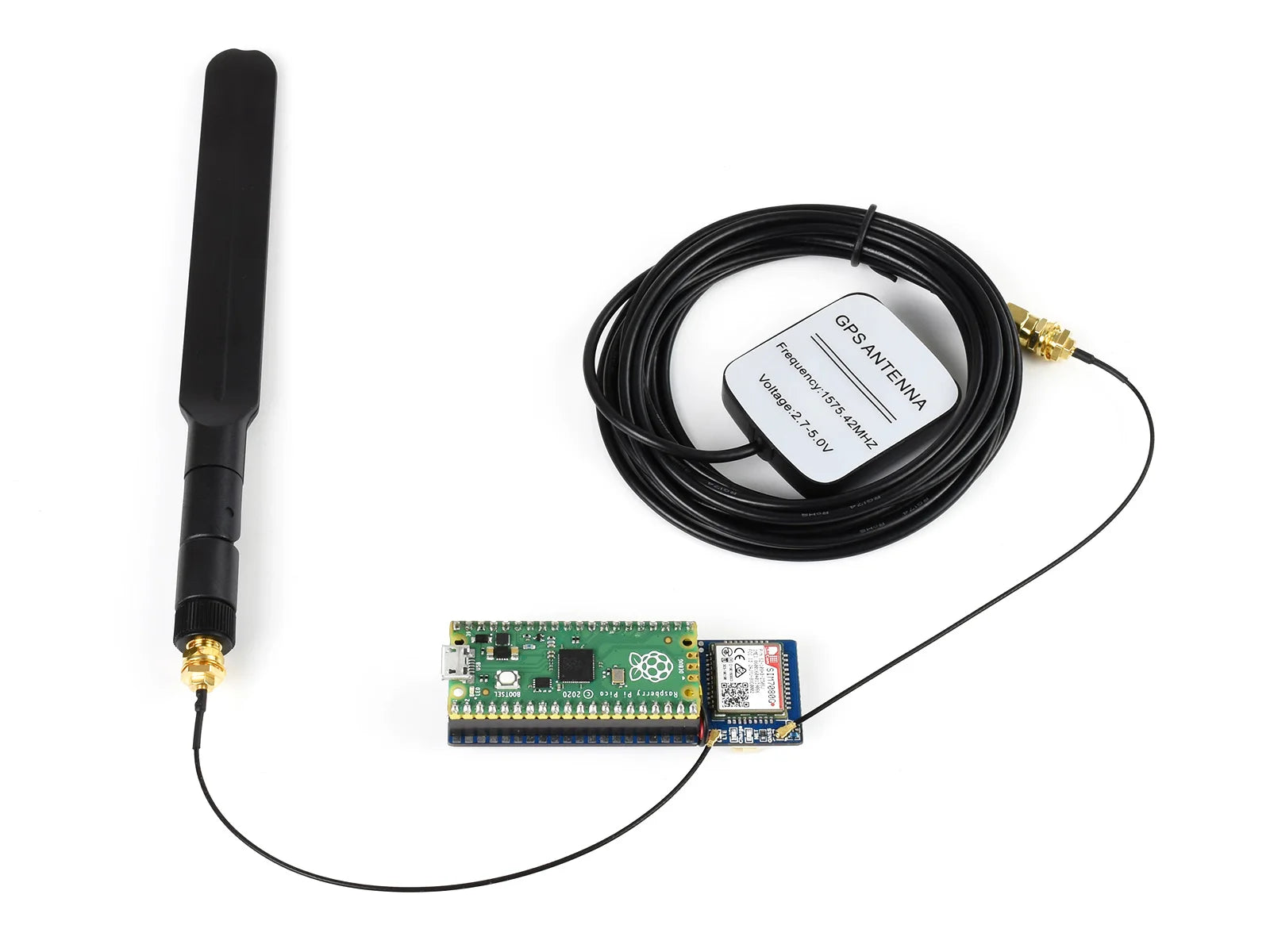

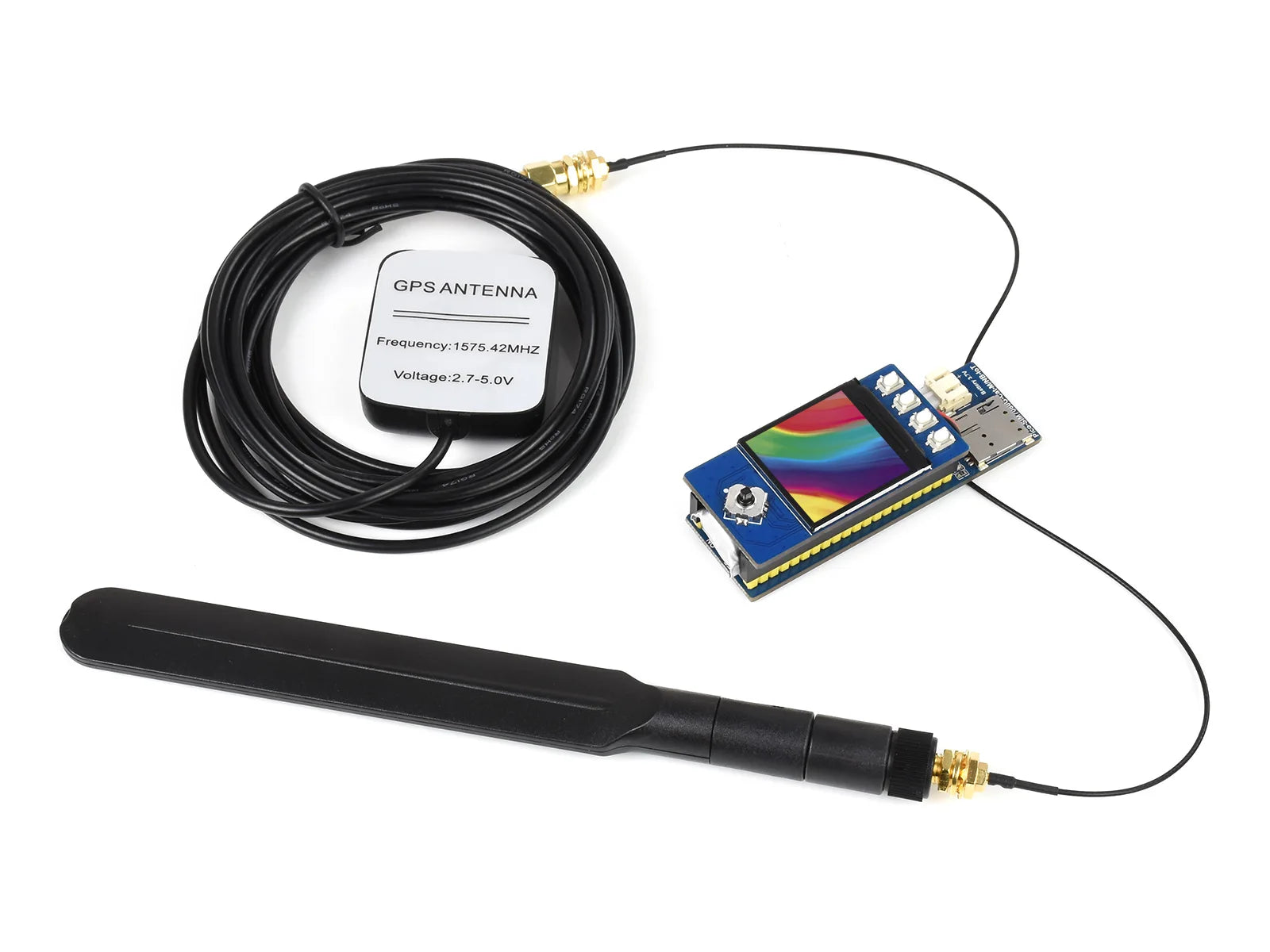

Connecting With Other Expansion Module And Antenna

Raspberry Pi Pico is NOT included.
The pin headers are NOT soldered by default.

Global Band Support Of NB-IoT / Cat-M

NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85

Cloud Communication

Supports Communication Protocols Including: TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT

GNSS Positioning Support

Supports GPS, GLONASS, BeiDou, And Galileo

Application Example

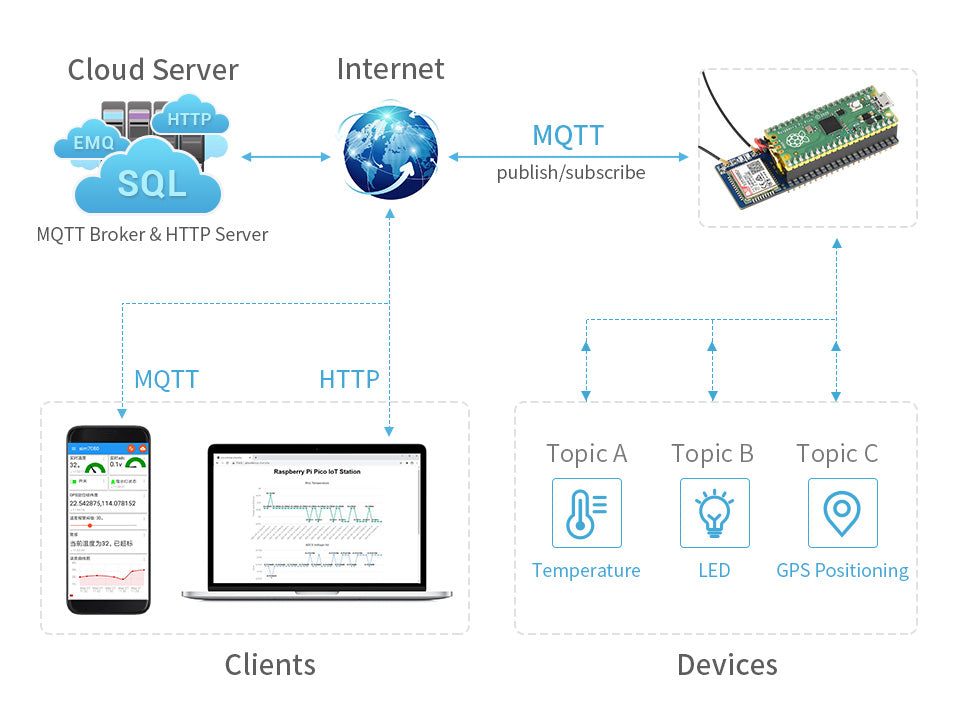

While connecting to Internet via SIM7080G, the Raspberry Pi Pico will be able to send data to Cloud server by MQTT protocol,
making it possible for users to monitor the Pico in real time via smartphone APP or webpage.
