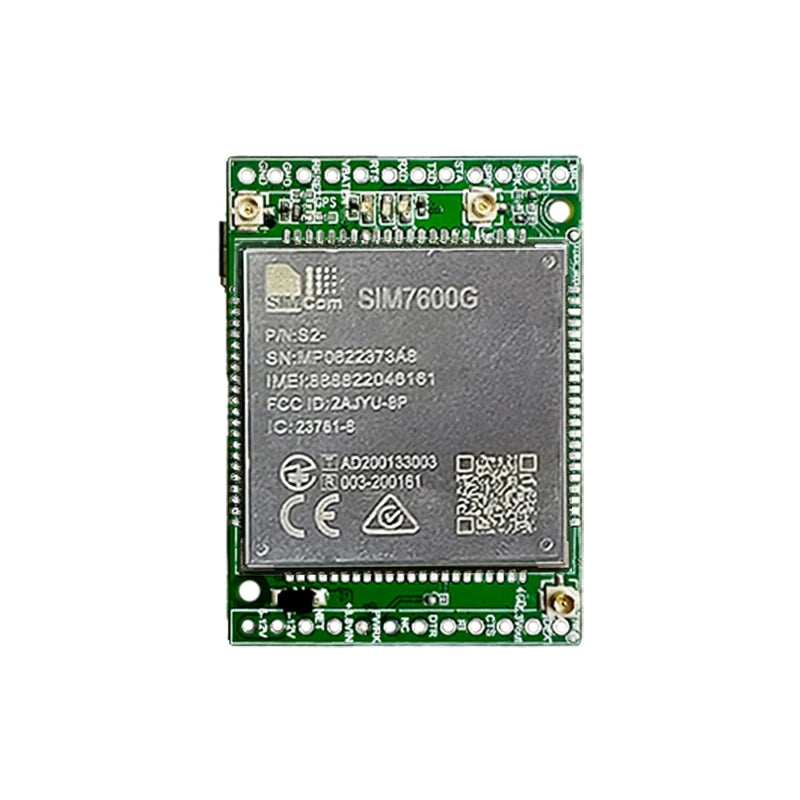

SIM7600 Core Board LTE CAT1+GNSS Module SIM7600G Global Band SIM7600SA SIM7600E Development Board Breakout Kit with Antenna

SIM7600 Core Board LTE CAT1+GNSS Module SIM7600G Global Band SIM7600SA SIM7600E Development Board Breakout Kit with Antenna

$52.40

$52.40 $0.00

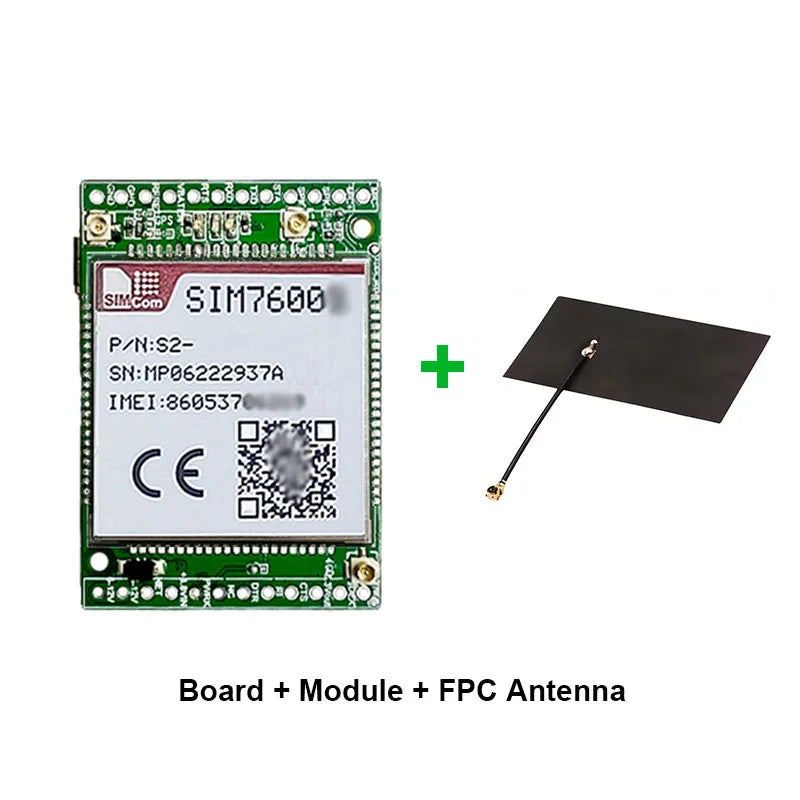

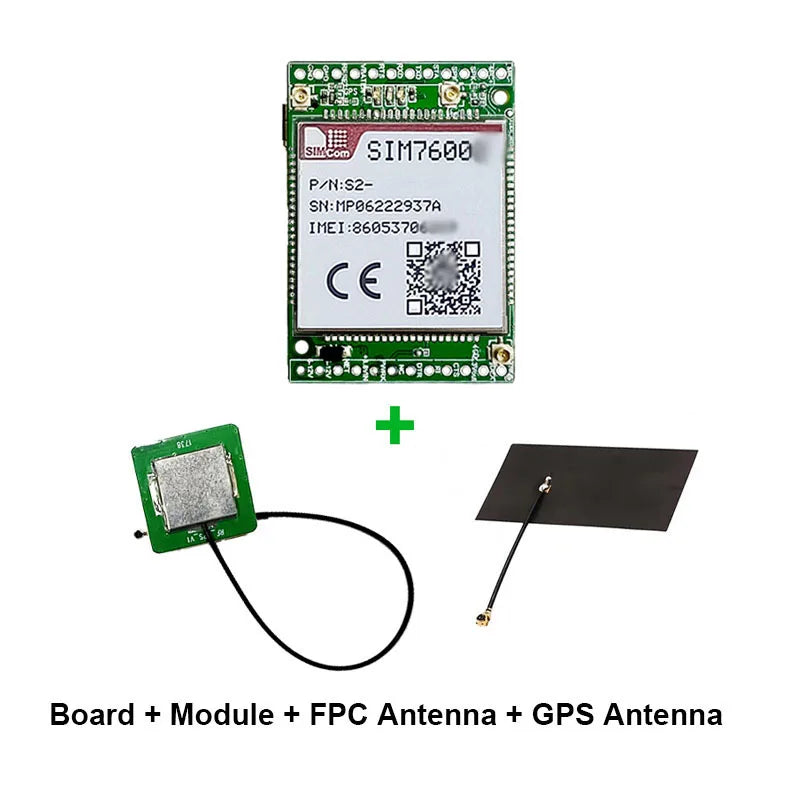

Color Only Board No Module with Module FPC GPS Core board Module with Module and FPC

Model Number SIM7600G SIM7600SA SIM7600E

Ships FromChina Mainland

Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Operating Temperature: -40℃-85℃

Origin: Mainland China

Quantity: 1

Supply Voltage: 5-16V DC

Type: Core Board

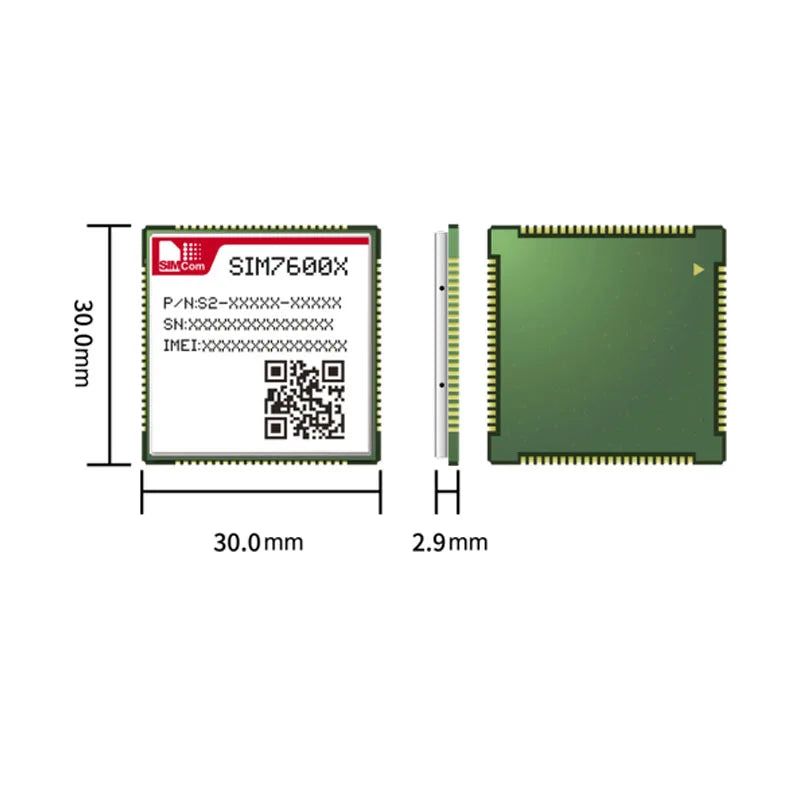

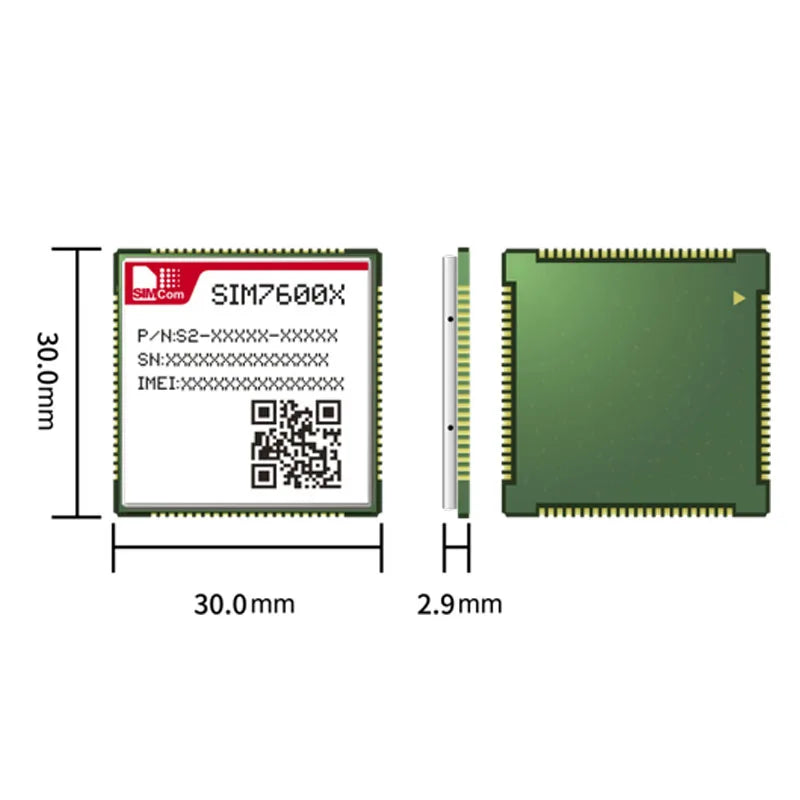

module size: 30mm*30mm

size: 44.45+31.75*10.54(Including pin height)

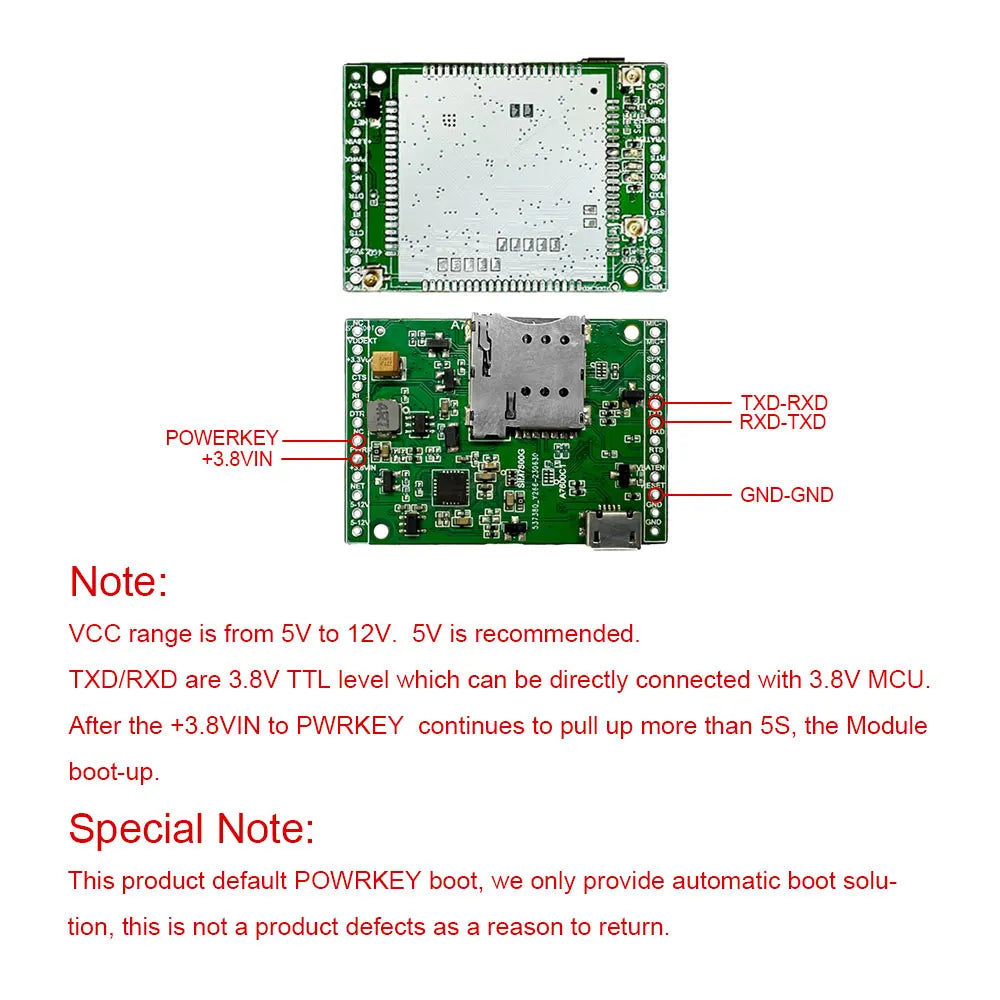

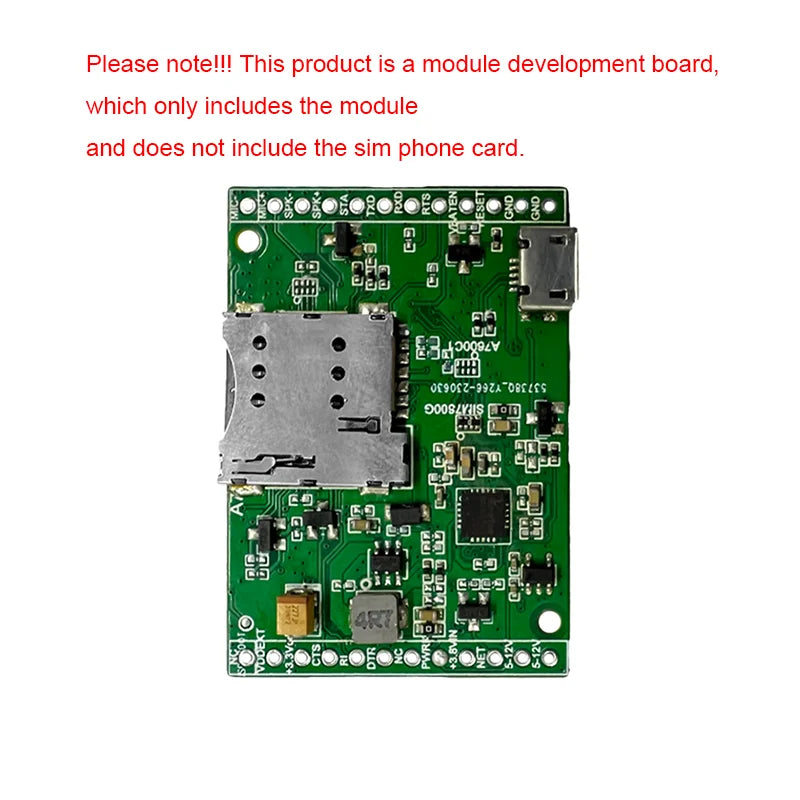

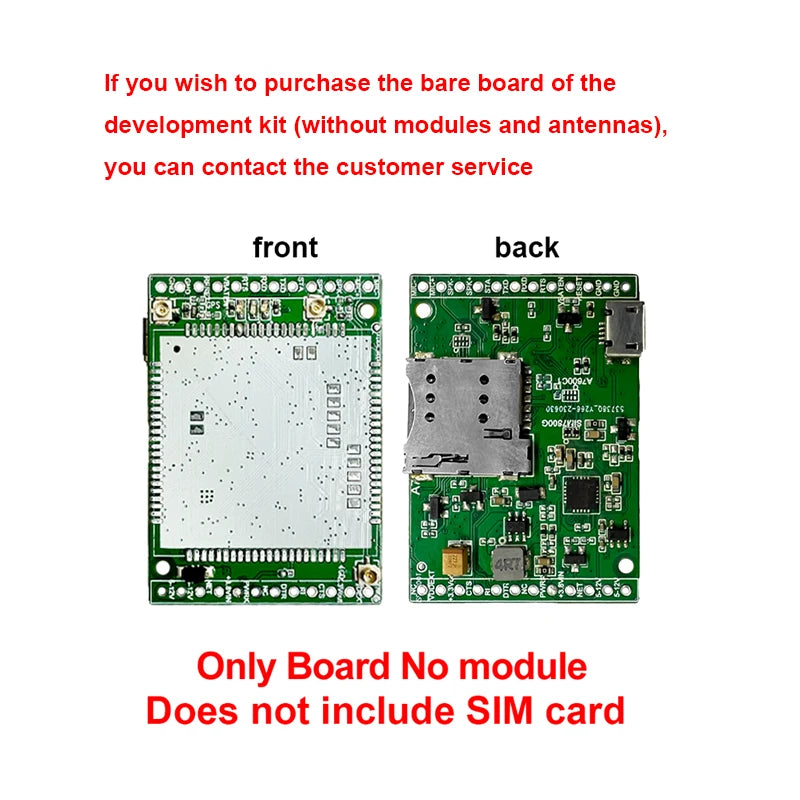

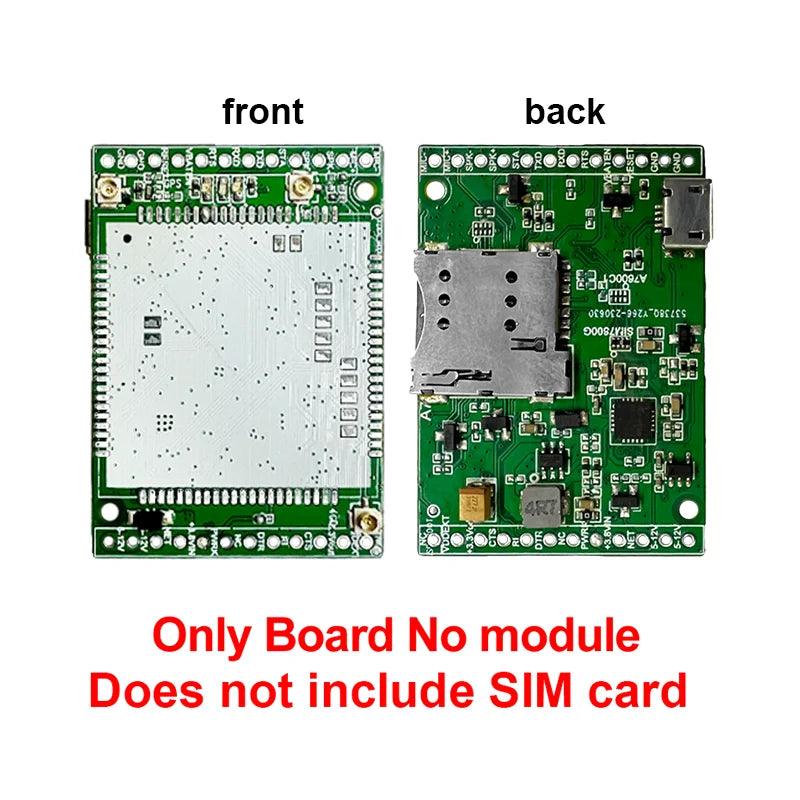

Please note!!! This product is a module Core board, which only includes the module and does not include the sim phone card.

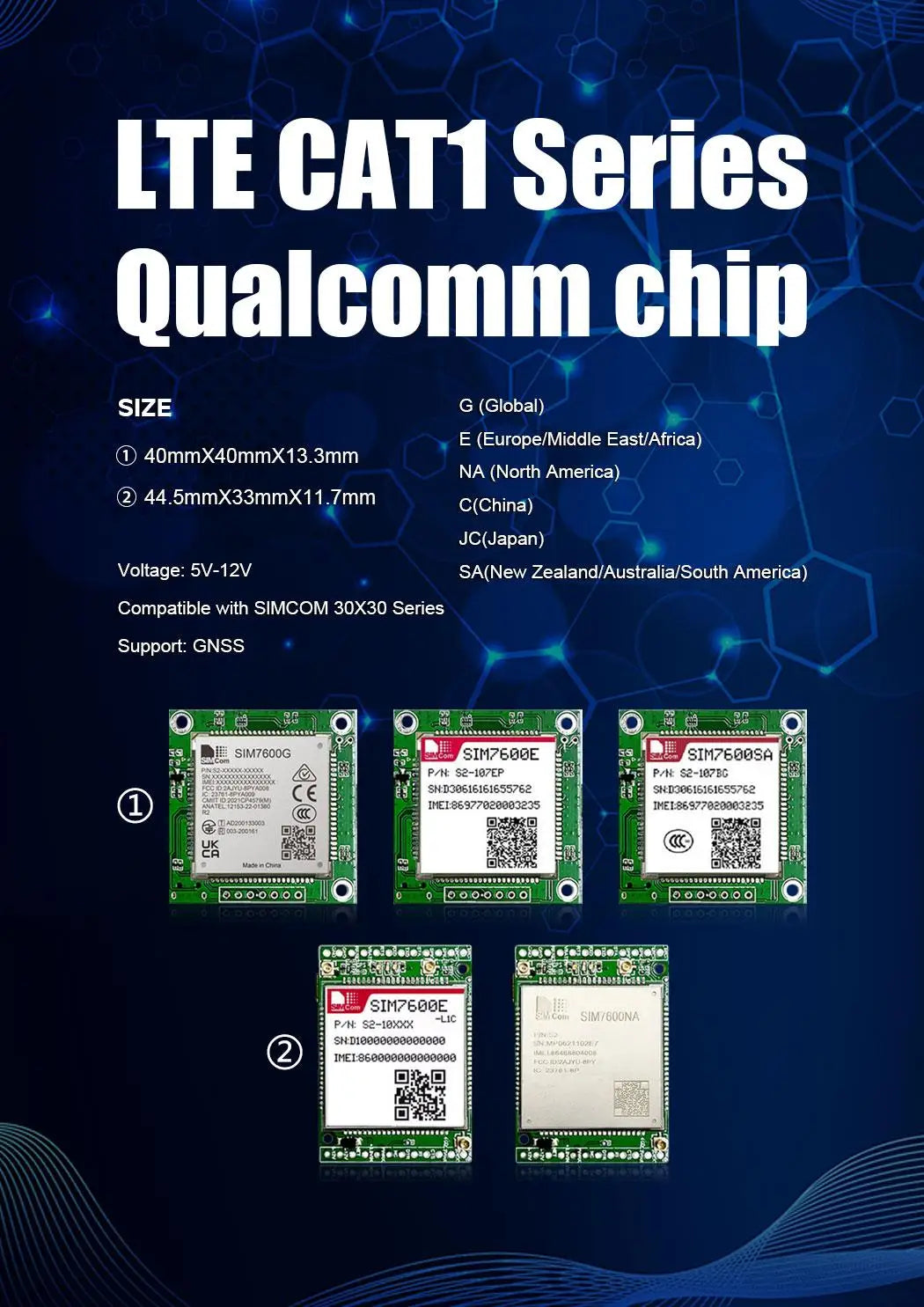

The module suffix indicates the applicable country.

SIMCOM

G (Global) E(Europe/Middle East/Africa) NA (North America) C(China)

JC(Japan) SA(New Zealand/Australia/South America)

Project	Description

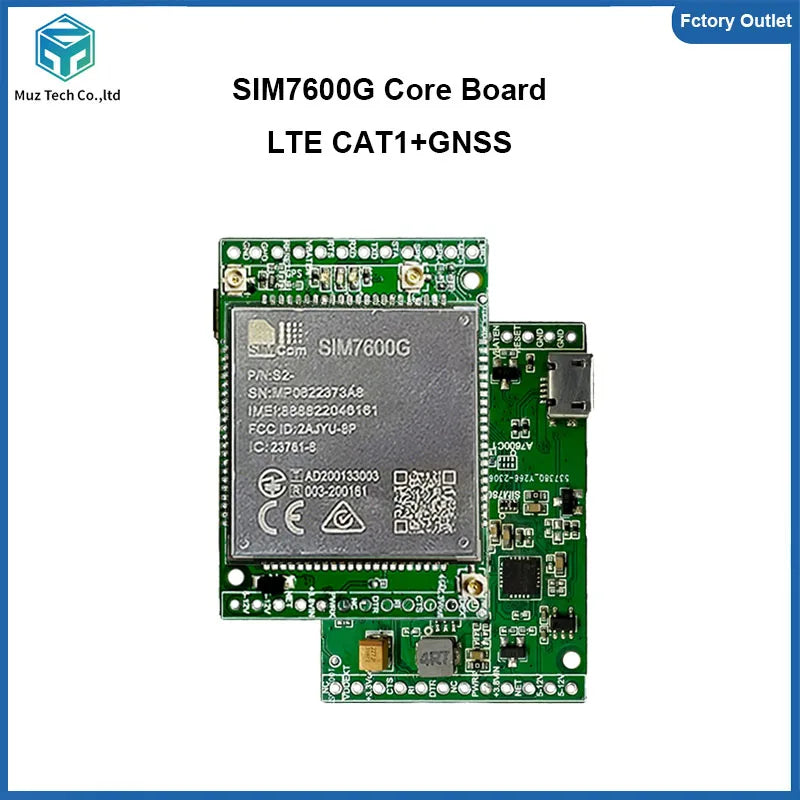

Product Name	4G CAT 1 Core Board
Model	CC-MCore-SIM7600G
Package	Pin Type 24PIN(2.54mm)
Power	5-16V DC
UART	3.3V TTL(Default)
SIM Card	MIRCO SIM
LED	Power/Network light
USB	Y
SIZE	44.45+31.75*10.54(Including pin height)
Operating temperature	-40℃-85℃
Network Band	TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B66 UMTS/HSPA+ B1/B2/B4/B5/B6/B8/B19 GSM/GPRS/EDGE 850/900/1800/1900MHz
Network speed	LTE:10Mbps(DL) 5Mbps(UL)
Network protocol	TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS RNDIS/NDIS/ECM
Function	LTE CAT1+Voice+GNSS

Features:

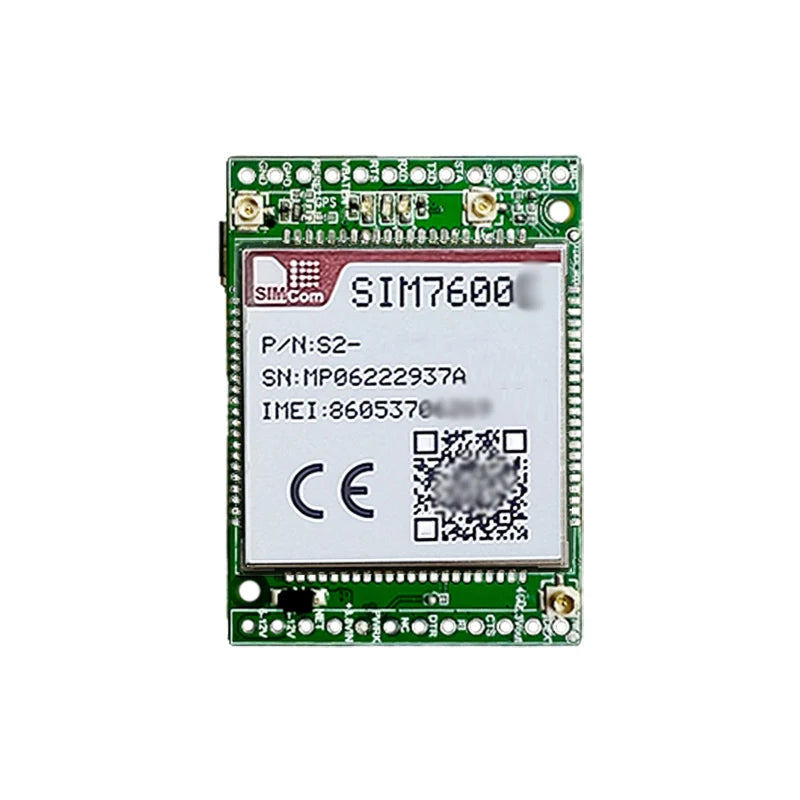

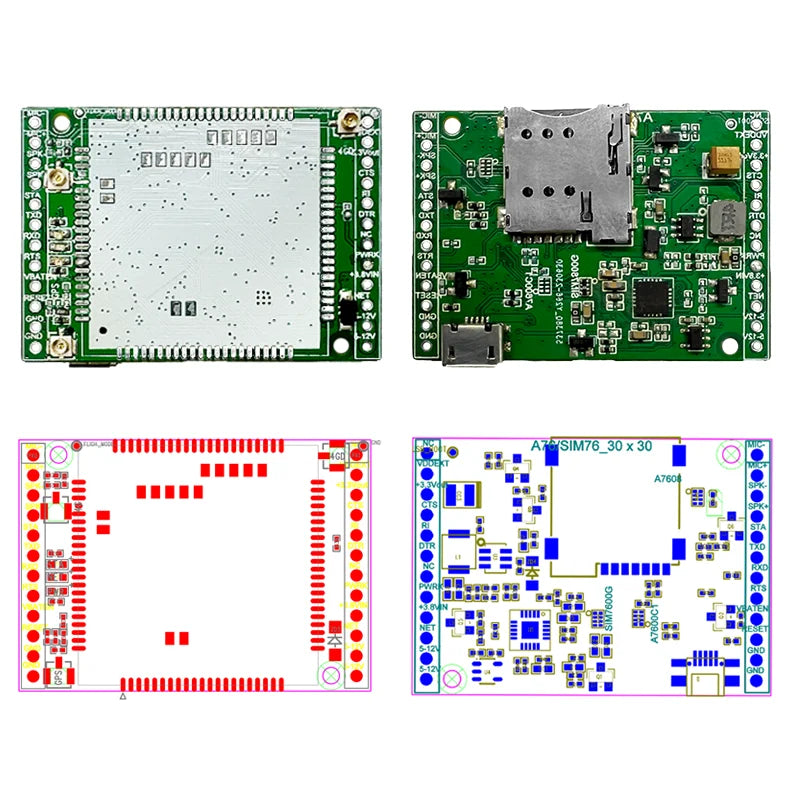

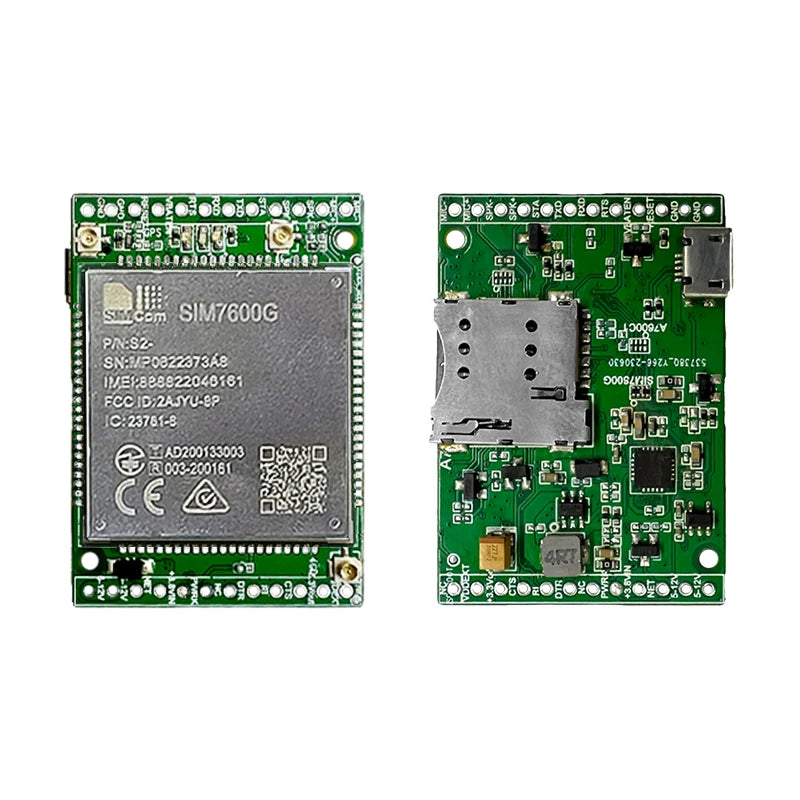

30 * 30 function board is designed by our company based on the Shanghai Xinxuntong 30 * 30 packaging size module, achieving a smooth transition from 2G/NB/CAT-M products to LTE products, greatly facilitating customers' design of compact and fully functional terminal products, and well meeting their application needs for high cost-effectiveness and low power consumption.

The function board is based on module functions to achieve integrated multi constellation GNSS receivers, supporting GPS, GLONASS, BeiDou, Galileo, and QZSS positioning technologies, enabling faster, more accurate, and more reliable positioning. The built-in GNSS also greatly simplifies customer application design.

Compatible with SIM7600E/CE/G/A/SA/E-H/E-L1C/G-H/NA/NA-H in packaging, and can support LTE series: SIM7600CE, A7600X, SIM7600X, A7608X.

Supported application regions:

China/India Central Africa Asia Pacific region, as well as North America/United States Verizon/Europe/Mexico/Japan/Latin America/Australia/New Zealand/South Korea and other regions

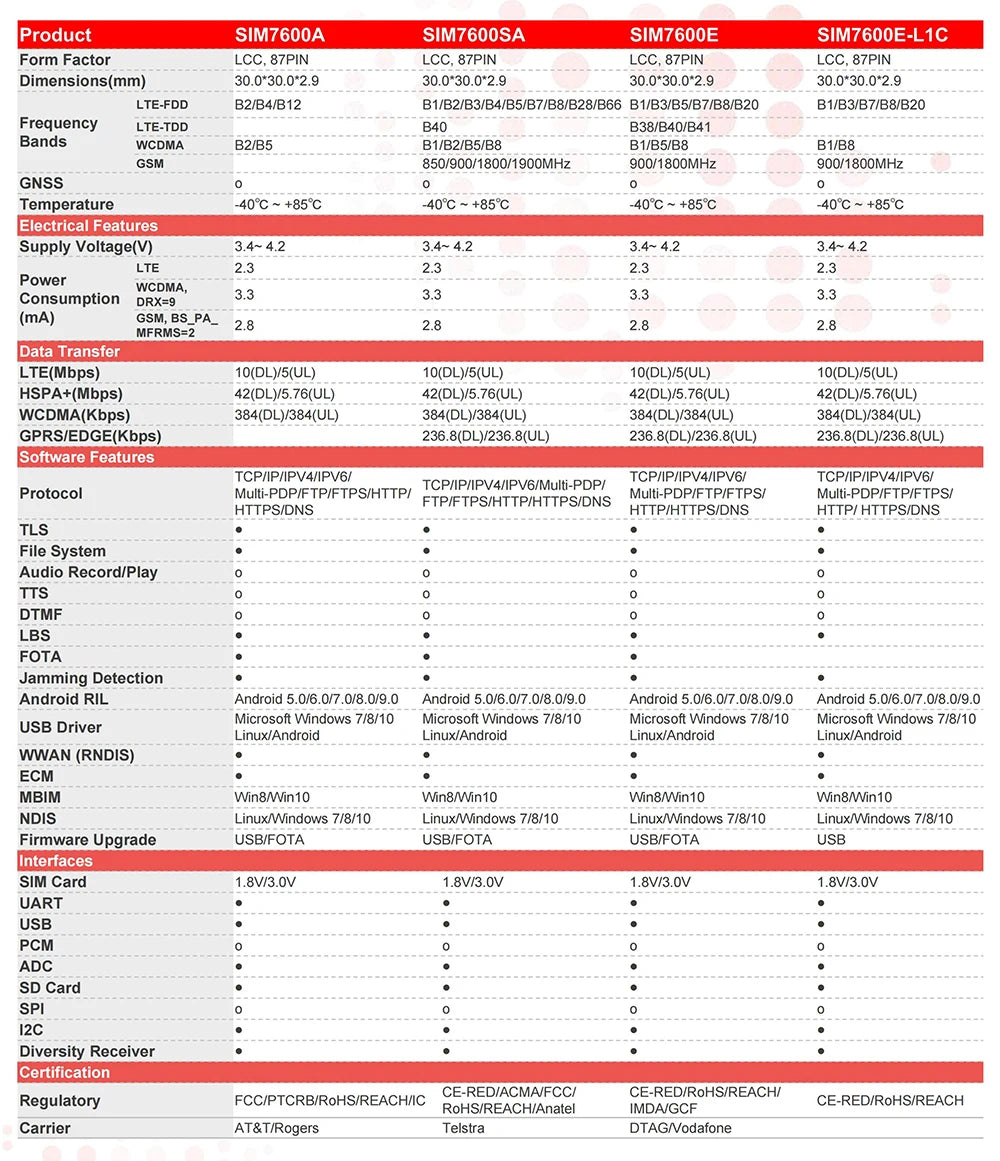

The SIM7600 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.

The SIM7600 series adopts LCC1 form factor and is compatible with SIM5320/SIM5360 series(UMTS/HSPA+ modules), and SIM7600/SIM7600-H series(LTE modules) , which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs.

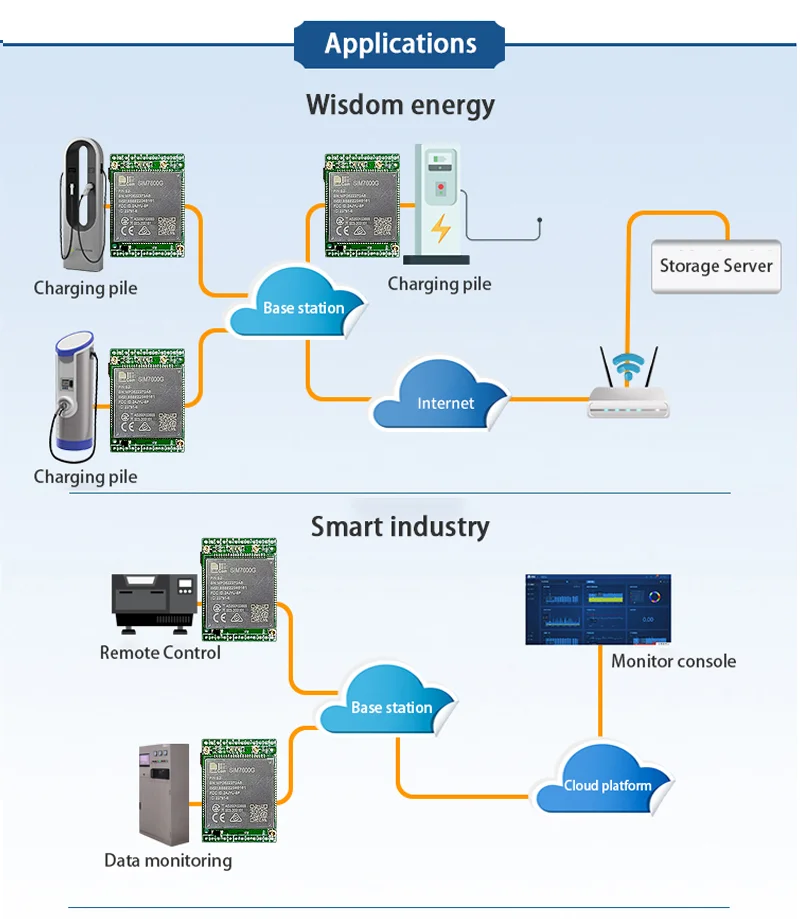

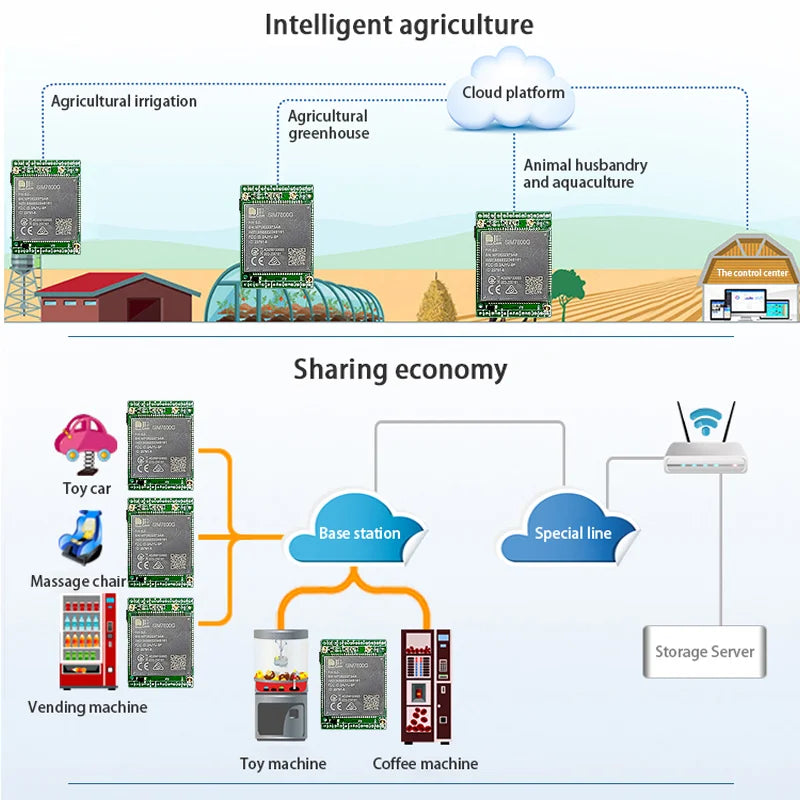

The SIM7600 series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600-H series modules. Meanwhile the SIM7600 series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
