Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Part Number: SIM7600G-H 4G HAT

Type: Module

applicable: the global version

PACKAGE CONTENT

Please check the supported bands according to your local service provider, select the proper one when placing order.

SIM7600A-H 4G HAT	LTE Cat-4	mainly applicable in North America (US, CA)
SIM7600E-H 4G HAT	LTE Cat-4	mainly applicable in Europe, Southeast Asia, West Asia, Africa, China, South Korea
SIM7600E LTE Cat-1 HAT	LTE Cat-1
A7670E Cat-1 HAT
A7600E Cat-1/GSM/GPRS HAT
SIM7600SA-H 4G HAT	LTE Cat-4	mainly applicable in Australia, New Zealand, Taiwan, Latin America
SIM7600CE 4G HAT	LTE Cat-4	mainly applicable in China, and some Southeast Asia countries
SIM7600CE-CNSE 4G HAT	LTE Cat-4
A7600C1 Cat-1/GSM/GPRS HAT	LTE Cat-1
SIM7600G-H 4G HAT	LTE Cat-4	the global version

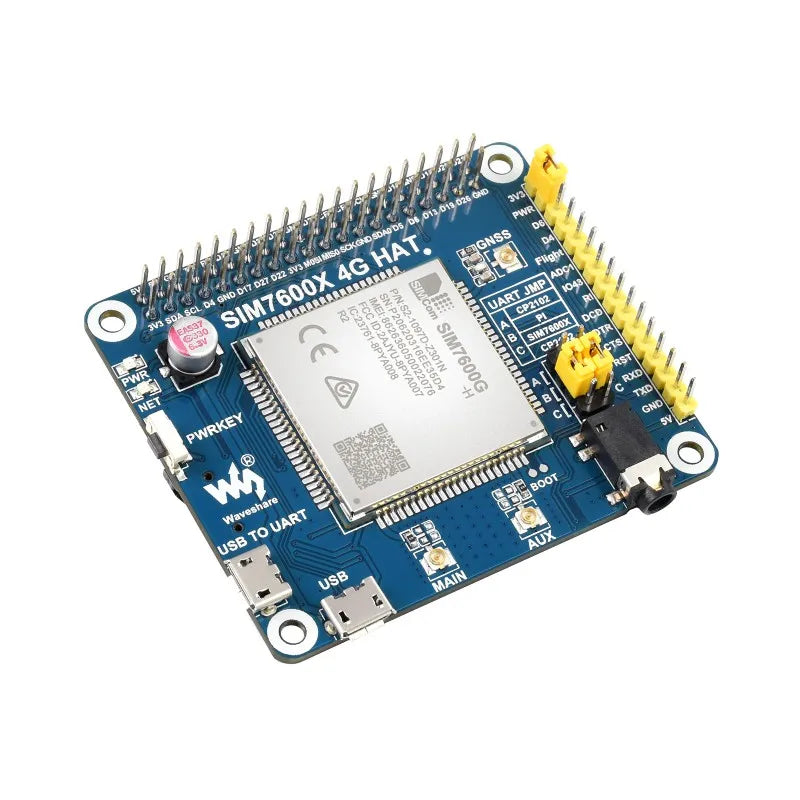

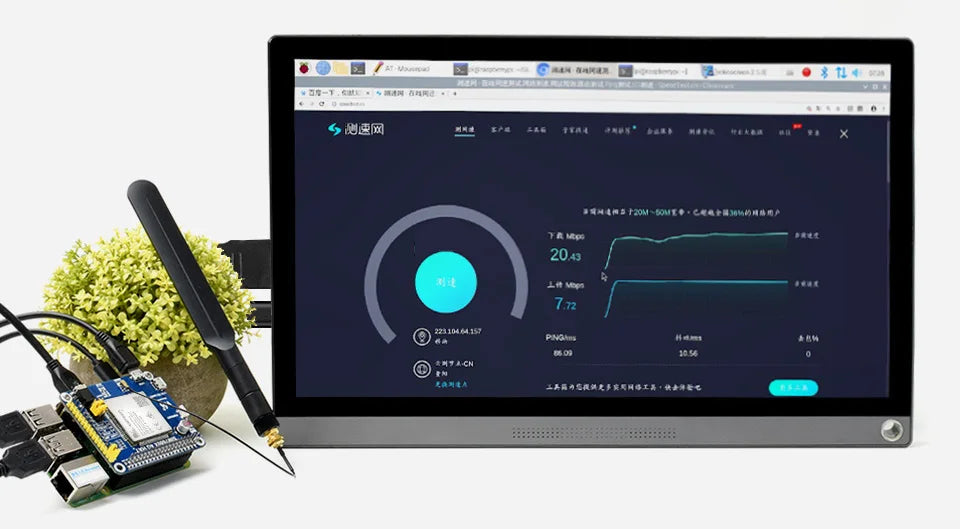

4G HATFOR RASPBERRY PI

Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning

Based on SIM7600G-H, Global Band

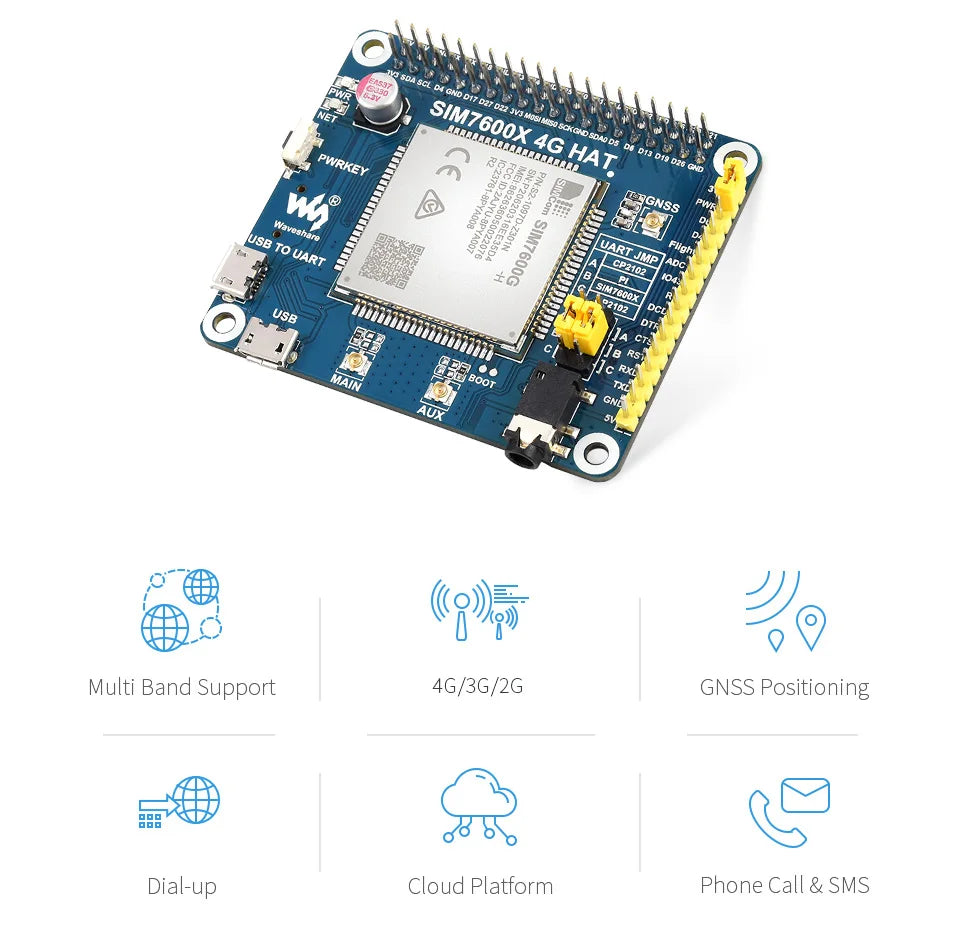

Features At A Glance

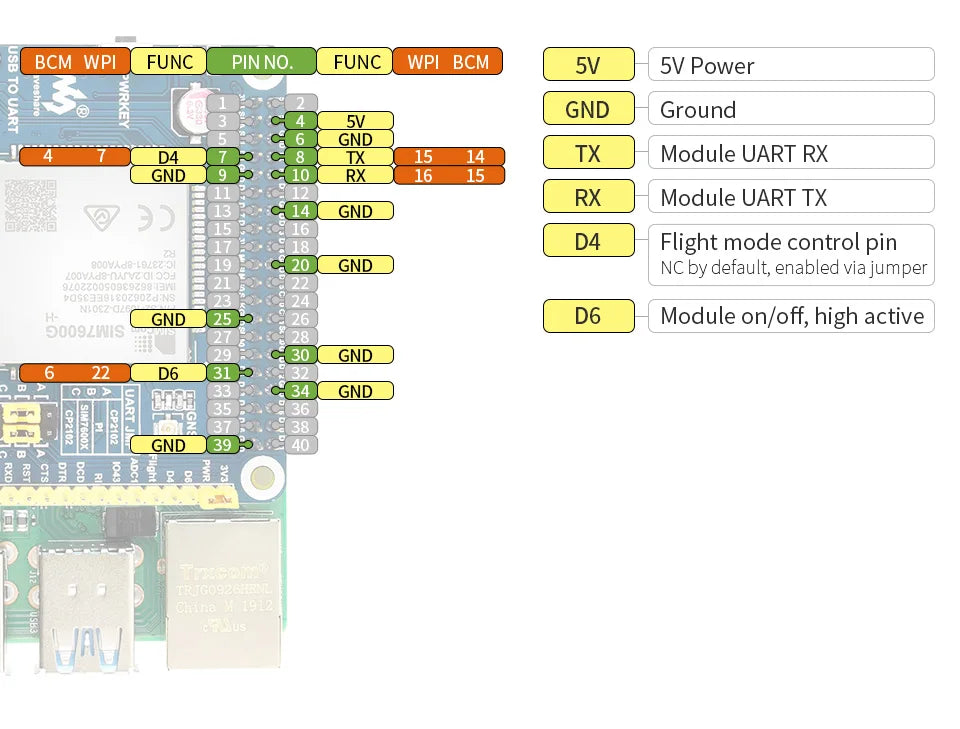

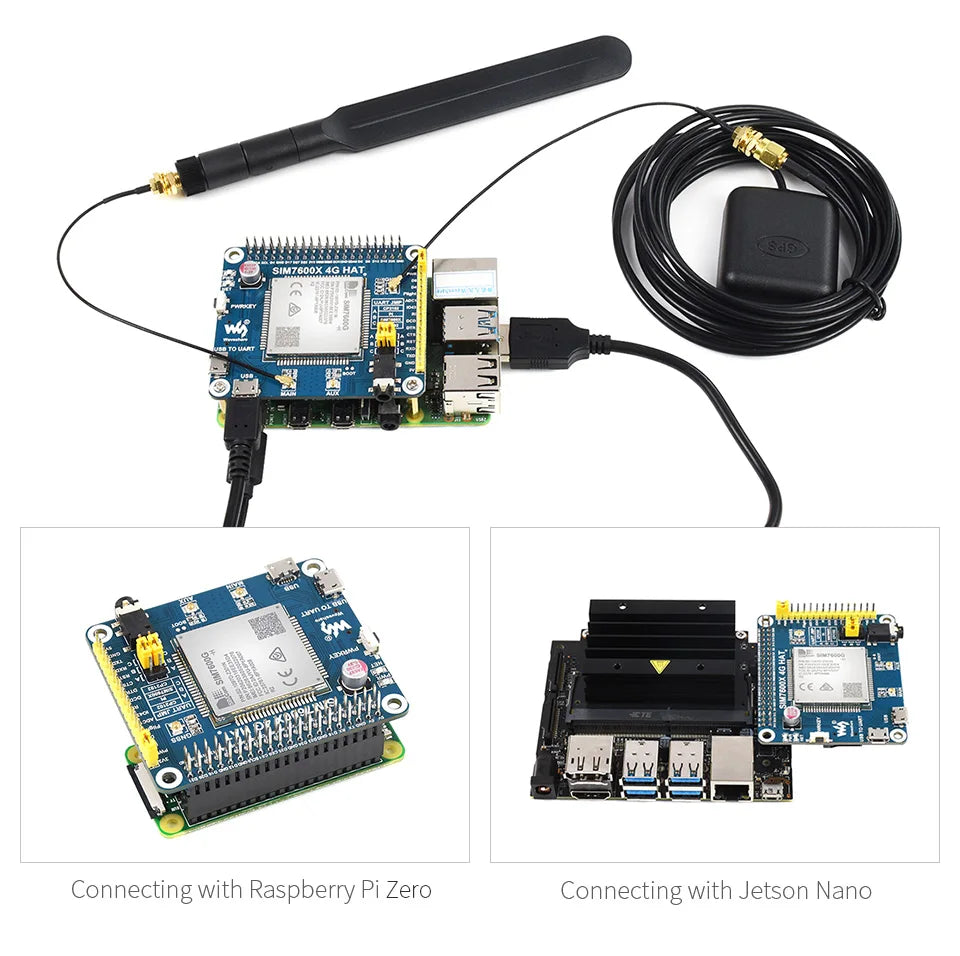

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

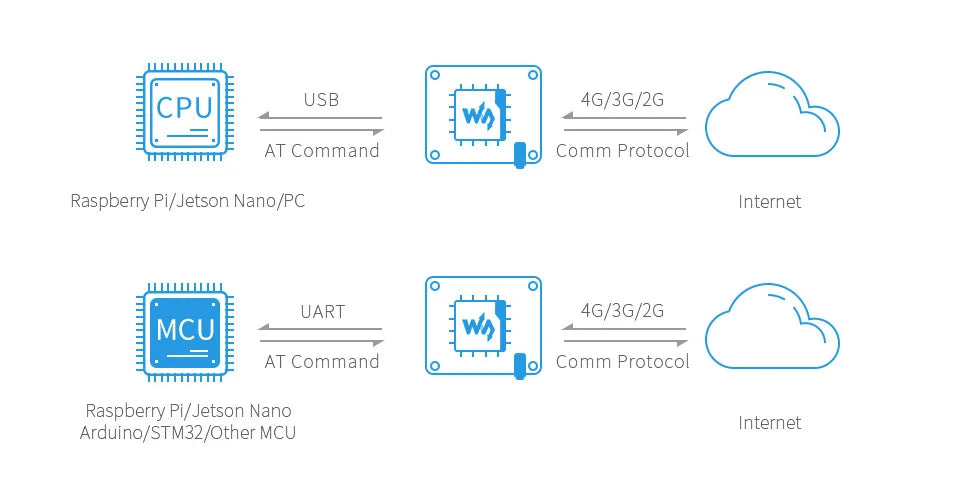

Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
Supports GPS, BeiDou, Glonass, LBS base station positioning
Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
Onboard CP2102 USB to UART converter, for serial debugging
Breakout UART control pins, to connect with host boards like Arduino/STM32
SIM card slot, supports 1.8V/3V SIM card
TF card slot for storing data like files, messages, etc.
Onboard audio jack and audio decoder for making telephone call
2x LED indicators, easy to monitor the operating status
Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
Baudrate: 300bps ~ 4Mbps (default: 115200bps)
Autobauding baudrate: 9600bps ~ 115200bps
Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

FREQUENCY BAND
LTE Cat-4	LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD: B34/B38/B39/B40/B41
3G	UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G	GSM/GPRS/EDGE: 850/900/1800/1900 MHz
GNSS
Satellite systems	GPS/Beidou/GLONASS
Receiver type	16-channel
Receiver type	C/A Code
Sensitivity	-159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Sensitivity	Cold starts: -148 dBm
Time-To-First-Fix (open air)	Cold starts: <35s
Time-To-First-Fix (open air)	Hot starts: <1s
SMS AND AUDIO
SMS	Supported types: MT, MO, CB, Text, PDU
SMS	Storage: USIM card and ME (default)
Audio feature	Supports echo cancellation
Audio feature	Supports noise reduction
OTHER
Power supply	5V
Operating voltage	5V / 3.3V (configured via jumper)
Operating temperature	-30°C ~ 80°C
Storage temperature	-45°C ~ 90°C

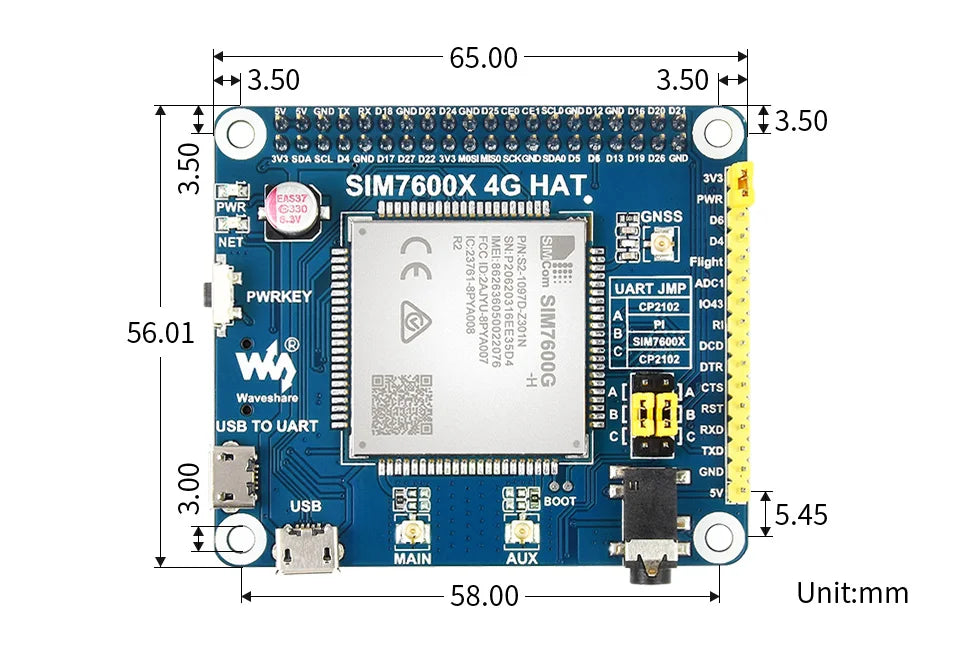

Dimensions	56.21mm × 65.15mm

Standard Raspberry Pi 40PIN GPIO

Compatible With Raspberry Pi Series Boards, Jetson Nano

Global Band 4G / 3G / 2G Support

Dial-Up On Windows/Linux

LTE Cat-4:Up To 50Mbps (Uplink) / Up To 150Mbps (Downlink) *
3G (HSPA+):Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink) *

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

Supports Communication Protocols Including TCP/UDP/FTP/FTPS/HTTP/HTTPS

GNSS Positioning

Supports GPS, BeiDou, Glonass, LBS Base Station Positioning

Telephone Call & SMS Support

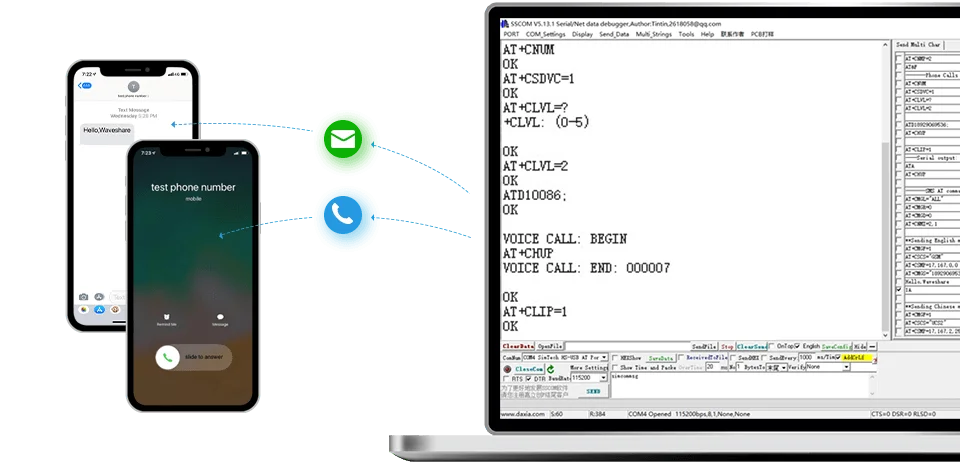

Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

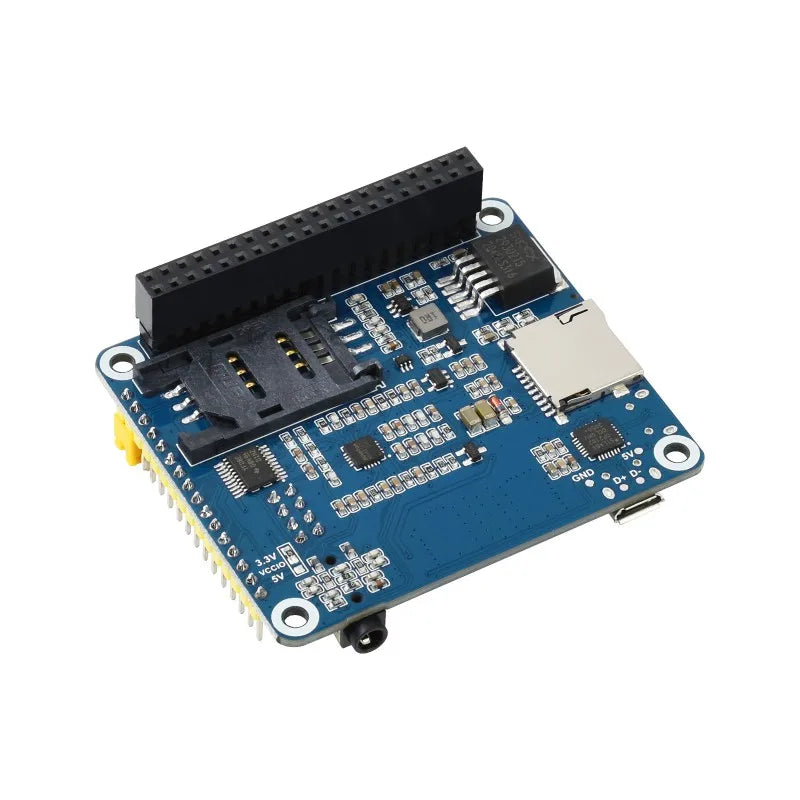

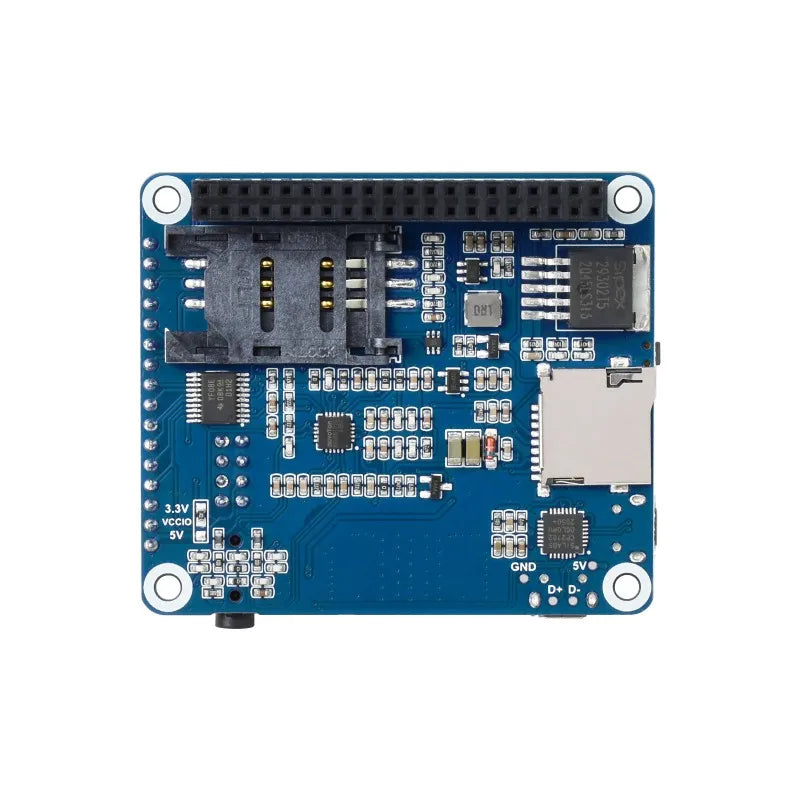

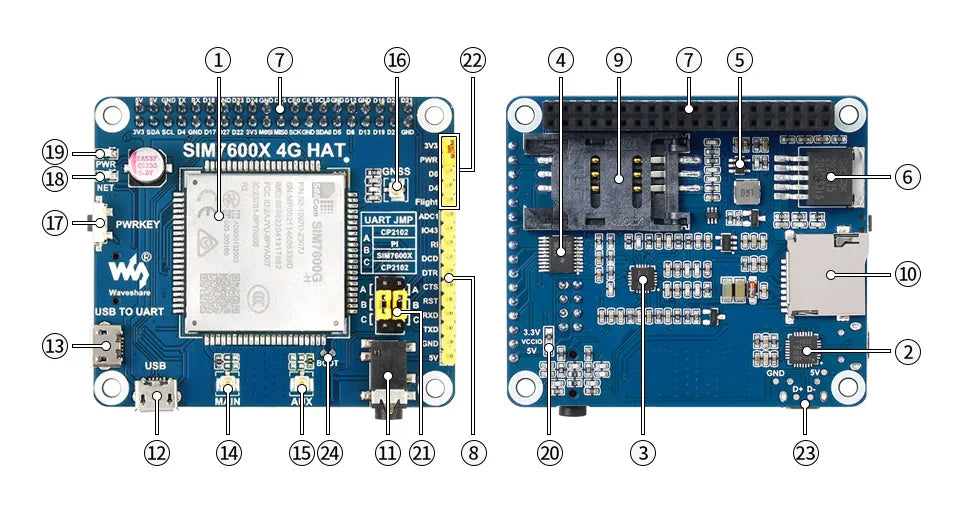

What's On Board

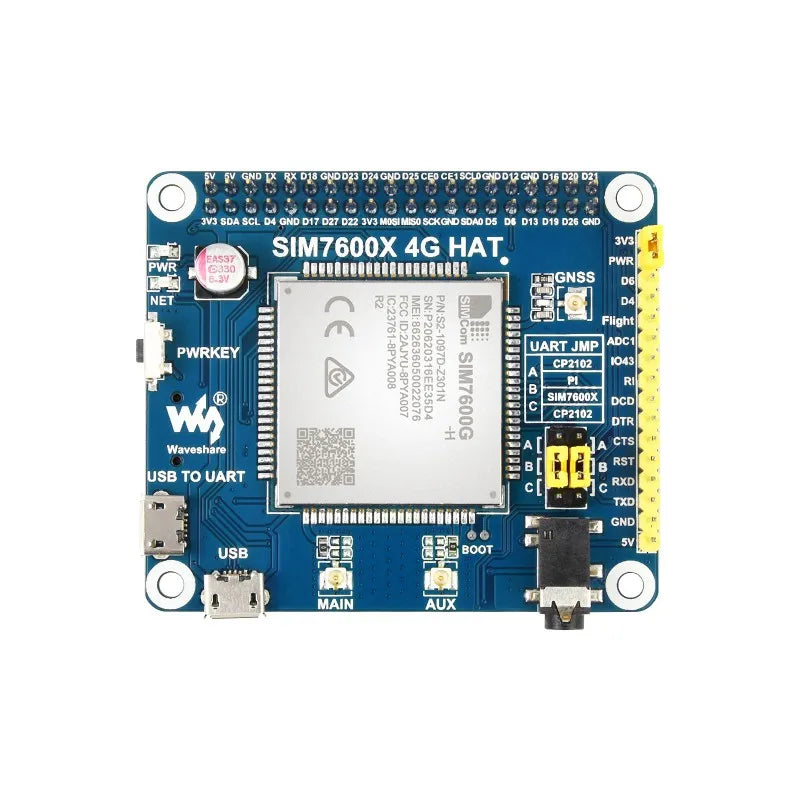

SIM7600G-H
CP2102 USB to UART converter
NAU8810 audio decoder
TXS0108EPWR voltage translator
translates 3.3V/5V into 1.8V
MP2128DT power chip
SPX29302 power chip
Raspberry Pi GPIO header
SIM7600 control interface
for connecting with host boards like Arduino/STM32
SIM card slot
supports 1.8V/3V SIM card
TF card slot
allows data storage like files, messages, etc.
3.5mm earphone/mic jack
USB interface
for testing AT Commands, getting GPS positioning data, etc.
USB to UART interface
for serial debugging, or login to Raspberry Pi

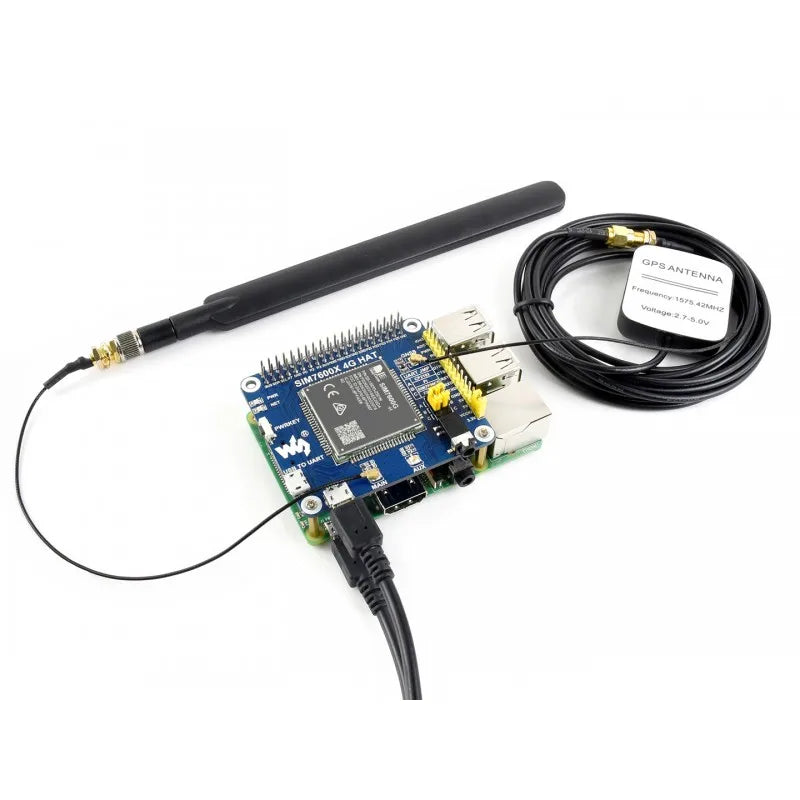

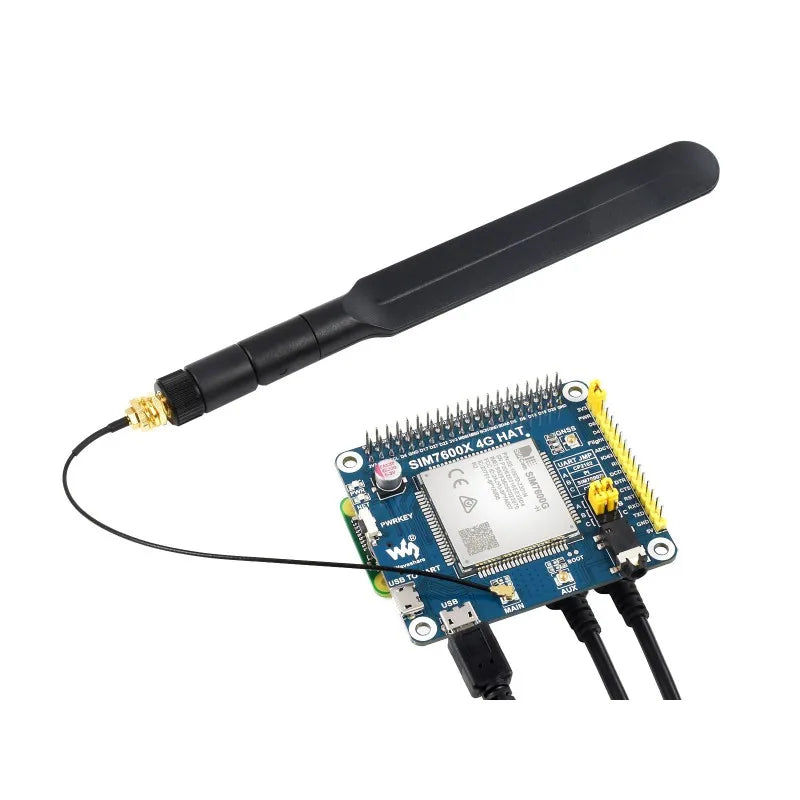

MAIN antenna connector
AUX antenna connector
GNSS antenna connector
Power switch
Network status indicator
Power indicator
Operating voltage selection jumper
configured via 0Ω resistor jumper
VCCIO - 3.3V: set operating voltage as 3.3V
VCCIO - 5V: set operating voltage as 5V
UART selection jumper
A: access Raspberry Pi via USB to UART
B: control the SIM7600 by Raspberry Pi
C: control the SIM7600 via USB to UART
PWR configuration jumper
PWR - 3V3: auto startup on power-up (default)
PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
Flight mode configuration jumper
NC by default, no flight mode control pin
Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin
USB connector solder pads
BOOT forced programming solder pads
