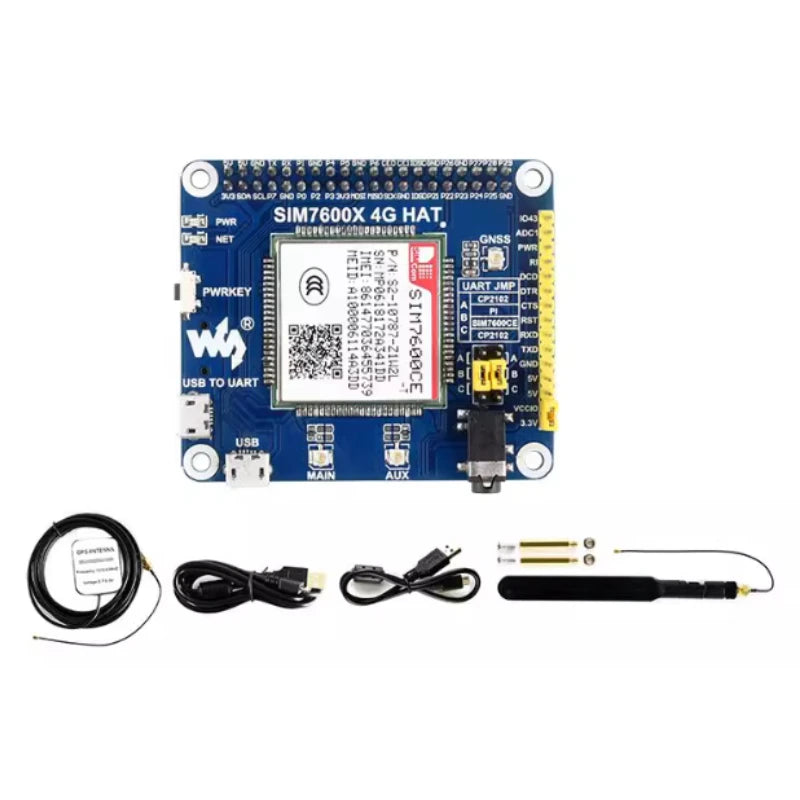

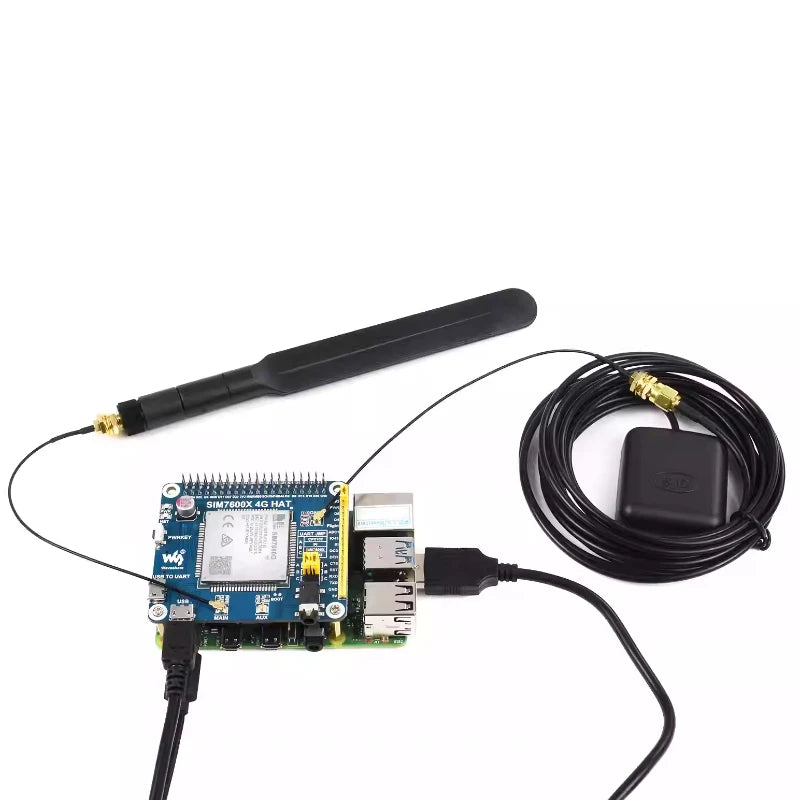

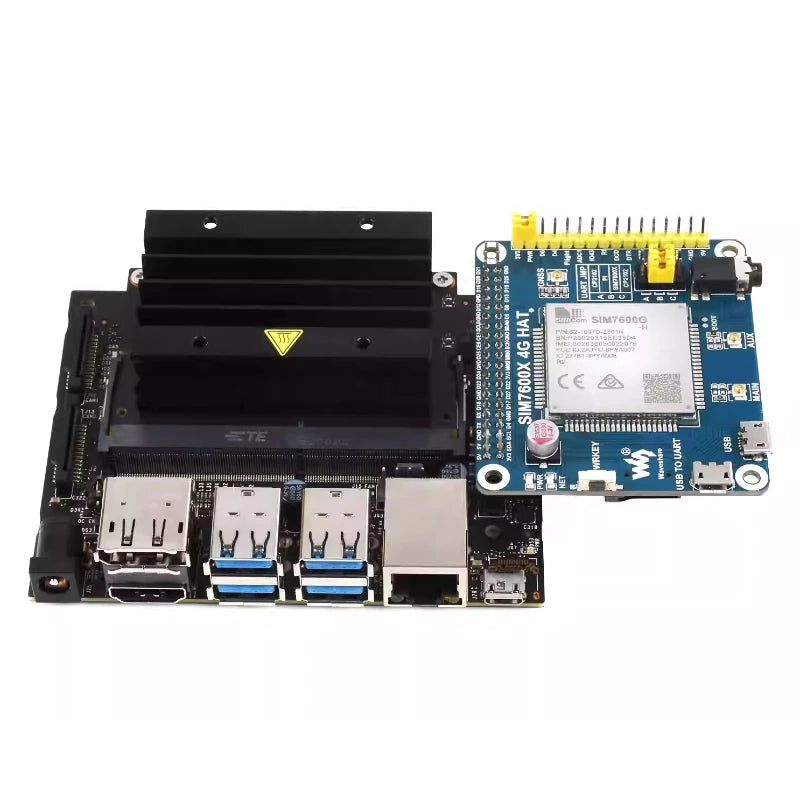

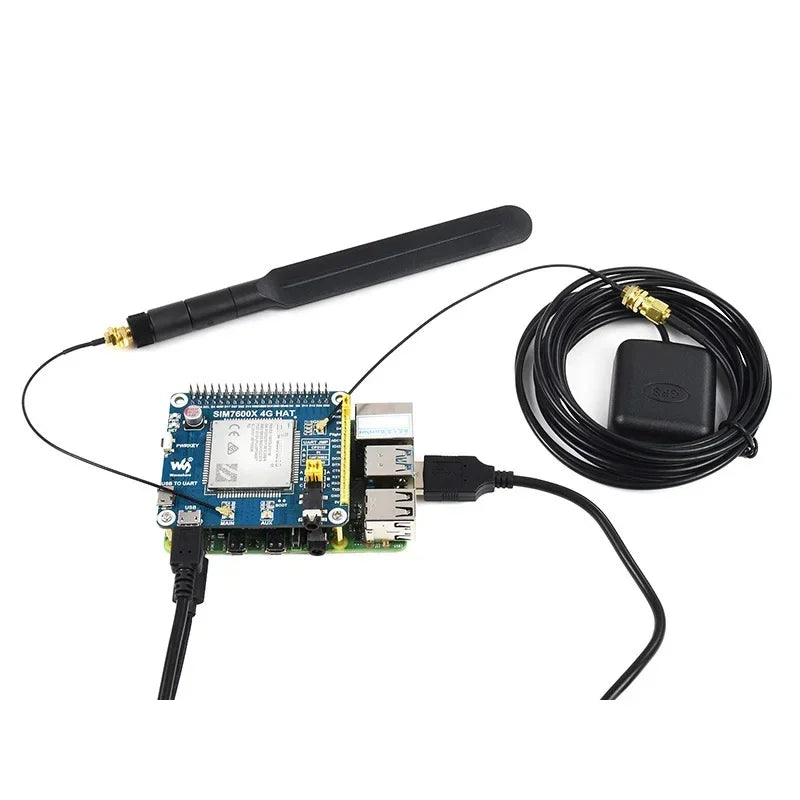

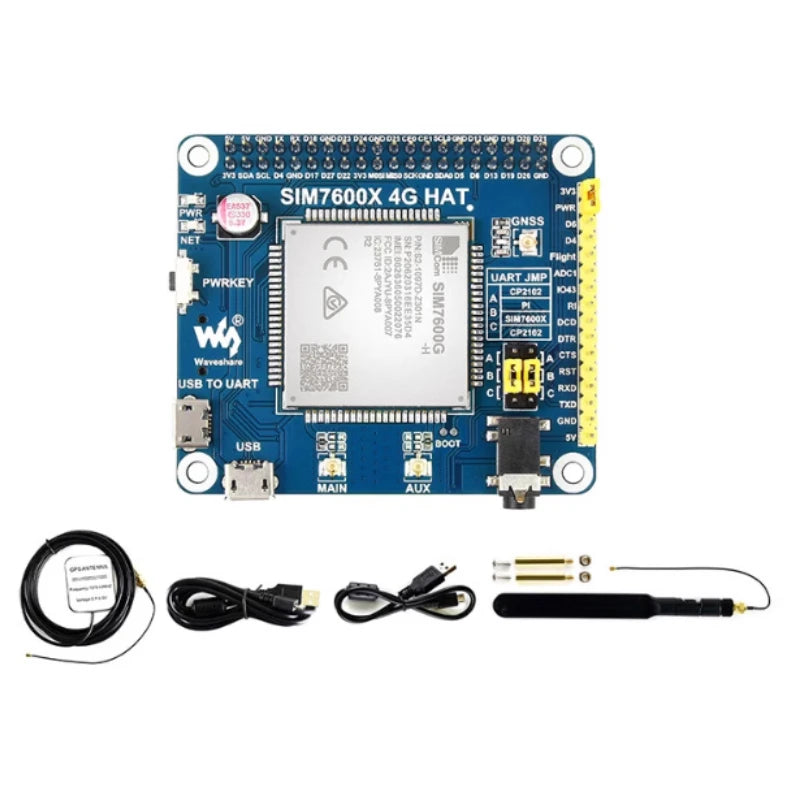

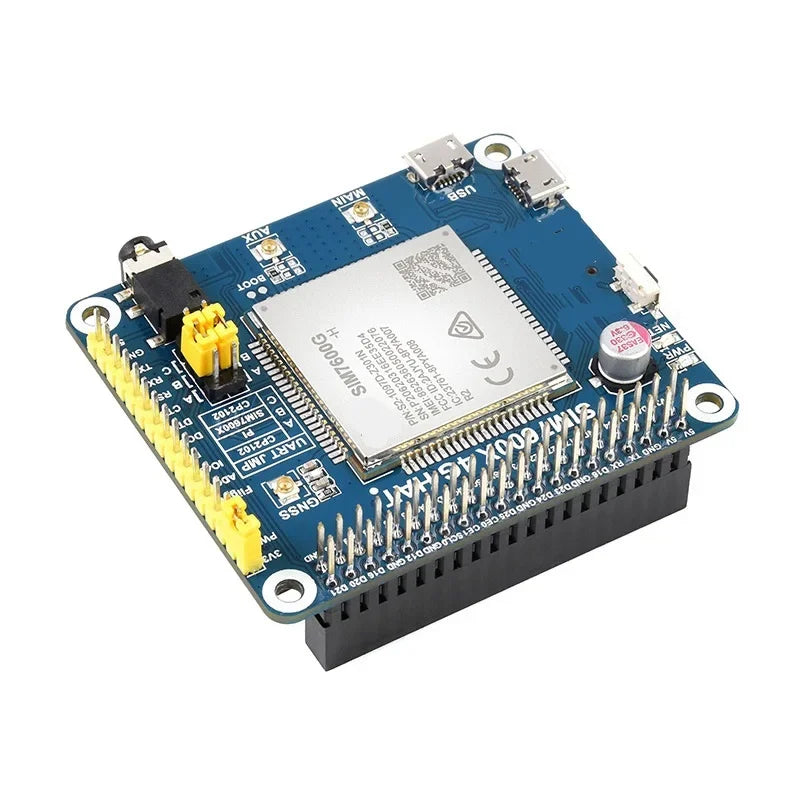

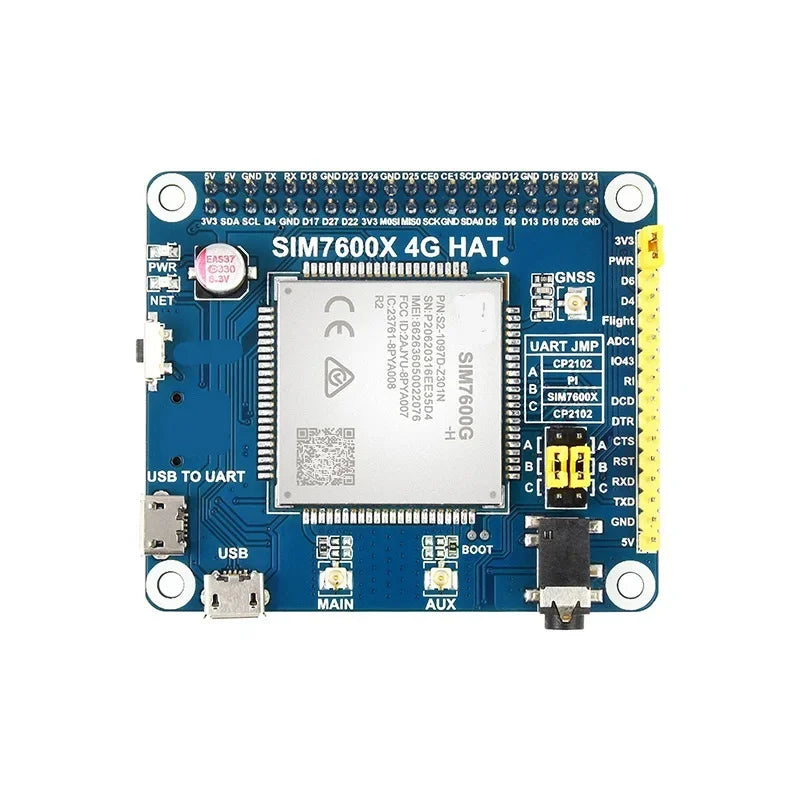

SIM7600G-H/CE 4G Expansion Board-GNSS Positioning Supports LTE Cat-1/3G/2G Compatible with Raspberry Pi/Jetson Nano for Global

SIM7600G-H/CE 4G Expansion Board-GNSS Positioning Supports LTE Cat-1/3G/2G Compatible with Raspberry Pi/Jetson Nano for Global

$618.56

$618.56 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

SIM7600CE 4G

Applicable country/region

Mainly applicable to ChinaIt supports the full network coverage of China's three major carriers, and can be adapted to domestic mainstream 4G/3G/2G standards.

core parameter

Network standard: LTE Cat-4, compatible with LTE-TDD/LTE-FDD/HSPA +/TD-SCDMA/EVDO/GSM/GPRS/EDGE and other multi-standard.
Transmission rate: maximum 150Mbps downlink, maximum 50Mbps uplink.
Positioning function: Integrated multi-constellation GNSS positioning system, supports GPS/GLONASS/Beidou and other satellite positioning.
Package and size: LCC package, size 30 × 30 × 2.9mm, weight 5.7 ± 0.2g, can achieve smooth switching from 3G to LTE products.

Technical parameters

Operating frequency band: LTE-TDD B34/B38/B39/B40/B41, LTE-FDD B1/B3/B5/B8, TD-SCDMA B34/B39, UMTS/HSPA + B1/B8, CDMA 1X/EVDO BC0, GSM/GPRS/EDGE 900/1800MHz.
Power supply and temperature: Voltage range 3.4V to 4.2V (typical 3.8V), operating temperature - 40 ° C to + 85 ° C, suitable for industrial-grade environmental requirements.
Interface and protocol: equipped with USB2.0, UART, SDIO, I2C, GPIO and other rich interfaces; support TCP/IP/IPv4/IPv6 and other network protocols, compatible with Windows, Linux, Android and other system drivers, support FOTA remote upgrade and TLS encryption.

application scenario

Widely used in vehicle communication end points, CPE, industrial routers, telemedicine end points and other Internet of Things fields, especially suitable for domestic industrial-grade equipment that requires high-speed data transmission and stable positioning.

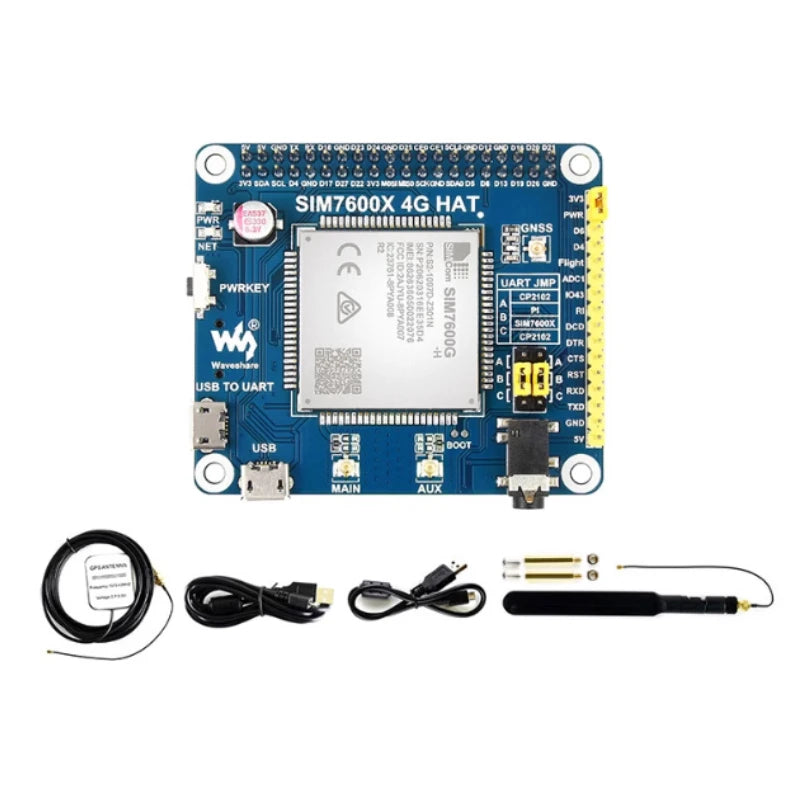

SIM7600G-H 4G (Global Communication)

Applicable country/region

universal, covering China, North America, Europe, South East Asia, Africa, South Korea and other major countries and regions around the world, compatible with mainstream operator networks around the world.

core parameter

Network standard: LTE Cat-4, fully supports 4G/3G/2G multi-mode communication, compatible with LTE-FDD/LTE-TDD/UMTS/GSM and other standards.
Transmission rate: downlink maximum 150Mbps, uplink maximum 50Mbps, to meet high definition data transmission requirements.
Positioning function: Integrated GNSS multi-satellite positioning, support GPS/Beidou/GLONASS/GALILEO/QZSS, positioning sensitivity up to - 159dBm (GPS)/-158dBm (GLONASS).
Compatibility: Supports AT command control, built-in TCP/IP/HTTP/HTTPS and other network protocols, and can achieve communication functions without low-level development.

Technical parameters

Working frequency band: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66, LTE-TDD B34/B38/B39/B40/B41; 3G UMTS/HSPA + B1/B2/B4/B5/B6/B8/B19; 2G GSM/GPRS/EDGE 850/900/1800/1900MHz.
Environmental adaptability: Suitable for wide temperature working environments, supports industrial-grade stability requirements, and can handle complex outdoor and vehicle scenarios.
Interface support: Equipped with USB, UART and other standard interfaces, support RNDIS/MBIM and other modes, compatible with Windows, Linux and other system drivers.

application scenario

It is suitable for cross-border Internet of Things devices, global logistics tracking end points, car navigation systems, portable 4G hotspots (CPE), overseas remote monitoring equipment and other scenarios that require global networking and positioning.

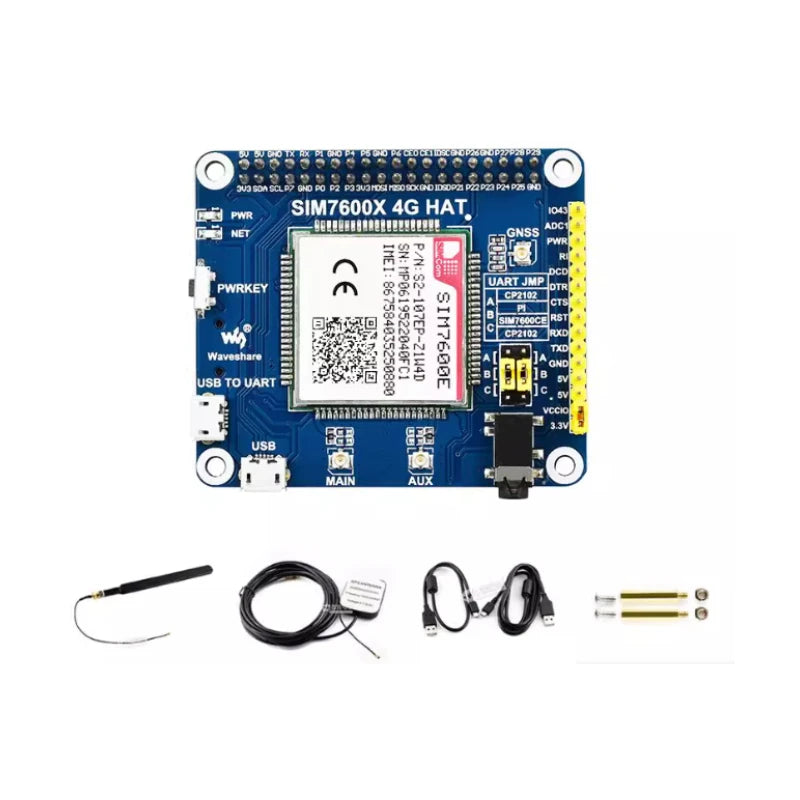

SIM7600E 3G

Applicable country/region

Mainly applicable to Europe, South East Asia, West Asia, Africa, China, KoreaAnd other regions, adapt to the local 3G/2G mainstream frequency band.

core parameter

Network standard: 3G main standard, support UMTS/HSDPA/HSPA +, compatible with GSM/GPRS/EDGE and other 2G standards.
Transmission rate: HSPA + downlink up to 42Mbps, uplink up to 5.76Mbps, to meet the needs of high-speed data transmission.
Positioning function: Integrated GNSS positioning system, supports GPS/Beidou/GLONASS satellite positioning, and adapts to location tracking scenarios.
Industrial grade design: support RS232/RS485/TTL serial port and network bidirectional transmission, adapt to industrial equipment data collection needs.

Technical parameters

Working frequency band: 3G UMTS/HSDPA/HSPA + B1/B5/B8; 2G GSM/GPRS/EDGE covers the global mainstream 2G frequency band.
Protocol and functions: Support TCP/UDP, Modbus, HTTP, MQTT and other communication modes, support RNDIS dial-up and AT command control, and can upgrade firmware through USB.
Environmental adaptation: The operating temperature covers an industrial-grade range, capable of handling complex environments such as outdoor and industrial equipment rooms.

application scenario

Suitable for industrial data collection end points, low-rate IoT sensors, remote monitoring equipment in 3G network coverage areas, cross-border logistics trackers, etc., especially suitable for cost-sensitive and high-speed applications without 4G.
