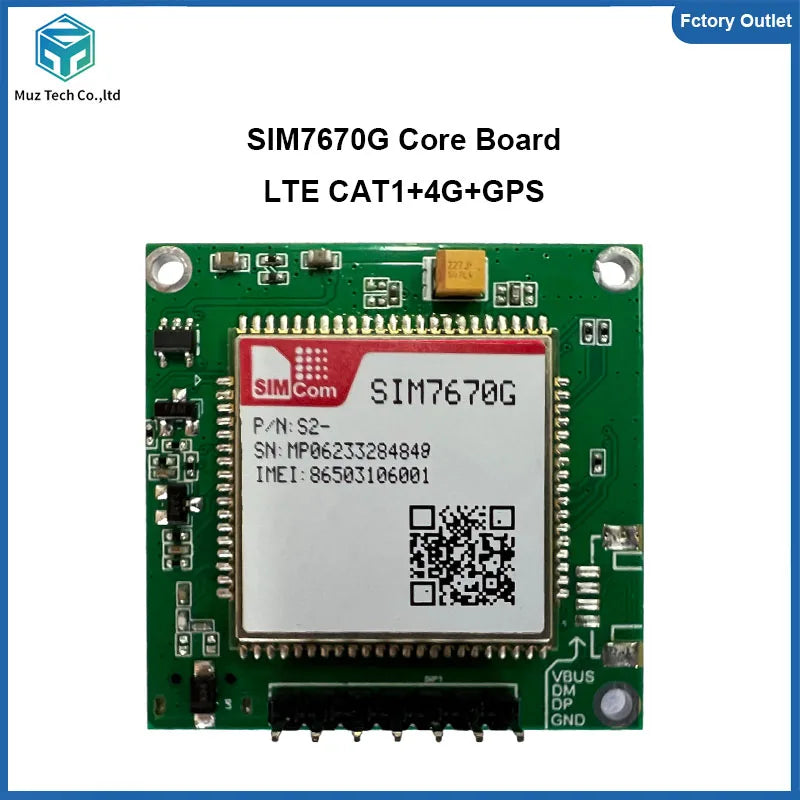

SIM7670G SIM7672G Development Core Board 4G+GNSS LTE CAT1 Module Global Bands Breakout Kit with Antenna Support LTE-FDD/LTE-TDD

SIM7670G SIM7672G Development Core Board 4G+GNSS LTE CAT1 Module Global Bands Breakout Kit with Antenna Support LTE-FDD/LTE-TDD

$113.80

$113.80 $0.00

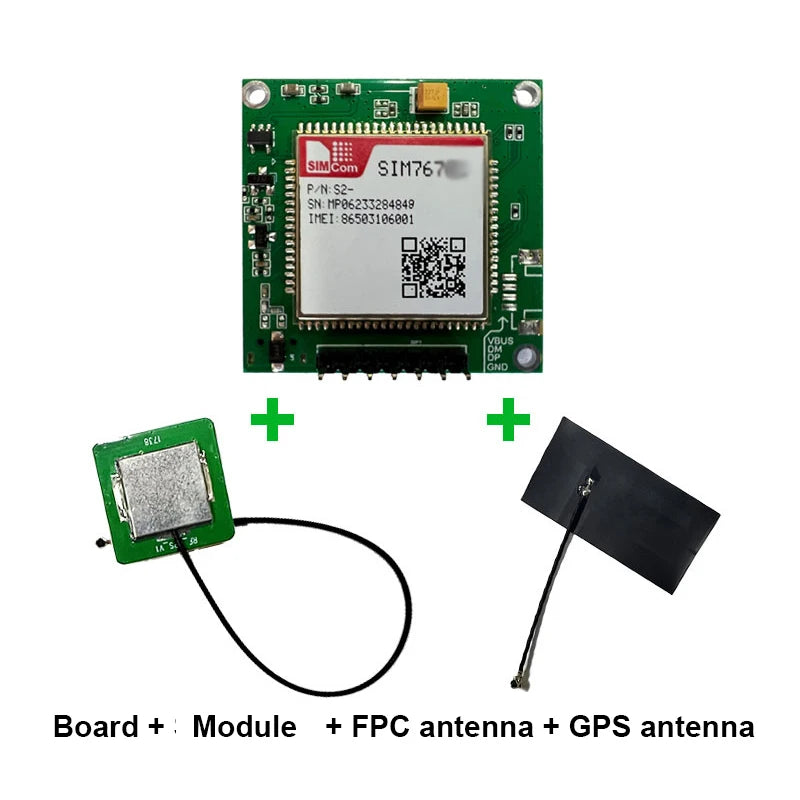

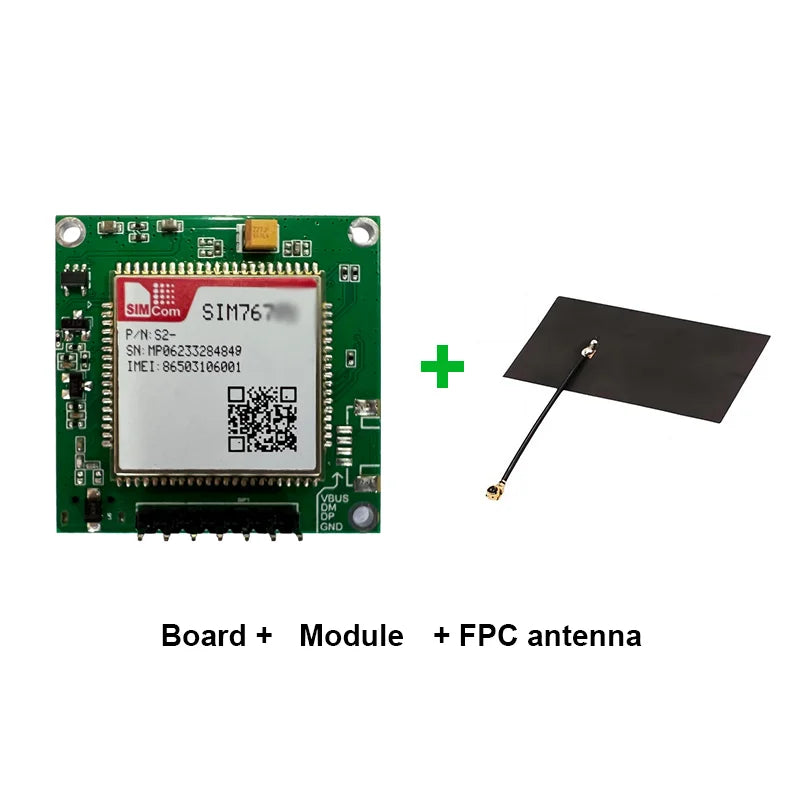

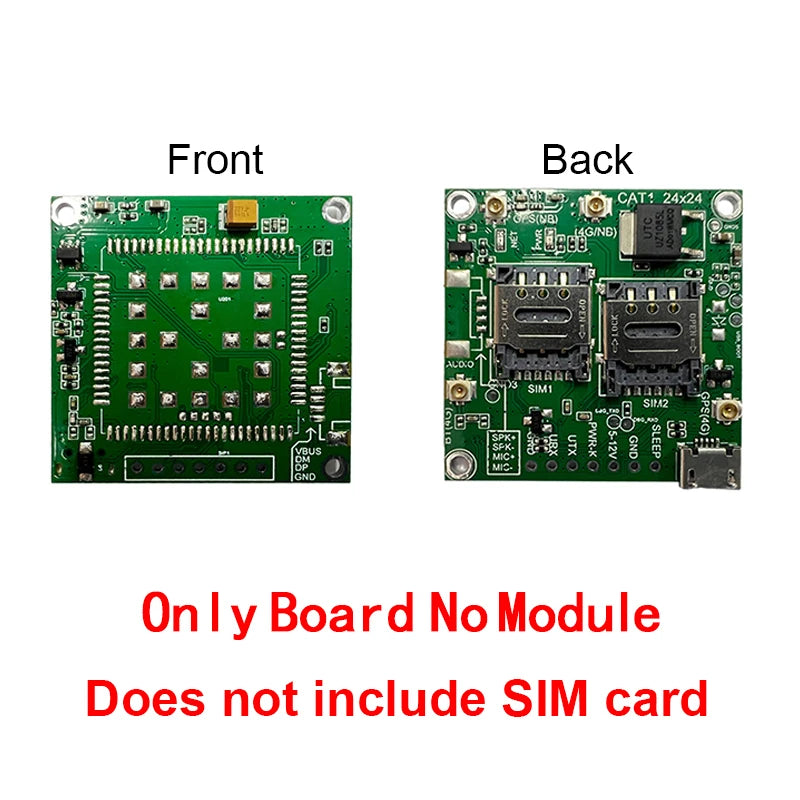

Color with module FPC GPS with module and FPC SIM7672G-MNGV board SIM7670G-MNGV board only Board No module

Model Number SIM7670G-MNGV SIM7672G-MNGV

Ships FromChina Mainland

Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Operating Temperature: -40℃-85℃

Origin: Mainland China

Quantity: 1

SIM7670G-LNGV: LTE CAT1+4G

SIM7670G-MNGV: LTE CAT1+4G+GNSS

SIM7672G-LNGV: LTE CAT1+4G

SIM7672G-MNGV: LTE CAT1+4G+GNSS

Supply Voltage: 5-16V DC

Type: Core Board

size(mm): 37*37*12.4(Including pin height)

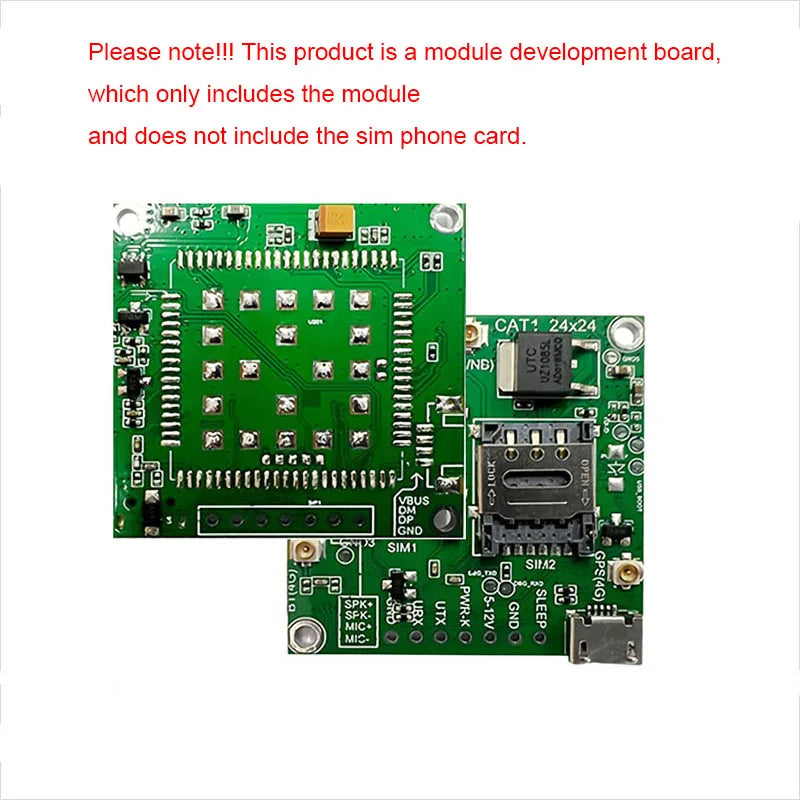

Please note!!! This product is a module Core board, which only includes the module and does not include the sim phone card.

The module suffix indicates the applicable country.

SIMCOM

G (Global) E(Europe/Middle East/Africa) NA (North America) C(China)

JC(Japan) SA(New Zealand/Australia/South America)

SIM7670G-LNGV: LTE CAT1+4G,

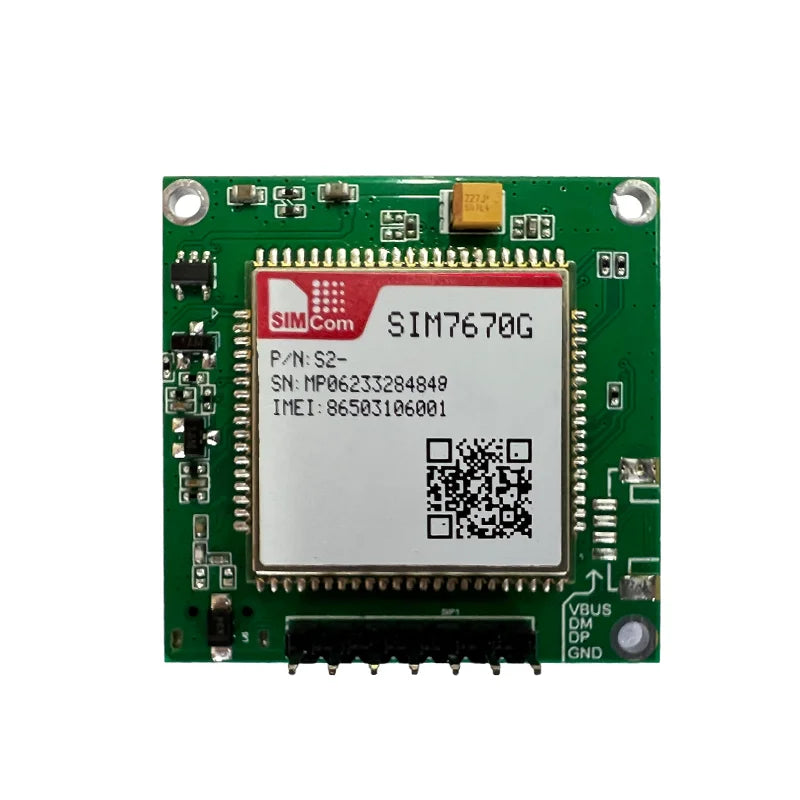

SIM7670G-MNGV :LTE CAT1+4G+GNSS

Project	Description
Product Name	4G CAT1 Core Board
Model	DD-MCore-SIM7670G
Package	7PIN(2.54mm)
Power	5-16V DC
UART	3.3V TTL (DefauIt)
SIM Card	MIRCO SIM
LED	Power/Network light
USB	Y
SIZE	373712.4mm(Including pin height)
Operating temperature	-40℃-85℃
Network Band	LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18 /B19/B20/B25/B26/B28/B66 LTE-TDD:B34/B38/B39/B40/B41
Network speed	LTE:10Mbps(DL) 5Mbps(UL)
Network protocol	TCP/IP/IPV4/IPV6/MuItiPDP/FTP/FTPS/HTTP /HTTPS/DNS/RNDIS/ECM/PPP
Function	LTE CAT1+4G+Qualcomm chip

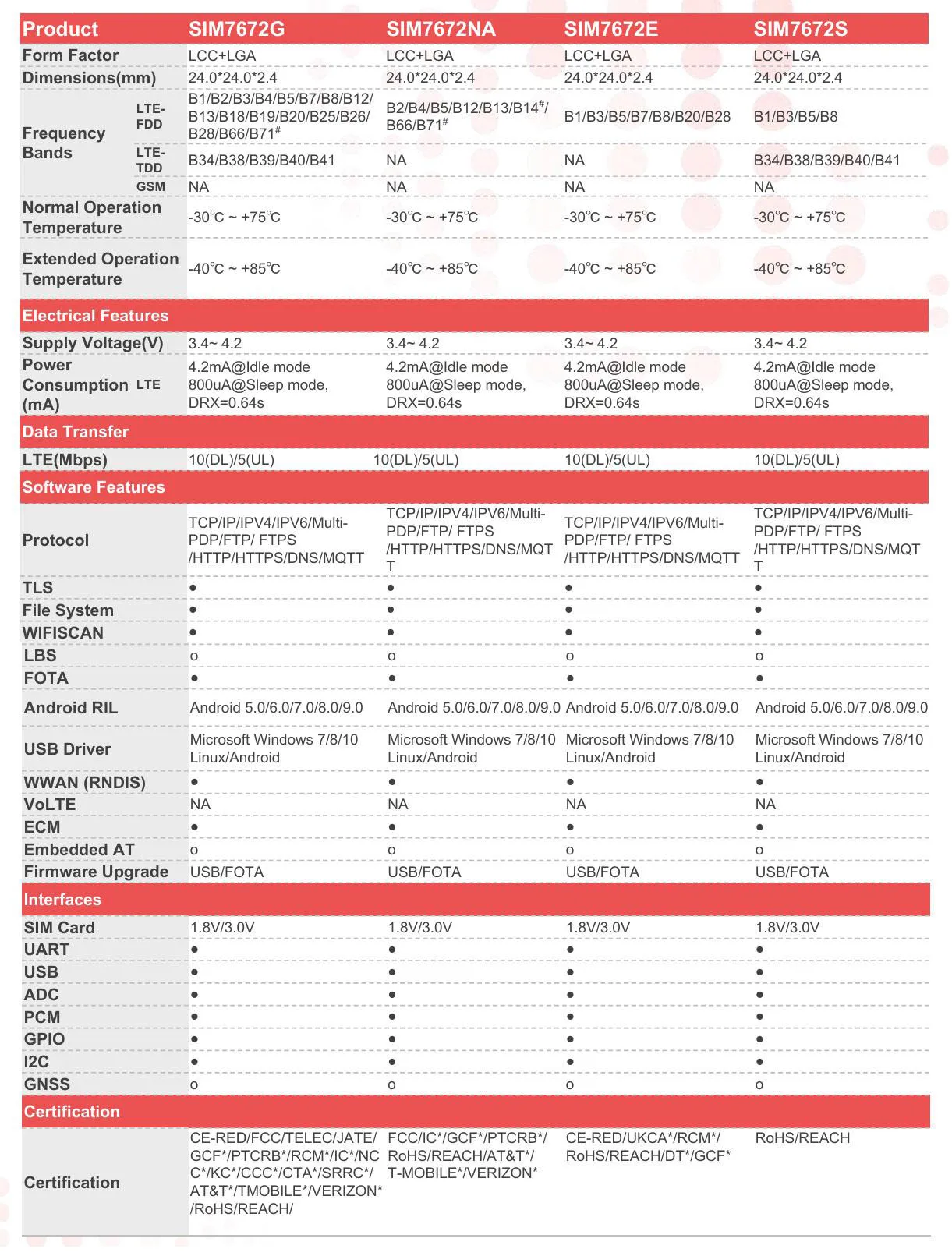

SIMCOM SIM7672 series modules are the LTE Cat 1 modules based on the latest QCX216 chipset that supports wireless communication modes of LTE-FDD/LTE-TDD. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.

SIMCOM SIM7672 series adopts LCC+LGA form factor and is compatible with A7672 series (Cat1 modules), SIM7000/SIM7070 series (NB/Cat M modules), and SIM800/SIM800F series (2G modules), which enables smooth migration from 2G/NB/Cat M products to LTE Cat 1 products and greatly facilitates more compatible product design for the customer needs.

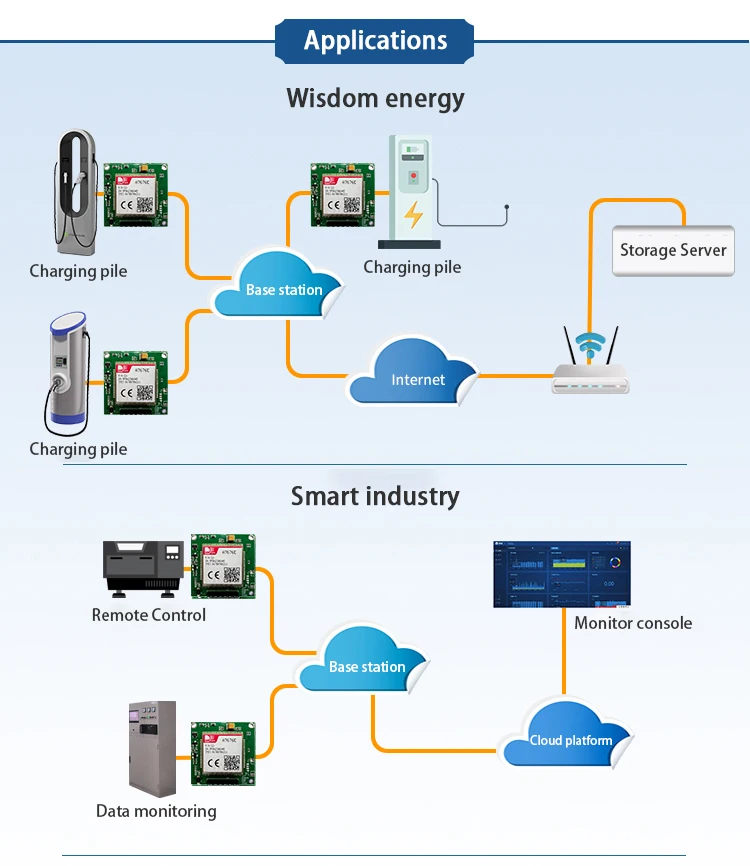

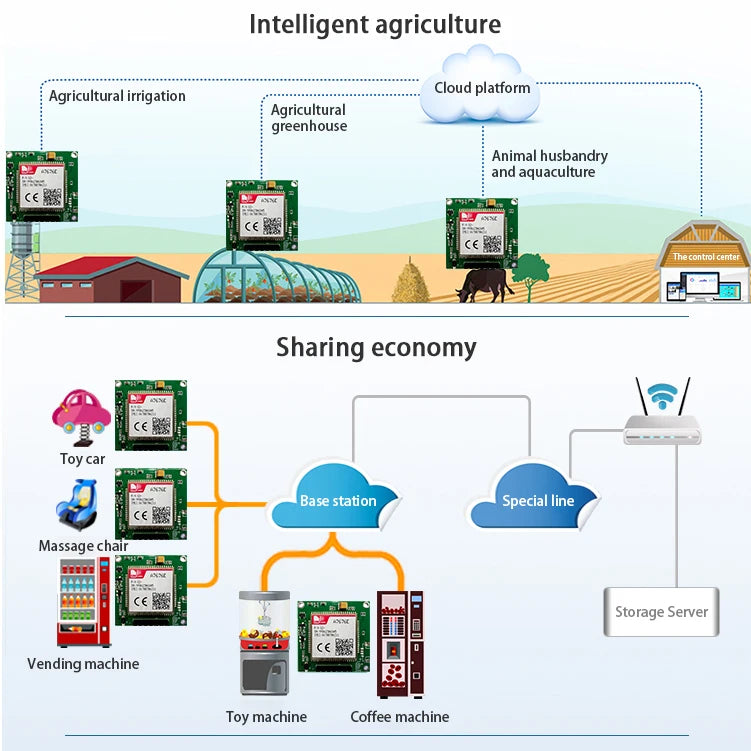

SIMCOM SIM7672 series supports both multiple built-in network protocols and the drivers for three main operation systems (USB driver for Windows, Linux and Android). The software functions, AT commands are compatible with the SIM800 series modules. SIM7672 series also integrates abundant industrial standard interfaces with powerful expansibility, such as UART, USB, I2C and GPIO, which makes it perfectly suitable for main IOT applications such as telematics, metering, surveillance devices, industrial routers, and remote diagnostics etc.

Advantages

- Compact size with abundant interfaces

- Abundant software functions: FOTA, LBS*, SSL

- Form factor is compatible with the A7672/SIM7000/SIM7070 series and 2G SIM800F/SIM800

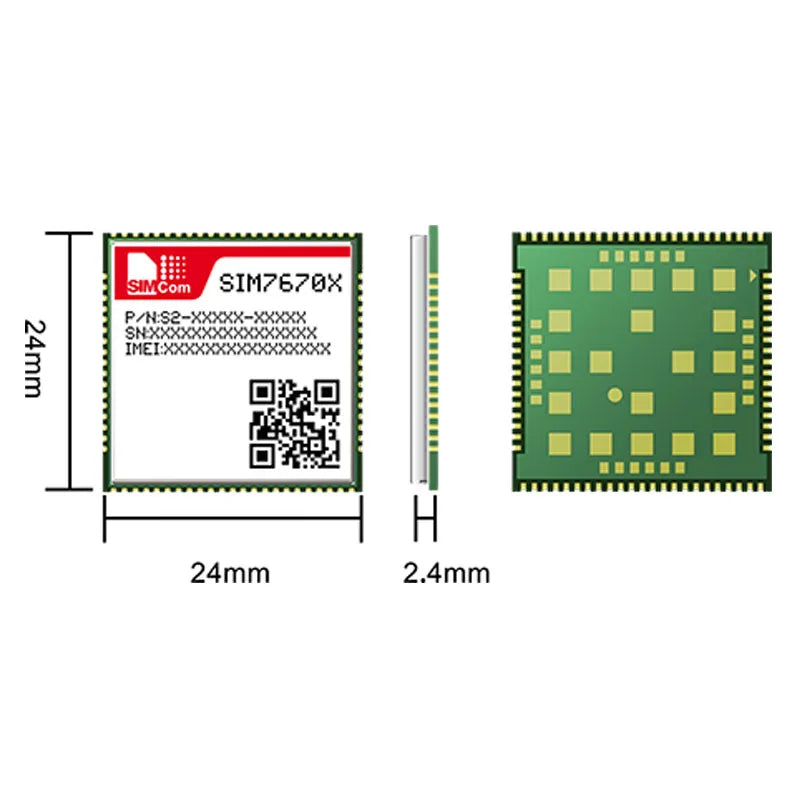

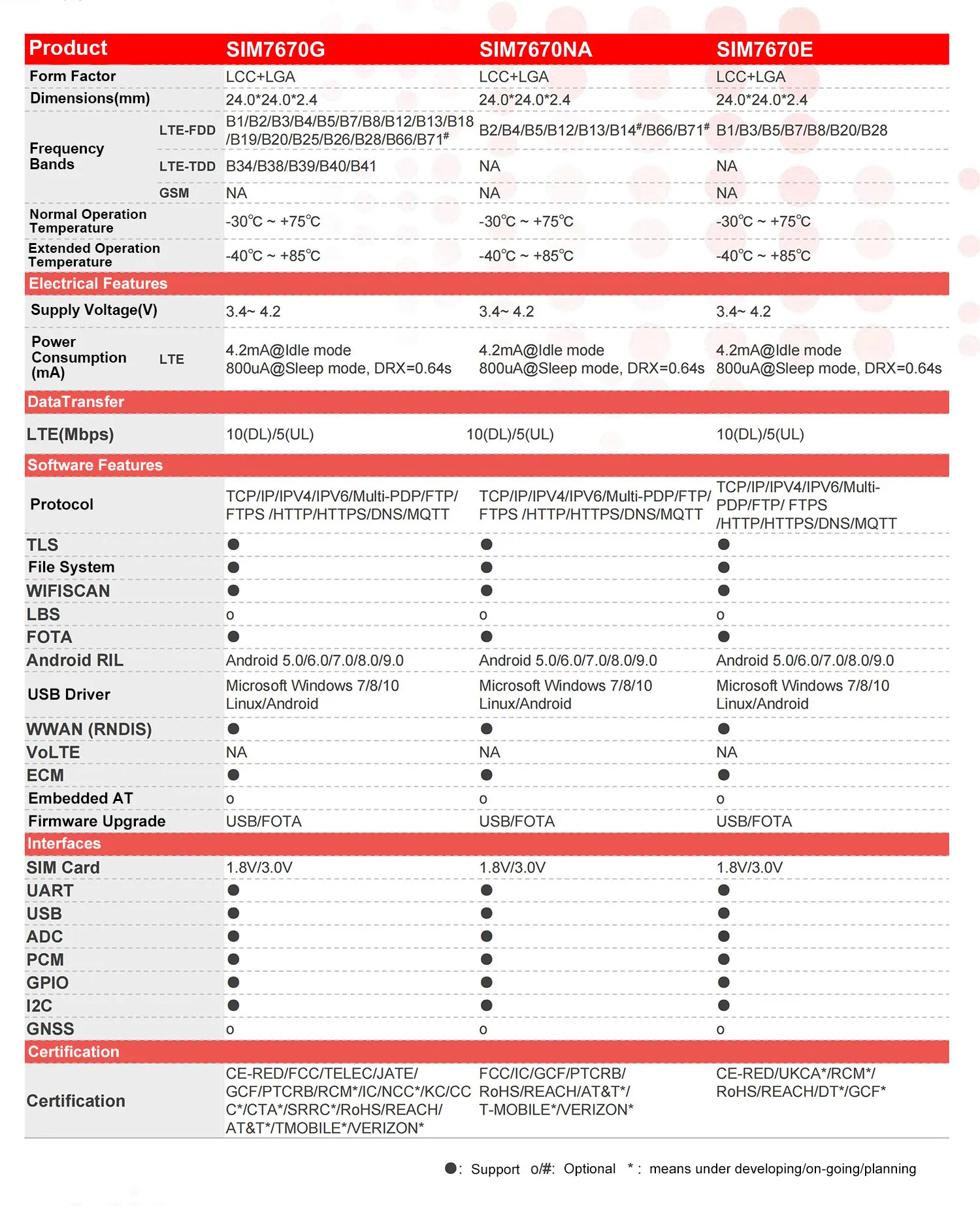

The SIM7670X series is an LTE Cat 1bis module based on the QCX216 chipset, supporting LTE-FDD/LTE-TDD wireless communication modes. It supports a maximum downlink rate of 10 Mbps and an uplink rate of 5 Mbps.

The SIM7670X series adopts LCC + LGA design, compatible with the A7670 series (Cat1 module), SIM7000/SIM7070 series (NB/Cat M module), and SIM800/SIM800F series (2G module), enabling the smooth migration of 2G/NB/Cat M products to LTE Cat1 products, and enhancing compatibility to meet customer needs in product design.

The SIM7670X series supports multiple built-in network protocols and three major operating system drivers (USB drivers for Windows, Linux and Android). The software functions, AT commands are compatible with the SIM7670X series module. The SIM7670X also integrates a multi-GNSS receiver for GPS/GLONASS/Galileo/Beidou, as well as a wealth of industrial standard interfaces, with strong scalability, such as UART, USB, I2C and GPIO, which is highly suitable for remote information processing, metering, monitoring equipment, industrial routers and remote diagnosis, etc.

Advantages

1. Compact in size, it features numerous interfaces and GNSS capabilities.

2. Rich software functions: FOTA, SSL, LBS*

3. Integrate high-performance multi-satellite system receivers.

4. The external dimensions are compatible with the A7670/SIM7000/SIM7070 series and the 2G SIM800F/SIM800 models.

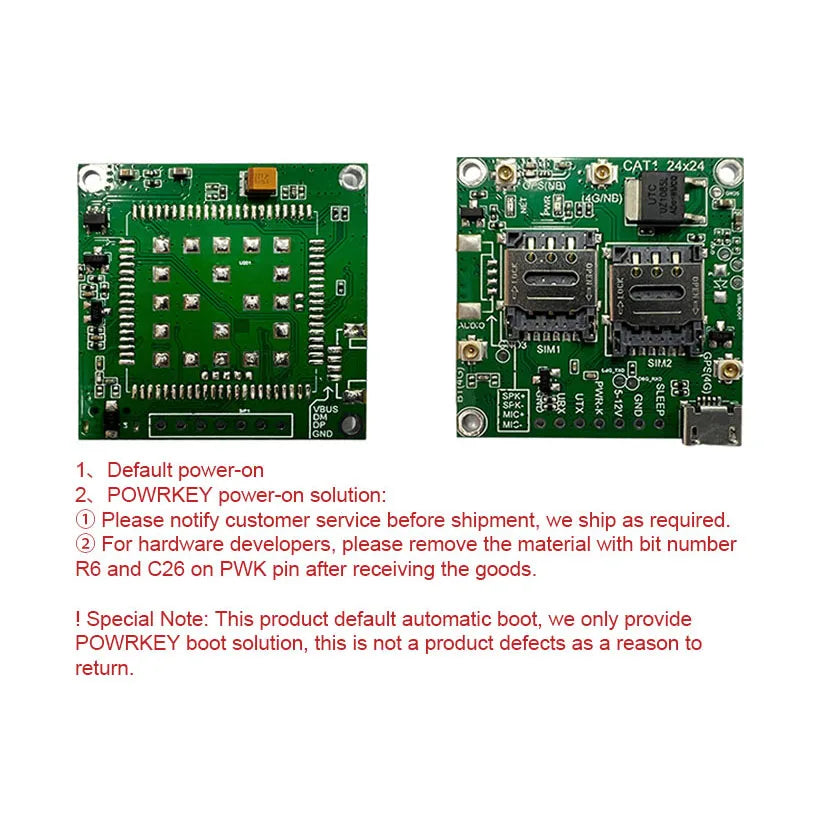

1. Default power-on

2. POWRKEY power-on solution:

(1) Please notify customer service before shipment, we ship as required.

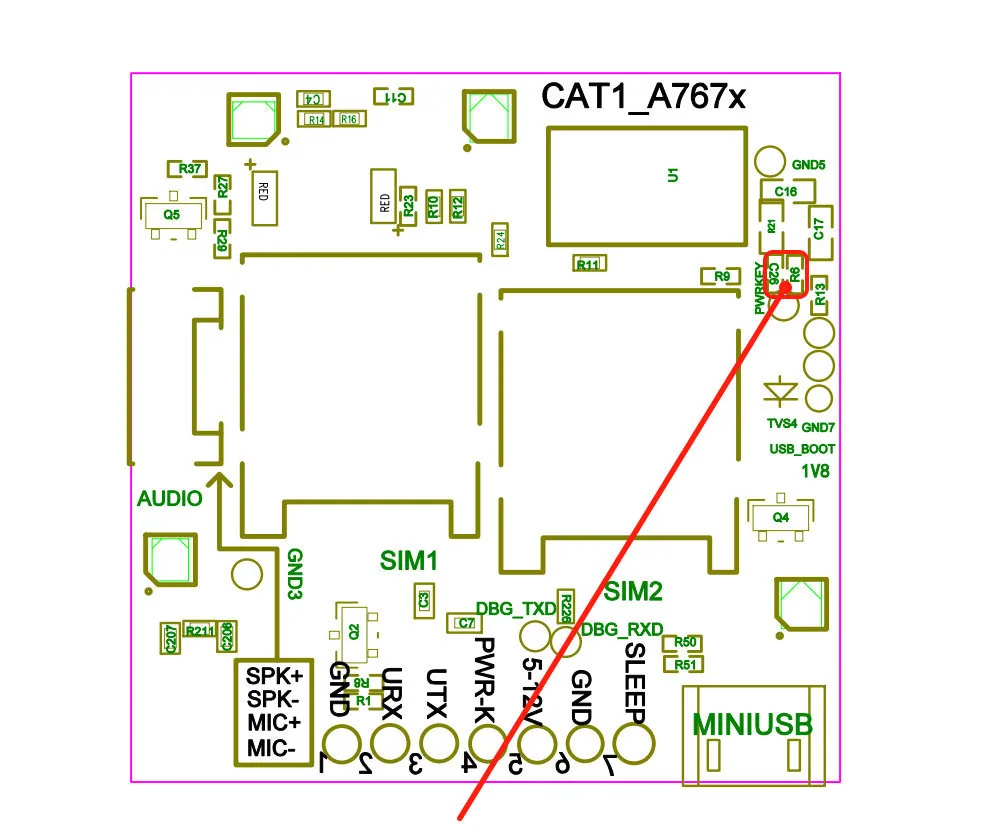

(2) For hardware developers, please remove the material with bit number R6 and C26 on PWK pin after receiving the goods.

！Special Note: This product default automatic boot, we only provide POWRKEY boot solution, this is not a product defects as a reason to return.

Please remove the material with bit number R6 and C26 short 3.3V on PWK pin.
