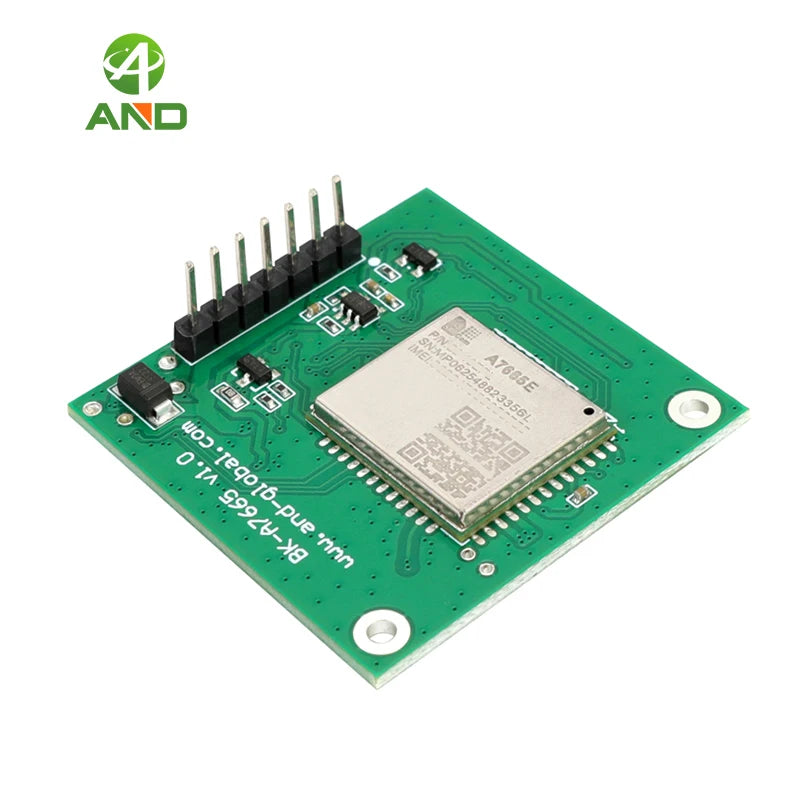

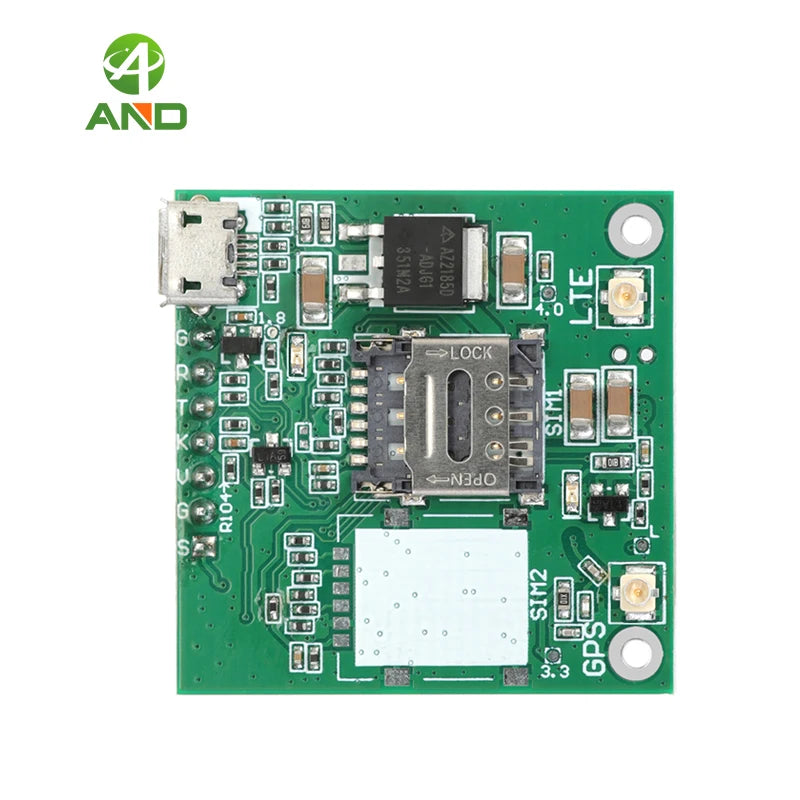

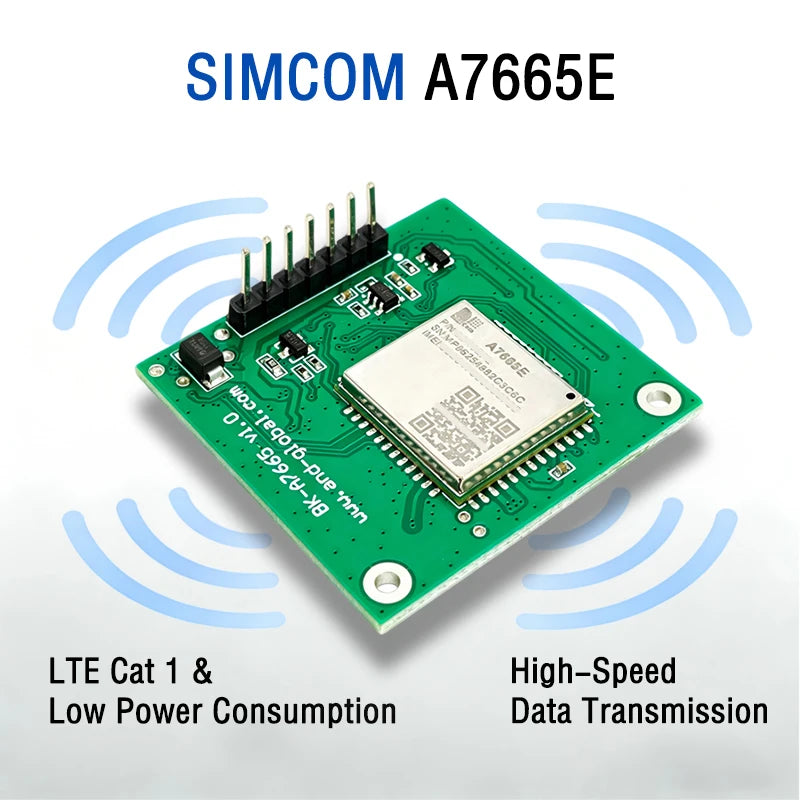

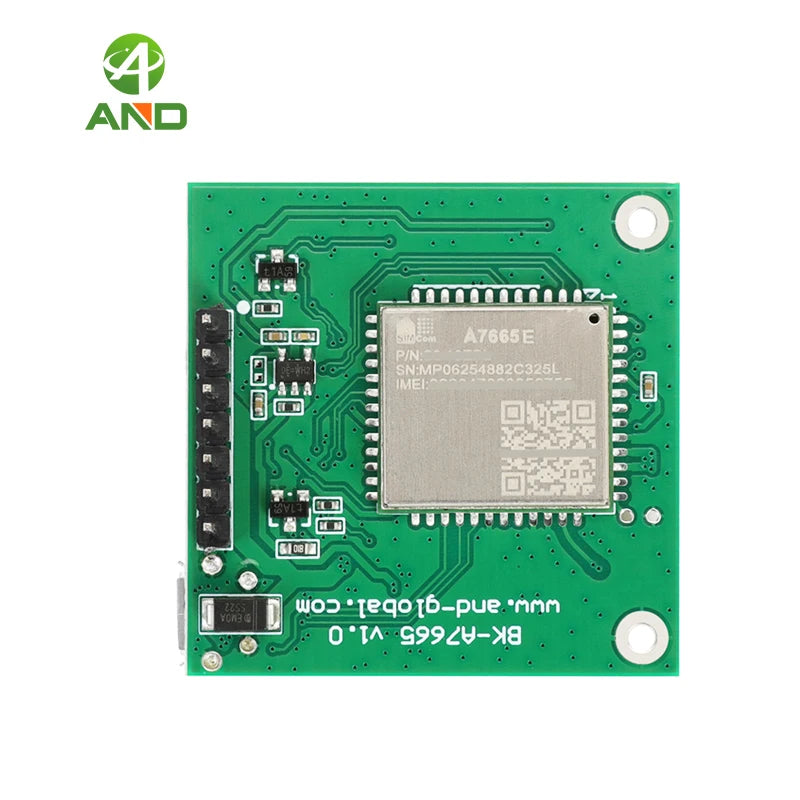

SIMCOM A7665E LTE CAT1 Breakout Board 4G GSM Cellular Module with SIM Slot Development Board for Vehicle GPS Tracker

SIMCOM A7665E LTE CAT1 Breakout Board 4G GSM Cellular Module with SIM Slot Development Board for Vehicle GPS Tracker

$103.20

$103.20 $0.00

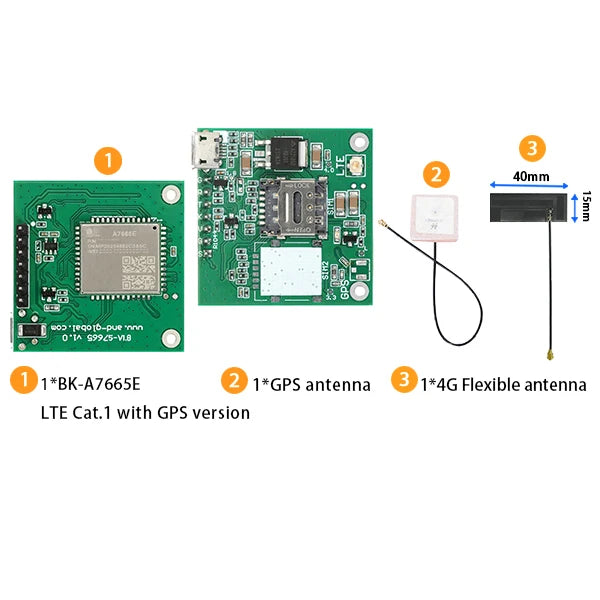

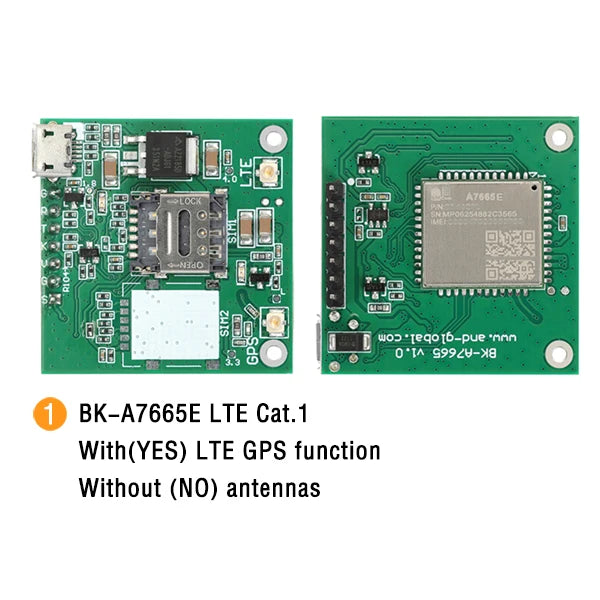

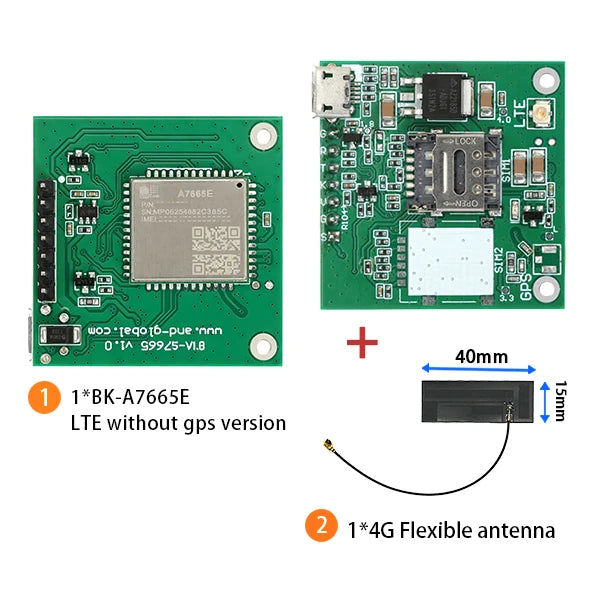

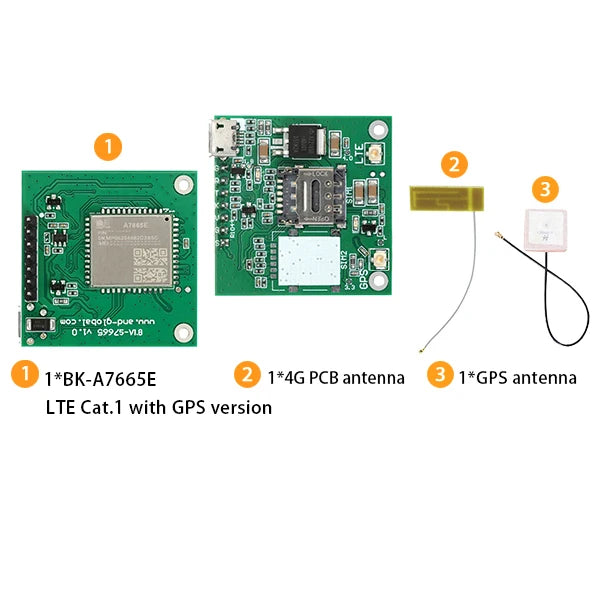

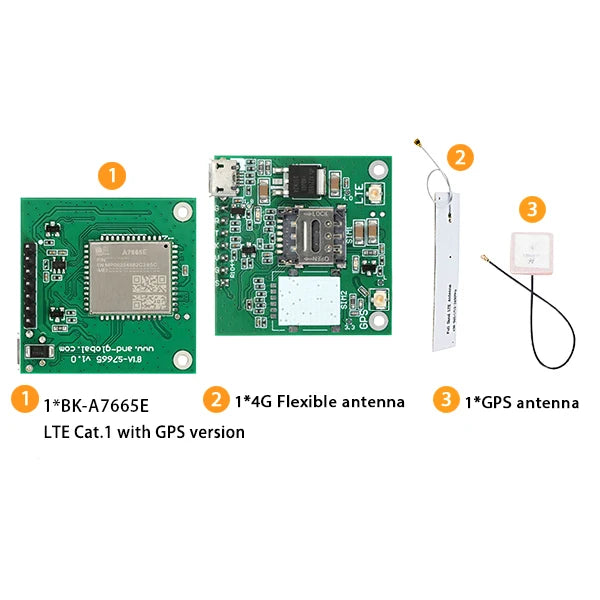

Color With 2 antennas With 4G GPS ants With FPC GPS ants LTE version Without antenna

Ships FromChina Mainland

Description

SPECIFICATIONS

Brand Name: ANDPROG

Choice: yes

Compatibility: Pin-compatible with SIM800C (2G) and SIM7080G (LPWA)

Condition: New

Data Rates: Downlink: up to 10 Mbps / Uplink: up to 5 Mbps

Functions: Supports FOTA, LBS (Location Based Services), MQTT, HTTP/HTTPS

High-concerned chemical: none

Network Standards: 3GPP Release 14 LTE Cat 1 bis (Single Antenna)

Origin: Mainland China

Power Efficiency: Optimized for battery-powered "always-on" connectivity

Quantity: 1

Type: 4g

semi_Choice: yes

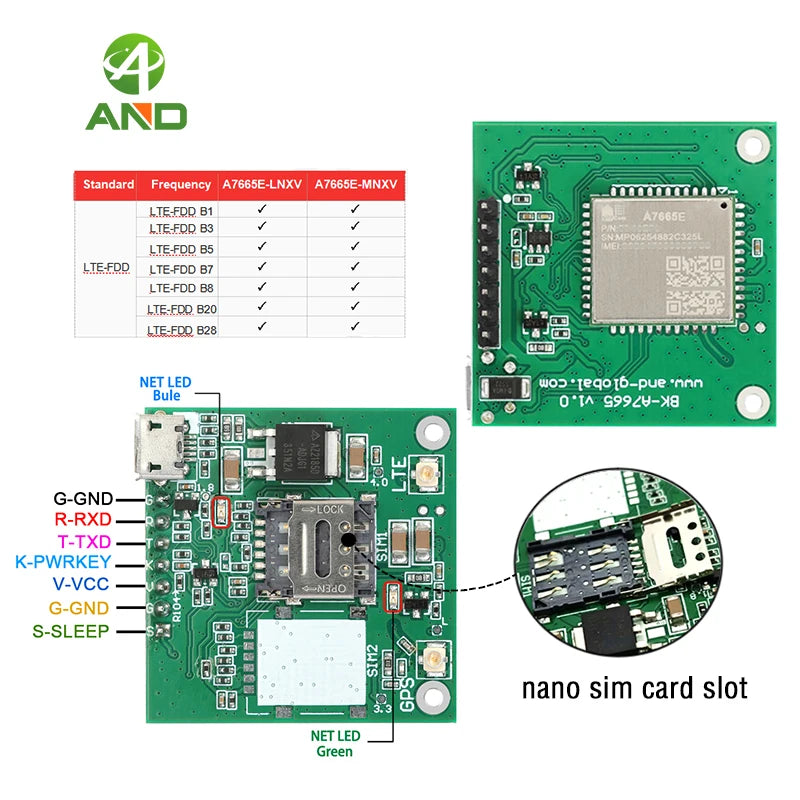

Frequency Bands：

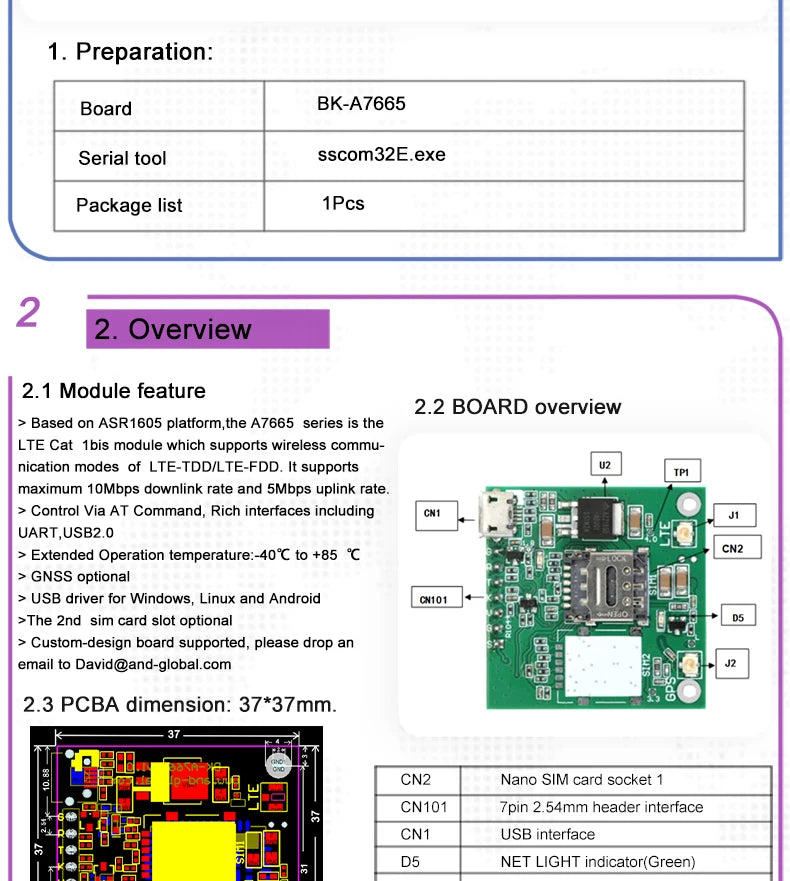

A7665E is the LTE Cat 1 b is module that supports wireless communication modes of

LTE-FDD. It supports maximum 10 Mbps downlink rate and 5 Mbps uplink rate.

A7665E adopts LGA form factor and is compatible with A 76 82 E ,A 76 8 3 E (CAT 1 mod u les ) , S I M 8 0 0 C , S I M 8 6 8 s e r i e s (G S M /G P R S m o d u l e s ) a n d SIM7080G(LPWA), which enables smooth migration from2G products to LTE products , and greatly facilitates more compatible product design for the customer needs.

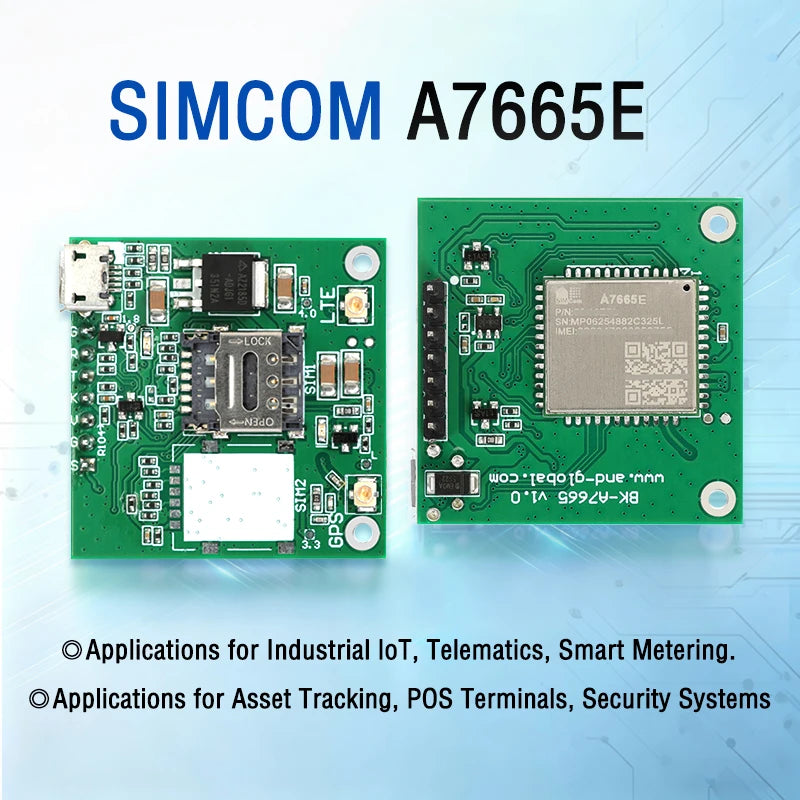

A7665E supports multiple built-in network protocols , supports drivers for main operation systems (USB driver for Windows , Linux and Android etc .) and software function. AT commands are compatible with the SIM800 series modules . Meanwhile A7665E integrates main industrial standard interfaces , with powerful expansibility , including abundant interfaces such as UART , USB , I2C , GPIO, which is suitable for main IOT applications such as telematics , surveillance devices , industrial routers , and remote diagnostics etc.
