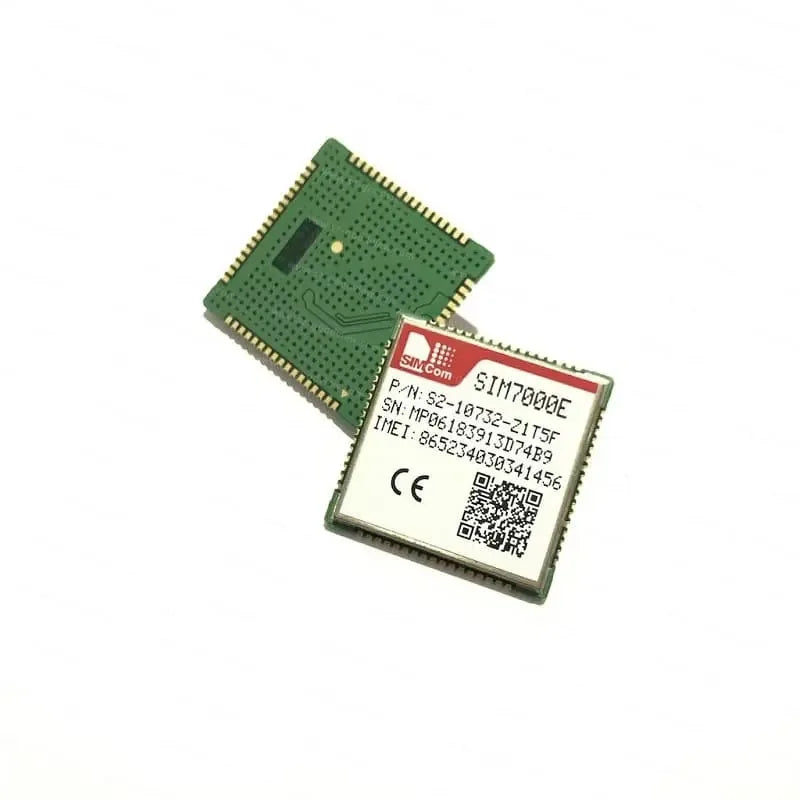

SIMcom SIM7000E SIM7000G Development Board Mini Core Board 24*24mm LPWA Module NBIOT CATM with External GPS (Optional)

SIMcom SIM7000E SIM7000G Development Board Mini Core Board 24*24mm LPWA Module NBIOT CATM with External GPS (Optional)

$213.52

$213.52 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Operating Temperature: -40℃-85℃

Origin: Mainland China

Quantity: 1

Supply Voltage: VIN 0.8V-4.2V

Type: Core Board

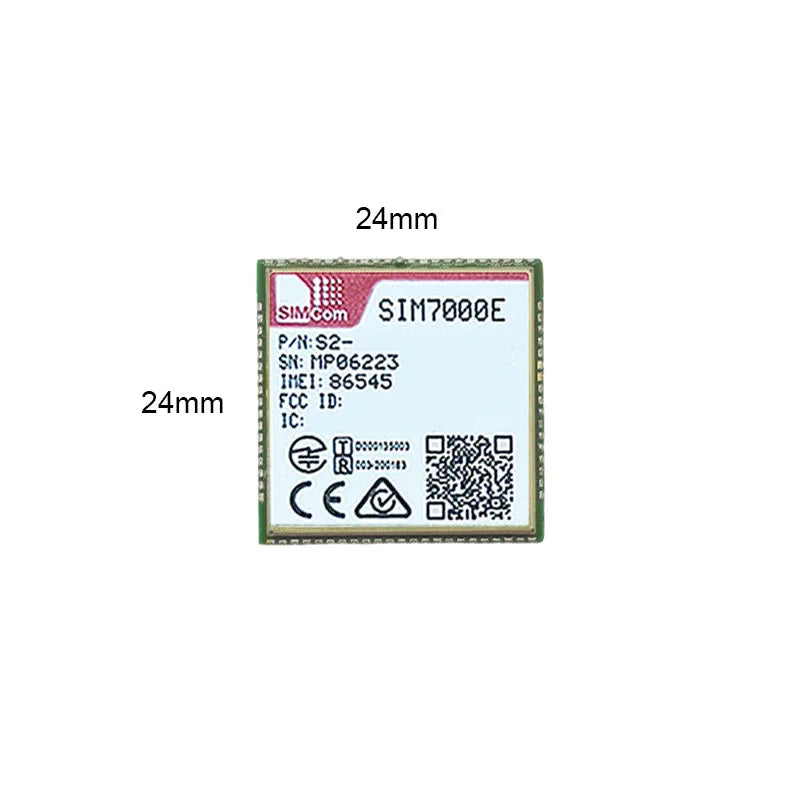

module size: 24mm*24mm

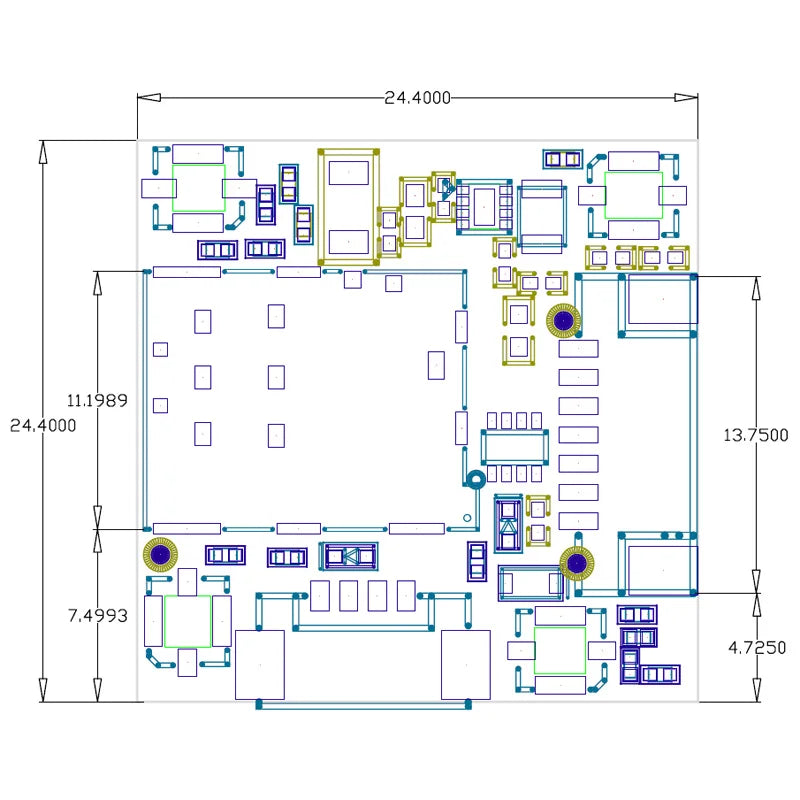

size: 24mm*24mm*6.98mm

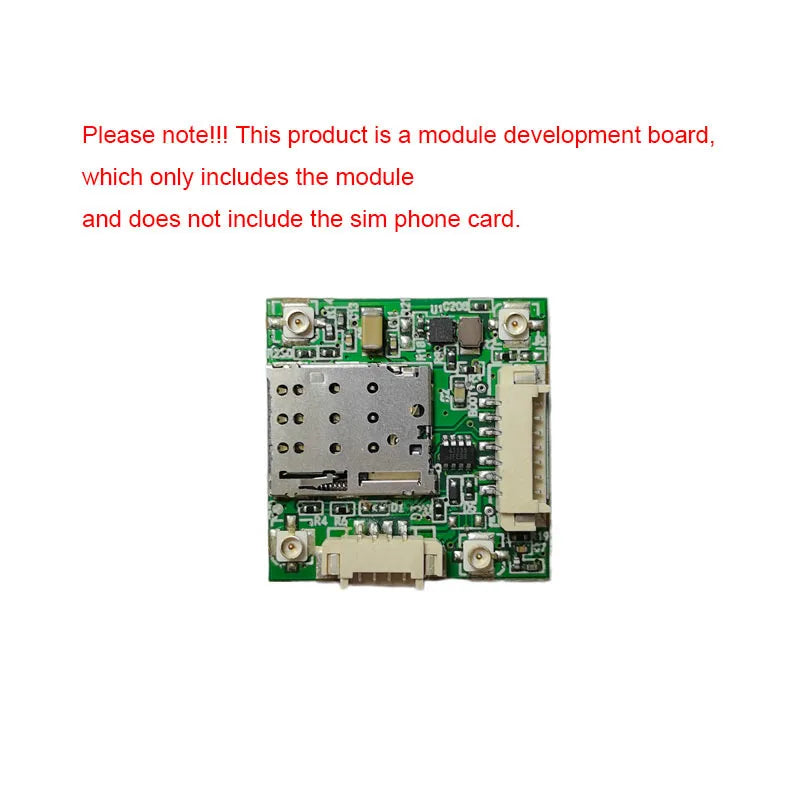

Please note!!! This product is a module core board, which only includes the module and does not include the sim phone card.

The module suffix indicates the applicable country.

SIMCOM

G (Global) E(Europe/Middle East/Africa) NA (North America) C(China)

JC(Japan) SA(New Zealand/Australia/South America)

Project	Description
Product Name	4G CAT1 Core Board
Model	DD-MCore-SIM7000E

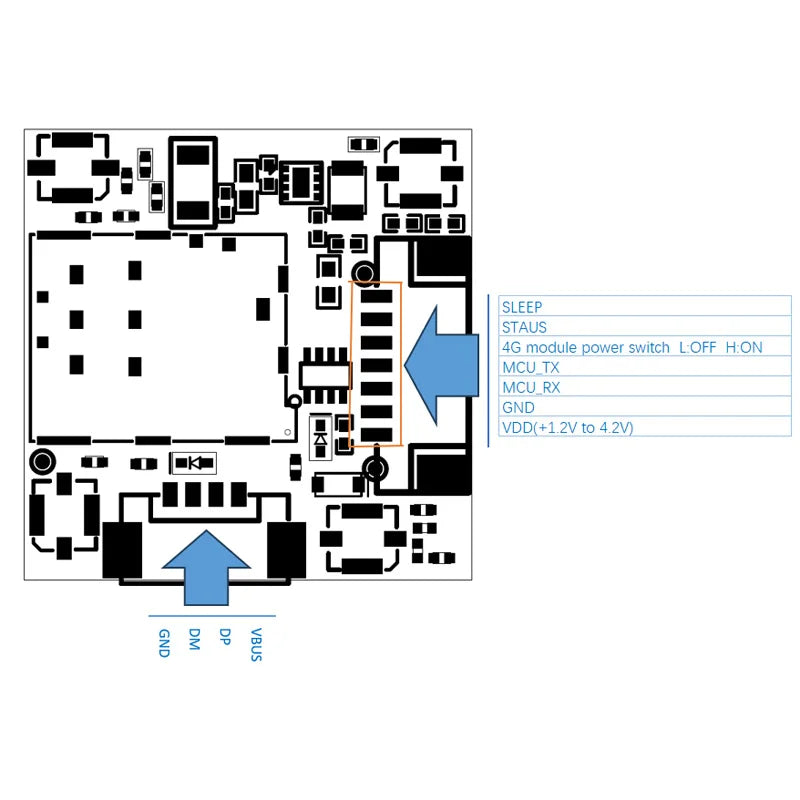

Package	7PIN(1.25mm)
Power	VIN 0.8V-4.2V
UART	Y
SIM Card	Nano SIM
LED	Power/Network light
USB	Y
SIZE	24mm24mm6.98mm
Operating temperature	-40℃-85℃

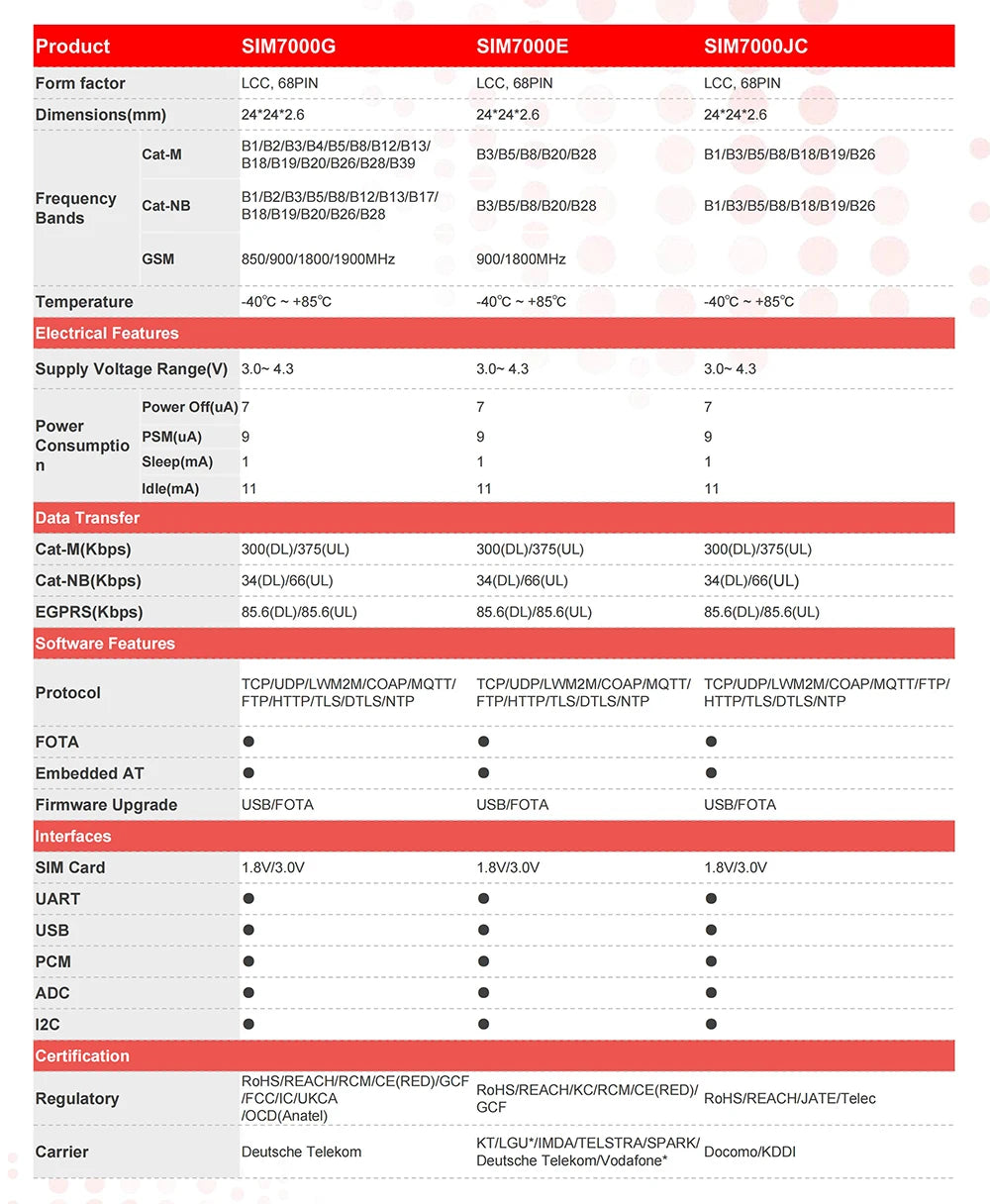

Network Band	Cat-M: B3/B5/B8/B20/B28 Cat-NB: B3/B5/B8/B20/B28 GSM:900/1800MHz
Network speed	Cat-M(Kbps) 300(DL)/375(UL) Cat-NB(Kbps) 34(DL)/66(UL) EGPRS(Kbps) 85.6(DL)/85.6(UL)
Network protocol	TCP/UDP/LWM2M/COAP/MQTTFTP /HTTP/TLS/DTLS/NTP
Function	LPWA+NBIOT+CATM+GPS

Project	Description
Product Name	4G CAT1 Core Board
Model	DD-MCore-SIM7000G
Package	7PIN(1.25mm)
Power	VIN 0.8V-4.2V
UART	Y
SIM Card	Nano SIM
LED	Power/Network light
USB	Y
SIZE	24mm24mm6.98mm
Operating temperature	-40℃-85℃
Network Band	Cat-M: B1/B2/B3/B4/B5/B8/B12/B13 /B17/B18/B19/B20/B25/B26B28/B39 Cat-NB: B1/B2/B3/B4/B5/B8/B12/B13 /B17/B18/B19/B20/B25/B26/B28 GSM: 850/900/1800/1900MHz
Network speed	Cat-M(Kbps) 300(DL)/375(UL) Cat-NB(Kbps) 34(DL)/66(UL) EGPRS:85.6DL 85.6UL
Network protocol	TCP/UDP/LWM2M/COAP/MQTT FTP/HTTP/TLS/DTLS/NTP
Function	LPWA+NBIOT+CATM+GPS

Features:

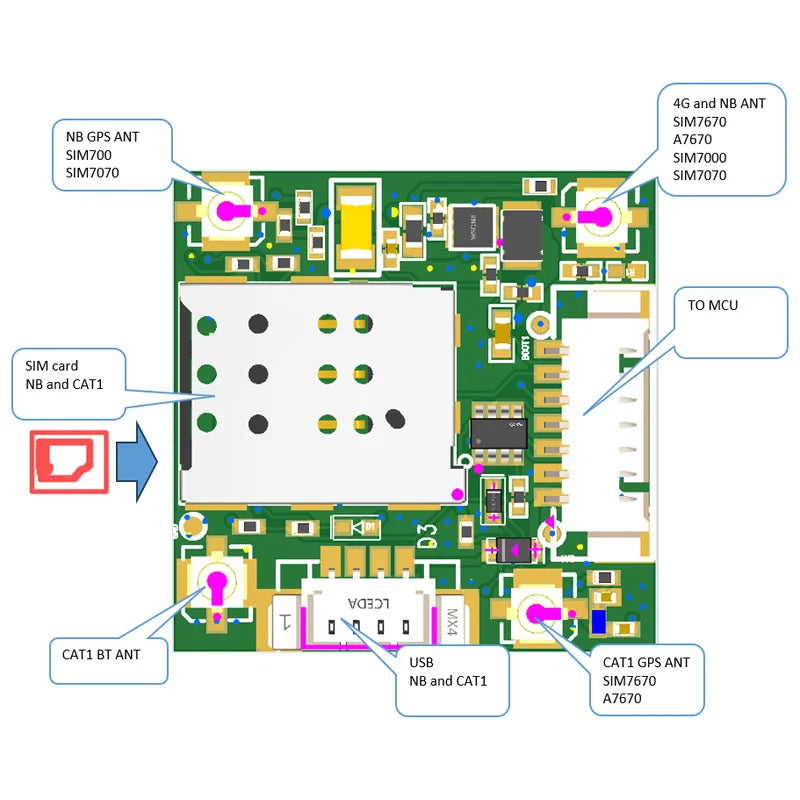

The 24 * 24 Small size functional board is designed by our company based on the Shanghai Xinxuntong 24 * 24 packaging size module, achieving a smooth transition from 2G/NB/CAT-M products to LTE products, greatly facilitating customers' design of compact and fully functional terminal products and meeting their application needs for high cost-effectiveness and low power consumption.

The function board is based on module functions to achieve integrated multi constellation GNSS receivers, supporting GPS, GLONASS, BeiDou, Galileo, and QZSS positioning technologies, enabling faster, more accurate, and more reliable positioning. The built-in GNSS also greatly simplifies customer application design.

Compatible with NB/CAT-M: SIM7000, SIM7070 GSM/GPRS: SIM800A, SIM800F in packaging, and can support LTE series: SIM7000G/A/E, SIM7070E/G, A7670C/E/SA/G, A7672G/E/SA, SIM7670/SIM7672, etc.

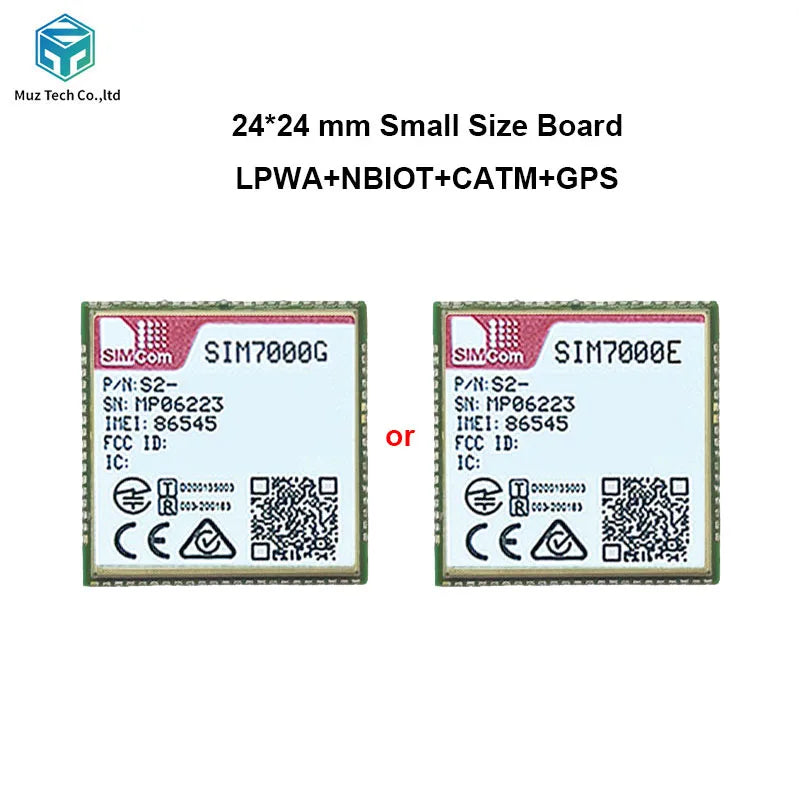

Cat-M/NB-IoT/GSM

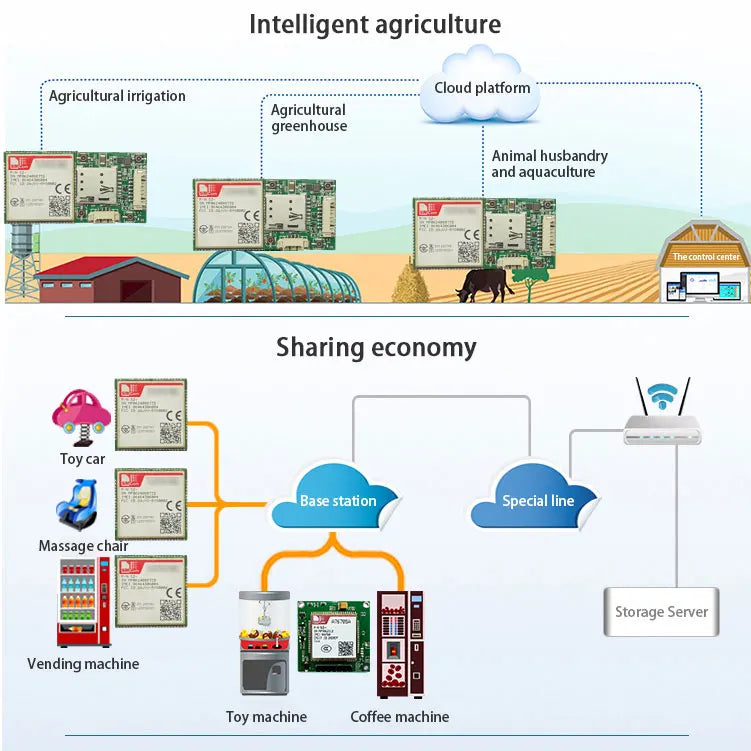

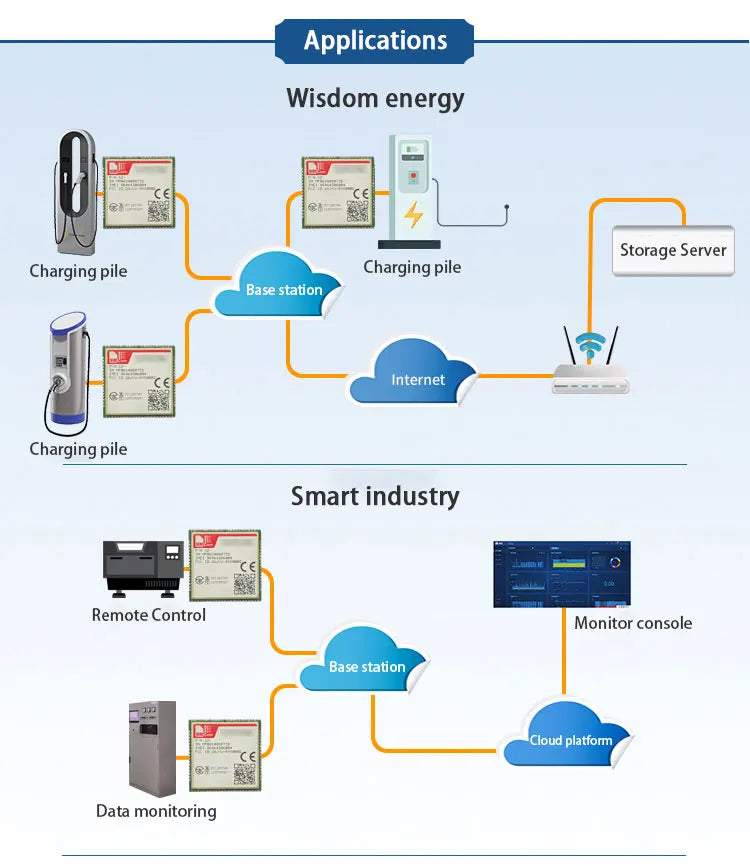

The SIM7000 series has powerful expansibility with abundant interfaces including UART, GPIO, PCM, I2C etc. The SIM7000 series is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.
