If using USB connecting, please connect the USB cable to motherboard USB Port.

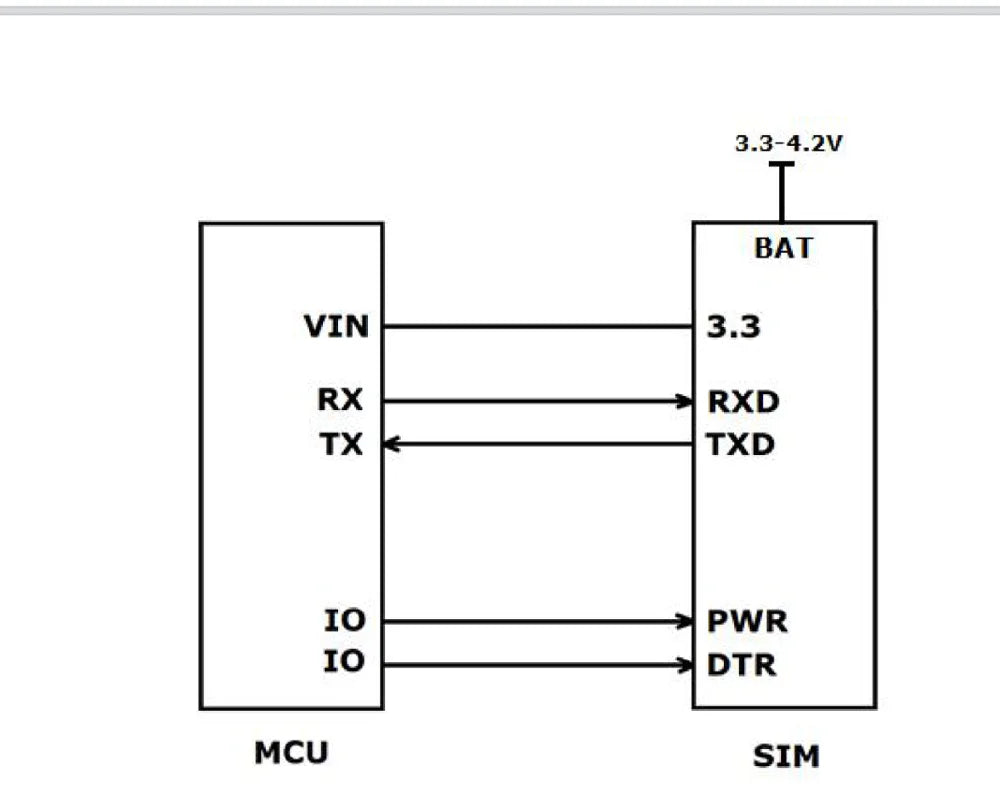

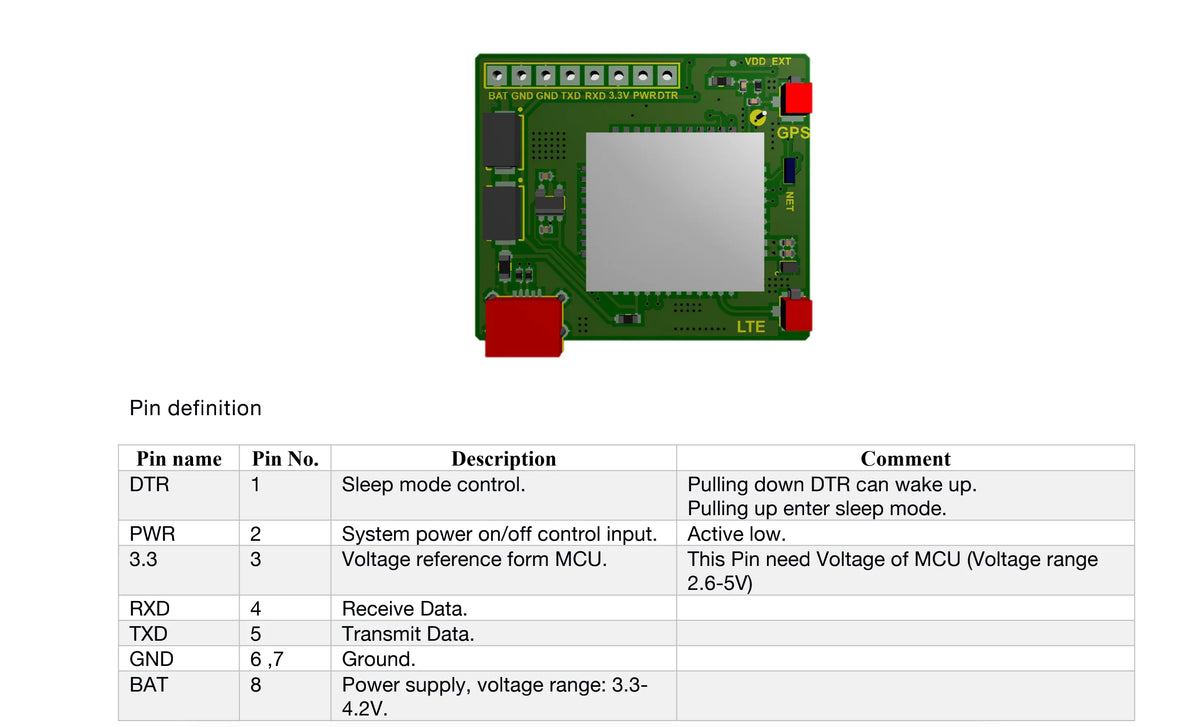

BAT PIN need voltage 3.3-4.2V

TXD-XD

RXD-XD

VIN-3.3

GND-GND

UART- SIM Board

if using UART connecting,

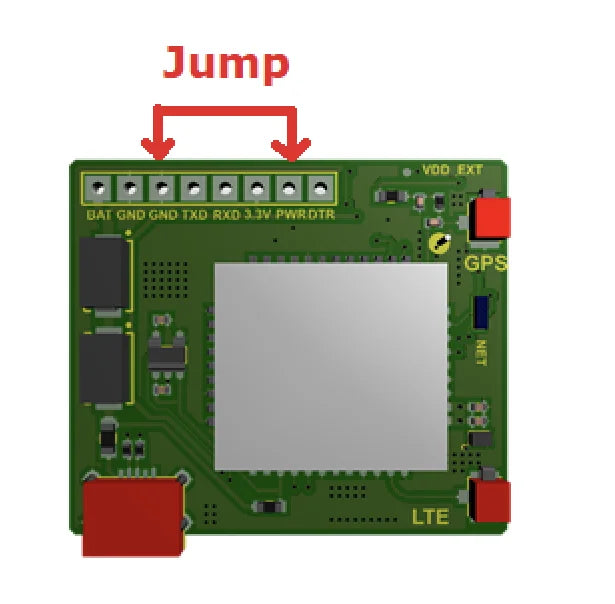

Please short circuit the PWR and GND (like below picture) to boot the board after connecting the computer.

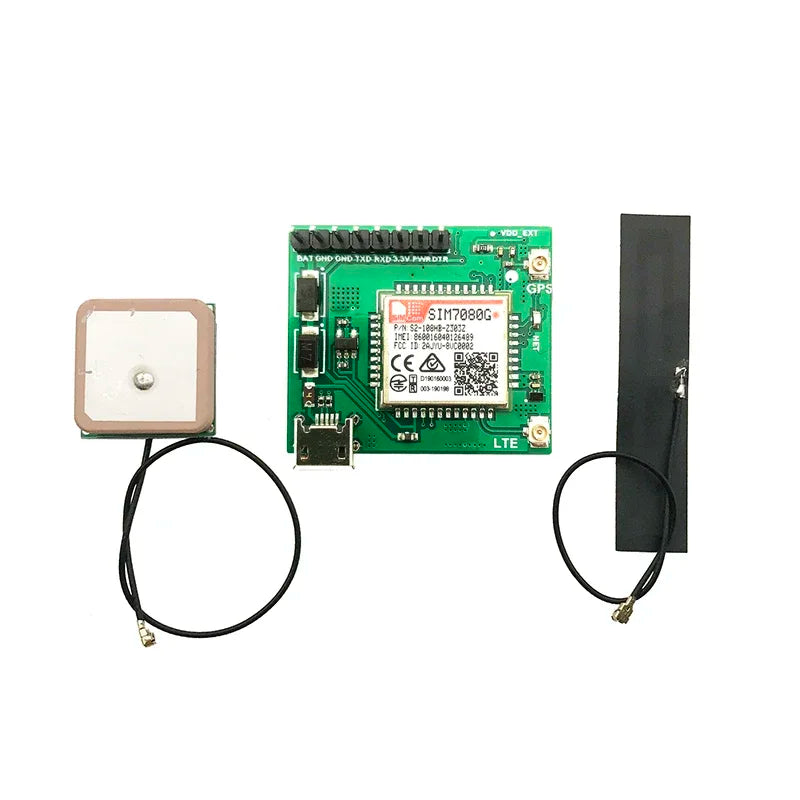

Option 2: SIM7080G Core board *1, 4G FPC antenna *1,GPS antenna*1

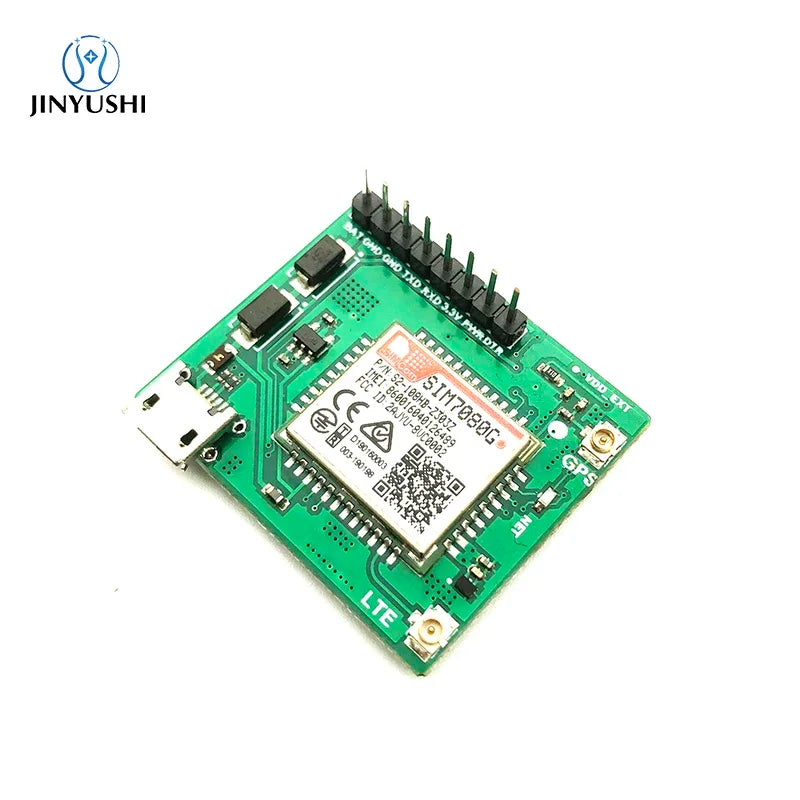

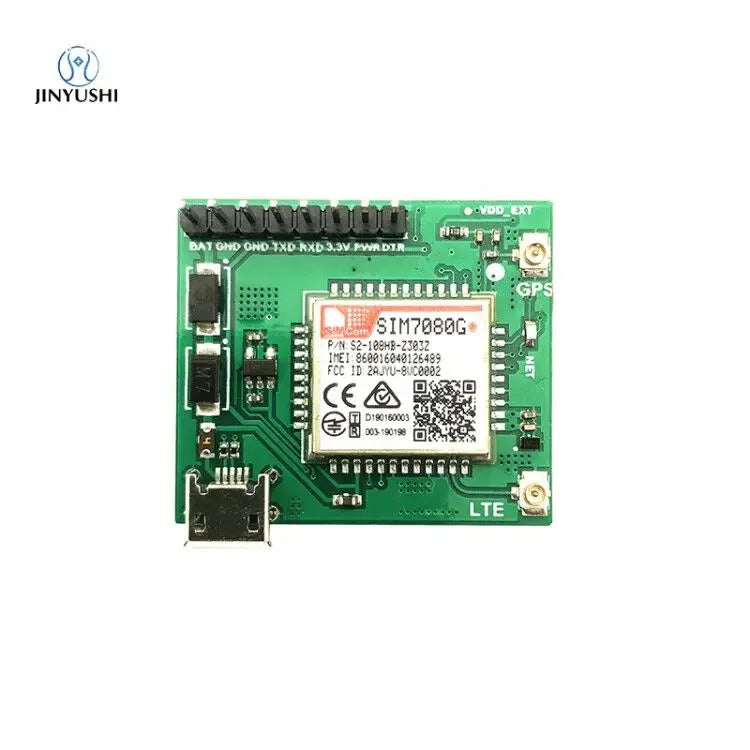

Option 1: SIM7080G Core board *1

The A7600E is Multi-Band LTE-FDD/LTE-TDD/GSM/ GPRS/EDGE module solution in a SMT type which supports LTE CAT1 up to 10Mbps  data transfer. It has strong extension capability with rich interfaces including UART, USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's application.

The package of  A7600E is LCC+LGA. The package (LCC part) of A7600E is compatible with SIM7600 Series. AT commands of A7600E are  mostly compatible with SIM7600 Series modules. This also minimize the investments of customers, and enables a short time-to-market.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.
