Description

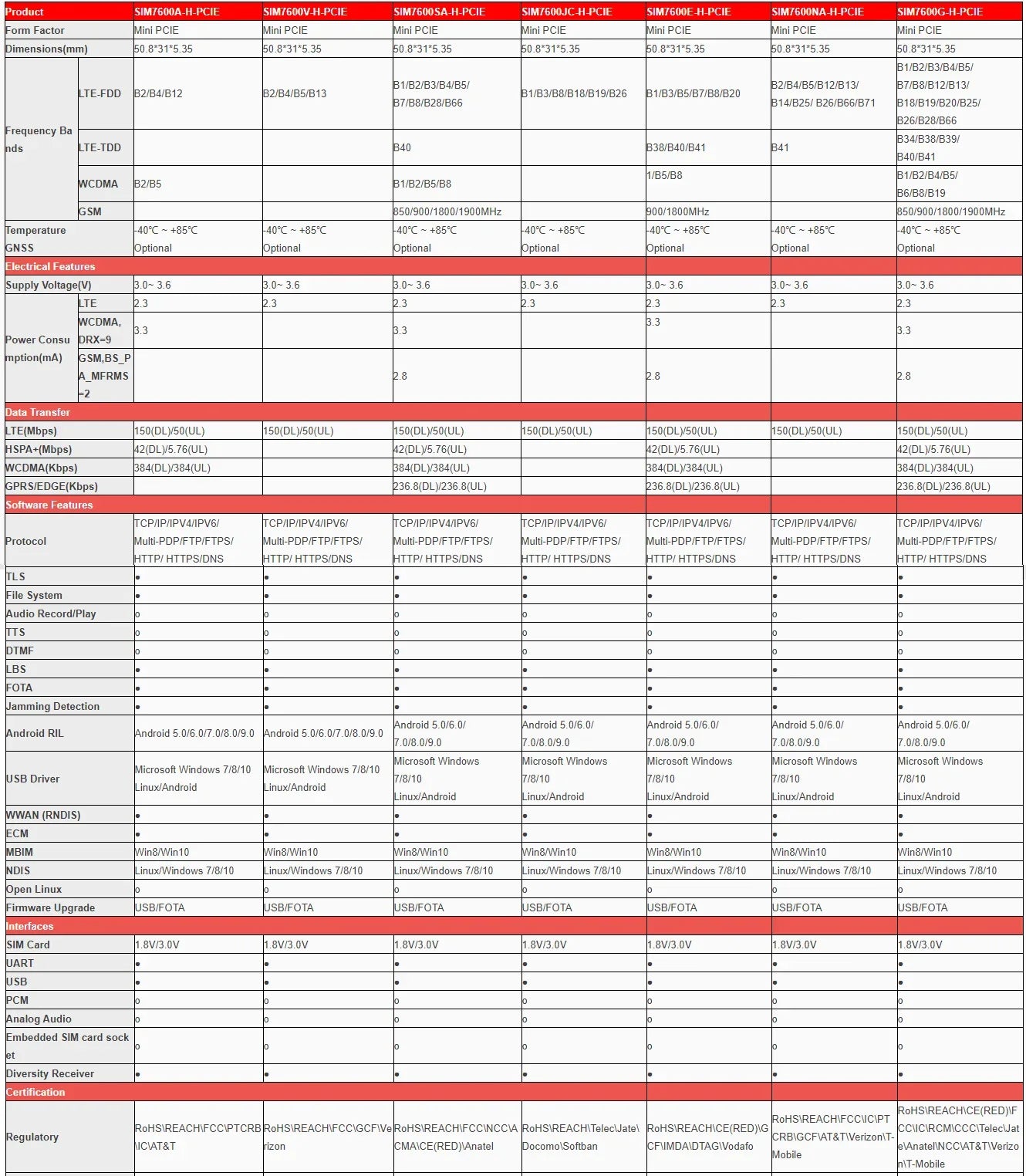

SPECIFICATIONS
Brand Name: NONE,SIMCom
Model Number: SIM7600-E/SIM7600-G/SIM7600-SA/SIM7600 E-H
Origin: Mainland China
Place of Origin: China
Type: M.2

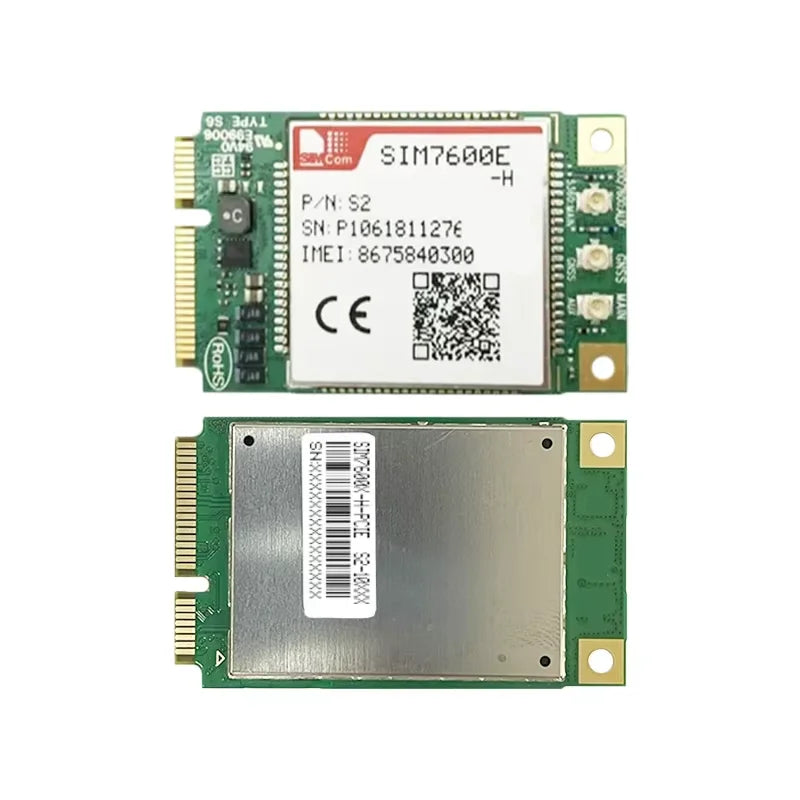

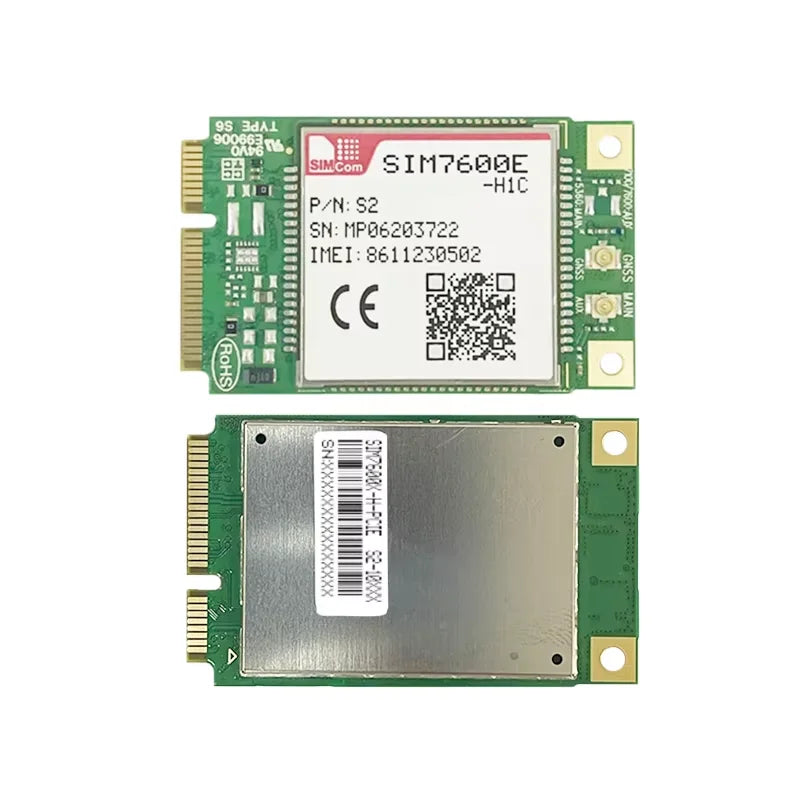

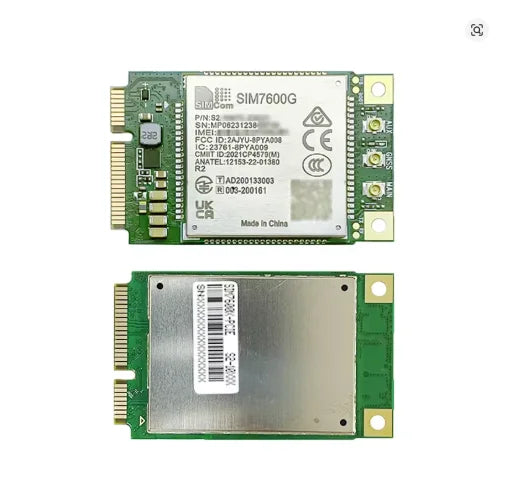

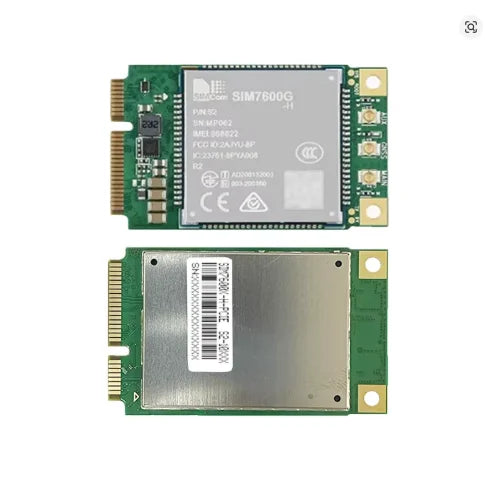

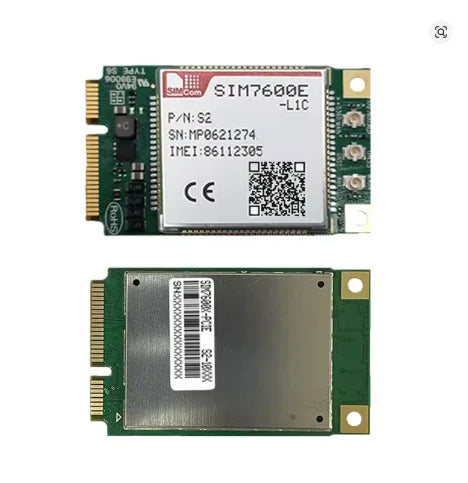

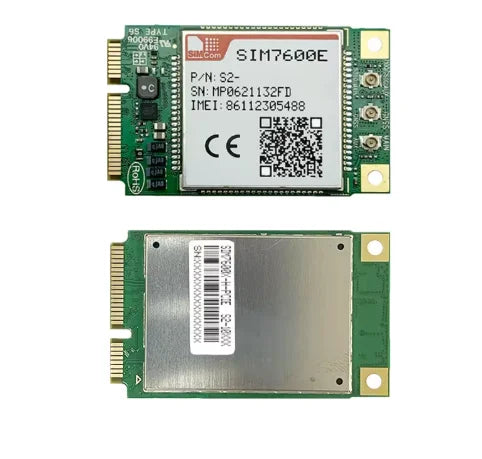

1.SIM7600X-H Minipcie module
LTE Cat-4 Module
SIM7600X-H is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in LCCtype which supports LTE CAT4up to 150Mbps for downlink and 50Mbps for uplink data transfer.Designed in the compact and unified form factor, SIM7600X-H is compatible with SIMCom HSPA+ SIM5360 module/LTE CAT1 SIM7600X and LTE CAT3 SIM7100 module, which allows customer to design their application once for different technology and benefit from great development time-saving.
Product details
Variant for EMEA/Korea/Thailand
SIM7600E-H:
•LTE-TDD B38/B40/B41
•LTE-FDDB1/B3/B5/B7/B8/B20
•UMTS/HSPA+ B1/B5/B8
•GSM/GPRS/EDGEB3/B8
Variant for North America
SIM7600A-H:
•LTE-FDDB2/B4/B12
•UMTS/HSPA+ B2/B5
SIM7600V-H:
•LTE-FDDB2/B4/B5/B13

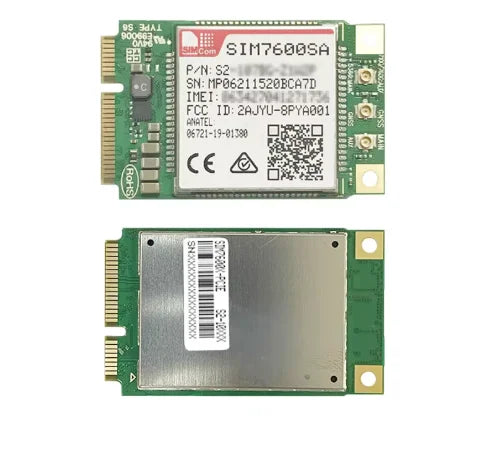

Variant for Australia/New Zealand/South America
SIM7600SA-H:
•LTE-TDDB40
•LTE-FDDB1/B2/B3/B4/B5/B7/B8/B28
•UMTS/HSPA+ B1/B2/B5/B8
•GSM/GPRS/EDGE850/900/1800/1900MHz
Variant for Japan

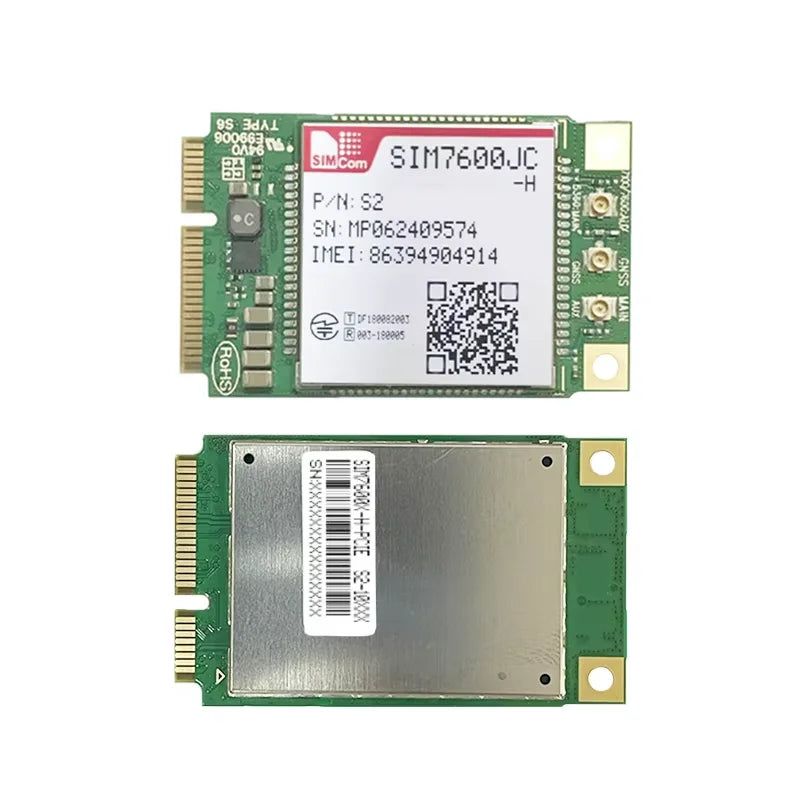

SIM7600JC-H:
•LTE-FDDB1/B3/B8/B18/B19/B26
General features
•LCC Package
•Control Via AT Commands
•Supply voltage range: 3.4V~ 4.2V, 3.8V Typical
•Operation temperature: -40℃to +85℃
•Dimension: 30*30*2.9mm
•Weight: 5.7g
•Bandwidth: 1.4/3/5/10/15/20MHz
•3GPP E-UTRA Release 11
Other features
•USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
•USB Driver for Linux /Android
•RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
•MBIM to Win8
•Firmware update via USB
•TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/SMTP/SMTPS/DNS
•SSL3.0/TLS1.0/TLS1.2
•DTMF (Sending and Receiving)
•Audio Playing
•USB Audio and VoLTE
•FOTA
•eCall*
Specifications for Data transfer
•LTE CAT4
-Uplink up to 50Mbps
-Downlink up to 150Mbps
•HSPA+
-Uplink up to 5.76Mbps
-Downlink up to 42 Mbps
•UMTS
-Uplink/Downlink up to 384Kbps
•EDGE
-Uplink/Downlink up to 236.8Kbps
•GPRS
-Uplink/Downlink up to 85.6Kbps
