SPECIFICATIONS

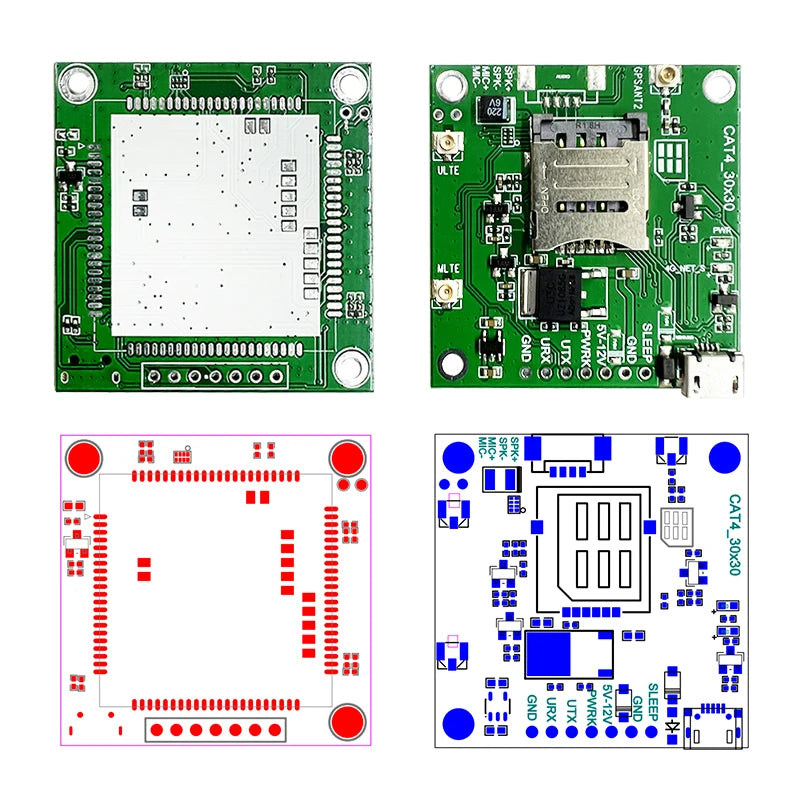

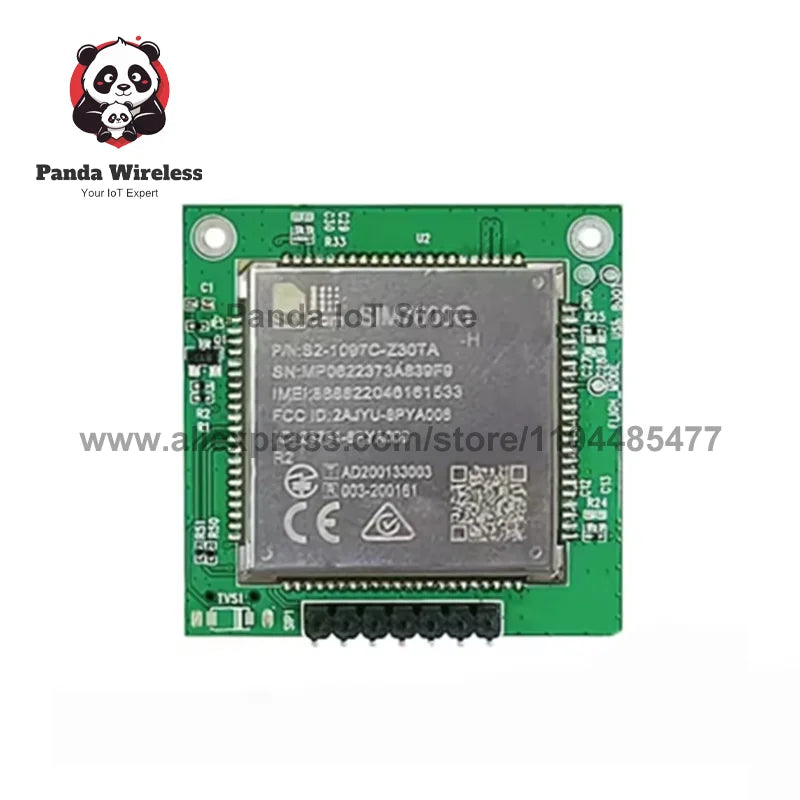

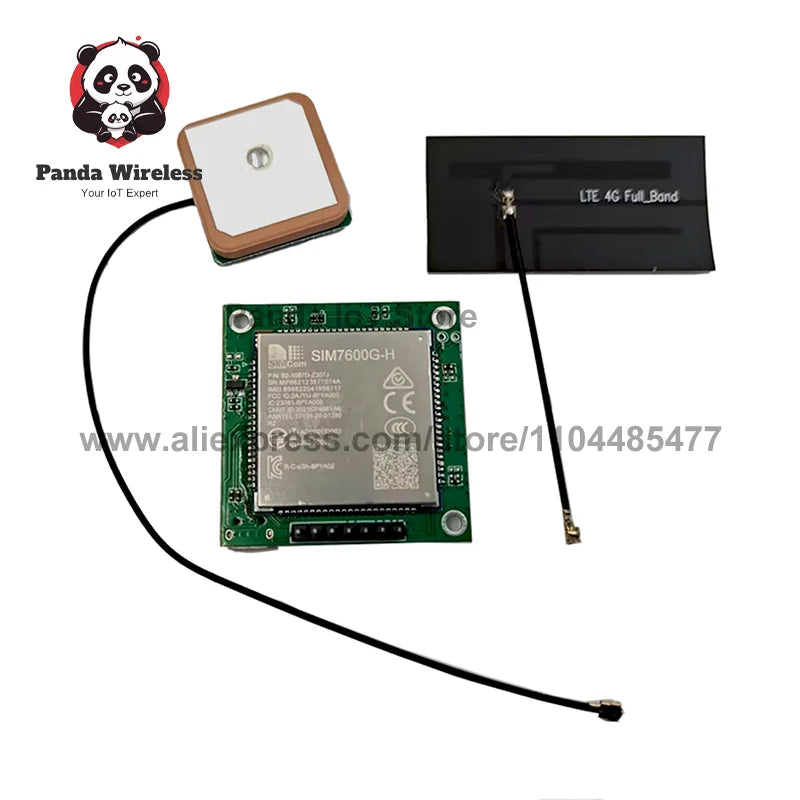

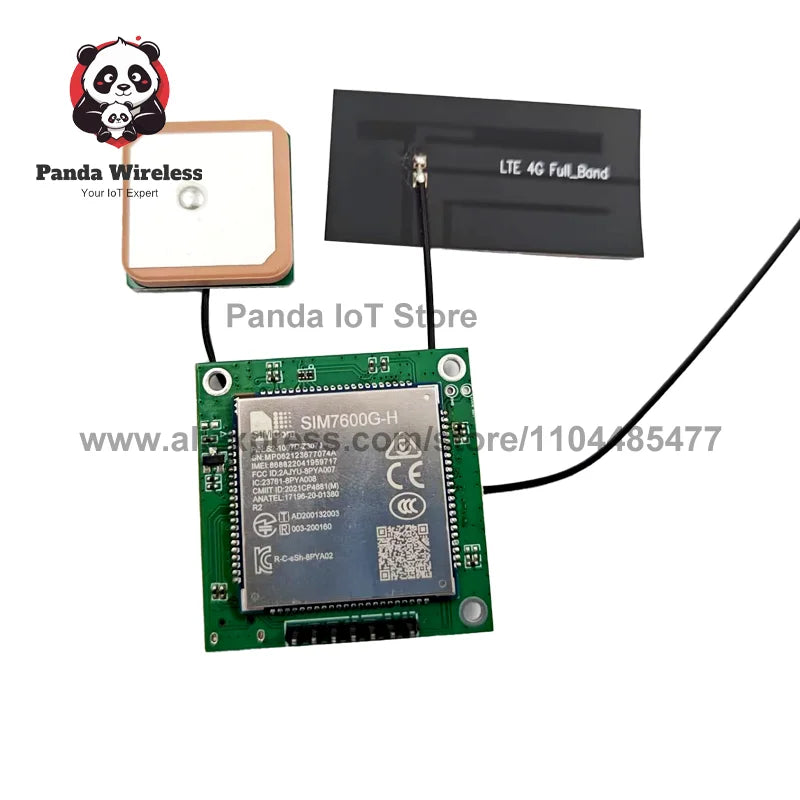

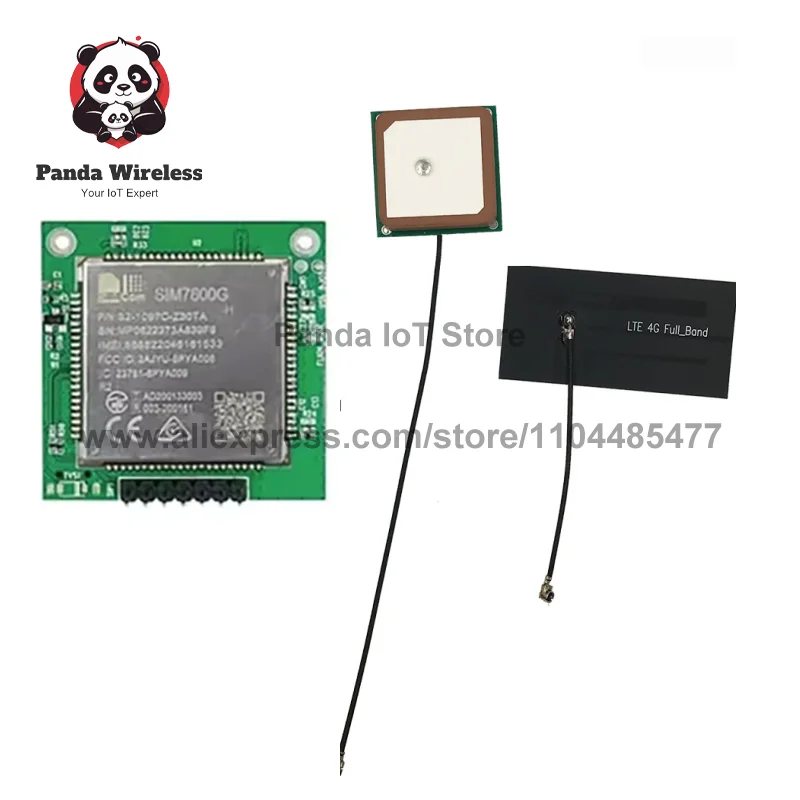

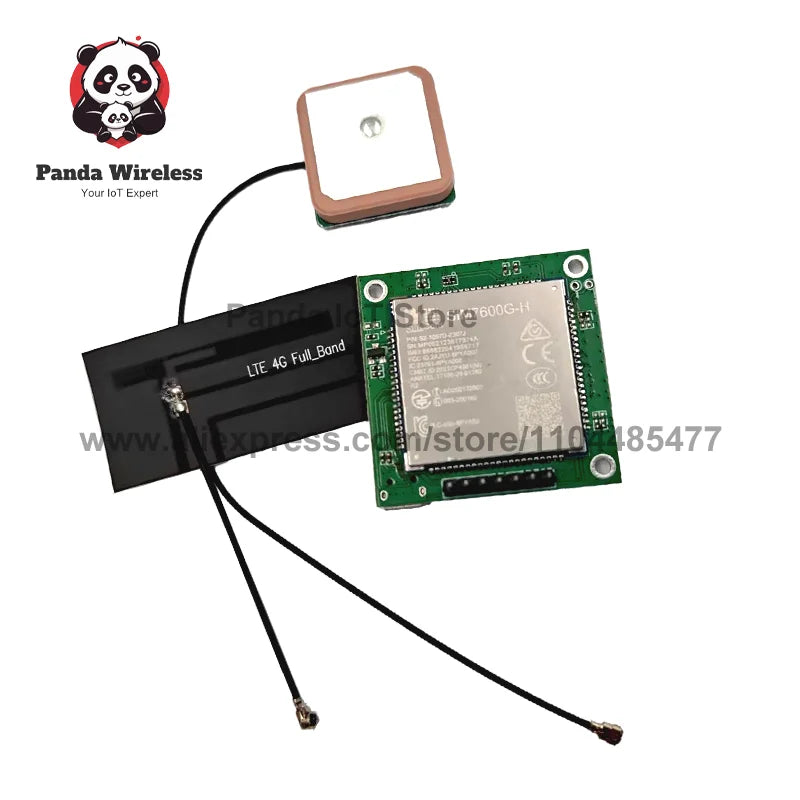

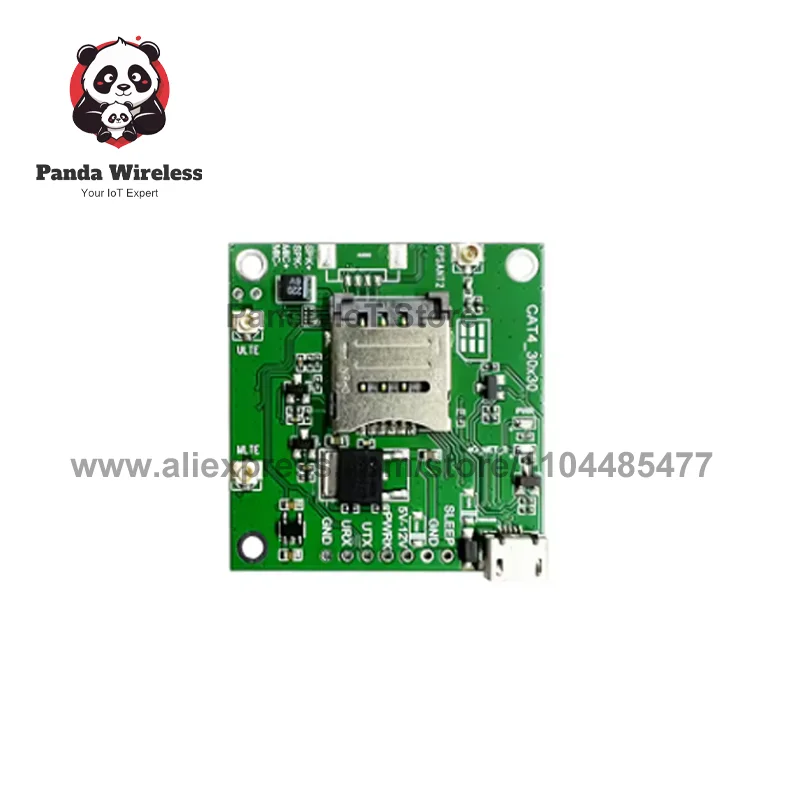

SIMcom SIM7600G-H Global-band Development Board LTE CAT1+GNSS+Voice 4G Full Band R2 breakout kits with FPC GPS antenna

 The SIM7600G-H is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc.

It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

The SIM7600G-H adopts LCC1 form factor and is compatible with SIM5320/SIM5360 series(UMTS/HSPA+ modules), and SIM7600 series(LTE modules), which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs.

The SIM7600G-H series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.

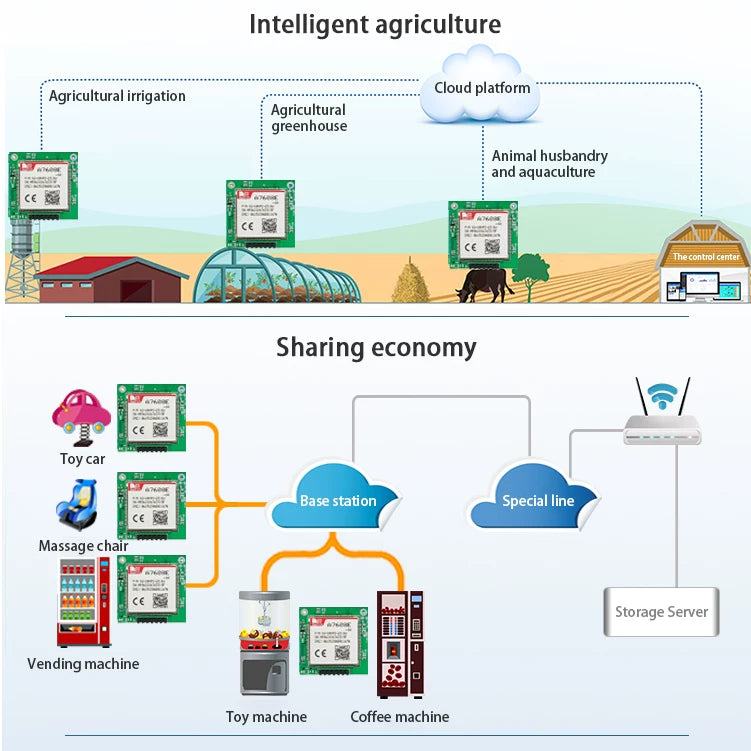

Meanwhile the SIM7600G-H integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.

SIM7600G-H R2 Frequency

LTE-FDD B1/B2/B3/B4/B5/B7/ B8/B12/B13/B18/B19/ B20/B25/B26/ B28/B66

LTE-TDD B34/B38/B39/ B40/B41

UMTS/HSDPA/HSPA+ B1/B2/B4/B5/ B6/B8/B19

GSM/GPRS/EDGE 850/900/1800/1900MHz

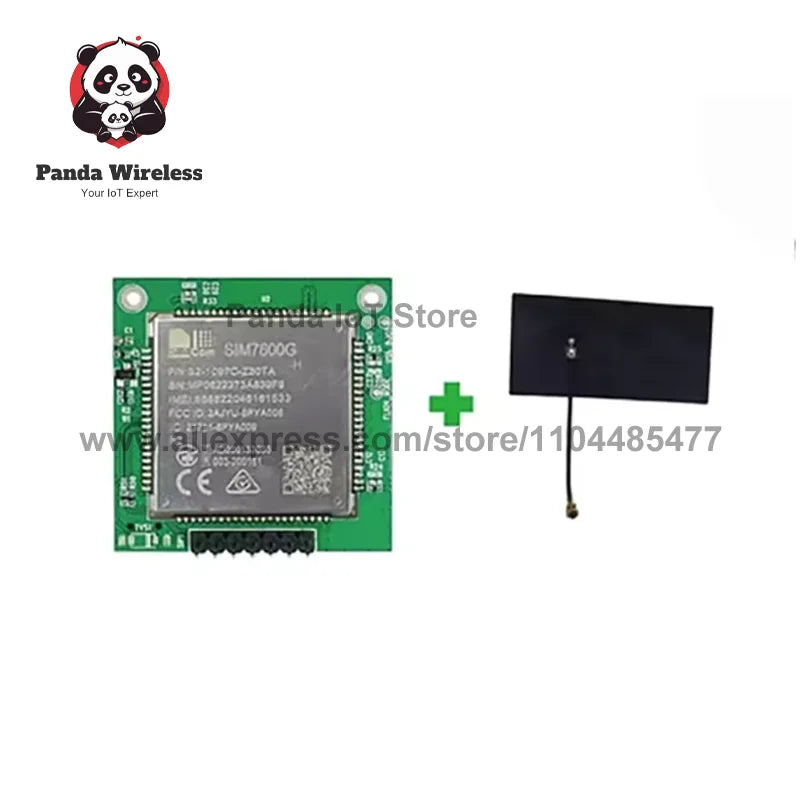

Option1:1pcs SIM7600G-H
