SPECIFICATIONS

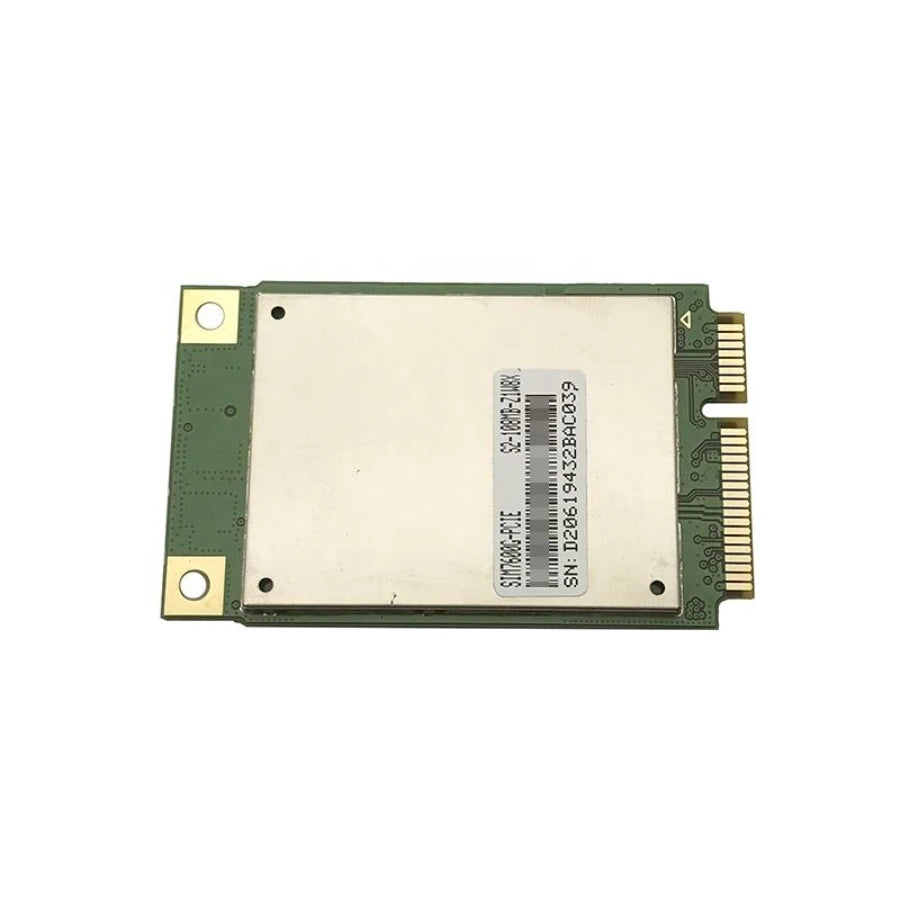

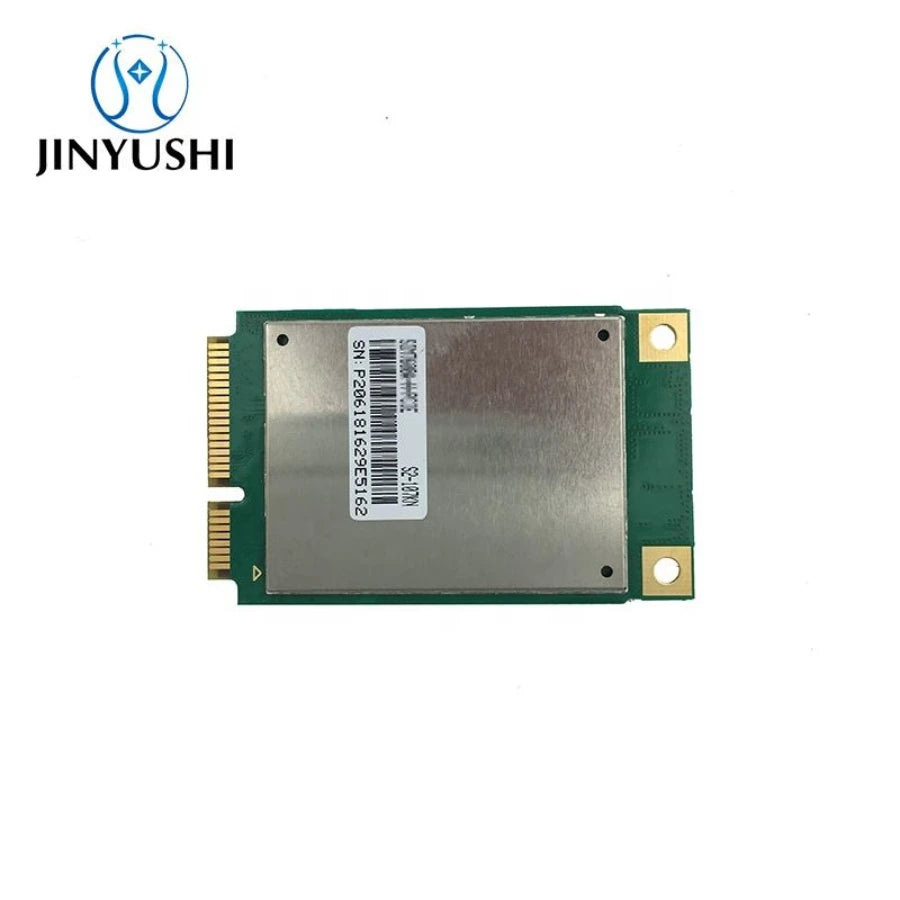

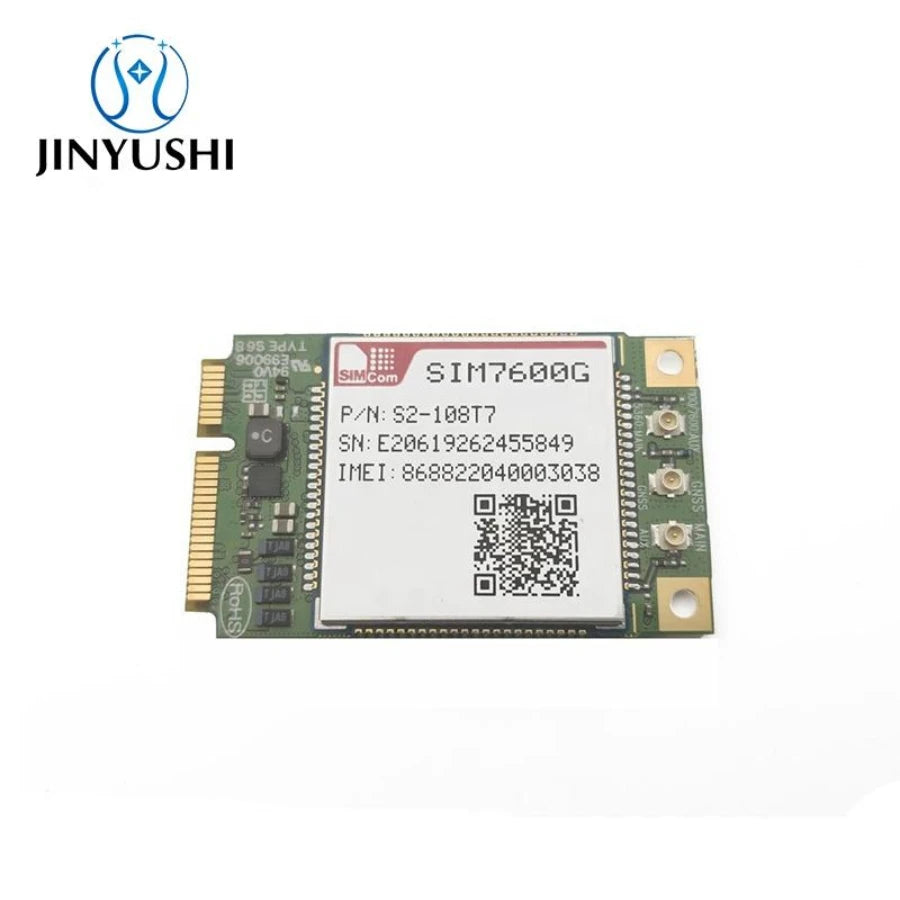

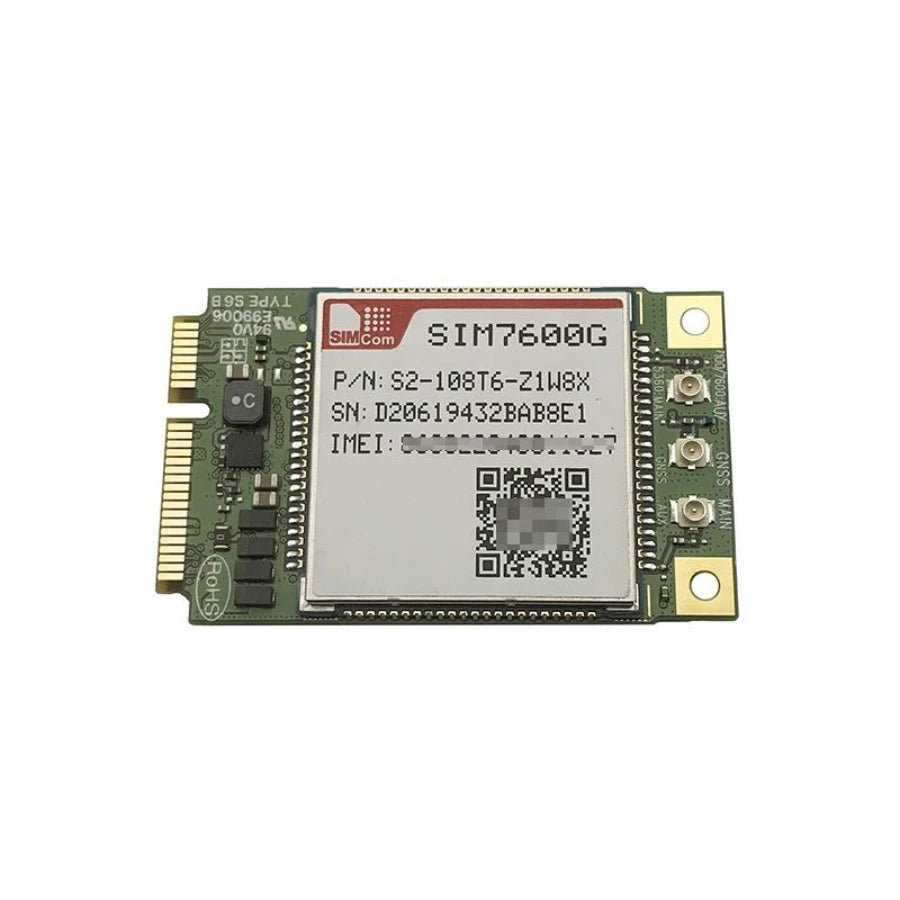

 SIM7600G SIMCOM Mini Pcie  Multi Band LTE CAT1 Module New Original compatible with SIM7500/SIM7600 Series modules

 Feel free to contact us if you need any AT Command Newest Firmware datasheet hardware design windows drivers Linux Android drivers documents and so on

CAT-M&NB-IoT Module

The SIM7600G is Multi-Band LTE-FDD/LTE-TDD/HSPA+ and GSM/GPRS/EDGE module solution in a SMT type which supports LTE CAT1 up to 10Mbps data transfer.

It has strong extension capability with rich interfaces including UART,USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's application.

The package of SIM7600G is LCC+LGA. The package (LCC part) of SIM7600G is compatible with SIM7600x (LTE CAT1 Variants module with LCC package). AT commands of SIM7600G are mostly compatible with SIM7500/SIM7600 Series modules. This also minmize the investments of customers, and enables a short time-to-market.

It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.

Product advantages

• LCC+LGA package.
• Downlink up to 10Mbps,Uplink up to 5Mbps.
• The AT commands of SIM7600G are mostly compatible with SIM7500/SIM7600 Series modules

General Features

• Supply voltage range: 3.4V ~ 4.2V, Typ: 3.8V
• Control Via AT Commands
• Operation temperature: -40℃ to +85℃
• Dimensions: 30.0*30.0*2.9mm
• Weight: 5.7g
• LTE-FDD/LTE-TDD/UMTS/HSDPA/HSUPA/HSPA+/
GSM/GPRS/EDGE

Date

• LTE CAT1
- Uplink up to 5Mbps
- Downlink up to 10Mbps
• HSDPA/HSUPA
- Uplink up to 2.2Mbps
- Downlink up to 2.8Mbps
• HSPA+
- Uplink up to 5.76Mbps
- Downlink up to 42.0Mbps
• UMTS
- Uplink/Downlink up to 384.0Kbps
• EDGE
- Uplink/Downlink up to 236.8Kbps
• GPRS
- Uplink/Downlink up to 85.6Kbps

Other Features

• USB2.0 with High speed up to 480Mbps
• UART
• (U)SIM card (1.8V /3.0V)
• Digital Audio through PCM
• SGMII*
• MMC/SD
• SDIO
• ADC
• I2C
• GPIO
• Antenna: Support Primary/Rx-diversity /GNSS

Interfaces

• USB Driver for Microsoft Windows
2000/XP/Vista/Win7/Win8/Win10
• USB Driver for Linux /Android
• RIL supporting for Android 2.3/4.0/5.0/6.0/7.0
• MBIM to Win8
• Firmware update via USB
• TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/
HTTPS/SMTP/SMTPS/DNS
• SSL3.0/TLS1.0/TLS1.2
• DTMF (Sending and Receiving)
• Audio Playing
• USB Audio and VoLTE
• FOTA
