Single Infrared Beam Sensor Photocell Garage Door Infrared Sensor 12V-24V for Sliding Gate Ir Barrier Automatic Obstacle Alarm

Single Infrared Beam Sensor Photocell Garage Door Infrared Sensor 12V-24V for Sliding Gate Ir Barrier Automatic Obstacle Alarm

$31.37

$31.37 $0.00

Description

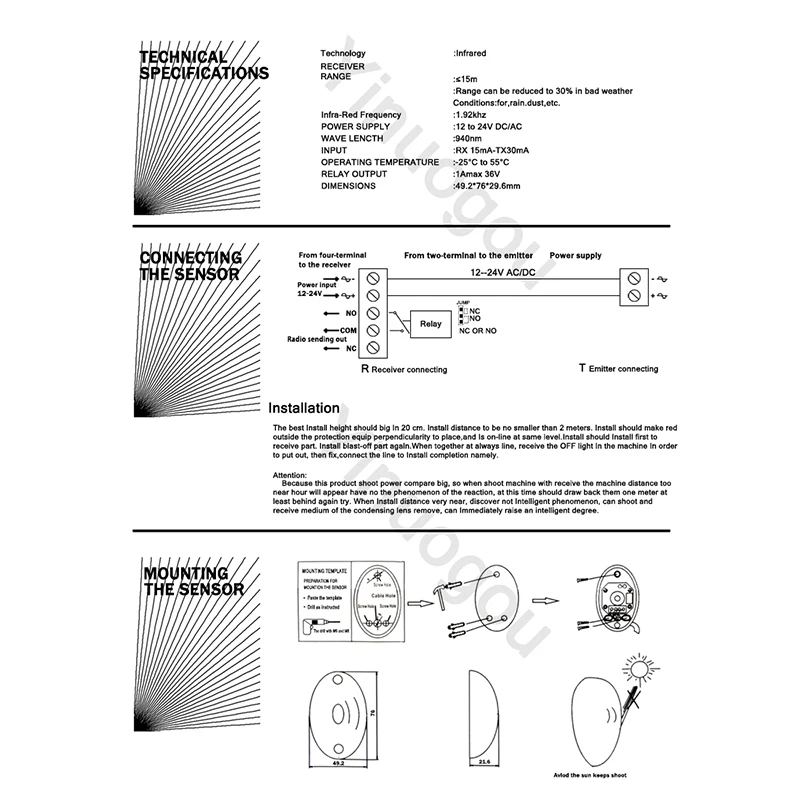

SPECIFICATIONS

Brand Name: NONE

Certification: CE,FCC,RoHS,weee

Choice: yes

Dimensions: 49.2x76x29.6mm

Distance: 20m

Frequency: 1.92KHz

High-concerned chemical: none

Input: RX 15mA-TX30mA

Input power: 12 to 24V DC

Model Number: YNG207

Operating temperature: -25°C to +55°C

Origin: Mainland China

Relay output: 1Amax 36V

Wave length: 940nm

Product Description

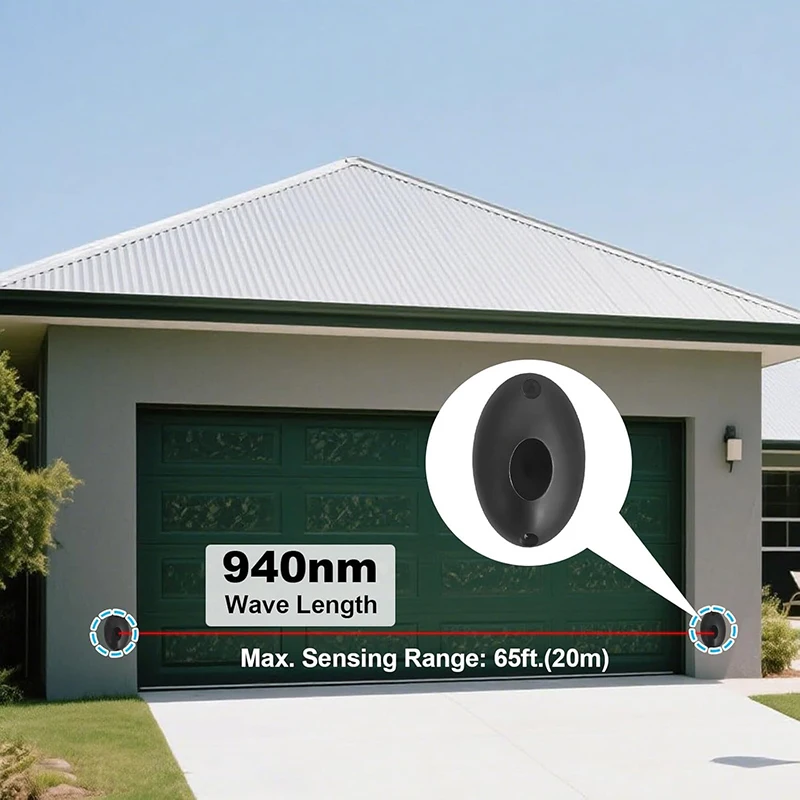

This is Active Infrared Detector.Install each pair at the opposite positions.Then there is a infrared area between these two detector parts. When someone passes the infrared region, the detector will send alarm signal to the security alarm host (which not included here). High Quality,need connect with alarm system as it can’t work alone Can work with access control system,security alarm system, Automatic Gate Control System and so on Professional anti interference optical cover,unique digital filter circuit desiAnti-glare up to 50,000LUX, built-in automatic adjustment of light filter system, to avoid the impact of light or car lights, all-weather sealed (rain), dust (insects) and other all-weather integration of the structure designed to work in harsh environments

Specifications

1. Model：YNG207
2. Item type: Infrared Detector
3. Applicable: Home, door security system
4. Color: Black
5. Size: ≈ 49.2*76*29.6mm
6. Net weight: 130g
7. Shell material: PC
8. Alarm linkage: Yes
9. Working voltage: DC12-24V
10. Operating current: Receive 15mA, Launch 30mA
11. Indoor alert distance: 20m
12. Outdoor alert distance: 10m
13. Working frequency: 1.92KHZ
14. Sensing speed: 30ms
15. Operating temperature: -25-55℃
16. Relay output: 1Amax 36V

How to use

This is Active Infrared Detector.Install each pair at the opposite positions.Then there is a infrared area between these two detector parts. When someone passes the infrared region, the detector will send alarm signal to the security alarm host (which not included here).
