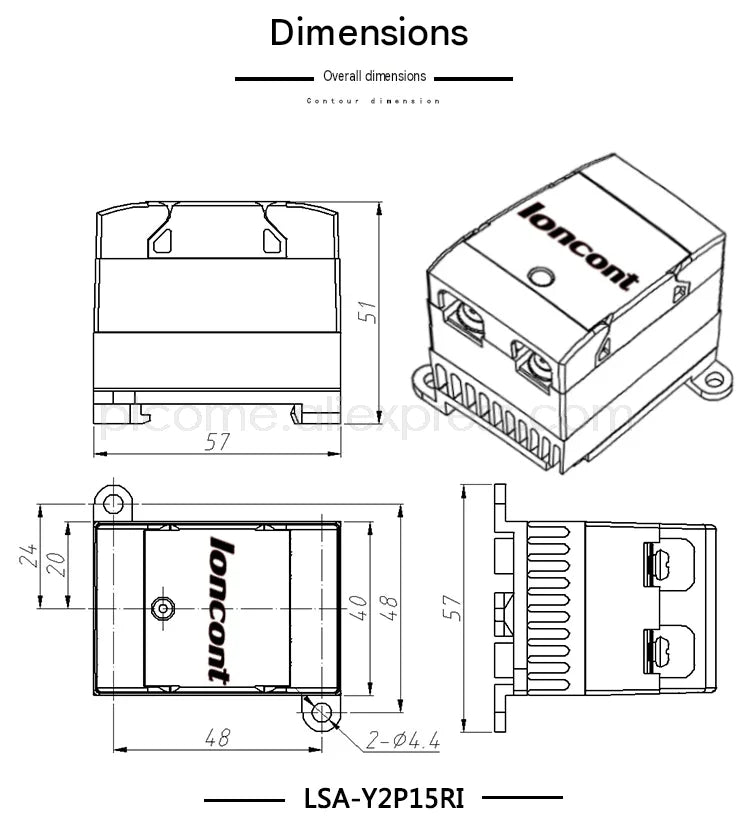

Dimensions
Description

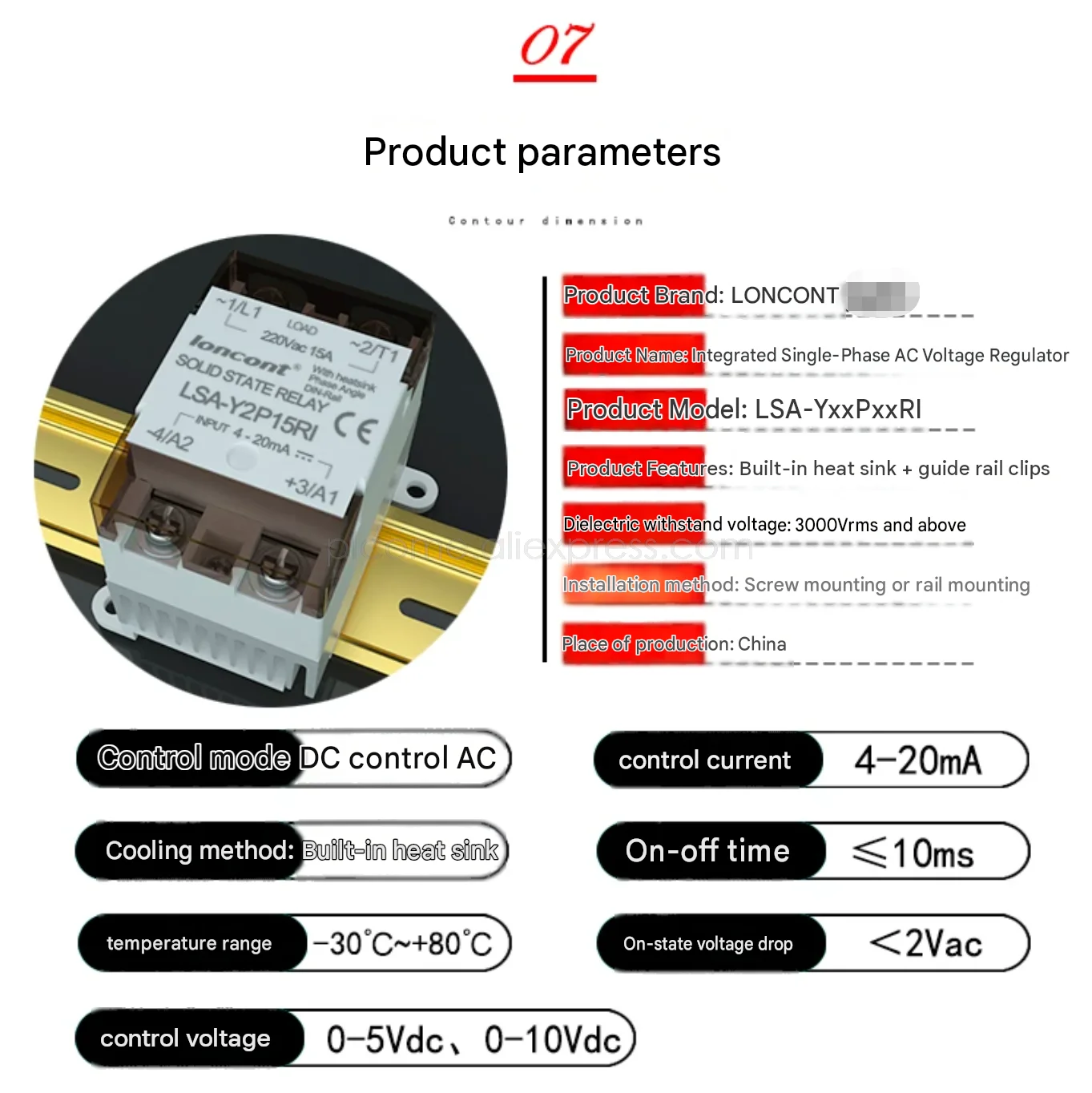

SPECIFICATIONS

Brand Name: Mt-Viki

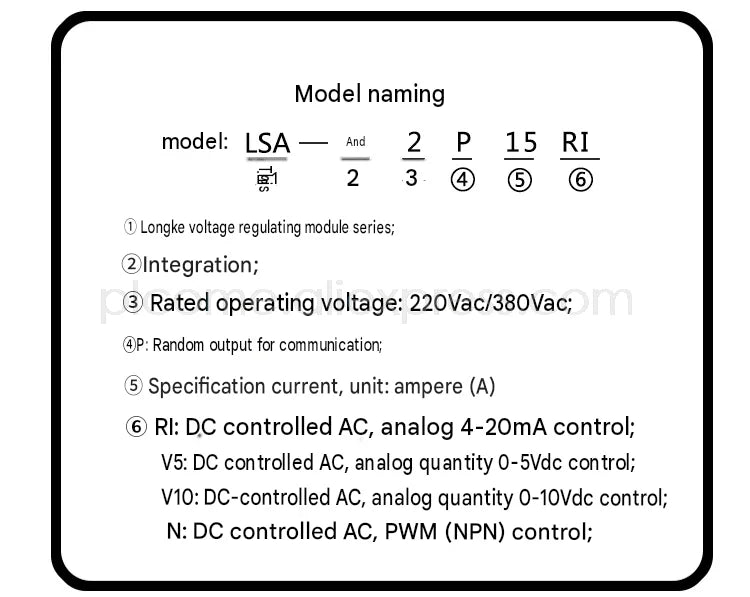

Model Number: LSA-Y2P15RI

Origin: Mainland China

is_customized: Yes

Features:

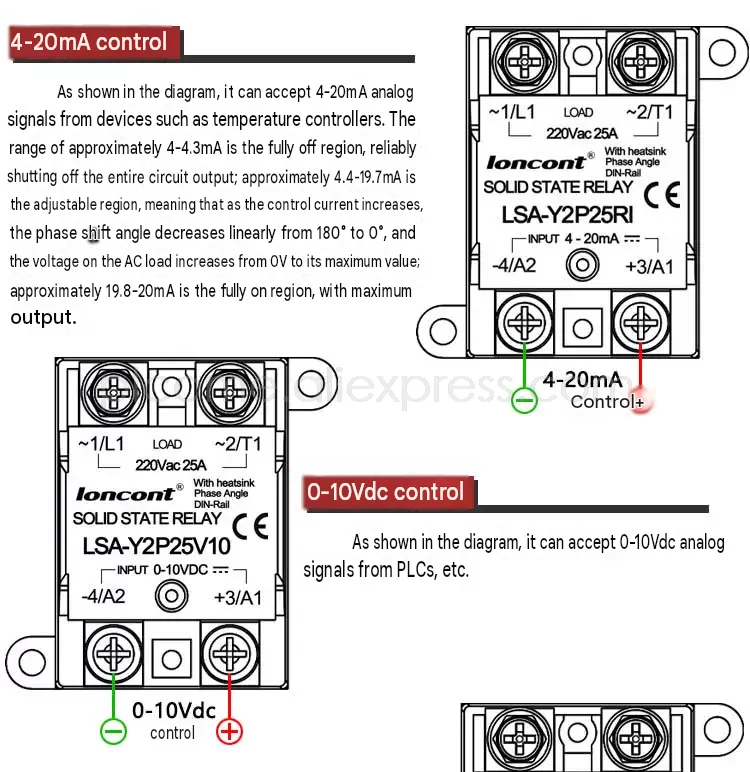

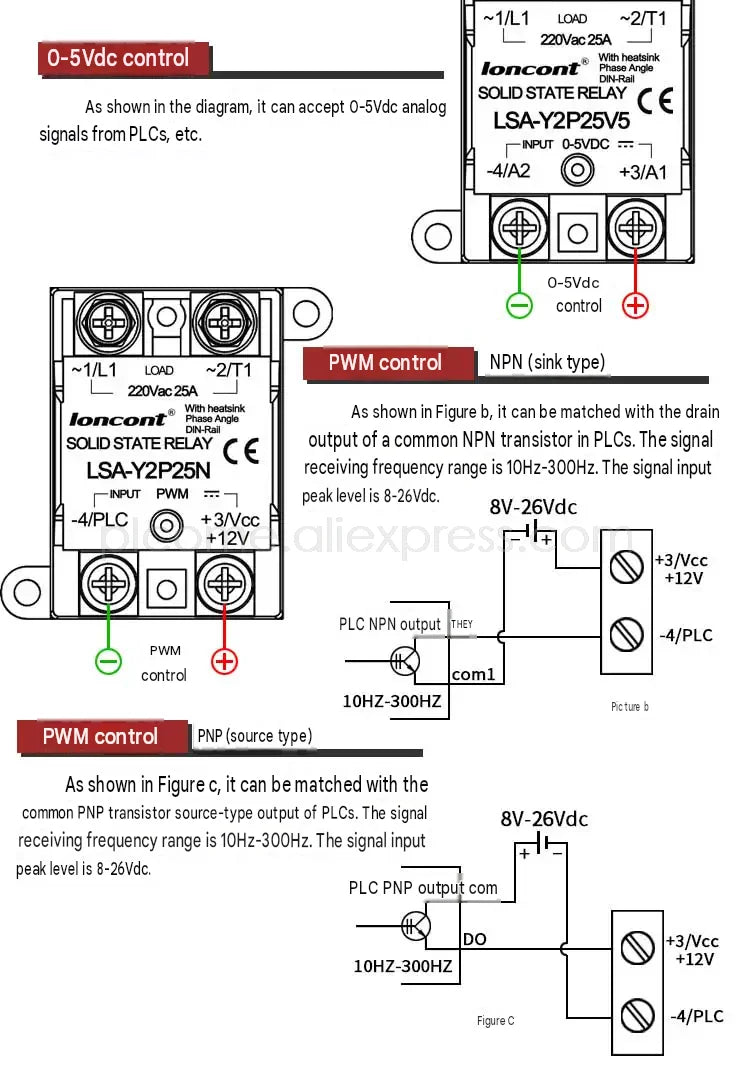

  1. Optional 4-20mA, 0-10V, 0-5V,  or PWM control mode

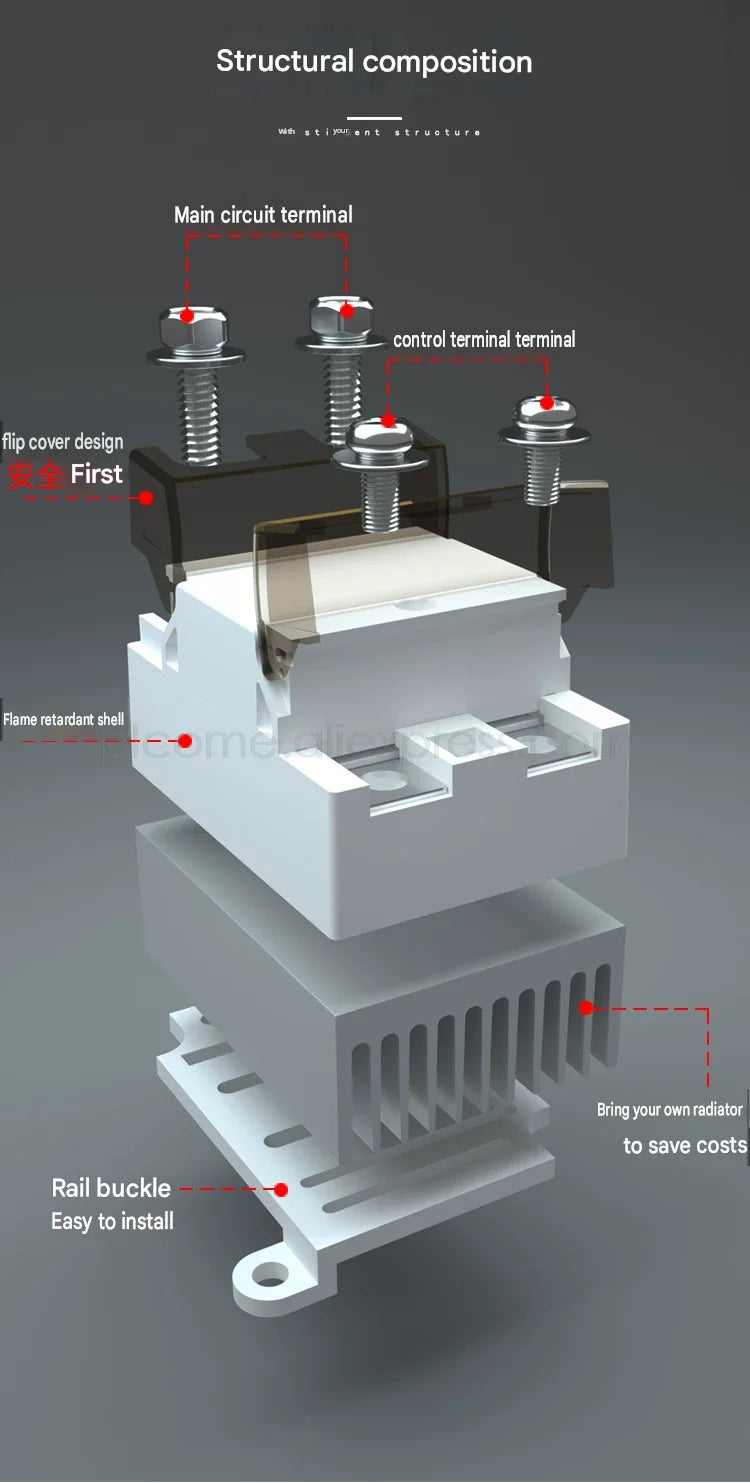

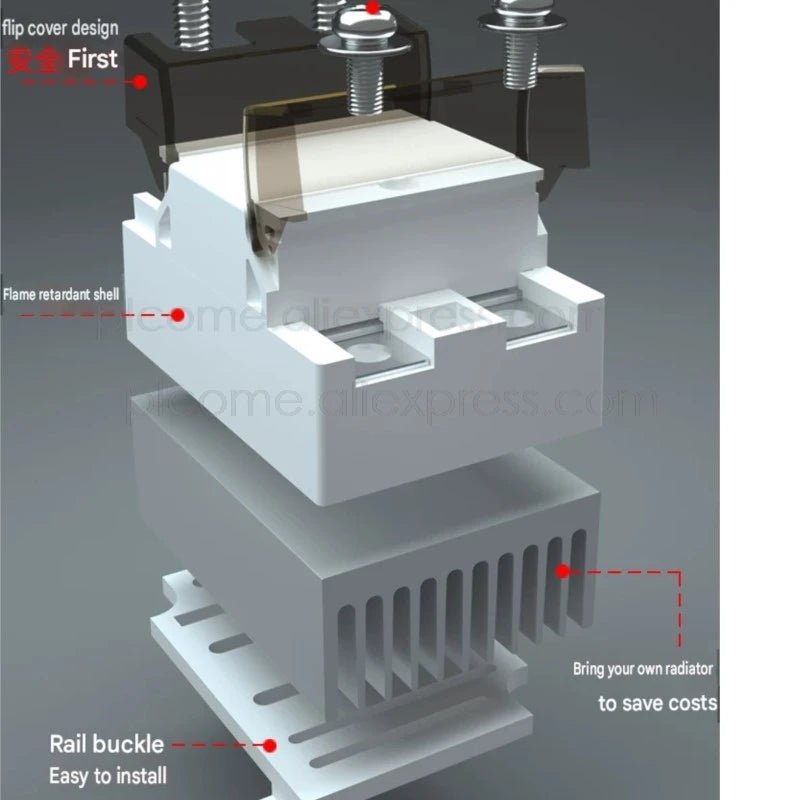

  2. Build in heatsink

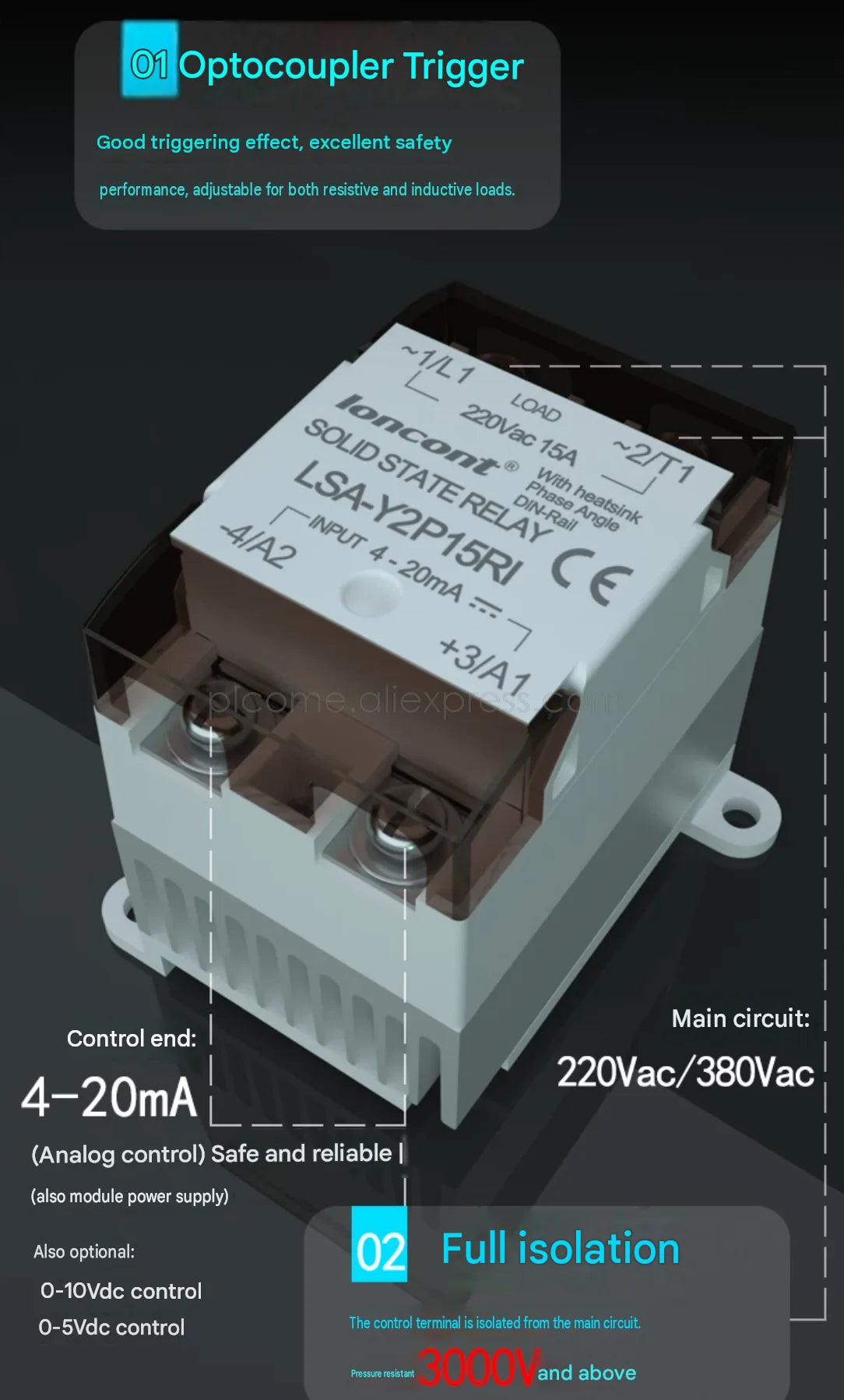

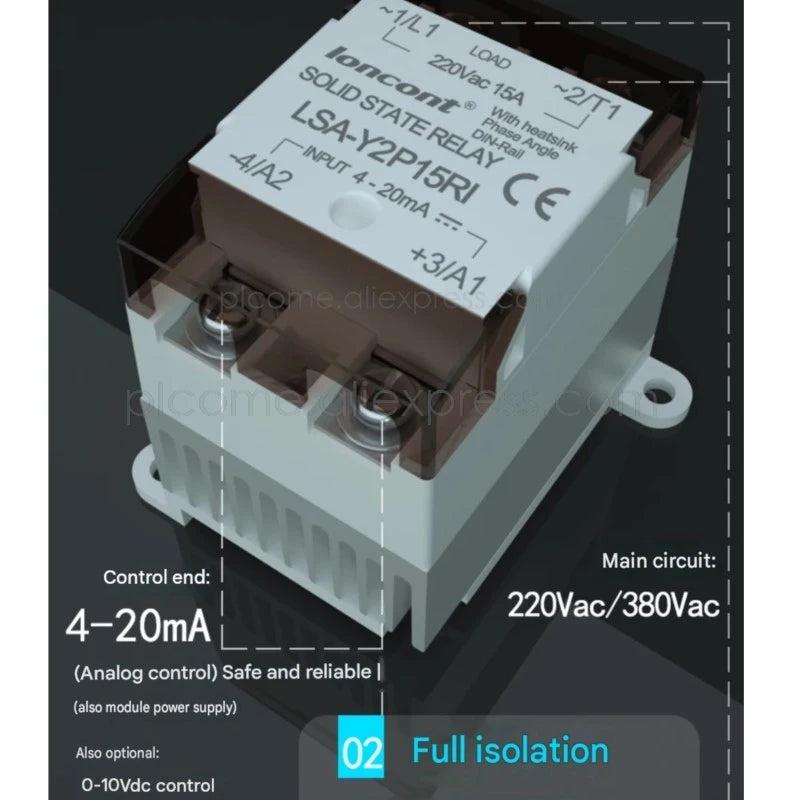

  3. Isolation voltage: 3000V rms

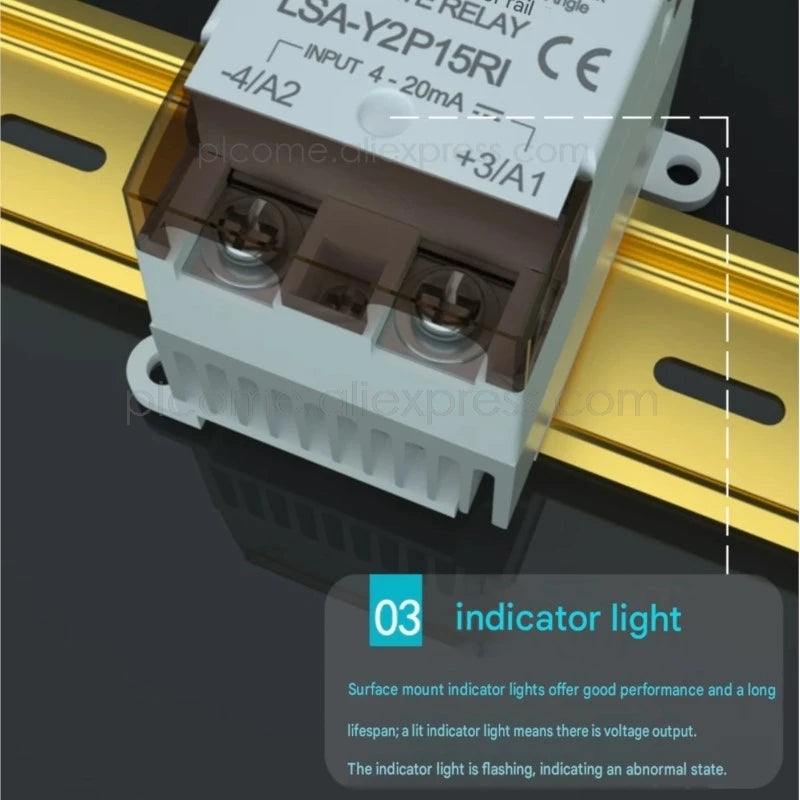

  4. Indicator

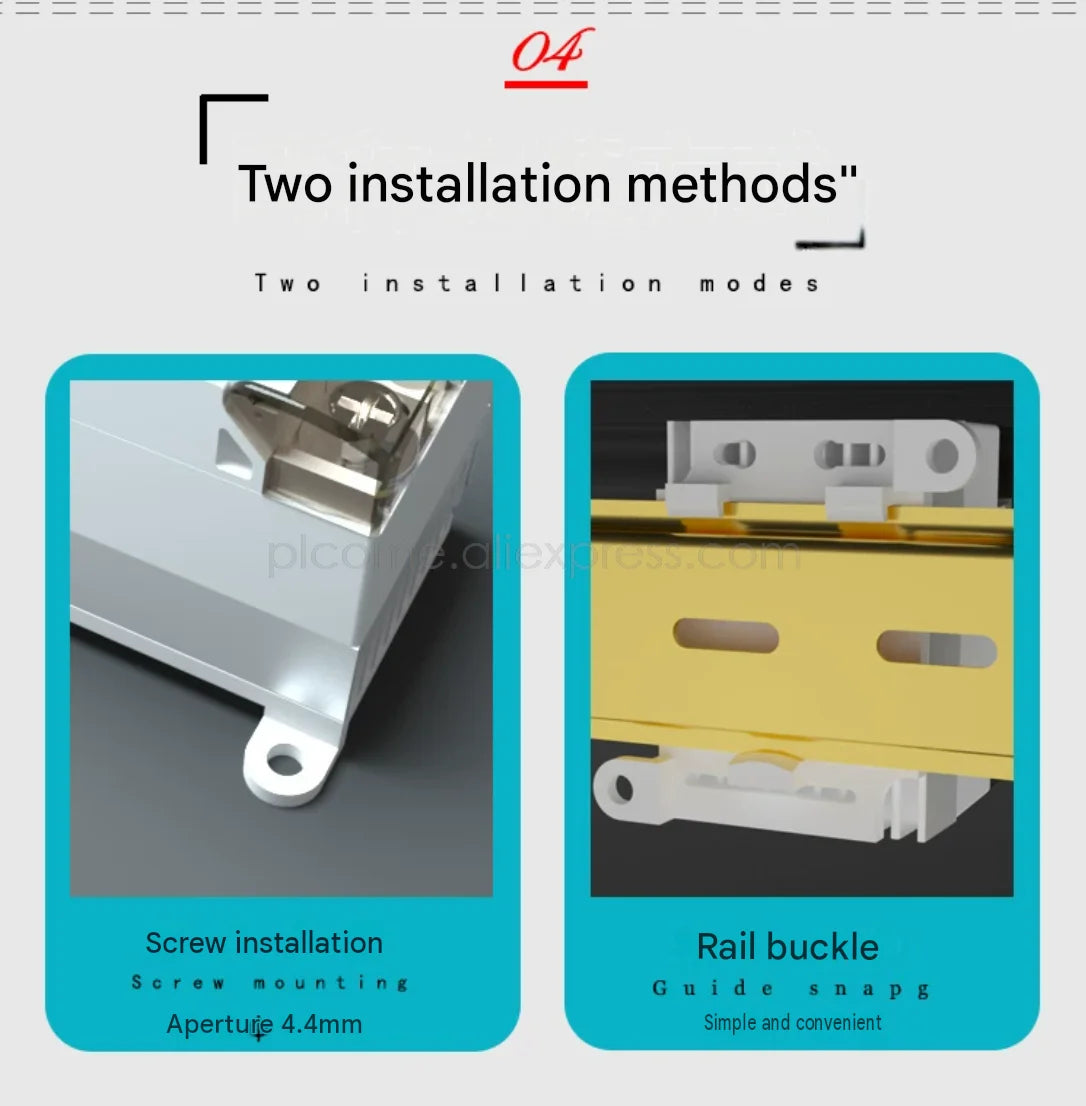

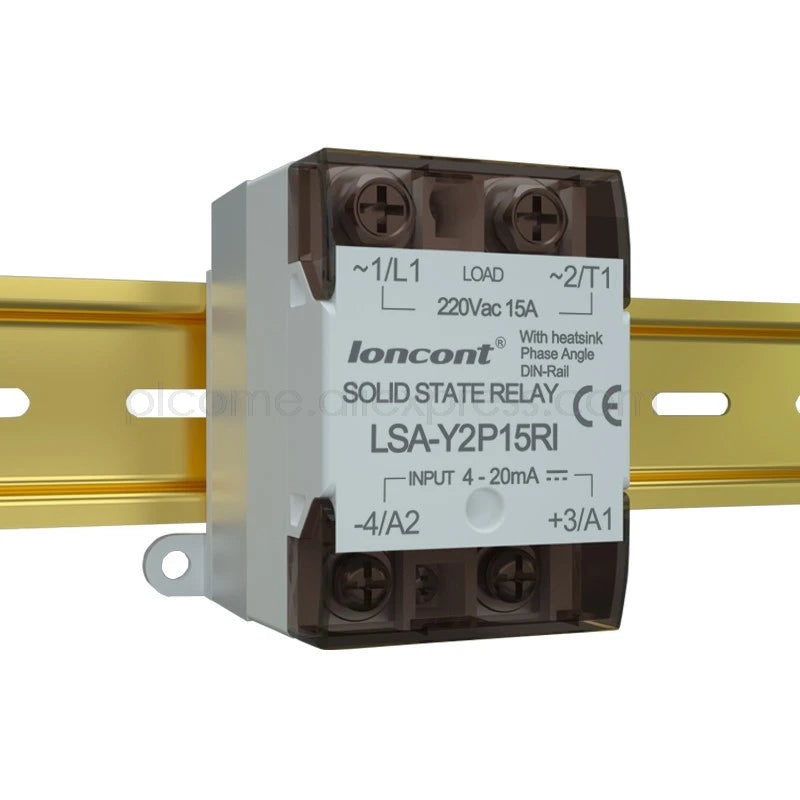

  5. 2 installation methods: Screw or din rail mounting
  6. Working voltage: 220/380VAC
  7. Please select according to your load type and capacity

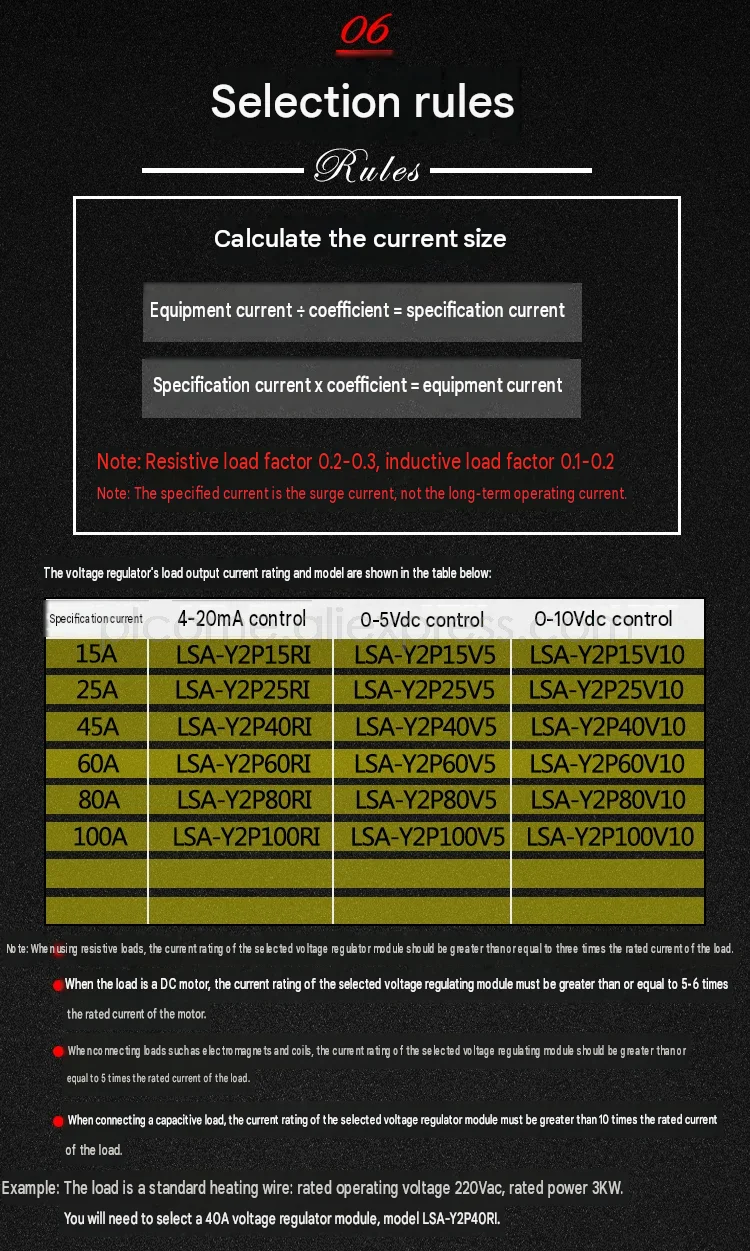

Selection guide:

  • For resistive loads, the current rating of the voltage regulator module should be greater than or equal to 3 times the rated current of the load.
  • When the load is a DC motor, the current level of the selected voltage regulator module must be greater than or equal to 5-6 times the rated current of the motor.
  • When connecting to loads such as electromagnets and coils, the current level of the voltage regulator module should be greater than or equal to 5 times the rated current of the load.
  • When connecting a capacitive load, the current rating of the voltage regulator module must be greater than 10 times the rated current of the load.
  • Example: The load is a common heating wire: rated working voltage 220Vac, rated power 3KW. You need to select a 40A voltage regulator module, model LSA-Y2P40RI.
