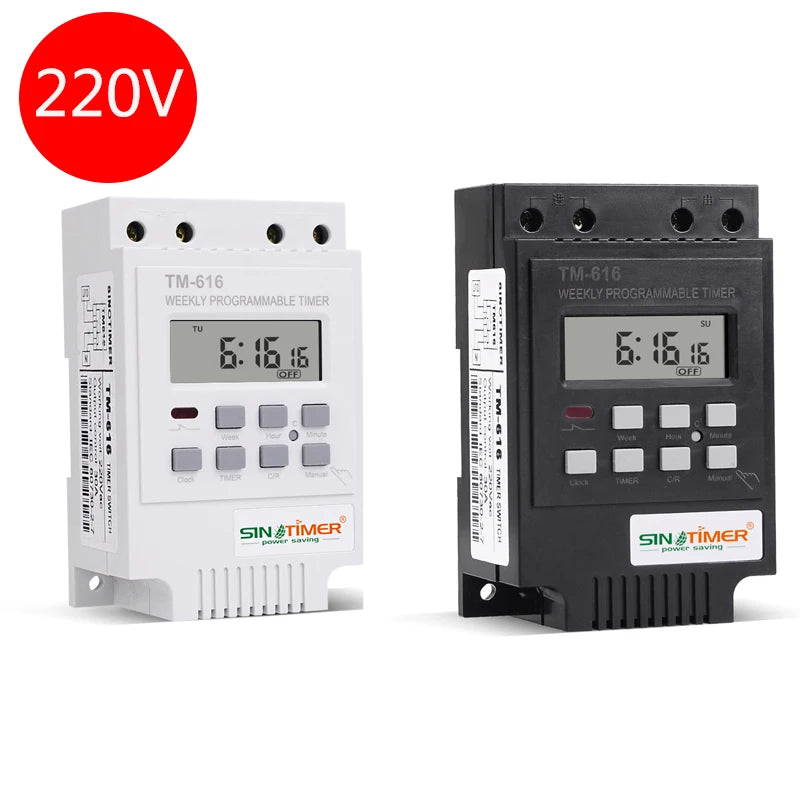

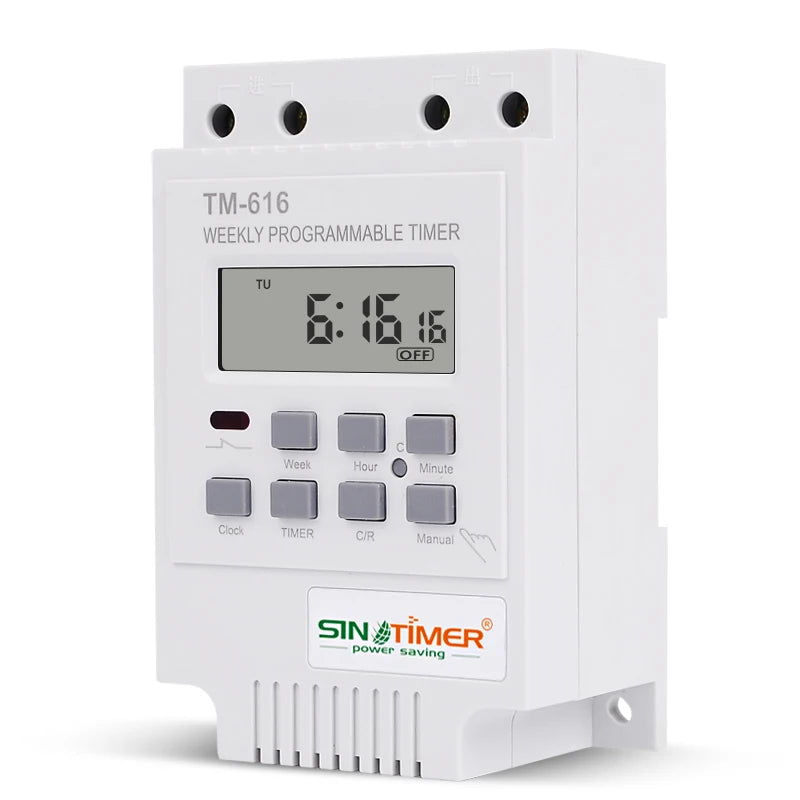

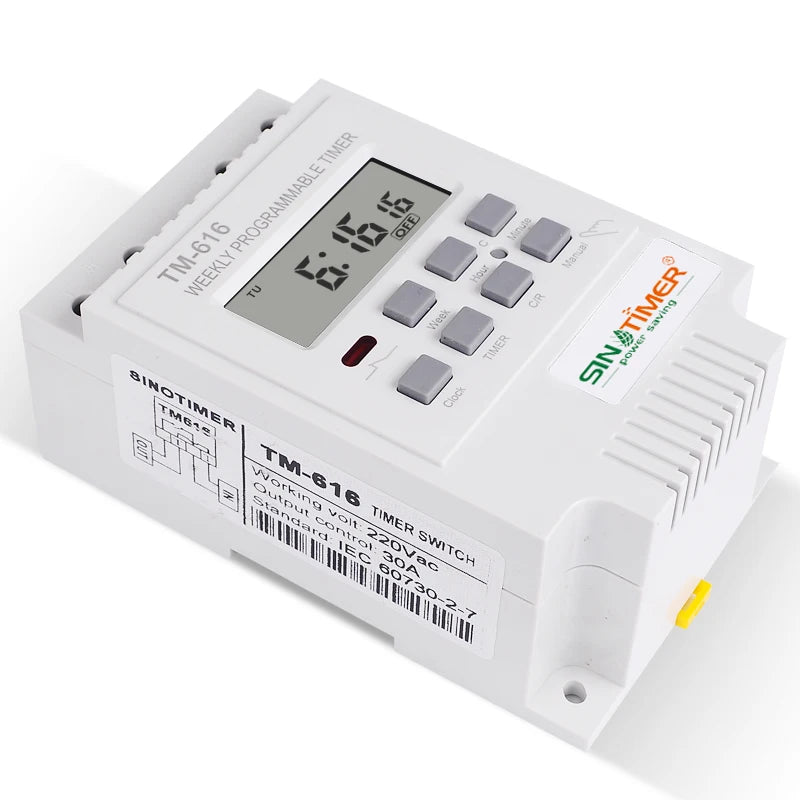

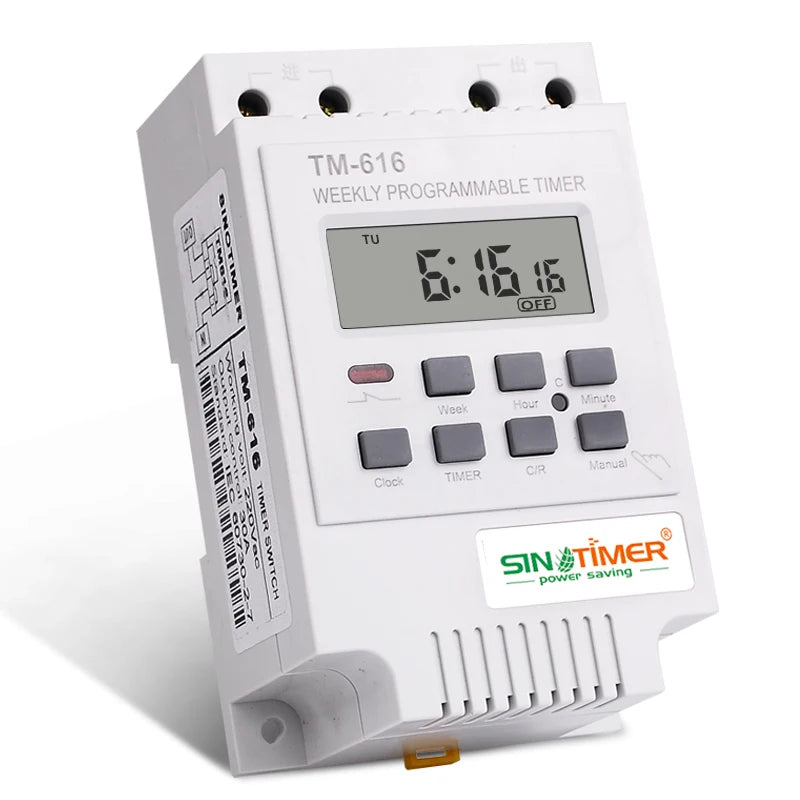

SINOTIMER 30AMP Control Load 7 Days Programmable Digital TIME SWITCH Relay Timer Control 220V Din Rail Mount

SINOTIMER 30AMP Control Load 7 Days Programmable Digital TIME SWITCH Relay Timer Control 220V Din Rail Mount

$50.81

$50.81 $0.00

Description

SPECIFICATIONS

Applicable Object: Other

Brand Name: SINOTIMER

Certification: CE

Contact Load: High Power

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Load Current: 30A

Model Number: TM616B-2

Origin: Mainland China

Output: Voltage 220V

Power Source: Ac,Ac

Power Supply: 220~240V AC

Protect Feature: Sealed

Size: Miniature

Theory: Time Relay

Use: Timer Switch

Voltage: 220V

is_customized: no

30AMP SINOTIMER load Control 7 Days Programmable Digital TIME SWITCH Relay Control 220V Din Rail Mount

Why choose SinoTimer TM616?

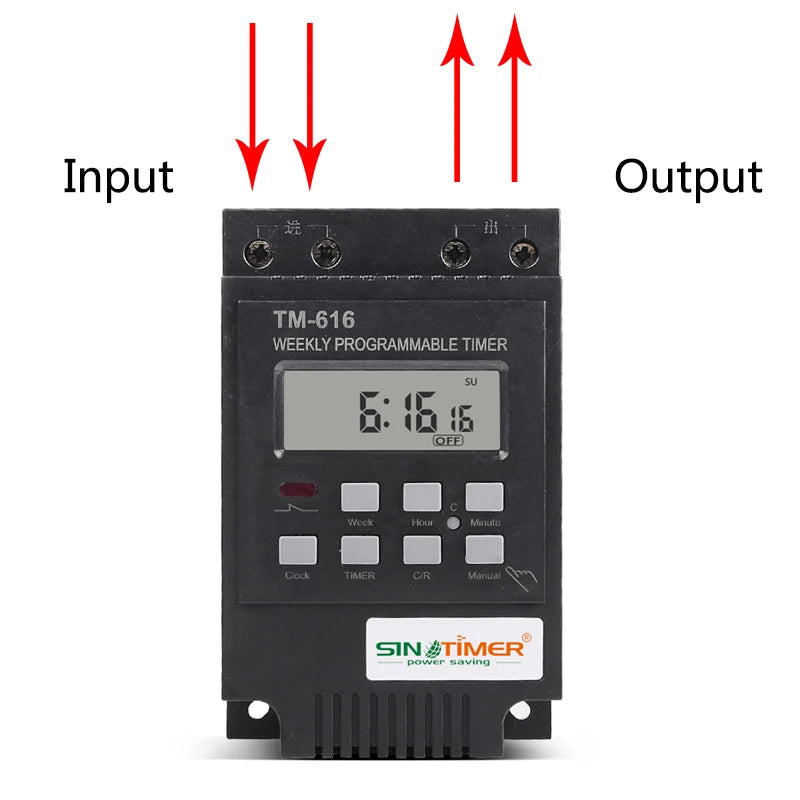

ONE: Simple wiring,220V input, 220V output, no need to askan Electrical Engineer,you can do it by yourself at home.

TWO: Excellent load capacity, upto 6500Watt,30AMP@250Vac.
THREE: Easy program, everyone can program it after he reads the manual JUST one time.
FOUR: Stable performance because of professinal manufacturing in power saver since 2002.

Five: Confirm to CE approval, LVD and EMC passsed.

Characterisitcs:

* You can use the tier to SWITCH ON/OFF any elctrical equipments at a preset timer

* Ideal for household use in DB Boards

* 6500 Watt / 30 Amps

* 24 hours / 7 days a week programmable

* Built-in battery for backup the memory (save the programs you set)when power failure

* Auto time error correction +/- 30 sec, weekly
* Repeat programs with 28 on/off settings, and setting on/off manually

Technical Data:

Model	TM616
Temp.range: -20°C+50°C	Ui:220~240V, 50/60Hz
Power consumption 4.5 VA (MAX)	Display: LCD
Switching contact: 1 changeover switch	Programs:17 on/off each day or week
Hysteresis 2 sec/day (25°C)	Mini interval: 1min
Capacity: 30(16) 250V AC	Black-out: 60 days
Timer range: 1min~168hr	Recharge battery: 3V CR2032
Average error: 1s/24h, 25°C	Weight: 0.2kg

BELOWS IS OUR LATEST PRODUCTS TM615H 30AMP LOAD,220VAC. PLS CLICK THE PICTURE:

PRODUCT SHOW:

Pregramming steps:

Step	Programmable Timer
	Key	Programming
1	Press Timer	Setting 1 ON time (display 1 on)
2	Press H+/M+	Setting hours and minutes
3	Press D+	Select same everyday, different everyday, MO-FR, MO-SA, SA-SU, MO WE FR, TU TH SA, MO-WE, TH-SA.(If same everyday, no need to press this key)
4	Press Timer	Setting 1 off time (display 1 off)
5	Press H+/M+	Setting hours and minutes turn off time
6	Press D+	If you want same set in every day, you need not press this key
7	Repeat step 2~6	Set 2~16 ON/OFF time
8	Press C/R	End
