Sipeed NanoKVM PiKVM Mini Remote Control Operation And Maintenance Server Raspberry Pi HDMI Remote Serial Port LicheeRV Nano

Sipeed NanoKVM PiKVM Mini Remote Control Operation And Maintenance Server Raspberry Pi HDMI Remote Serial Port LicheeRV Nano

$279.96

$279.96 $0.00

Description

SPECIFICATIONS

Battery Included: no

Brand Name: Heltec Automation

Certification: CE,RoHS

Demo Board Type: FPGA

High-concerned chemical: none

Origin: Mainland China

Product Name: sipeed nanokvm full

Typical Application Fields: Internet of Things (IoT)

Summary

The Lichee NanoKVM is an IP-KVM product based on the LicheeRV Nano, inheriting its compact size

and powerful features.

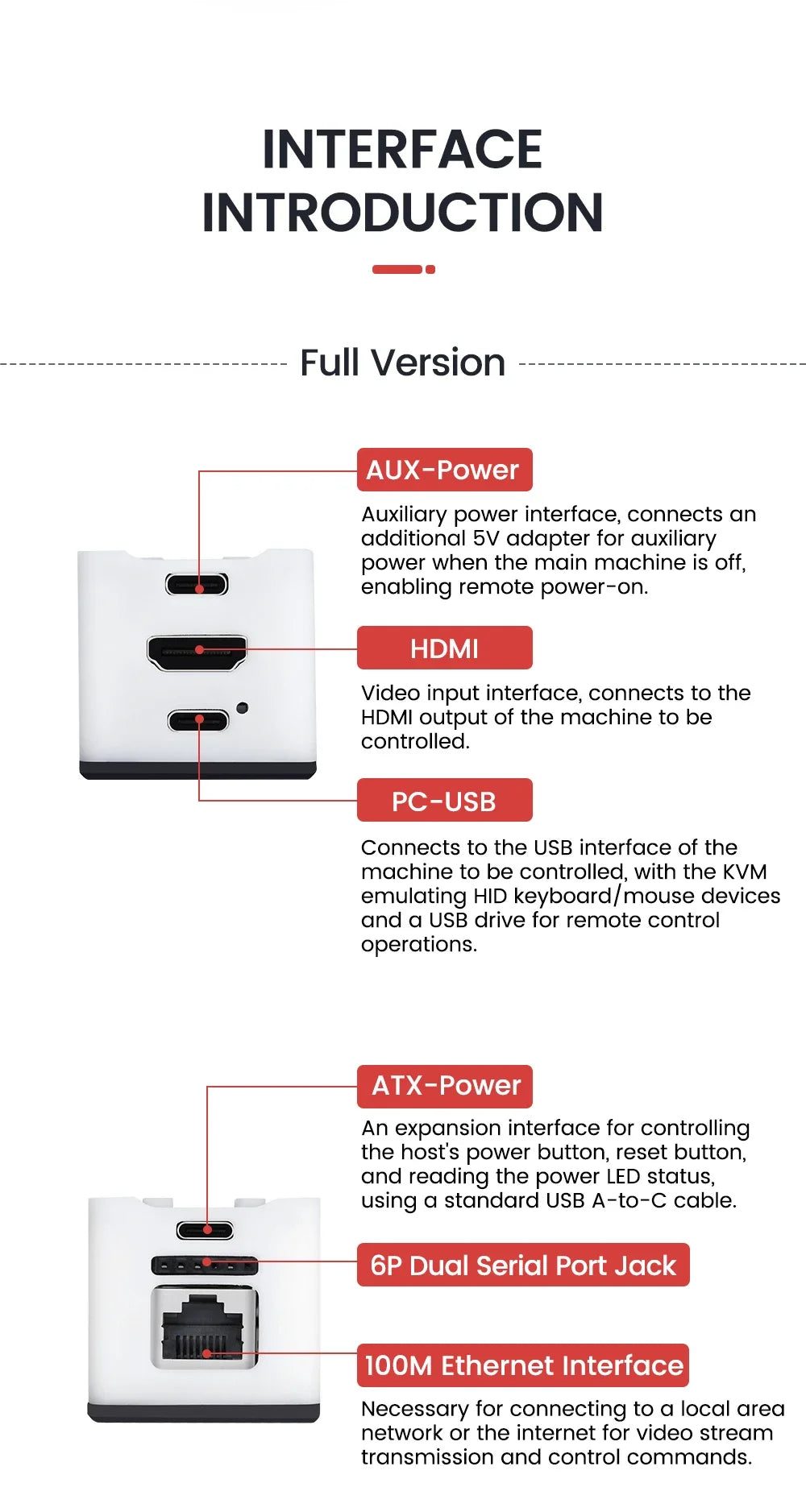

NanoKVM includes an HDMI input interface that can be recognized as a monitor by a computer,

capturing the computer's screen. It has a USB 2.0 interface to connect to the computer host, recognized

as HID devices like keyboard, mouse, and touchpad, and uses extra storage space on the Micro SD

card, mounted as a USB flash drive. It comes with a 100 Mbps Ethernet port for video and control signal

transmission. Additionally, the Full version features an ATX power control interface (USB-C form) for

remote control and monitoring of the host's power status. Under the Full version's shell, there is an

OLED display for showing the device's IP and KVM-related status.

NanoKVM Full: Complete version with a sleek shell and full accessories, including a pre-installed system

image card, recommended for individual users.

Applicable Scenarios

Server management: used for real-time monitoring of servers, obtaining server operating status, and

controlling it;

Remote desktop and power on/off: NanoKVM eliminates the limitations of the host having to be

connected to the internet and system software. As an external hardware of the host, it directly provides

remote control functions;

Remote installation: NanoKVM simulates USB devices, can mount installation images to install

systems, and can also enter BIOS to set up the computer;

Remote serial port (not exported to the interface in the Full beta version): NanoKVM exports two

sets of serial ports, which can be used in conjunction with IPMI or connected to other development

boards to interact with web serial port terminals. In addition, users can expand more accessories on their

own.

Specifications

Parameters	Description
Computing Unit	LicheeRV Nano (RISCV)
Resolution	1080P @ 60fps
Video Encoding	MJPEG, H264 (WIP)
Video Latency	90-230ms
UEFI/BIOS	✓
Emulated USB Keyboard/Mouse	✓
Emulated USB Storage	✓
IPMI	✓
Wake-on-LAN	✓
Tailscale	✓
WebSSH	✓
Custom Scripts	✓
ETH	100M/10M
ATX Power Control	USB interface IO control board
OLED Display	128x64 0.96" white
Serial Terminal	2 channels
Micro SD Card	Included, ready to use
Expansion Accessories	PoE
Power Consumption	0.2A@5V
Power Input	Powered by PC USB Supports auxiliary power
Cooling	Silent, fanless
Dimensions	40x36x36mm ~1/7 PiKVM V4 size

Resource

Schematics:wiki.sipeed.com/nanokvm

3D Structure:t.me/sipeed

Business email:support@sipeed.com
