SPECIFICATIONS

Application: Computer,Video Processing, Image Display, IoT Gateway, RISC-V Development, Embedded System, Digital Logic Design, Educational Projects

Brand: Sipeed

Brand Name: diymore

Condition: New

Debug Interface: USB-JTAG, USB-UART

Display Interface: HDMI, 40P RGB, 8P SPI

Display interface: 40P RGB interface, 8P SPI screen interface With IF card holder

Dissipation Power: Tang Nano 9K FPGA Development Board

Downloader: Onboard USB-JTAG&UART downloader

FPGA Chip: GOWIN GW1NR-9

Feature: Sipeed Tang Nano 9K, GOWIN GW1NR-9 FPGA, 8640 LUT4, 6480 Flip-Flops, 468K B-SRAM, 64M PSRAM, 32M-bit SPI Flash, 608K User Flash, HDMI Output, 40P RGB Interface, 8P SPI Screen Interface, TF Card Slot, USB-JTAG/UART Onboard Debugger, BL702 Debug Chip, 2x Programmable Buttons, 6x Programmable LEDs, RISC-V Soft Core Support, 2x PLLs, 20x 18x18 Multipliers

High-concerned chemical: none

I/O: 2.54mm 2x24P Header

Logic Cells: 8640 LUT4

Memory: 468K B-SRAM, 64M PSRAM, 32M-bit Flash

Model: Tang Nano 9K

Operating Temperature: -20℃ ~ +60℃

Origin: Mainland China

Package: SOP

Power: Type-C

Product Label: FPGA Development Board,Tang Nano 9K,GOWIN FPGA Board,GW1NR-9 FPGA,RISC-V FPGA Board,8640 LUT FPGA,HDMI FPGA Module,SPI Display FPGA, Tang Nano 9K GW1NR-9,FPGA with HDMI RGB Interface,Board with USB-JTAG UART,64M PSRAM FPGA Board,8640 LUT FPGA Development,RISC-V Soft Core FPGA,FPGA Board with TF Card,GOWIN FPGA Kit

Quantity: 1

S-SRAM: 17280 bits S-SRAM

Supply Voltage: 5V

Type: Logic ICs,FPGA Development Board / Evaluation Kit

User Flash: 608K bits User Flash

is_customized: Yes

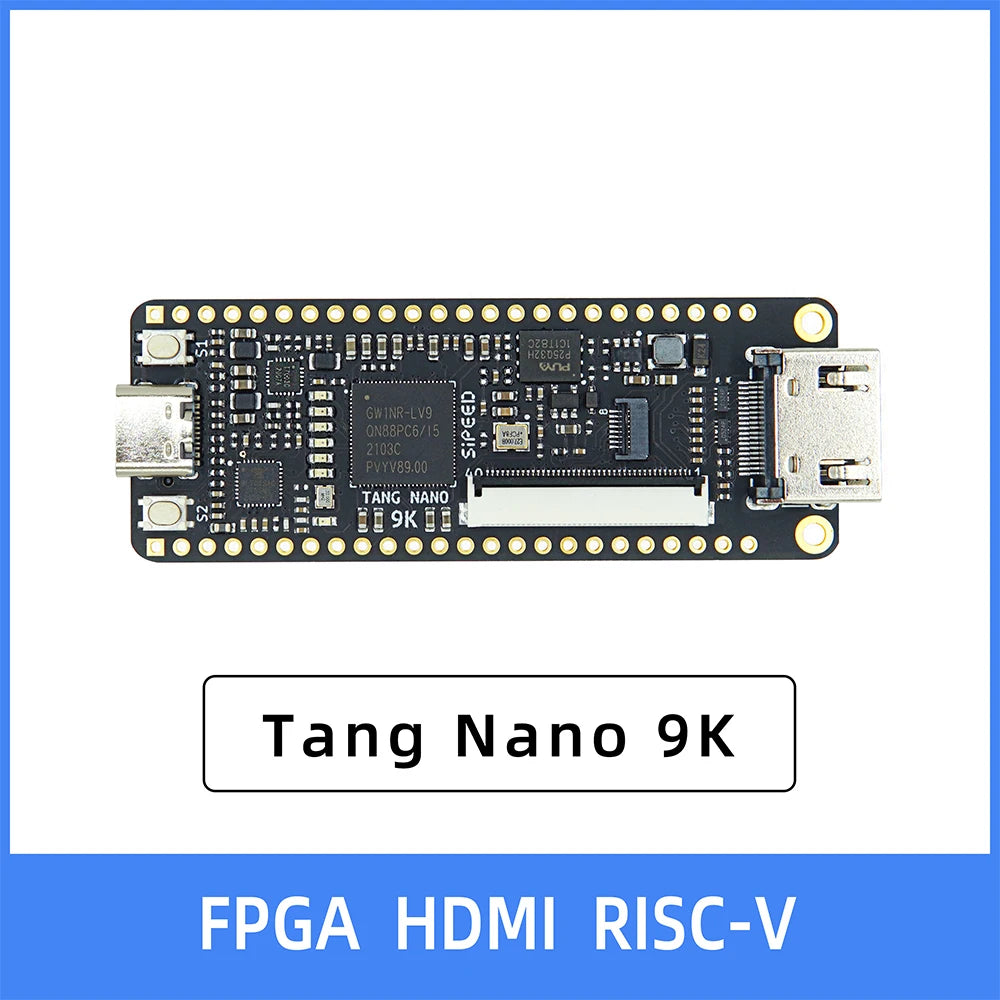

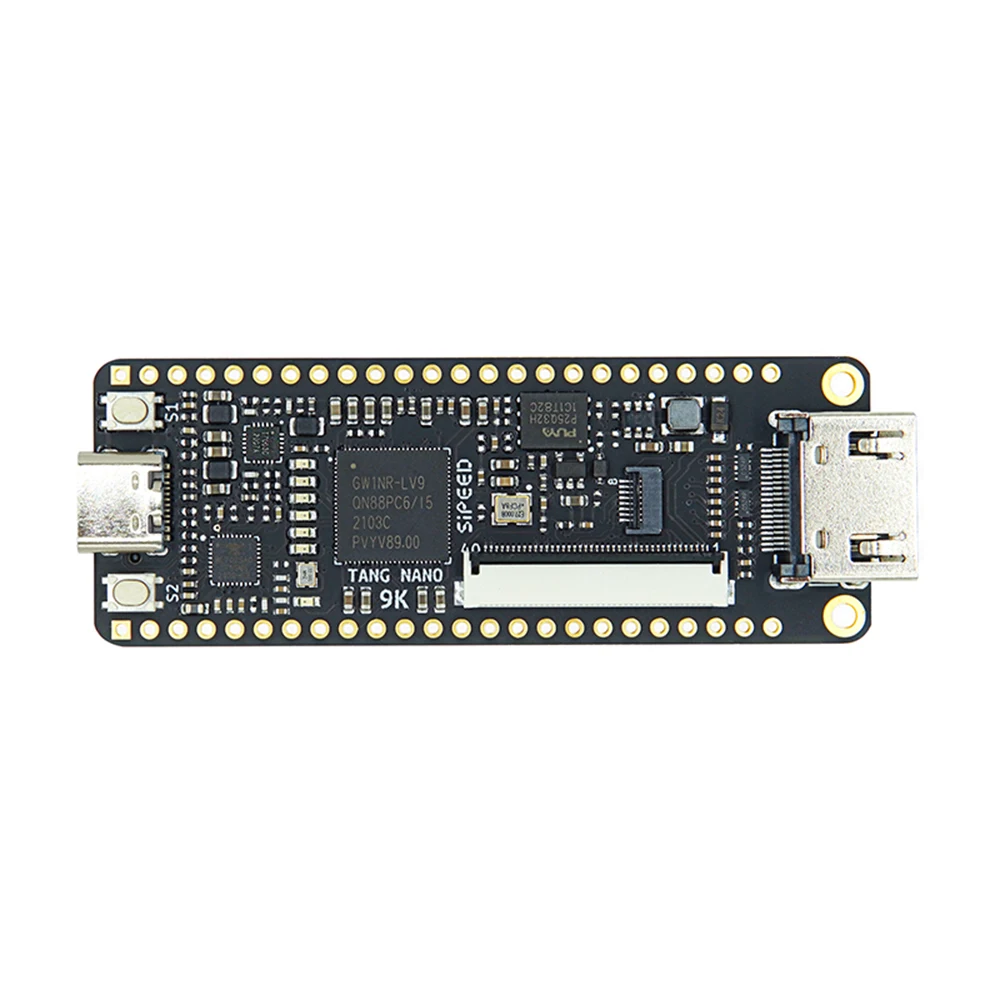

Tang Nano 9K FPGA Development Board Gao Yun GW1NR-9 RISC-V RV

Features:

S-SRAM: 17280 bits S-SRAM

User Flash: 608K bits User Flash

Display interface: 40P RGB interface, 8P SPI screen interface

With IF card holder

Downloader: Onboard USB-JTAG&UART downloader

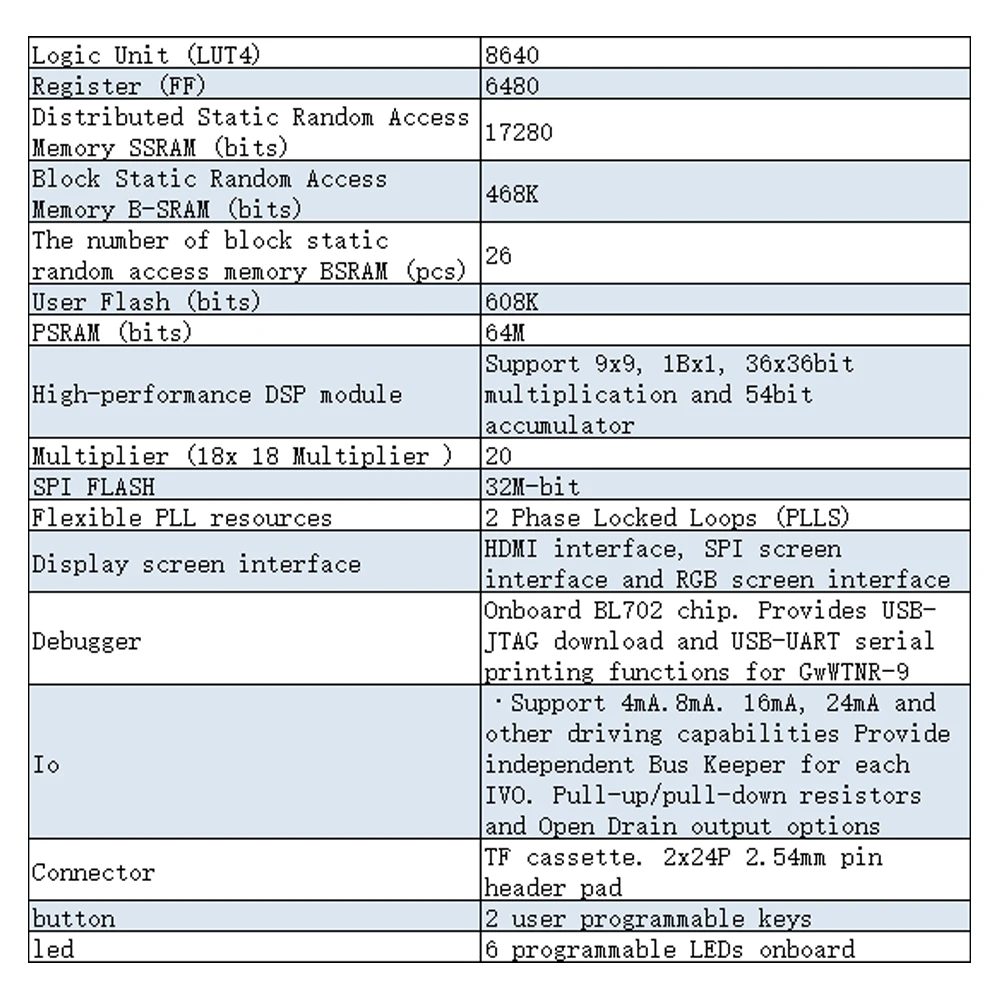

Core configuration:

Logical Units (LUT4): 8640

Register (FF): 6480

Distributed Static Random Access Memory SSRAM (bits): 17280

Block Static Random Access Memory B-SRAM (bits): 468K

The number of block static random access memory BSRAM (pcs): 26

User Flash (bits): 608K

PSRAM (bits): 64M

High-performance DSP module: support 9x9, 18x18, 36x36bit multiplication and 54bit accumulator

Multiplier (18x 18 Multiplier ): 20

SPI FLASH: 32M-bit

Flexible PLL resources: 2 Phase Locked Loops (PLLs)

Debugger: Onboard BL702 chip, providing USB-JTAG download and USB-UART serial port printing functions for GW1NR-9

Connector: TF card holder, 2x24P 2.54mm pin header pad

Keys: 2 user programmable keys

LEDs: 6 programmable LEDs onboard

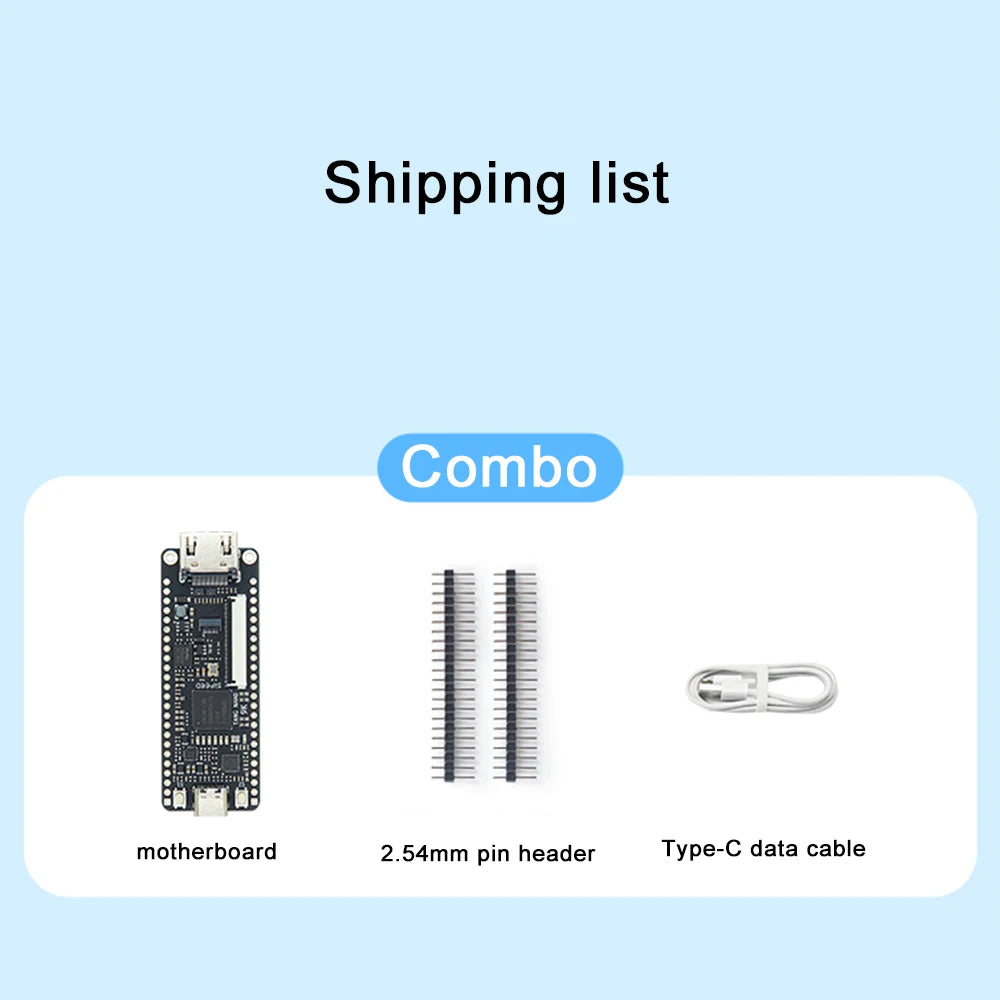

Package A:

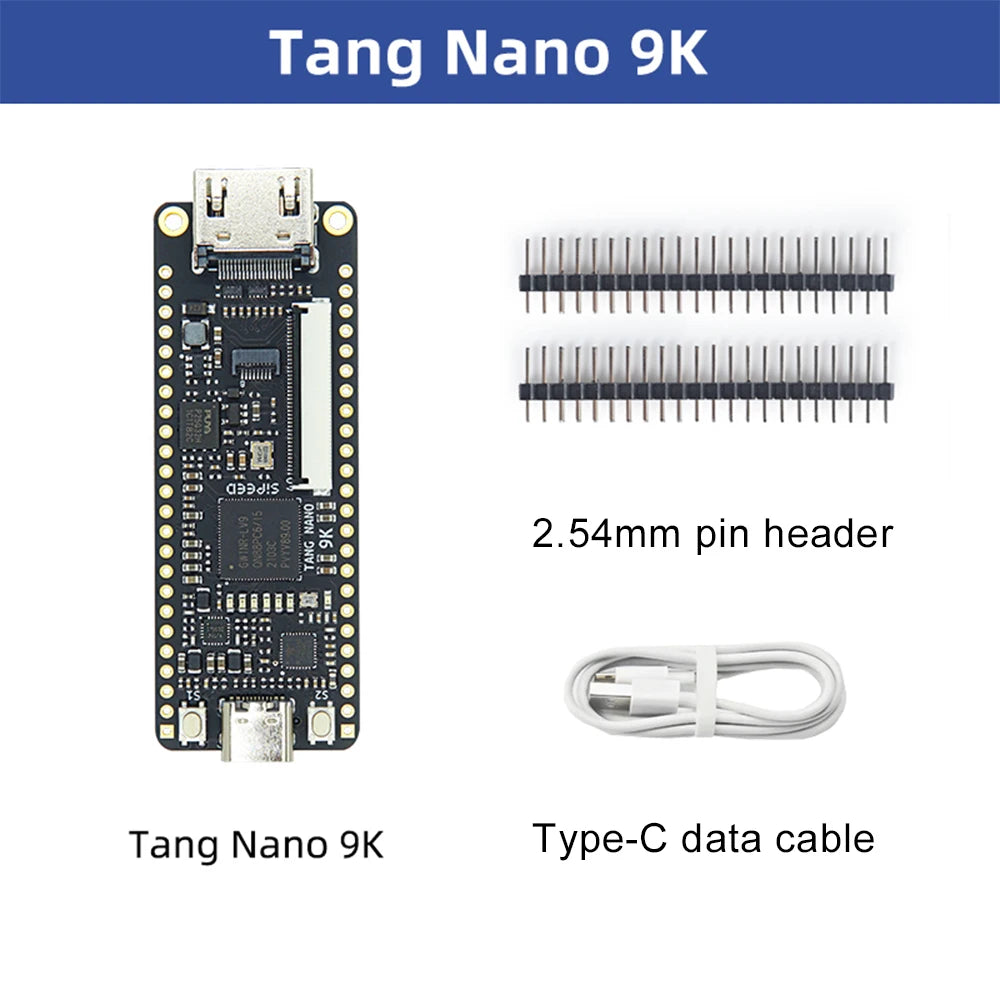

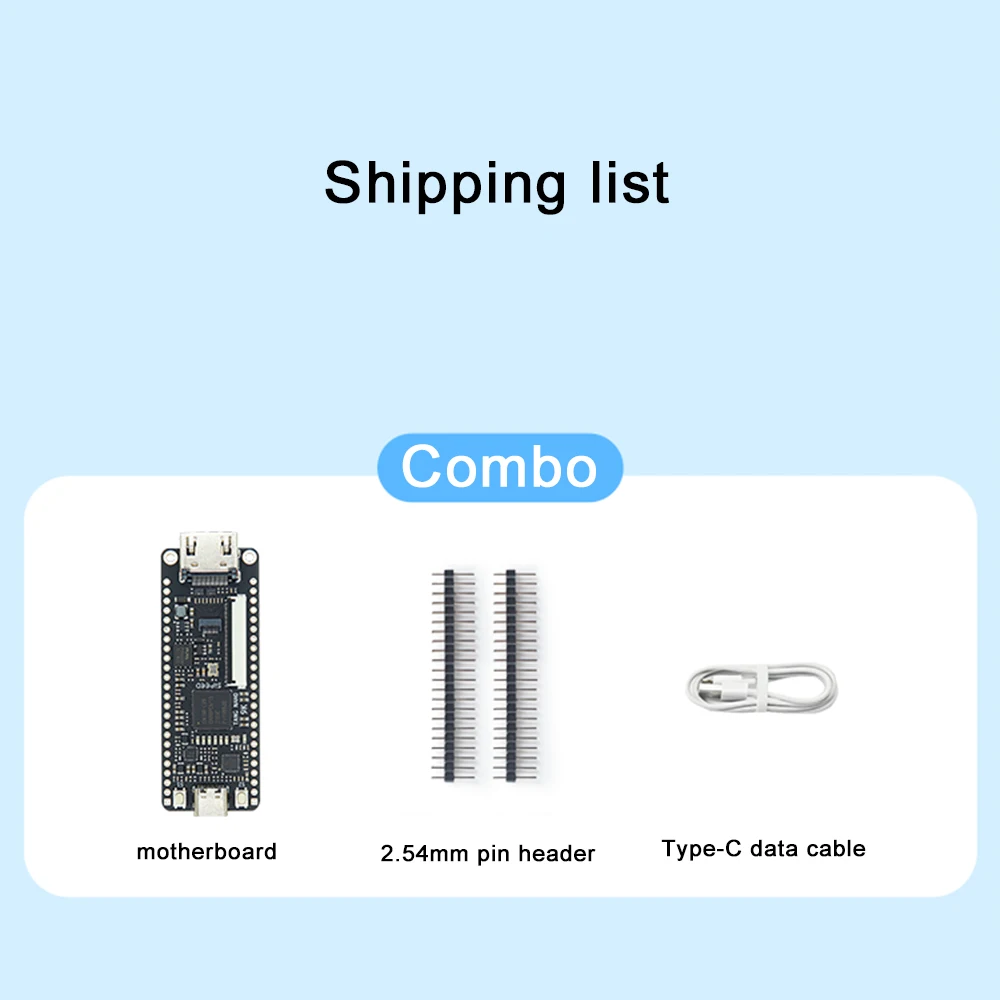

Motherboard X1

2.54mm pin header X2

Type-C data cable X1

Package B:

Motherboard X1

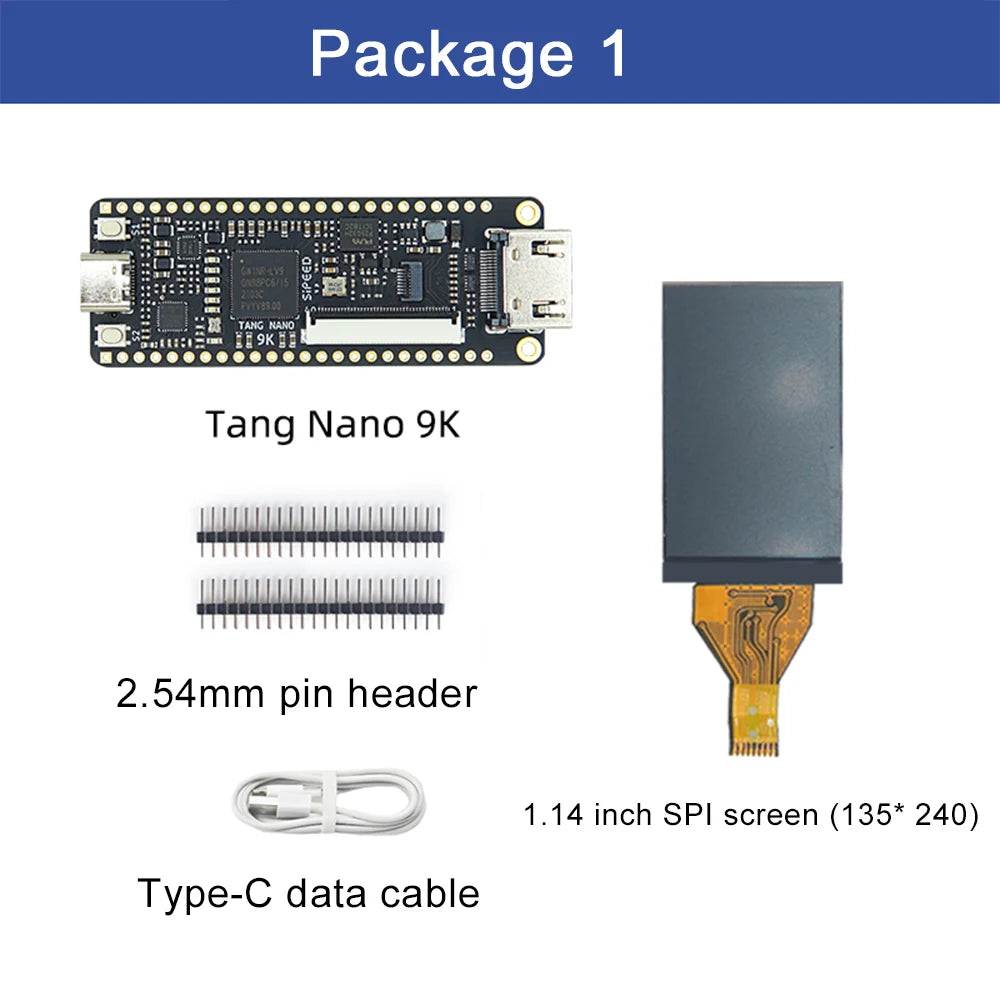

2.54mm pin header X2

Type-C data cable X1

1.14 inch SPI screen X1

Package C:

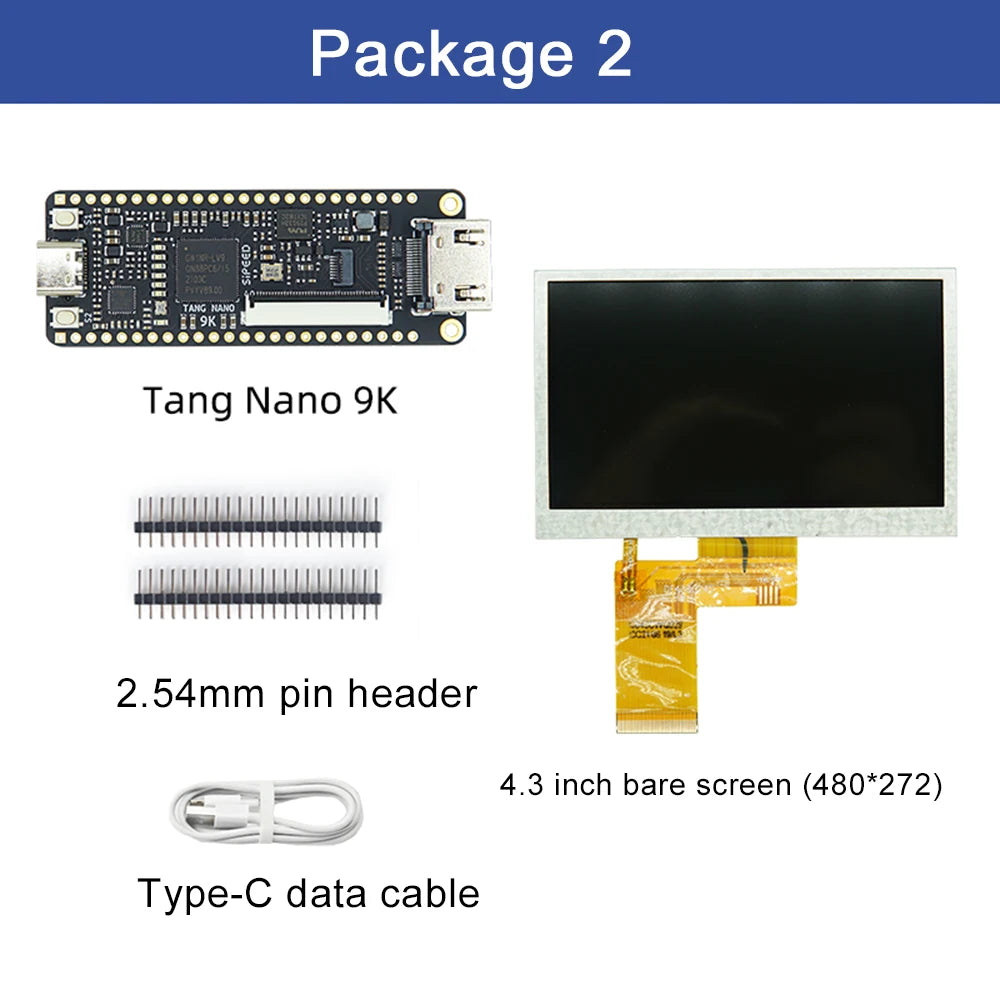

Motherboard X1

2.54mm pin header X2

Type-C data cable X1

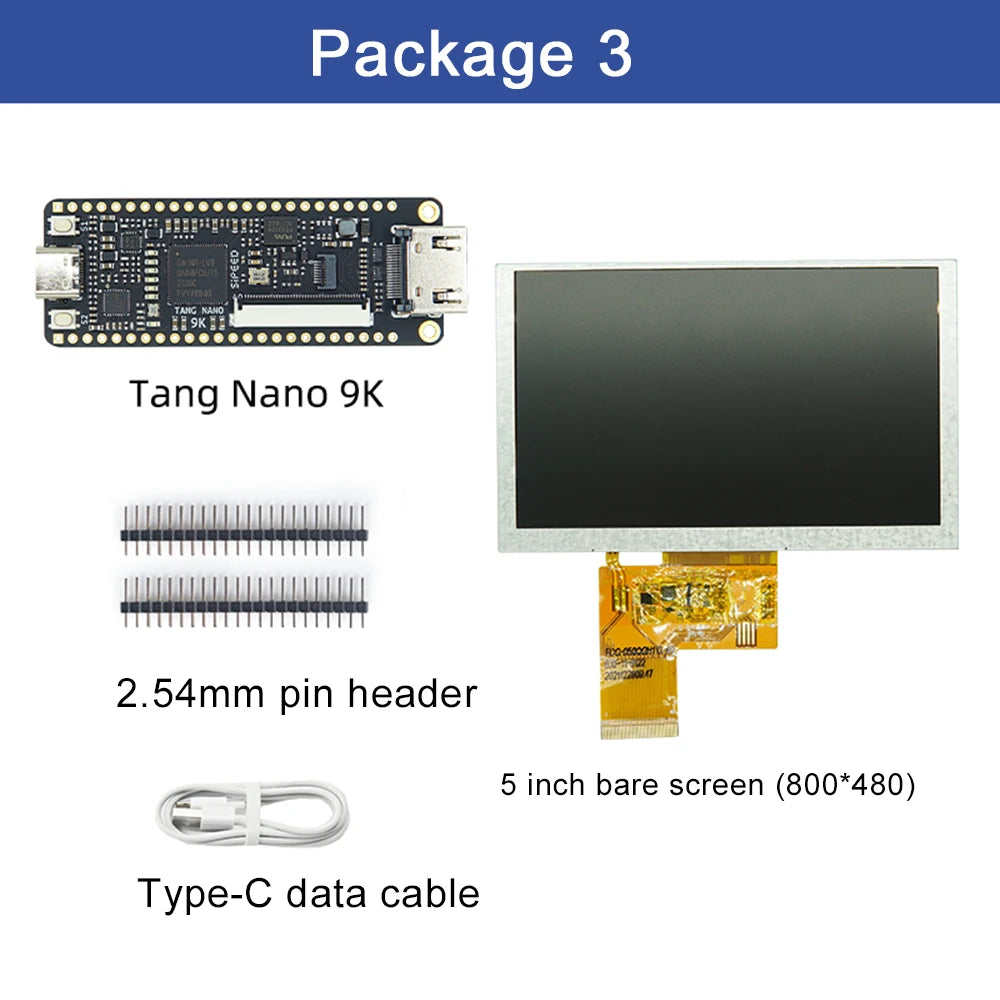

4.3 inch bare screen X1

Package D:

Motherboard X1

2.54mm pin header X2

Type-C data cable X1

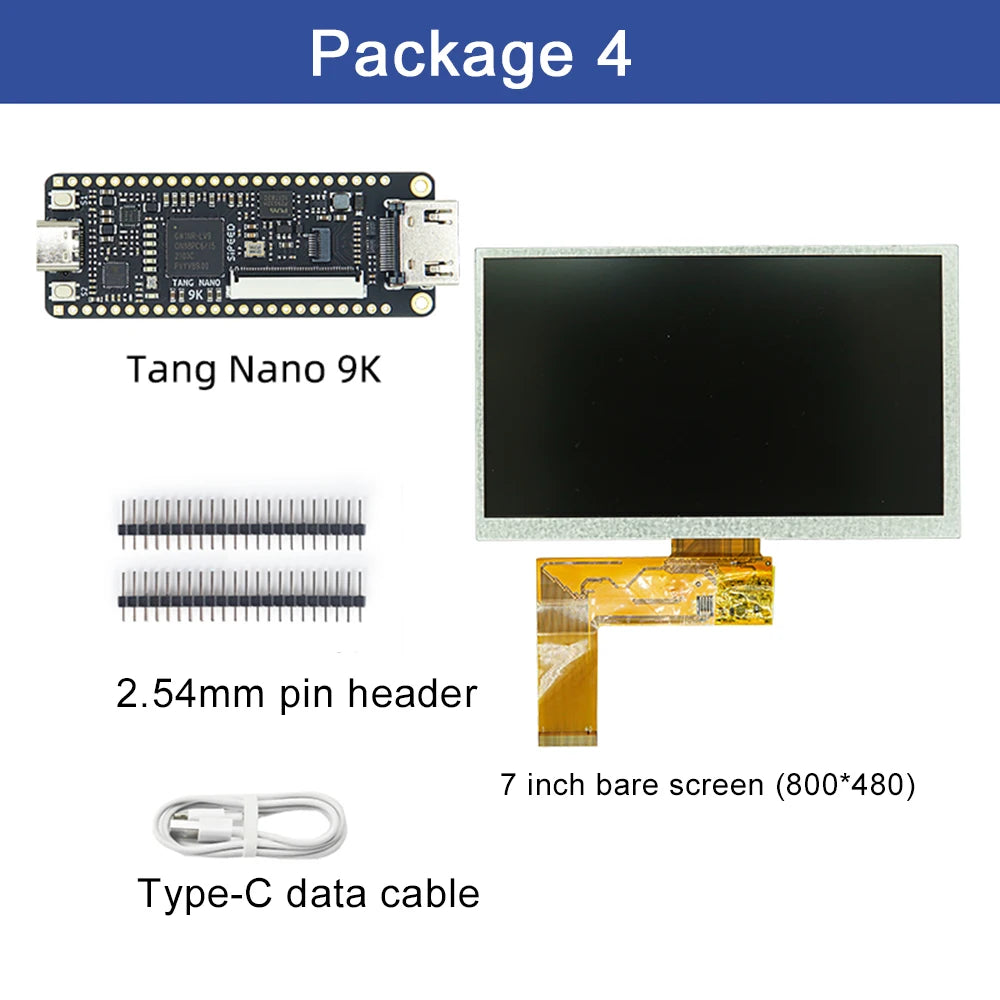

5 inch bare screen X1

Package E:

Motherboard X1

2.54mm pin header X2

Type-C data cable X1

7 inch bare screen X1
