SK6812 RGBW Led Strip Light 4 IN 1 Similar WS2812B 30 60 144 LEDs/m Individual Addressable RGBWW Led Lights IP30 65 67 DC5V

Black PCB / RGBCW / 3m 60 IP30

$60.89

Sale price $60.89 Regular price $0.00

Skip to product information

SK6812 RGBW Led Strip Light 4 IN 1 Similar WS2812B 30 60 144 LEDs/m Individual Addressable RGBWW Led Lights IP30 65 67 DC5V

SK6812 RGBW Led Strip Light 4 IN 1 Similar WS2812B 30 60 144 LEDs/m Individual Addressable RGBWW Led Lights IP30 65 67 DC5V

$60.89

Sale price $60.89 Regular price $0.00

Emitting Color Black PCB White PCB

Color RGBCW RGBNW RGBWW

Wattage 3m 60 IP30 4m 60 IP30 5m 60 IP30 1m 60 IP65 2m 60 IP65 3m 60 IP65 4m 60 IP65 5m 60 IP65 5m 30 IP65 1m 30 IP67 2m 30 IP67 3m 30 IP67 4m 30 IP67 5m 30 IP67 1m 60 IP30 2m 60 IP30 2m 30 IP30 3m 30 IP30 4m 30 IP30 5m 30 IP30 1m 30 IP65 2m 30 IP65 3m 30 IP65 4m 30 IP65 1m 30 IP30 1m 144 IP67 2m 144 IP67 1m 60 IP67 2m 60 IP67 3m 60 IP67 4m 60 IP67 5m 60 IP67 1m 144 IP30 1m 144 IP65 2m 144 IP30

Description

SPECIFICATIONS

Average Life (hrs): More than 50000hours

Brand Name: Xnbada

Certification: CCC,ROHS,ce,FCC

Color Temp(K): K

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: Yes

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 30/60/144

Luminous Flux: 60-249

Model Number: SK6812-RGBW

Nominal Voltage: Other

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 50

Strip type: SMD

Voltage: 5V

Waterproof: Yes

Notice:

1.The Price is only Led Strip, Not Included Power Supply or Led Controller!

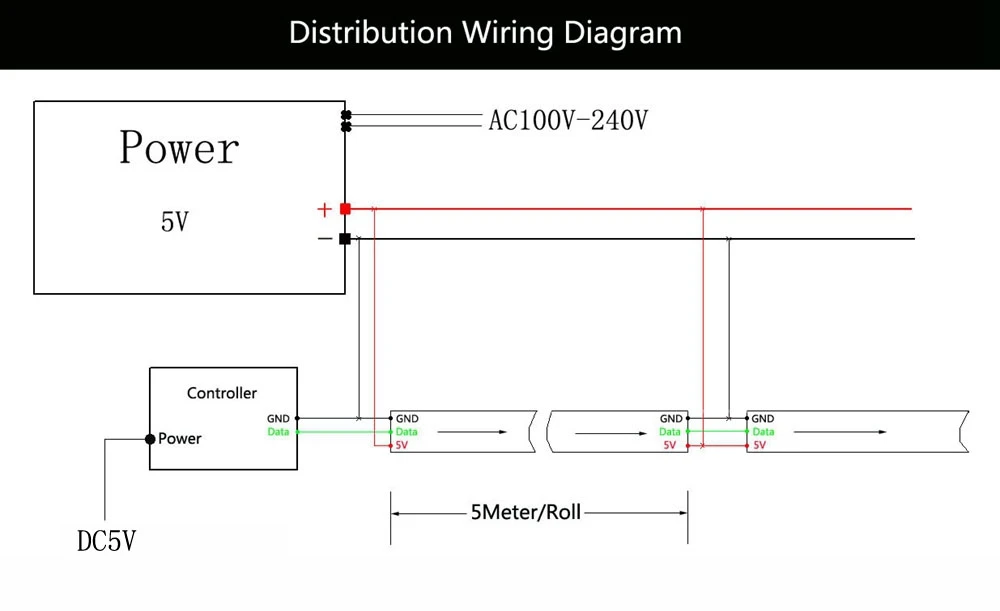

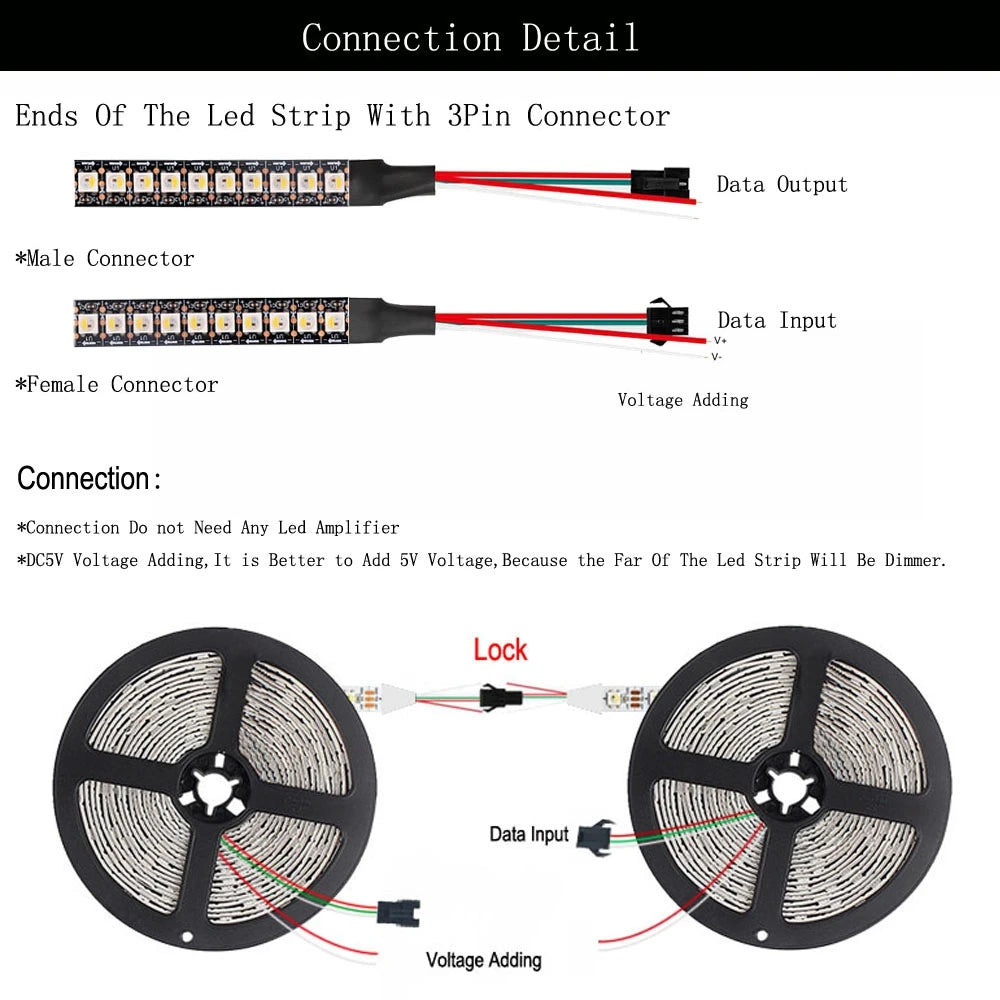

(SK6812 RGBW Must Use DC5V Power Supply AND Led Controller to Control)

2.Every 0.5meter with solder joints, Please note!

RGBCW=RGB+Cool White

RGBNW=RGB+Nature White

RGBWW=RGB+Warm White

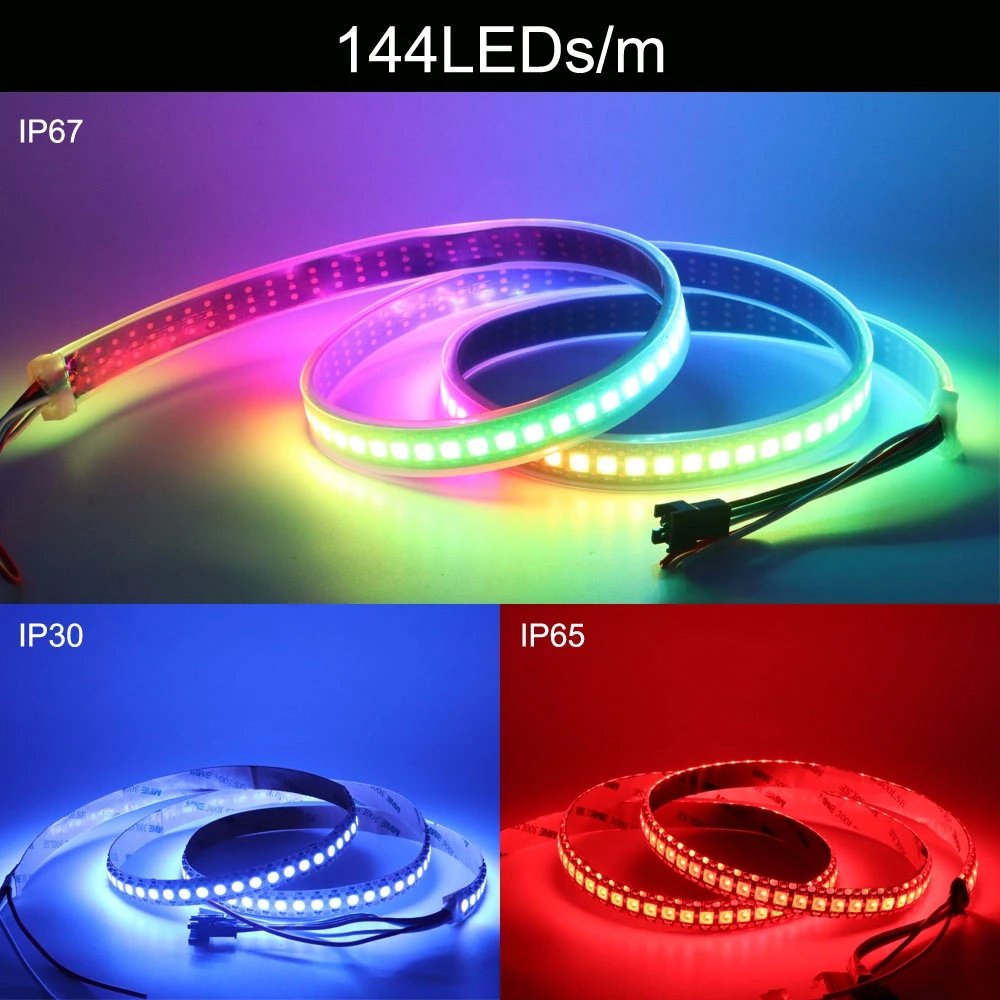

Waterproof Level:

IP30: Non- waterproof

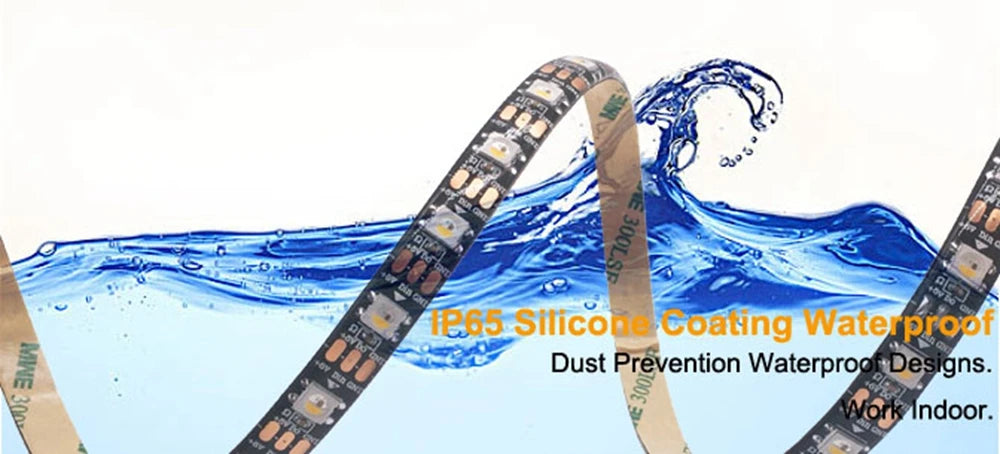

IP65: Waterproof in Silicon Coating

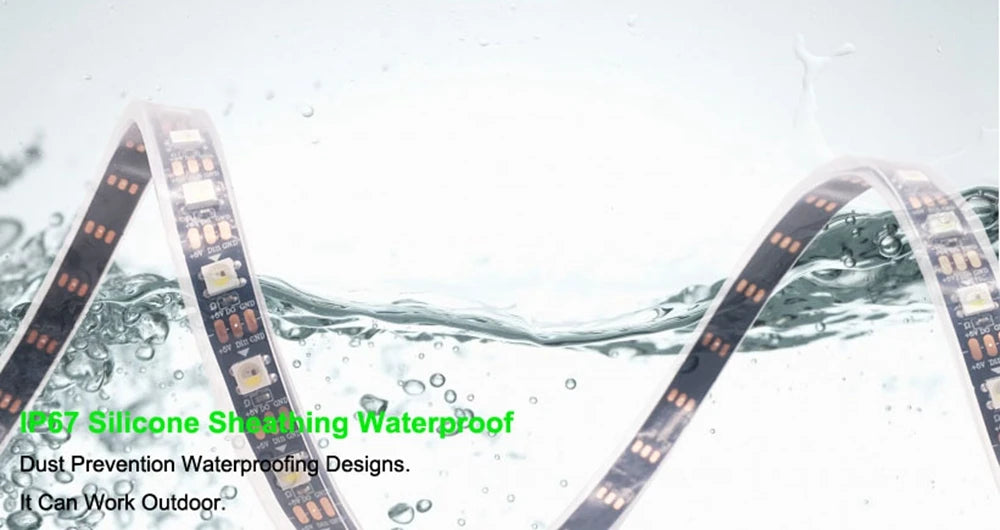

IP67: Waterproof in SiliconTube

The Length As You Choose

Product Details:

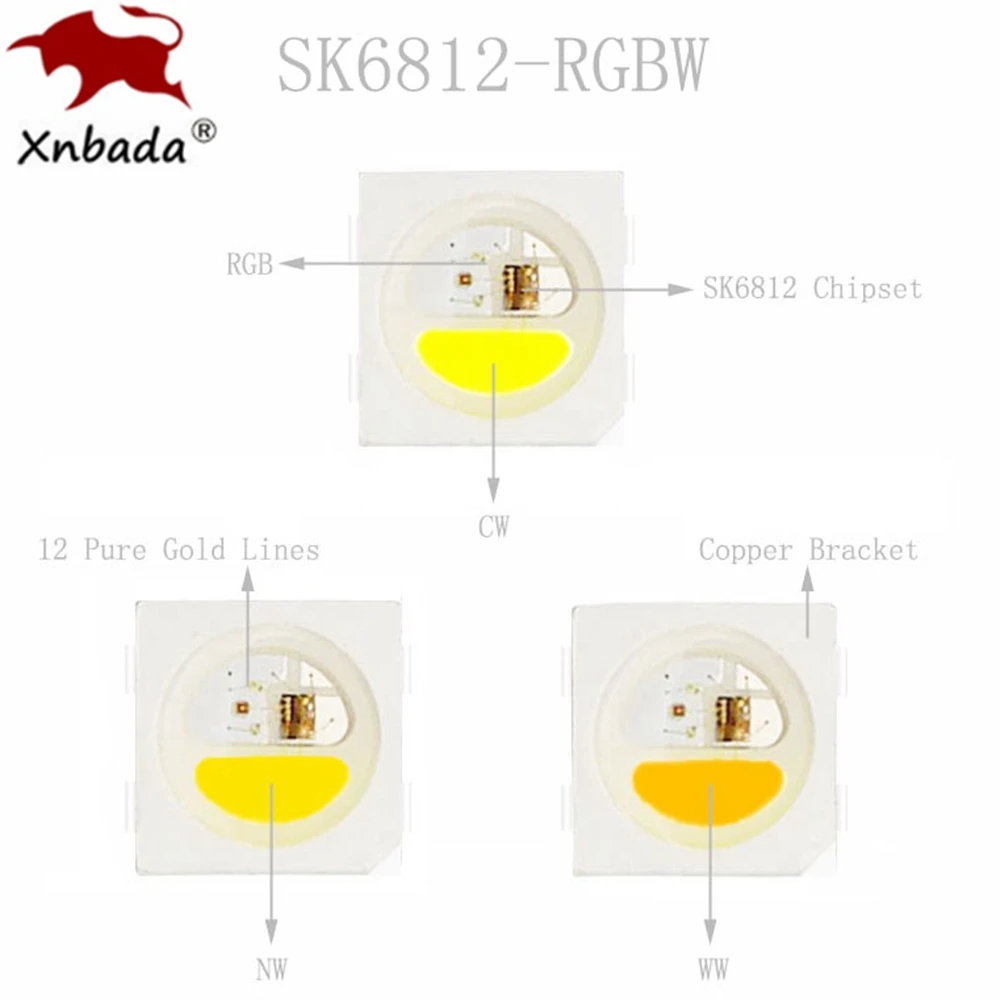

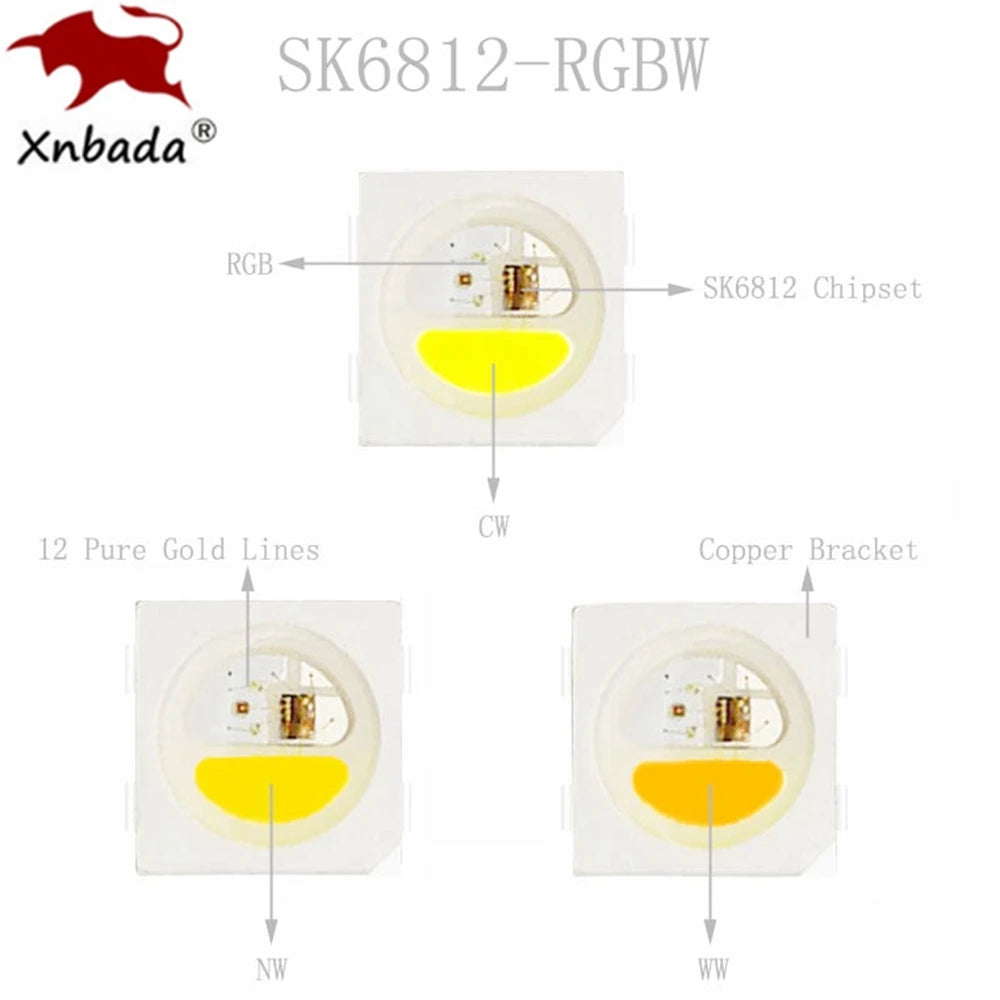

Led Source : 5050SMD RGBCW/RGBNW/RGBWW Built-In SK6812 Chipset

Voltage:DC5V

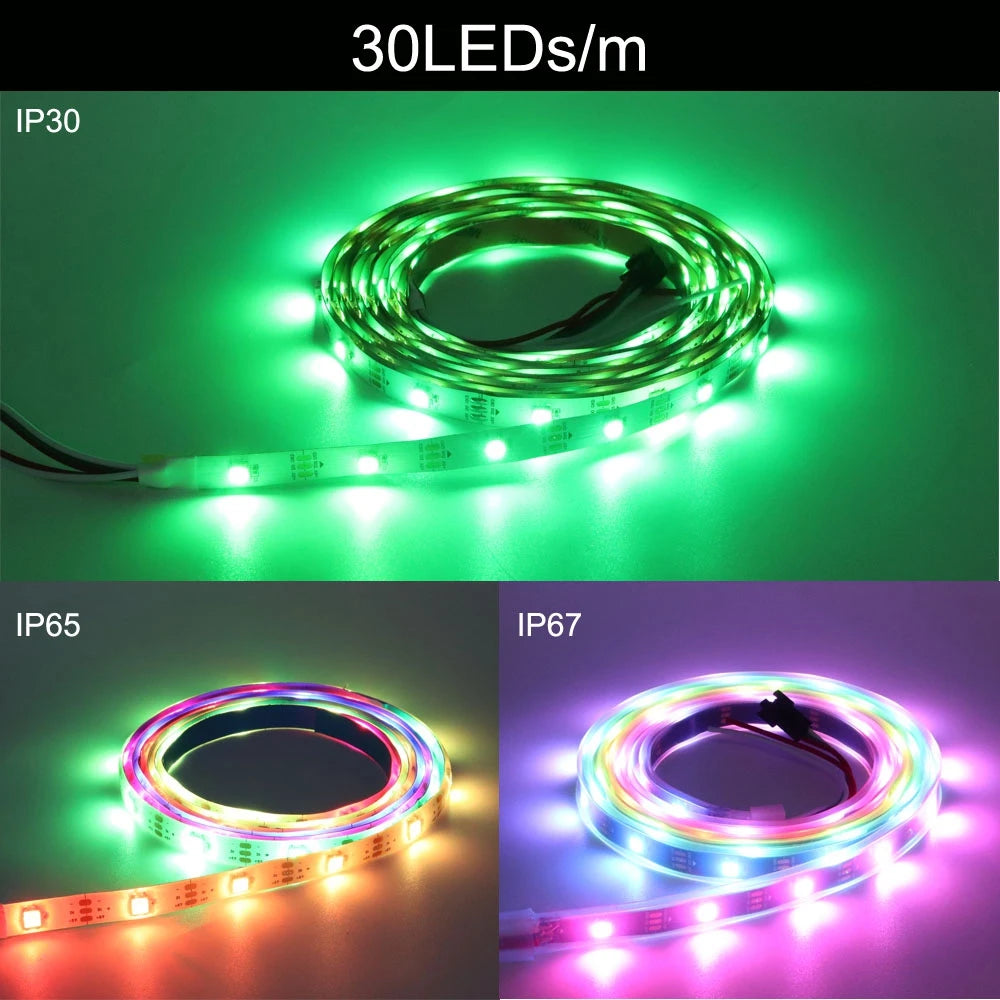

Power:30LEDs/meter ---------about 6W / Meter

60LEDs/meter ---------about 12W / Meter

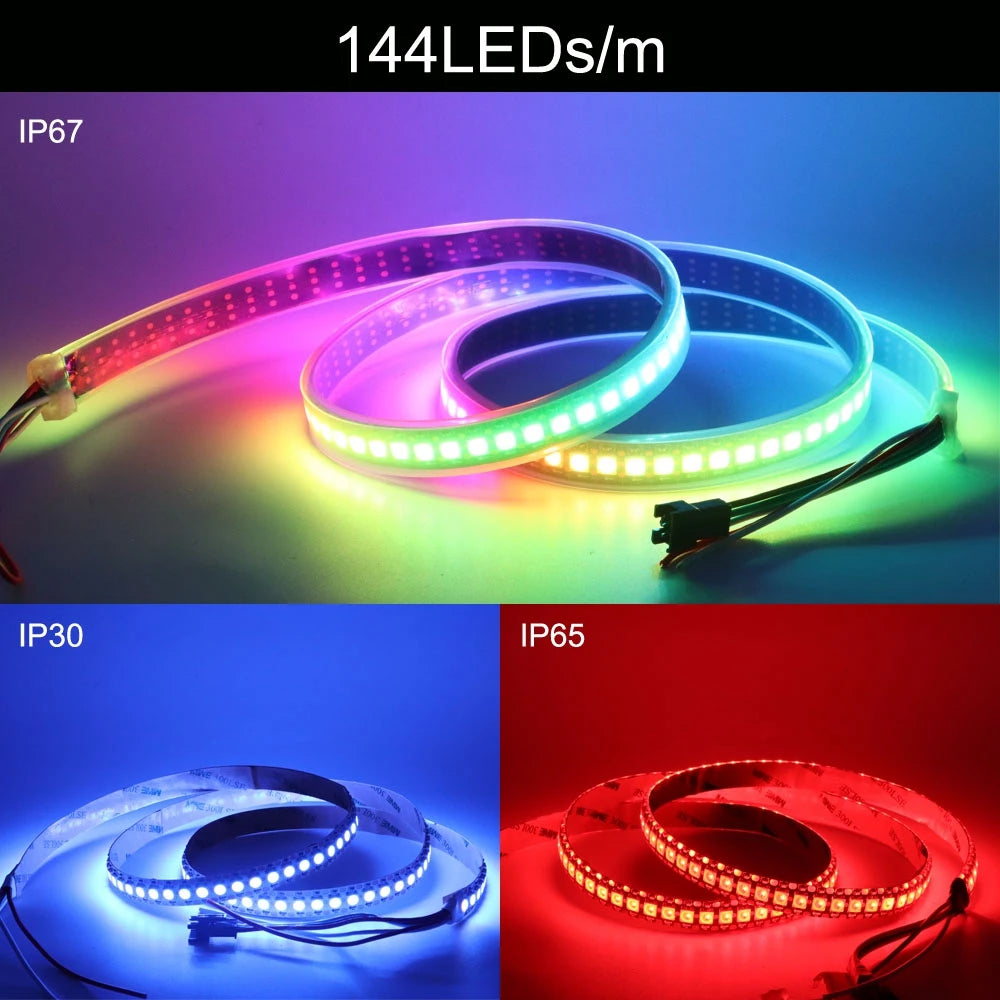

144LEDs/meter -------about 28.8W / Meter

Led Type : SMD5050

IC Type : SK6812(Similar WS2812B)

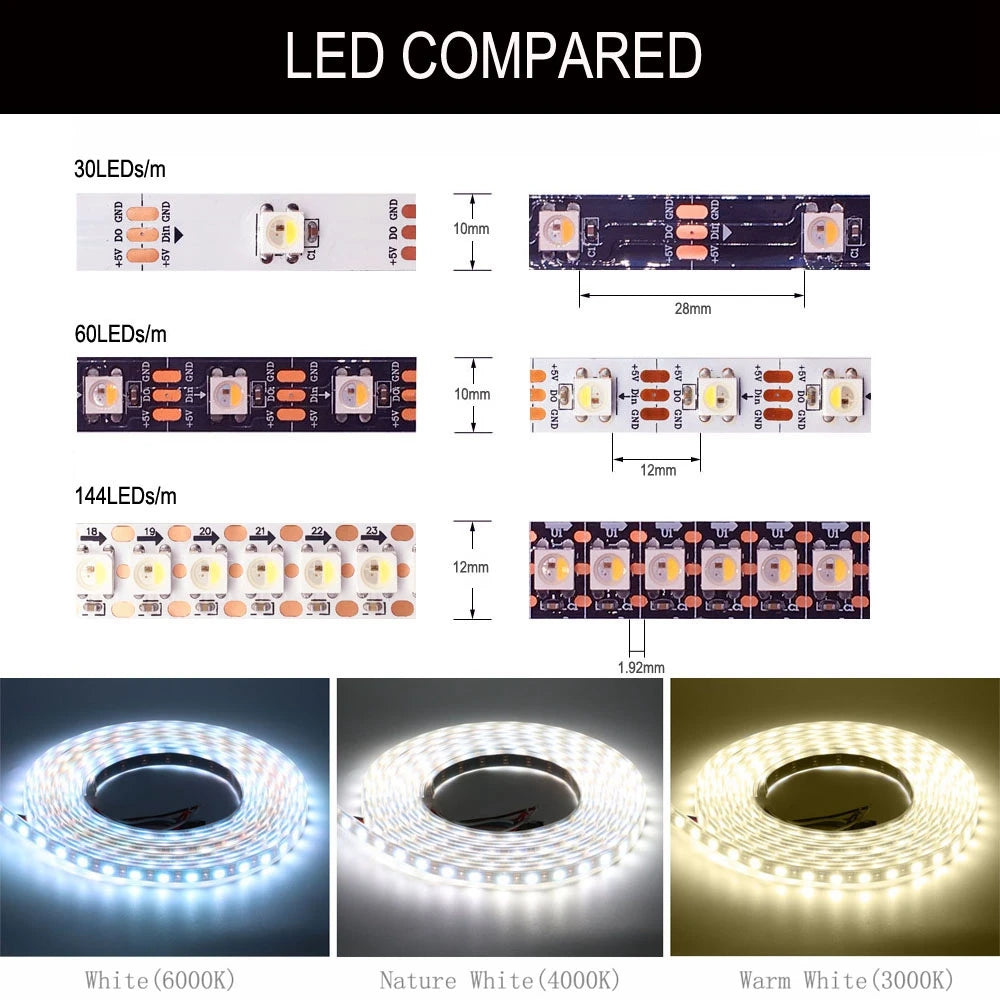

LED/Per Meter: 30, 60,144Leds/Meter (Each Led Is Separately Controlled)

IC/Per Meter: 30, 60,144IC/Meter (1 IC drives 1 led chip)

Pixel /Per Meter : 30, 60,144Pixels/Meter

Grey Grade: 256

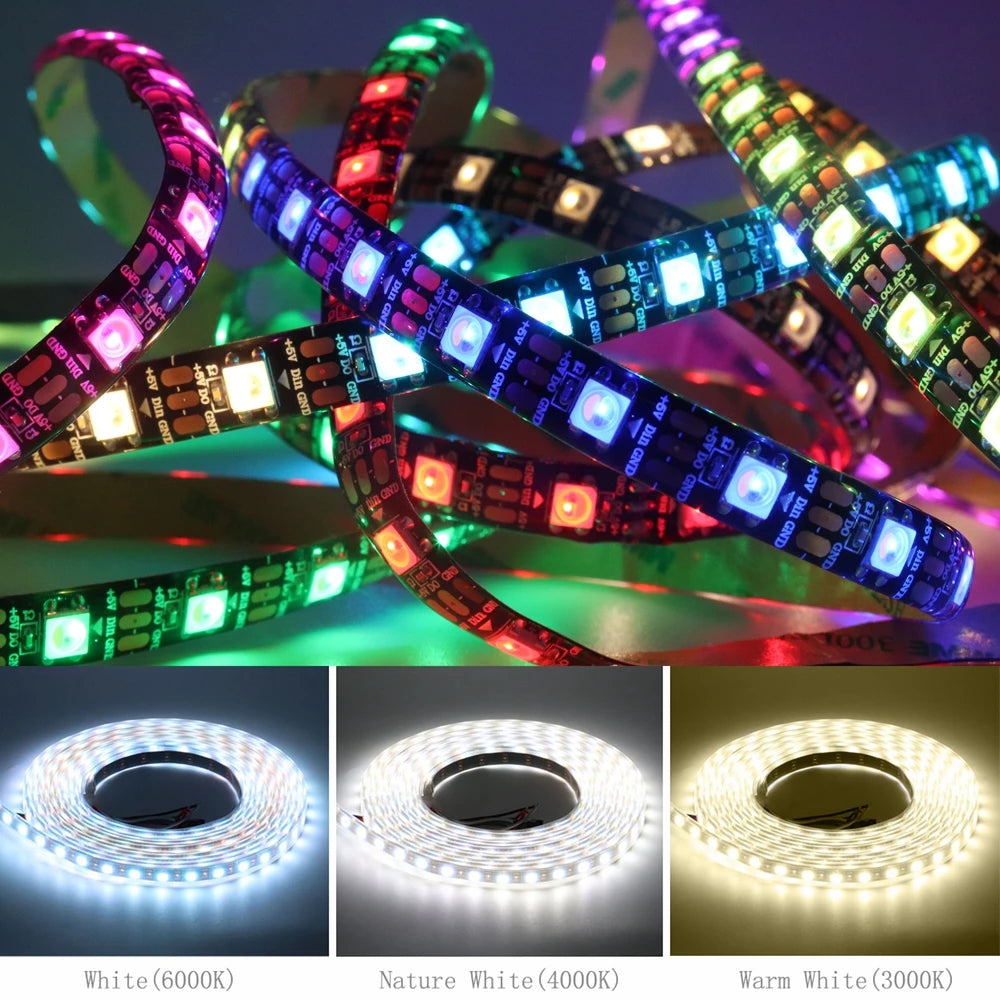

Color: RGBCW/RGBNW/RGBWW(WW 2700-3000K ; NW 4000-4500K ;

CW6000-6500K)

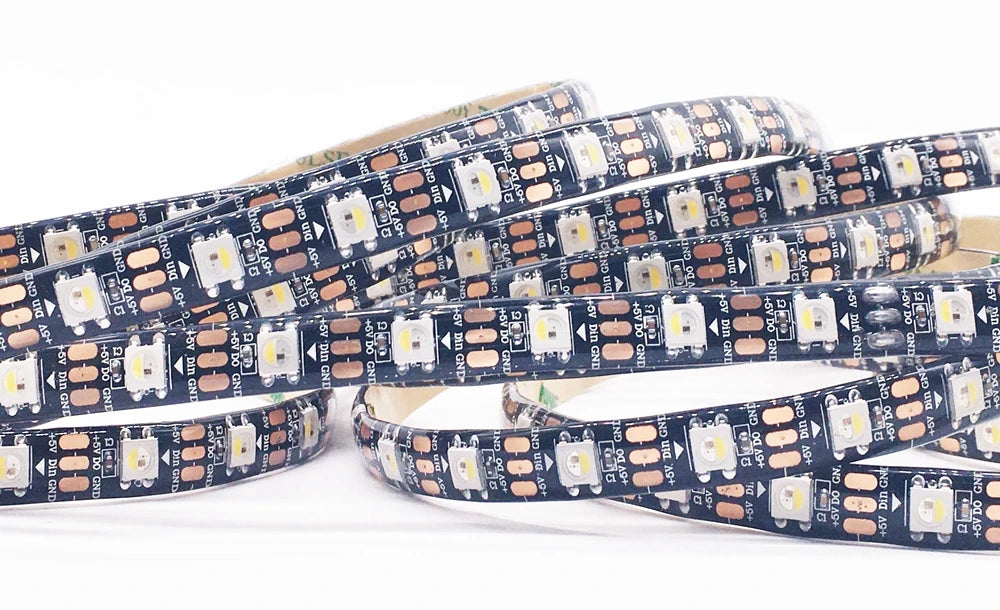

PCB Color: White / Black Available

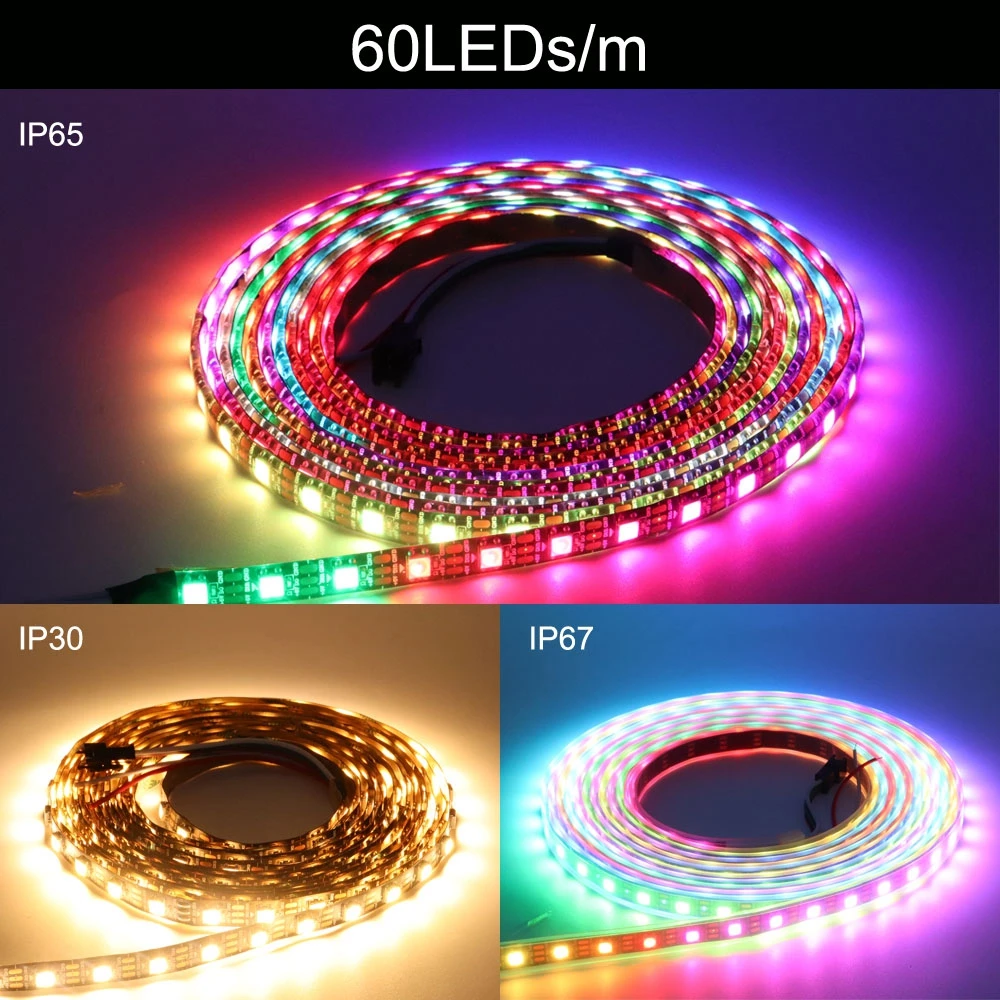

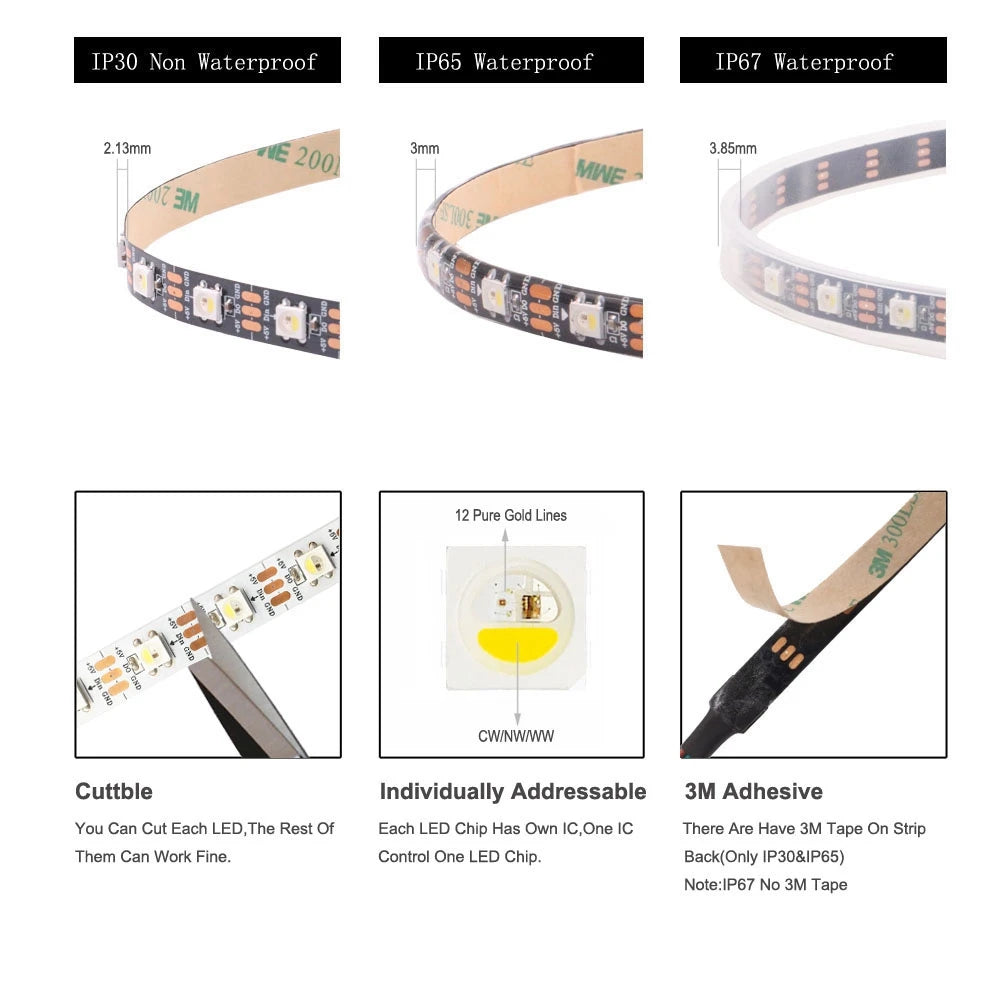

Waterproof Grade: IP30-----NON-Waterproof

IP65-----Epoxy

IP67-----silicone tube

IP30,IP65 ,There is a 3M Self-Adhesive Tape at the back side. You can install easily

Application:

Applicable for automobile and bicycle decoration, border or contour lighting

Widely used for home decoration use, hotels, clubs, shopping malls

Architectural decorative lighting, boutique atmosphere lighting

Extensively applied in Backlighting, concealed lighting, channel letter lighting

Emergency & security lighting, advertisement sign lighting

Decorative lights for holiday, event, show exhibition

SK6812RGBW/RGBWW/RGBNWis a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of thepixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator. The data protocol being used is unipolar NRZ communication mode. The 32-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed. The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.
