SPECIFICATIONS

Average Life (hrs): 3Years

Brand Name: TNALANT

Certification: CCC,ce,FCC,ROHS

High-concerned chemical: none

Is Batteries Included: no

Is Smart Device: no

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 60

Luminous Flux: 60-249

Model Number: SK6812/WS2814

Nominal Voltage: DC5V 12V 24V

Occasion: Living room

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 60

Strip type: Flat 3-wire

Voltage: 5V/12V/24V

Waterproof: Yes

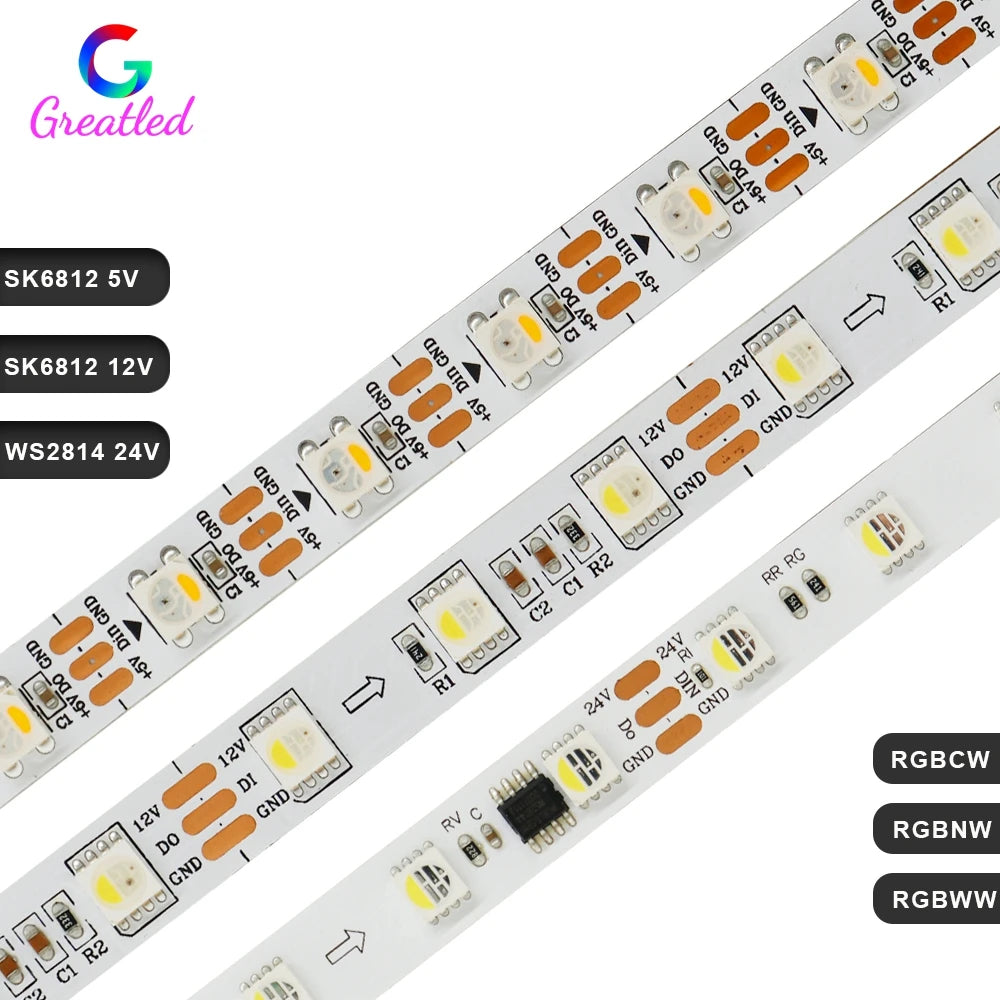

SK6812 WS2814 Led Strip 5050SMD 4 IN 1 60Leds/Pixels/M Individual Addressable Strip RGBW NW WW IP30/65/67 DC5V 12V 24V

Note:

1.The price is only Led Strip, Not Included Power Supply or Led Controller!

2.SK6812 RGBW Must Use DC5V Power Supply AND Led Controller to Control!

3.Every 0.5meter with solder joints, please note!

30, 60, 144: 30leds/m,60leds/m,144leds/m

IP30: Non- waterproof

IP65: Waterproof in Silicon Coating

IP67: Waterproof in SiliconTube

(RGBCW 6000-6500K ;RGBWW 2700-3000K ; RGBNW 4000-4500K)

The length as you choose

this link is not include power supply and led controller,please know it

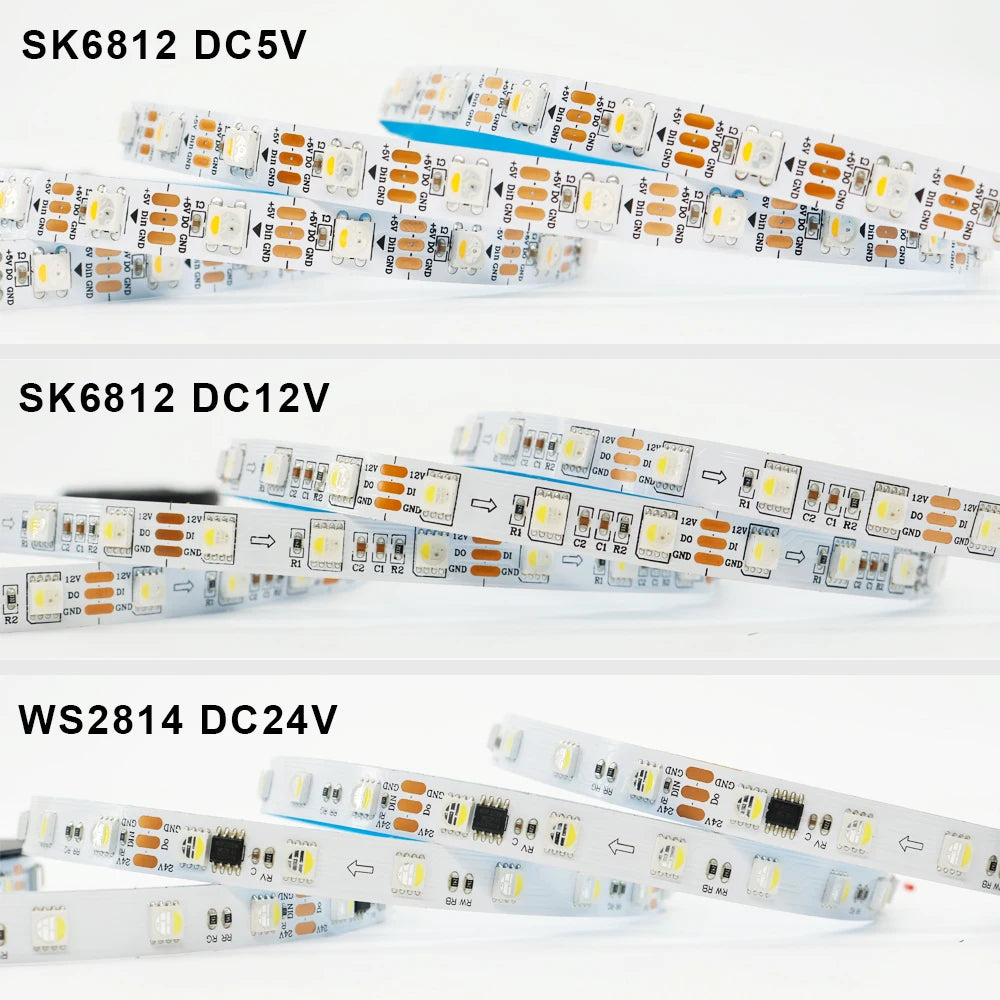

SK6812 DC5V:

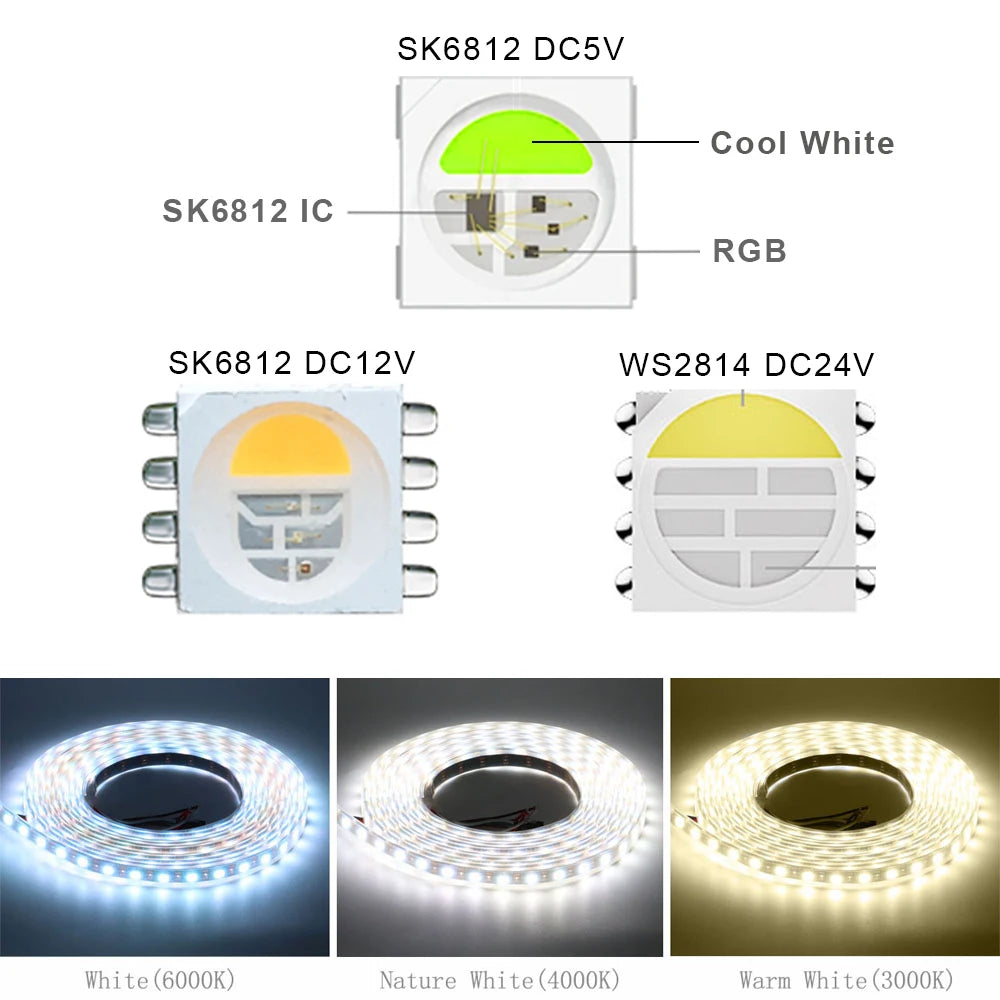

LED Source :5050SMD RGBW built-in SK6812 Chipset

Voltage(DC):5V

Power: 144LEDs/meter -------43.2W / Meter

60LEDs/meter ---------18W / Meter

30LEDs/meter ---------9W / Meter

LED Type :SMD5050

IC type : SK6812

LED/per meter:30, 60,144leds/Meter (each LED is separately controlled)

IC/per meter: 30, 60,144IC/Meter (1 IC drives 1 led chip)

Pixel /per meter :30, 60,144Pixels/Meter

Grey Grade: 256

Color: RGBW (WW 2700-3000K ; CW 6000-6500K;NW 4000-4500K)

PCB color:White / Black available

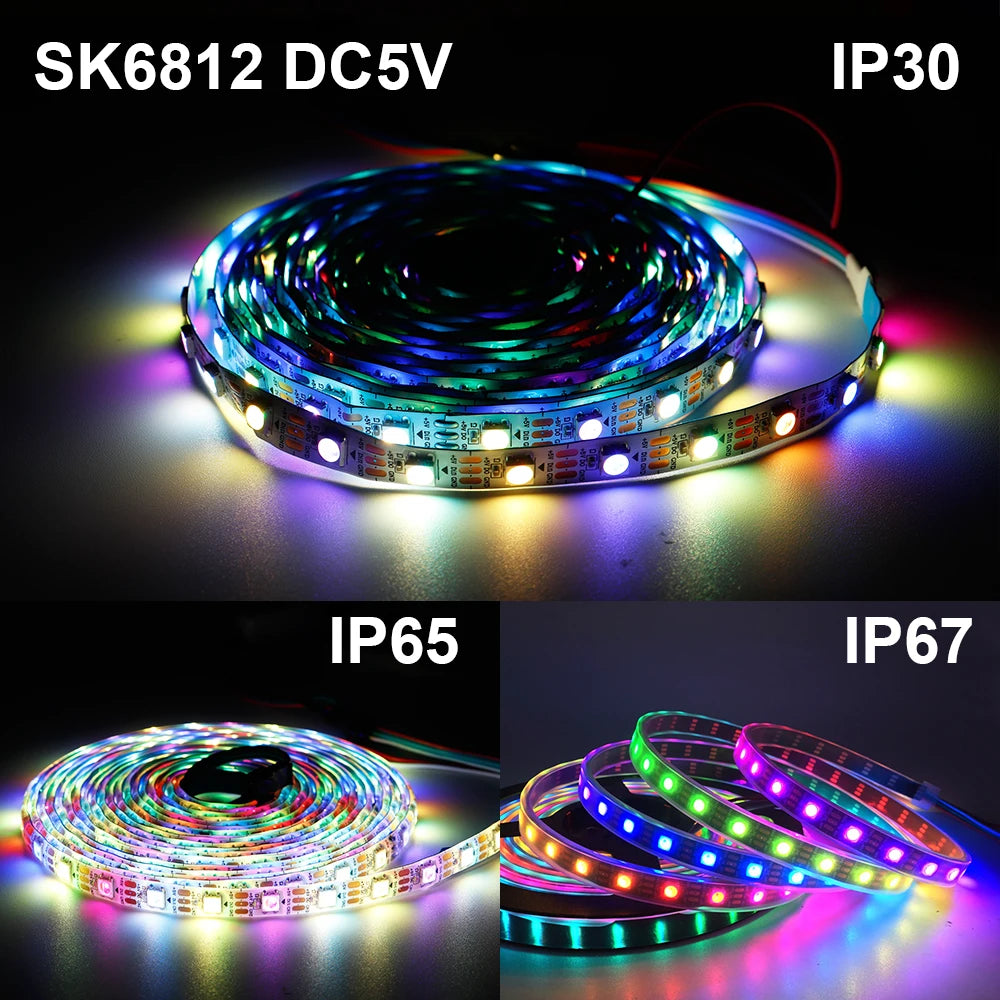

Waterproof Grade:IP30-----NON-Waterproof

IP65-----Epoxy

IP67-----silicone tube

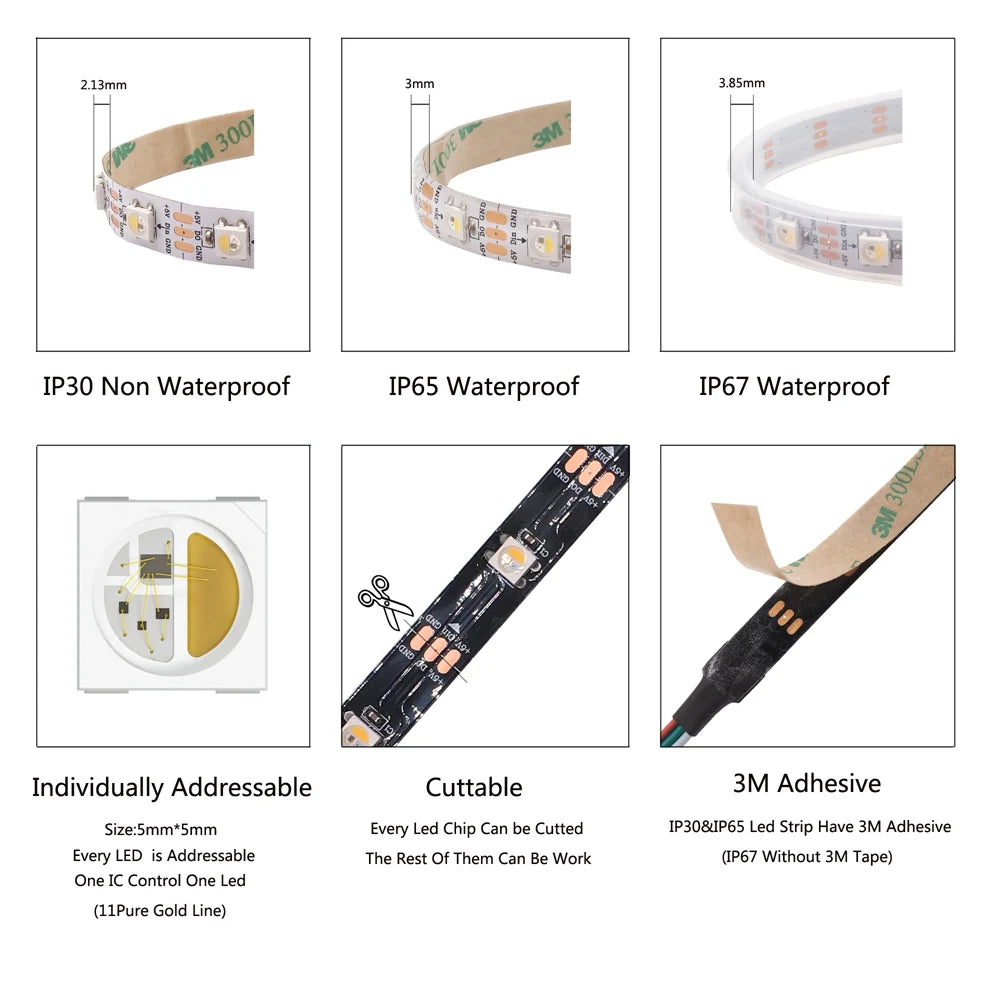

IP30,IP65 ,There is a 3 M self-adhesive tape at the back side. You can install easily

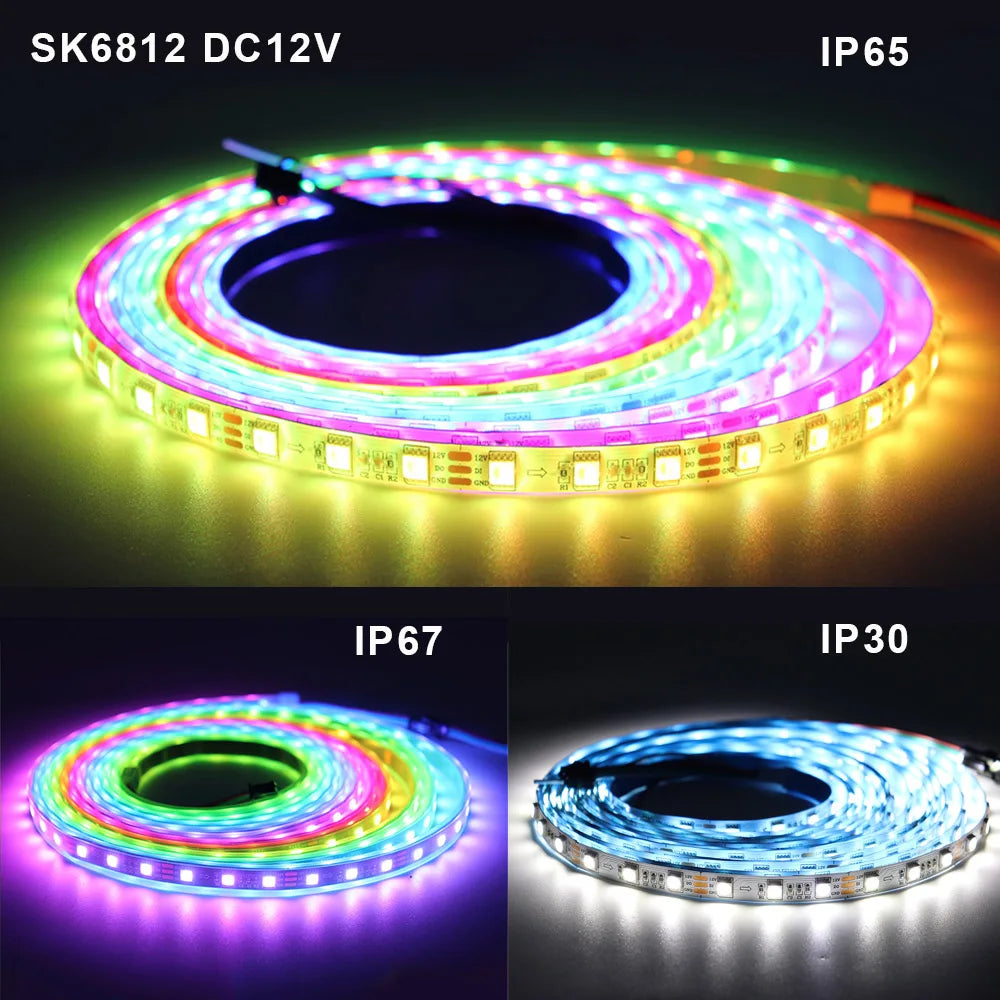

SK6812 DC12V:

LED Source: 5050SMD RGB built-in sk6812 chipset

IC Type: sk6812

Working Input Voltage: 12V DC

Output Power: 0.3w/ leds

Drive Mode: Contant Voltage

LED Quantity: 60 leds/Meter ( 3LEDs is separately controlled)

IC Quantity: 20 IC/Meter (1 IC drives 3 led chip)

Pixels: 20 Pixels/Meter

Grey scale: 256

Color: RGB+W(6000K),RGB+WW(3000K)

View Angle: 120°

Working Tempreture: -20° to 60°

PCB Color: Black/White PCB

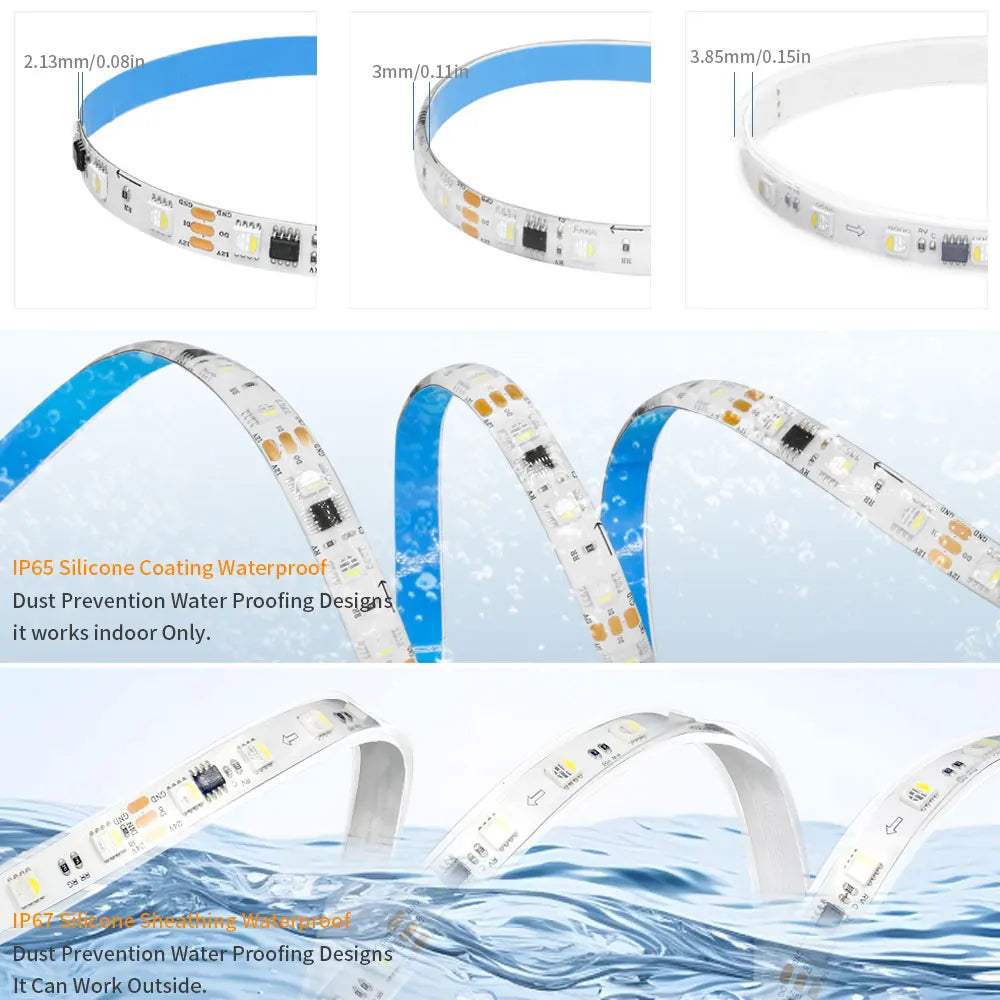

Waterproof: IP30: Non- waterproof, IP65: Waterproof in Silicon Coating, IP67: Waterproof in SiliconTube

PCB Width: 60LEDs/m-10mm

Power: 60LEDs/meter - max 18W/Meter

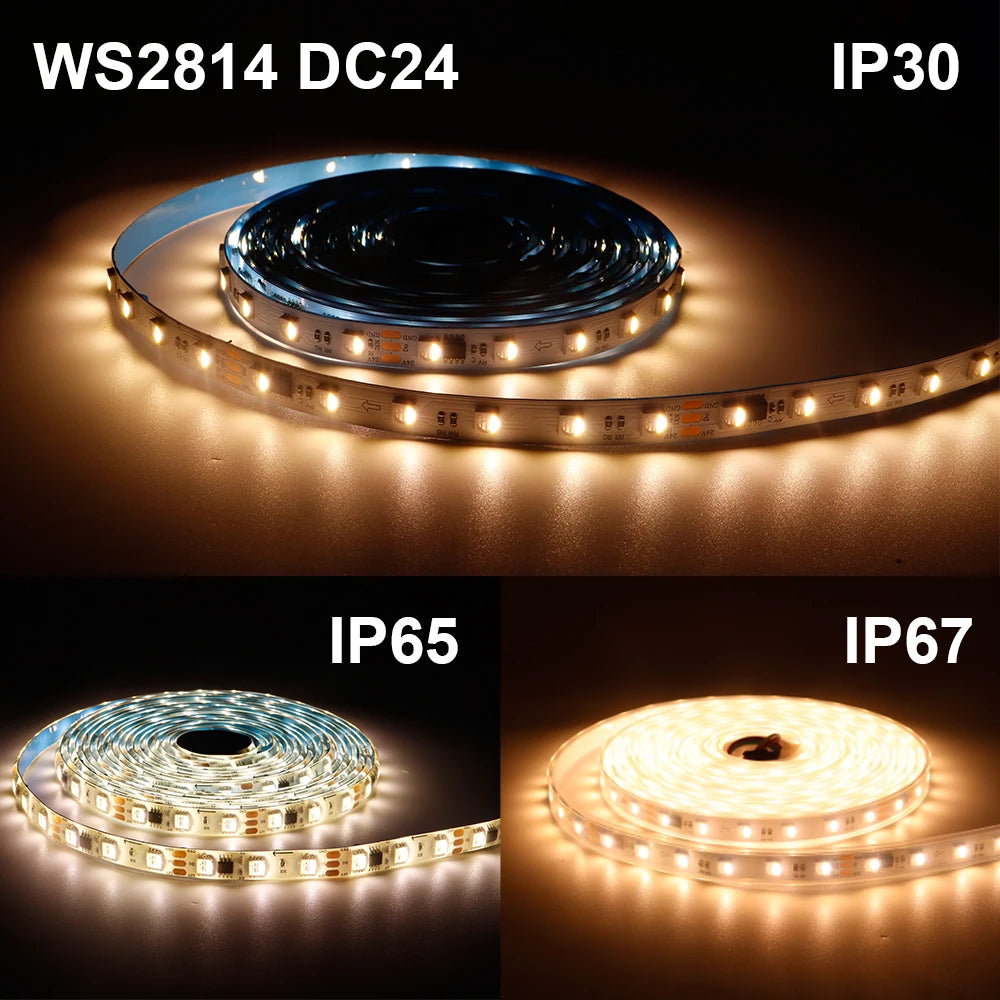

WS2814 DC24V:

1, Working Voltage: DC24V.

2, LED Source: SMD 5050 RGBW.

3, LED QTY: 60 LED/M

4, IC QTY: DC24V 60LEDs/M have 10 Pcs IC/M.

5, Power: R+G+B=mixed white 0.3W/LED, Pure White : 0.1W/LED.

6, Grey Scale: 256 / Color.

7, Cutability:DC24V 60LEDs/M, 10cm can be cut.

8, Beam Angle: 120 °.

9, Dimension: 5000mm x 10mm x 2.4mm.

10, Packaging: 5m/roll, 24V WS2814 RGBW Strip + 3pin SM Connector.

11, Protection grade: IP30-No waterproof, for indoor use. IP65/IP67-Silicone tube, need reseal after cut, outdoor use.

Application:

Applicable for automobile and bicycle decoration, border or contour lighting

Widely used for home decoration use, hotels, clubs, shopping malls

Architectural decorative lighting, boutique atmosphere lighting

Extensively applied in Backlighting, concealed lighting, channel letter lighting

Emergency & security lighting, advertisement sign lighting

Decorative lights for holiday, event, show exhibition
