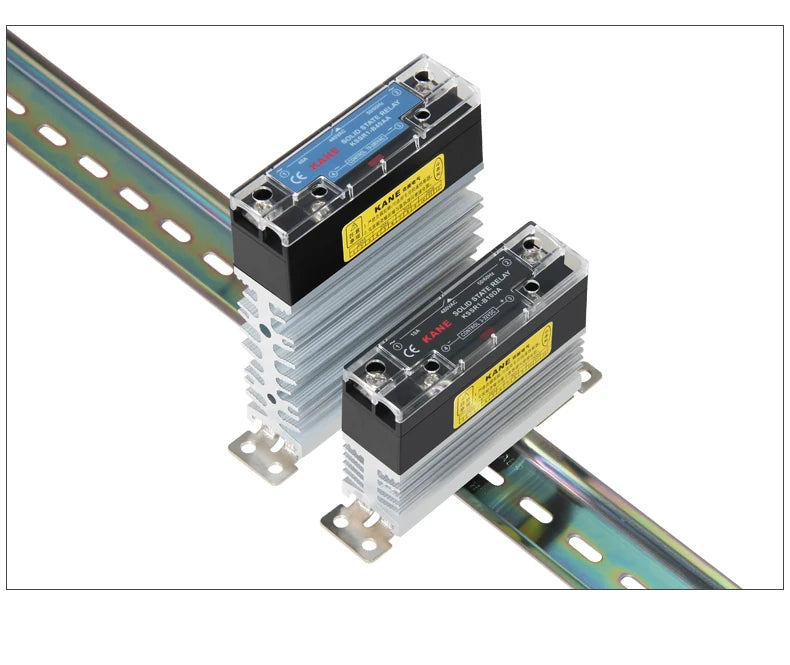

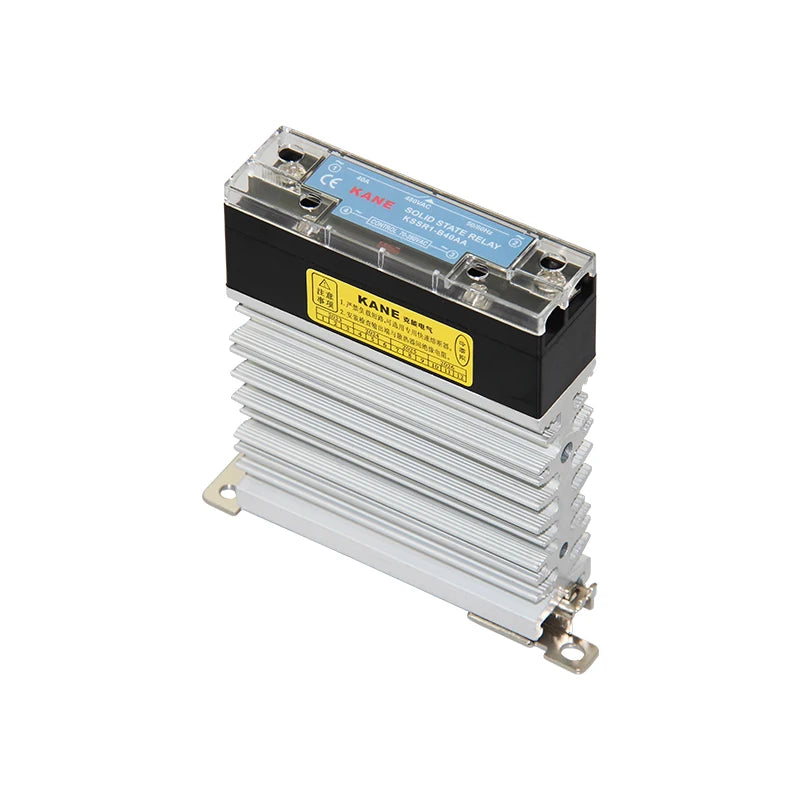

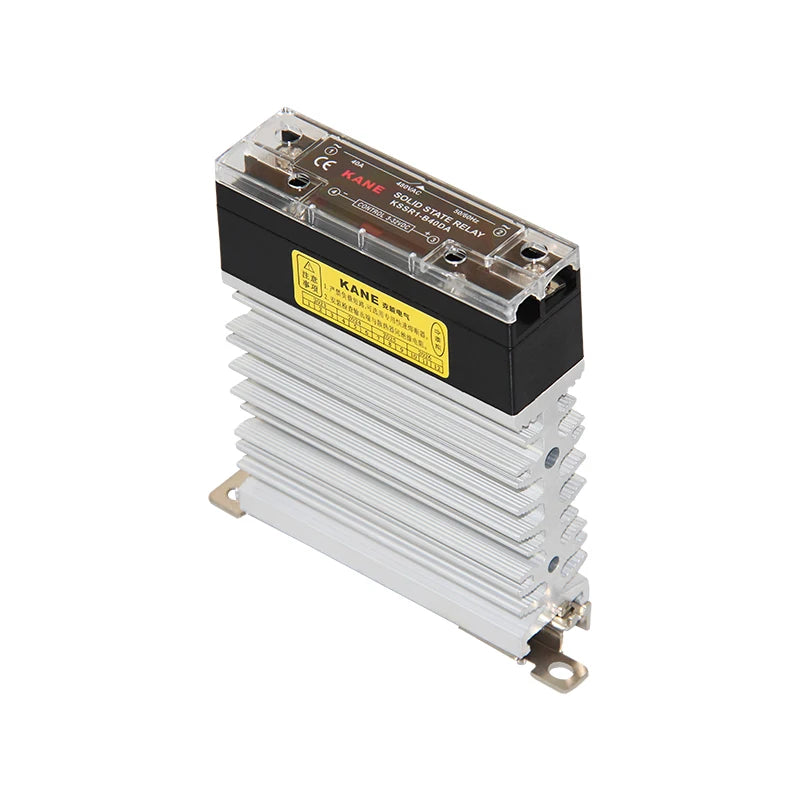

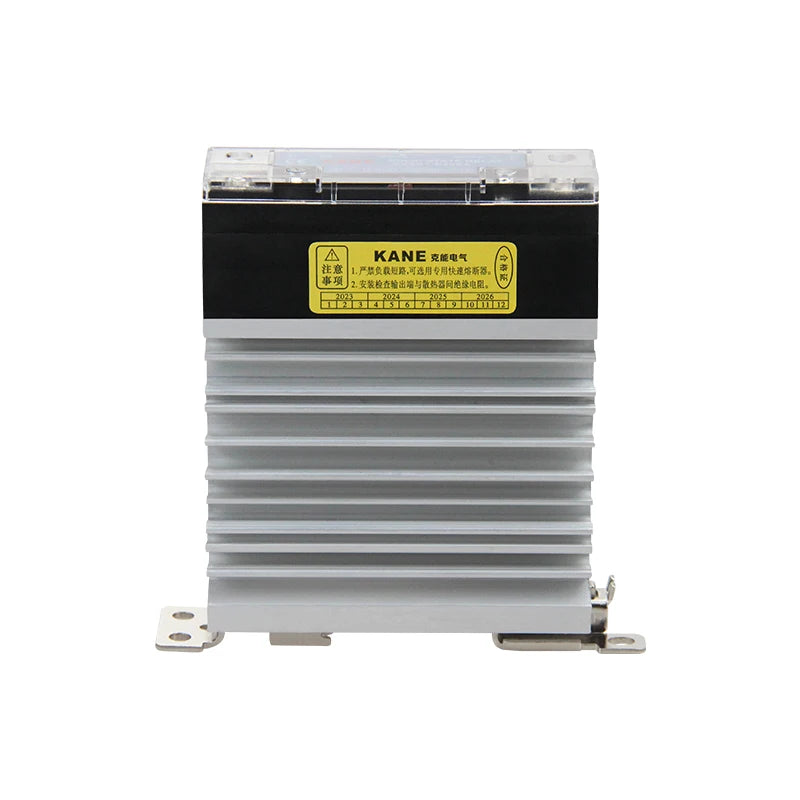

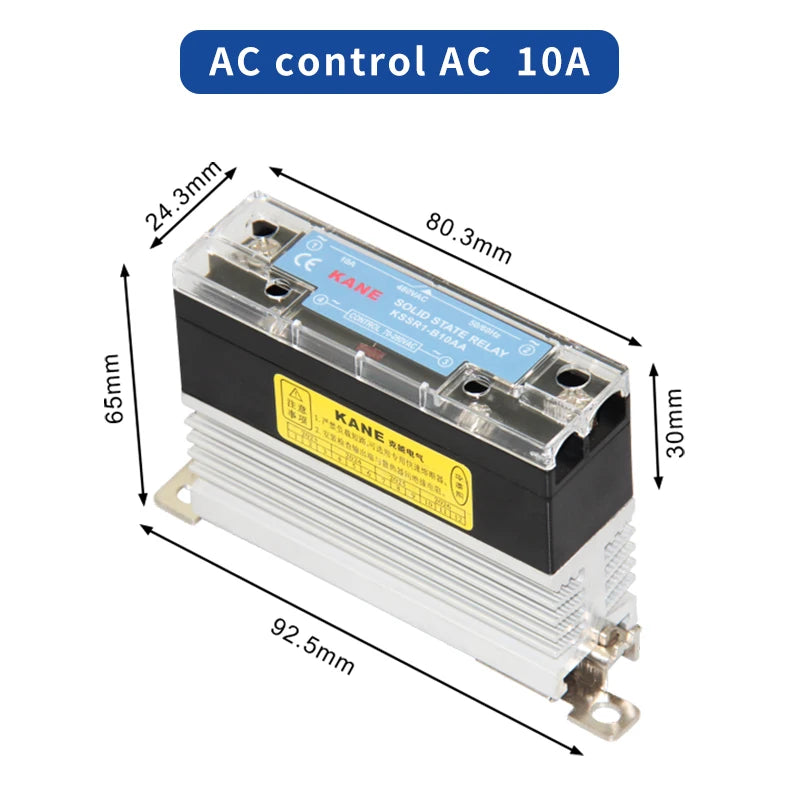

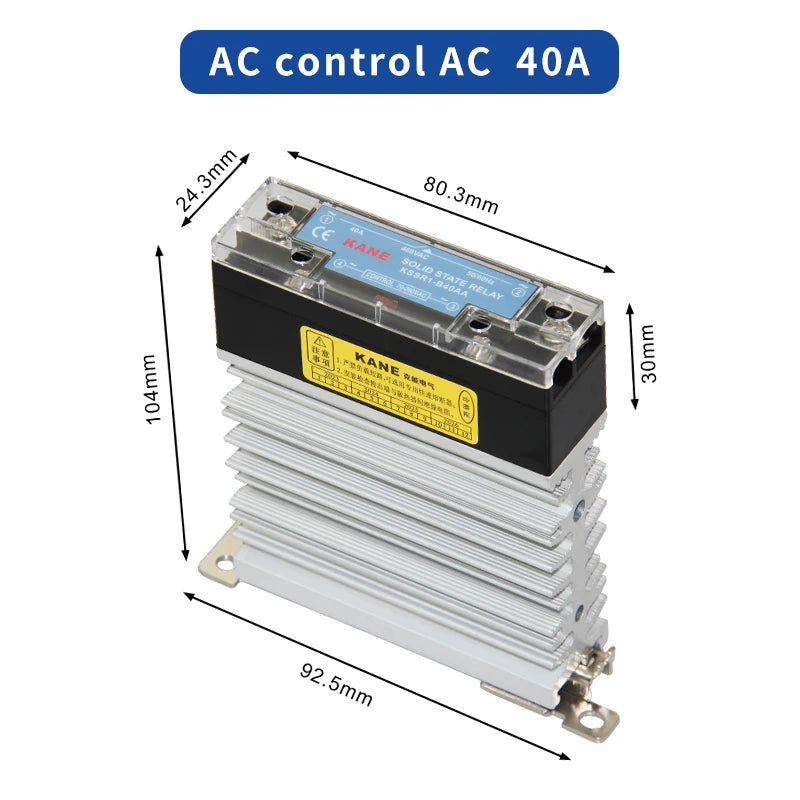

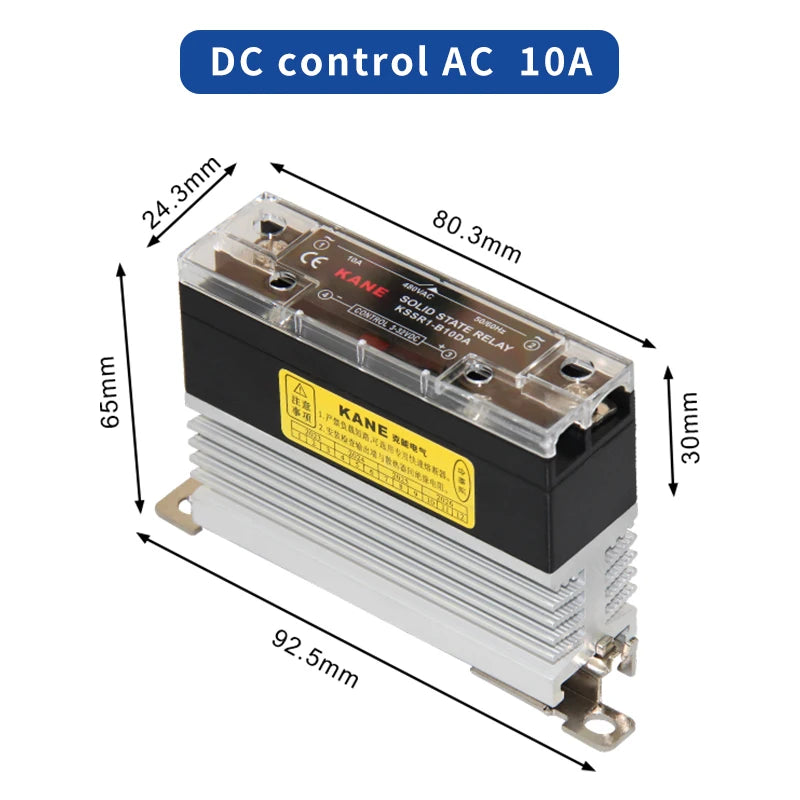

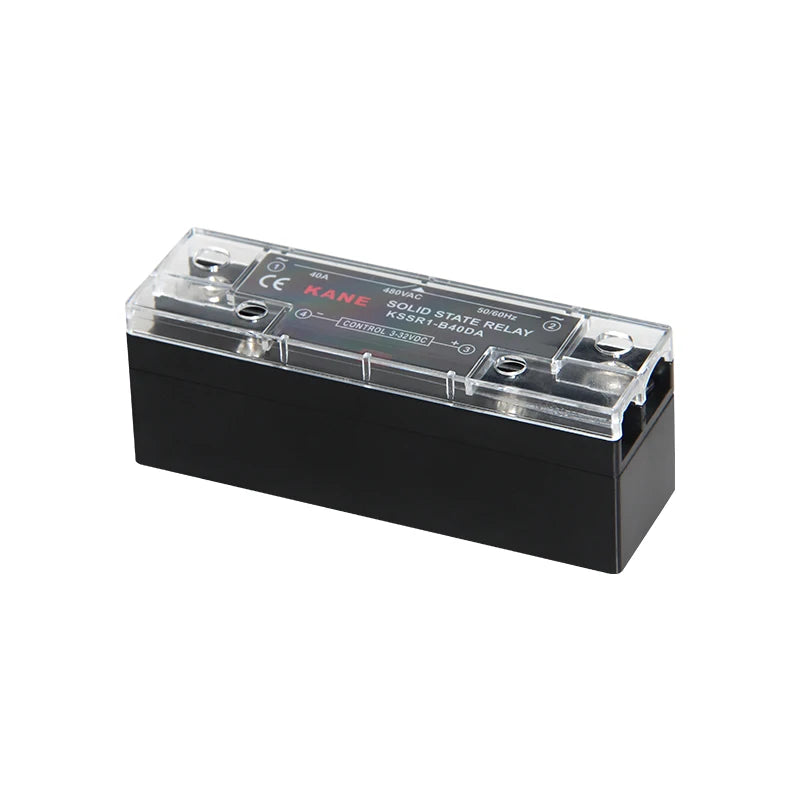

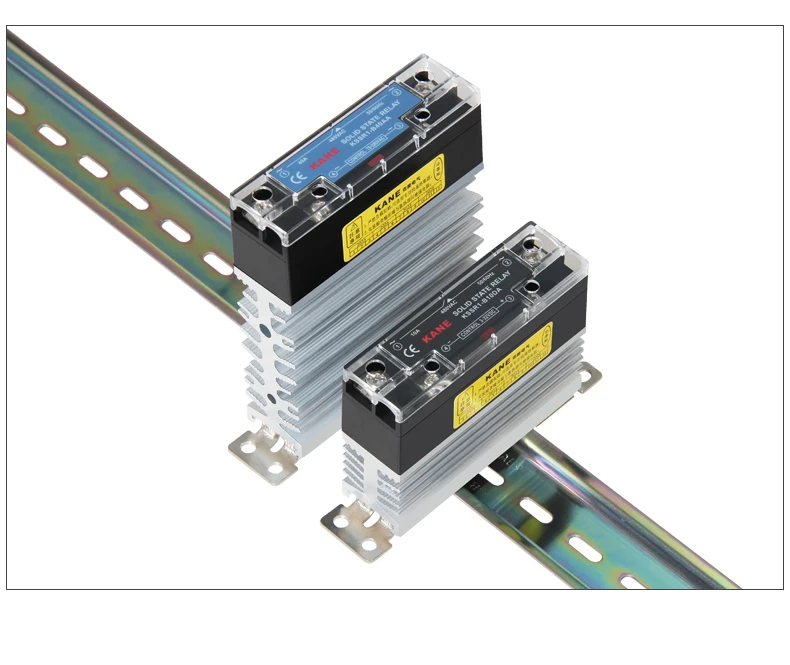

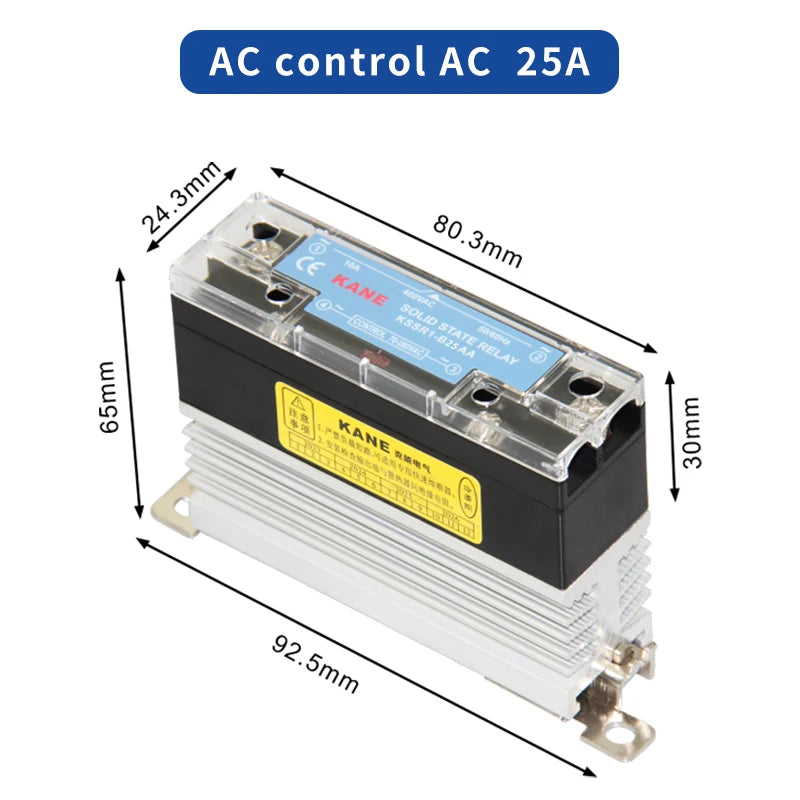

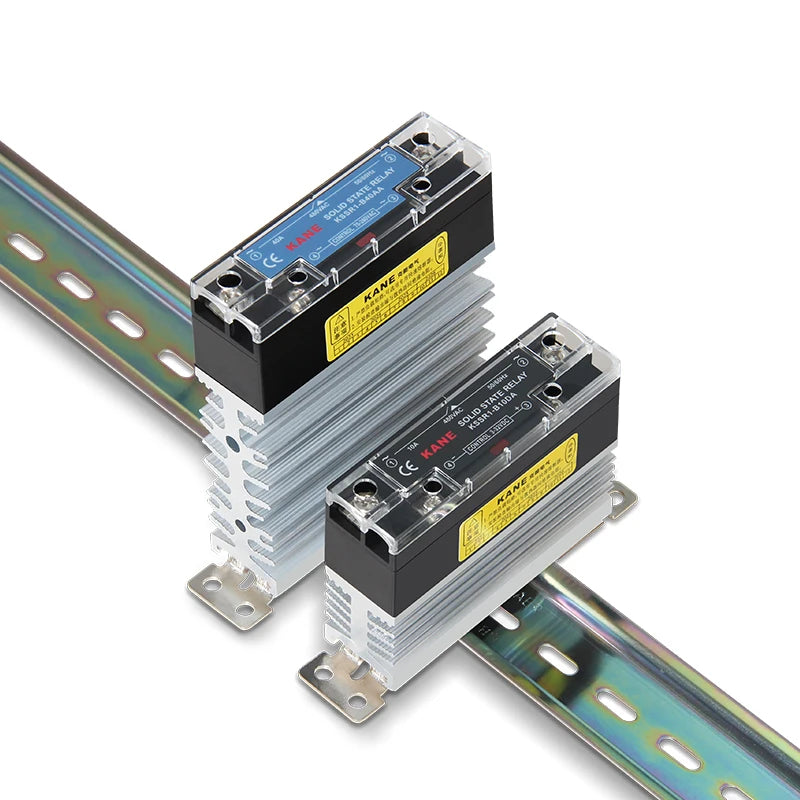

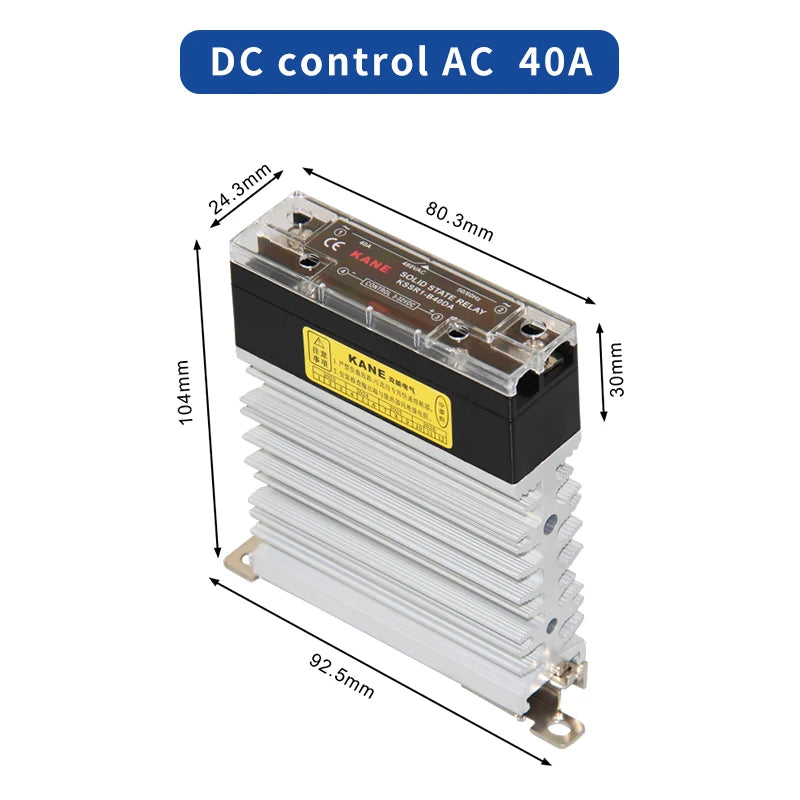

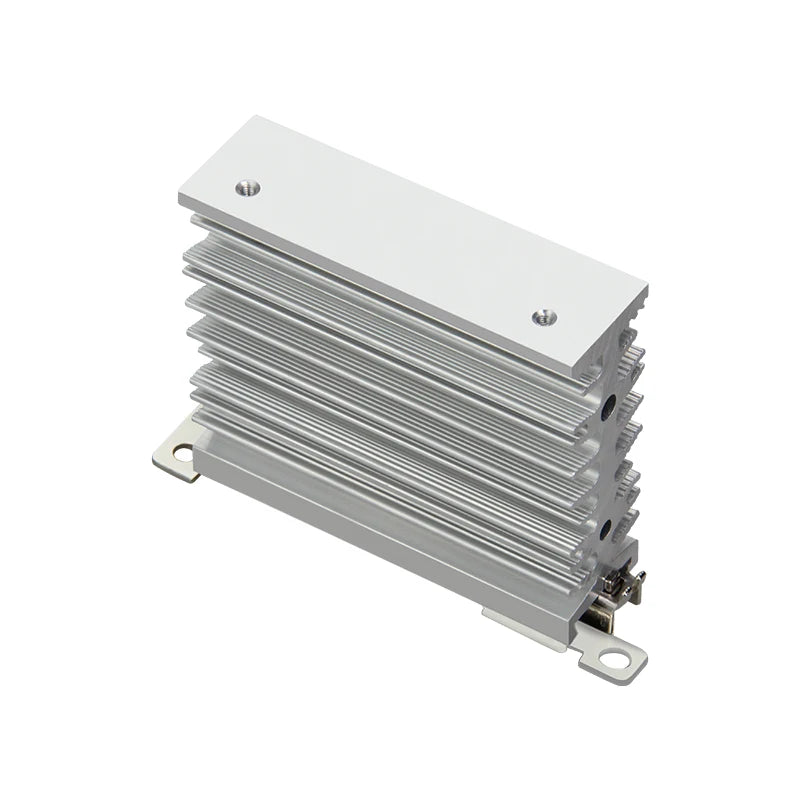

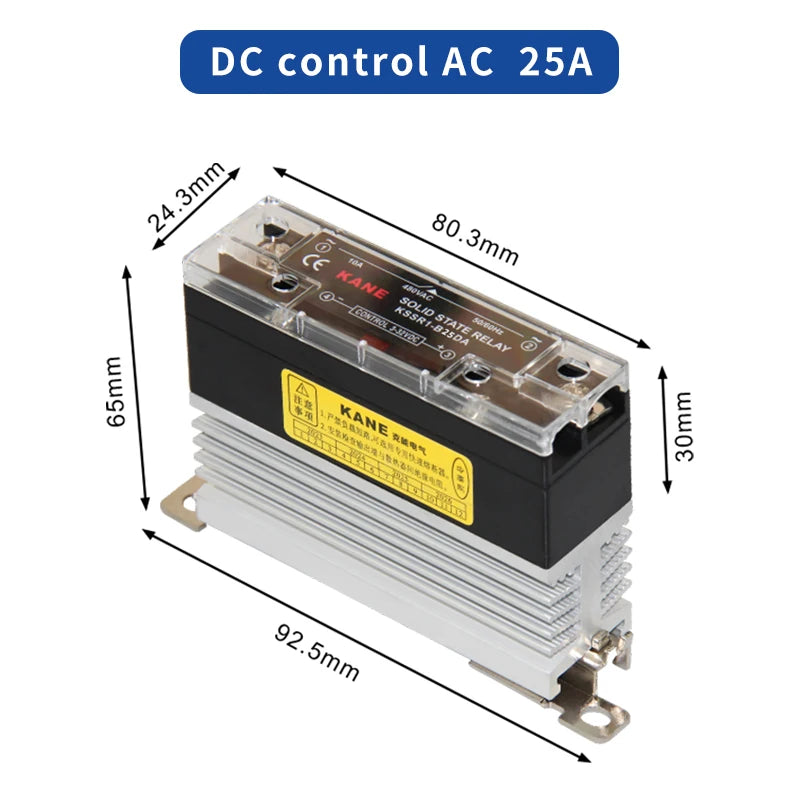

Slim DIN Rail Mount Single Phase Solid State Relay SSR Relay Module with Heatsink 10A 25A 40A
AC control AC 40A / China Mainland
$90.45
Sale price
$90.45
Regular price
$0.00
Skip to product information
Slim DIN Rail Mount Single Phase Solid State Relay SSR Relay Module with Heatsink 10A 25A 40A
$90.45
Sale price
$90.45
Regular price
$0.00
Description

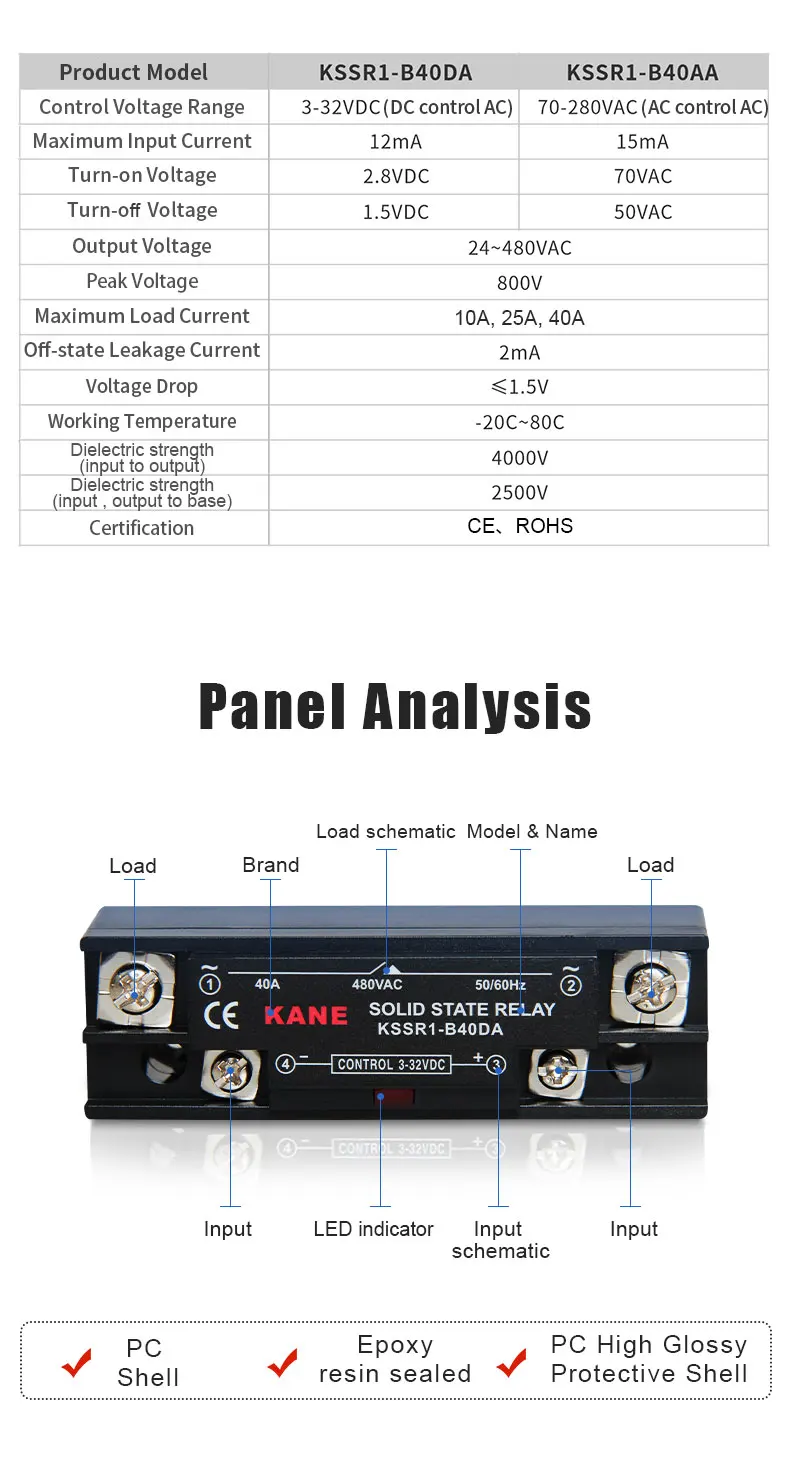

SPECIFICATIONS
Brand: KANE
Brand Name: TriHero
Certification: CE
Contact Load: Low Power

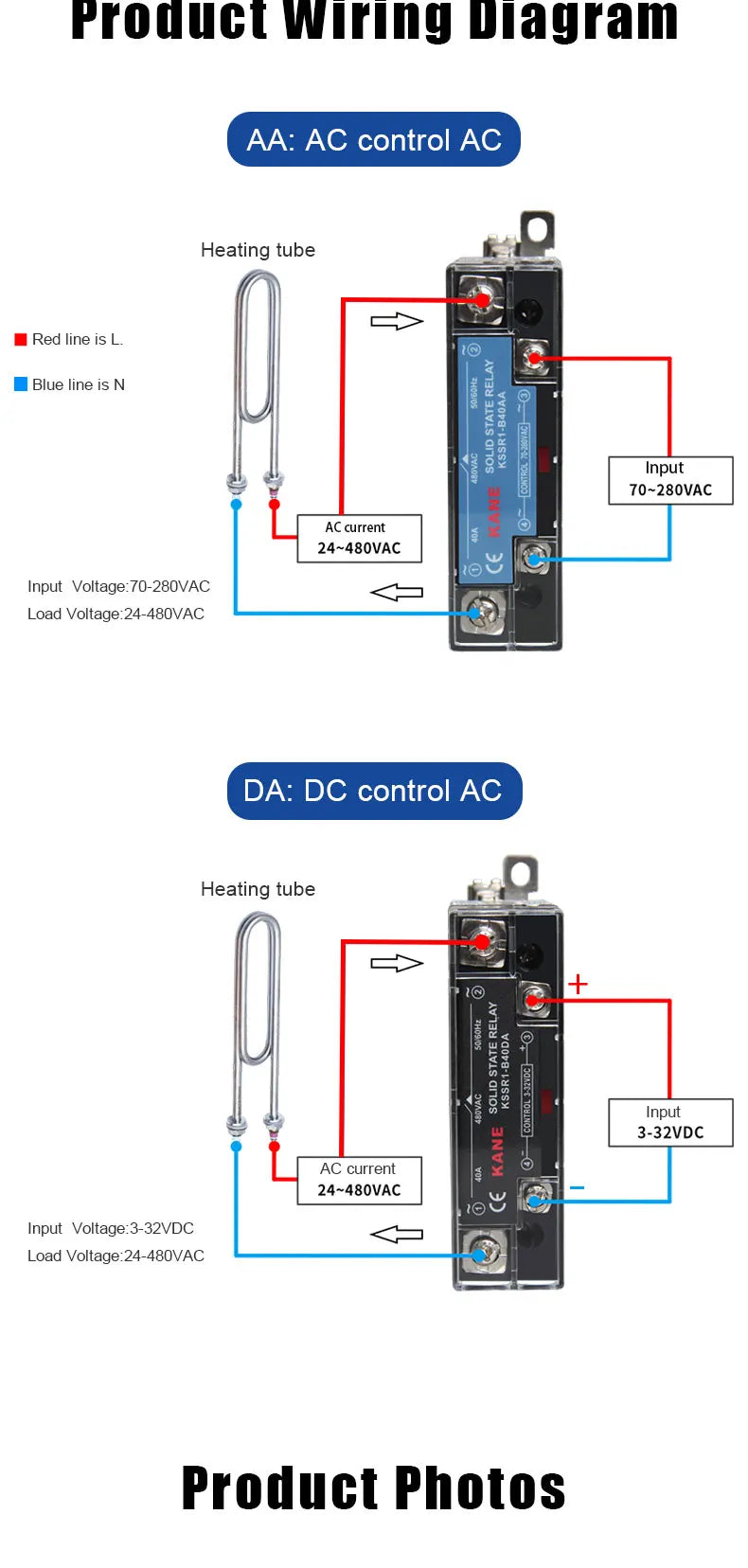

Control method: AA DA
Dielectric strength(input to output): 4000V
Dielectric strength(input, output to base): 2500V
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Input voltage range: 3-32VDC, or 70-280VAC
Load voltage range: 24-220VAC
Model Number: KSSR1-B
Operating temperature: -20~+80C
Origin: Mainland China
Product name: Single phase slim rail solid state relay
Protect Feature: Epoxy
Rated current: 10~40A
Theory: Solid State Relay
Use: Protective
Voltage: 220V
is_customized: Yes
