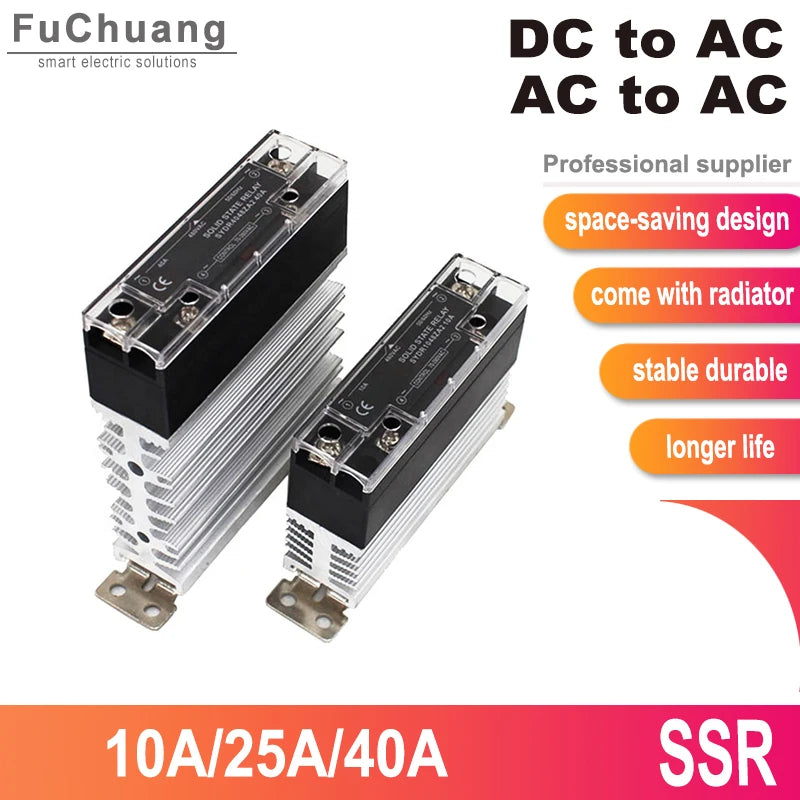

Slim Solid State Relay 10A 25A 40A Dc control Ac/ Ac control Ac Single Phase SSR Din Rail Mount Relays Module equipped Heat sink
10A / DC control AC
$54.63
Sale price
$54.63
Regular price
$0.00
Skip to product information
Slim Solid State Relay 10A 25A 40A Dc control Ac/ Ac control Ac Single Phase SSR Din Rail Mount Relays Module equipped Heat sink
$54.63
Sale price
$54.63
Regular price
$0.00
Description
SPECIFICATIONS
Applicable Object: Contactor
Brand Name: NONE
Certification: NONE
Contact Load: Low Power
Control Voltage: 3-32VDC or 70-280VAC
Current consumption in control circuit: 3-25mA
Dielectric strength: 2500V AC (1min)

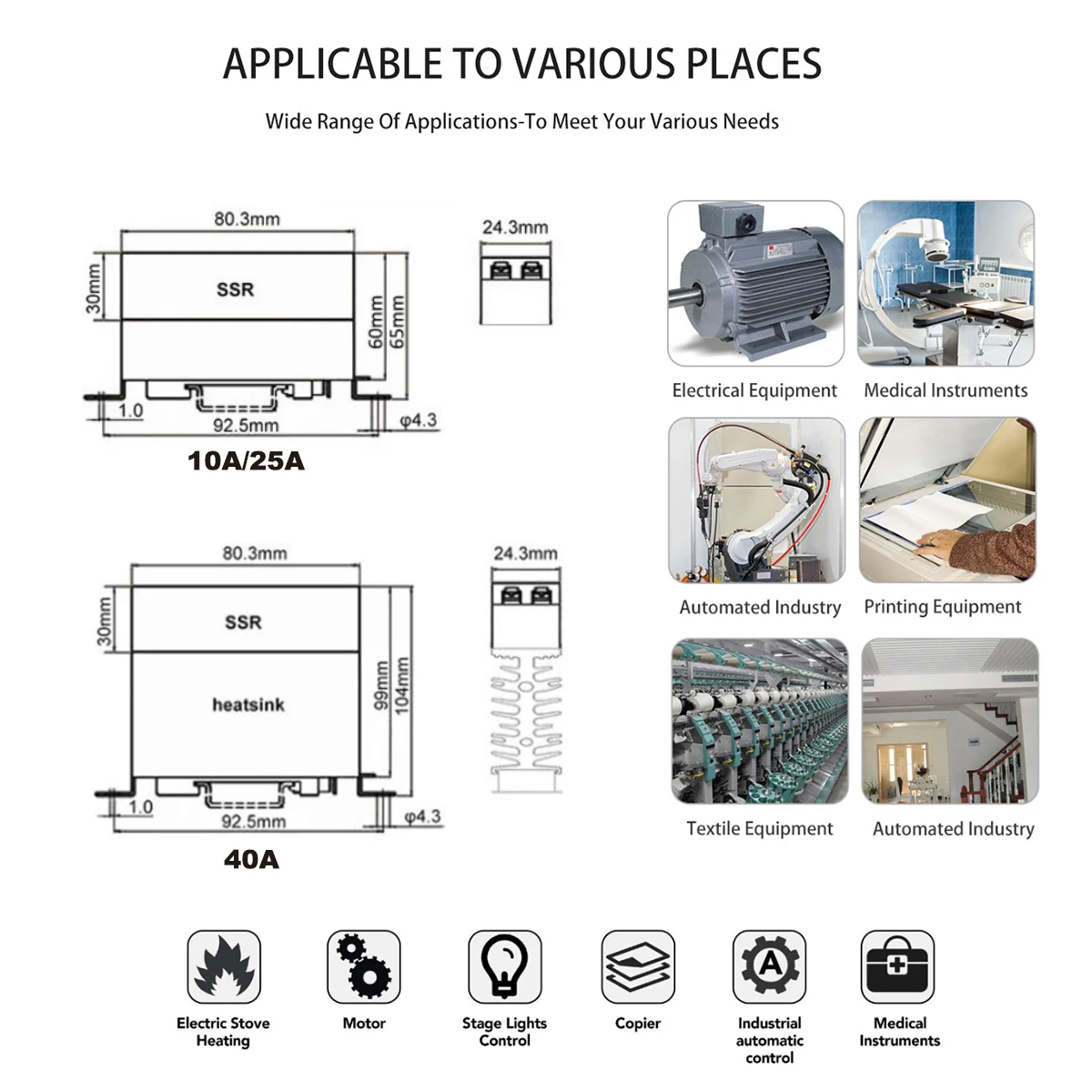

Dimensions(10-25A): 80.3*24.3*65mm(with shell)
Dimensions(40A): 80.3*24.3*104mm(with shell)
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Insulation resistance: 500MOm with 500VDC
LED indication: yes
Leakage current(off-state): <10mA
Load Current: 10A, 25A, 40A
Load Voltage: 24-480VAC
Model Number: SYDRxxxxxZD3

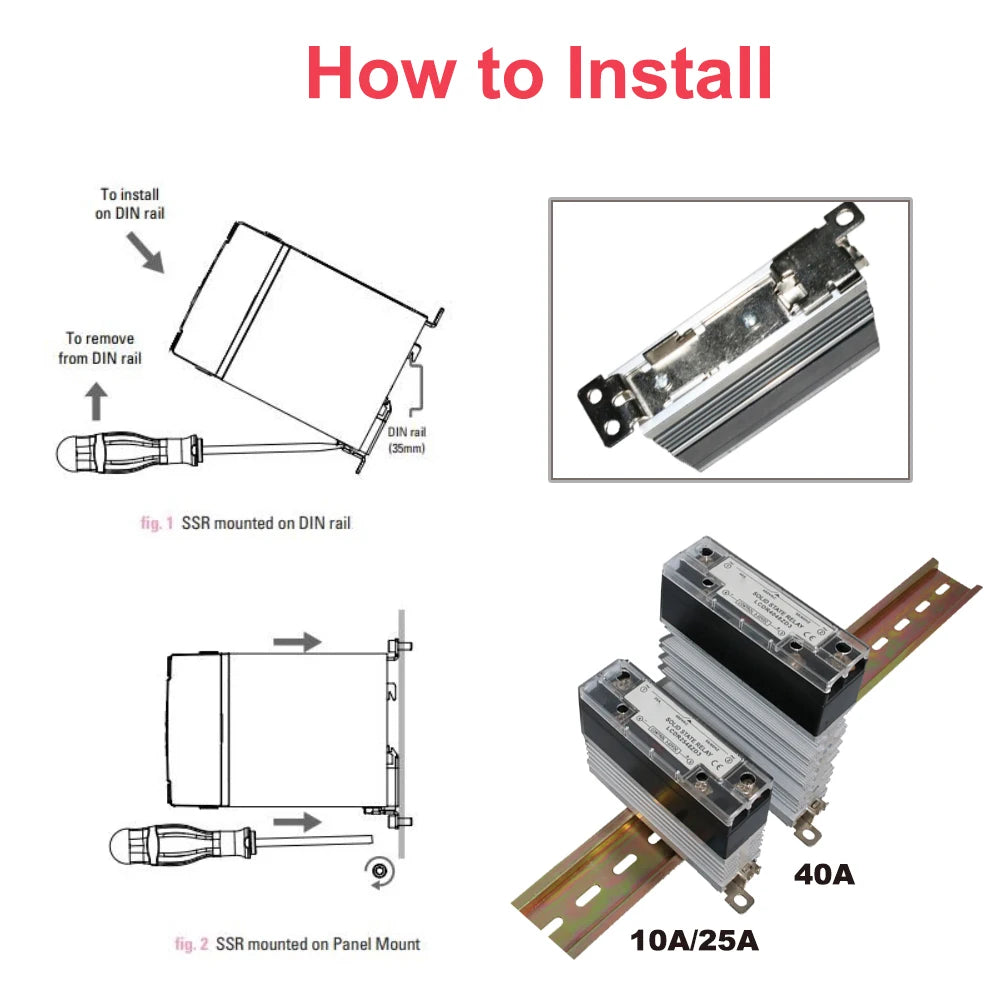

Mounting method: Din Rail or Screws
Operating temperature: -30C to +75C
Origin: Mainland China
Peak voltage: 1000V AC
Protect Feature: Sealed
Relative humidity: <95%, (non-condensing)
Switching time: <10ms
Theory: Solid State Relay
Use: General Purpose
Voltage ON/OFF: 3V DC/1V DC
Voltage drop in load circuit: <1.6V AC
is_customized: Yes
|
Electrical Parameters |
||
Function type |
DC control AC |
AC control AC |
|
Load Current |
10A, 25A, 40A |
||
Control Voltage |
3-32VDC |
70-280VAC |
|
Load Voltage |
24-480VAC |
||
Current consumption in control circuit |
3-25mA |
||
Voltage ON/OFF |
3V DC/1V DC |
||
Peak voltage |
1000V AC |
||
Voltage drop in load circuit |
≤1.6V AC |
||
Leakage current(off-state) |
≤10mA |
||
Switching time |
≤10ms |
||
LED indication |
yes |
||
Dielectric strength |
2500V AC (1min) |
||
Insulation resistance |
500МОм with 500V DC |
||
Operating temperature |
-30...+75°C |
||
Relative humidity |
≤95%; (non-condensing) |
||
Dimensions |
80.3х24.3х65mm(10A,25A) 80.3х24.3х104mm(40A) |
||
Mounting method |
Din Rail or Screws |
||
Type |
Image |
Feature |
Control Mode |
|||||
DC control AC |
AC control AC |
DC control DC |
Resistance Regulator |
Current Input 4-20mA |
Voltage Input 0-10V |
|||
Single Phase |
|
Cost-effective |
Press |
Press |
Press |
Press |
/ |
/ |
|
Better heat dissipation |
Press |
Press |
Press |
Press |
Press |
Press |
|
|
Flip cover design for easy wiring |
Press |
Press |
Press |
Press |
Press |
Press |
|
Type |
Image |
Feature |
Control Mode |
|||||
DC control AC |
AC control AC |
DC control DC |
Resistance Regulator |
Current Input 4-20mA |
Voltage Input 0-10V |
|||
Single Phase |
|

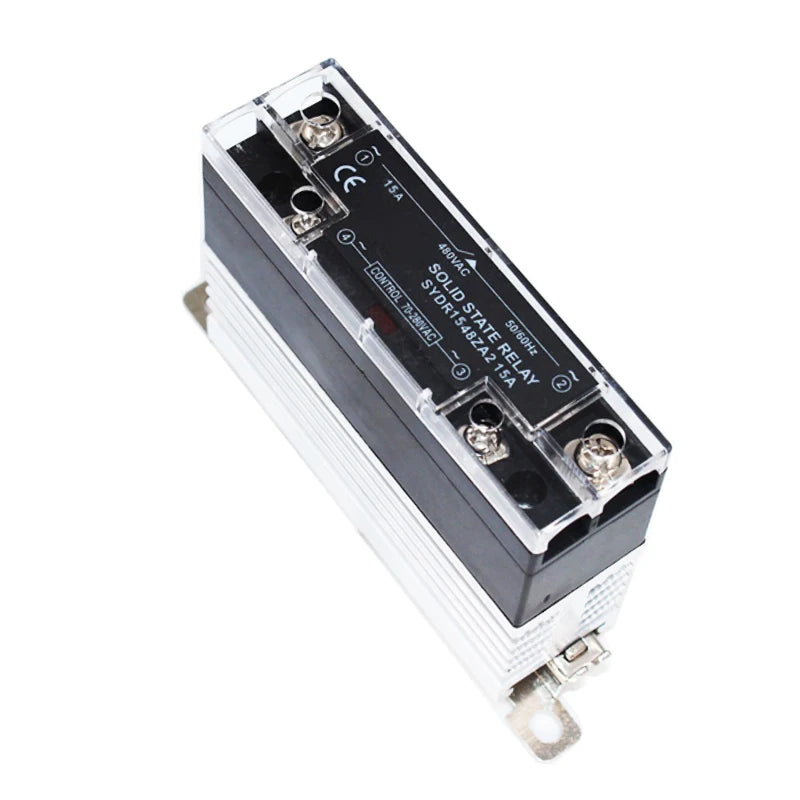

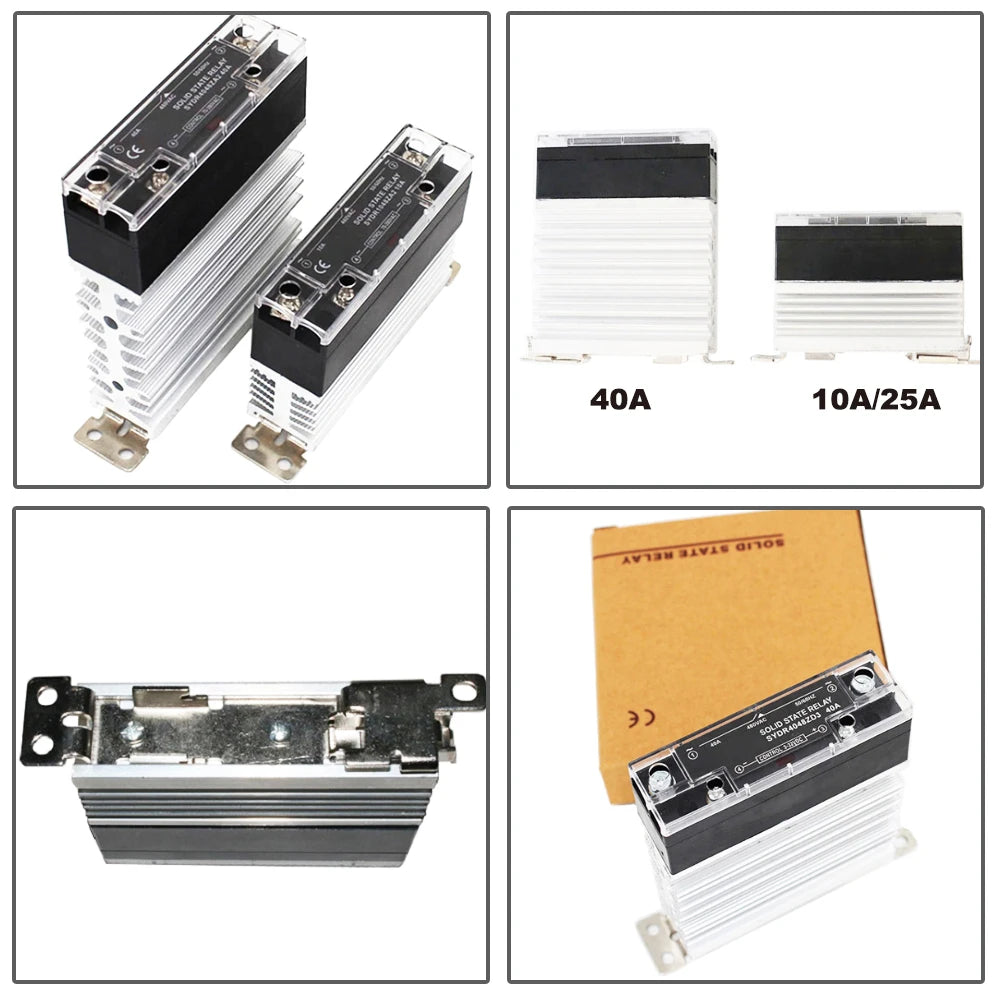

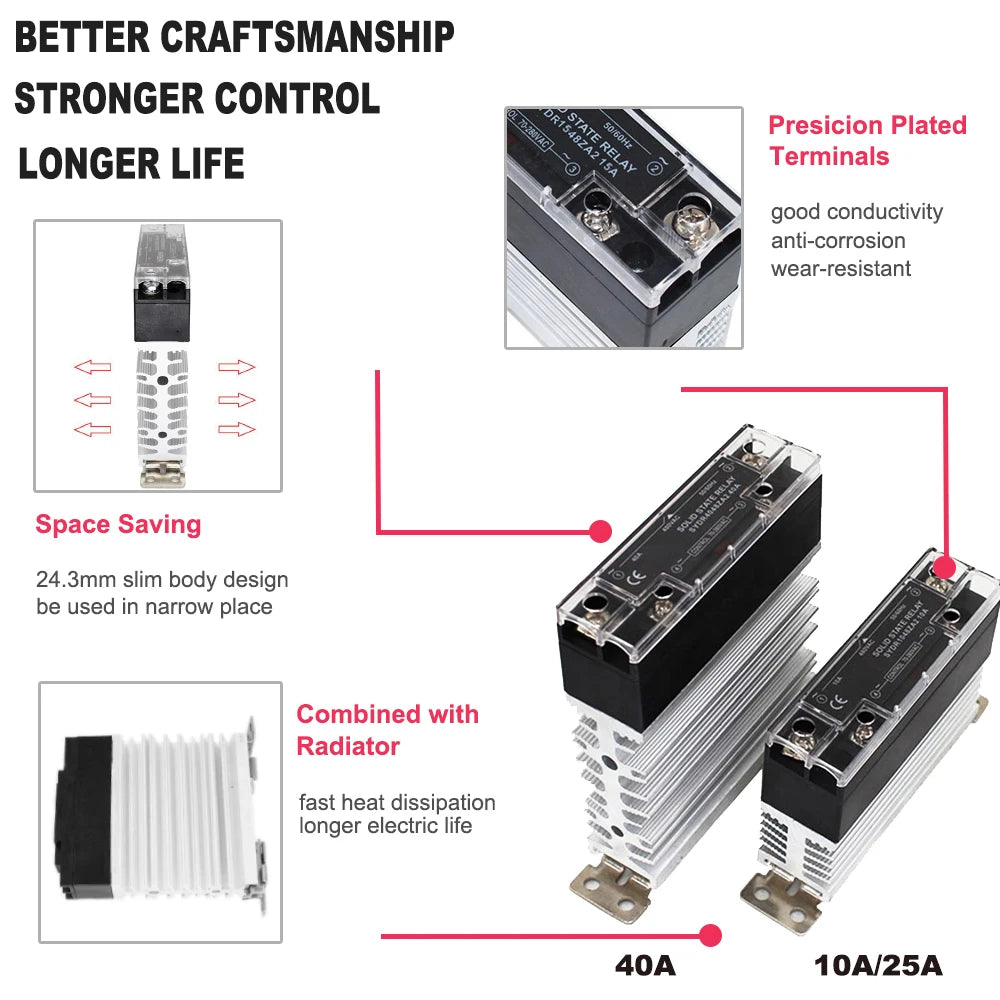

Slim, combined with heatsink, for 10-25A |
Press |
Press |
/ |
/ |
/ |
/ |
|
Slim, combined with heatsink, for 25-40A |
Press |
Press |
/ |
/ |
/ |
/ |
|
Type |
Image |
Feature |
Control Mode |
|||||
DC control AC |
AC control AC |
DC control DC |
Resistance Regulator |
Current Input 4-20mA |
Voltage Input 0-10V |
|||
Single Phase |
|

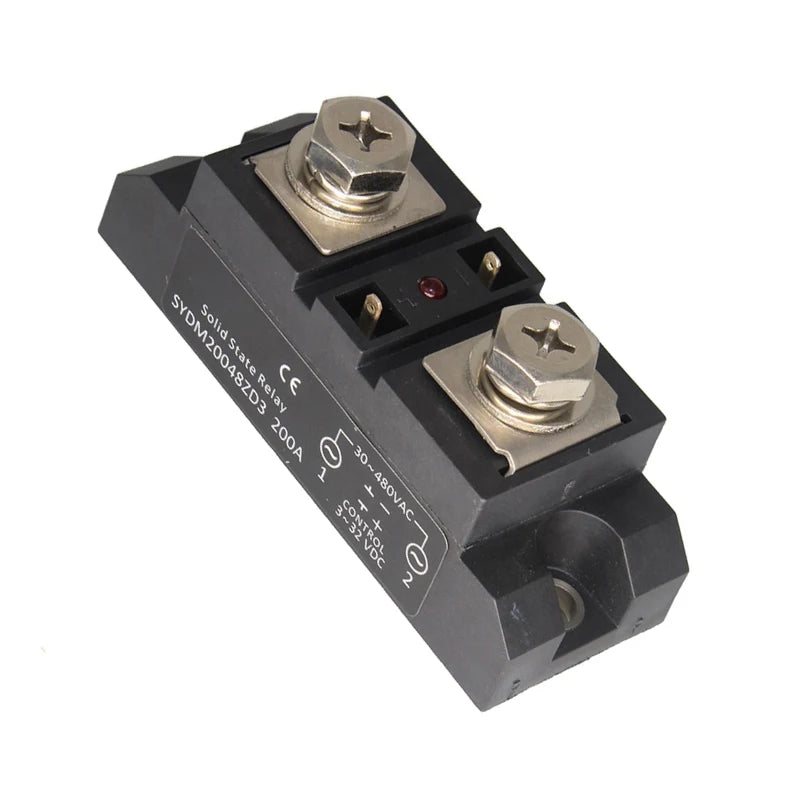

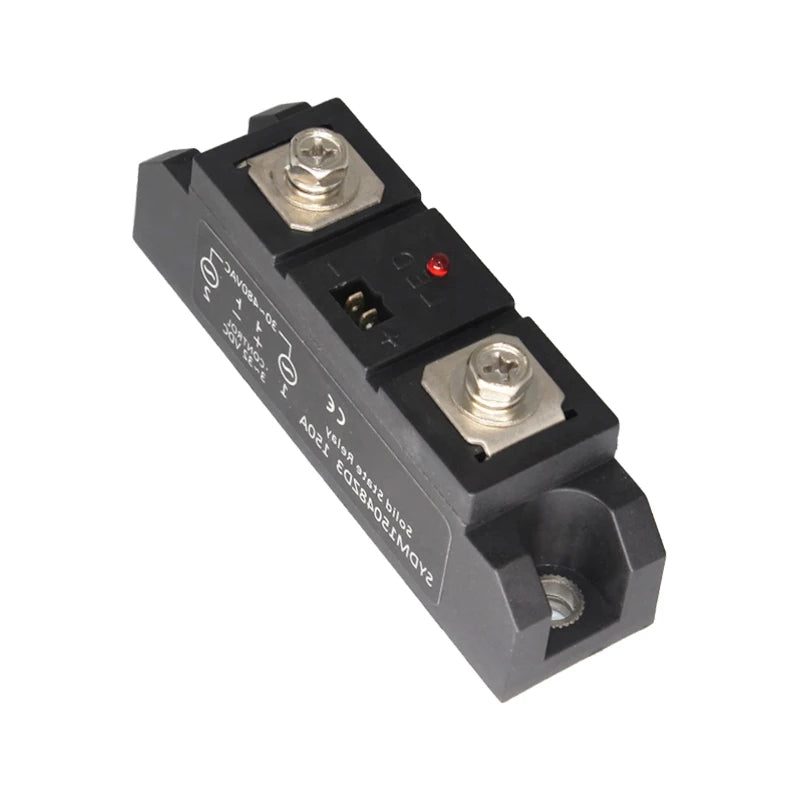

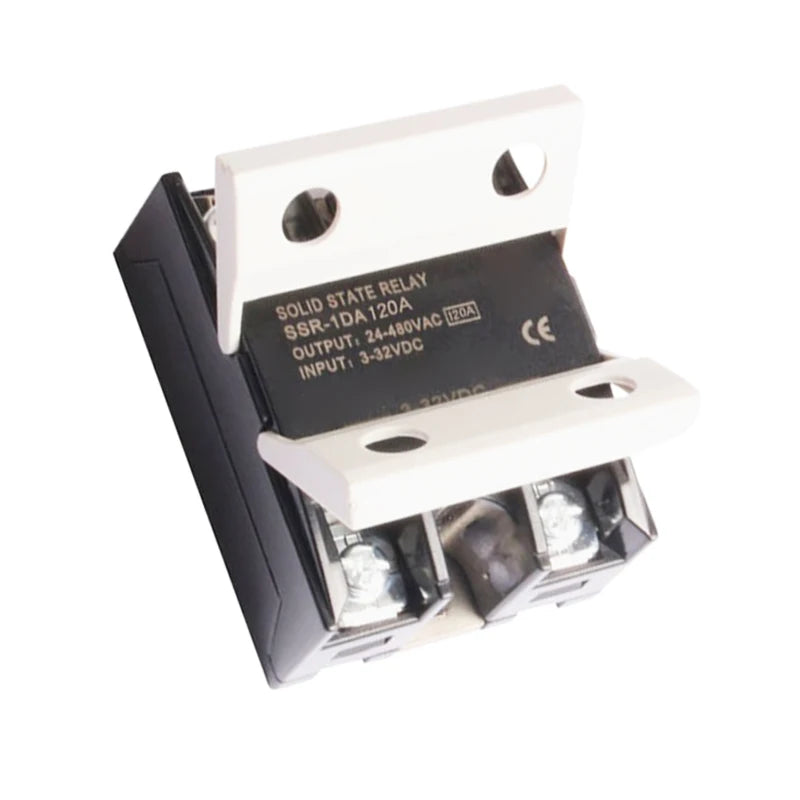

Industrial SSR, for 60-120A |
Press |
Press |
/ |
/ |
/ |
/ |
|
Industrial SSR, for 200-400A |
Press |
Press |
/ |
/ |
/ |
/ |
|
|

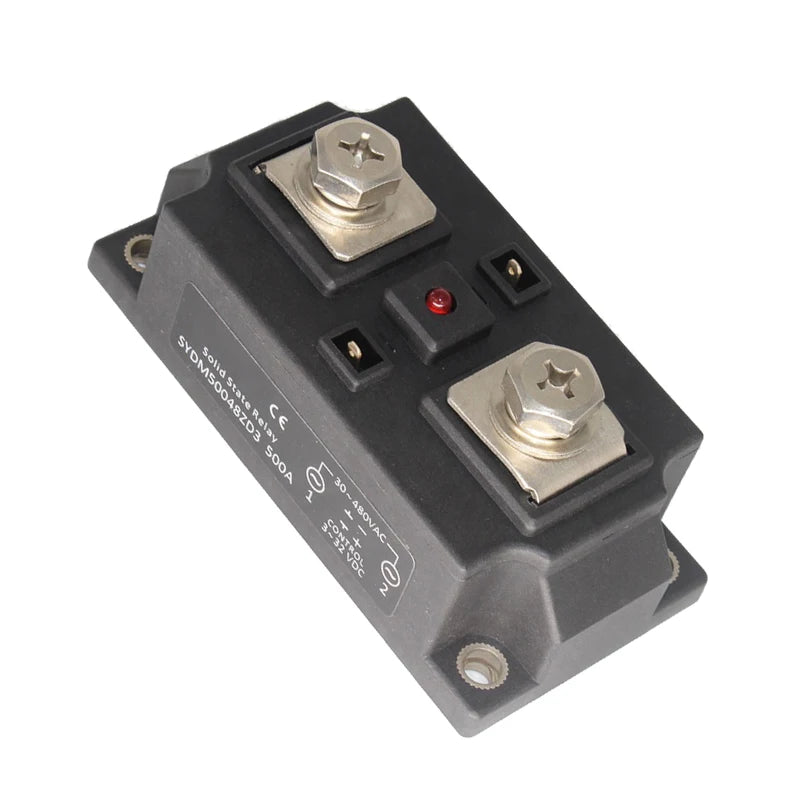

Industrial SSR, for 400-500A |
Press |
Press |
/ |
/ |
/ |
/ |
|
Type |
Image |
Feature |
Control Mode |
|||||
DC control AC |
AC control AC |
DC control DC |
Resistance Regulator |
Current Input 4-20mA |
Voltage Input 0-10V |
|||

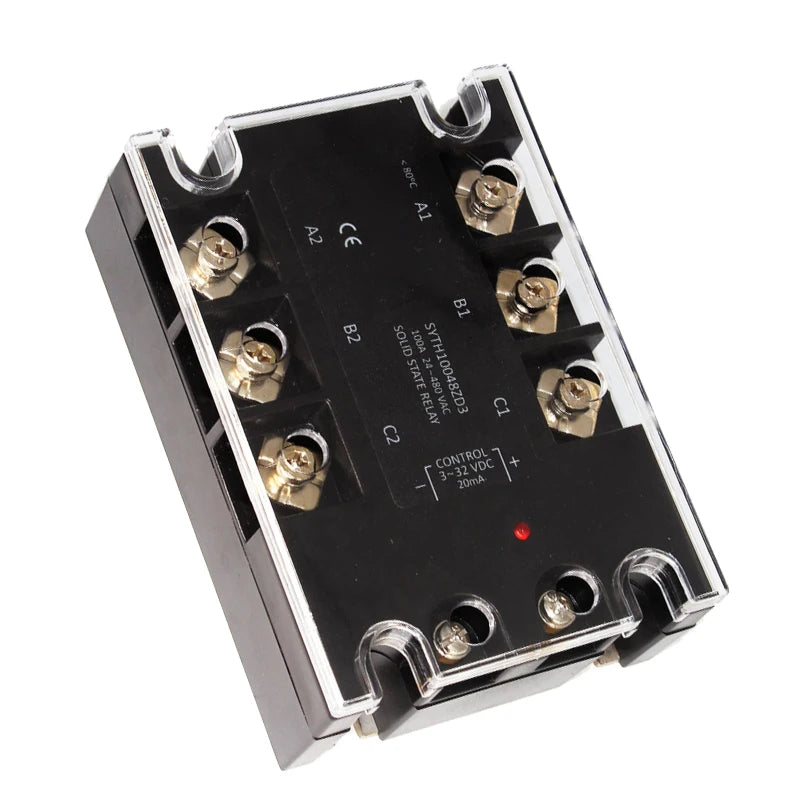

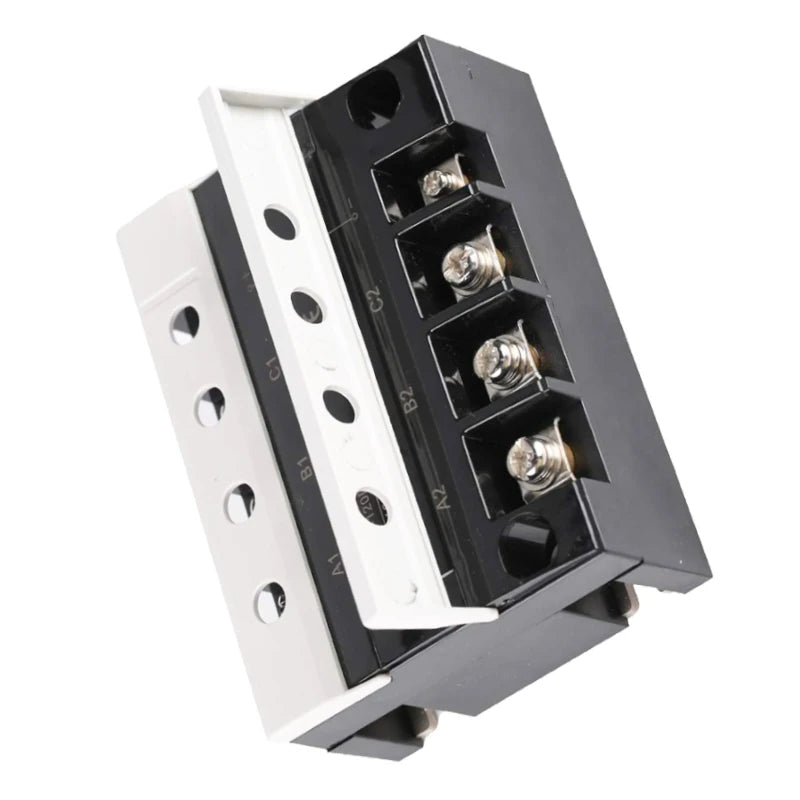

Three Phase |
|
Universal |
Press |
Press |
/ |
/ |
/ |
/ |
|
Flip cover design for easy wiring |
Press |
Press |
/ |
/ |
/ |
/ |
|
Product |
Image |
Function |
Matched relay |
Link |

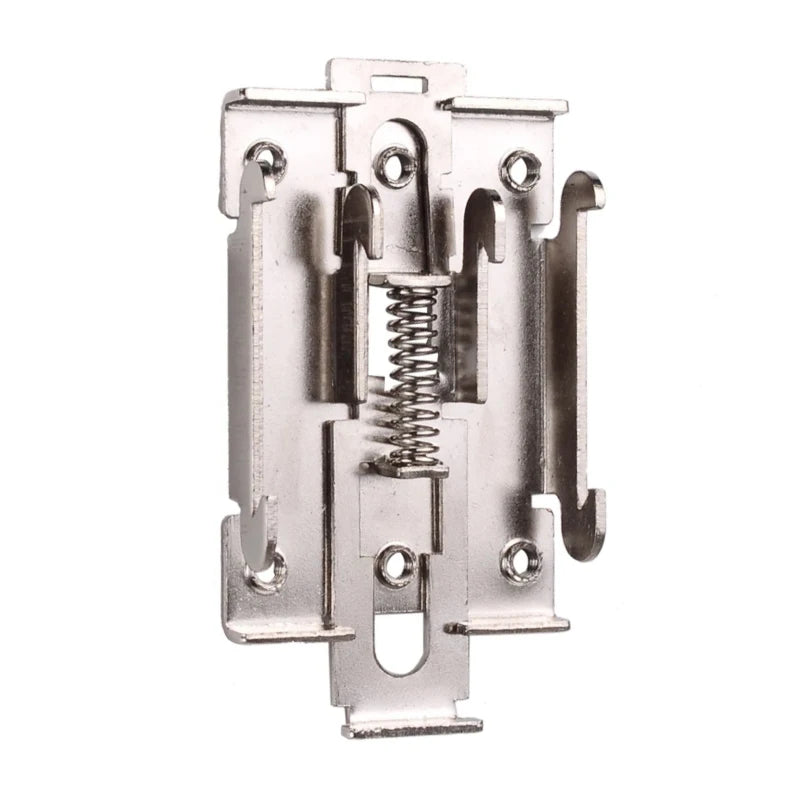

Relay Buckle |
|
35mm Rail Mounting Fixed |
Single Phasee SSR, 1 piece |
Press |

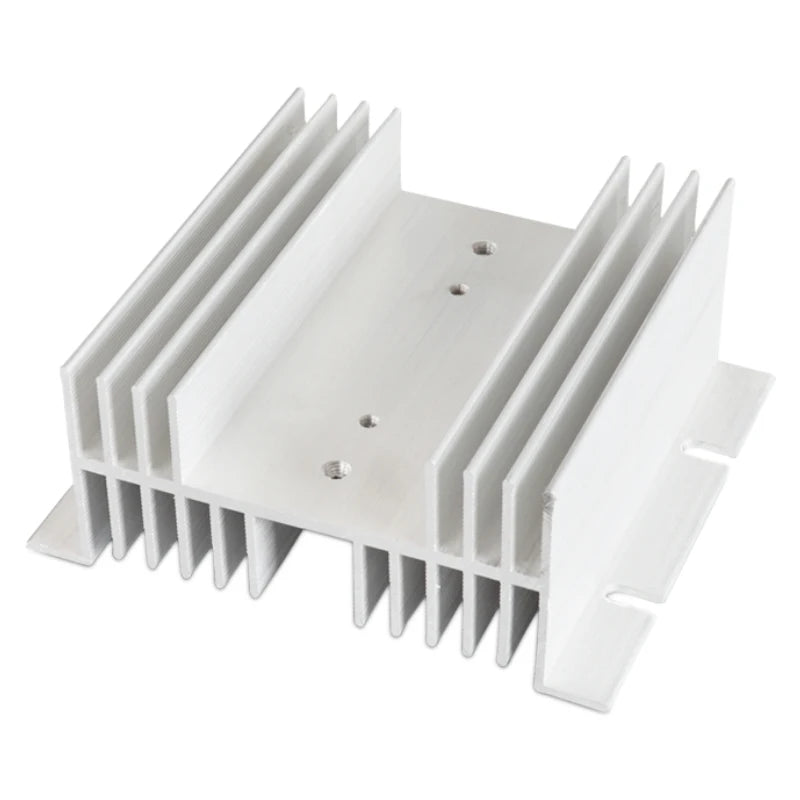

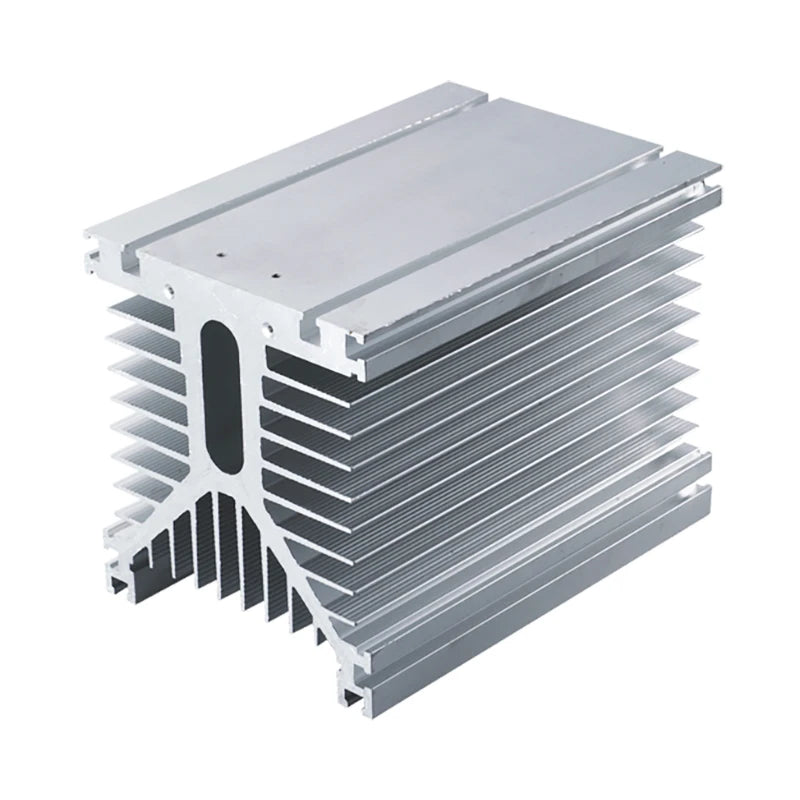

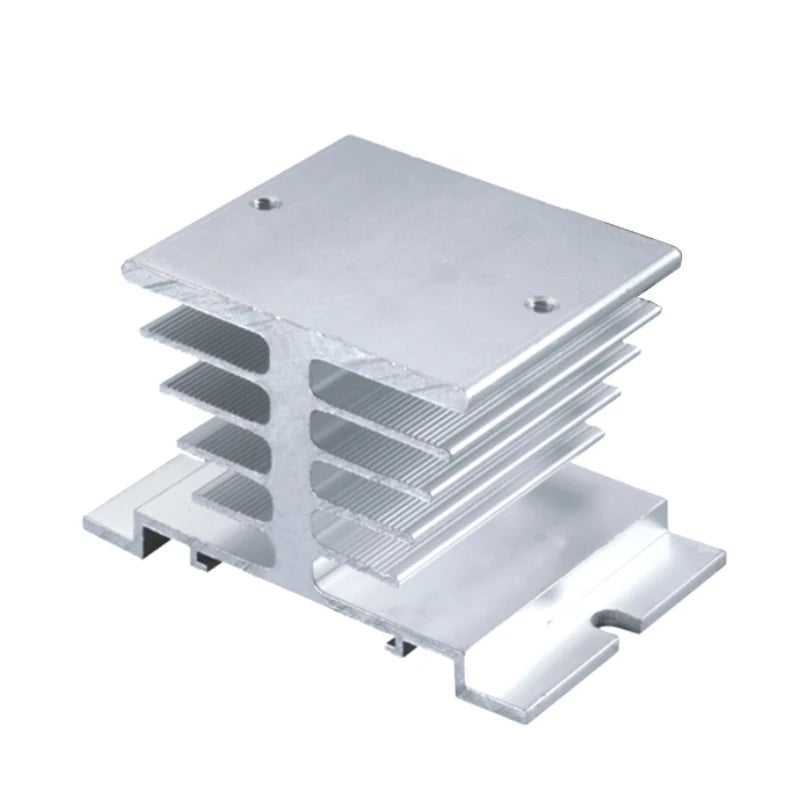

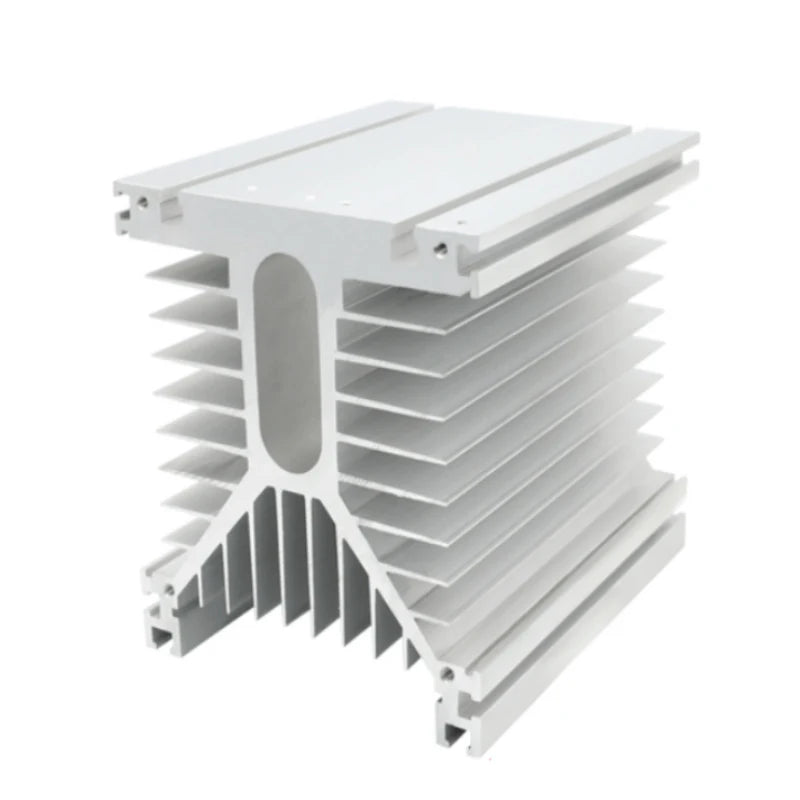

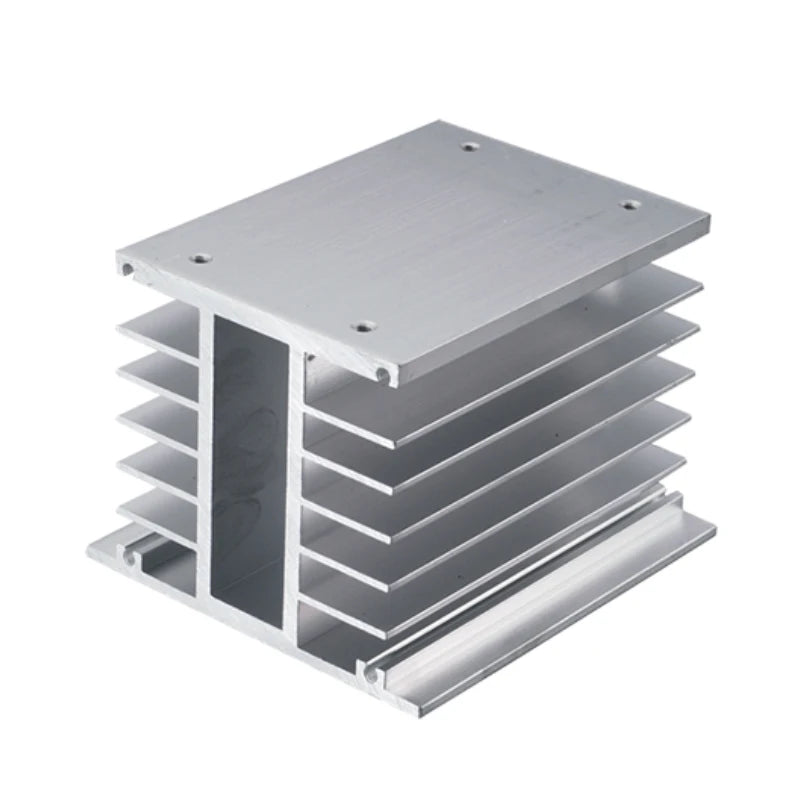

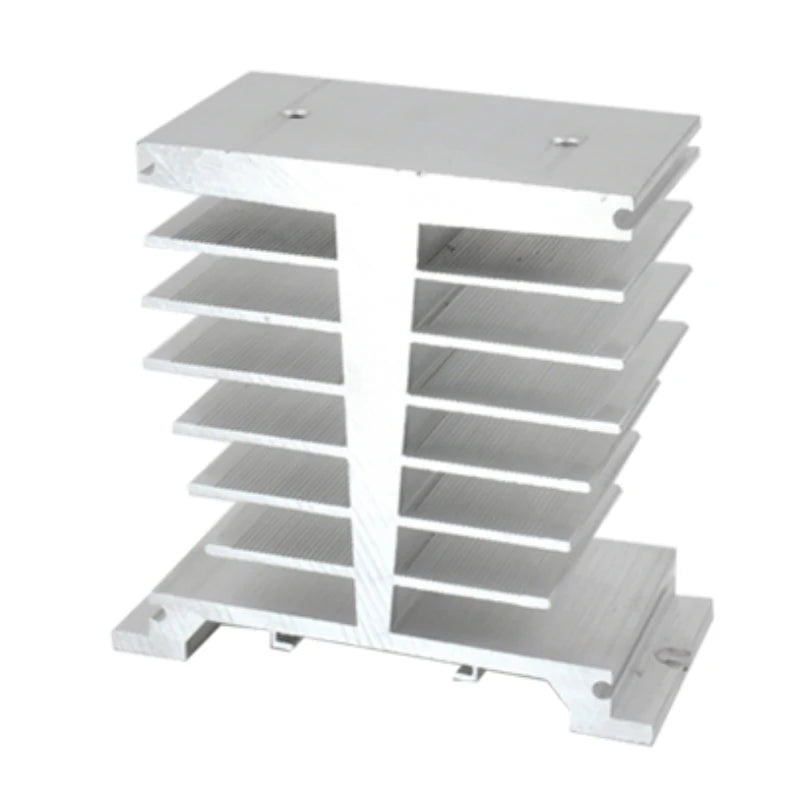

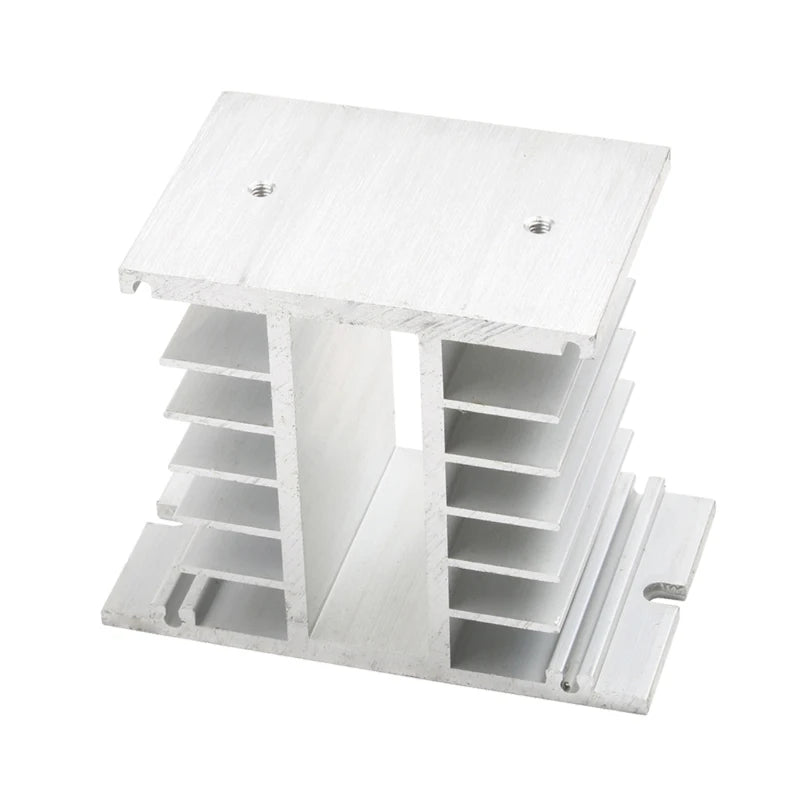

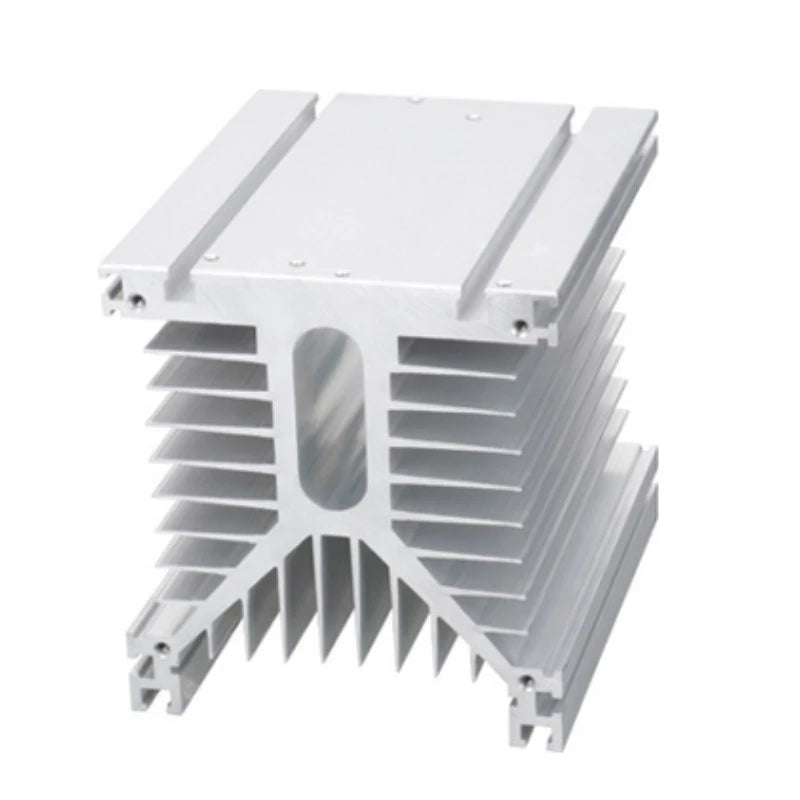

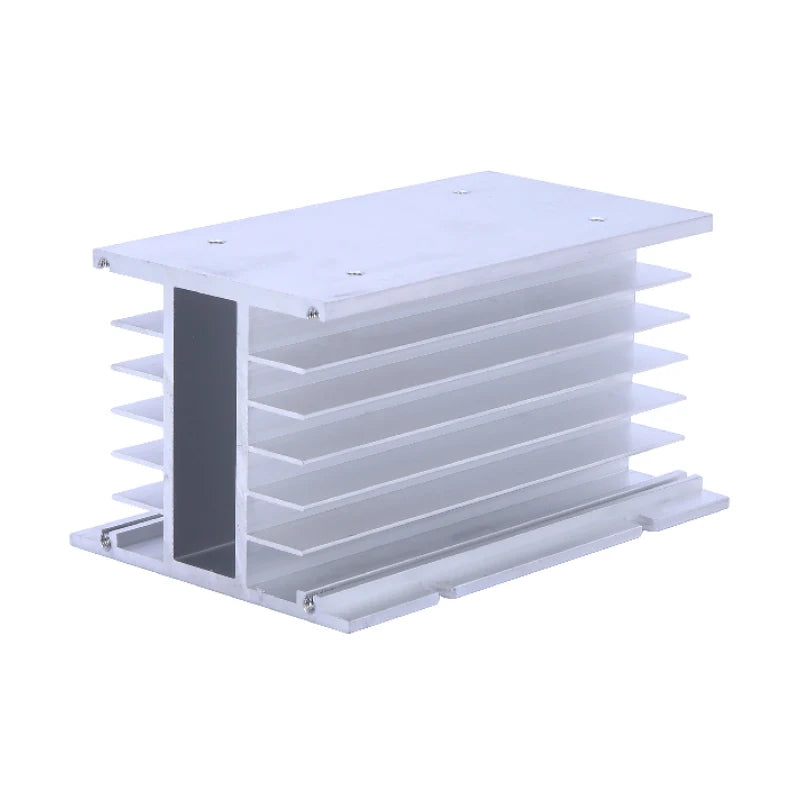

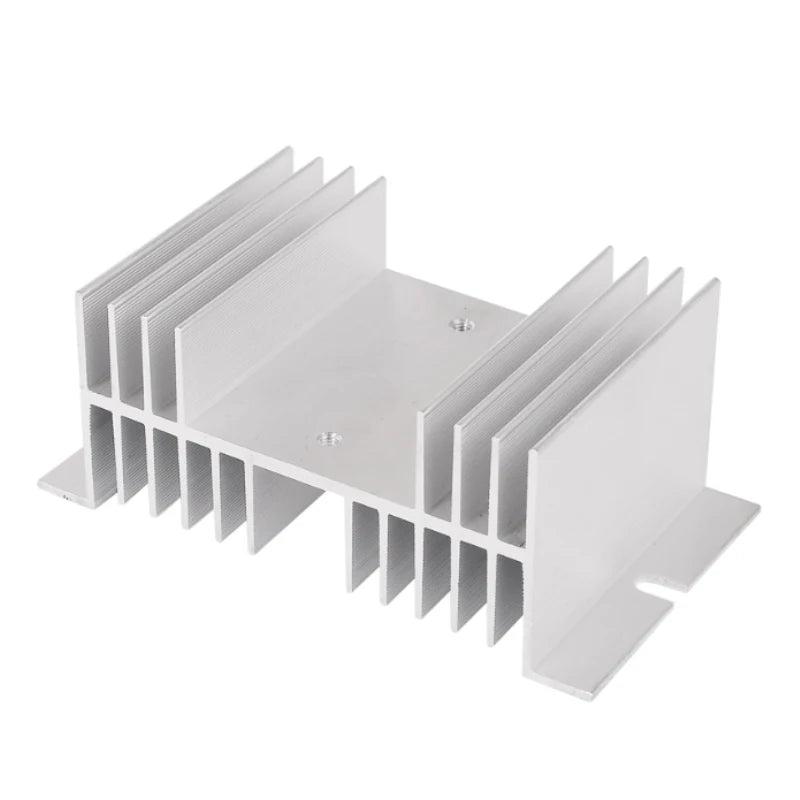

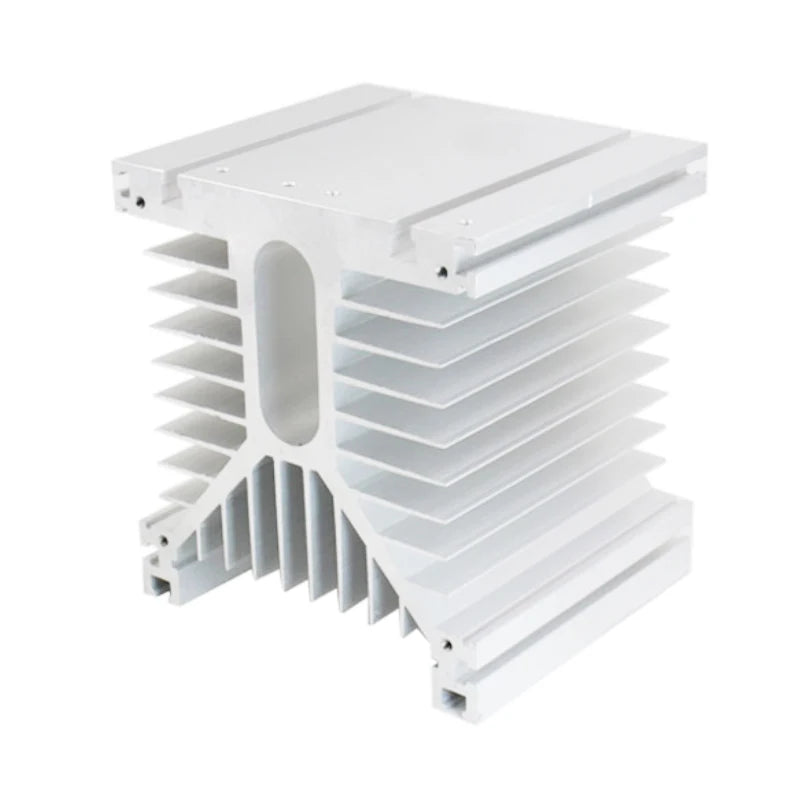

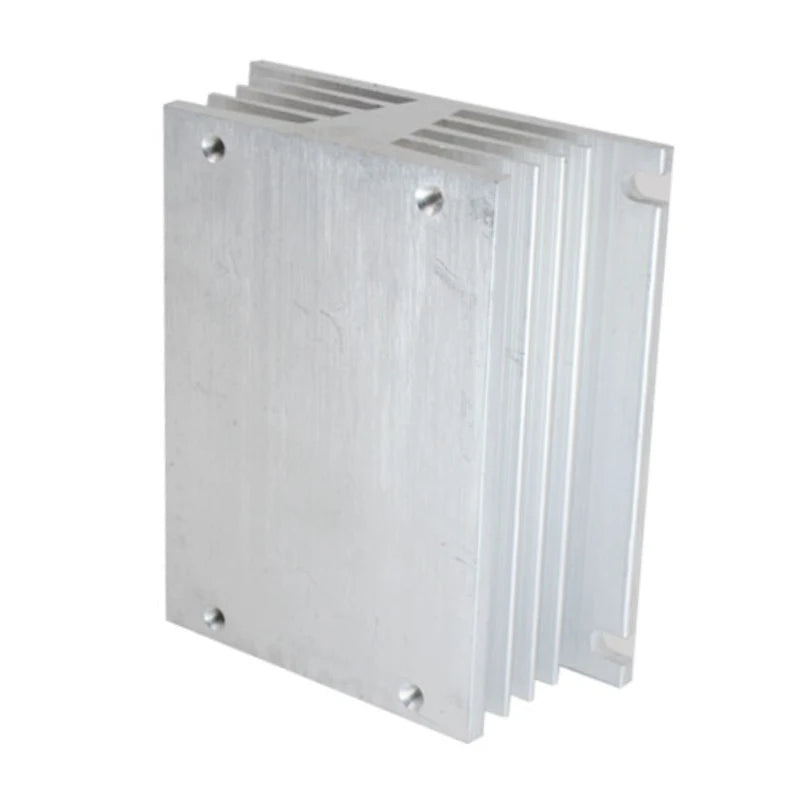

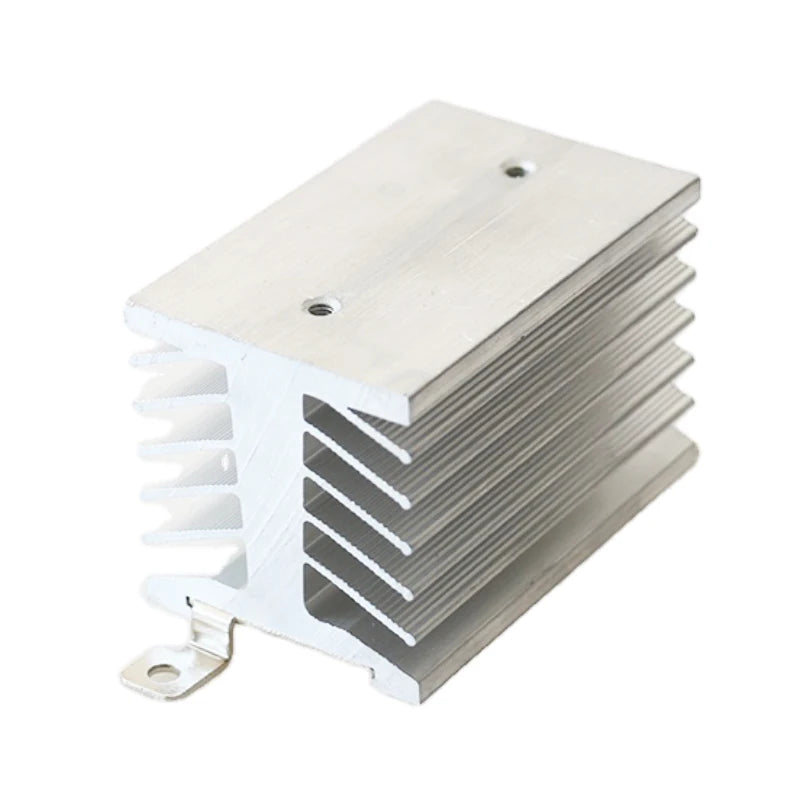

Model |
Image |
Matched relay |
Link |
I-50 |
|
Single Phase SSR, 1 piece, 10-25A |
Press |
W-70 |
|
Single Phase SSR, 1 piece, 10-40A |
Press |
D-74 |
|
Single Phase SSR, 1 piece, 10-40A |
Press |
H-50 |
|
Single Phase SSR, 1 piece, 10-60A |
Press |
W-100 |
|
Single Phase SSR, 1 piece, 10-80A |
Press |
I-96 |
|
Single Phase SSR, 1 piece, 10-120A |
Press |
Y-80 |
|
Industrial SSR, 1 piece, 60-100A |
Press |
Y-110 |
|
Industrial SSR, 1 piece, 60-200A |
Press |
Y-150 |
|
Industrial SSR, 1 piece, 60-400A |
Press |
Three phase SSR, 1 piece, 10-120A | |||
Y-200 |
|
Industrial SSR, 1 piece, 60-500A |
Press |
|
F-100 |
|
Three phase SSR, 1 piece, 10-25A |
Press |
|
H-110 |
|
Three phase SSR, 1 piece, 10-60A |
Press |
H-150 |
|
Three phase SSR, 1 piece, 10-80A |
Press |
