SPECIFICATIONS

Small 20mm Coil Receiving 300mA High Current Wireless Charging Wireless Power Supply Module XKT412-28

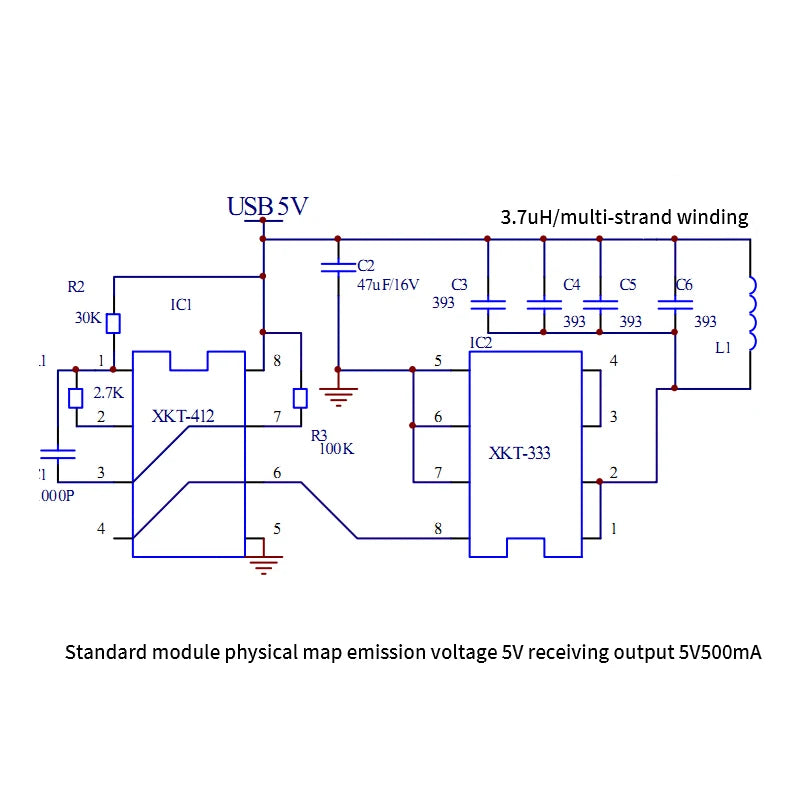

This module is designed with the core power wireless power supply chip. The circuit has a simple output current. When the USB 5V low-voltage power supply is used, it can receive 5V300mA of current in the sense output. If the receiving and rectifying and regulating circuits are part of the circuit, Loss, high transmission efficiency
The main technical parameters of this module:
Transmit power supply voltage: 5V
Transmit working current: 600mA

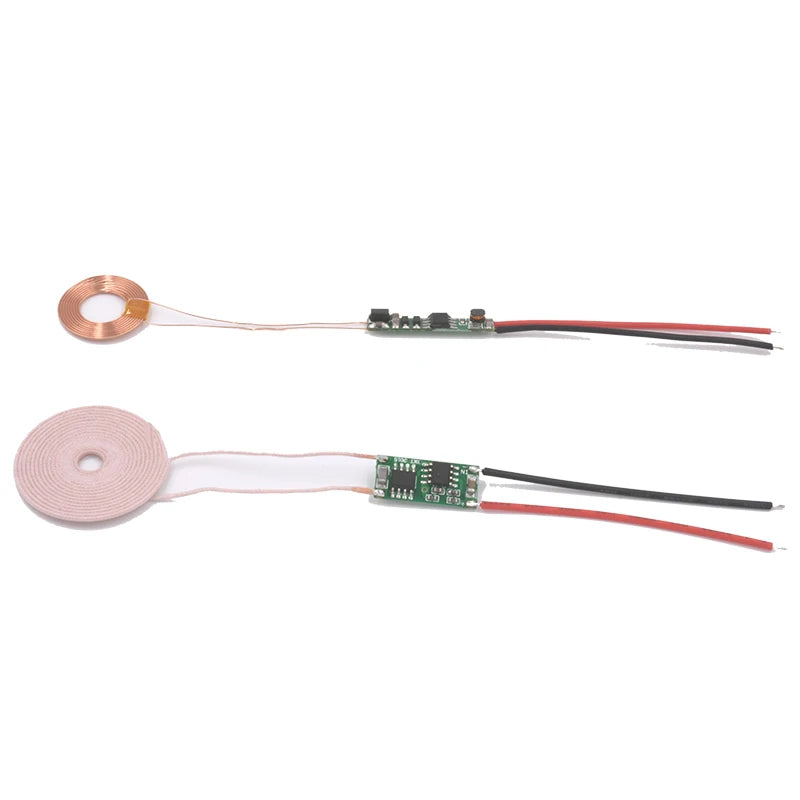

Transmitting coil: outer diameter 33mm, inner diameter 5mm, thickness 1mm
Receiving coil: outer diameter 21mm, inner diameter 10mm, thickness 0.5mm
Transceiver coil distance: Receive output current 5V/500mA when 2mm, receive output 5V/400mA current when 3mm
5V/300mA at 4mm, 5V/250mA at 5mm, 5V/200mA at 6mm
Normal use distance: 2~10mm
package include

1 * wireless power supply module XKT412-28
