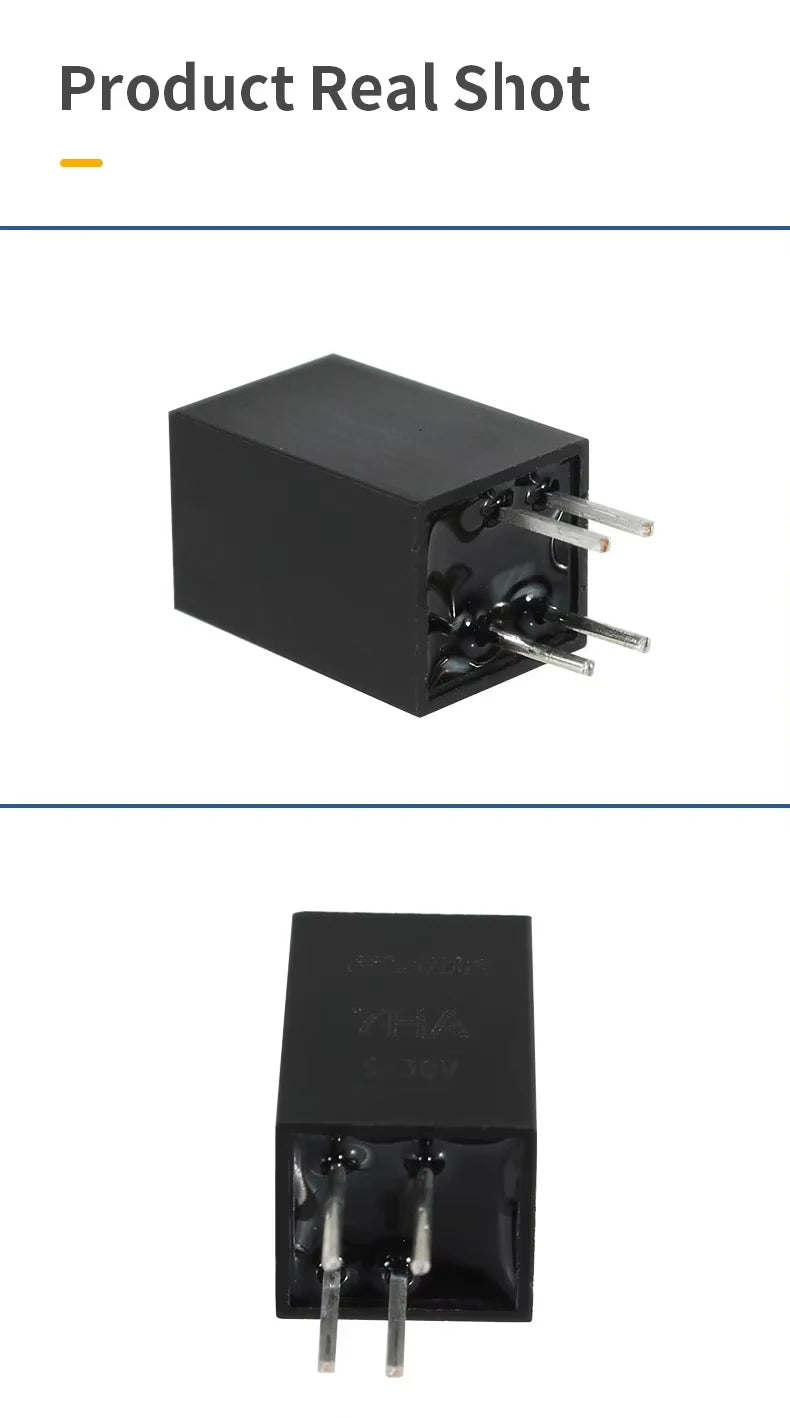

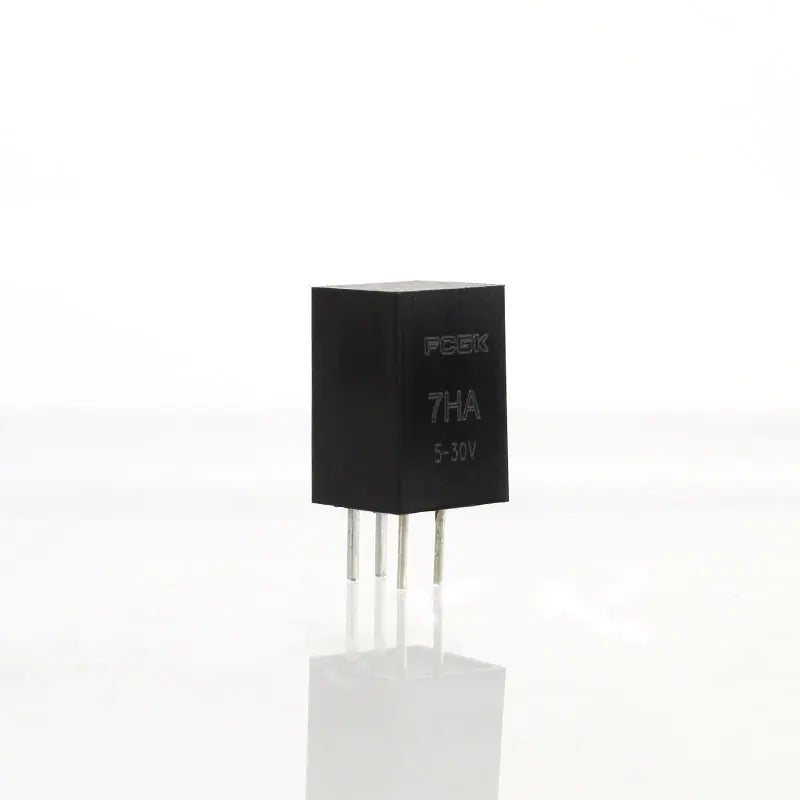

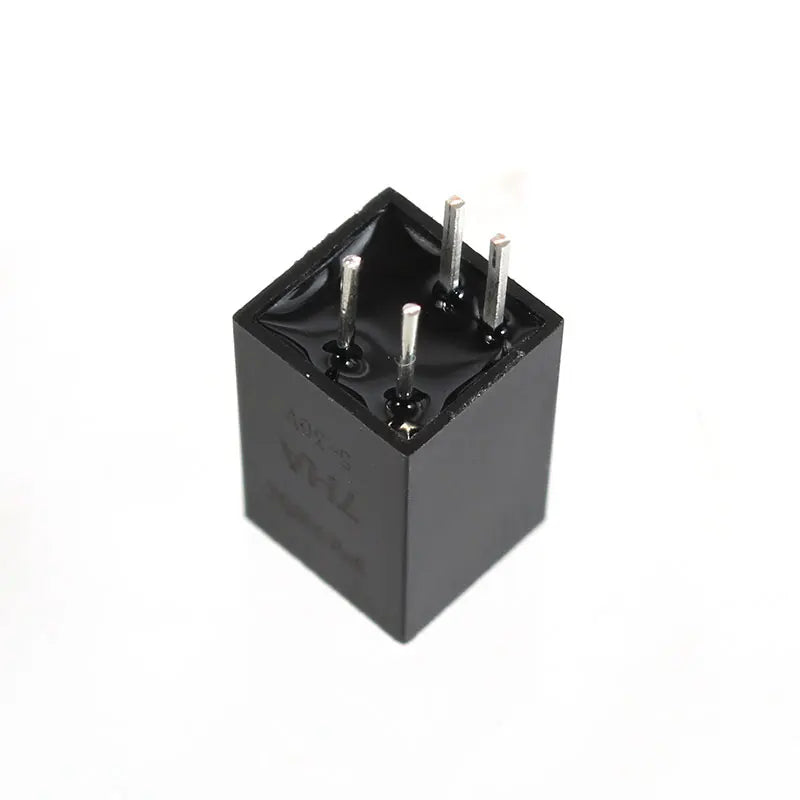

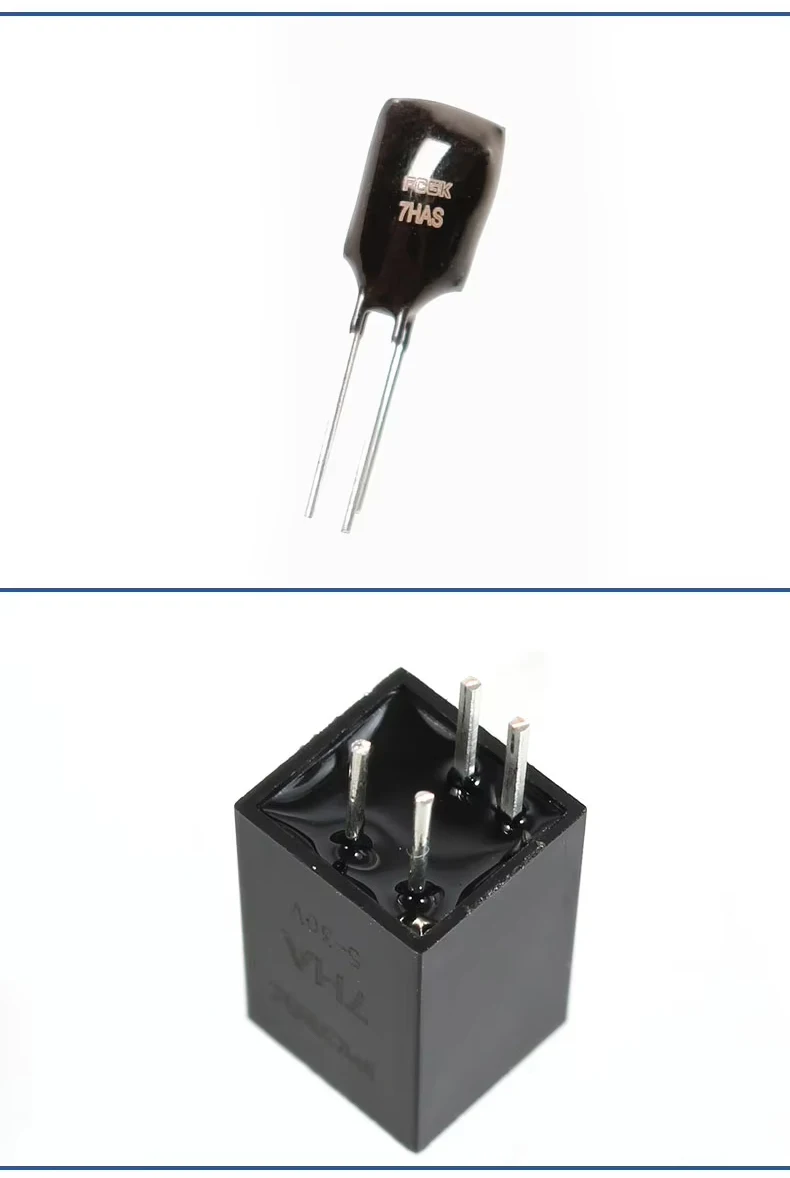

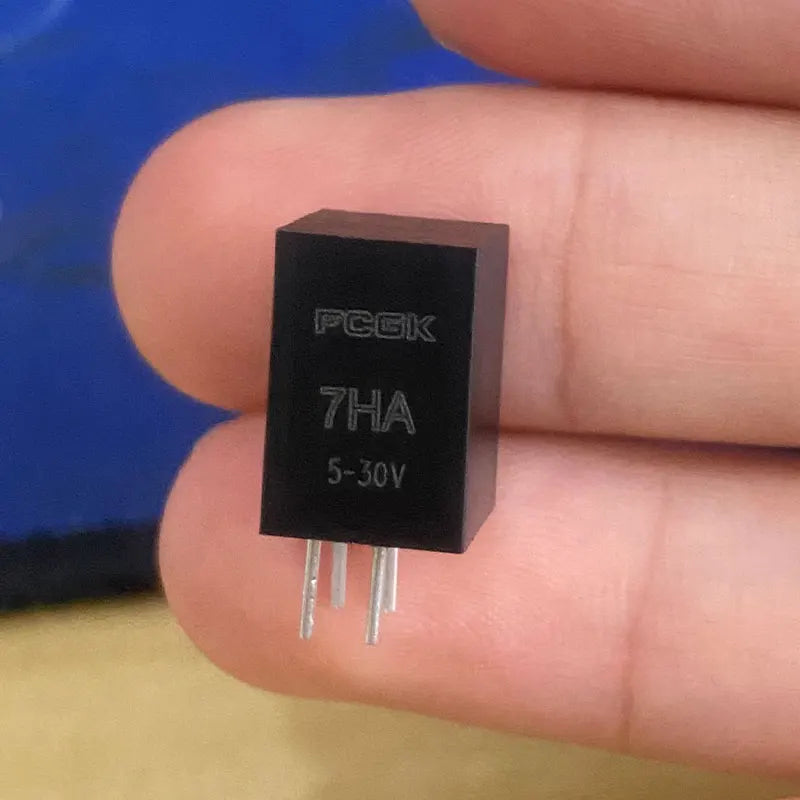

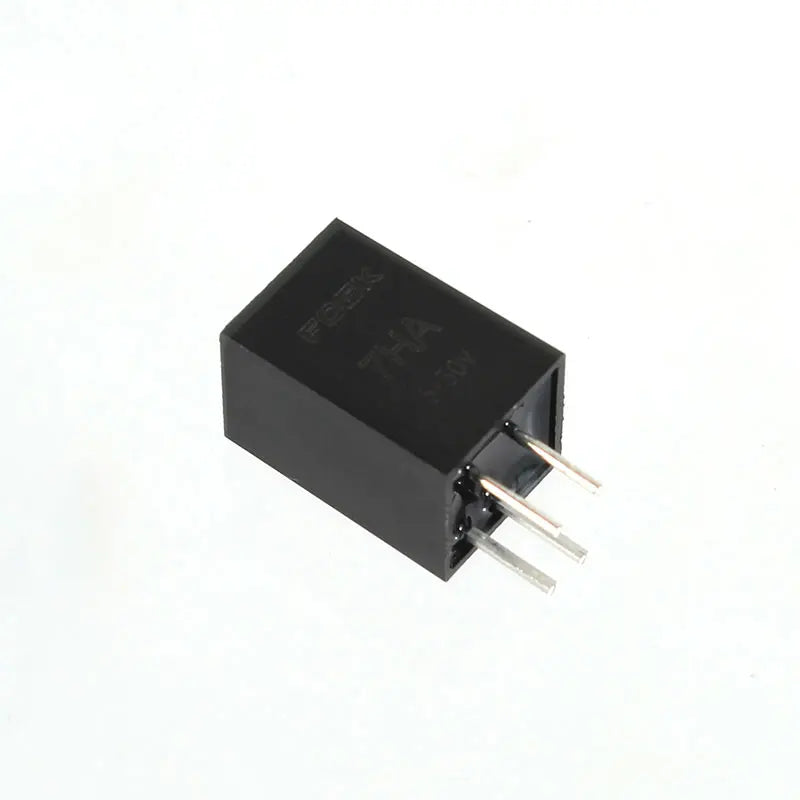

Small Mini PCB SSR 7A Solid State Relay DC to DC 5V 12V 24V
Input 24VDC-7HA / China Mainland / Output 3A 60VDC-AC
$30.60
Sale price
$30.60
Regular price
$0.00
Skip to product information
Small Mini PCB SSR 7A Solid State Relay DC to DC 5V 12V 24V
$30.60
Sale price
$30.60
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Contact Load: Low Power
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: 7HA
Origin: Mainland China
Power Source: DC
Protect Feature: Sealed
Theory: Solid State Relay
Use: General Purpose
Voltage: 5V
is_customized: Yes
semi_Choice: yes
Note: This model needs to be kept away from high-frequency interference, such as inductive load sources, electromagnetic clutter, etc.

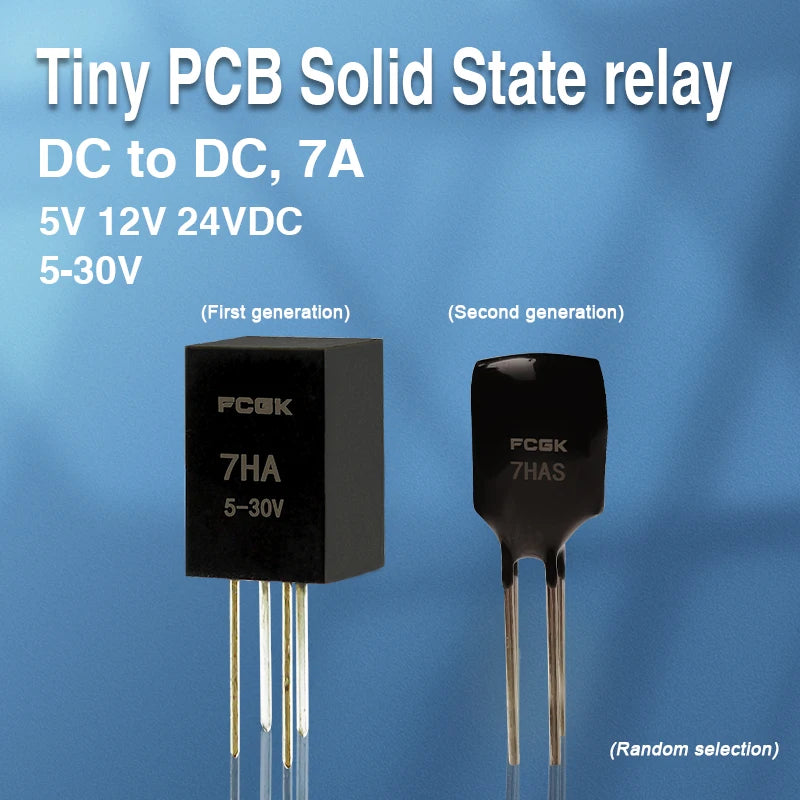

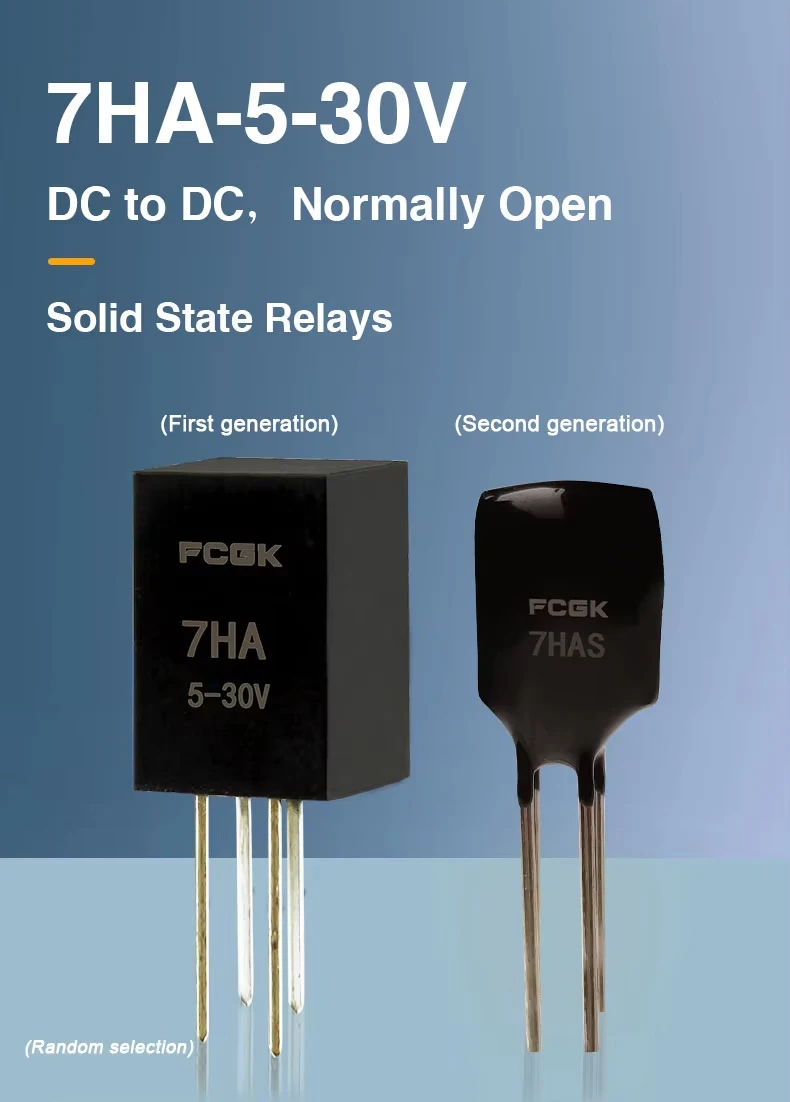

Tiny PCB SOLID STAT RELAY

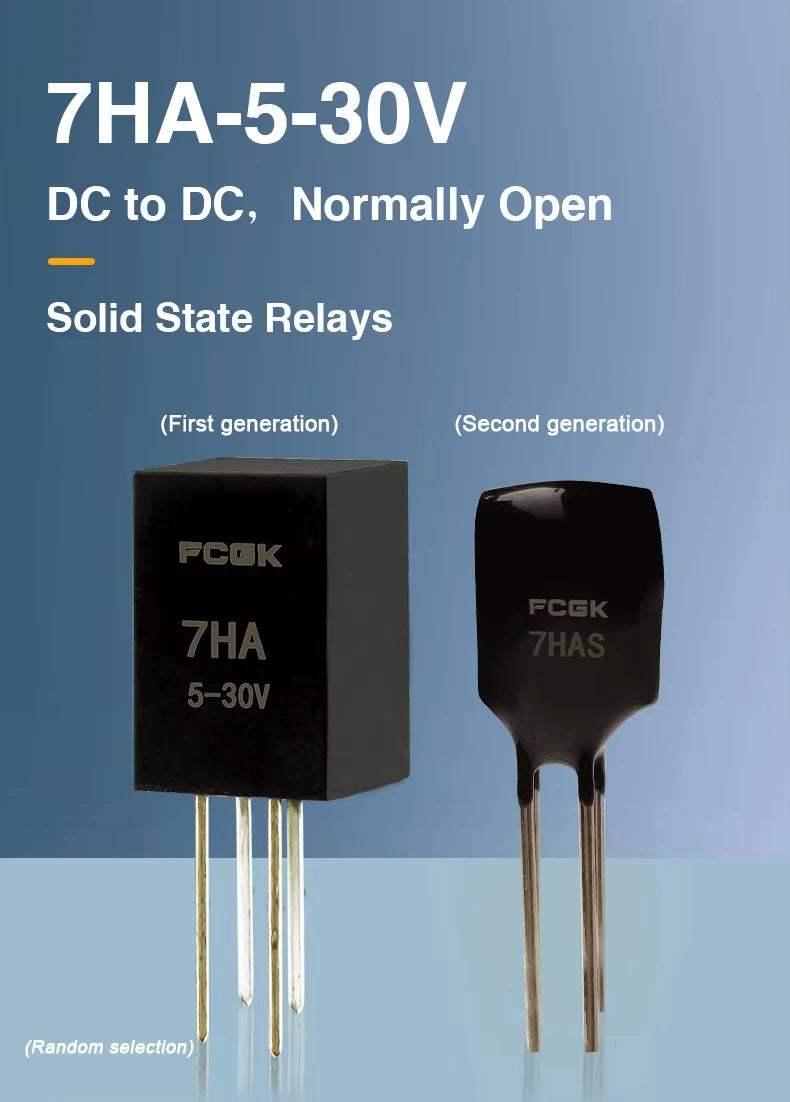

DC to DC control type

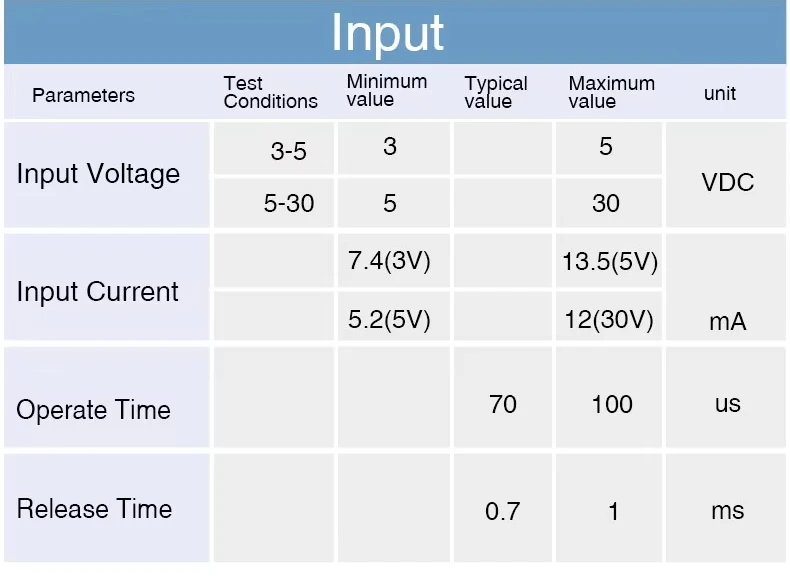

Control voltage from 5V,12V to 24V maxium

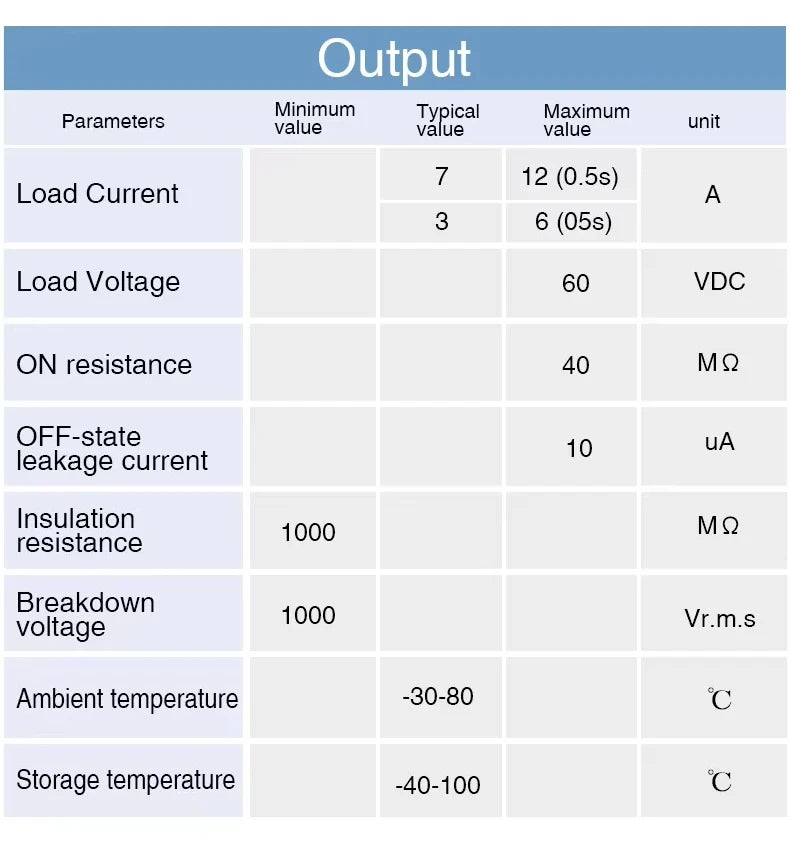

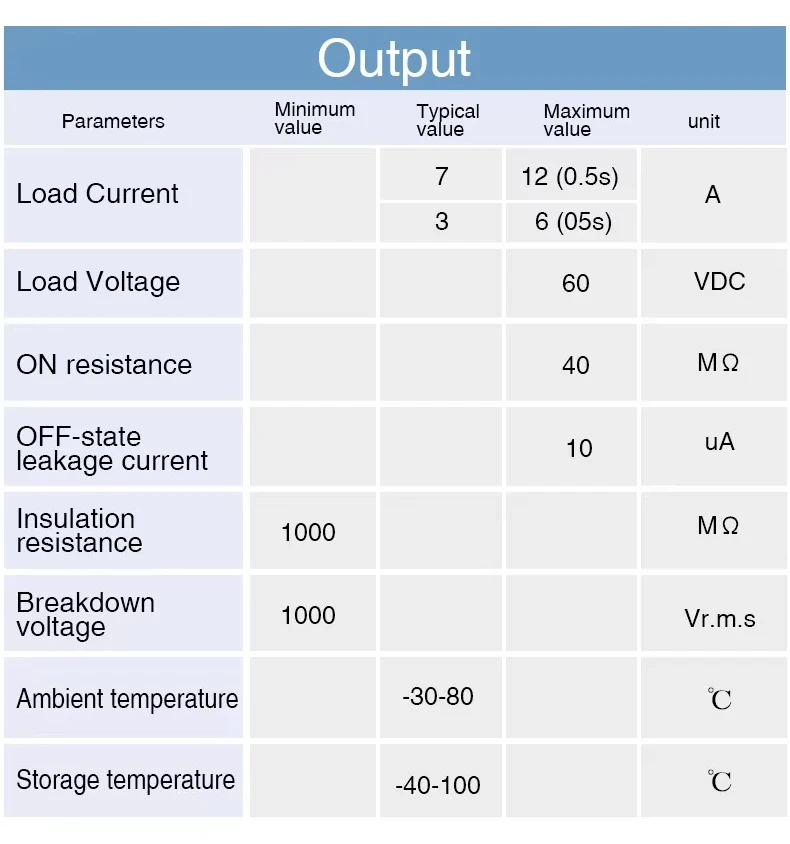

Calculate Your Current Capacity :
Precaution :
When load current near 4~ 7A ,should ensure good air circulation for heat dissipation.
Half of rate current (3.5A) create litte heat.
7HA-005S model is non-polarized input control type, allow both DC and AC load current.Maixum 3A.
