SPECIFICATIONS

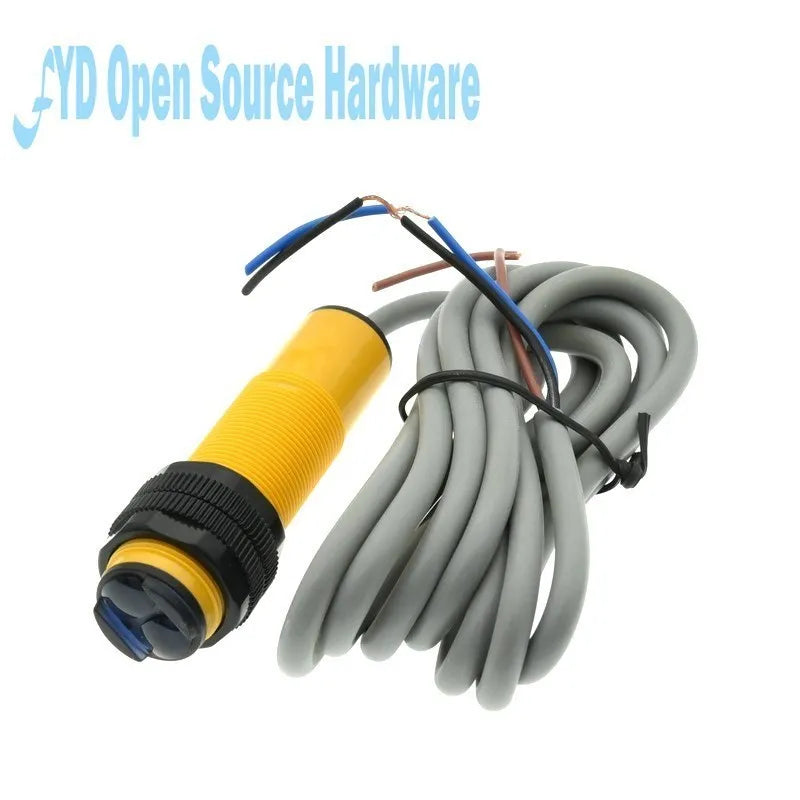

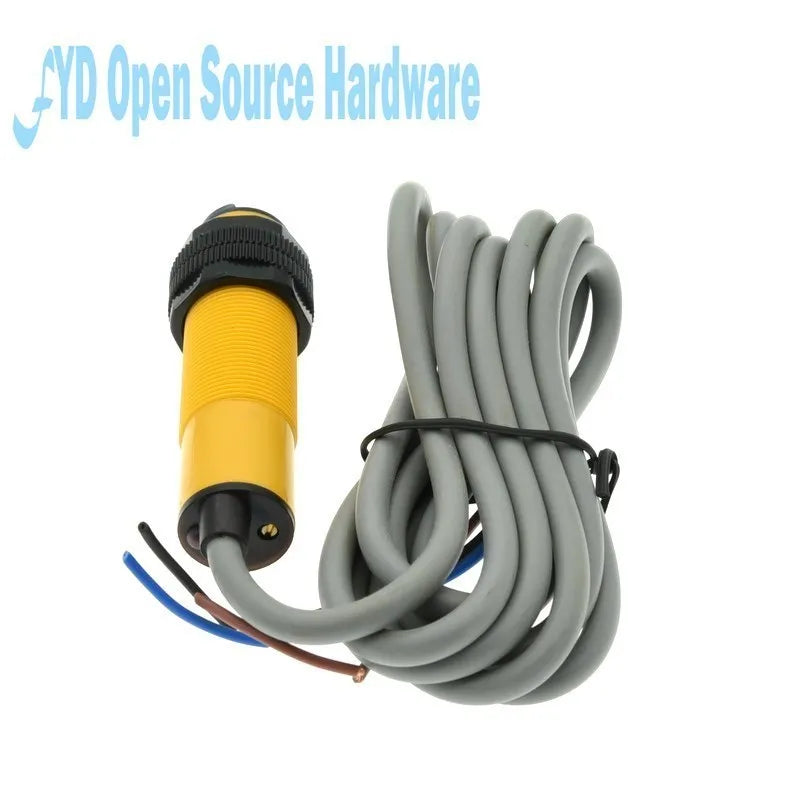

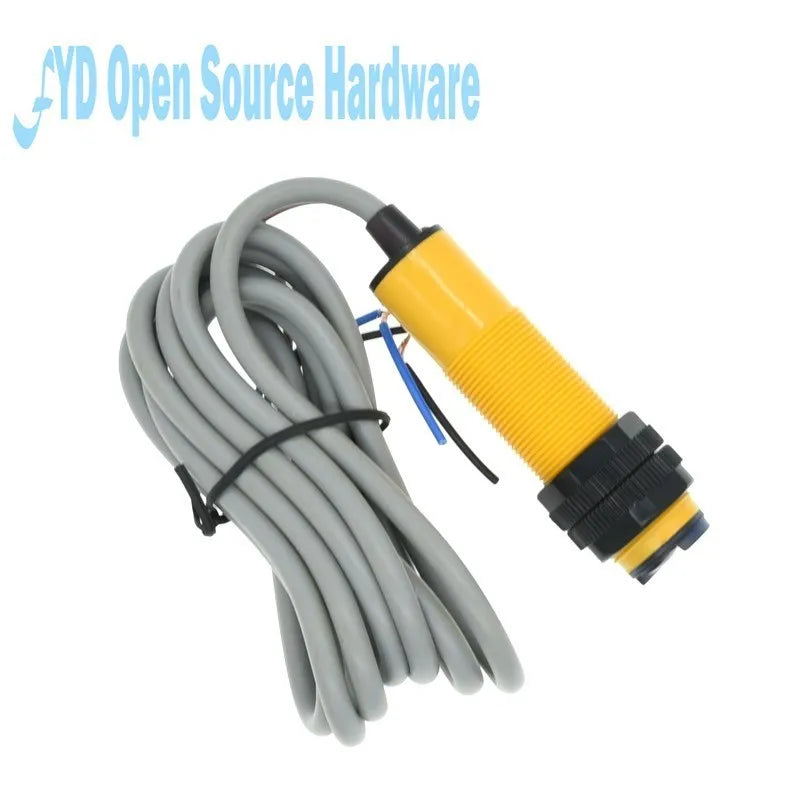

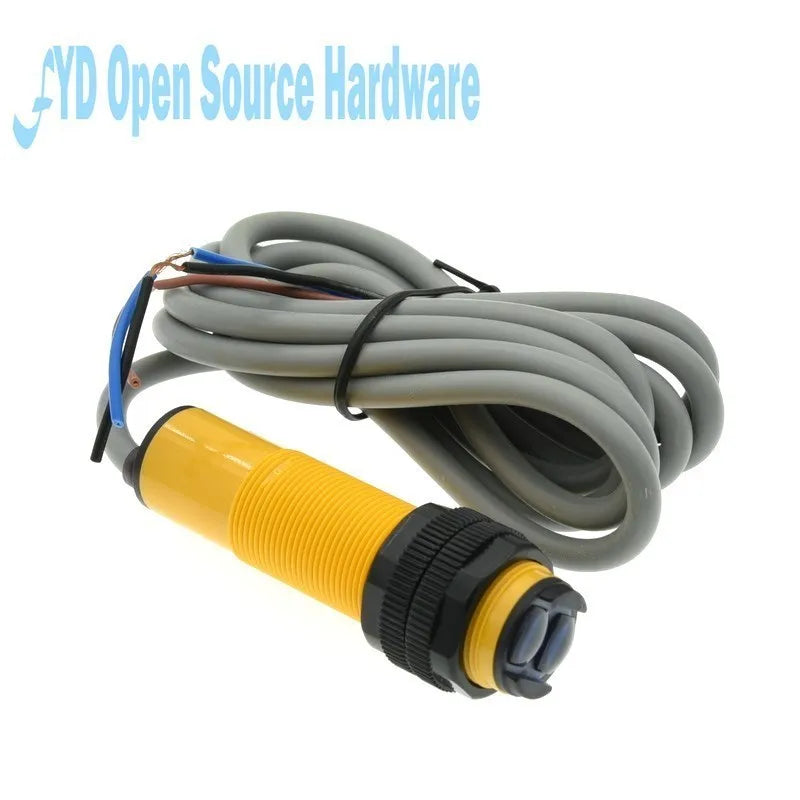

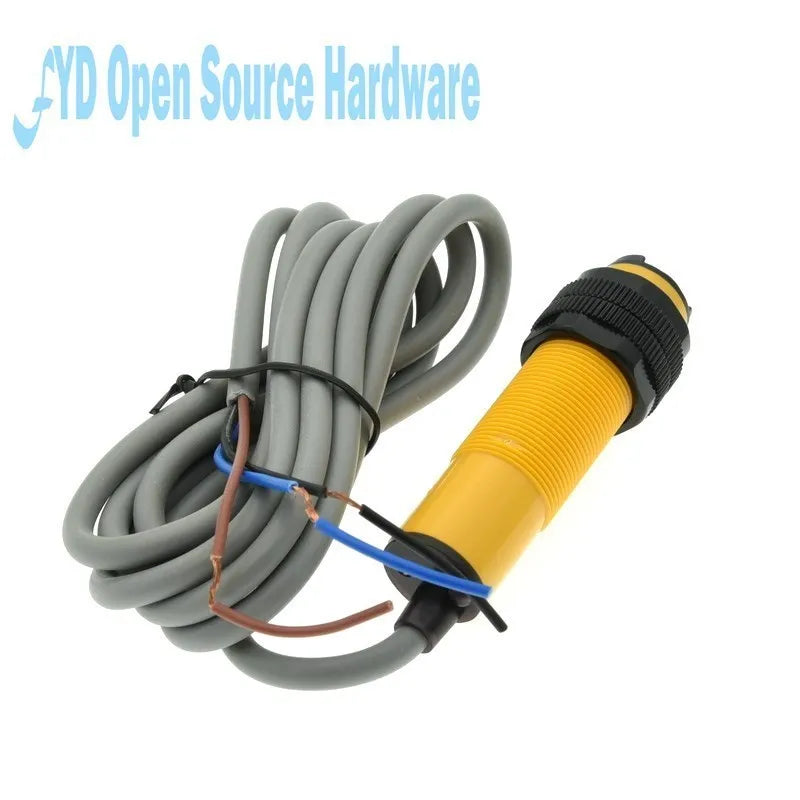

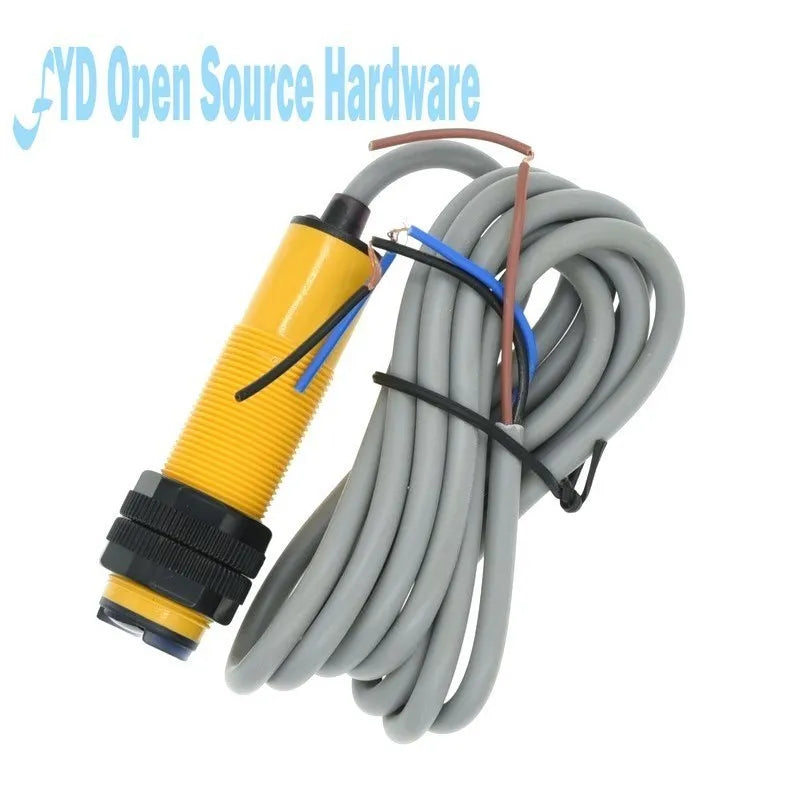

Model : E18-D80NK new head with DuPont

This is a set of transmitter and receiver in one of the photoelectric sensors. 1 detection distance can be adjusted according to the requirements . The sensor has a detection distance , by small visible light interference , cheap, easy to assemble , easy to use features , can be widely used in robot obstacle avoidance, line piecework and many other occasions.

Electrical Characteristics :
U: 5VDC
I: 100mA
Sn: 3-80CM

Size :

Diameter : 17MM
Sensor length : 45MM
Lead Length : 45CM

Application:

1, the production line goods automatic counting device
2 , multi- reminder
3 , maze robot

Precautions
To protect the reliable operation and long life , avoid temperature outside than the relevant provisions of ( outdoor ) conditions , proximity sensor although the water structure , if fitted on the cover use , rendering water and water capacitive cutting oil poured into , the can better improve the reliability and longevity . Please also avoid ? Thank б┘ grain Torr osprey steal insult Sui ⑺ test ⑾ lame curtain curtain curtain ⒚ ⑷ scrambling around crab cricket cape coat Xing à ?

Photoelectric sensors ( photoelectric switch ) NPN normally open
Model : E18-D80NK.

Photoelectric switch E18 technical parameters :
1 , the output current DC / SCR / Relay Control output: 100mA / 5V power supply
2. Current consumption DC \u003c25mA
3 , response time \u003c2ms
4 , point angle : ≤15 °, effective distance 3-80CM adjustable
5 , the detection object : opaque
6 , the working environment temperature : -25 ° ~ + 55 °
7 , the standard sensing object : sunlight 10000LX less incandescent 3000LX the following
8 , Case Material : Plastic

Sensors answer frequently asked questions about :
1 , Q: This is a digital sensor or analog sensors
A: This NPN type photoelectric switch. Output Group Aung station is 0,1 , namely a digital circuit high and low

2, Q: What is the level of output is detected the target object ?
A: The goal is to detect low-level output , the normal state is high output

3 , Q: Can the microcontroller IO port received ?
A: The output of an external pull-up resistor can be connected to the IO port

4 , Q: How much pull-up resistor ?
A: pull-up resistor is generally about 1K

5, Q : Where can I download the manual ? Or manual too simple
A: This is a photoelectric switch, three lines , power, ground and output , not too complicated introduce digital output , does not require AD conversion can be directly connected to the microcontroller IO port on the rear of the adjustable potentiometer to adjust the distance ( 3 -80CM valid )
