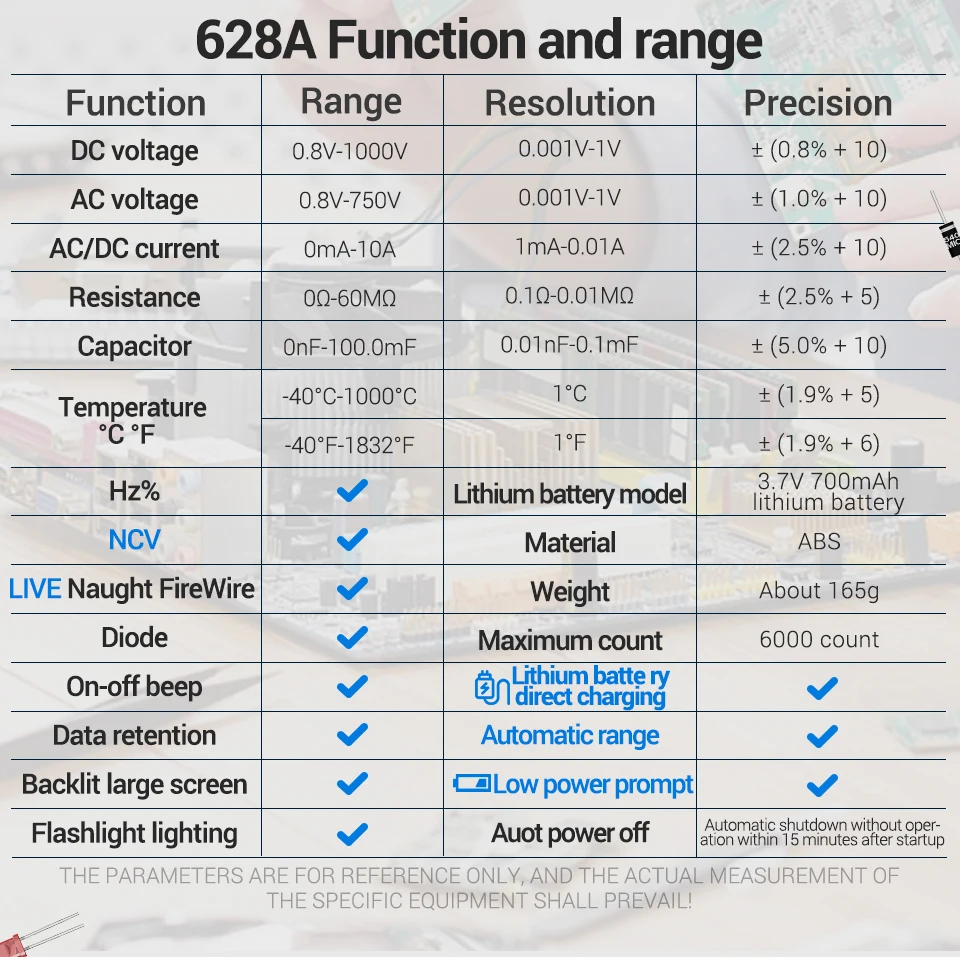

SPECIFICATIONS

AC Current: 0mA-10A

AC Voltage: 0.8V-750V

ANENG Model: 628A

Backlit large screen: Yes

Battery Included: no

Brand Name: ANENG

Certification: CE

Choice: yes

DC Current: 0mA-10A

DC Voltage: 0.8V-1000V

DIY Supplies: Electrical

Data retention: Yes

Dimensions: ANENG 628A Rechargable Digital Multimeter Tester

Diode: Yes

Display Type: Digital Display

High-concerned chemical: none

Hz%: Yes

Is Smart Device: no

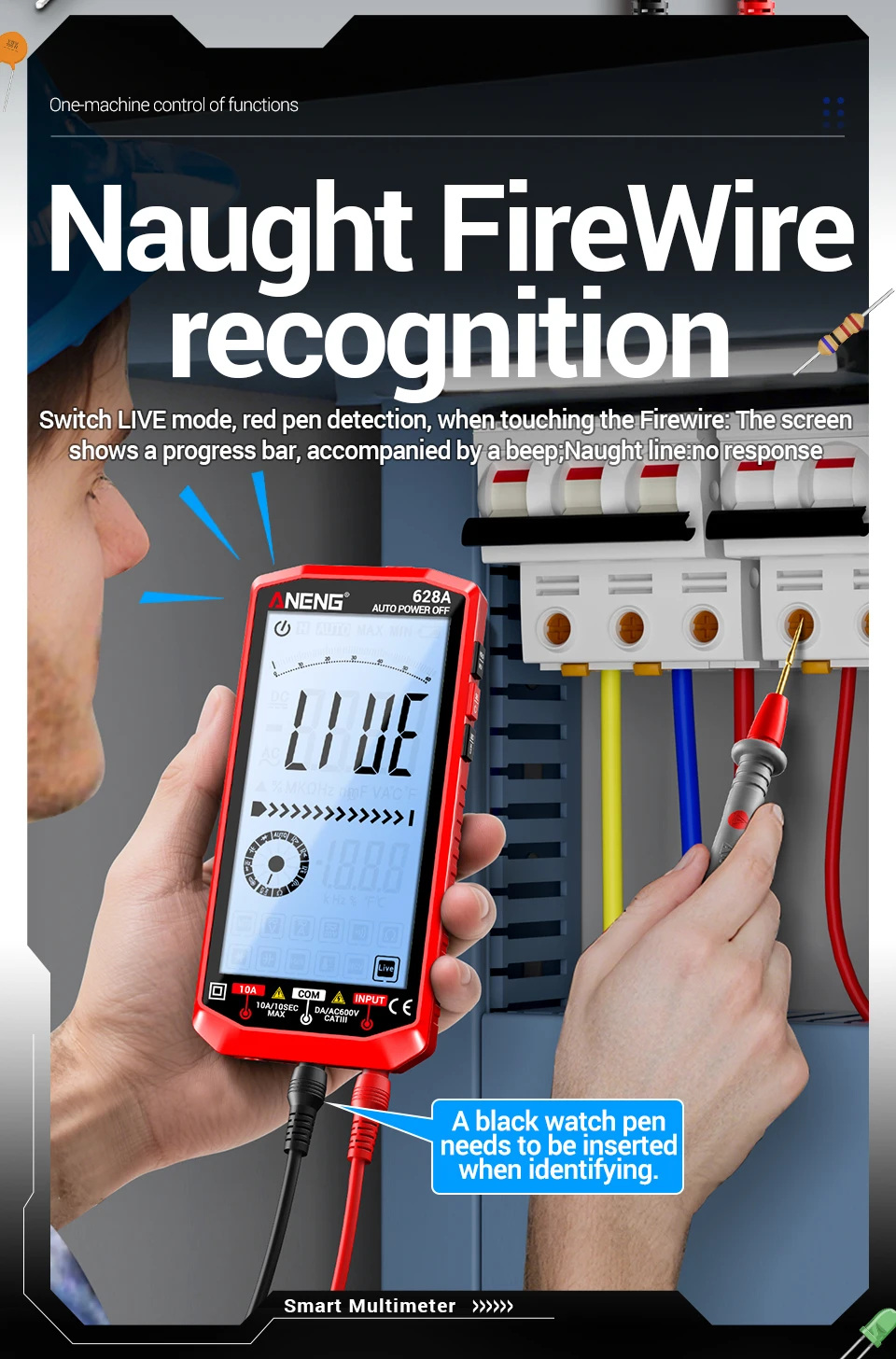

LIVE Naught FireWire: Yes

Lithium battery model: 3.7V 700mAh lithium battery

Material: ABS

Maximum count: 6000 count

Measuring Capacitance Range: ANENG 628A Rechargable Digital Multimeter Tester

Measuring Inductance Range: ANENG 628A Rechargable Digital Multimeter Tester

Measuring Resistance Range: 0Ohm-60MOhm

Model Number: ANENG 628A Rechargable Digital Multimeter Tester

On-off beep: Yes

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Semi-finishedproduct: No

Smart Precise Digital Multimeter Tester ANENG 628A AC/DC Voltage Current High Definition Backlit Large Screen Electrician Tools

Specifications

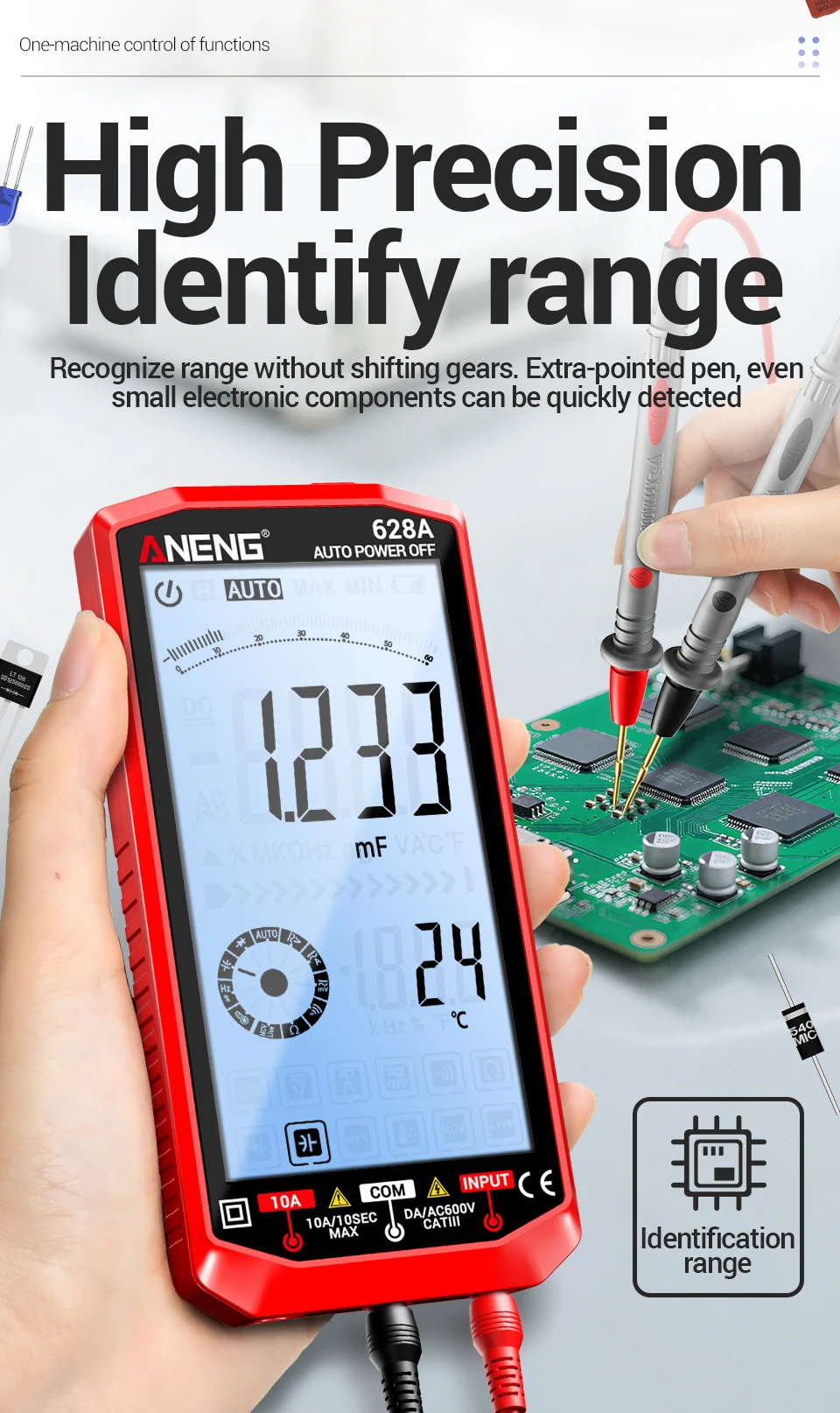

1.Automatic range measurement.
2Full-scale overload protection.
3. Maximum allowable voltage between the measuring temminal and the earth: 1000V DC Or AC 750V rms
4. Working height: up to 2000m
5.Display: 6000 counts LCD full Chinese LCD display, analog bar.
6.Maximum display value: 5999 numbers
7. Polarity indication: automatic indication, "-" indicates negative polarity.
8.Overange display: "OL" or "-OL”
9.Sampling time: about 3 times/second
10.Unit display: with function, power unit display.
11. Automatic shutdown time: about 15 minutes without operation
12.Power supply: 3.7V
13.Battery type: rechargeable lithium battery
14. Temperature coefficient: less than 0.1X accuracy/°C
15.Working temperature:18℃~28℃
16.Storage temperature:-10℃~50℃(remove the battery)

Selling points:

1. 6000-count True RMS: stable readings on ECU, sensor or inverter PWM signals

2. 1000V DC / 750V AC range + 10A direct: tests car battery, alternator, household mains and high-power appliances in one tool

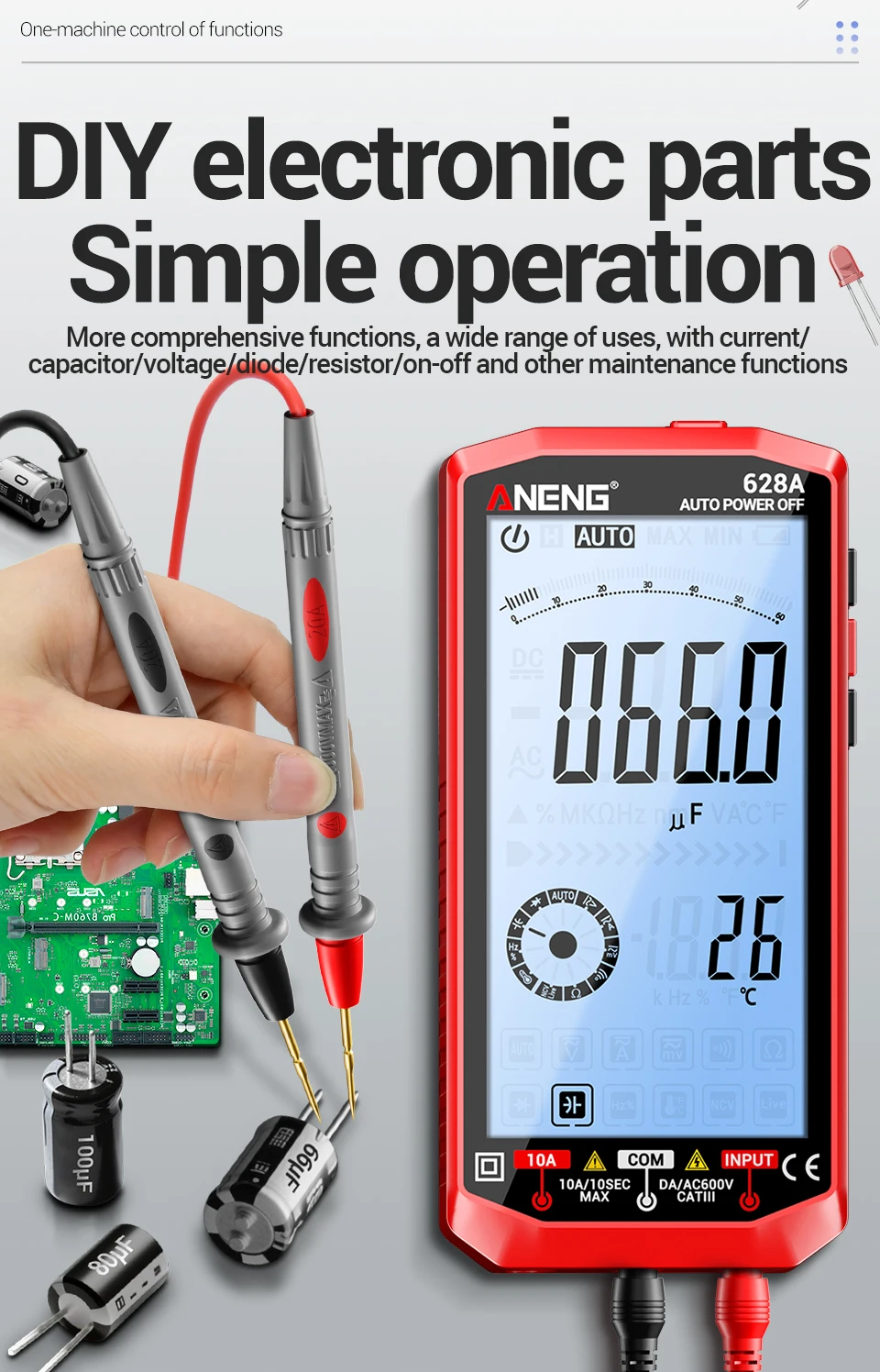

3. 0Ω-60MΩ resistance & 100mF capacitance: checks motor coils, start-caps, heater elements without extra meter

4. NCV (non-contact voltage) in tip: sweep cables to find live wire before stripping—no shock risk

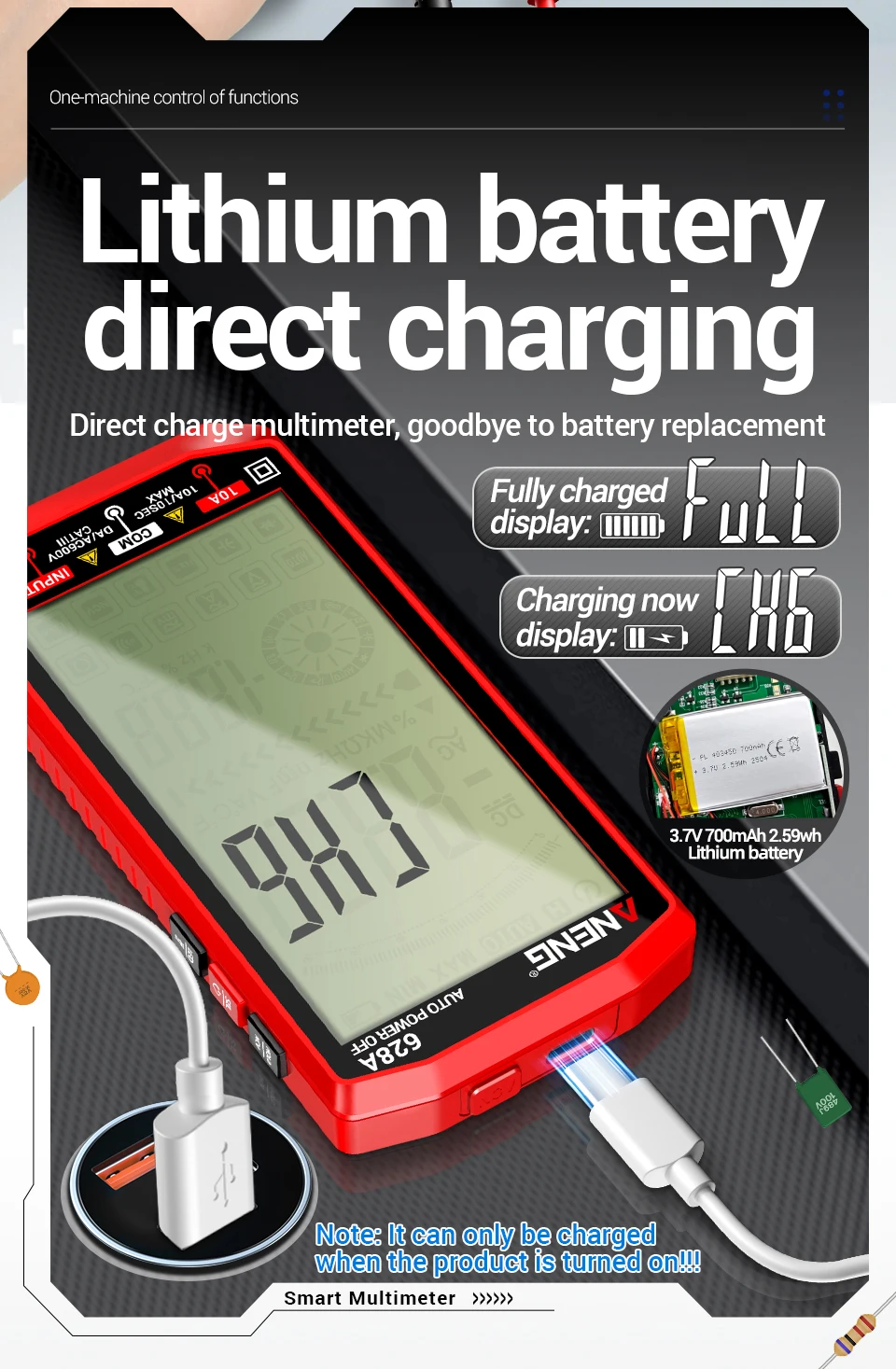

5. Type-C lithium cycle-charging: can be topped-up from phone charger/power-bank

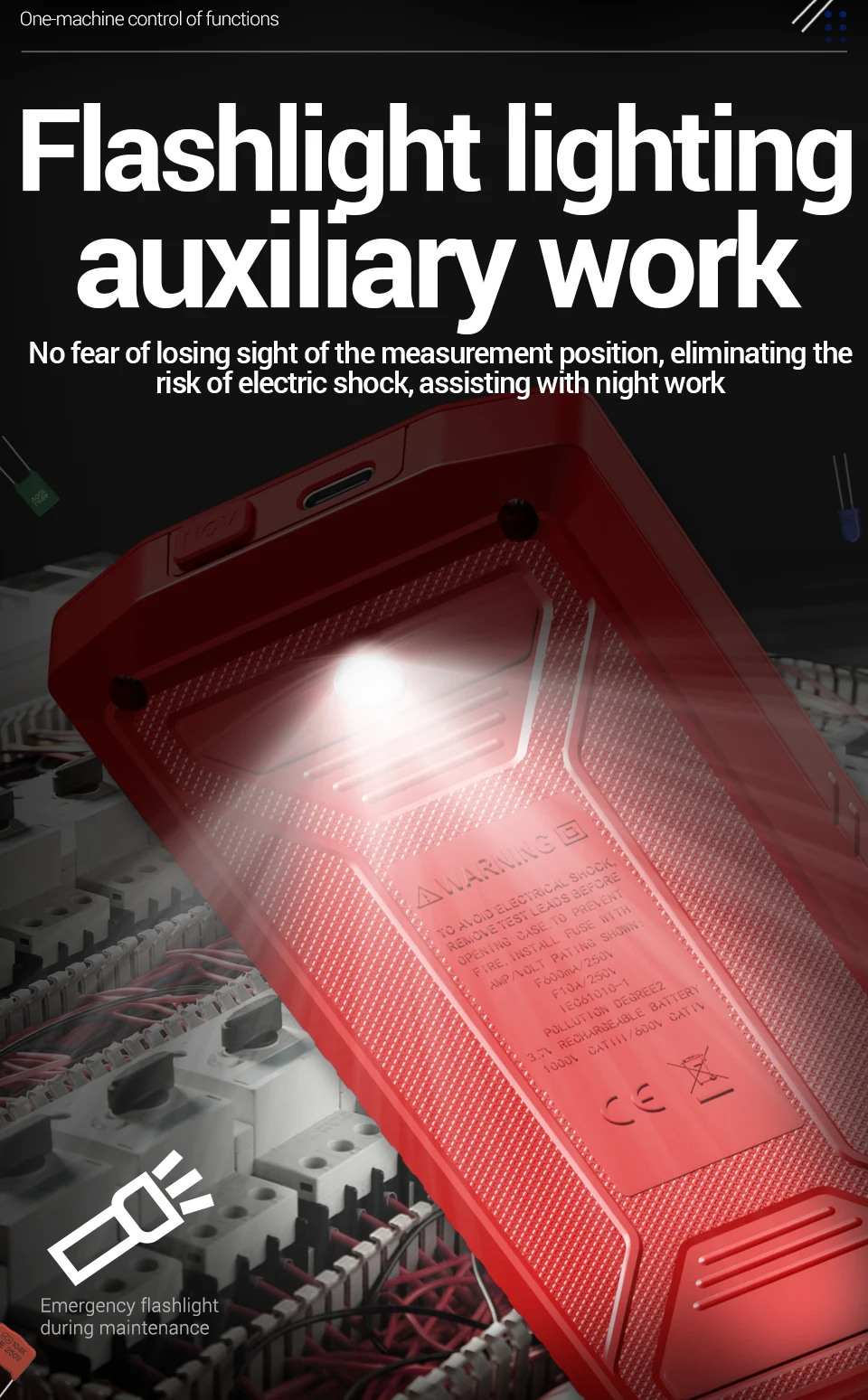

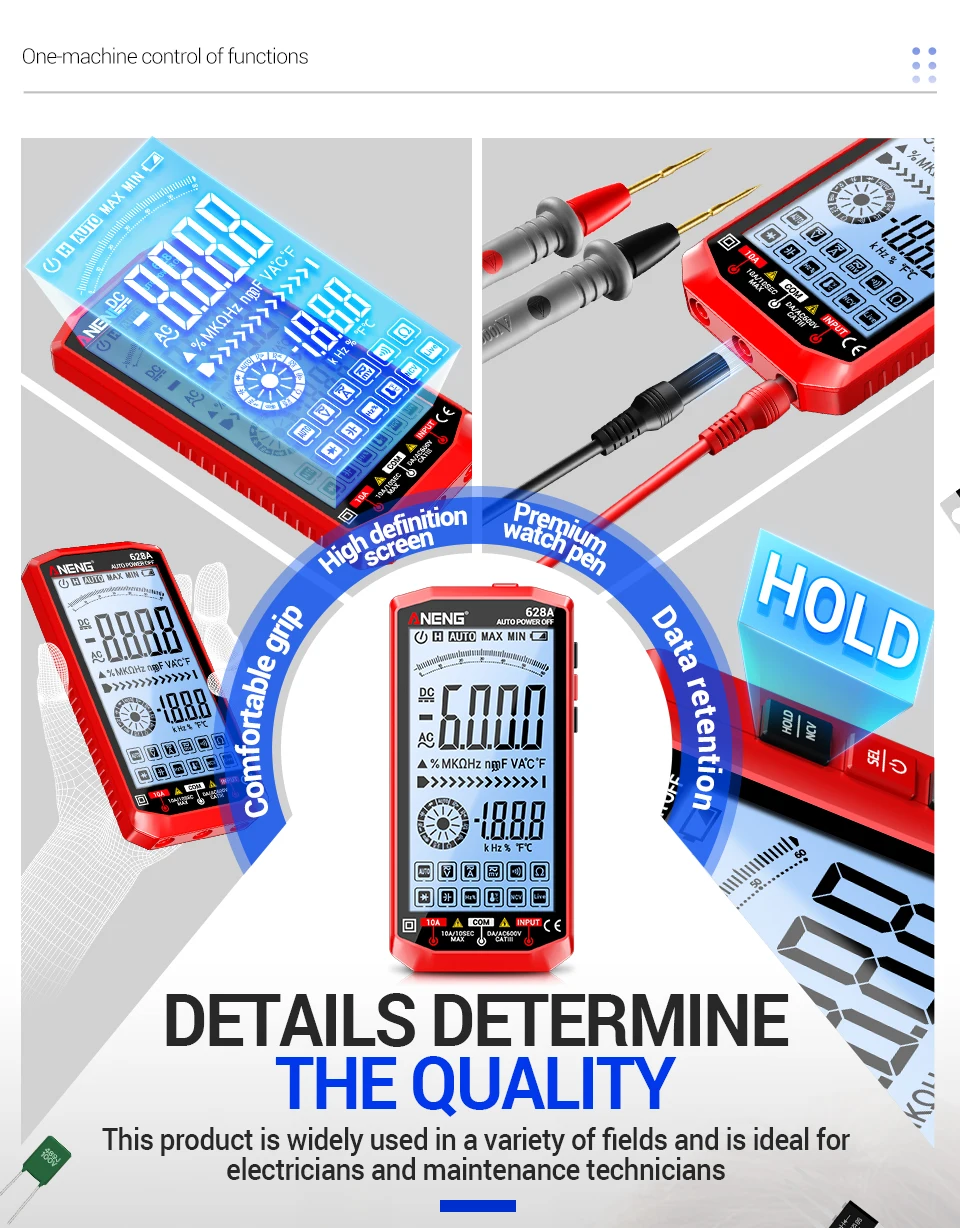

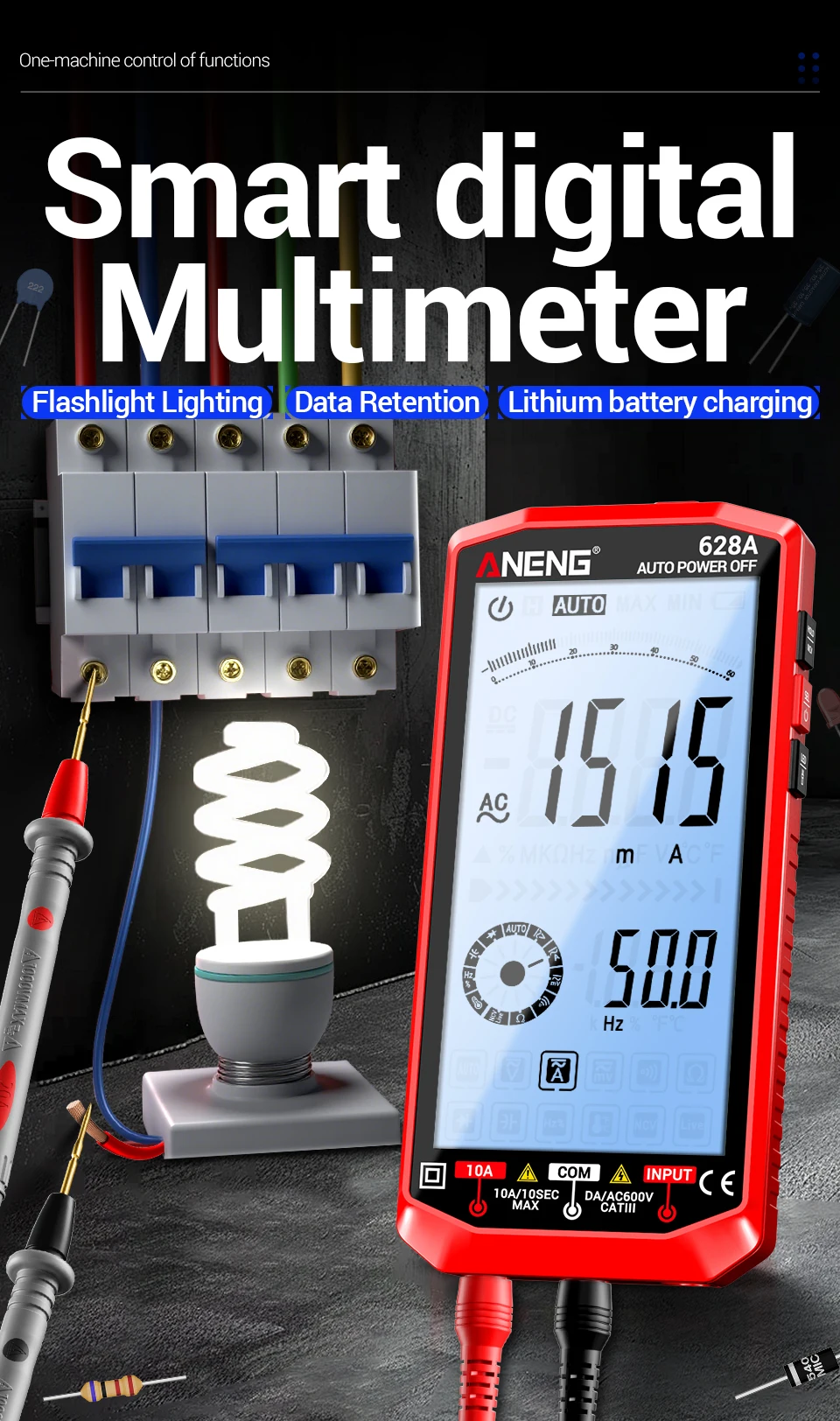

6. HD back-lit large screen + flashlight: clear data in dark panels or engine bay at night

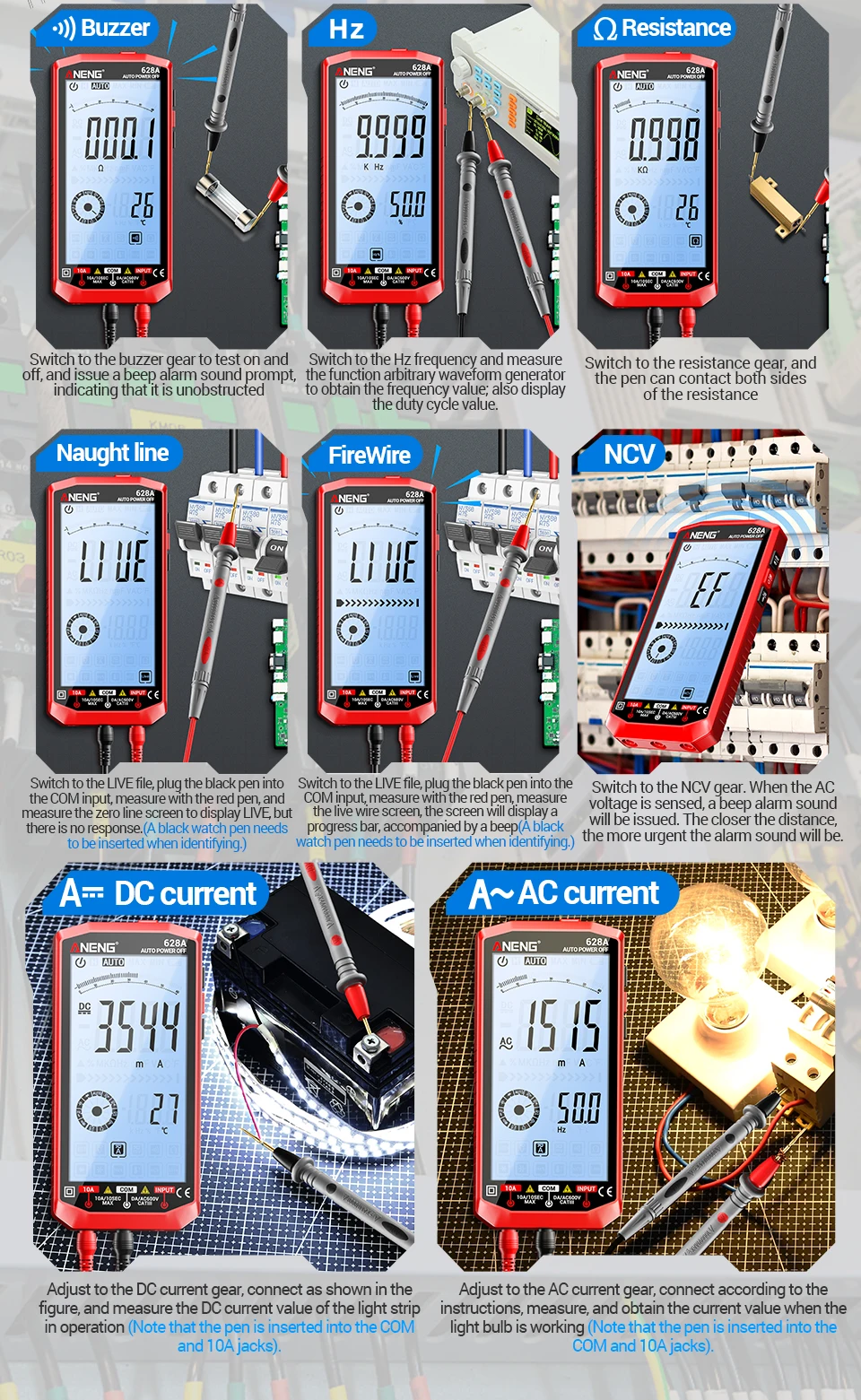

7. One-key “Hz%/ON-OFF Beep” & diode test: quick go/no-go on fuses, relays, injector triggers

8. Auto-range + data-hold + 15min auto-off: one-hand operation, ideal for ladder or under-car work

9. 165g pocket size + stylus sheath: clips on belt, fits glove-box, perfect for site debug, DIY learning, auto inspection

10.CAT III 600V: Meets the safety standards for use

Note:
(1) The product model of the package will be sent according to the SKU ordered by the customer. Please place your order carefully.
(2) When the meter is connected to the measurement circuit, do not touch the top of the pen (metal part).
(3) During measurement, if the measured voltage is higher than 60V DC or 30V AC(effective value), care should be taken to keep the finger always behind the watch pen finger guard device.
(4) If the voltage between the measuring temminal and the earth exceeds 1000V DC or 750V AC, do not measure the voltage.
(5)Voltage below 36V is a safe voltage.
(6)When changing functions and ranges, the pen should be moved away from the test point.
(7)Do not charge to measure resistance, detect line connection, capacitance, or temperature.
(8) During the resistance and line-on test range, care should be taken to avoid connecting the meter to the voltage source.

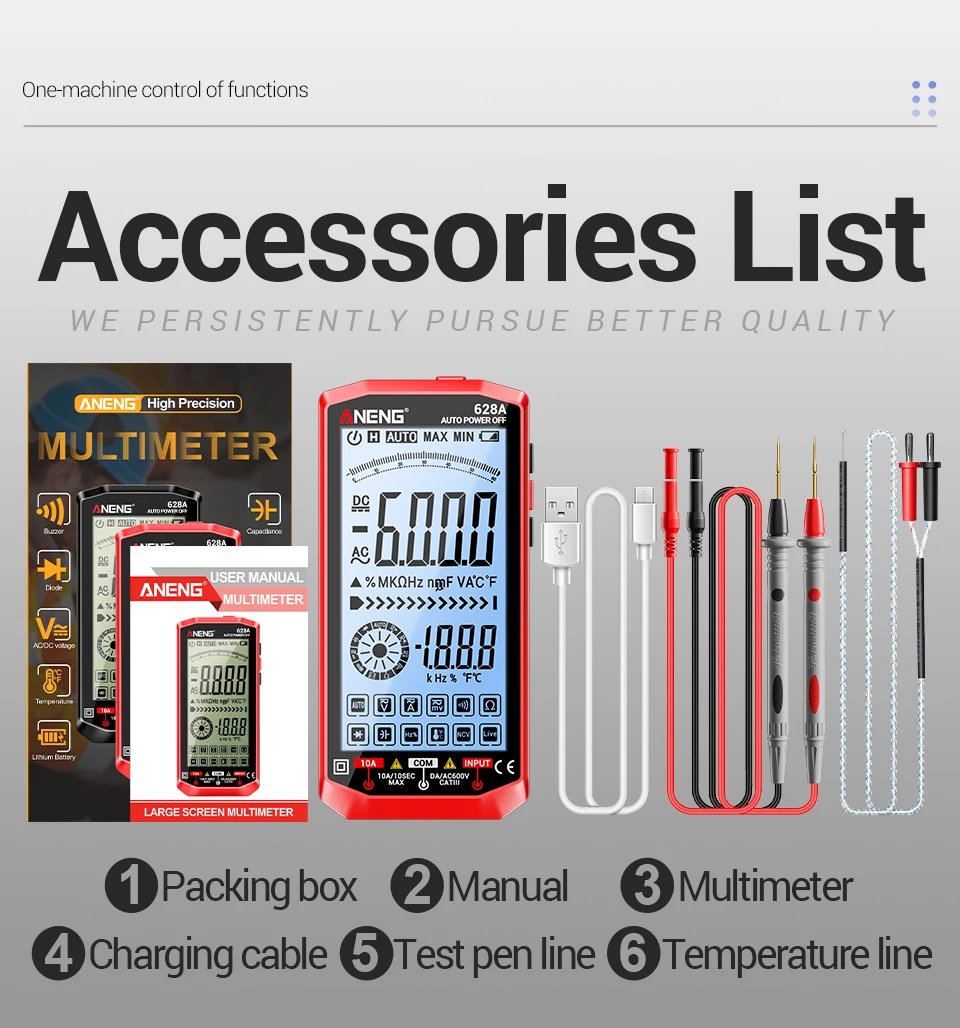

Package:

1 * Packing box

1 * multimeter

1 * Storage bag

1 * Manual

1 * Charging cable

1 * Test pen line

1 * Temperature line

1 * 16 in 1 Combined line(by the choice)
