Smartfly banana pi BPI-M64 quad-core 64 bit SBC with allwinner A64 1.2 Ghz Quad-Core ARM Cortex A53 Android and Linux Demo Board

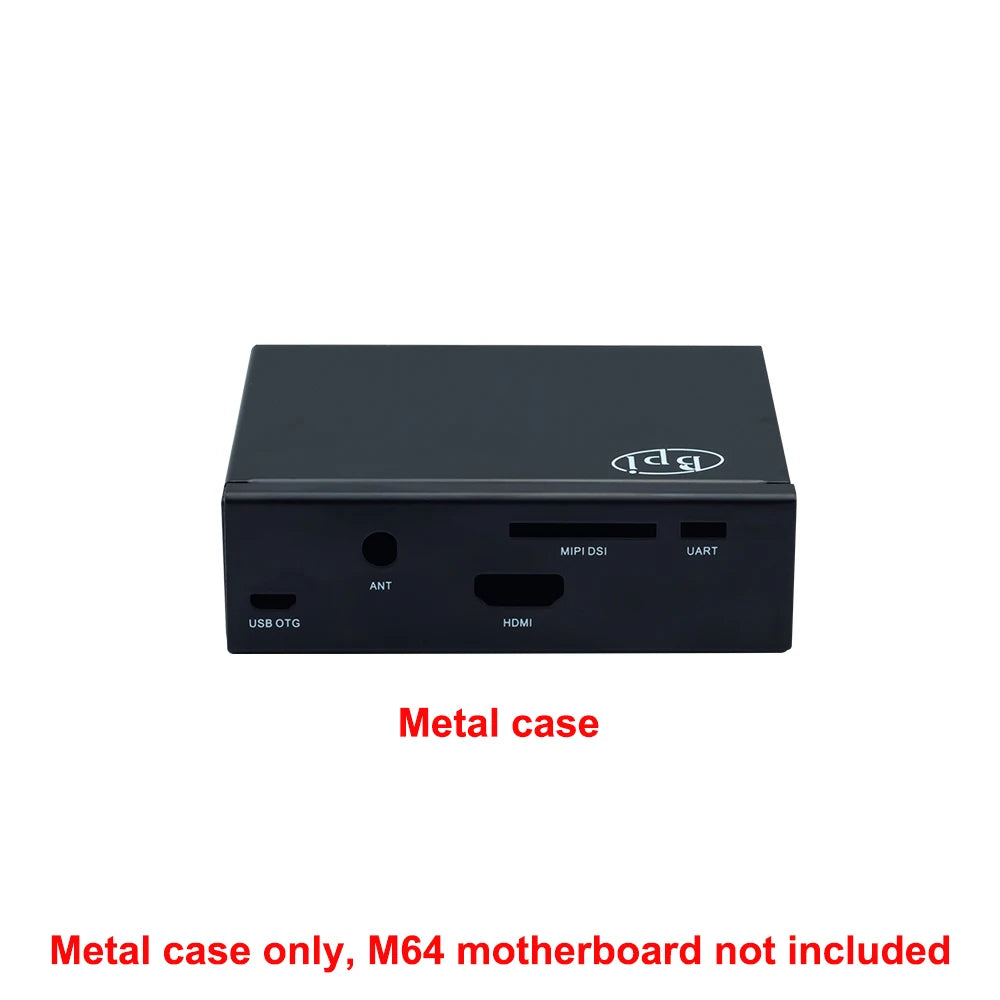

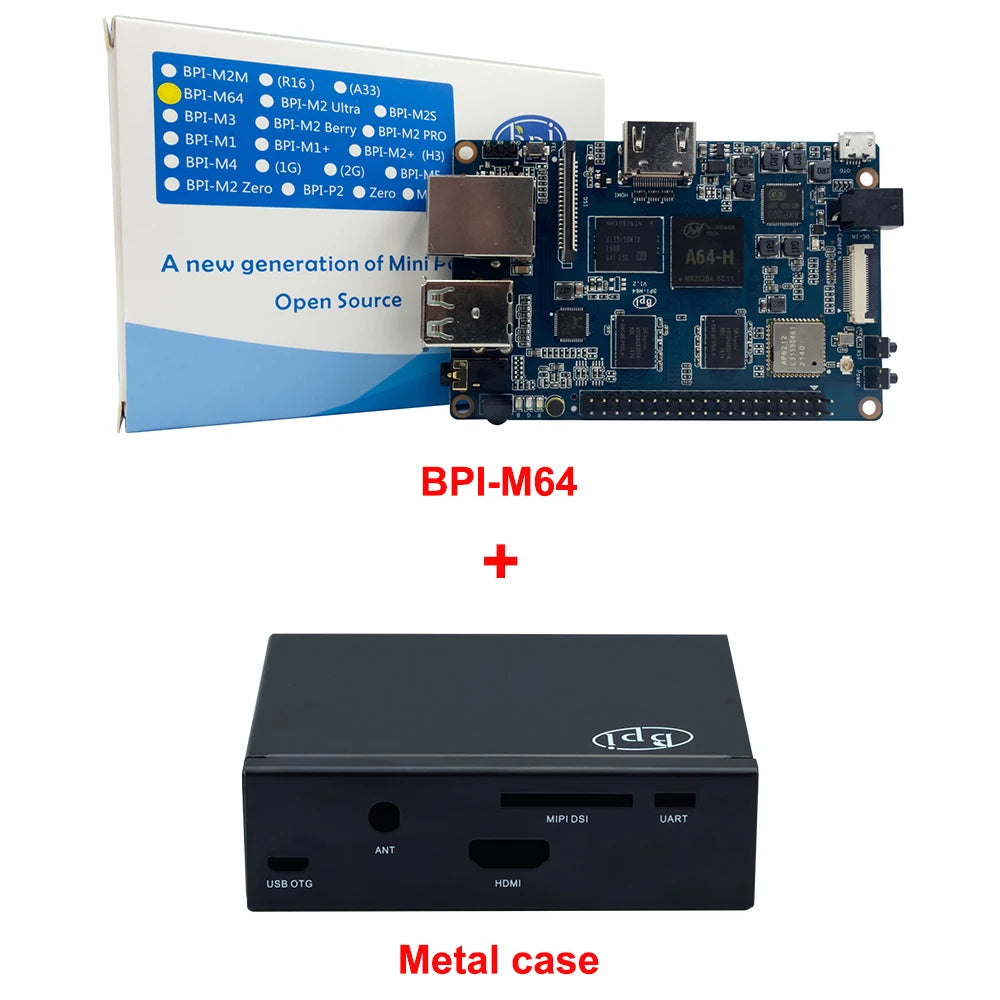

only case / China Mainland
$128.16
Sale price
$128.16
Regular price
$0.00
Skip to product information
Smartfly banana pi BPI-M64 quad-core 64 bit SBC with allwinner A64 1.2 Ghz Quad-Core ARM Cortex A53 Android and Linux Demo Board
$128.16
Sale price
$128.16
Regular price
$0.00
Description
SPECIFICATIONS
Battery Included: no
Brand Name: youyeetoo
Demo Board Type: ARM
GPU: Dual core Mali 400 MP2 GPU
High-concerned chemical: none
Interface: 2 x USB2.0,TF Card Support,USB OTG
Intergrated Feature: 10/100/1000Mbps,WiFi 802.11b/g/n,Bluetooth
Memory Capacity: 2GB
Model Number: Banana Pi M64
OS: Android and Linux
Origin: Mainland China
Processor Brand: Allwinner
ROM Capacity: 8 GB
Size & Weight: 92x60mm, 48g

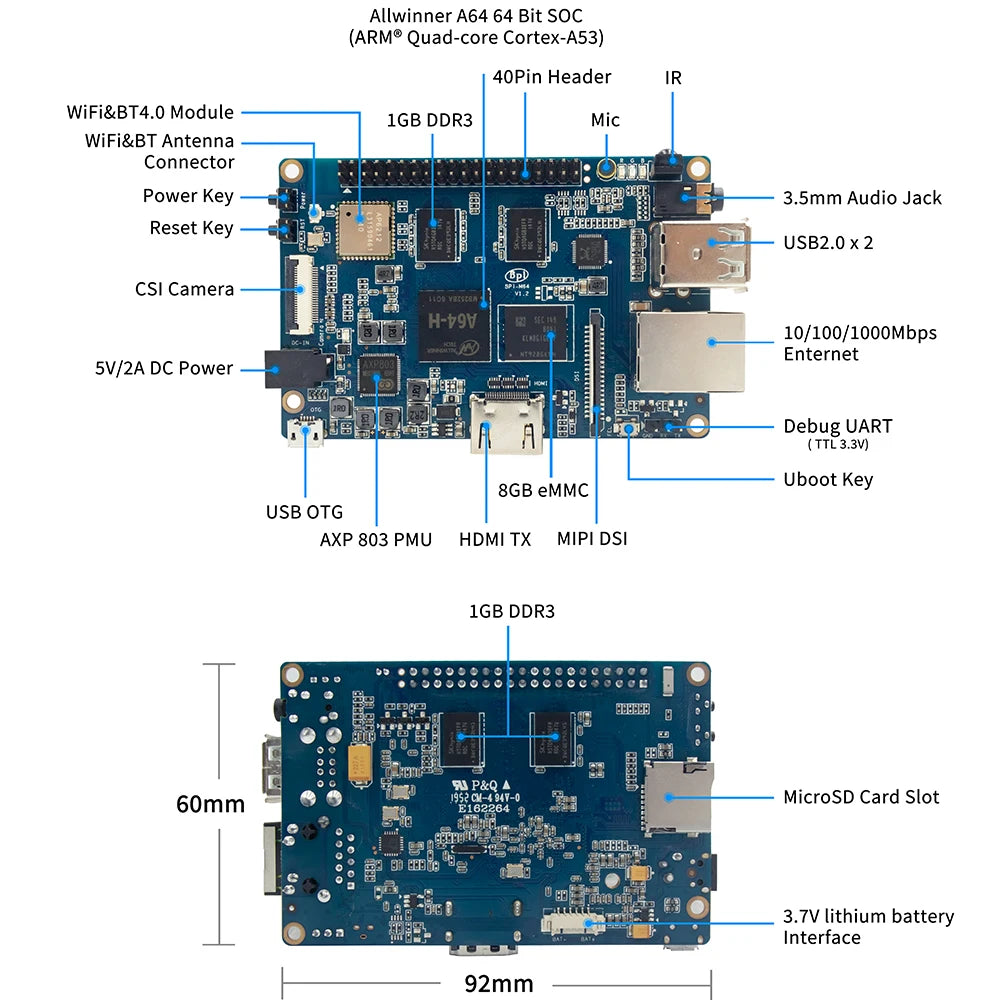

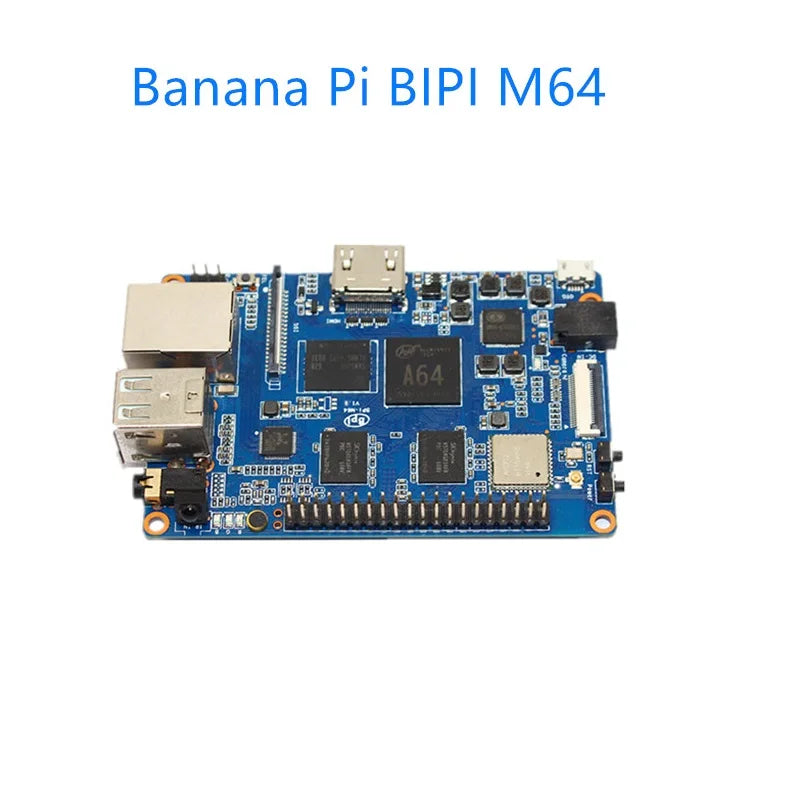

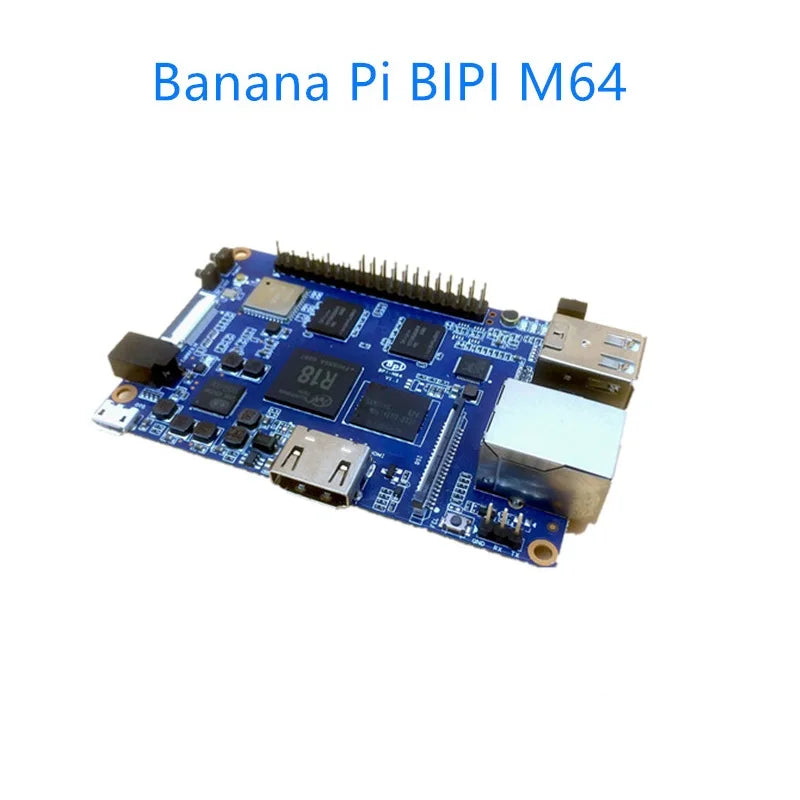

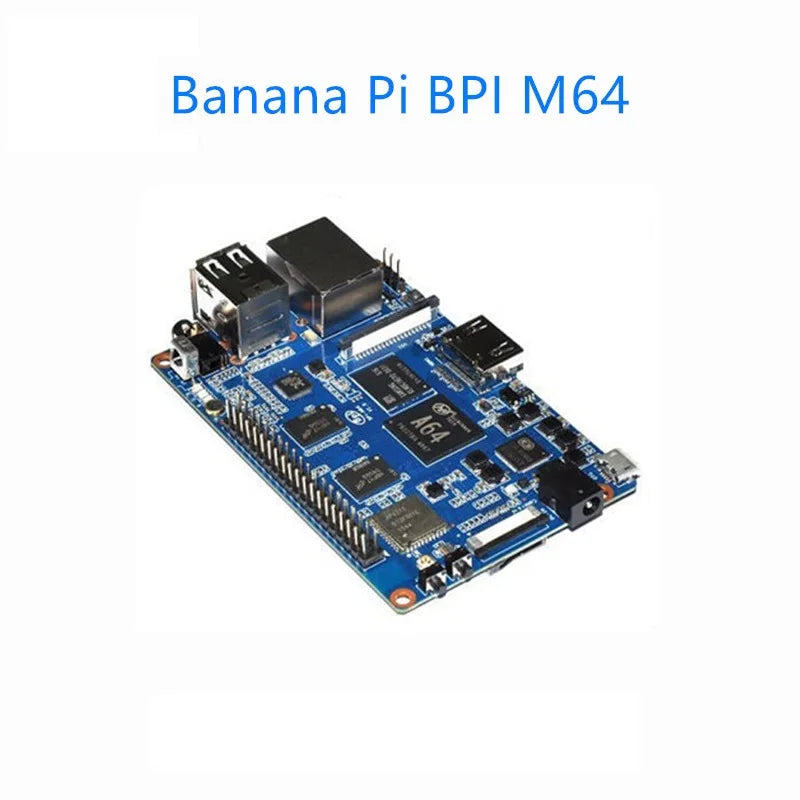

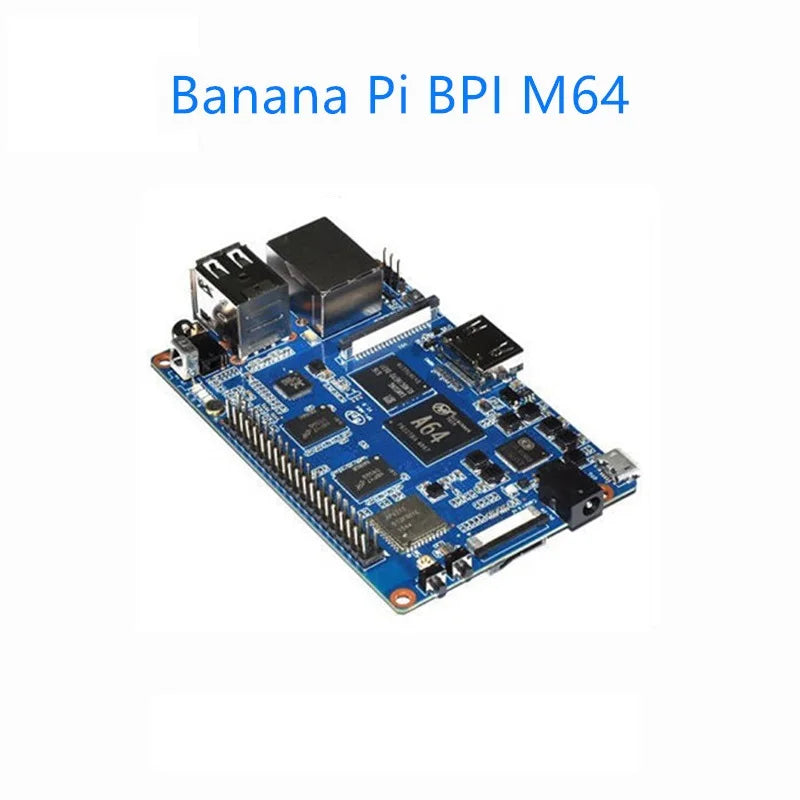

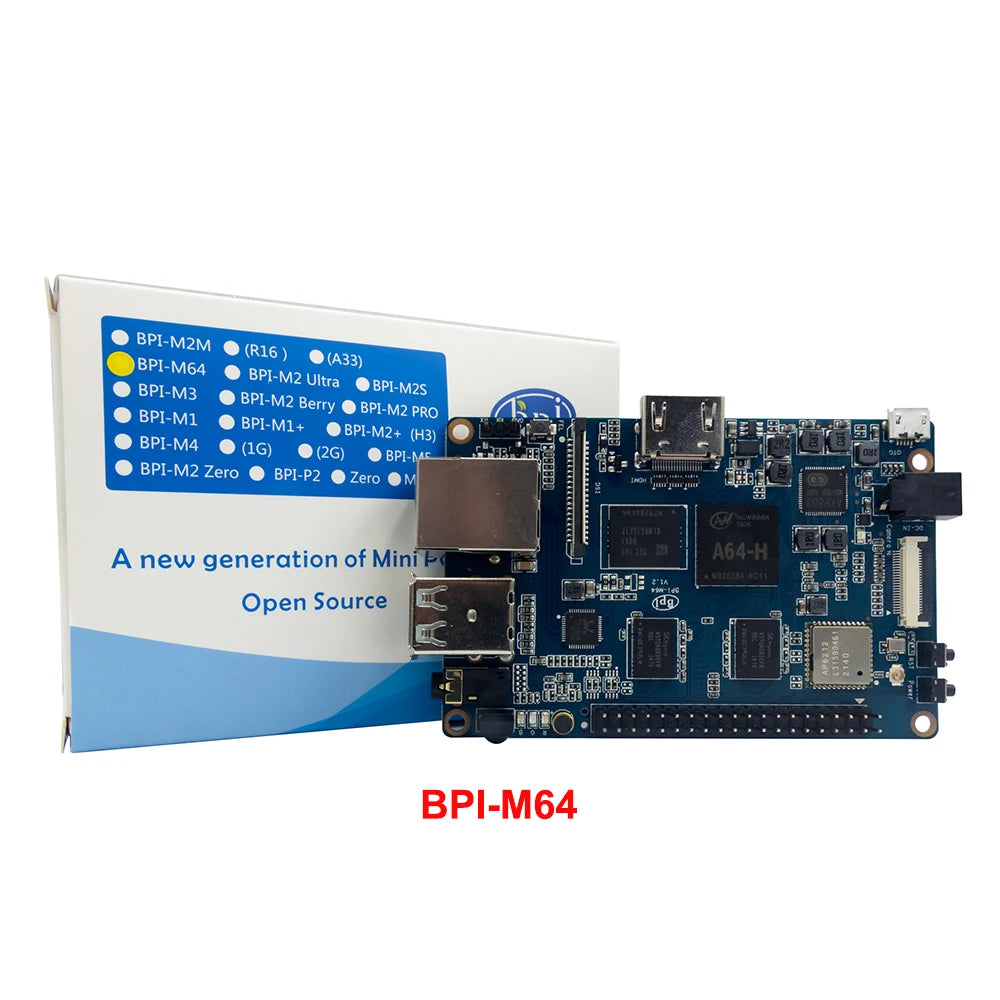

Banana Pi BPI-M64 is a 64-bit quad-core mini single board computer. It features 2GB of RAM and 8GB eMMC. It also has onboard WiFi and BT. On the ports side, the BPI-M64 has 2 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, and lastly a DC power port. The processor is pin-to-pin comptialbe with R18, so it comes with two versions:M64 and M64-R18.
BPI-M64 is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.

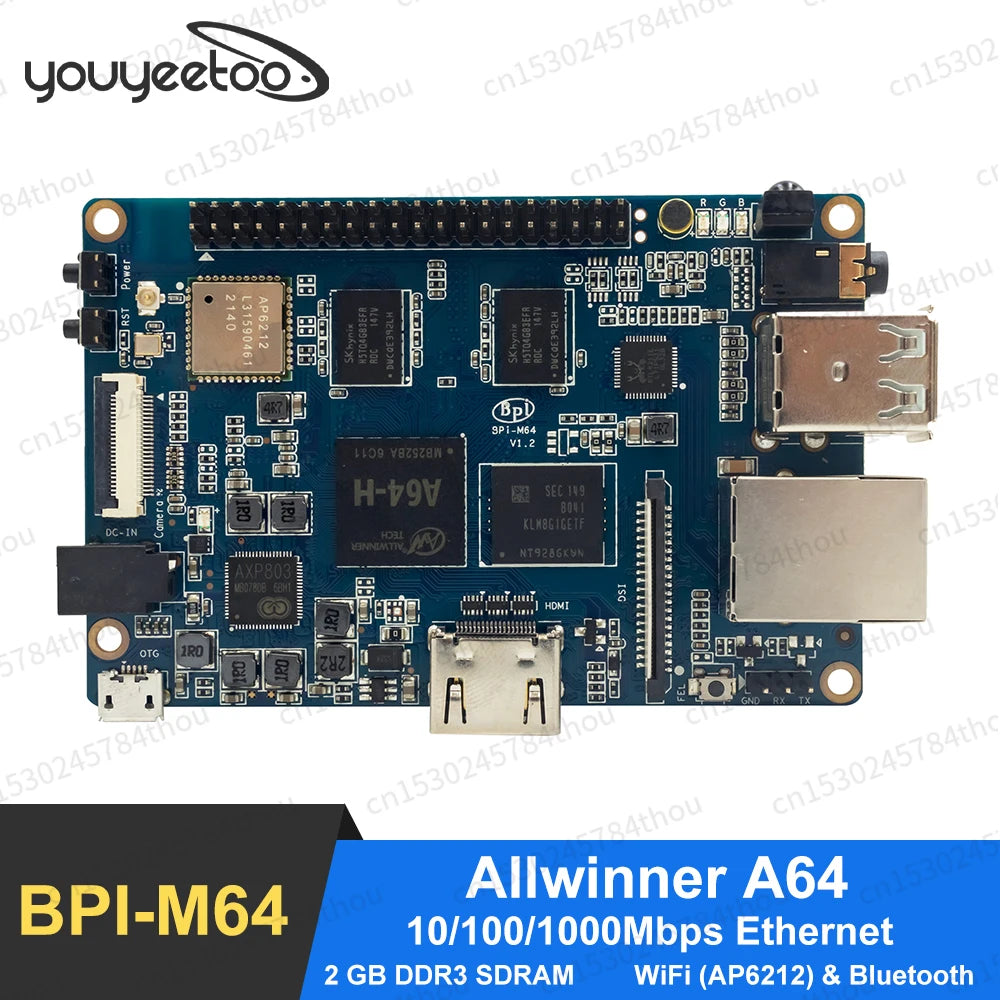

Key Features
Allwinner A64 1.2 Ghz Quad-Core ARM Cortex A53 64-Bit Processor.
2 GB DDR3 SDRAM
8G EMMC
10/100/1000Mbps Ethernet
WiFi (AP6212) & Bluetooth
MIPI LCD interface
Camera interface

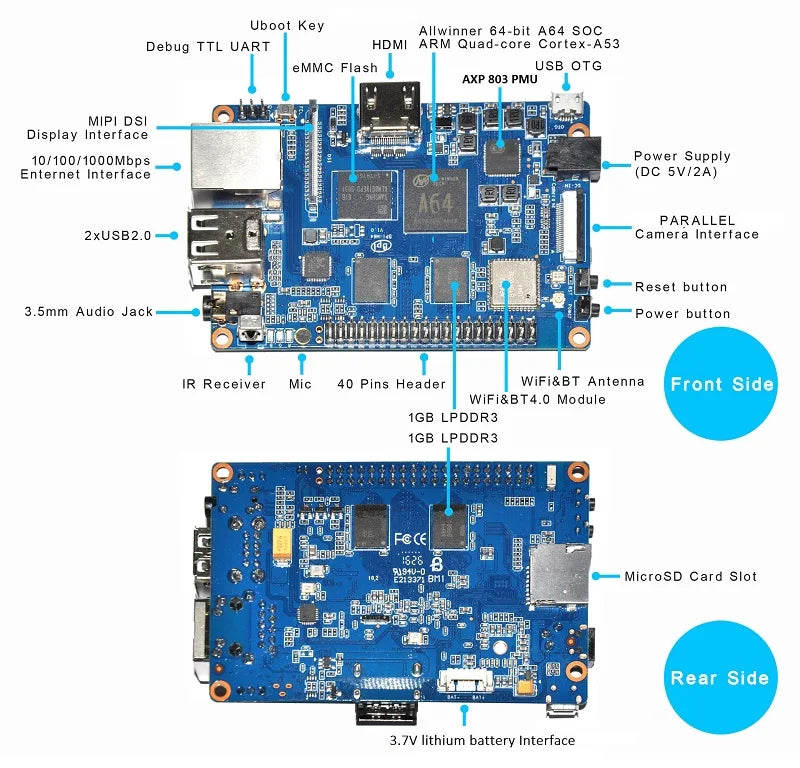

Hardware spec
Banana Pi M64 |
|
CPU |
Allwinner A64 64 bit Quad Core ARM Cortex A53 1.2 GHz CPU |
GPU |
Dual core Mali 400 MP2 GPU |
SDROM |
2 GB LPDDR3 (shared with GPU) |
Flash |
8 G eMMC flash (option 16/32/64G) |
Micro SD slot |
8-64G MicroSD \(TF\) card |
Network |
10/100/1000 Mbit/s Ethernet |
WIFI*BT |
Wi-Fi 802.11 b/g/n + Bluetooth BT4.0 |
Video Input(s) |
A CSI input connector allows for the connection of a designed camera module |
Video Output(s) |
high-definition video playback & 2K HDMI port and multi-channel audio output (NO H./X.265 capabilities) |
Audio Input(s) |
On board microphone |
Audio Output(s) |
3.5mm jack and HDMI |
USB ports |
USB 2.0 PORT (x2), USB OTG (x1) |
Remote |
IR Receiver (x1) |
GPIO |
40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O Pin can be used for specific functions as UART, I2C, SPI or PWM |
Switches |
Reset, Power and U-boot |
LED |
Power Status and 8P8C |
Power Source |
5 volt @2A via DC Power and/or Micro USB (OTG) |
Size & Weight |
92x60mm, 48g |
OS |
Android and Linux |
Hardware interface:

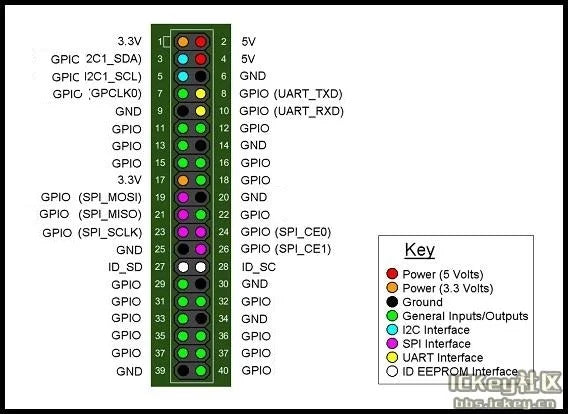

GPIO PIN define
Banana Pi BPI-M64 has a 40-pin GPIO header that matches that of the Model Raspberry Pi 3. Following is the Banana Pi GPIO Pinout:
