SMD Fast Recovery Schottky Barrier Switching Rectifier Diode M1 M4 M7 S1M S2M S3M RS1M US1M SS14 SS16 SS24 SS26 SS34 SS36 LL4148
100Pcs SS34 SMA / China Mainland
$19.58
Sale price
$19.58
Regular price
$0.00
Skip to product information
SMD Fast Recovery Schottky Barrier Switching Rectifier Diode M1 M4 M7 S1M S2M S3M RS1M US1M SS14 SS16 SS24 SS26 SS34 SS36 LL4148
$19.58
Sale price
$19.58
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: CHANZON
Choice: yes
Condition: New
High-concerned chemical: none
Max. Forward Current: AC 1A 2A 3A 12A 15mA Amp High Frequency Current Silicon Kit Assortment
Max. Forward Voltage: 40V 50V 60V 100V 200V 300V 400V 600V 1000V Low Voltage DC Set SMA SMB
Max. Reverse Current: Ultra Electronic Single Phase Axial Semiconductor ESD Protection LL-34
Max. Reverse Voltage: ES1D ES1J US1J SS12 SS110 SS210 SS310 BAS16 BAW56 BAV70 BAV99 1N4148W
Model Number: ES1D ES1J US1J SS12 SS110 SS210 SS310 BAS16 BAW56 BAV70 BAV99 1N4148W
Origin: Mainland China
Package Type: Surface mount
Type: Schottky Diode
Voltage: 110V
is_customized: Yes
semi_Choice: yes
SMD Fast Recovery Schottky Barrier Switching Rectifier Diode M1 M4 M7 S1M S2M S3M RS1M US1M SS14 SS16 SS24 SS26 SS34 SS36 LL4148

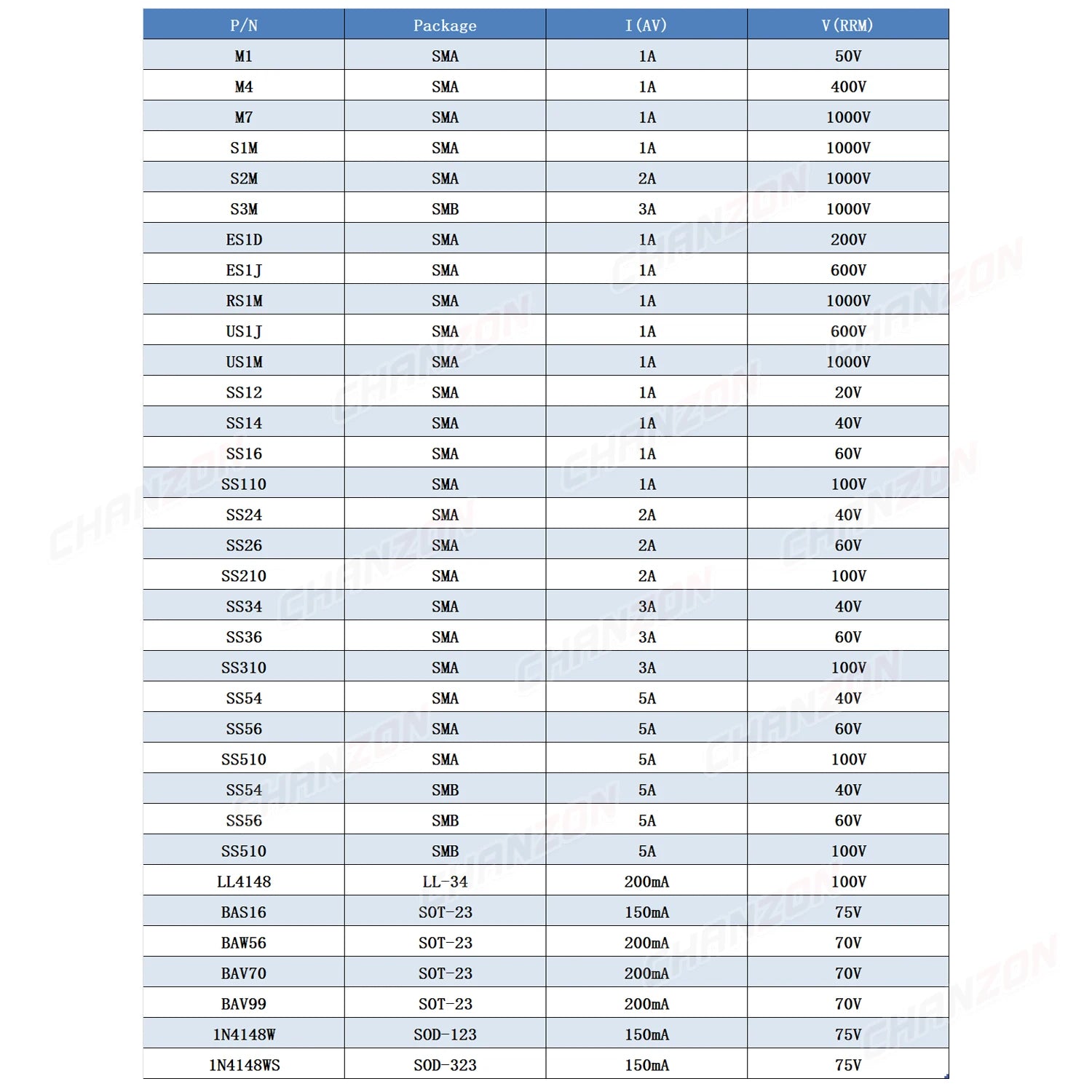

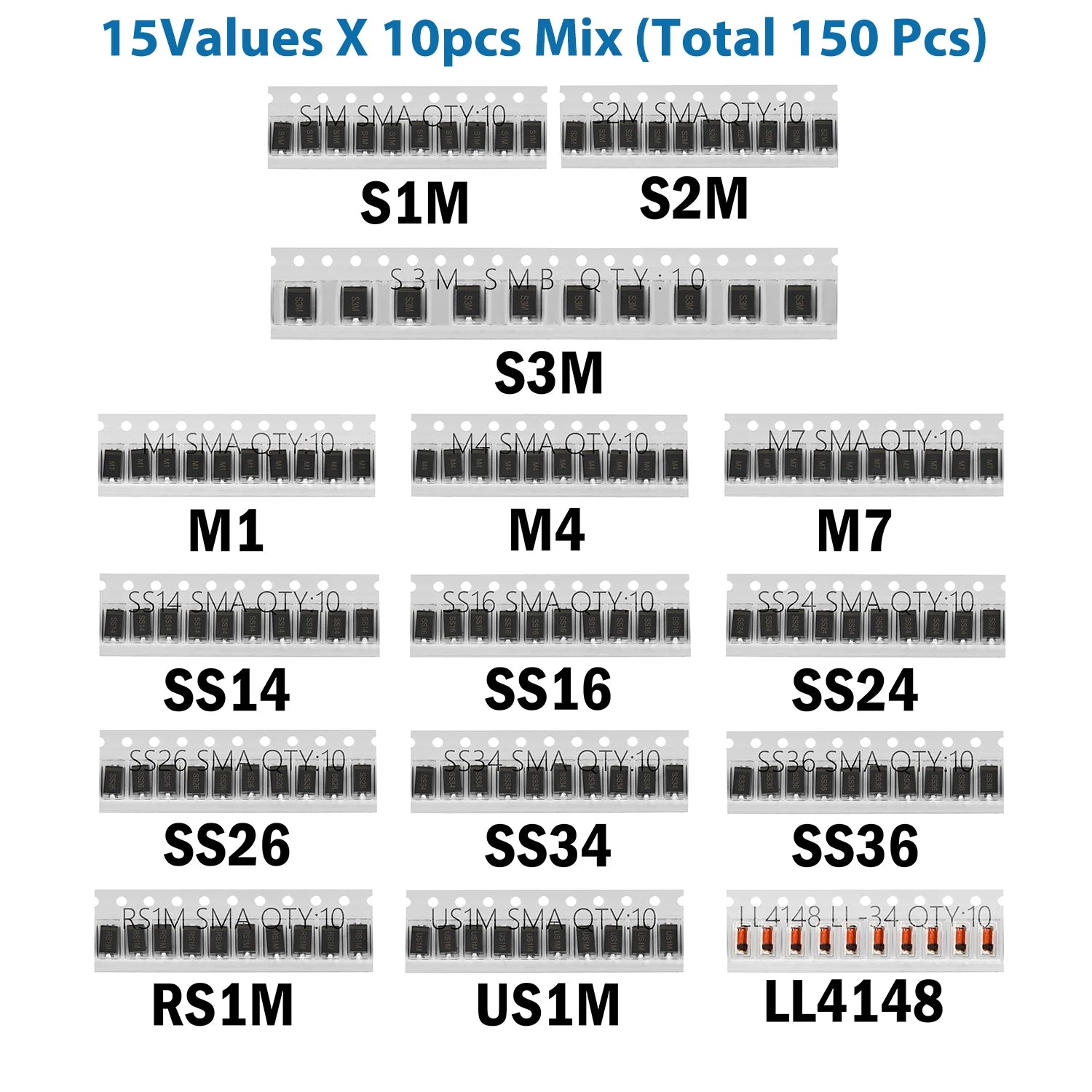

15Values X 10pcs Mix Diode Kit (14 Part numbers, Total 150 pcs):
Rectifier Diode
10 * M1 (1A 50V)
10 * M4 (1A 400V)
10 * M7 (1A 1000V)
10 * S1M (1A 1000V)
10 * S2M (2A 1000V)
10 * S3M (3A 1000V)
Fast Recovery Diode
10 * RS1M (1A 1000V)
10 * US1M (1A 1000V)
Switching Diodes
10 * LL4148 (200mA 100V)
Schottky Diodes
10 * SS14 (1A 40V)
10 * SS16 (1A 60V)
10 * SS24 (2A 40V)
10 * SS26 (2A 60V)
10 * SS34 (3A 40V)
10 * SS36 (3A 60V)
If you need datasheet of diode,pls feel free to contact us.
