SMD Fast Switching Schottky Diode Assorted Kit Set M1 M4 M7 S1M S2M S3M SS14 SS16 SS24 SS26 SS34 SS36 RS1M US1M LL4148
100pcs RS1M (1000V) / China Mainland
$16.97
Sale price
$16.97
Regular price
$0.00
Skip to product information
SMD Fast Switching Schottky Diode Assorted Kit Set M1 M4 M7 S1M S2M S3M SS14 SS16 SS24 SS26 SS34 SS36 RS1M US1M LL4148
$16.97
Sale price
$16.97
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: CHANZON
Choice: yes
Condition: New
High-concerned chemical: none
Max. Forward Current: 1A 2A 3A (Surface Mount Silicon Diodes for Arduino DIY Projects)
Max. Forward Voltage: Standard (Lead-Free & RoHS) Fast Recovery schottky Barrier diode
Max. Reverse Current: Standard (LL 4148)
Max. Reverse Voltage: 40V 50V 60V 100V 400V 1000V (Silicon Set Lead Free Package)
Model Number: 15 Values Total Rectifier Electronic Component Assortment Set
Origin: Mainland China
Package: Pack in ESD Package with Spec Label
Package Type: Surface mount
Total Pack: 150Pcs (15 Part Numbers each 10pcs) with different current and Voltage
Type: Schottky Diode
Voltage: 3V
is_customized: Yes
semi_Choice: yes
More Related Products:
|
S1M (1A 1000V) |
S2M (2A 1000V) |
S3M (3A 1000V) |
M1 (1A 50V) |
|
M4 (1A 400V) |
M7 (1A 1000V) |
SS14 (1A 40V) |
SS16 (1A 60V) |
|
SS24 (2A 40V) |
SS26 (2A 60V) |
SS34 (3A 40V) |
SS36 (3A 60V) |
|
RS1M (1A 1000V) |
US1M (1A 1000V) |
LL4148 (200mA 100V ) |
Rectifier Diode |
TVS Diode |
Bridge Rectifier Diode |
Zener Diode |
Schottky Barrier Rectifier Diode |
Small Signal Switching Diode |
DIAC Bidirectional Trigger Diode |
Germanium Diode |
Product Features:

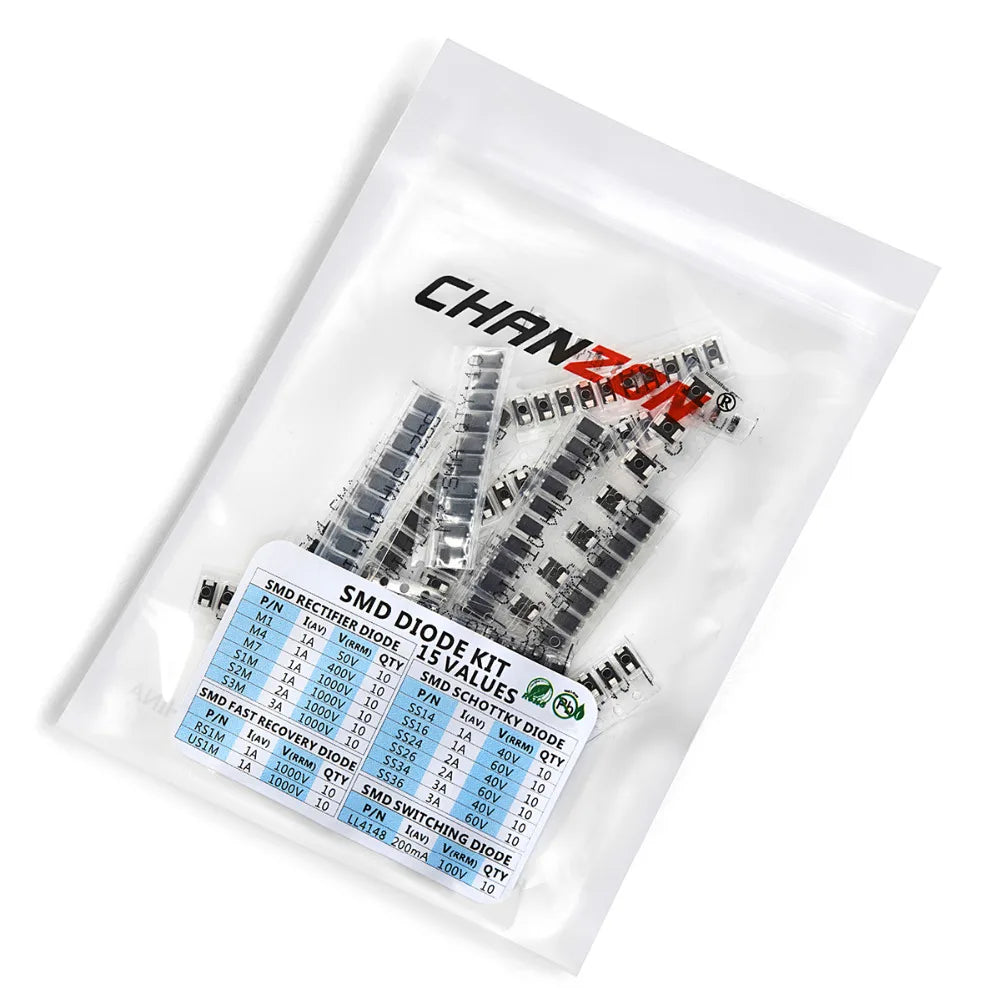

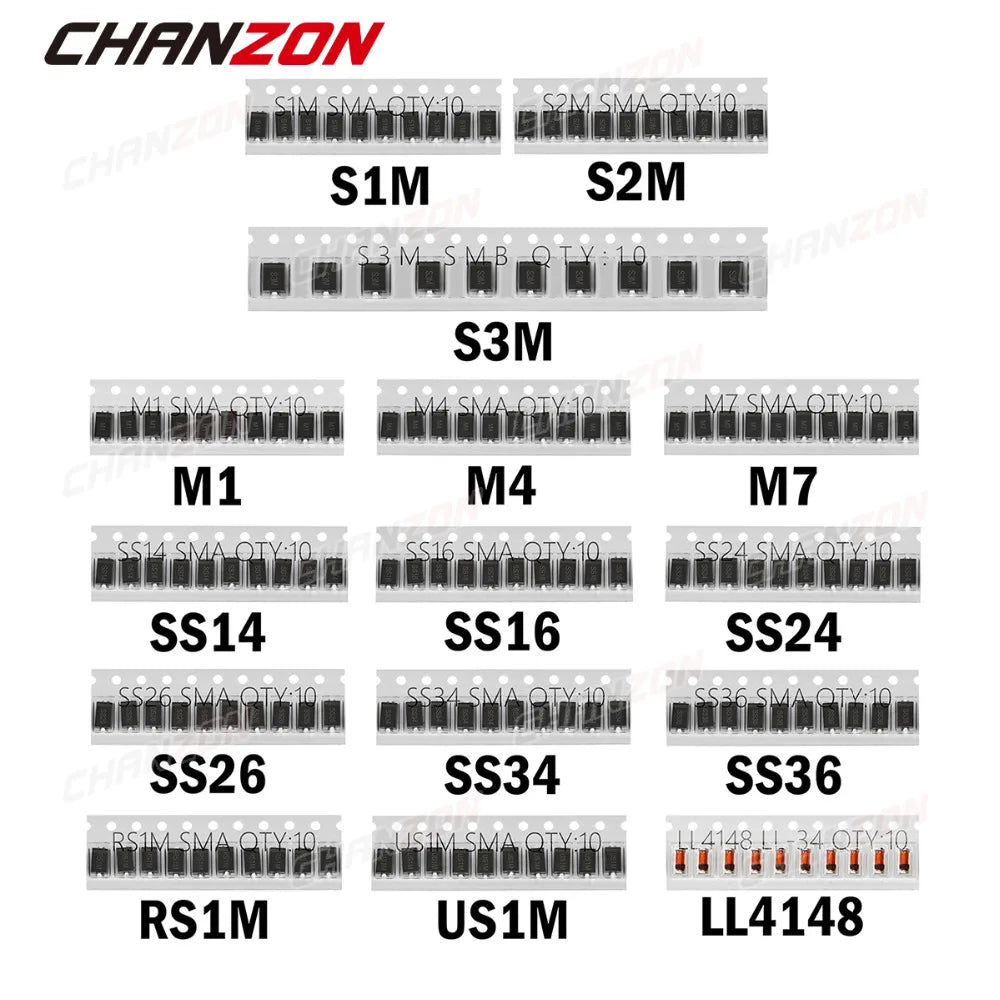

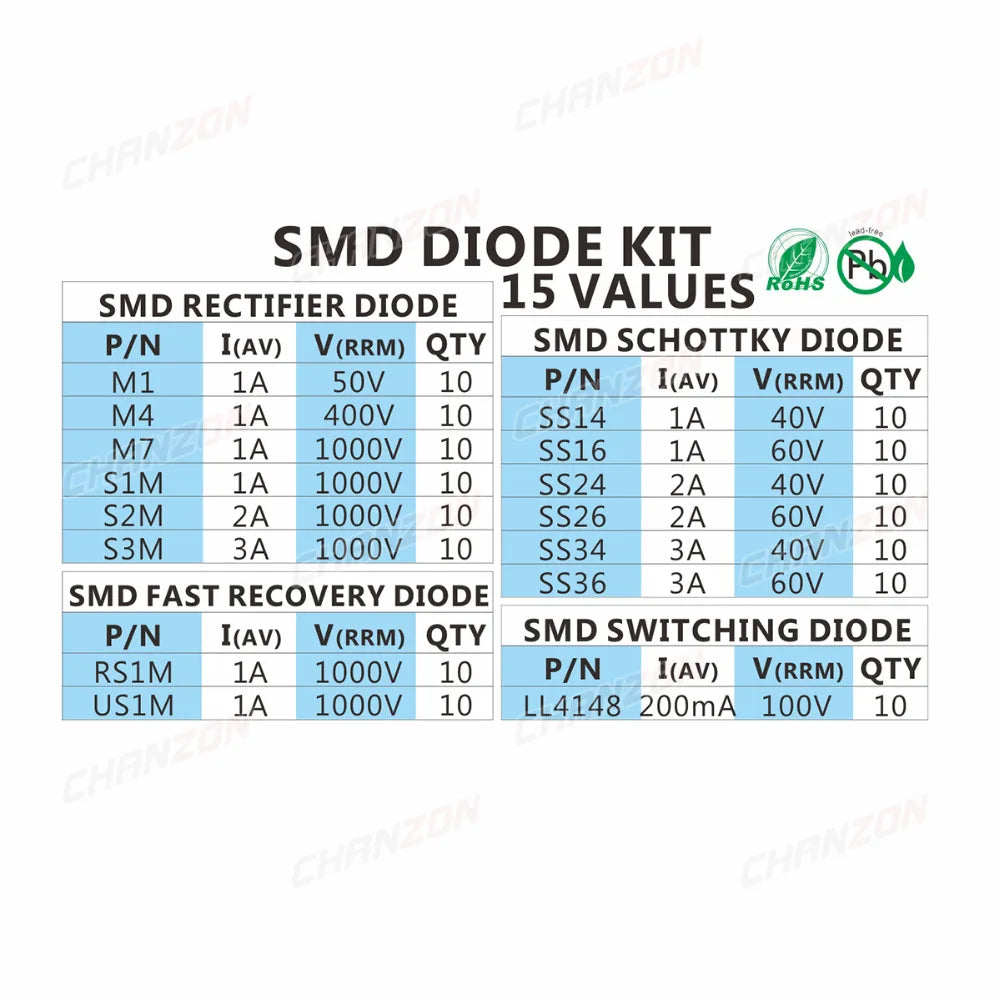

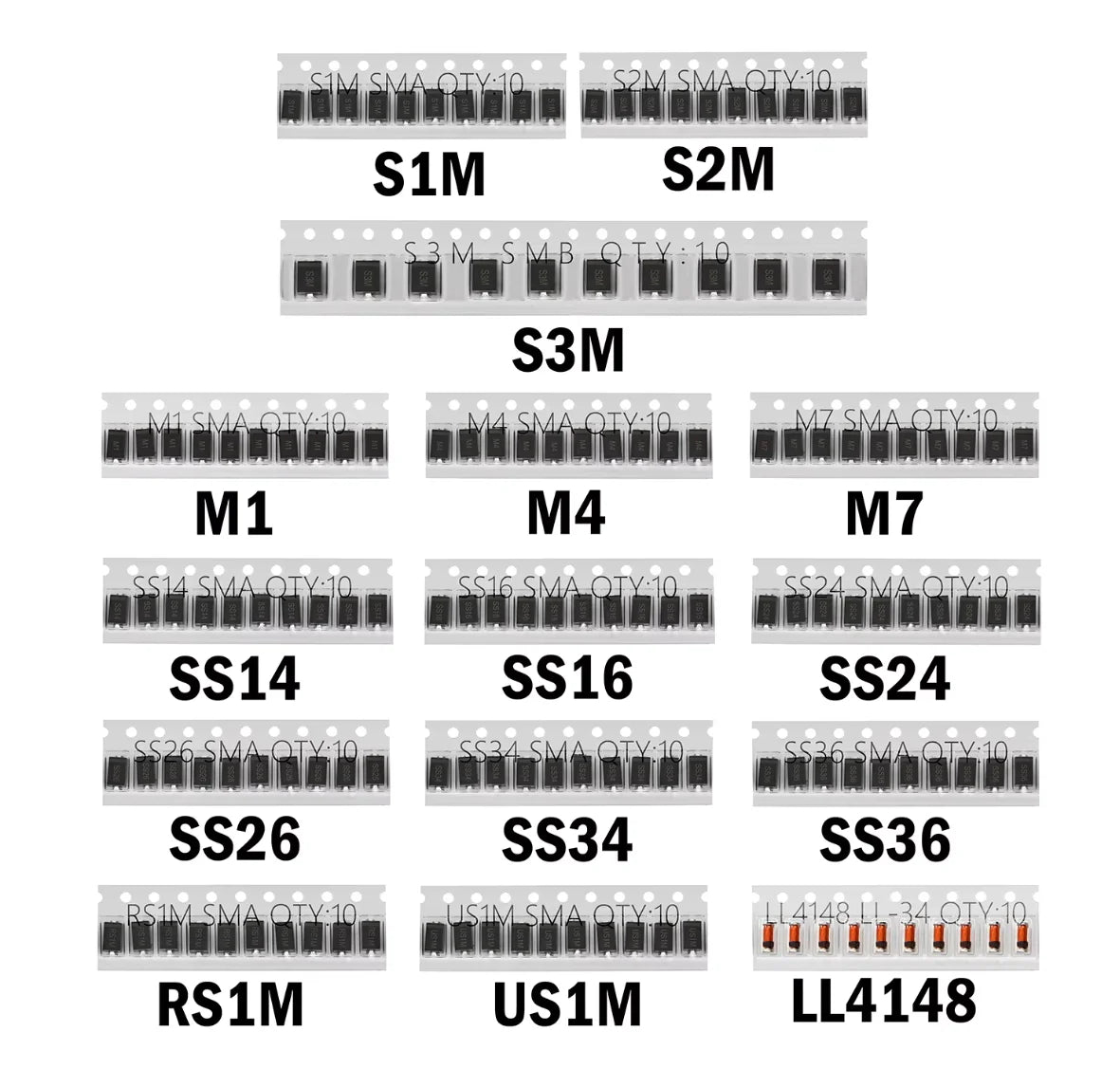

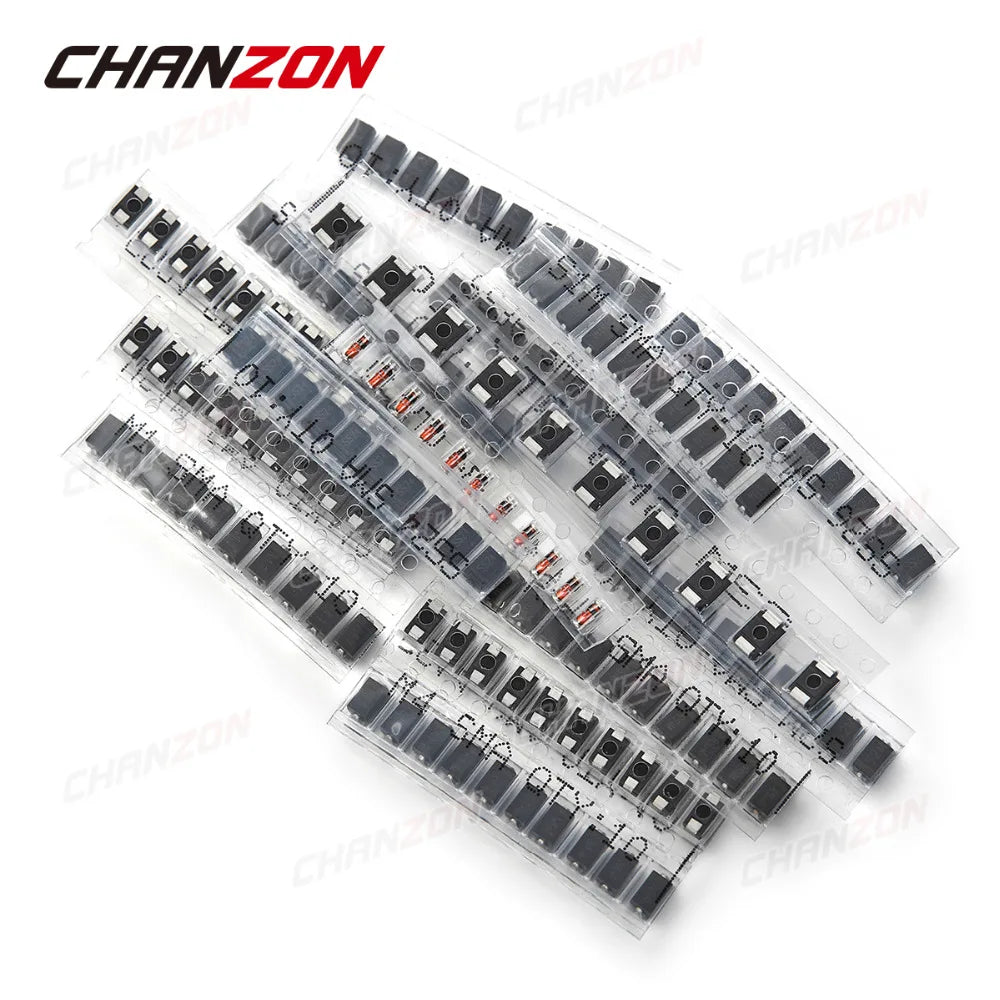

SMD Diodes Assorted Kit (15 Values, each 10 pcs, total 150 pcs)
Rectifier Diode
10 * M1 (1A 50V)
10 * M4 (1A 400V)
10 * M7 (1A 1000V)
10 * S1M (1A 1000V)
10 * S2M (2A 1000V)
10 * S3M (3A 1000V)
Fast Recovery Diode
10 * RS1M (1A 1000V)
10 * US1M (1A 1000V)
Switching Diodes
10 * LL4148 (200mA 100V)
Schottky Diodes
10 * SS14 (1A 40V)
10 * SS16 (1A 60V)
10 * SS24 (2A 40V)
10 * SS26 (2A 60V)
10 * SS34 (3A 40V)
10 * SS36 (3A 60V)
