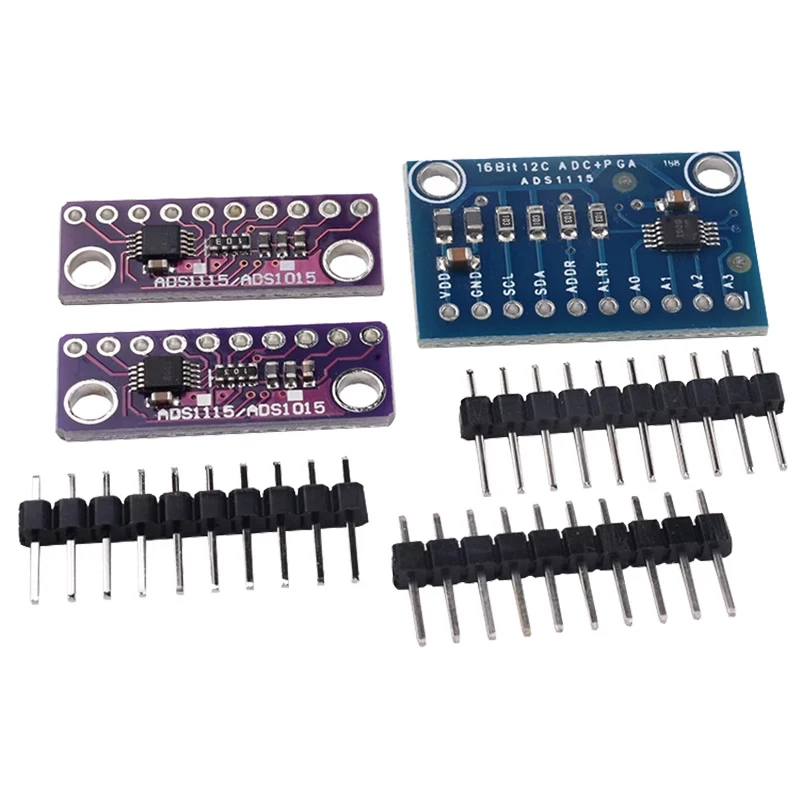

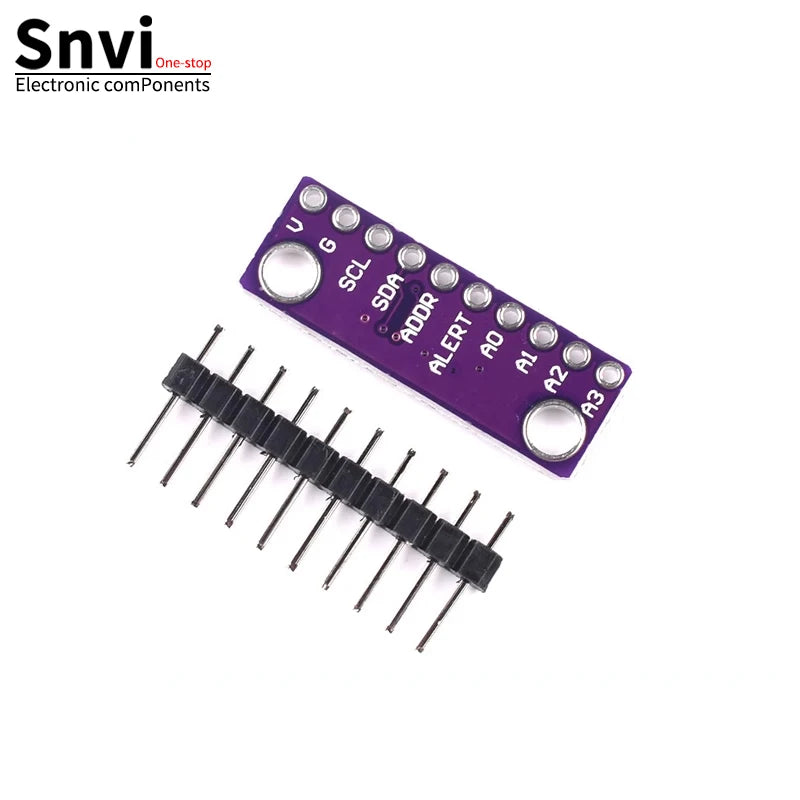

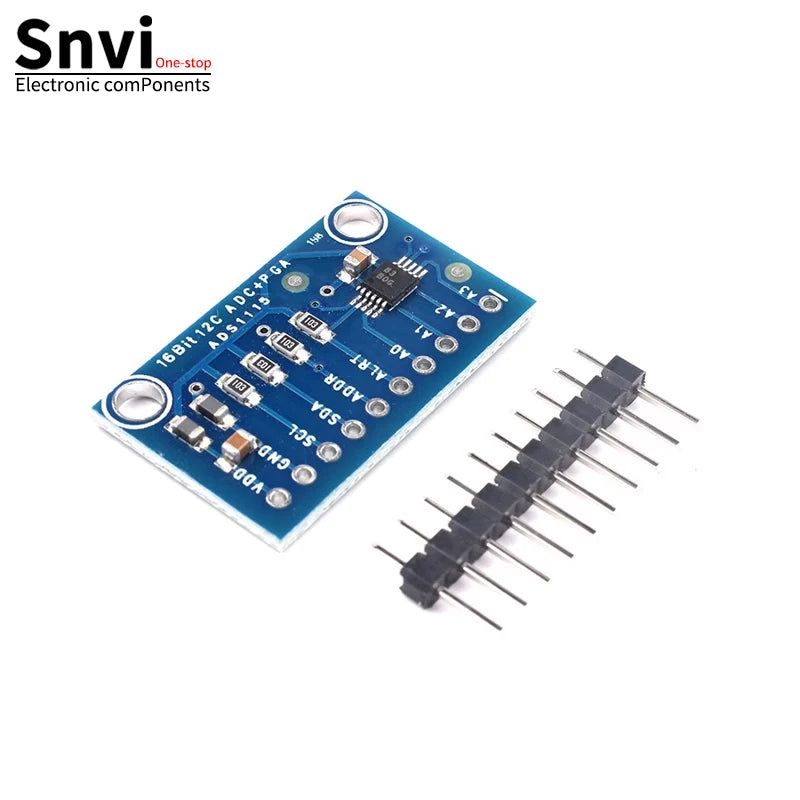

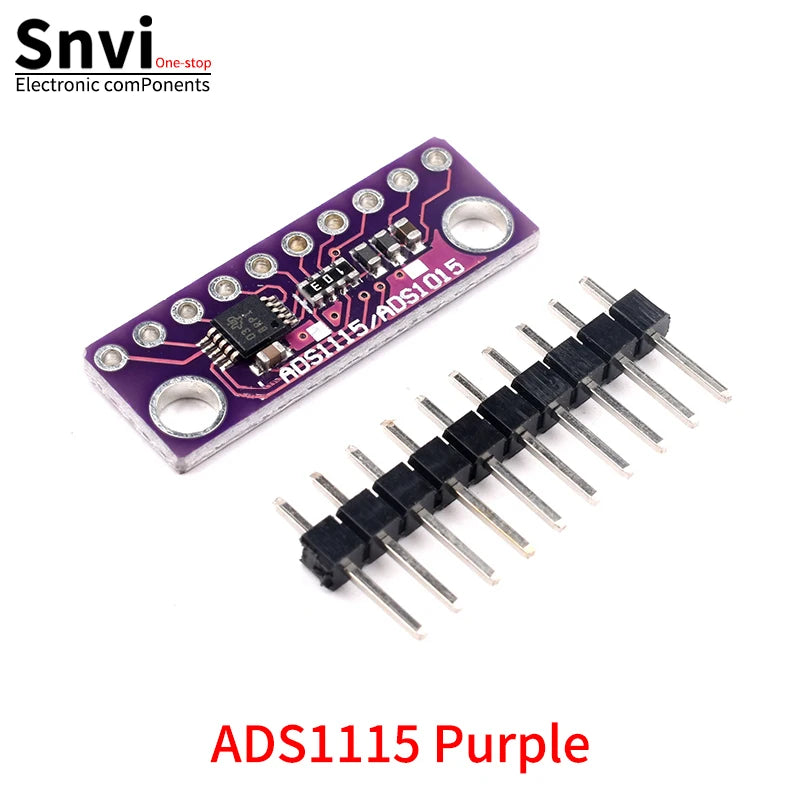

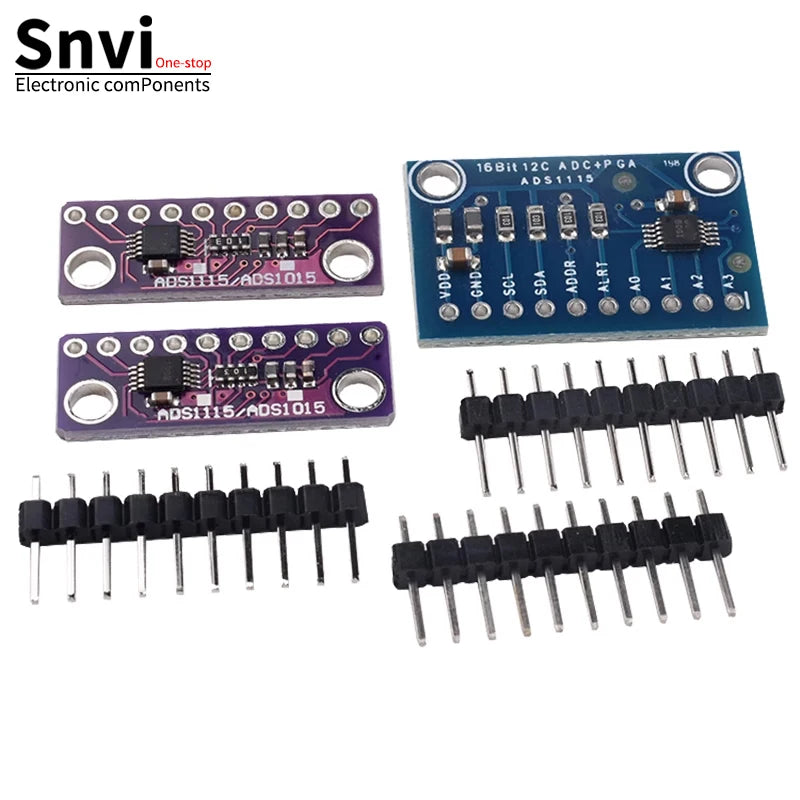

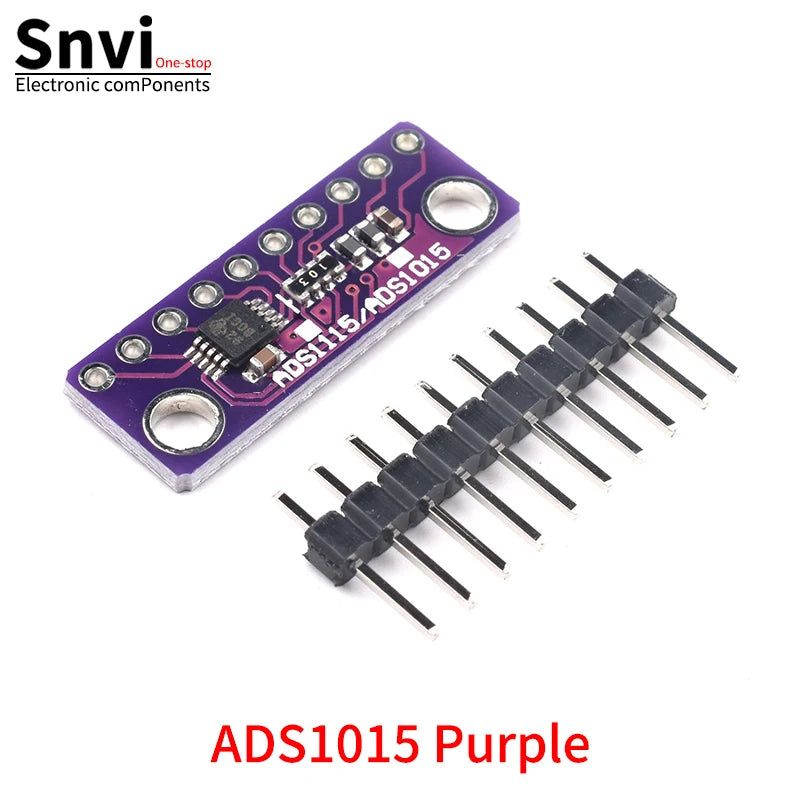

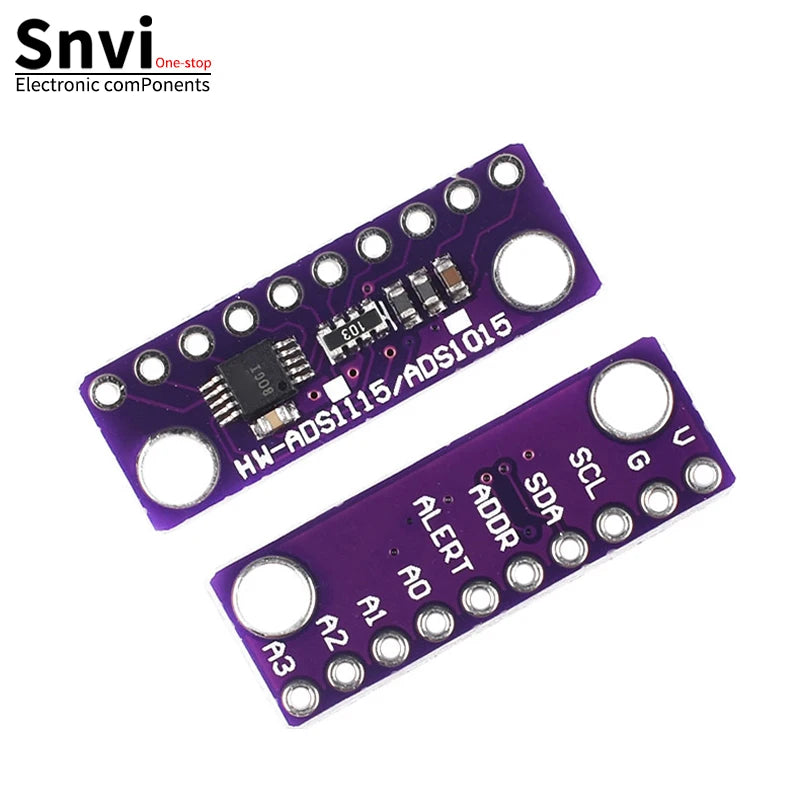

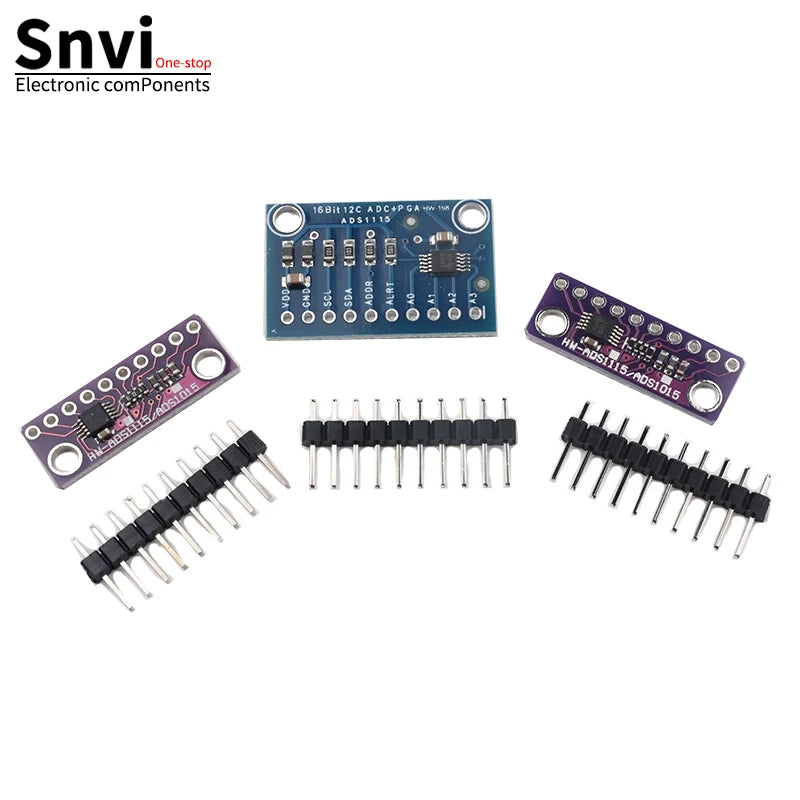

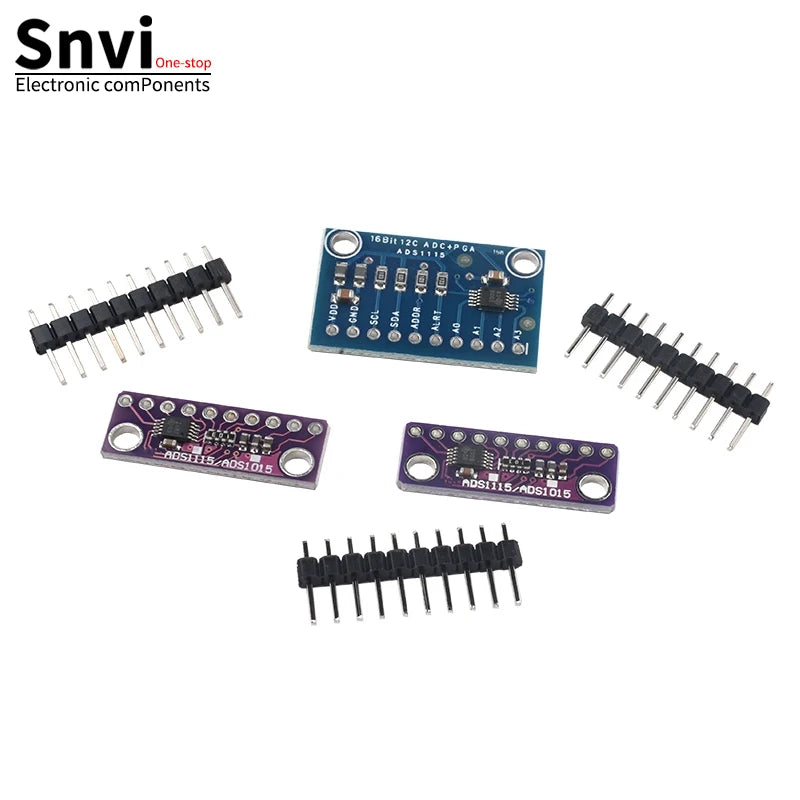

Snvi 16 Bit I2C ADS1115 ADS1015 Module ADC 4 channel with Pro Gain Amplifier 2.0V to 5.5V for Arduino RPi

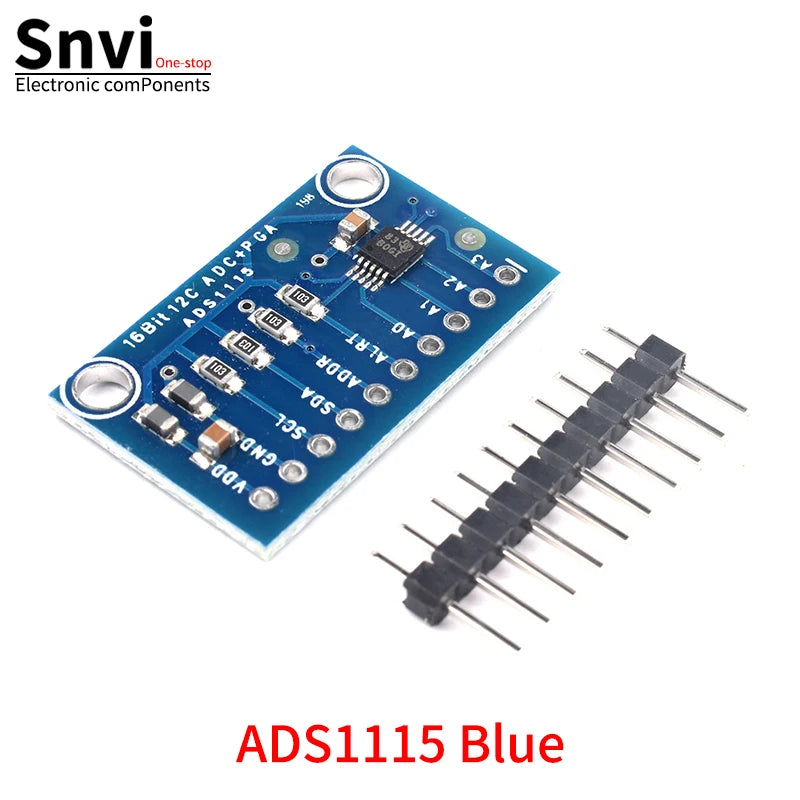

ADS1115 Blue / China Mainland
$13.28
Sale price
$13.28
Regular price
$0.00
Skip to product information
Snvi 16 Bit I2C ADS1115 ADS1015 Module ADC 4 channel with Pro Gain Amplifier 2.0V to 5.5V for Arduino RPi
$13.28
Sale price
$13.28
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: SNVI
Choice: yes
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Module
semi_Choice: yes
ADC Bit rate: 16 Bit
Interface Type: I2C
Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs
Input voltage: 2.0-5.5v
Channel input voltage :0-VDD
Continuous Mode: Only 150A
Single-Shot Mode: Auto Shut-Down
PROGRAMMABLE DATA RATE:8sps-860sps
Input range programmed control, 7 types input ranges:
-0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V,
-2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V
I2C 7-bit addresses between 0x48-0x4B
Size:18mm*28mm
Applications
Portable instrumentation
Consumer goods
Battery monitoring
Temperature measurement
Factory automation and process controls
