SPECIFICATIONS

Advantages of Pinecil micro tips:

A shorter tip (76-78 mm) instead of 105 mm allows for increased precision.

Tip resistance (6.2-6.5 Ohm) increases power and reduces response time.

These tips are designed specifically for Pinecil soldering irons, and the manufacturer does not recommend using them with soldering irons from other manufacturers. However, they are also suitable for the TS100 and TS101 soldering irons, as well as other TS-shaped soldering irons.

The TIPS4 short soldering tip set for Pinecil irons includes the following four tips:

I

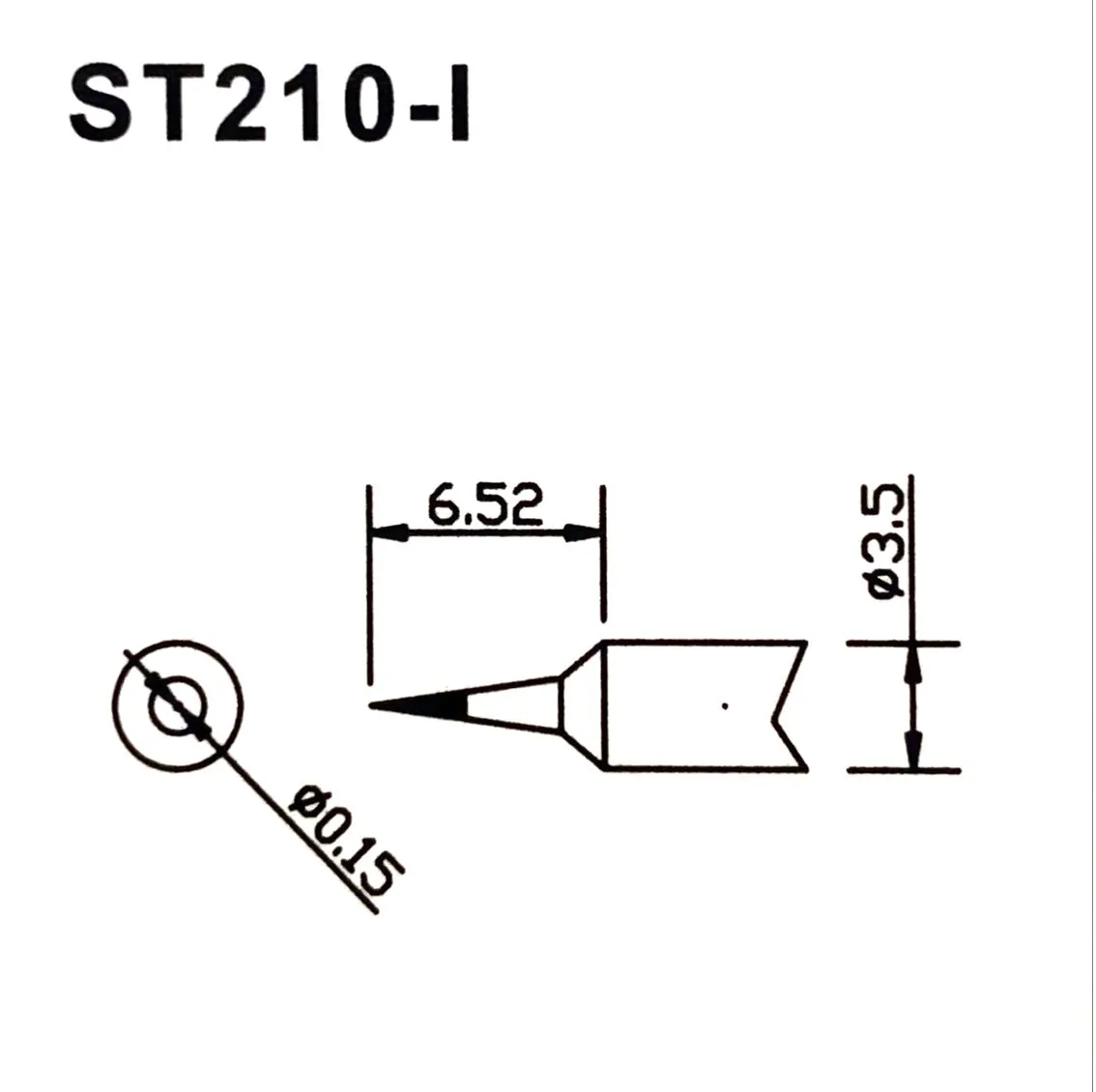

Tip type: I (thin cone) — designed for ultra-precise soldering of microcircuits and small SMD components, as well as hard-to-reach areas. Similar in shape and thickness to the ILS tip.

K

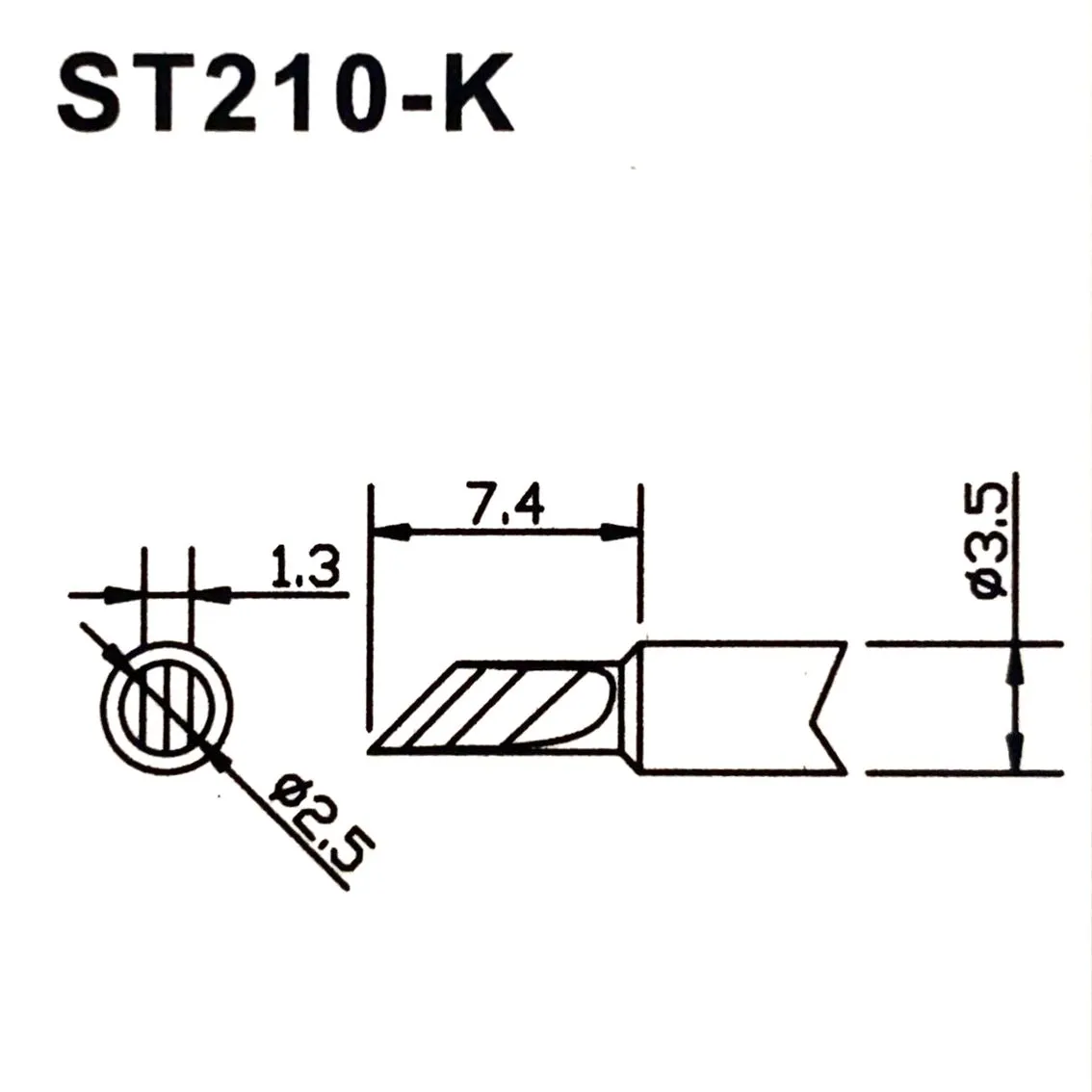

Tip type: K (spade-shaped with a curved tip) — suitable for soldering SMD components, working with large contacts, and creating wide connections.

BC1

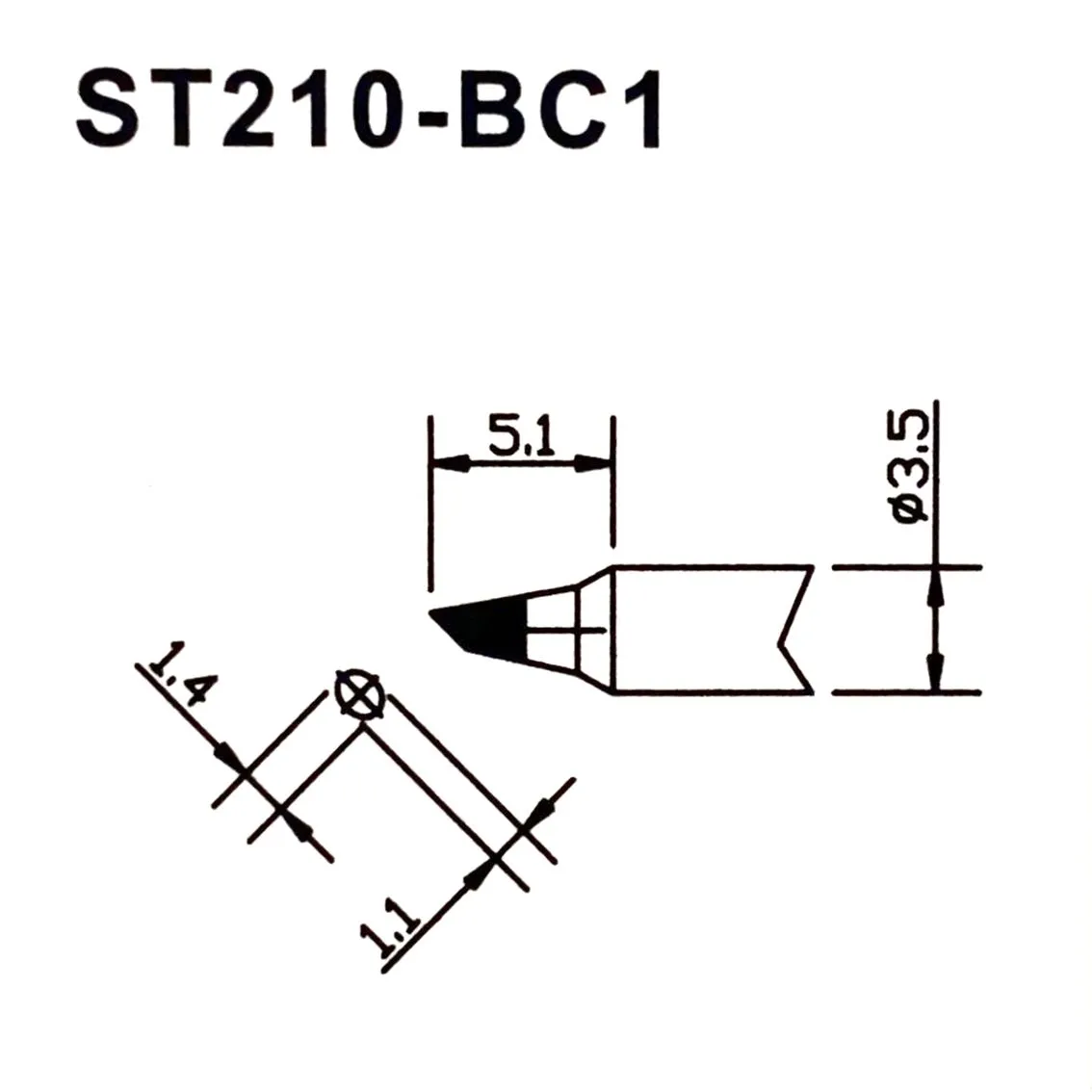

Tip Type: BC1 (rounded tip with a fine cone tip) – ideal for precision soldering of small components, as well as general-purpose tasks that require control and precision.

SI

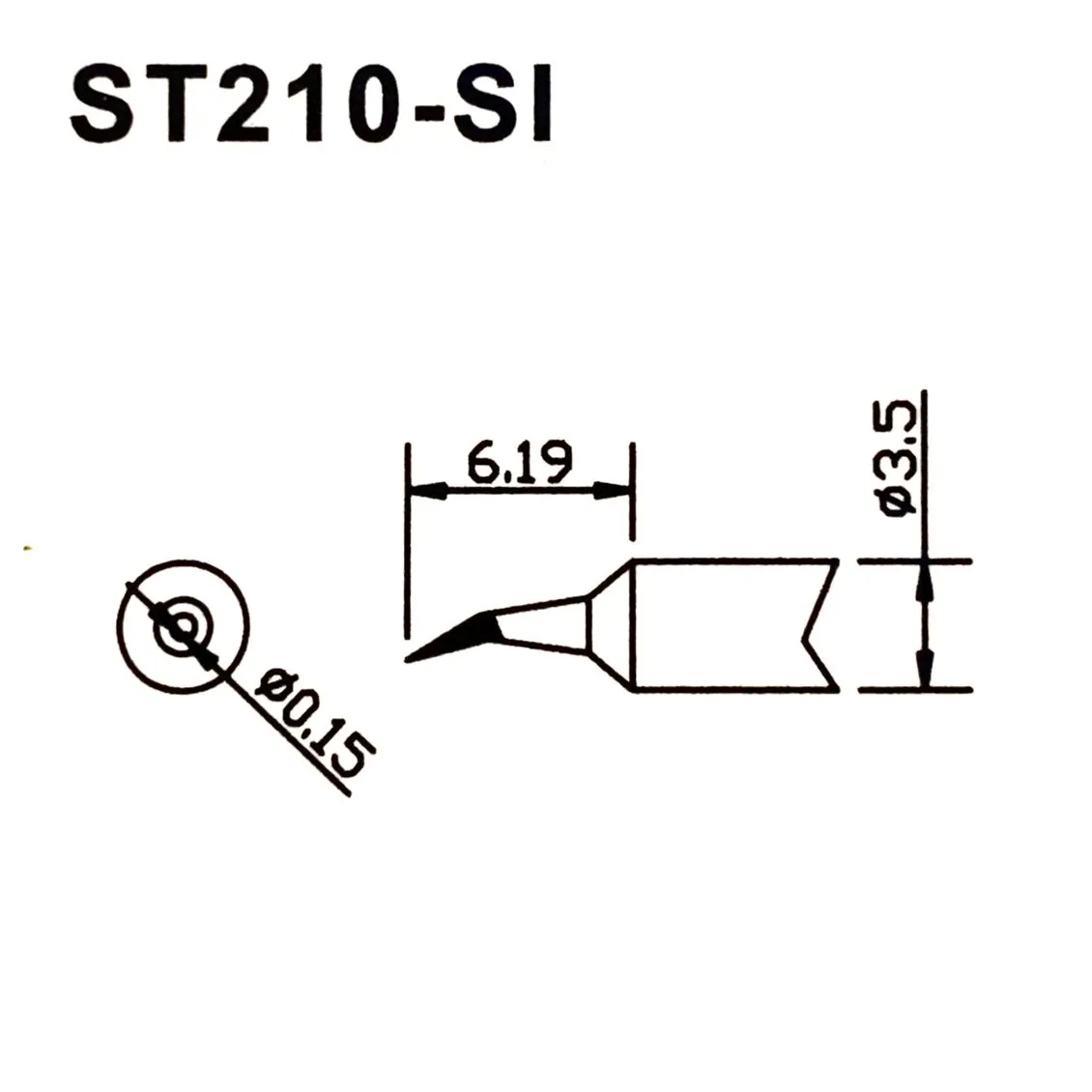

Tip type: SI (conical, beveled) — ideal for high-precision soldering in hard-to-reach areas.
