Solid State Relay Single Phase SSR 220V 25A 40A Output SSR-25DA SSR-40DA SSR-40AA SSR-40DD Relay Module for Temperature Control

Solid State Relay Single Phase SSR 220V 25A 40A Output SSR-25DA SSR-40DA SSR-40AA SSR-40DD Relay Module for Temperature Control

$27.54

$27.54 $0.00

Size SSR-40AA SSR-40DD SSR-40DA SSR-25DA BASE for 10-40A

Description

SPECIFICATIONS

Brand Name: VaneAims

Certification: CE

Choice: yes

Contact Load: High Power

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: SSR-1

Origin: Mainland China

Power Source: DC

Protect Feature: Epoxy

Theory: Solid State Relay

Use: General Purpose

Voltage: 5V

is_customized: no

semi_Choice: yes

We can provide OEM service to print your logo on the relay,

if you get any need, feel free to contact us to send us message.

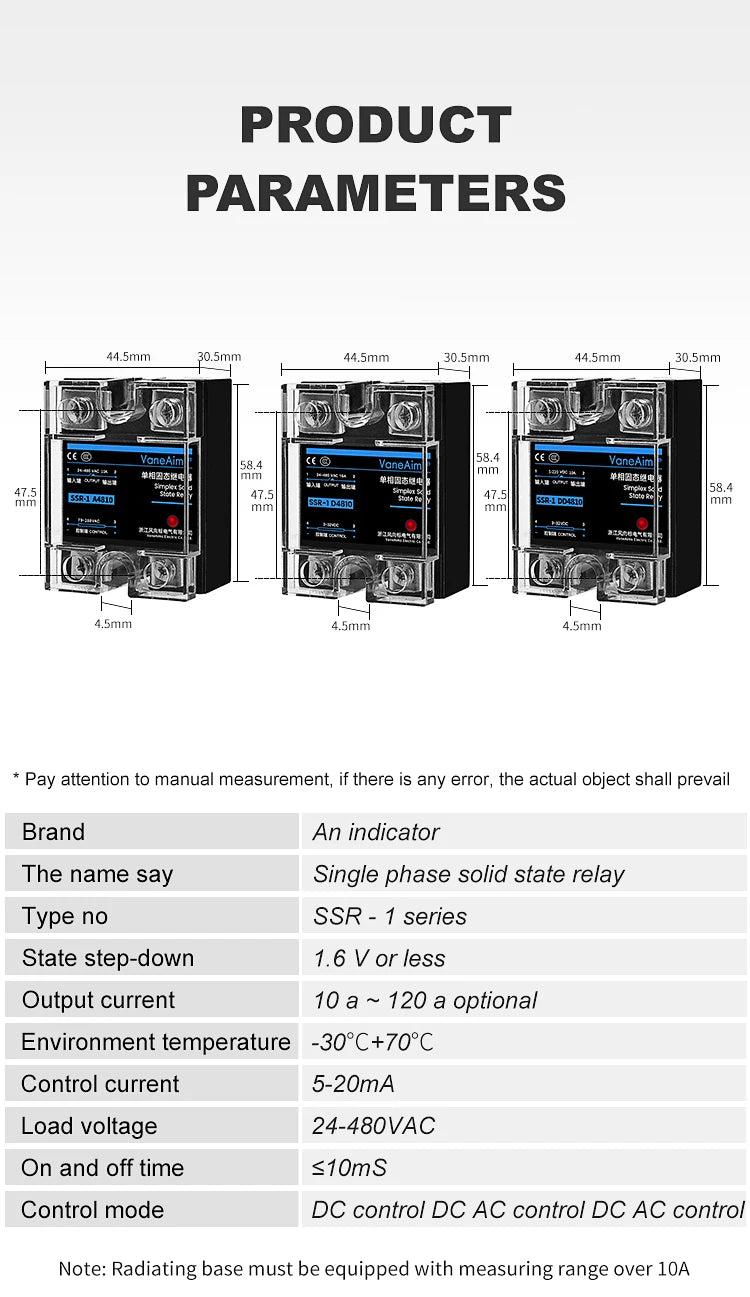

Product Specification

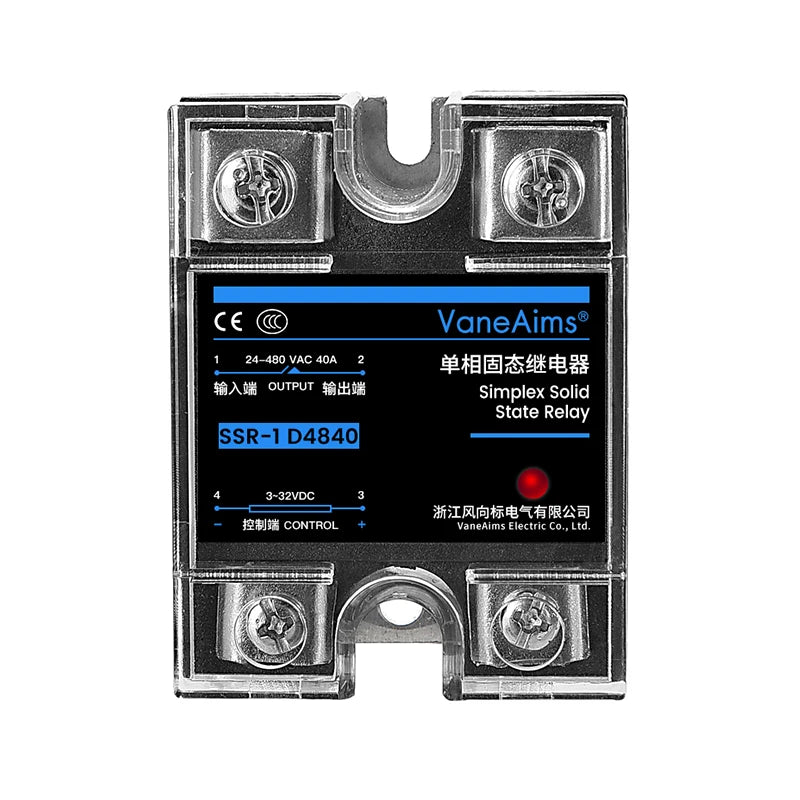

Product Name: single phase solid state relay

Model: SSR-1 Series

Operating Temperature：-30℃~70℃

Output Current:10A~120A Available

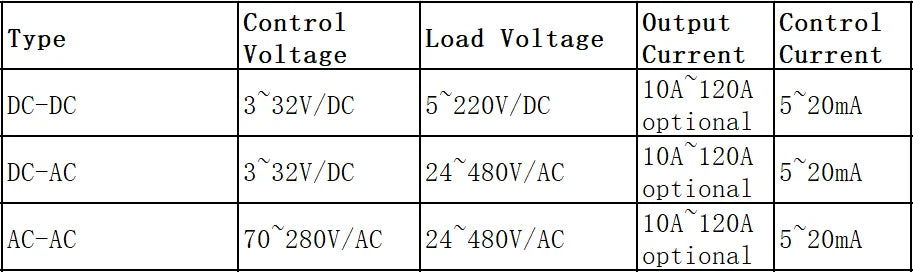

Control Mode: DD/DA/AA

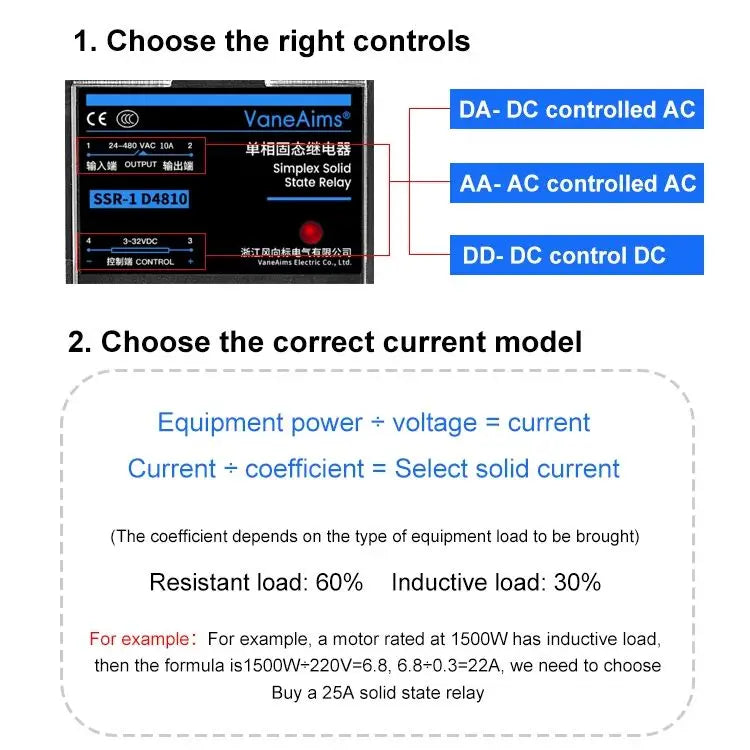

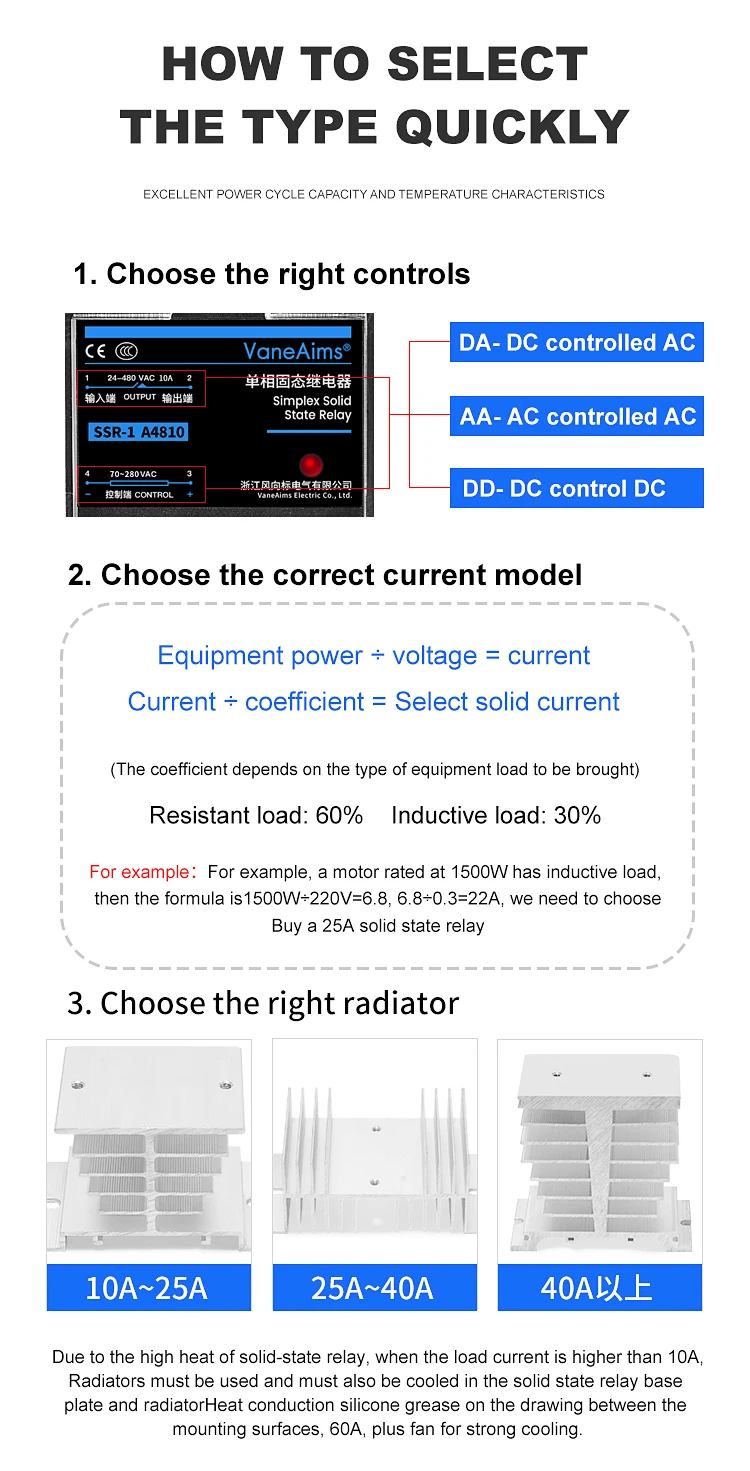

HOW TO CHOOSE

STEP 1: Choose a correct control Mode

AA- AC Control AC

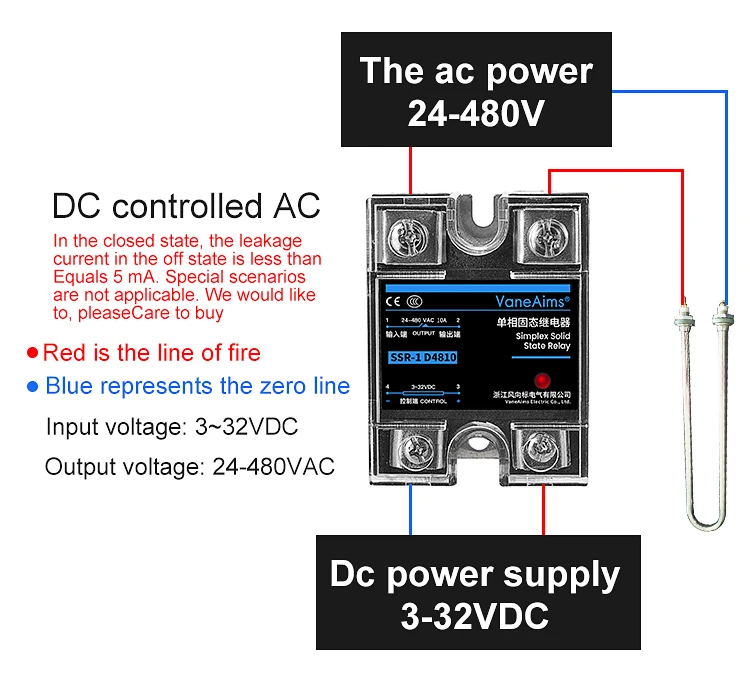

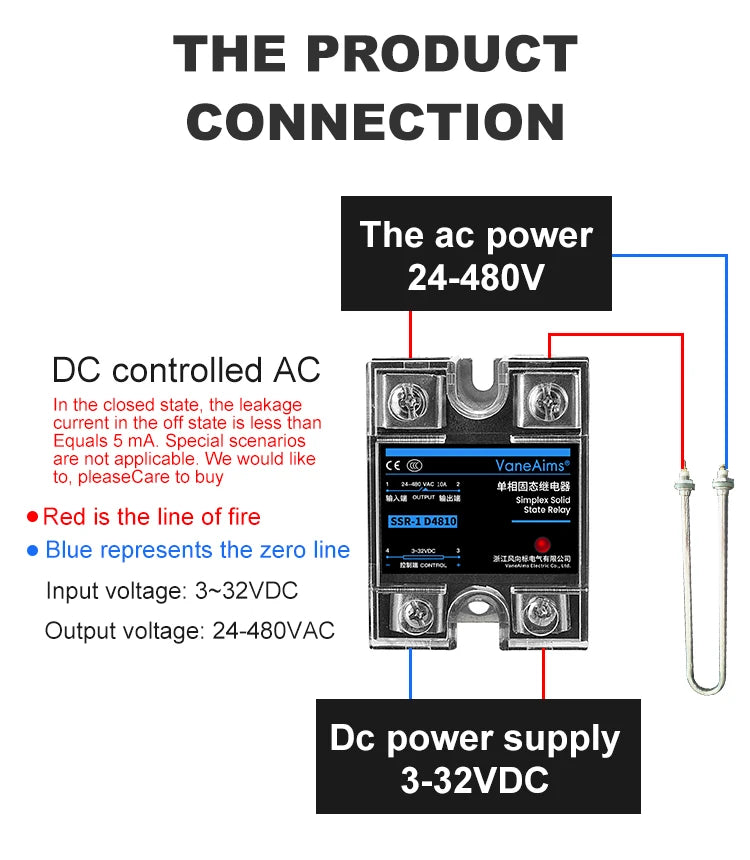

DA- DC Control AC

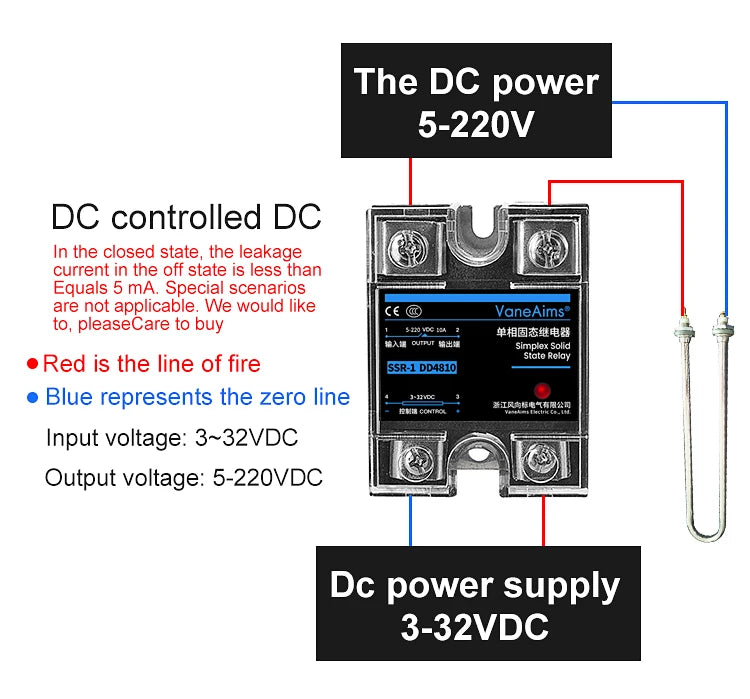

DD- DC Control DC
VA-Control and Adjust

STEP 2: Choose a correct type

Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment.
Resistive load :60%, Inductive load:30%

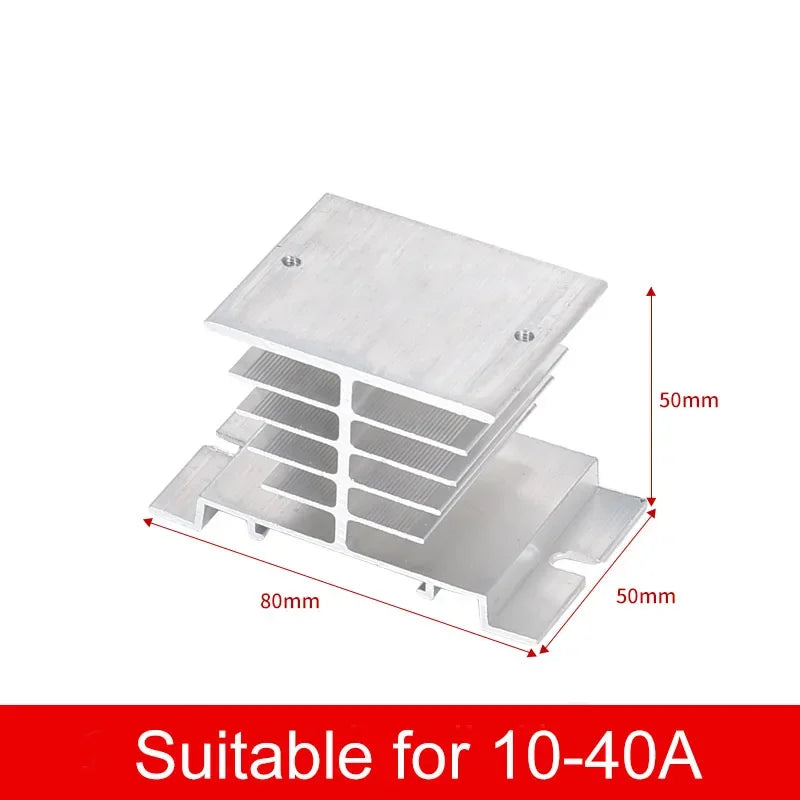

STEP 3: Choose a suitable heat sink.

During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.
PS: Our Heat Sink include 2 screws (for install heat sink) and a pack of thermal compound (is applied to the bottom of the SSR)

Attention：Solar equipment is a mixed load, we do not recommend using solid state relay. If you want to try, you need to buy a solid state relay with 10 times the current. At the same time, if the solid state relay does not work normally on the solar equipment, we do not provide return service.
