SPECIFICATIONS

Introduction

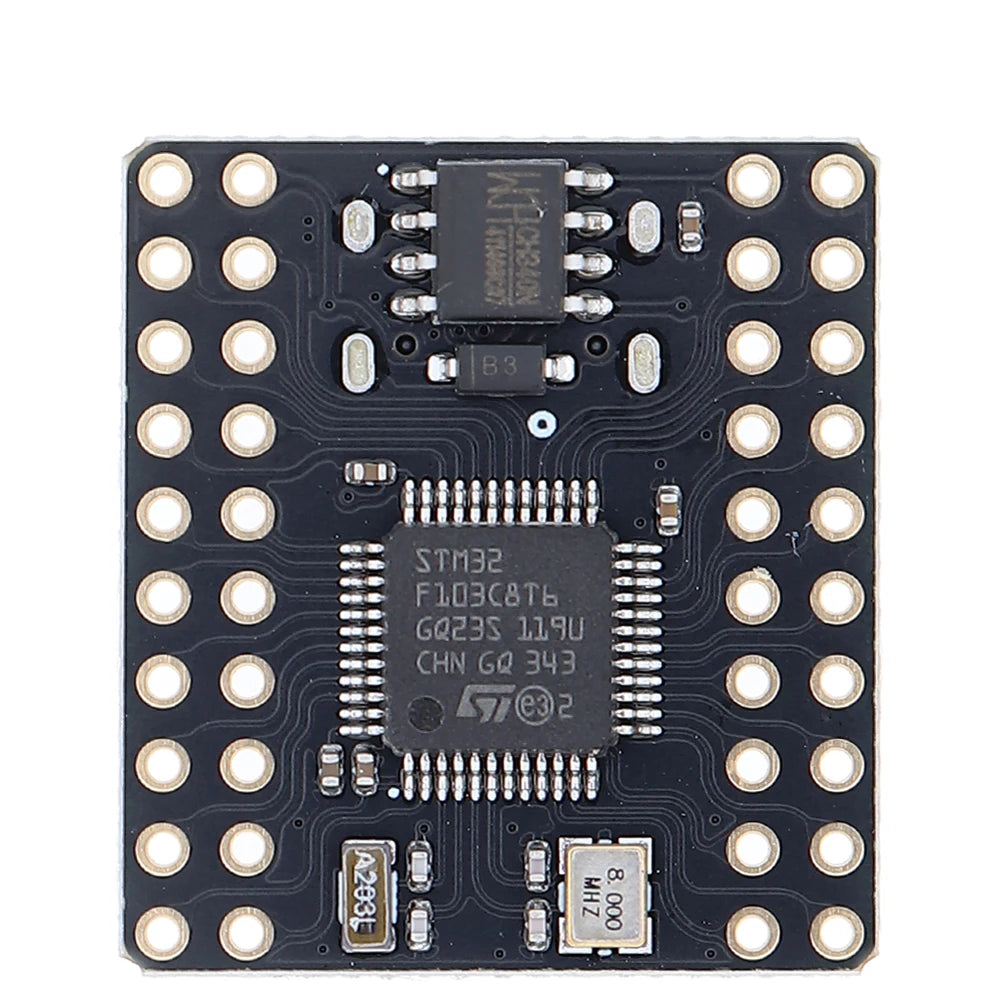

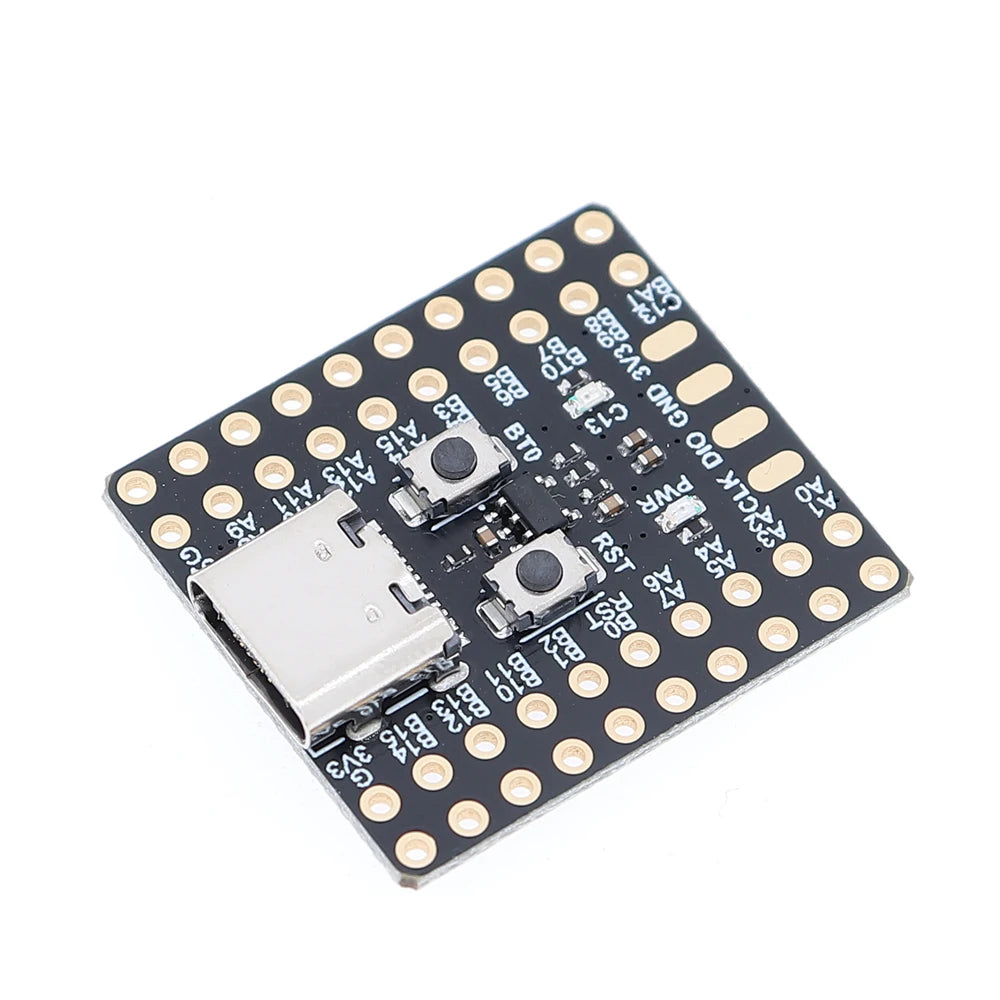

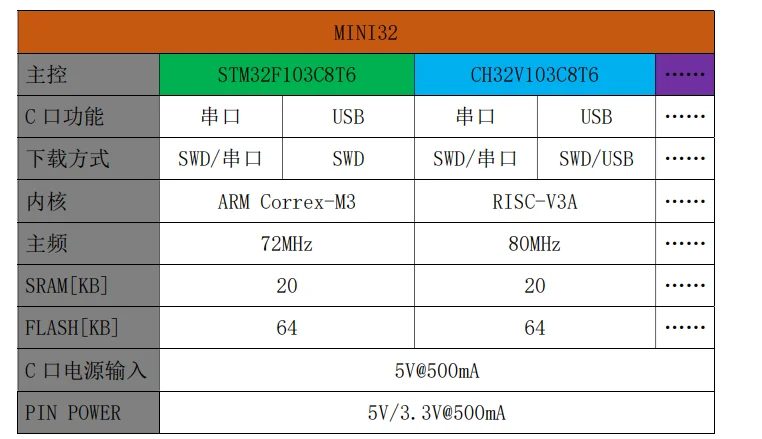

MINI32 designs and manufactures core boards based on STM32F103C8T6, with a focus on small volume and TYPE-C ports
Data transmission (either serial port or USB), MINI32 can download programs through the onboard serial port. Small volume is the same as

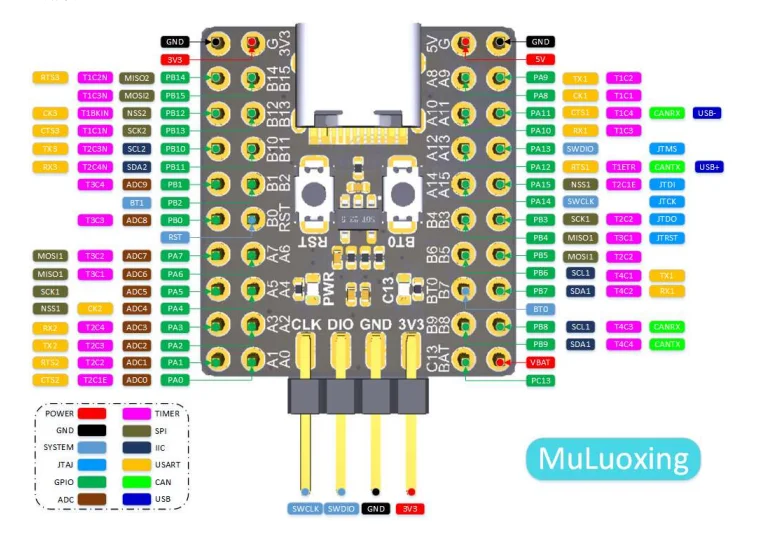

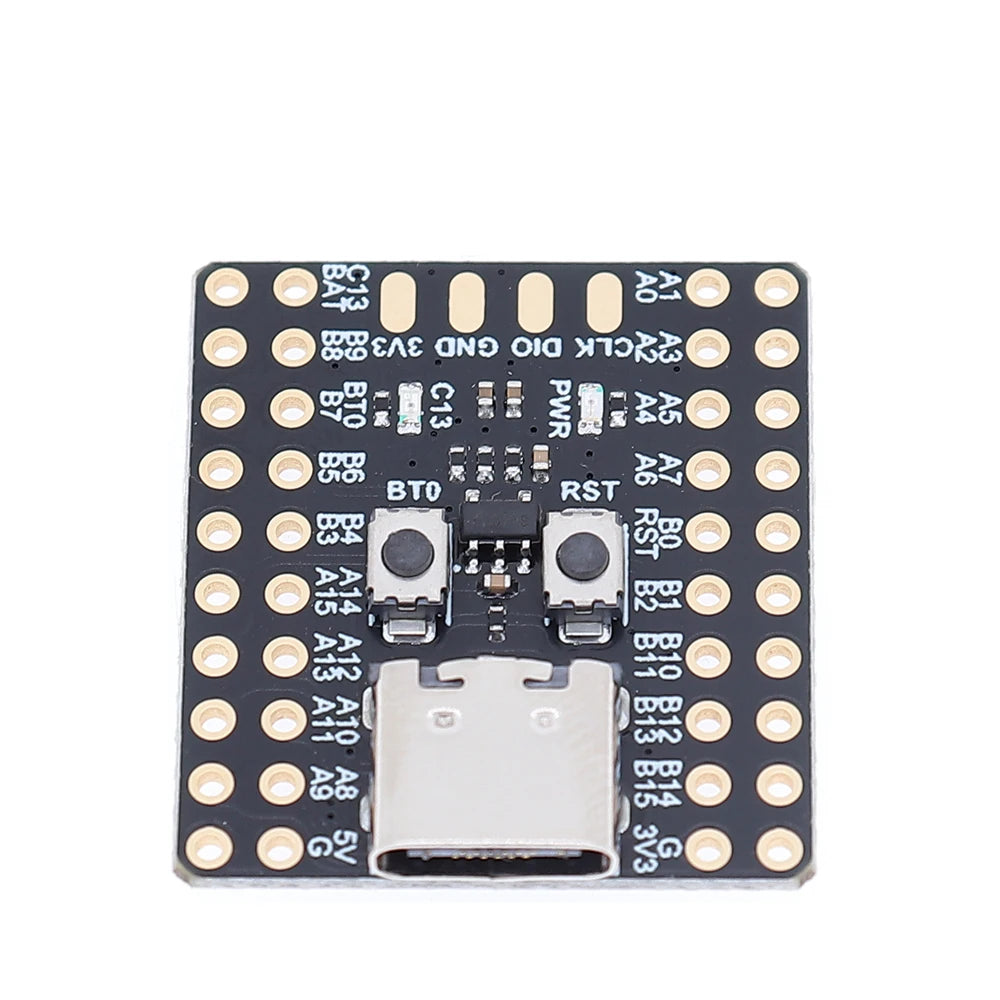

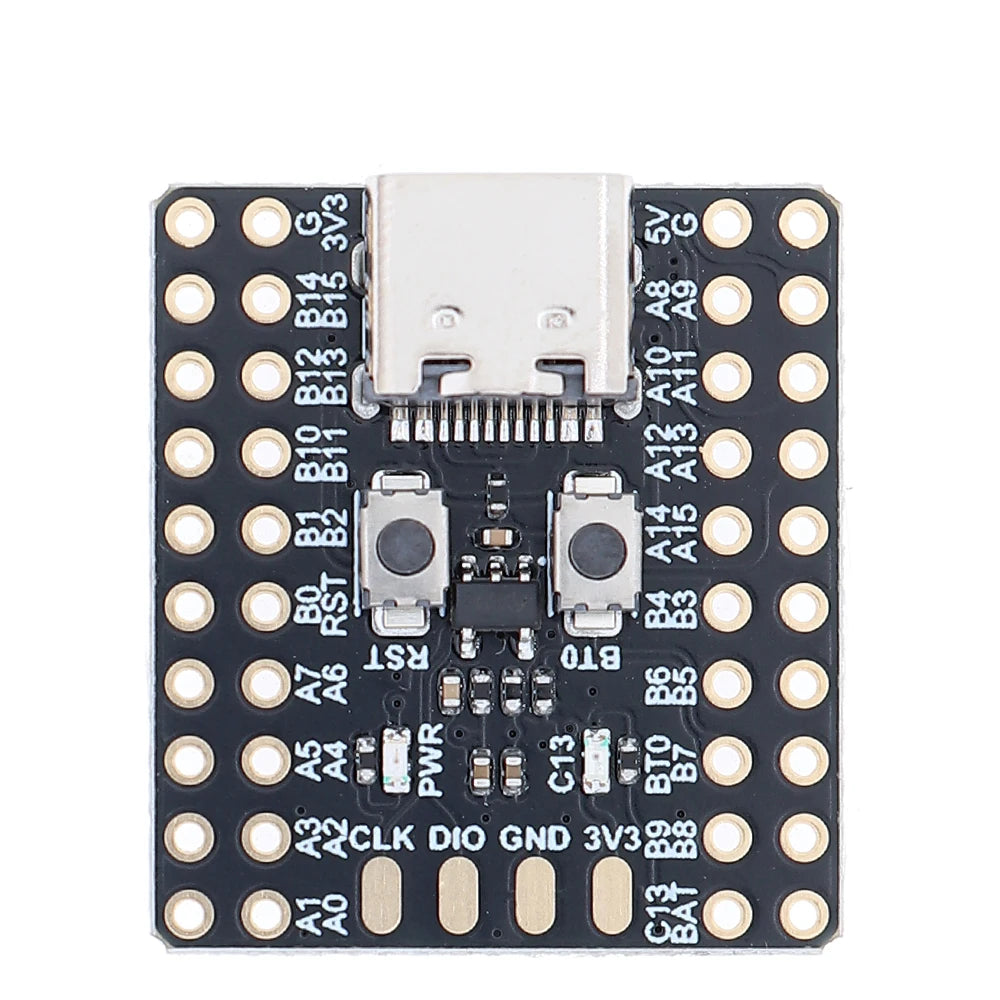

Lead out all IO ports on both sides of the needle row, and separately lead out the SWD download port (both sides of the needle row IO ports are simultaneously led out)
Applicable to small volume control schemes.

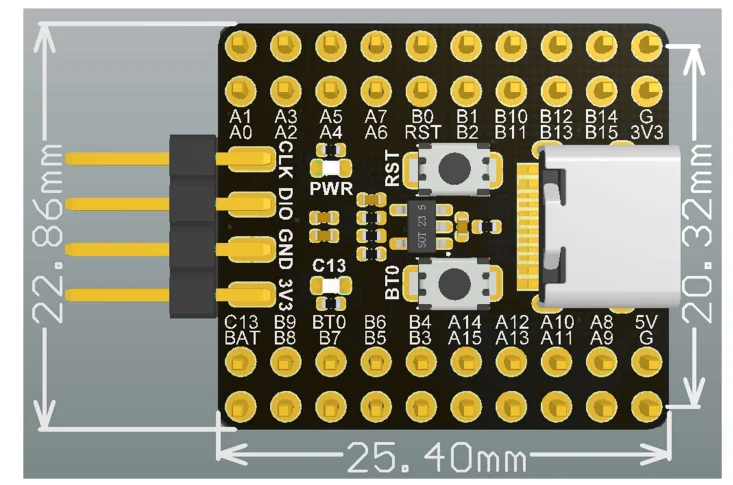

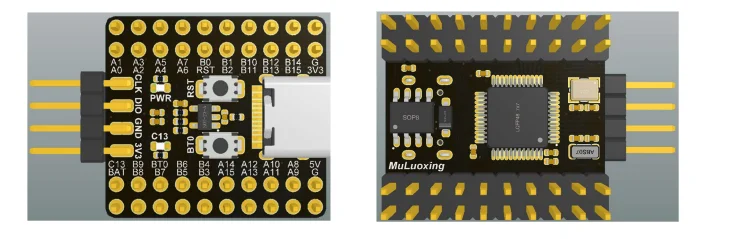

PCB external dimensions (excluding SWD download port): 25.40 * 22.86mm (100mil=2.54mm);
PIN spacing: 2.54mm;
The distance between the needle rows on both sides: 15.24mm (600mil) on the inner side and 20.32mm (800mil) on the outer side.

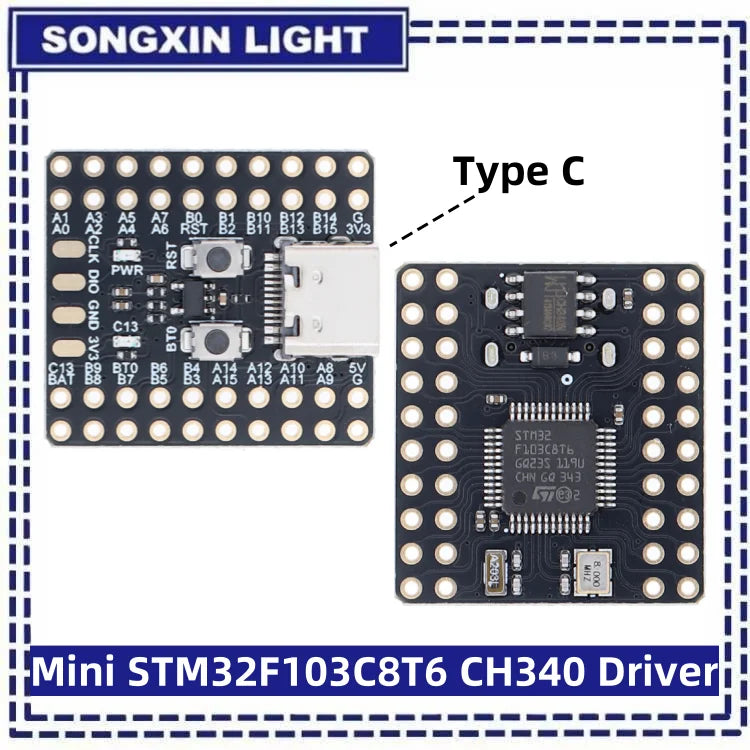

About TYPE-C port function selection

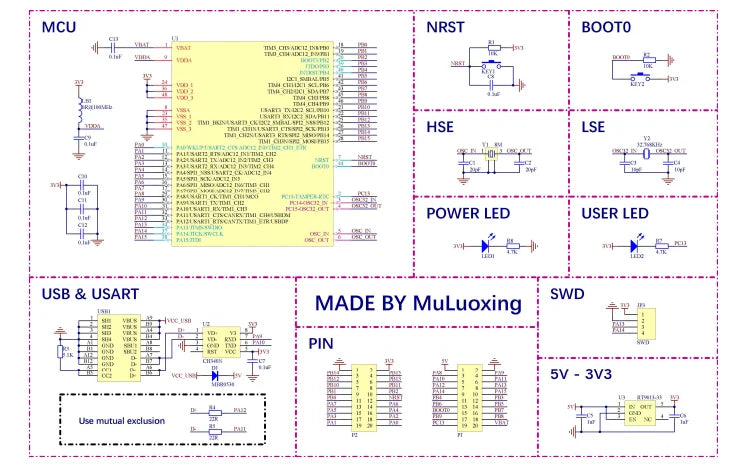

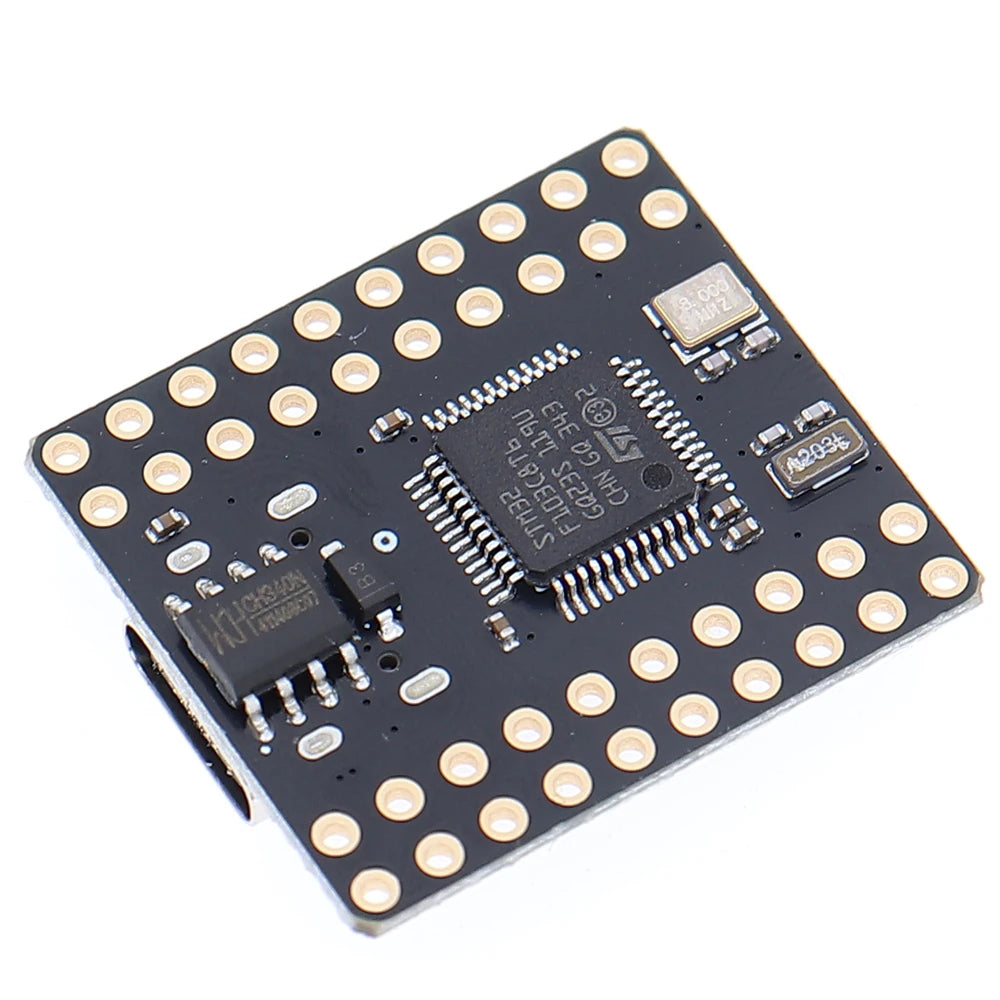

The core board pursues a small size with a single TYPE-C port design, and the USB and serial port functions are optional and mutually exclusive Excluding design, when welding U2 (CH340N) and not welding R4 and R5, the C port is used as a serial communication function,When welding R4 and R5 without welding U2 (CH340N), the C port is used as a USB communication function.
About the Hardware Design of TYPE-C Port CC Port
Both CC1 and CC2 pins are suspended: only the USBA to TYPE-C data cable can be used for power supply.
Short circuit CC1 and CC2 pins and pull down 5.1K resistor: use fast charging power supply and EMARK core simultaneously
The dual C-port data cable of the chip will not be powered, and all other configurations can be powered normally.
CC1 and CC2 pins pull down 5.1K resistors respectively: standard design, both can be powered, recommended for use.
Note: Actual design needs to consider factors such as PCB layout, usage scenarios, and costs. Please design according to your needs.





About Serial Port Download
Enter BOOT mode:
Hot entry: Press and hold the reset and BOOT buttons simultaneously, first release the reset button for about 1 second, then release the BOOT button
Press the button to enter BOOT download mode.
Cold entry: Press and hold the BOOT button, then connect the USB power for about 1 second, then release the BOOT button to enter
BOOT download mode.

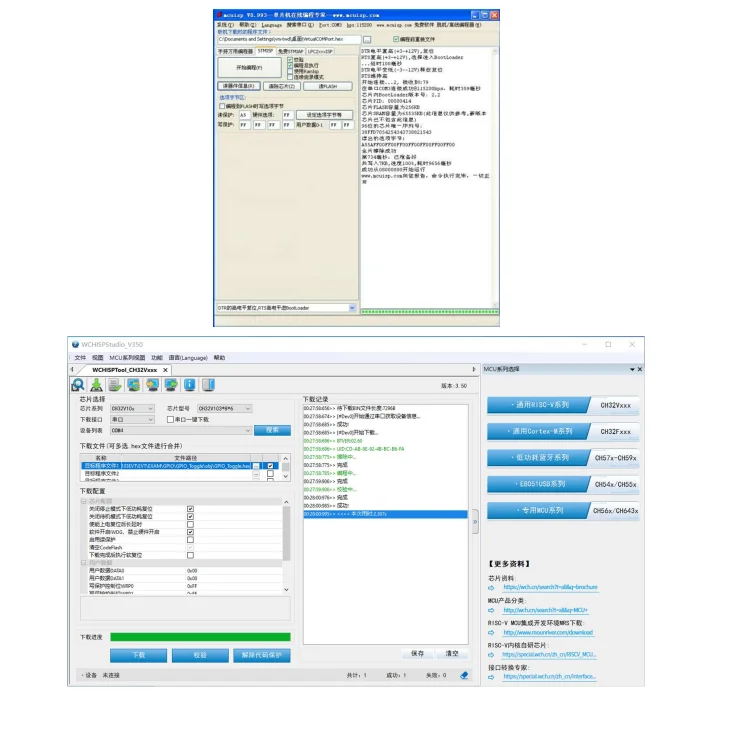

STM32/CH32 serial port download interface:
