SPECIFICATIONS

Product description

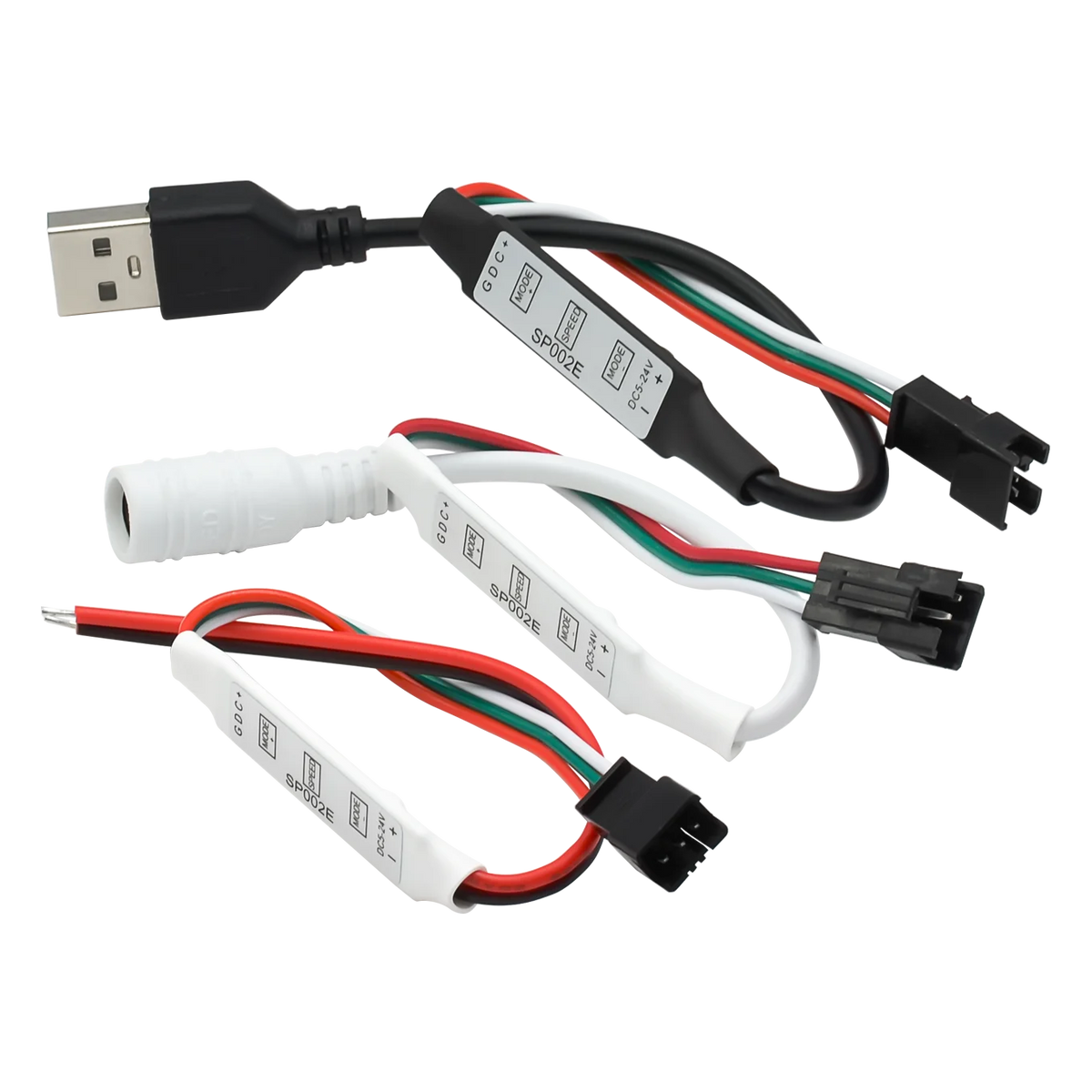

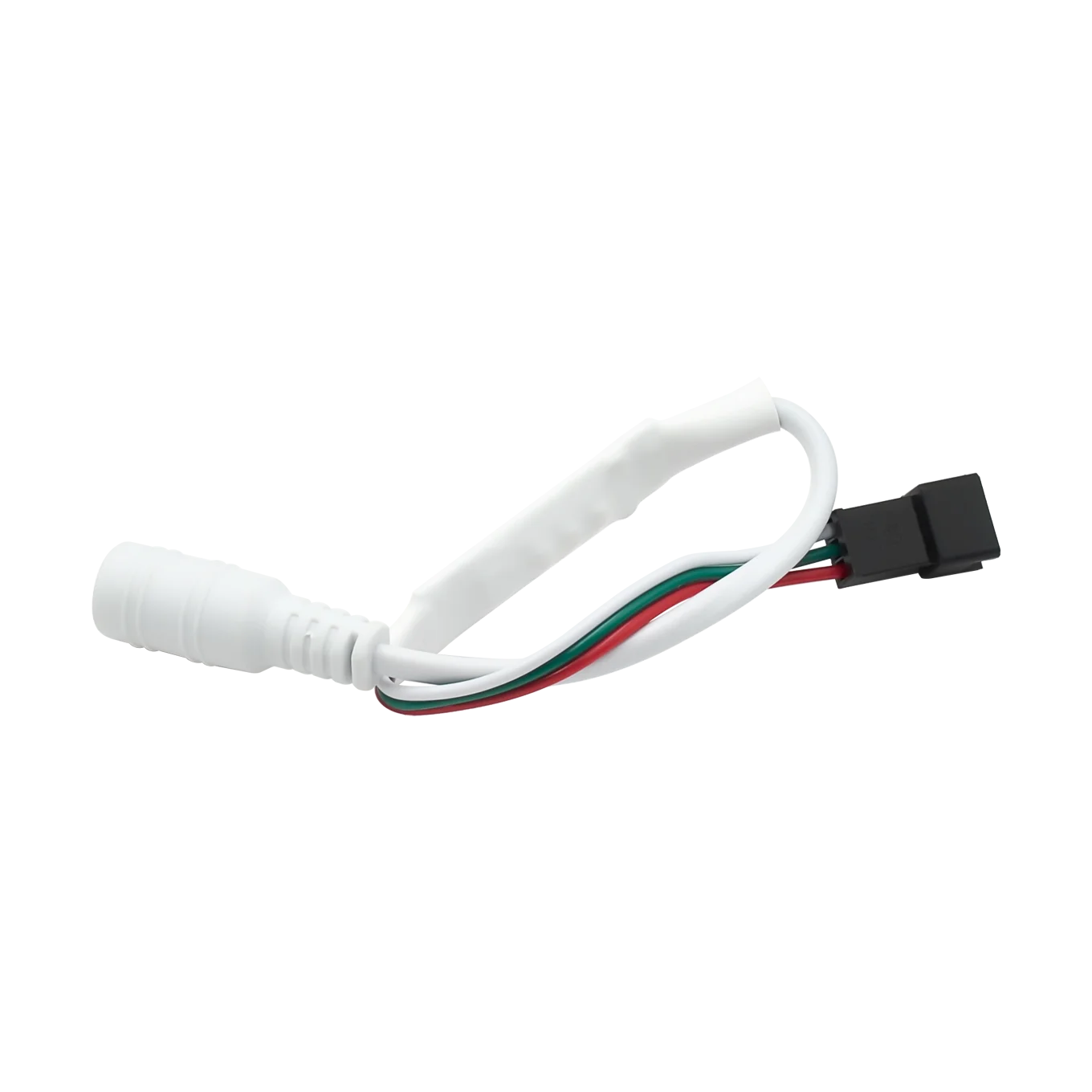

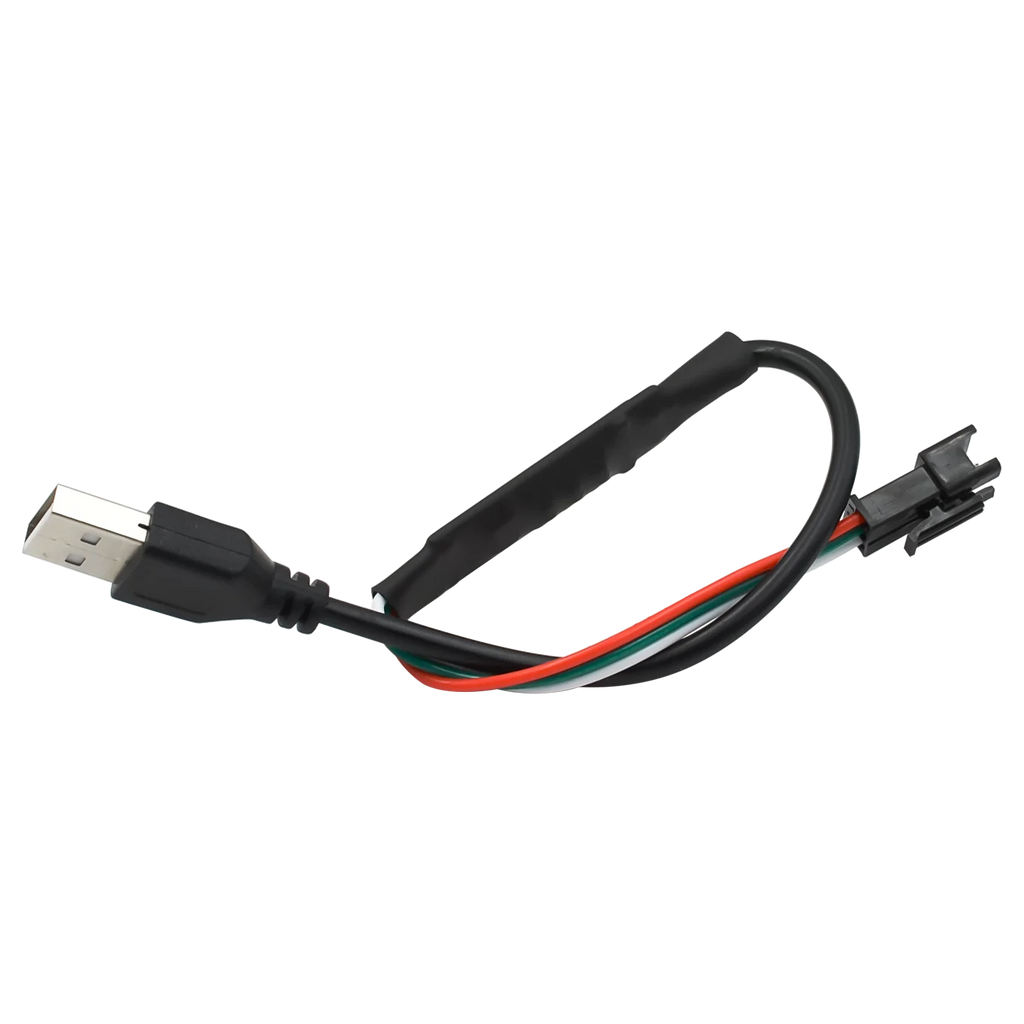

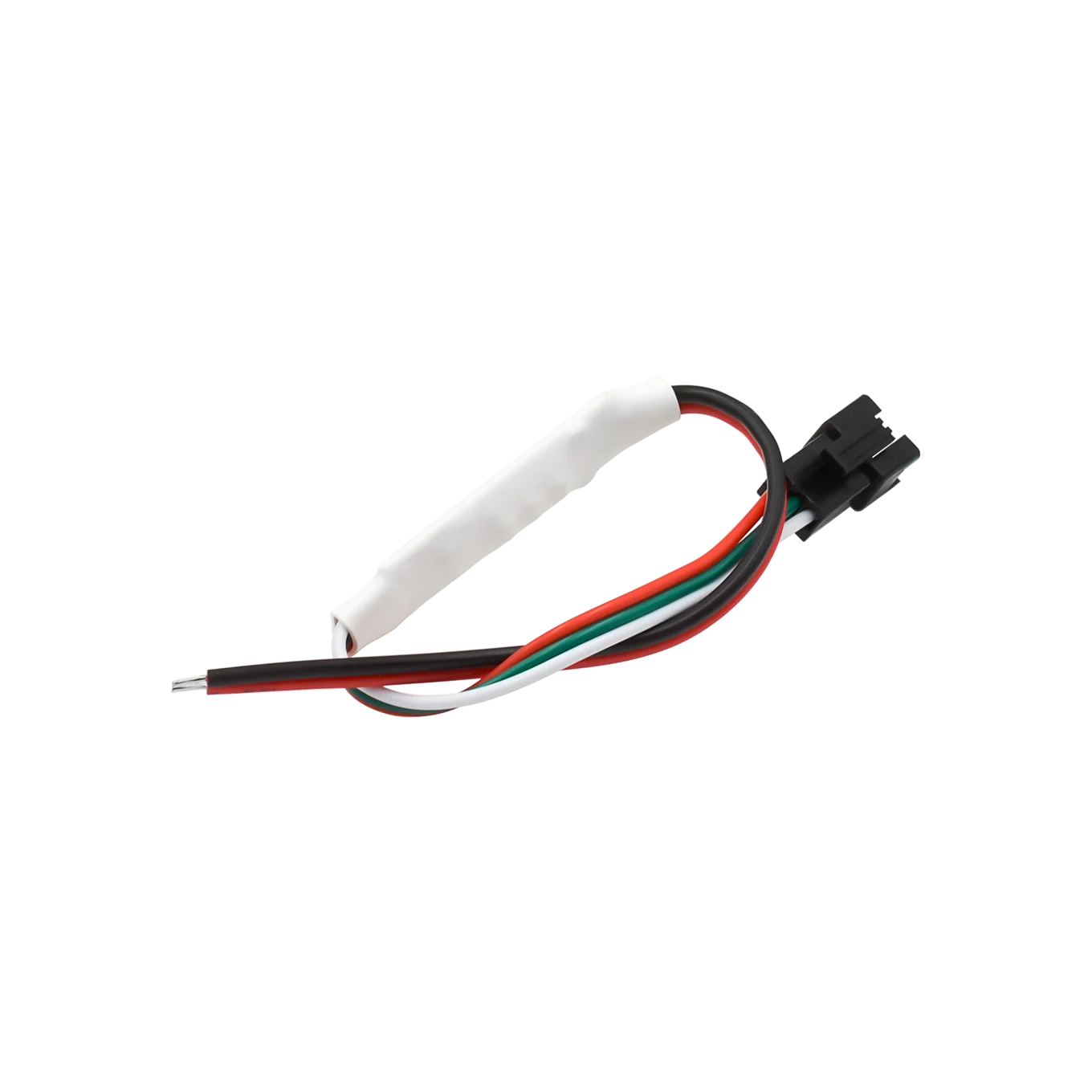

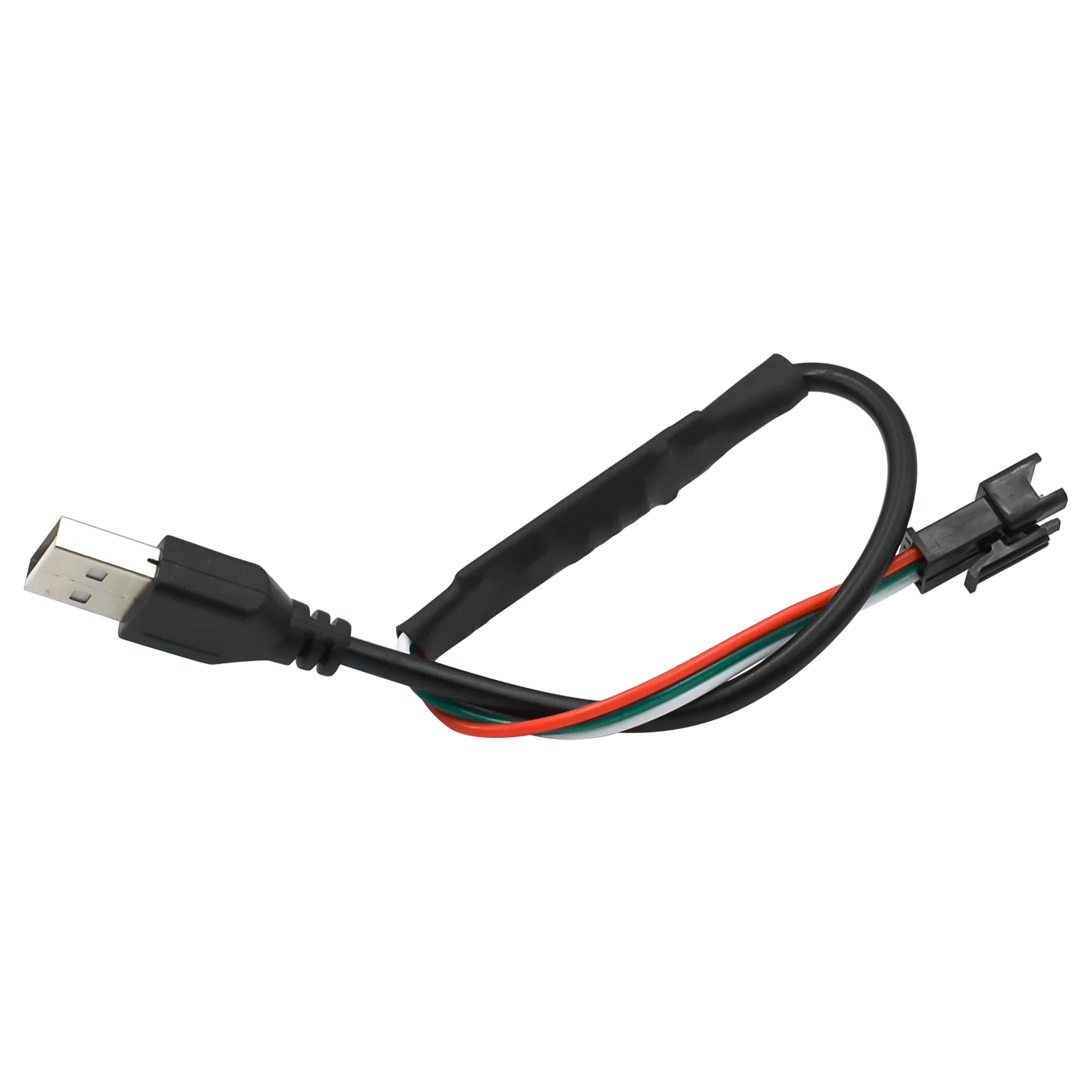

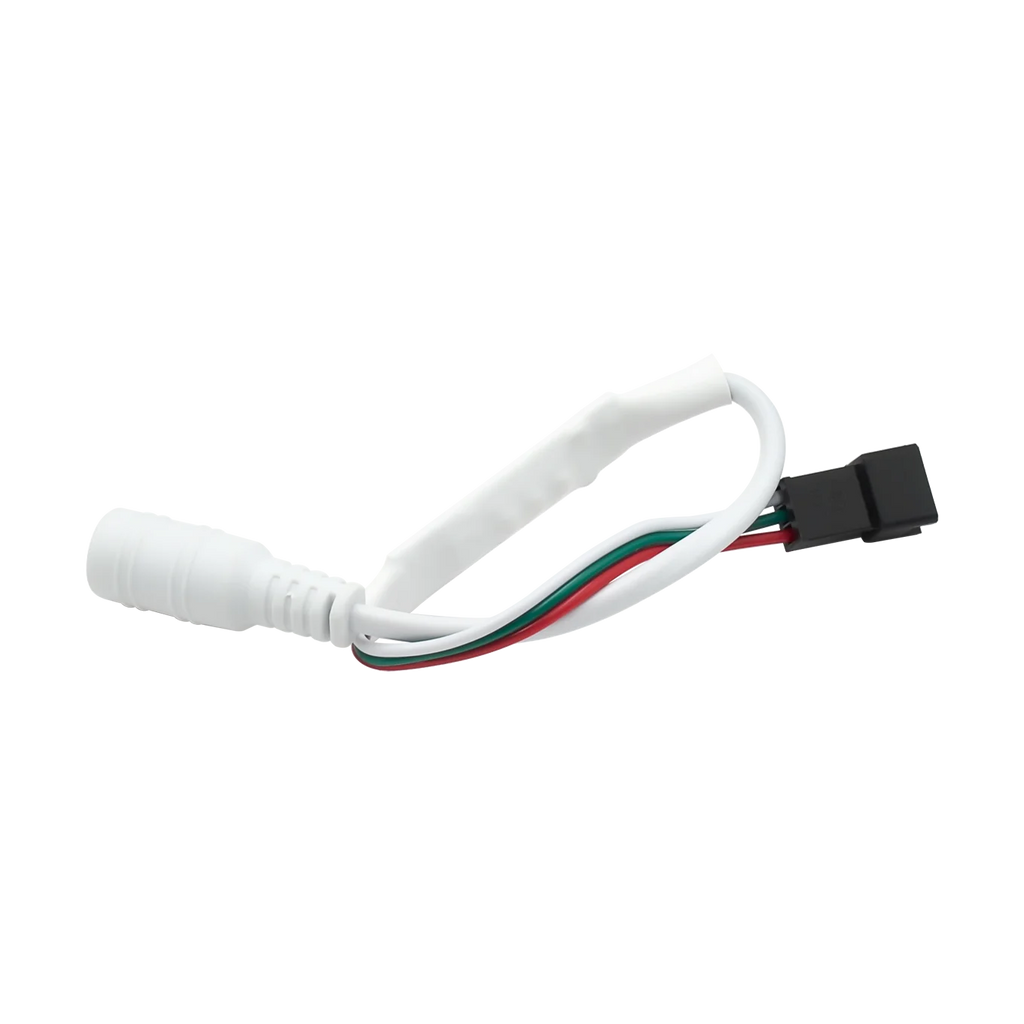

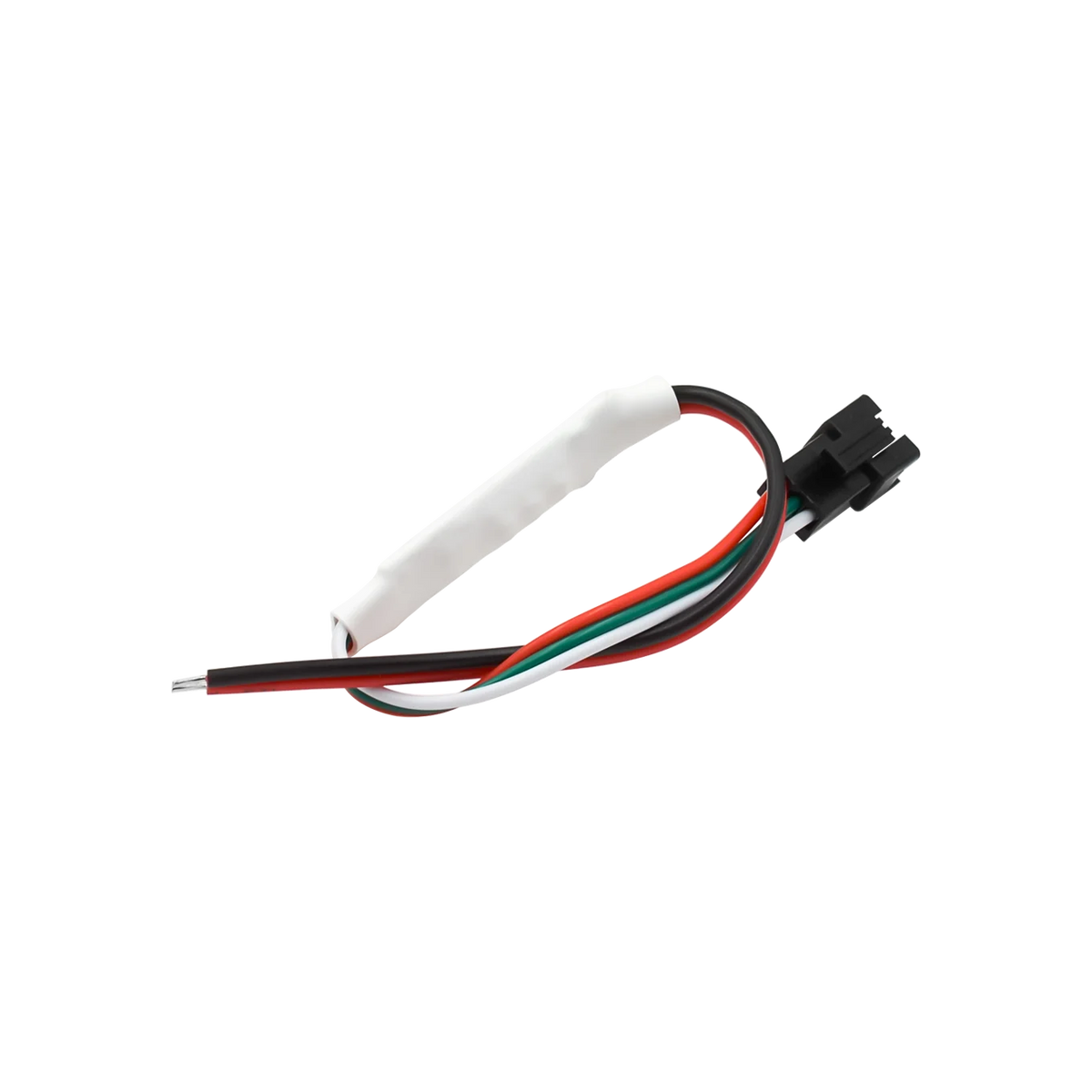

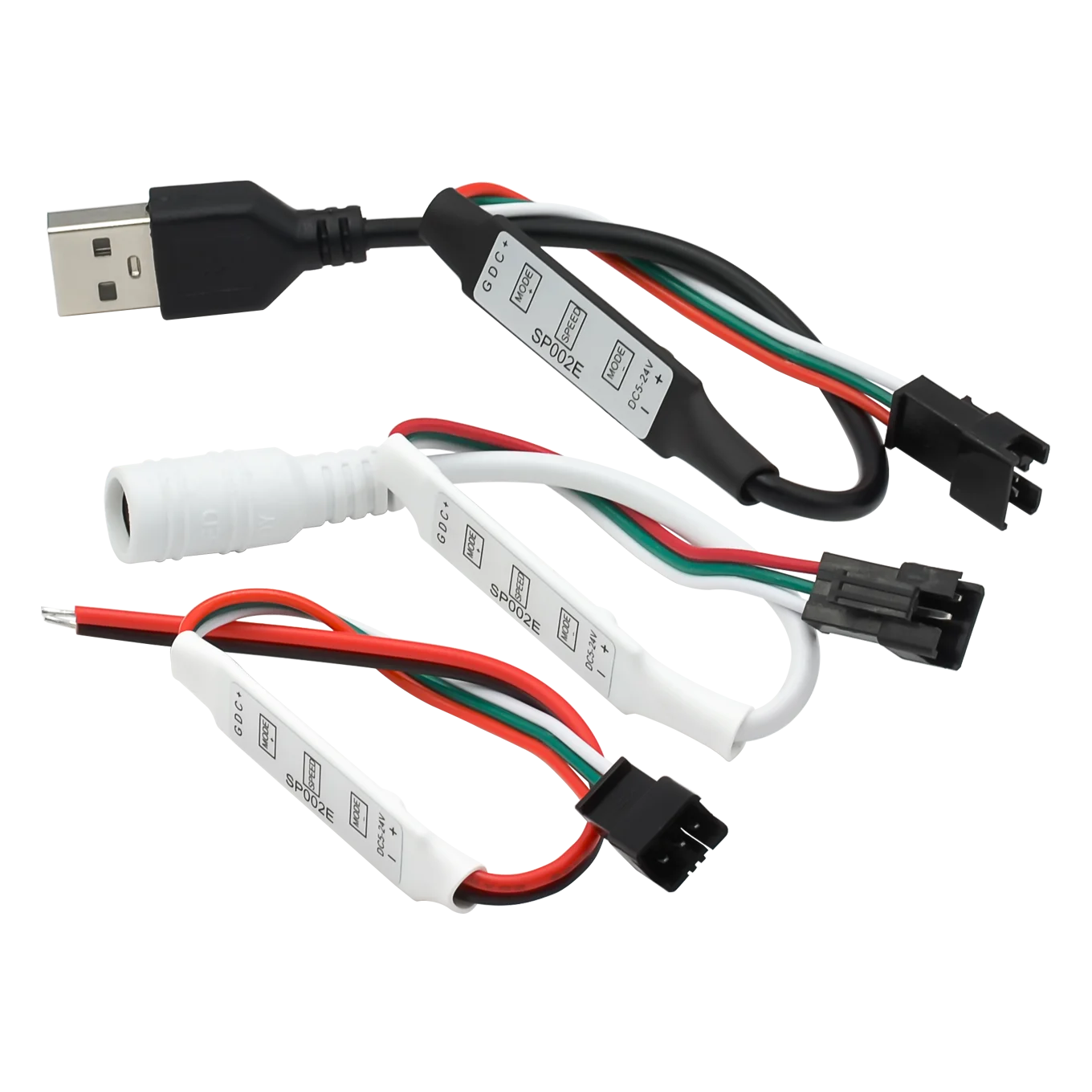

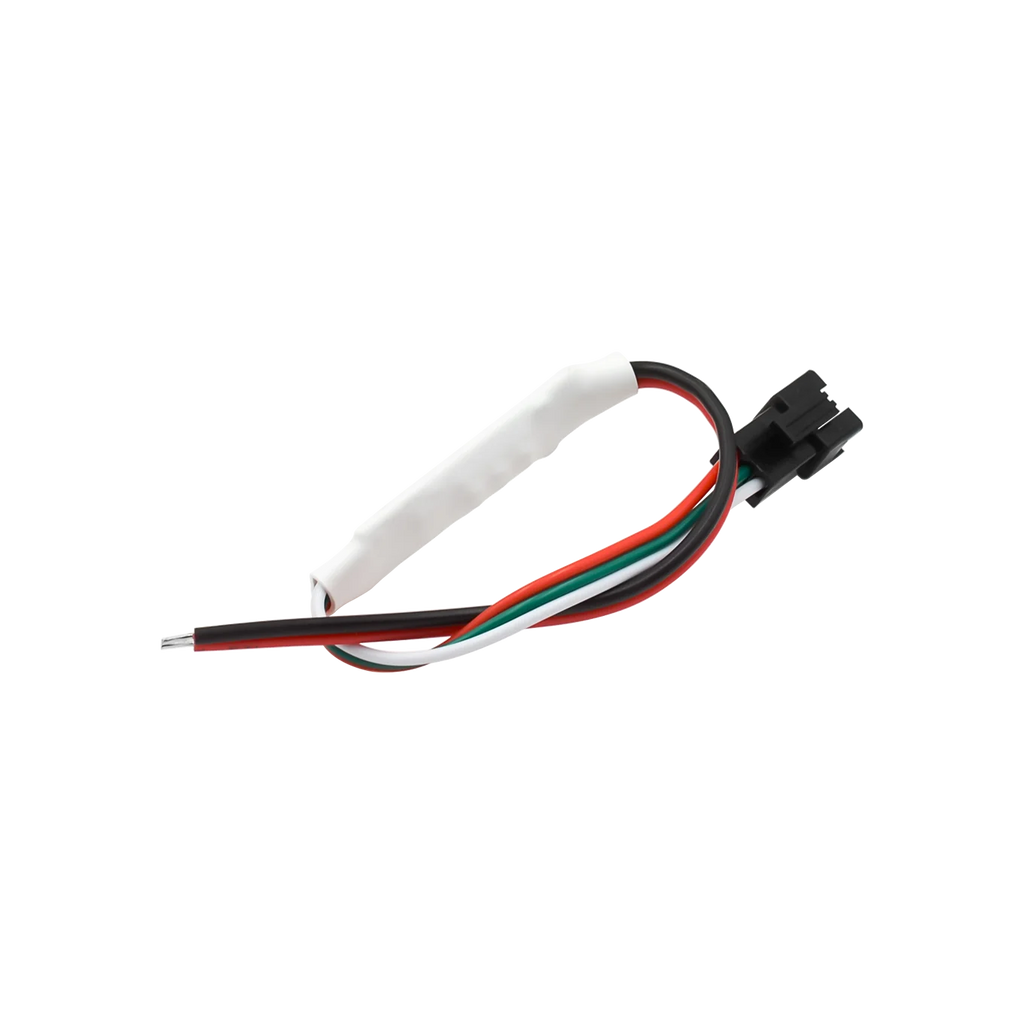

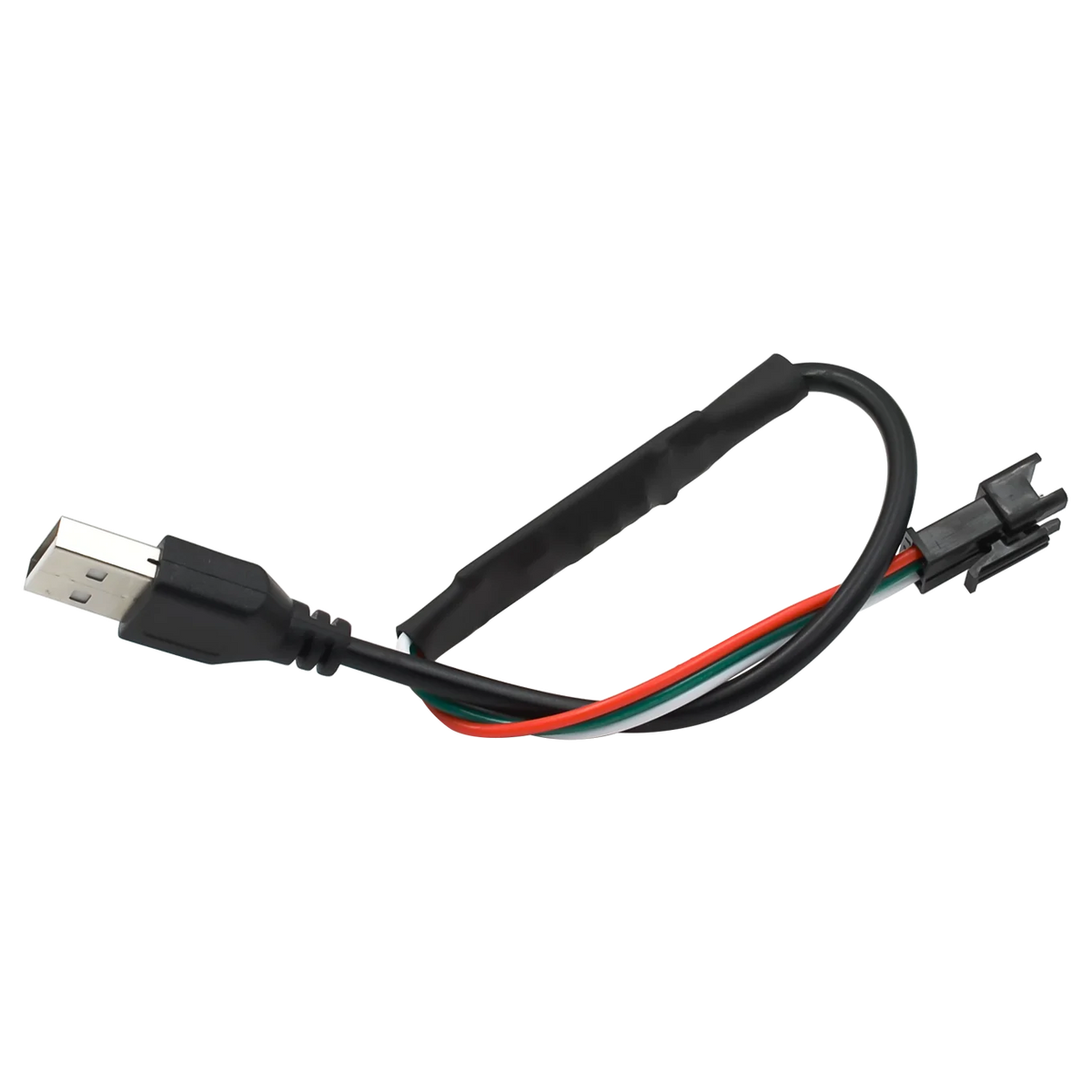

3-button Mini magic controller for the controller and support of common single and two-wire LED driver ics on the market; With 358 kinds of pattern effects, up to 1024 pixels, small size, powerful, can adjust light and speed; With power memory ability. Various modes (such as static color, jump, gradient, flash, auto loop, etc.) The static and dynamic modes are quickly switched separately for easy operation. Widely used in RGB LED lights, LED lights with stage scenery, home decoration, etc. Products such as lighting control. Such as 1804 16703 1003 2811 2812B 6812 and other chips can allow customers to experience the gorgeous colors brought by various modes, while having a low price and convenient connection. Simple to use and other advantages.

Performance parameter

● Operating temperature: -20-60℃

● Power supply voltage: 5V-24V (wide voltage) (the lamp board of our shop is 5V. Can not overvoltage will burn the lamp, the input voltage as much as the output voltage will not be converted to 5V. Attention!!

● Output: 3 channels

● Net weight: 10g

● Product size: L42*W12*H3 mm

● Static power consumption: <1W

● Maximum load current < 6A

● Maximum control points: 1024 points

● Operation mode: 3-key multi-function controller

● Output power: 5V<30W, 12V<72W, 24V<144W

● Distance between the controller and the first point of the light strip: <=10 meters

● Effect mode: 358, covering most of the magic controller effects on the market, water steady on.
