Description

SPECIFICATIONS

Brand Name: gangbei

Certification: CE,RoHS

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: SP13

Origin: Mainland China

Voltage: 380 V

semi_Choice: yes

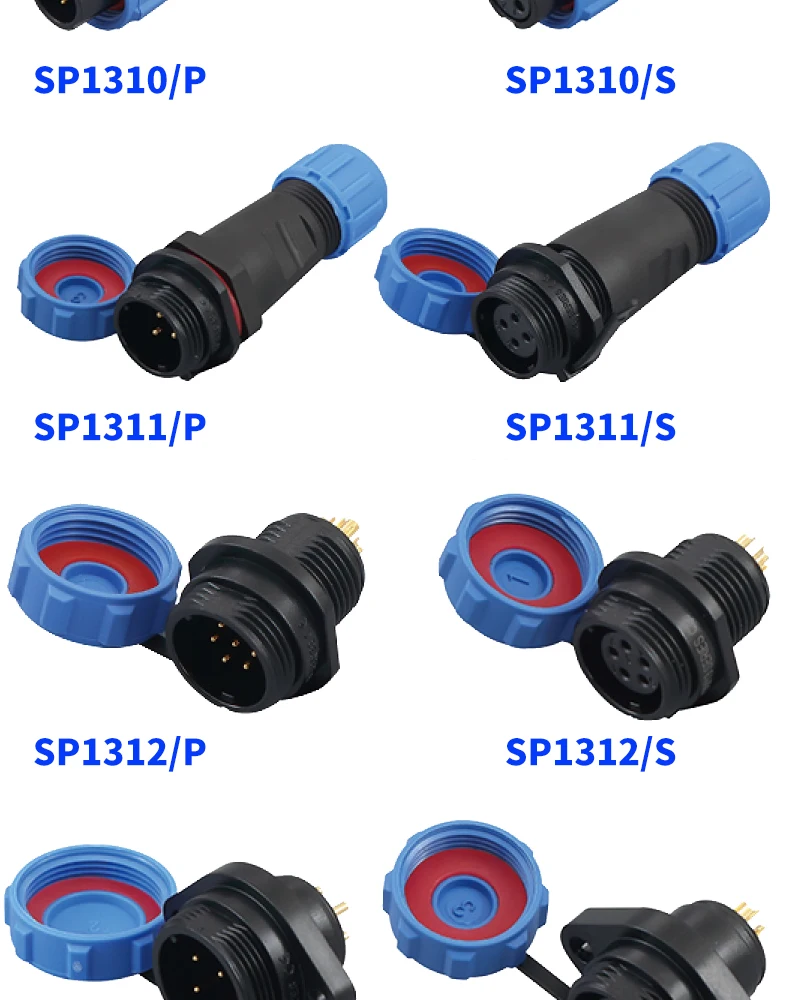

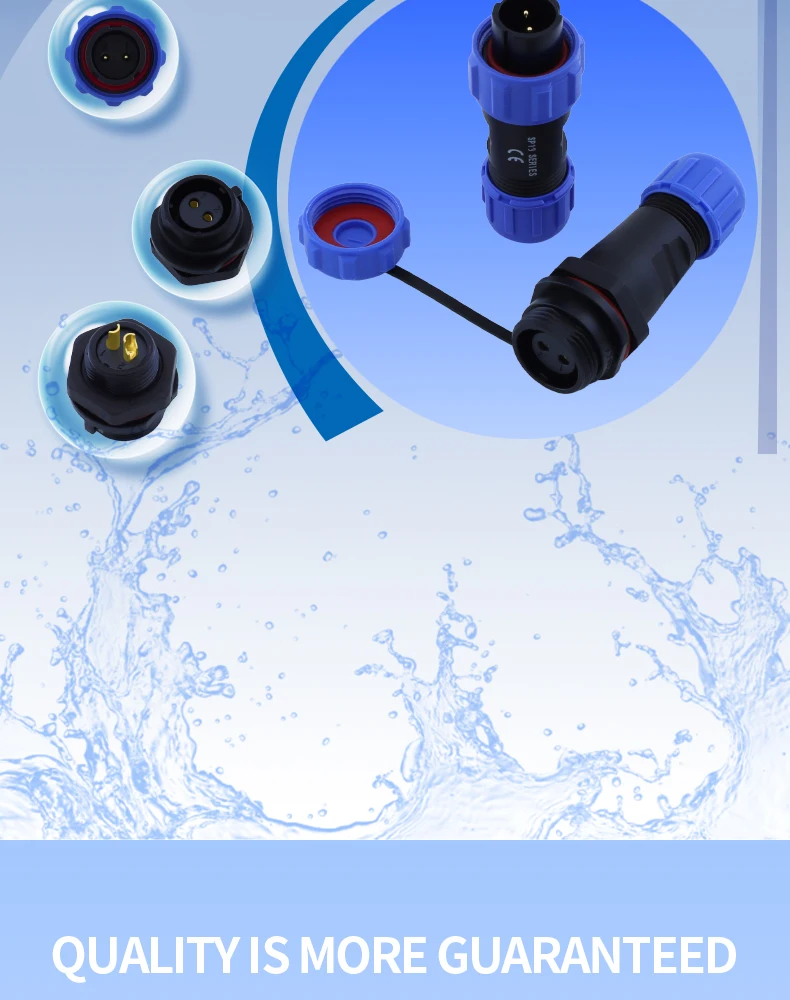

SP1310 series aviation plug sockets have two, three, four, five, seven, nine, and so on. Plug, socket and air docking waterproof aviation plug, IP68 waterproof, dustproof and oil, with advanced technical structure. High reliability small size light weight; Excellent water-resistant threaded pins and cables are welded easily; The price is reasonable. It is widely used in electrical connections and a variety of electronic devices.

Working current support 13A, 5A, 3A
With exceptionally strong anti-corrosion, anti-photohydration and other functions,
Suitable for machine equipment, outdoor LED display and so on.

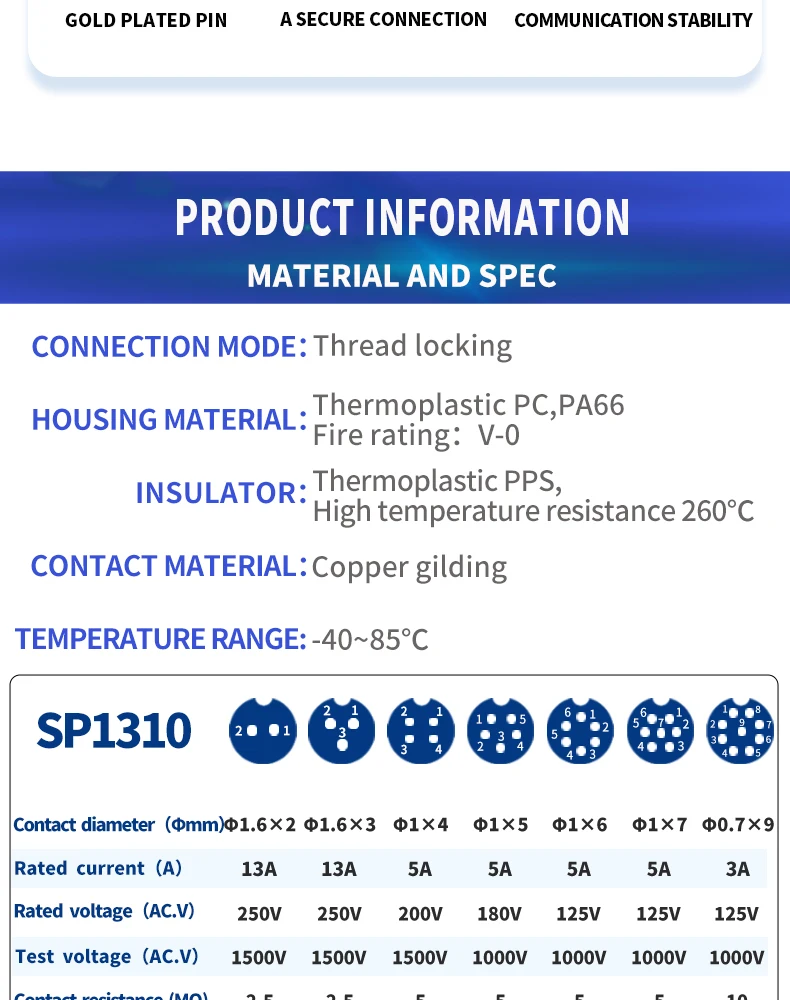

The specific characteristics are as follows:
1. Operating temperature: -40°C~85 °C
2. Relative humidity: 90% ~ 95% (40±2°C)
3. Salt spray: 5% NaC1 mist in 48h
4. Tightness: in line with IP68 (2m water depth 2h not deep water)
5. Applicable wire diameter: Φ4.0~6.0mm
6. Mechanical life: 500 times
7. Insulation resistance: 2000M Ω under normal conditions
8. Working current: Φ1.6 contact: 13A, 1 contact 5A
9. Contact resistance: Φ1.6 contact part 2.5MΩ, 1 contact part: 5MΩ
10. Working voltage and resistance voltage (sea level) Working voltage: 250V (AC) Voltage resistance: 1000V(AC)
