SPECIFICATIONS

Aviation Grade Quality

Constructed with high-quality materials, this aviation plug ensures durability and longevity in demanding applications.

Waterproof Design

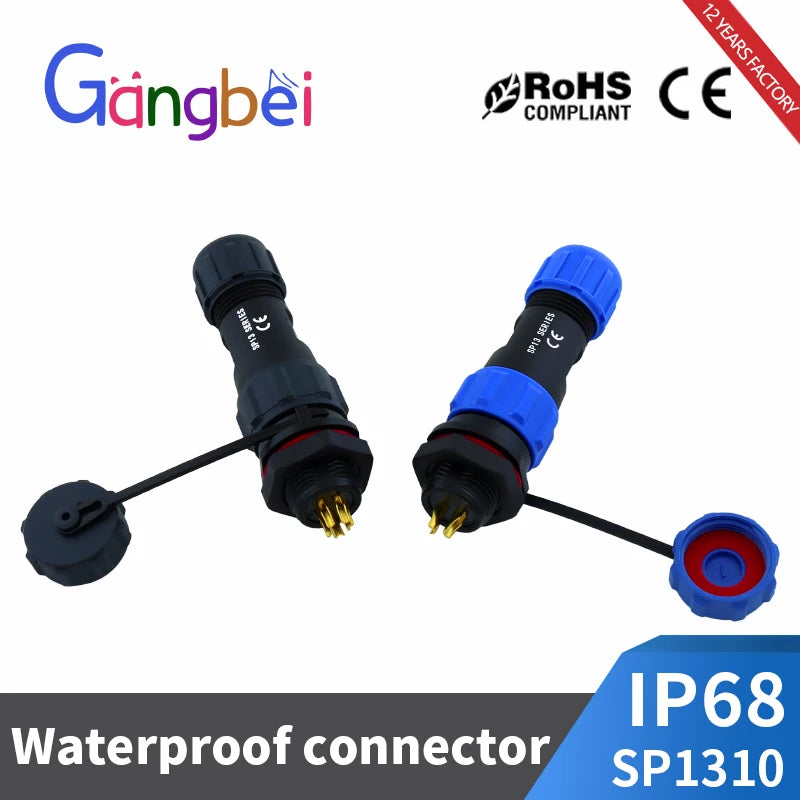

The SP13 Waterproof Connector features an IP68 rating, ensuring complete protection against dust and water, ideal for harsh environments.

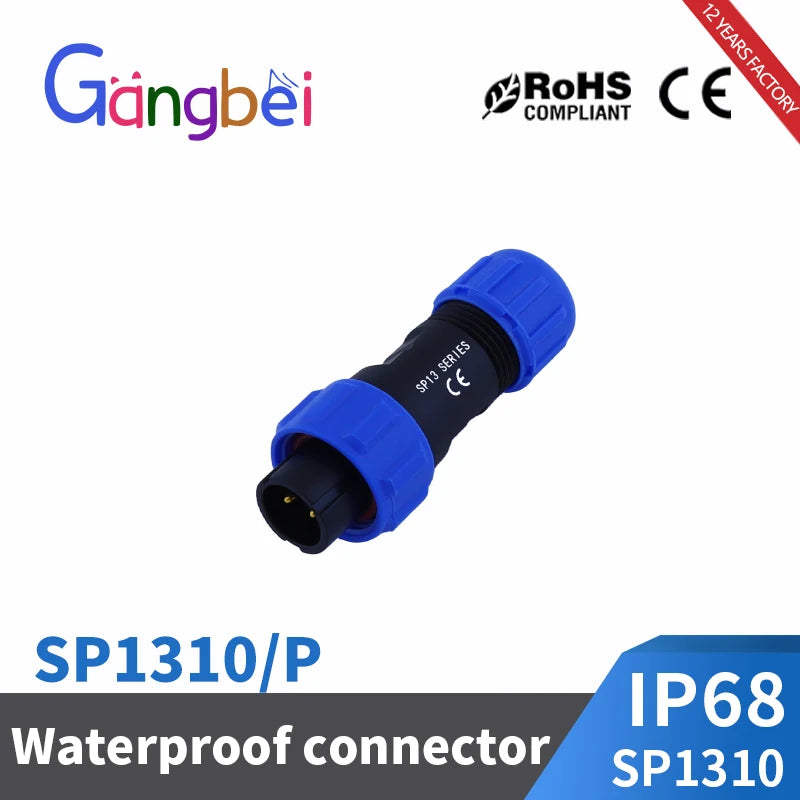

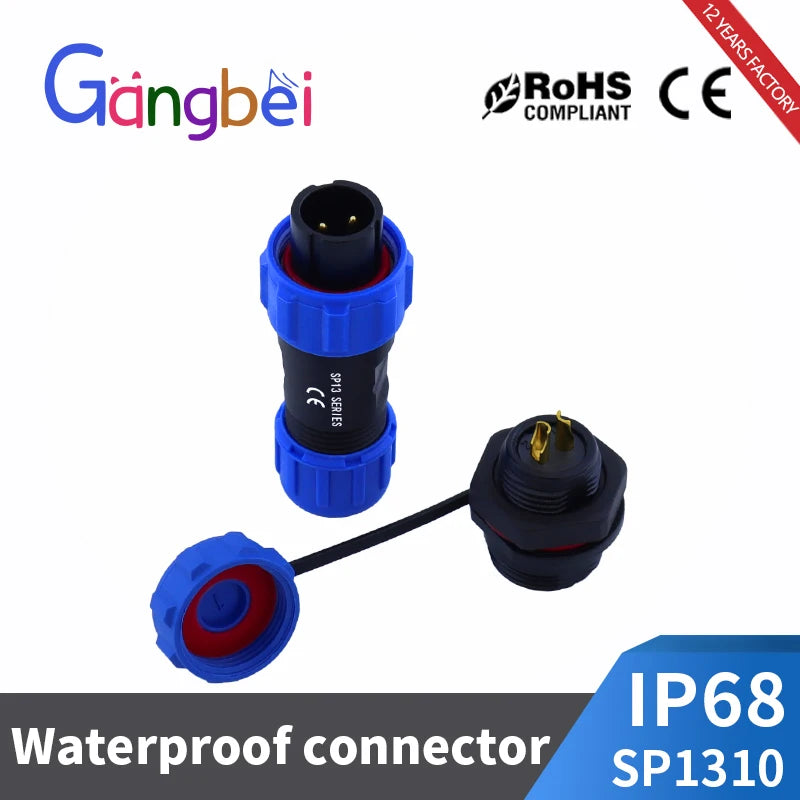

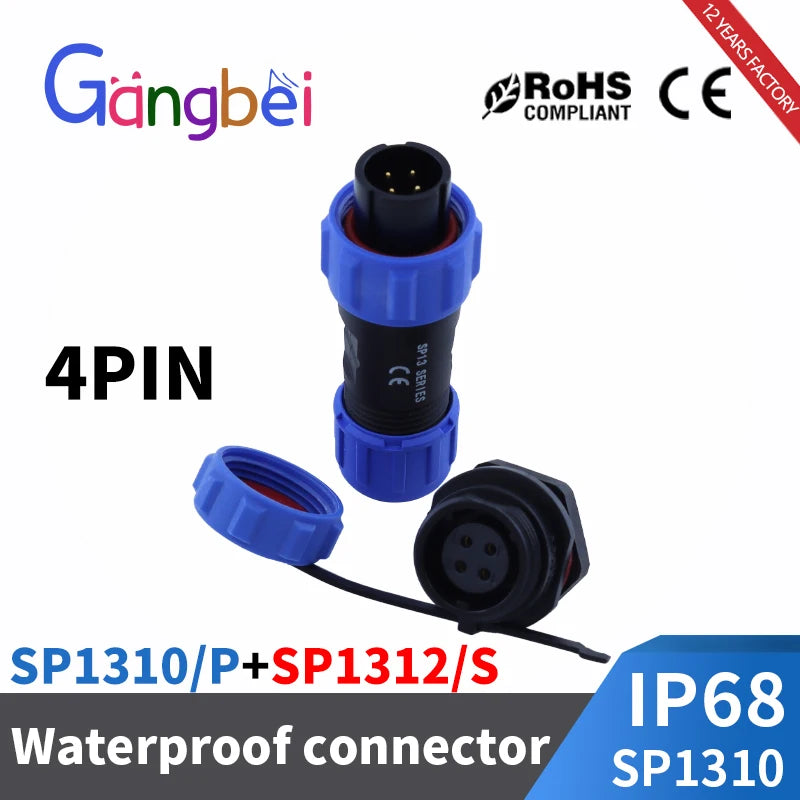

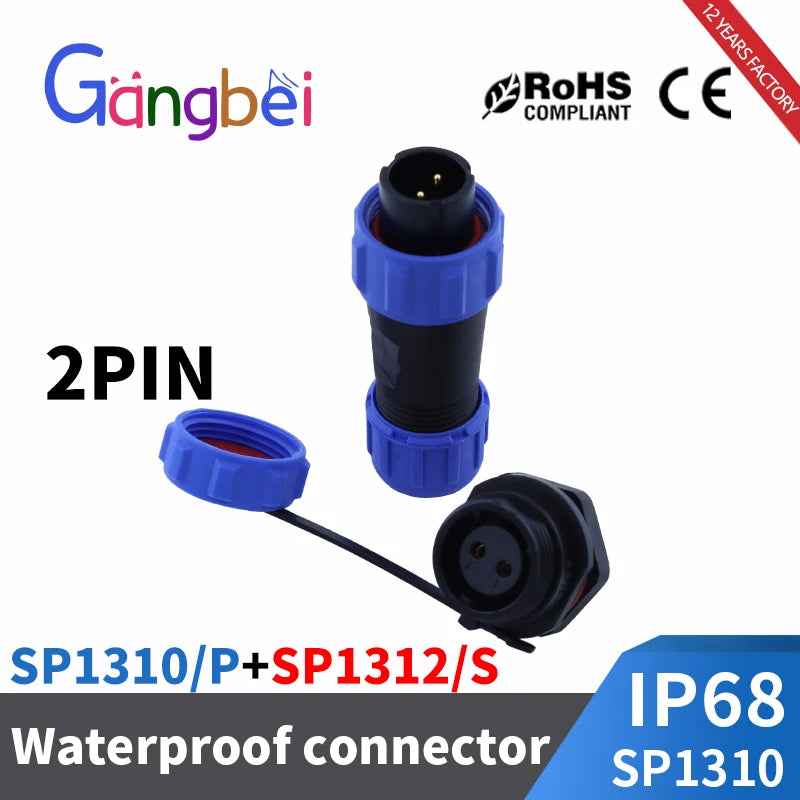

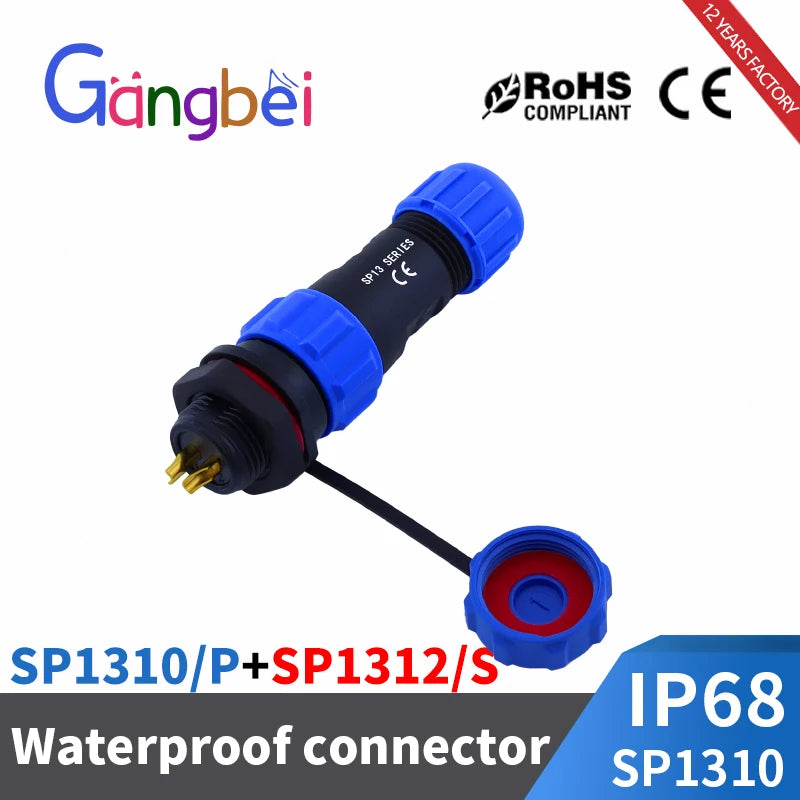

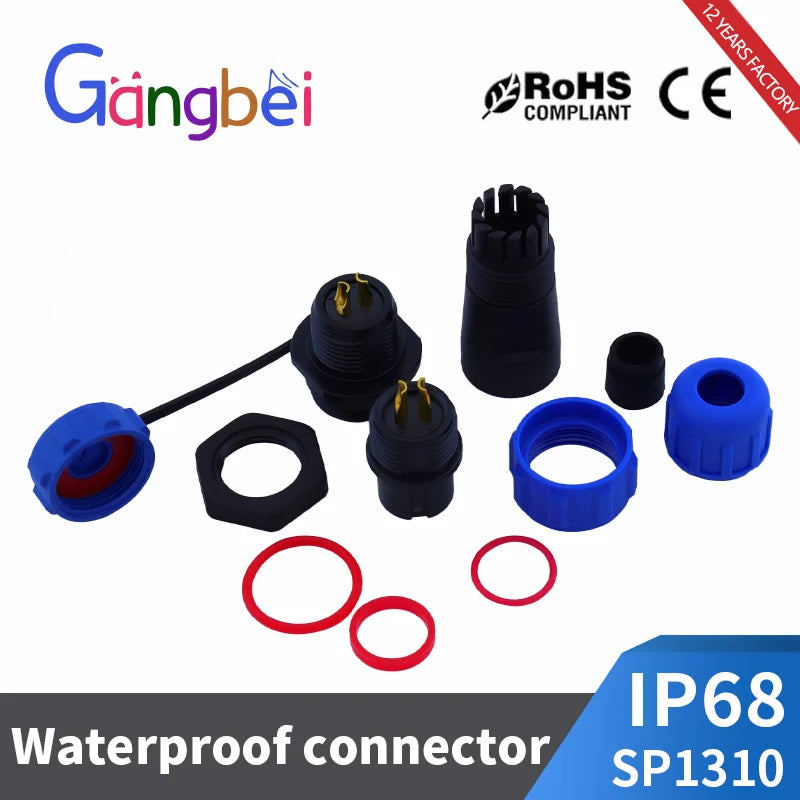

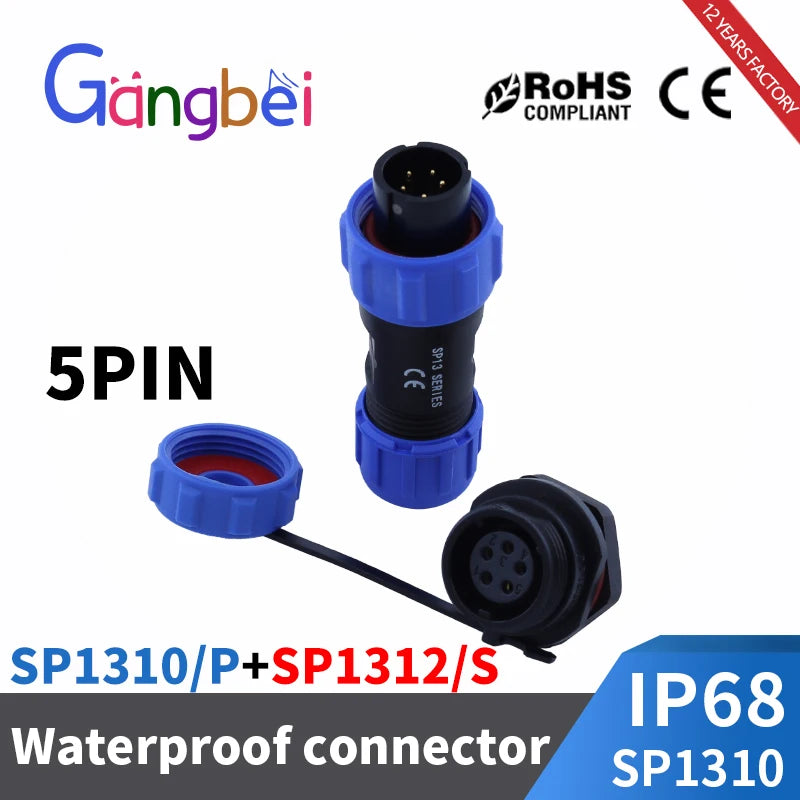

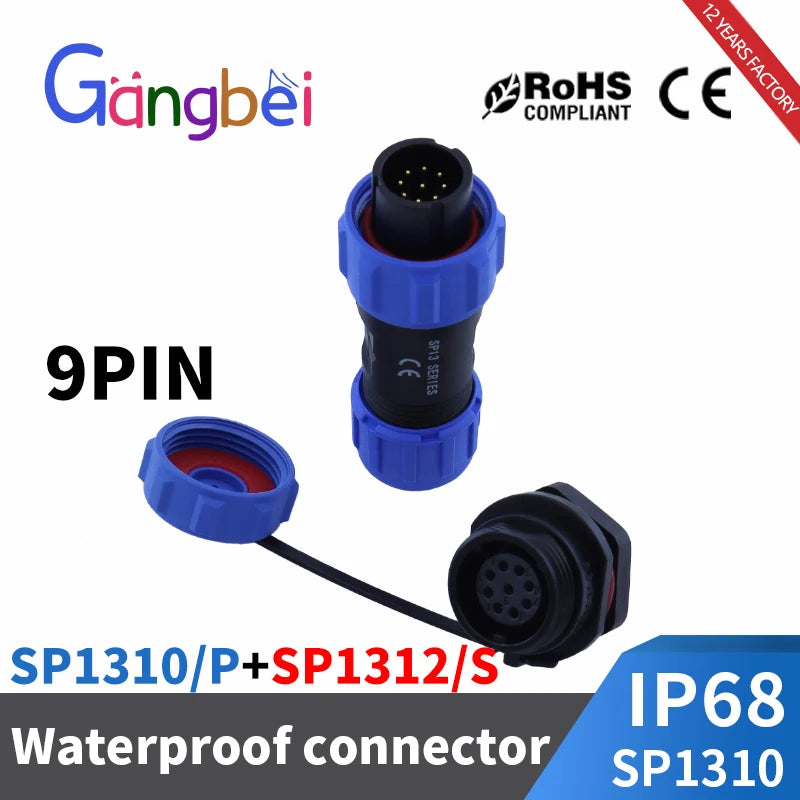

Male Plug & Female Socket Set

The set includes both male and female connectors, providing a complete solution for cable connections.

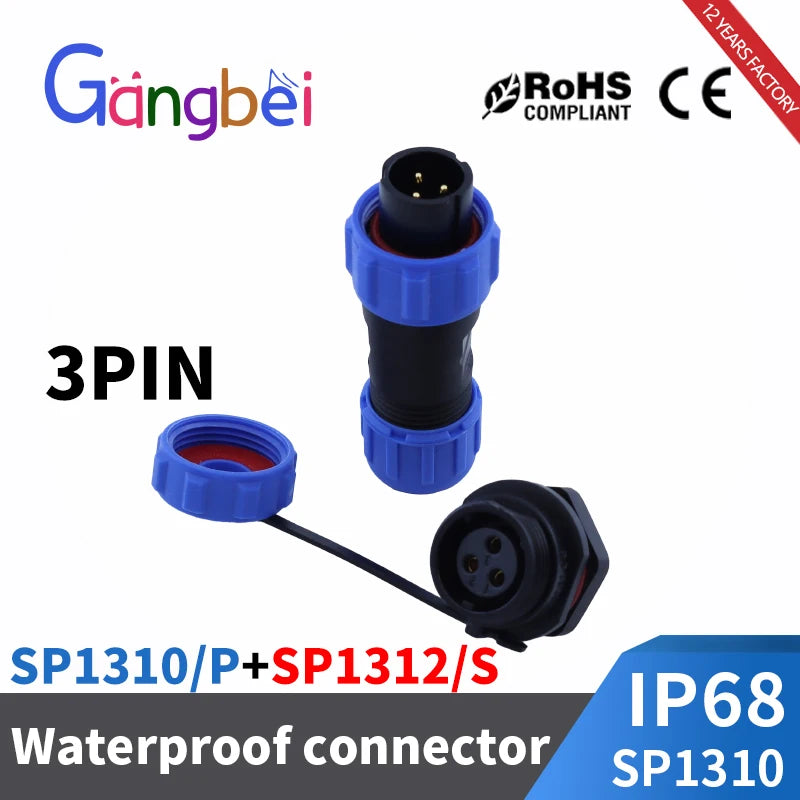

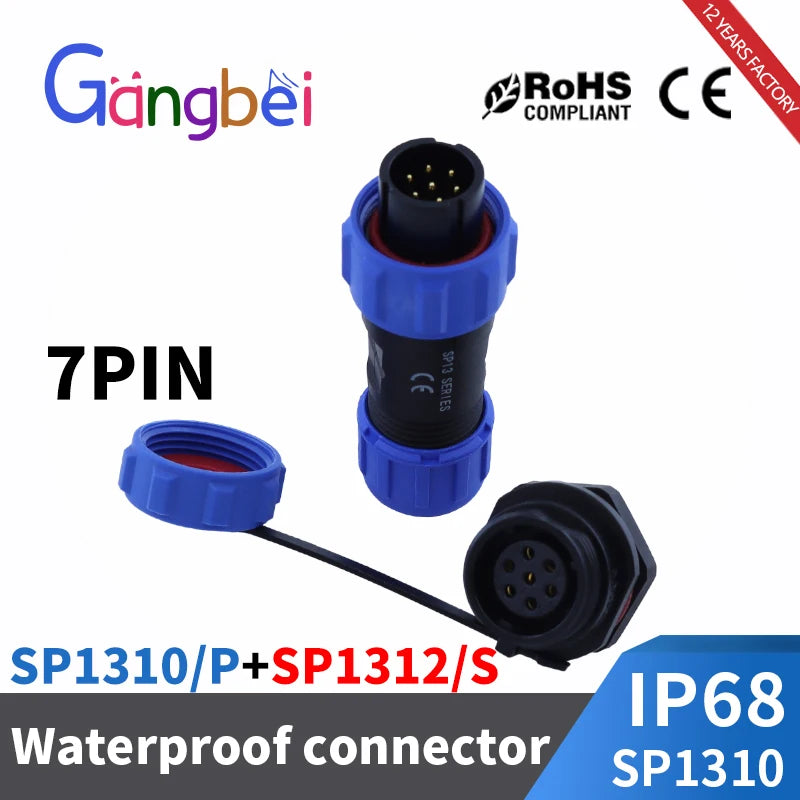

Versatile Pin Options

Available in 2/3/4/5/6/7/9 pin configurations, this connector offers flexibility for various wiring needs.

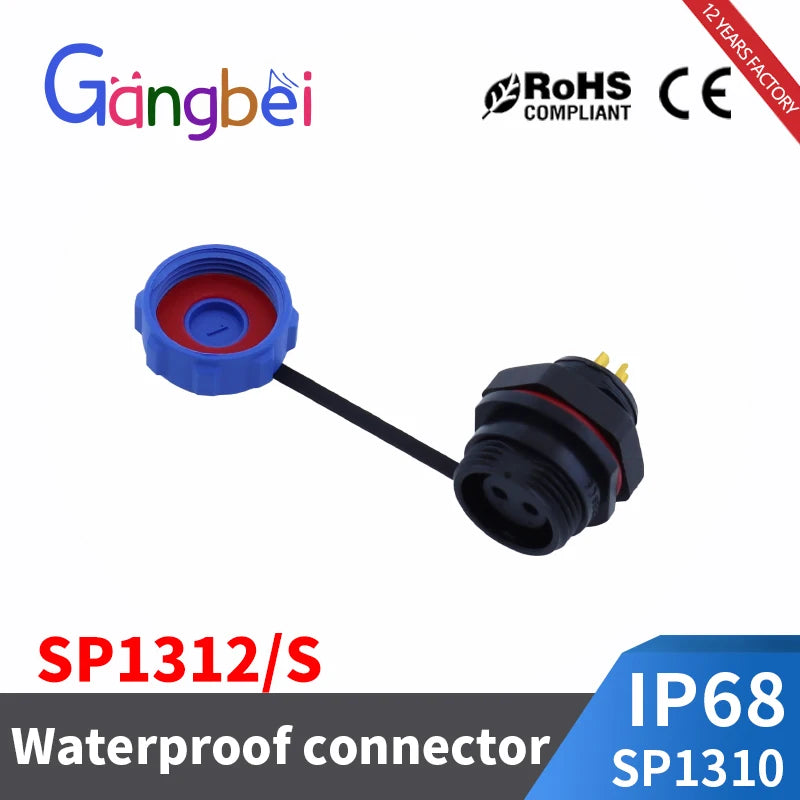

Panel Mount Compatibility

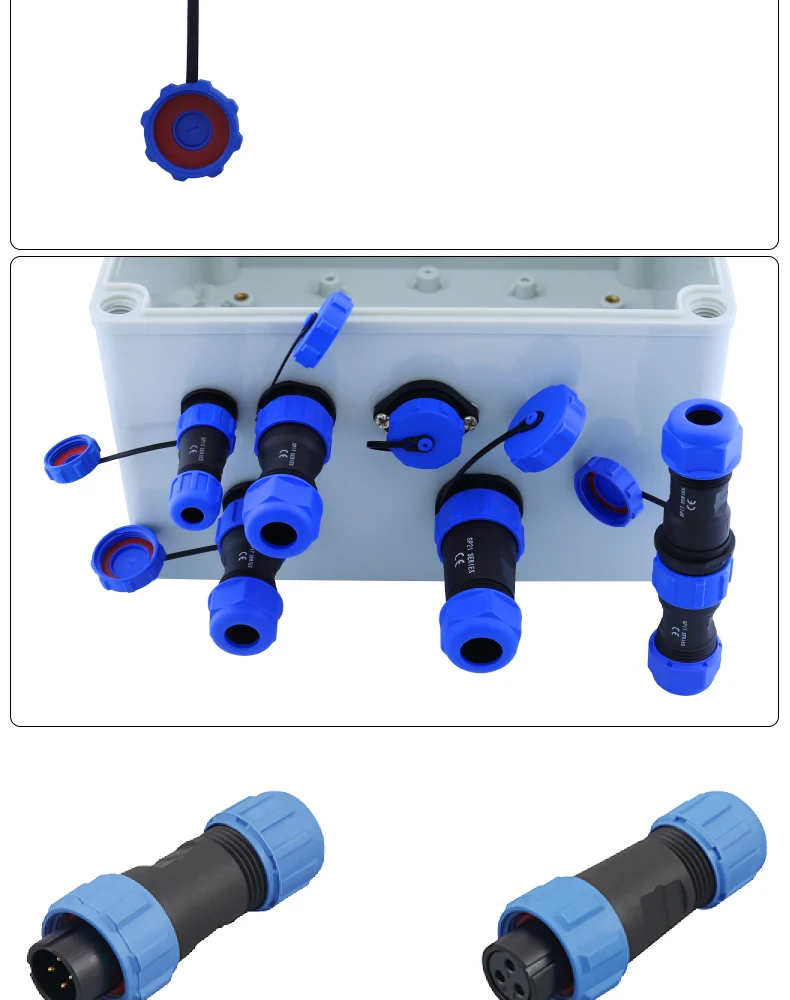

Designed for easy installation, the connector can be mounted directly onto panels, saving space and enhancing organization.

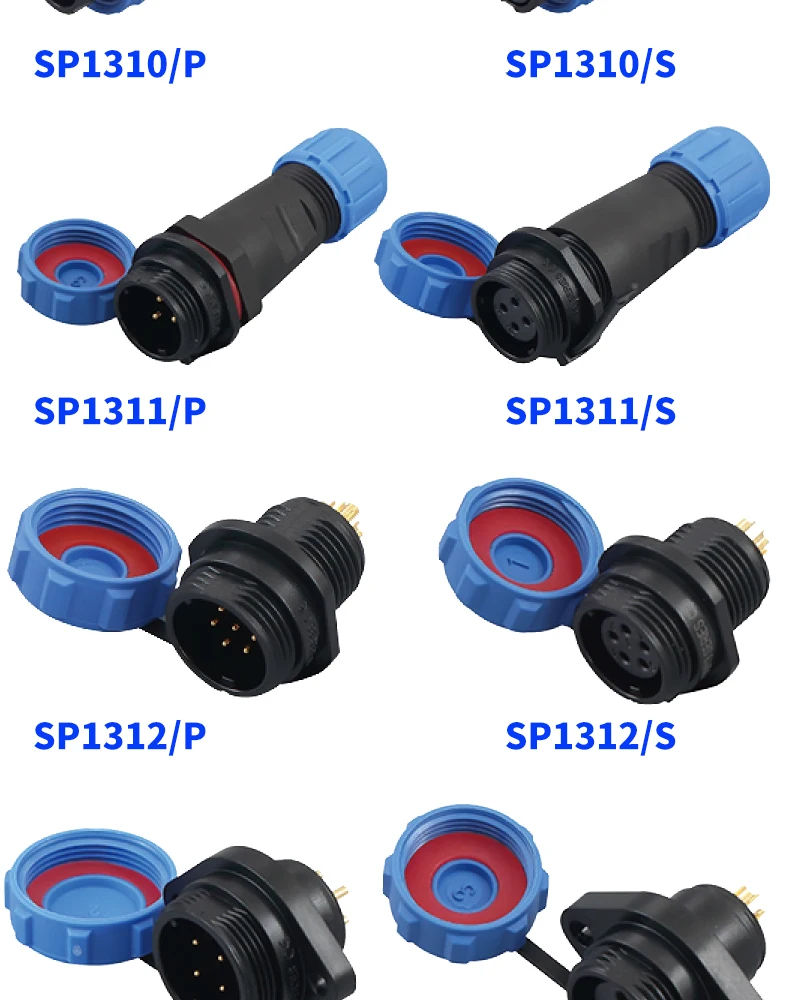

SP1310 series aviation plug sockets have two, three, four, five, seven, nine, and so on. Plug, socket and air docking waterproof aviation plug, IP68 waterproof, dustproof and oil, with advanced technical structure. High reliability small size light weight; Excellent water-resistant threaded pins and cables are welded easily; The price is reasonable. It is widely used in electrical connections and a variety of electronic devices.

Working current support 13A, 5A, 3A
With exceptionally strong anti-corrosion, anti-photohydration and other functions,
Suitable for machine equipment, outdoor LED display and so on.

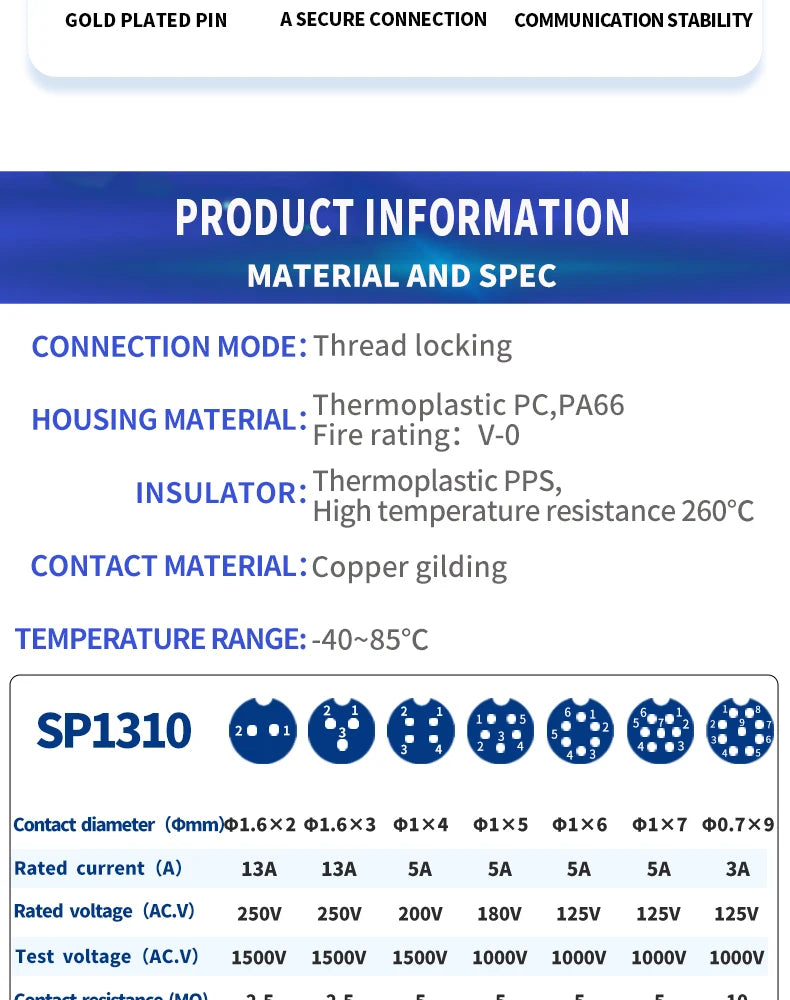

The specific characteristics are as follows:
1. Operating temperature: -40°C~85 °C
2. Relative humidity: 90% ~ 95% (40±2°C)
3. Salt spray: 5% NaC1 mist in 48h
4. Tightness: in line with IP68 (2m water depth 2h not deep water)

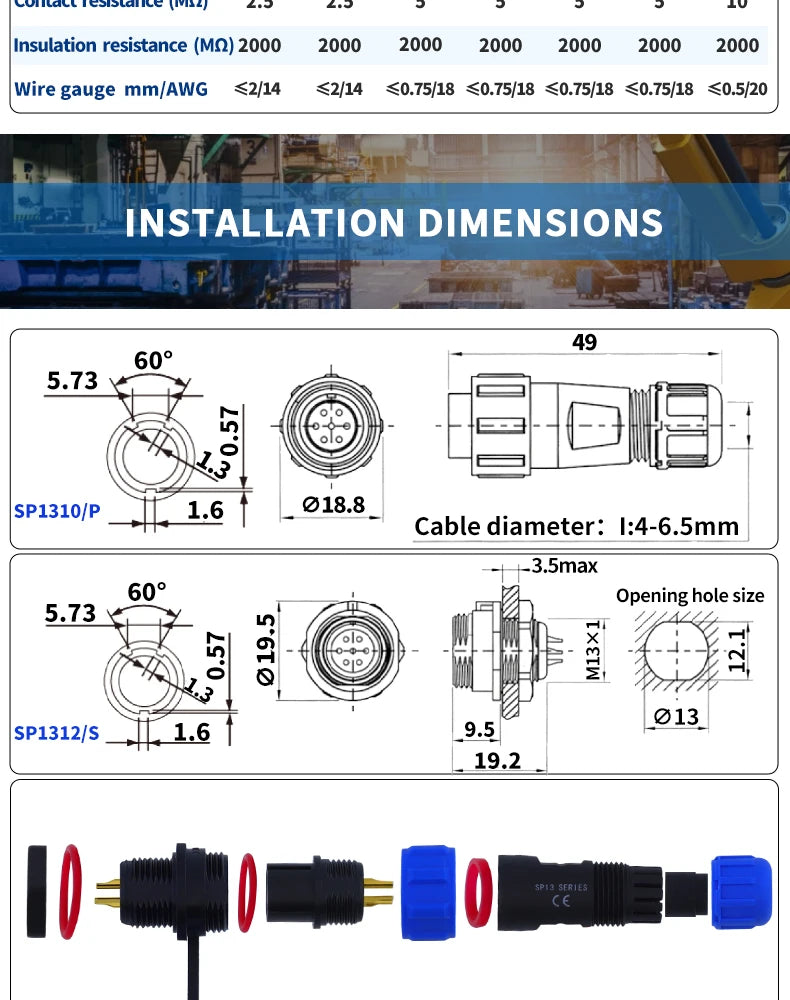

5. Applicable wire diameter: Φ4.0~6.0mm
6. Mechanical life: 500 times
7. Insulation resistance: 2000M Ω under normal conditions
8. Working current: Φ1.6 contact: 13A, 1 contact 5A
9. Contact resistance: Φ1.6 contact part 2.5MΩ, 1 contact part: 5MΩ
10. Working voltage and resistance voltage (sea level) Working voltage: 250V (AC) Voltage resistance: 1000V(AC)
