SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Origin: Mainland China

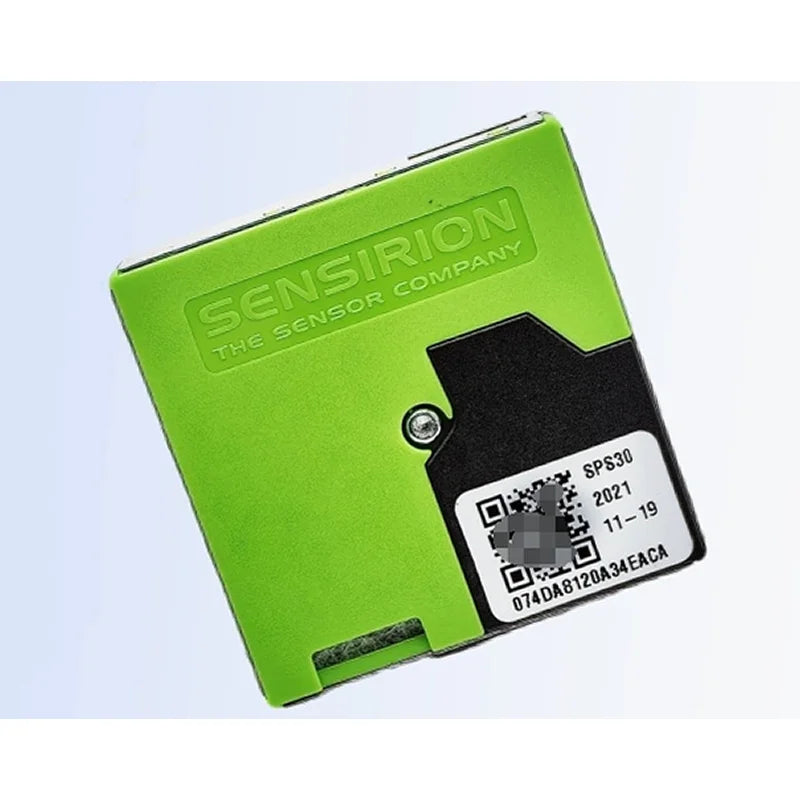

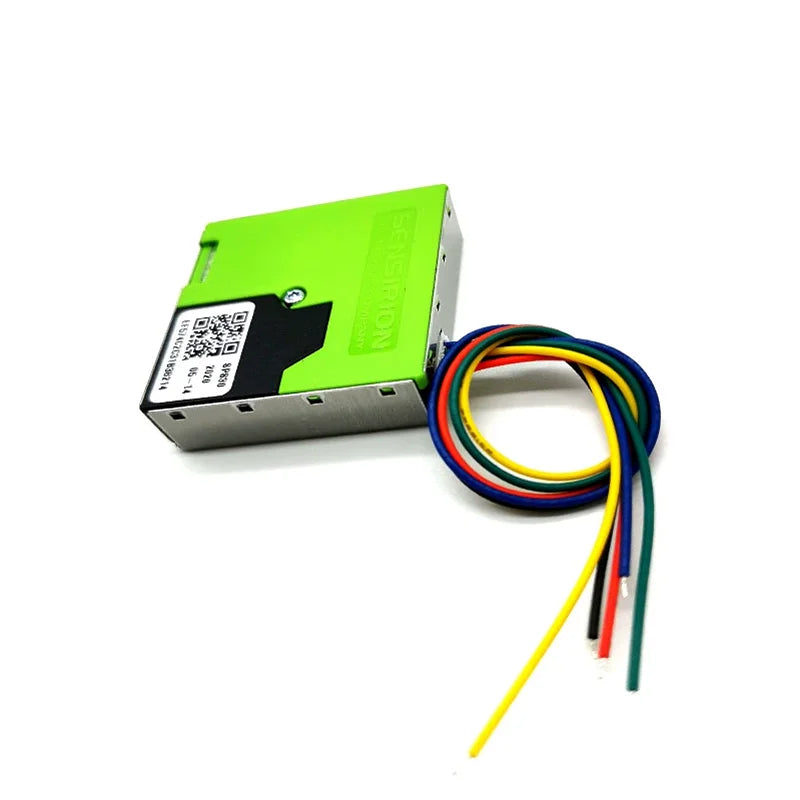

SPS30 Dust Sensor (PM) Wiring SENSIRION Pm2.5 Sensor SPS-30

Specifications of fine particulate matter sensors

Mass concentration accuracy 1:

+10 μg/m³ @ 0 to 100 μg/m³

+10 % @ 100 to 1000 μg/m³

Mass concentration range: 1 to 1000 μg/m³

Mass concentration resolution: 1 μg/m³

Particle detection size range:

Mass concentration: PM1.0, PM2.5.PM4 and PM10

Counting concentration: PM0.5, PM1.0, PM2.5, PM4 and PM10

Lower detection limit: 0.3 μm

Minimum sampling interval: 1 second (continuous mode)

Service life: >10 years @24 hours/day in continuous mode

Dimensions: 40.6 x 40.6 x 12.2 mm

Operating temperature range: -10 to +60 °C

Storage temperature range: -40 to +70 °C

Electrical specifications

Interface: UART, I²C

Powered battery: 4.5-5.5V

Average supply current (@ 1Hz measurement rate): 55 mA

Proprietary anti-pollution technology, durable parts

Can work 24 hours a day, and the service life is more than 8 years

No cleaning and/or maintenance required to avoid end users complaining about sensor drift or failure, etc.

Laser-based scattering principle and advanced algorithms

High-precision particle size grading

Accurate measurement of different types of dust and other particles

Support new use cases and device-specific operations based on detected particle composition

Thin packaging

Suitable for critical applications

Full calibration, UART and I2C interfaces

Simple interface and output
