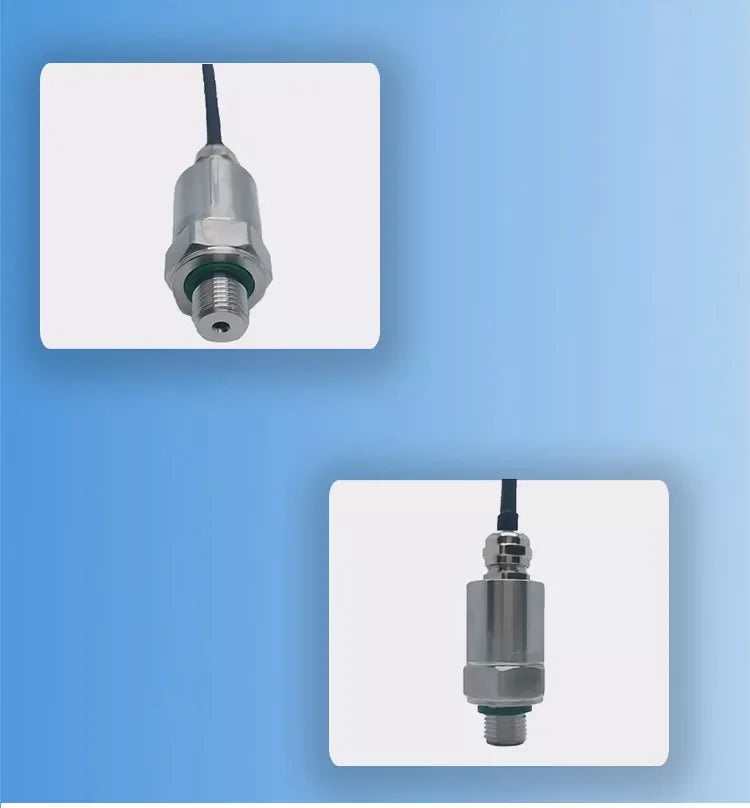

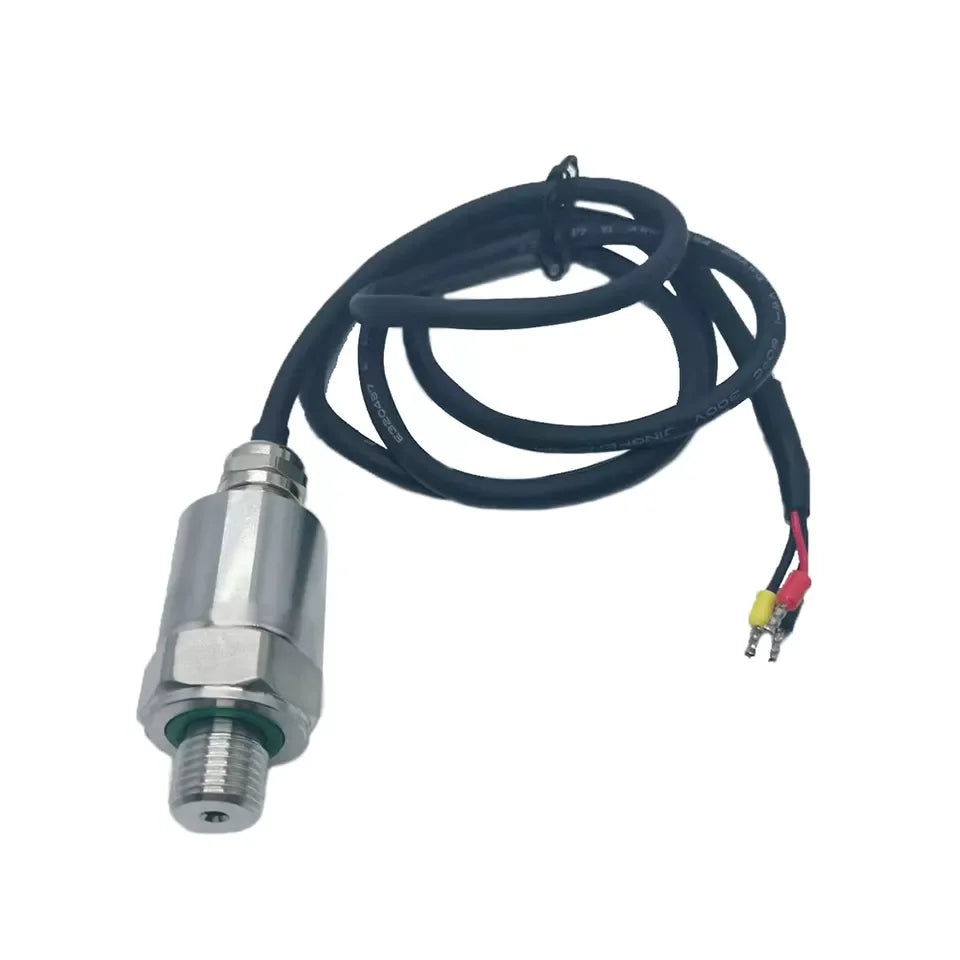

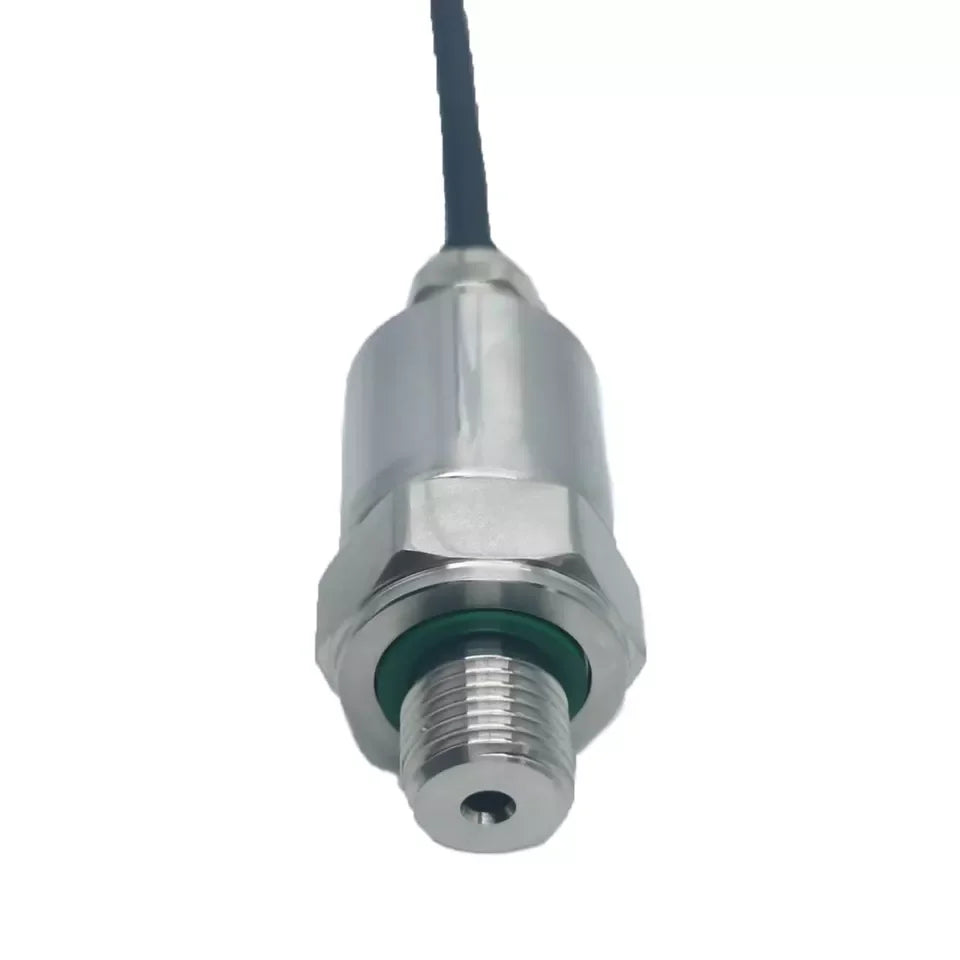

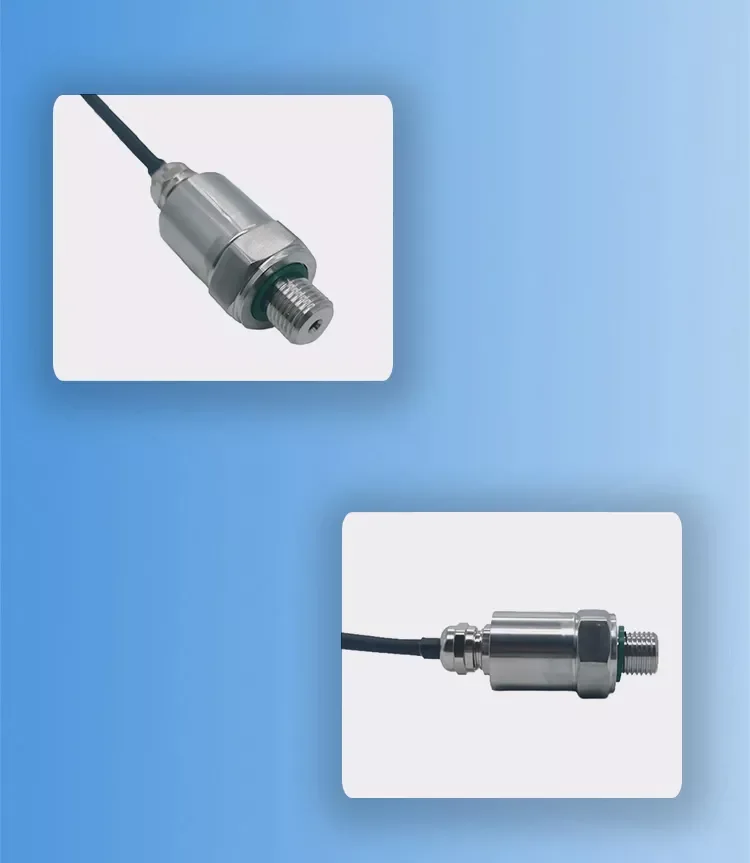

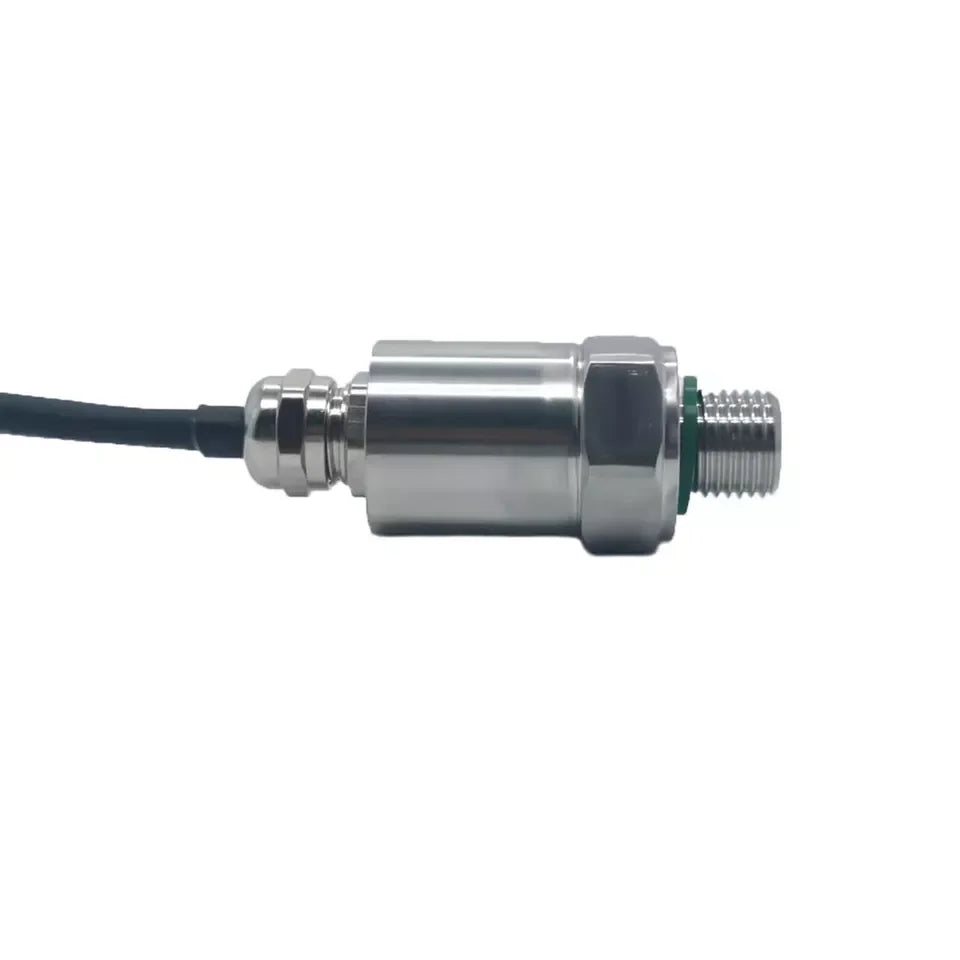

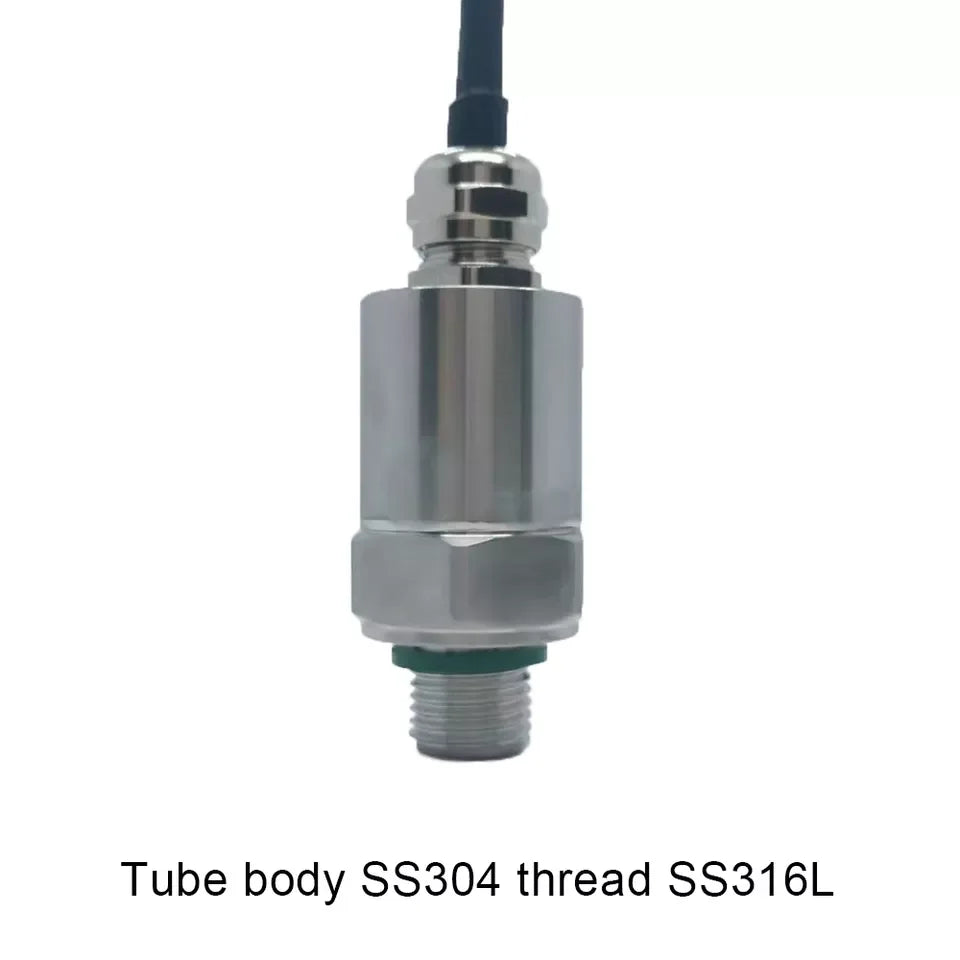

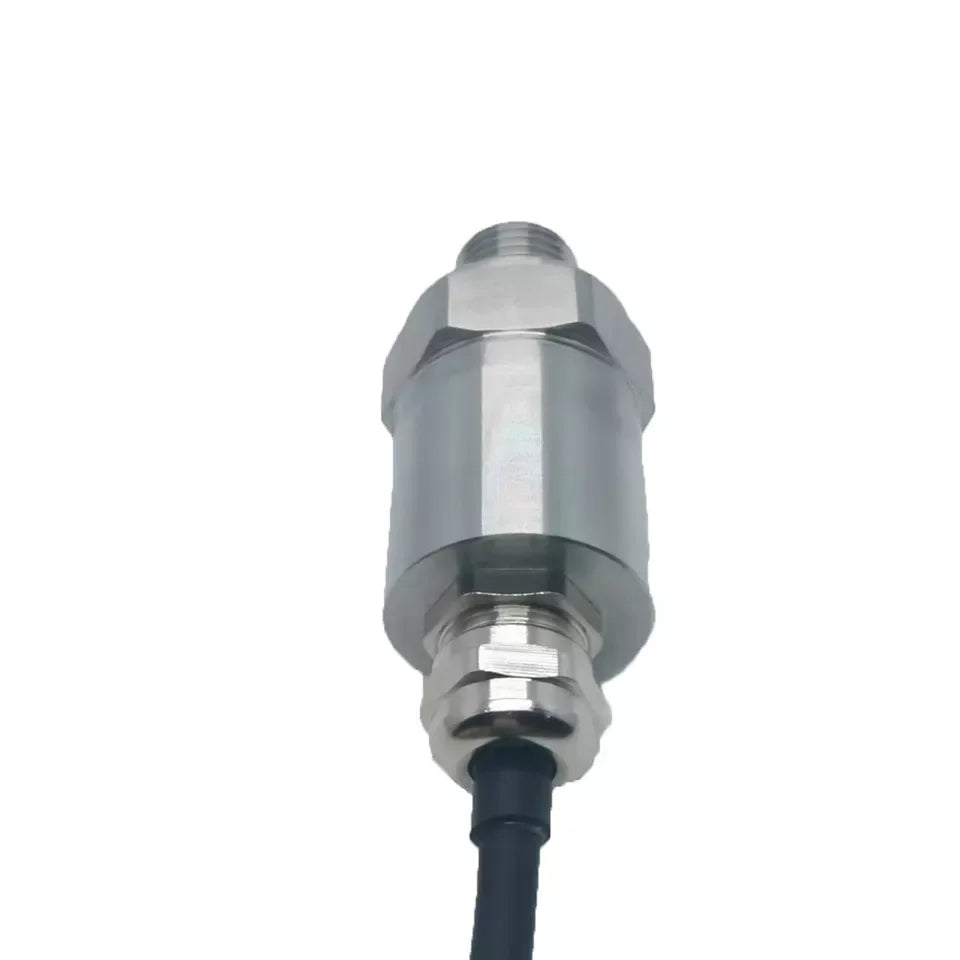

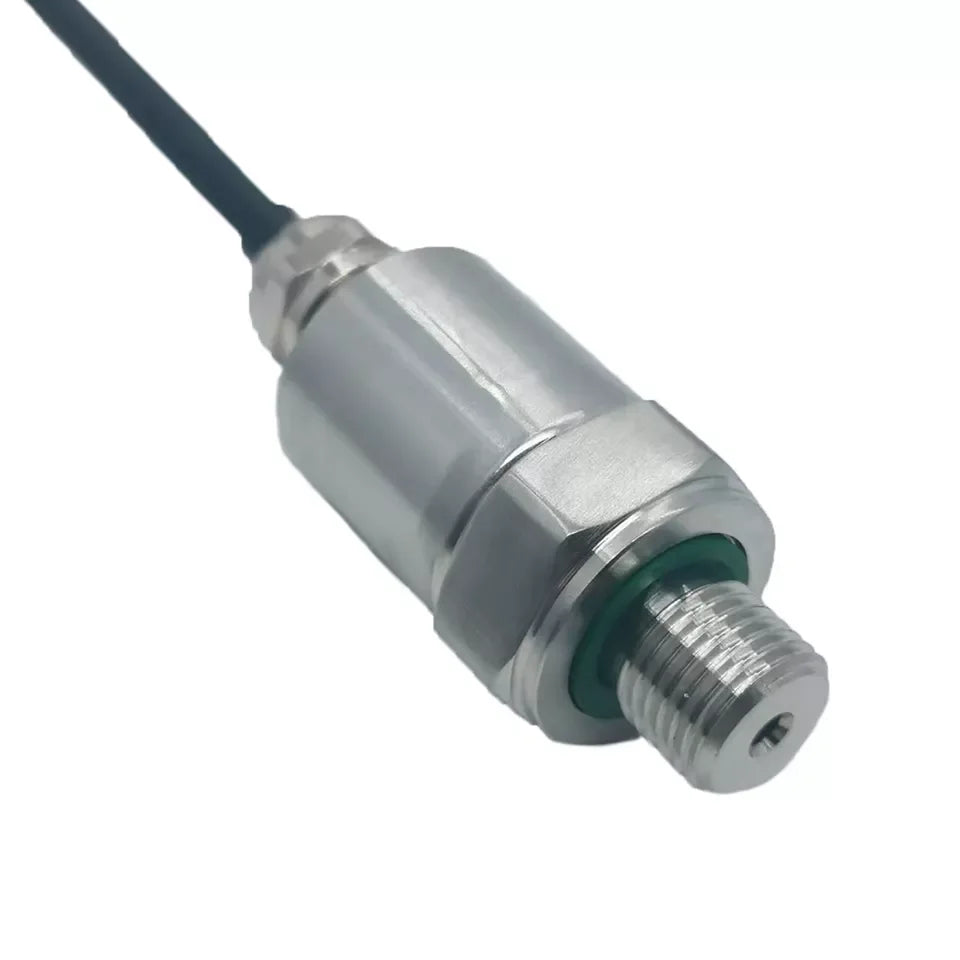

SS316L Pressure Transmitter for Corrosive Liquid Gas 0-600 Bar Optional 4-20mA 0-10V Analog Signal G1/4 Pressure Transducer

4-20mA / China Mainland / 0-0.8Mpa

$164.97

Sale price $164.97 Regular price $0.00

Skip to product information

SS316L Pressure Transmitter for Corrosive Liquid Gas 0-600 Bar Optional 4-20mA 0-10V Analog Signal G1/4 Pressure Transducer

SS316L Pressure Transmitter for Corrosive Liquid Gas 0-600 Bar Optional 4-20mA 0-10V Analog Signal G1/4 Pressure Transducer

$164.97

Sale price $164.97 Regular price $0.00

Color 4-20mA 0-10V

Ships FromChina Mainland

Measuring Range 0-0.8Mpa 0-0.6Mpa 0-1.2Mpa 0-1Mpa 0-0.2Mpa 0-0.5Mpa 0-0.4Mpa 0-10Mpa 0-6Mpa 0-20Mpa 0-16Mpa 0-2.5Mpa 0-1.6Mpa 0-5Mpa 0-4Mpa 0-30Mpa 0-25Mpa 0-60Mpa 0-40Mpa Other

Description

SPECIFICATIONS

Accuracy: ±0.5%FS

Battery Included: no

Brand Name: XIDIBEI

Burst pressure: 300%FS

Certification: CE,RoHS

Compensation temperature: -20-80℃

Cycle life: 500,000 times

Electrical connection: Gland

Explosion-proof class: ExiaIICT6

High-concerned chemical: none

Housing material: SS316L thread & hex bolts for corrosive media

Long-term stability: ≤±0.2%FS/year

Max Measuring Range: 400 Bar & Above

Measuring range: -1~0~600bar

Model Number: XDB308-G1-W1

Operating current: ≤3mA

Operating temperature: -40-105℃

Origin: Mainland China

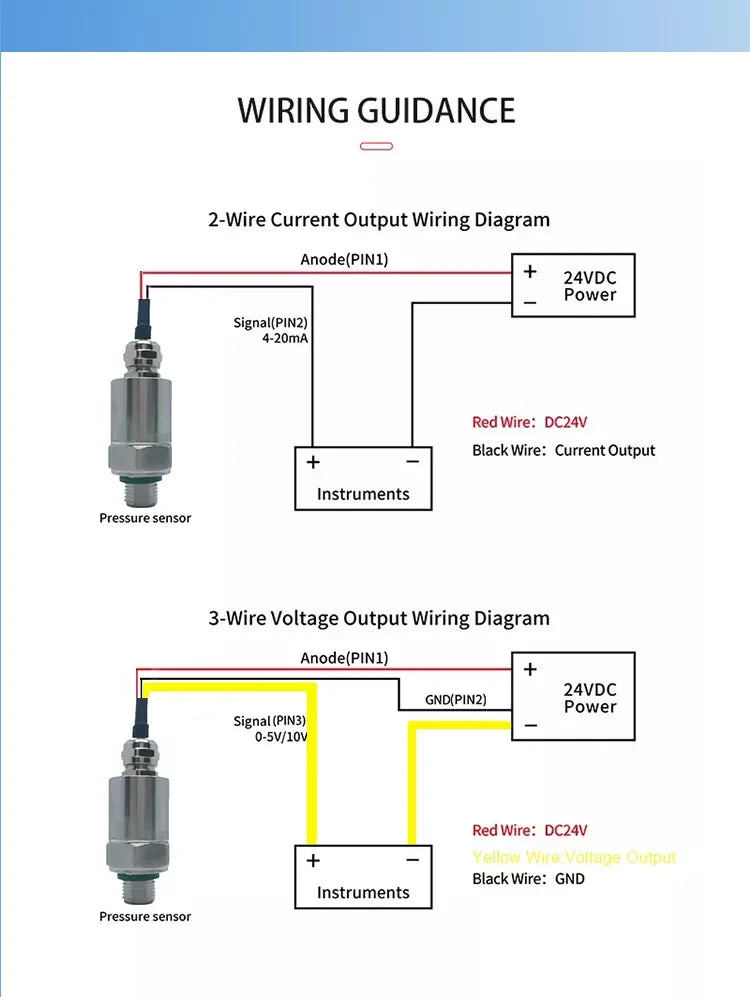

Output signal: 4-20mA / 0-10V

Overload pressure: 150%FS

Paired cable: 1m default

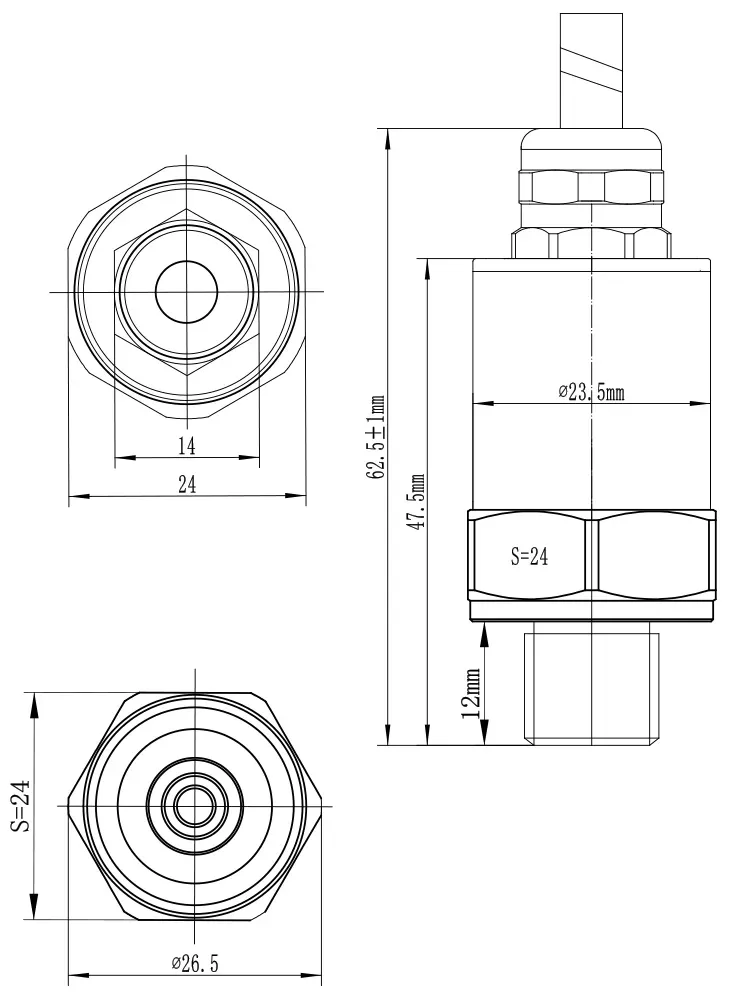

Pressure connection: G1/4

Pressure medium: Corrosive liquid or gas suitable for SS316L

Protection class: IP67

Response time: ≤3ms

Supply voltage: 9-36VDC

Temperature drift (zero & sensitivity): ≤±0.03%FS/℃

Weight: 0.20kg

Description

XDB308 series pressure transmitters adopt the international advanced piezoresistive sensor technology, which can be

selected from the different sensor core depending on various applications. SS316L thread with all stainless steel package,

good long-term stability, multiple signal outputs, they can be suitable for most media and adapted to various environments

and climates, thus they are widely used in various fields.

Features

◆ Robust, monolithic, SS316L thread & hex bolt suitable for corrosive gas, liquid and various media;

◆ Long-term reliability, ease installation and high performance price ratio;

◆ Integrated function test through “live zero”;

◆ Withstands loads of up to 1.5 times its nominal (rated) pressure;

◆ Resistant to permanent humidity and dirt owing to its IP65 protection;

◆ Shock-proof for applications with vibrations (in compliance with DIN IEC68);

◆ Reliable and resistant thanks to its stainless stainless-steel measuring body and convenient function test.

Applications

◆ Intelligent IoT constant pressure water supply

◆ Engineering machinery, industrial process control and monitoring

◆ Energy and water treatment systems

◆ Steel, light industry, environmental protection

◆ Medical, agricultural machinery, testing equipment

◆ Flow measurement equipment

◆ Hydraulic and pneumatic control systems

◆ Air-conditioning unit and refrigeration equipment

◆ Water pump, air compressor pressure monitoring

Parameters

Measuring range	-0.1~0~60Mpa (optional)
Accuracy	±0.5%FS
Output signal	4-20mA / 0-10V
Supply voltage	9-36VDC
Operating temperature	-40 - 105℃
Compensation temperature	-20 - 80℃
Operating current	≤3mA
Temperature drift (zero & sensitivity)	≤±0.03%FS/℃
Long-term stability	≤±0.2%FS/year
Response time	≤3ms
Overload pressure	150%FS
Burst pressure	300%FS
Cycle life	500,000 times
Pressure connection	G1/4
Electrical connection	Gland
Housing material	SS316L thread & hex bolts for corrosive media
Protection class	IP67
Explosion-proof class	ExiaⅡCT6
Weight	≈0.2kg
Pressure medium	Corrosive liquid or gas suitable for SS316L
