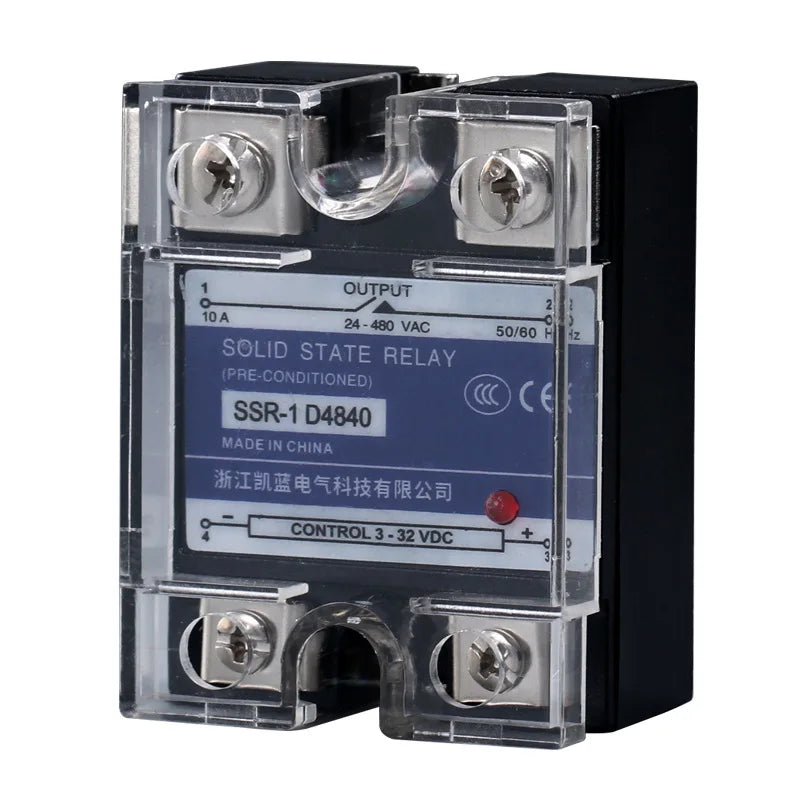

SSR-10DD 25DD 40DD 80A 100A SSR Single Phase DC Control DC 3-32VDC To 220VDC 600V 10A 25A 40A DD Solid State Relay

SSR-10DD 25DD 40DD 80A 100A SSR Single Phase DC Control DC 3-32VDC To 220VDC 600V 10A 25A 40A DD Solid State Relay

$86.40

$86.40 $0.00

Size 10A-120A heat sink 10A-25A heat sink 10A-120A heat sink 1 10DD 25DD 40DD 60DD 80DD 100DD

Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

High-concerned chemical: none

Origin: Mainland China

Power Source: DC

Theory: Solid State Relay

Use: General Purpose

Attention：Solar equipment is a mixed load, we do not recommend using solid state relays.If you want to try, you need to buy a solid state relay with 10 times the current.At the same time, if the solid state relay does not work normally on the solar equipment, we do not provide return service.

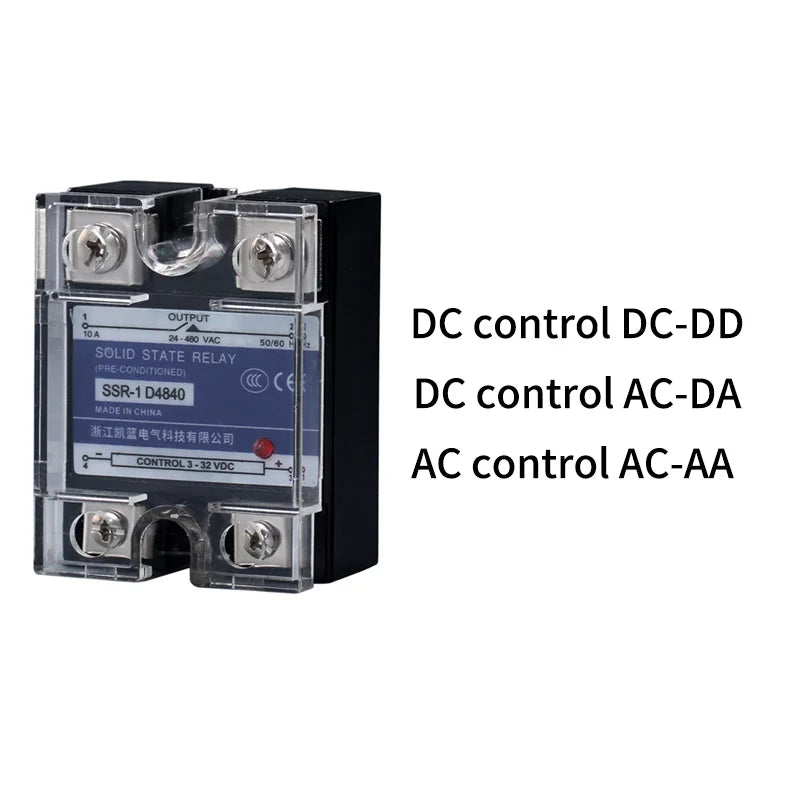

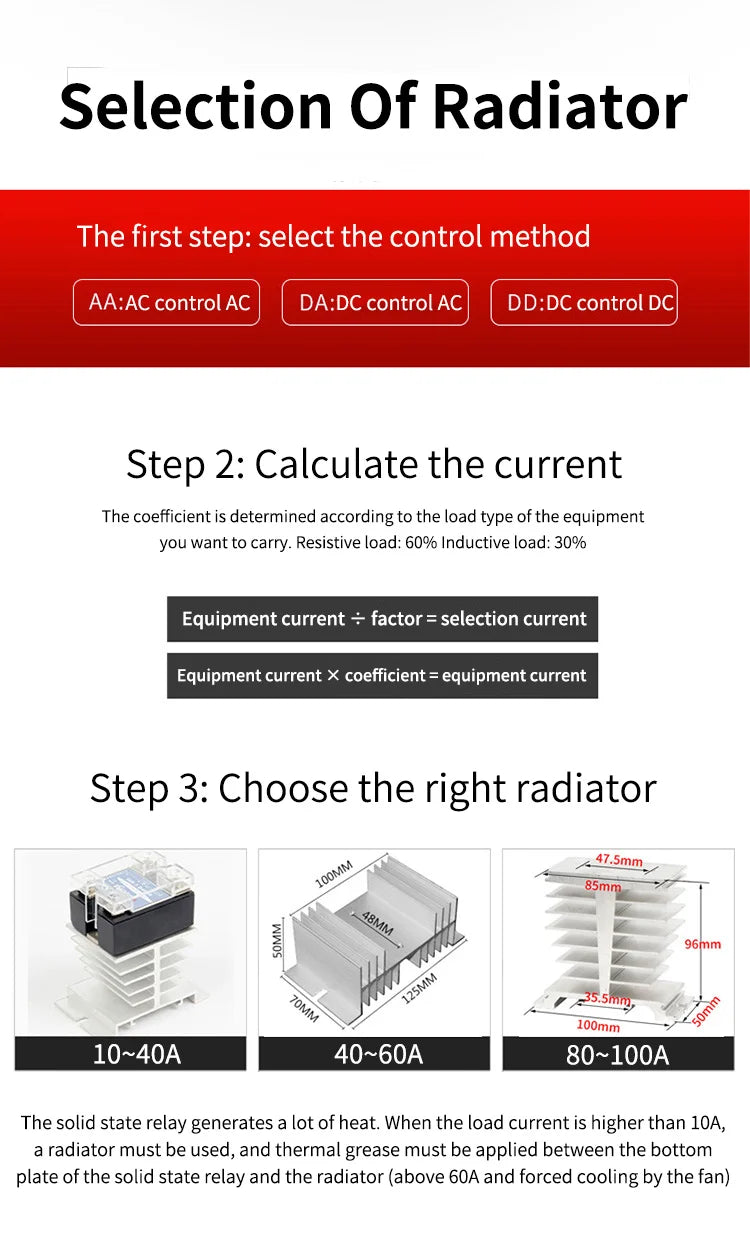

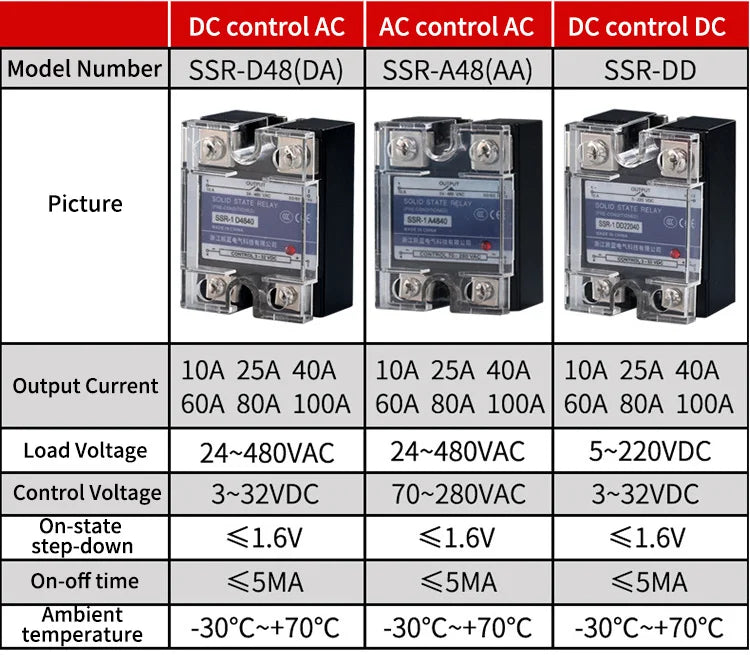

STEP 1: Choose a correct control Mode

AA- AC Control AC

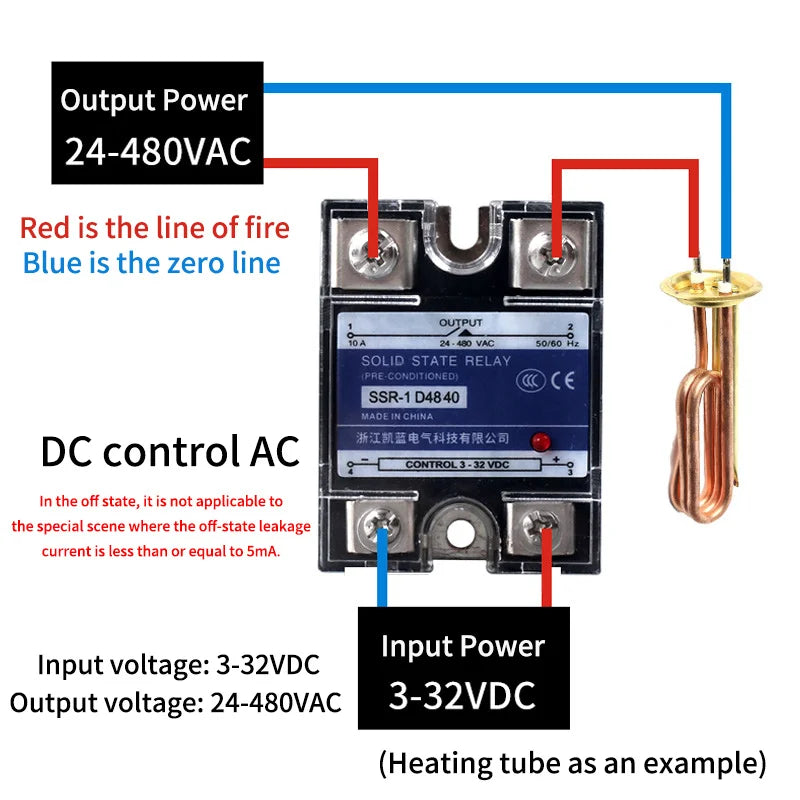

DA- DC Control AC

DD- DC Control DC

STEP 2: Choose a correct type

Current of Equipment/Ratio = Current of SSR

PS: The Ratio depend on the kind of your loading equipment.

Resistive load :70%, Inductive load:30%

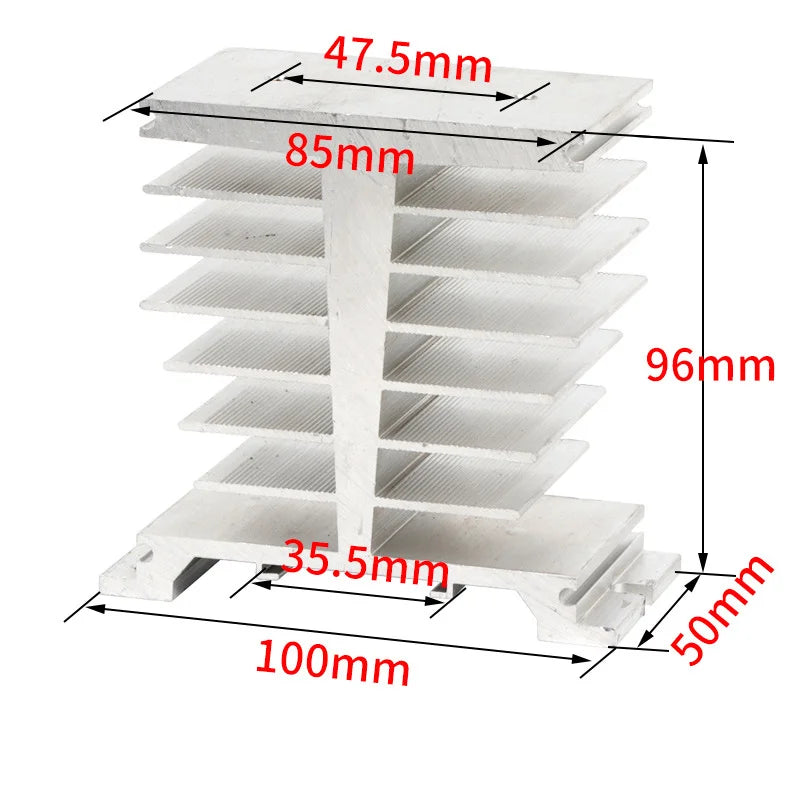

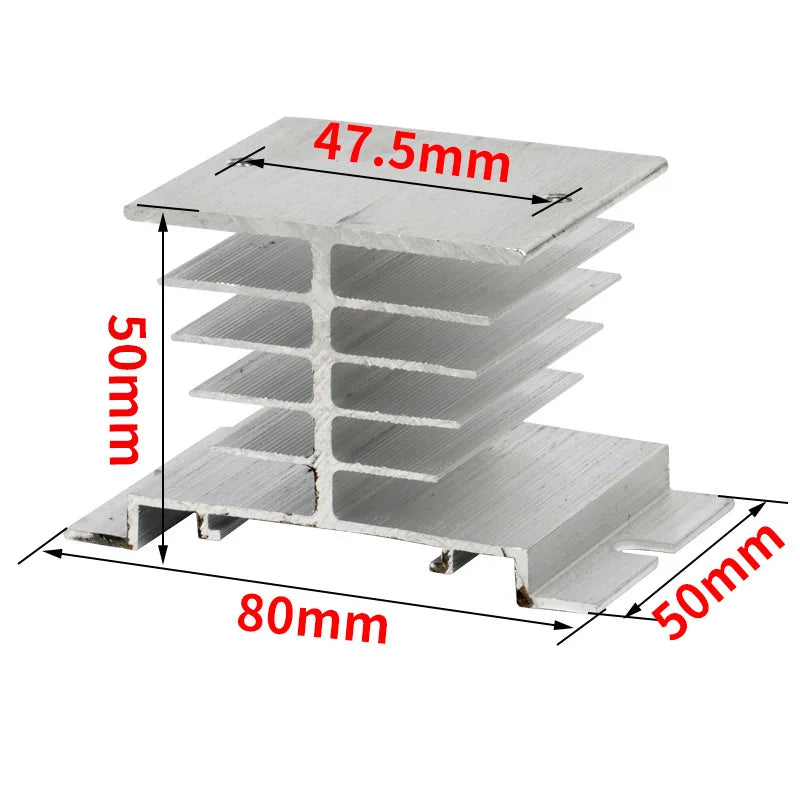

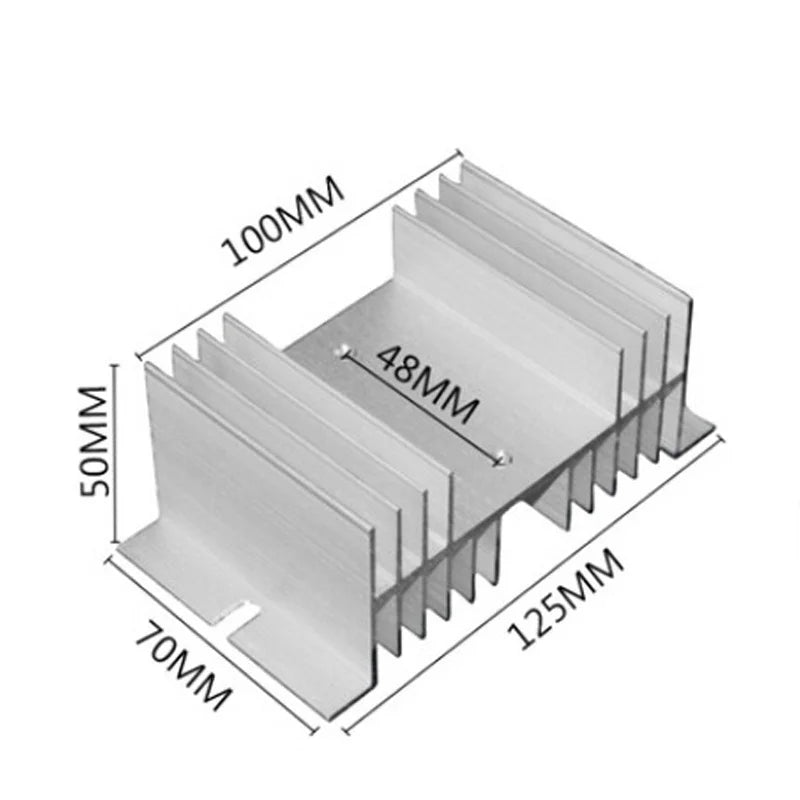

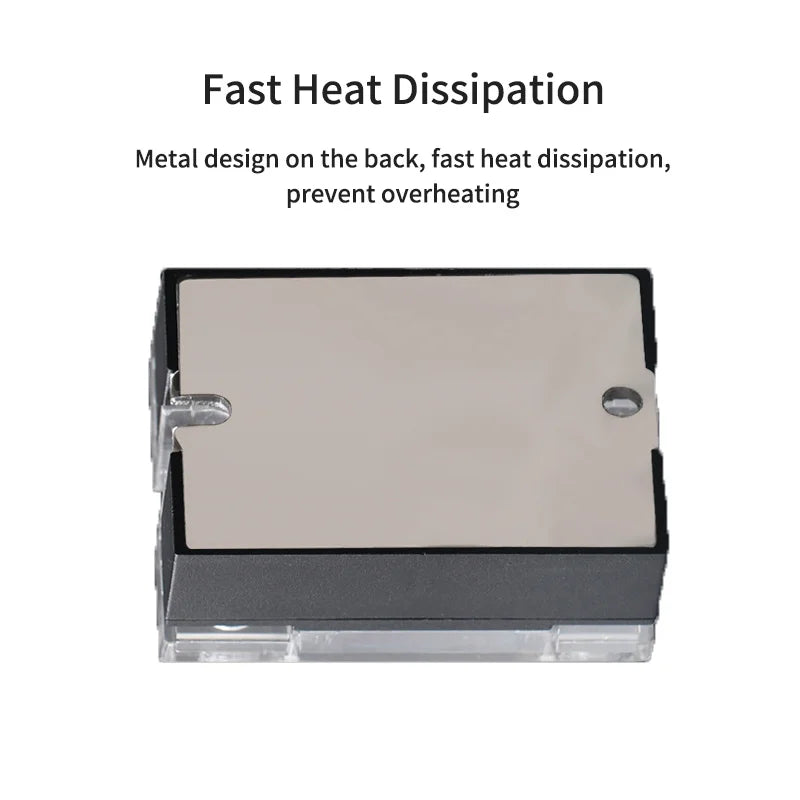

STEP 3: Choose a suitable heat sink.

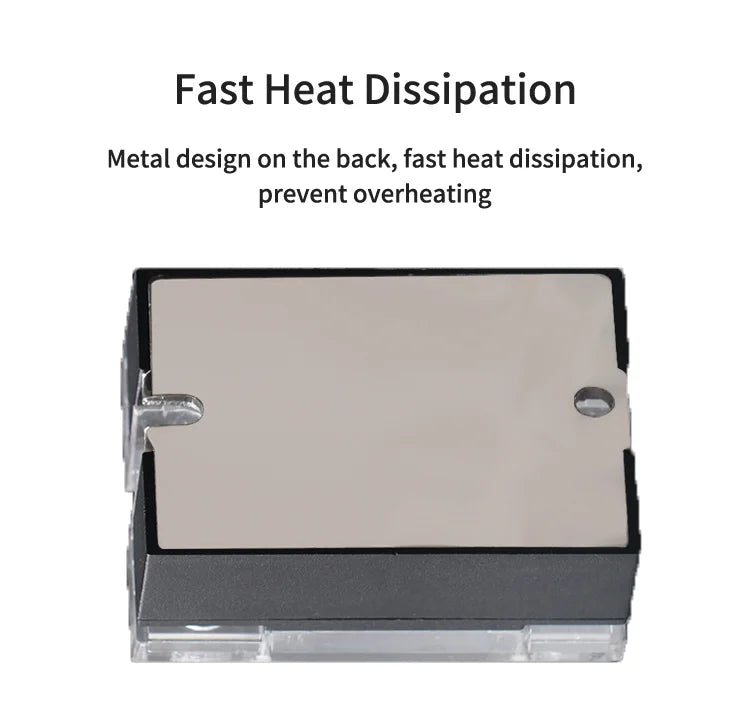

During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.

NOTICE:

The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).

According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.
