Size
Description

SPECIFICATIONS

Brand Name: TAXNELE

Certification: CE

Choice: yes

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: SSR 40DA 25DA 10DA

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Solid State Relay

Use: General Purpose

Voltage: 240V

is_customized: Yes

semi_Choice: yes

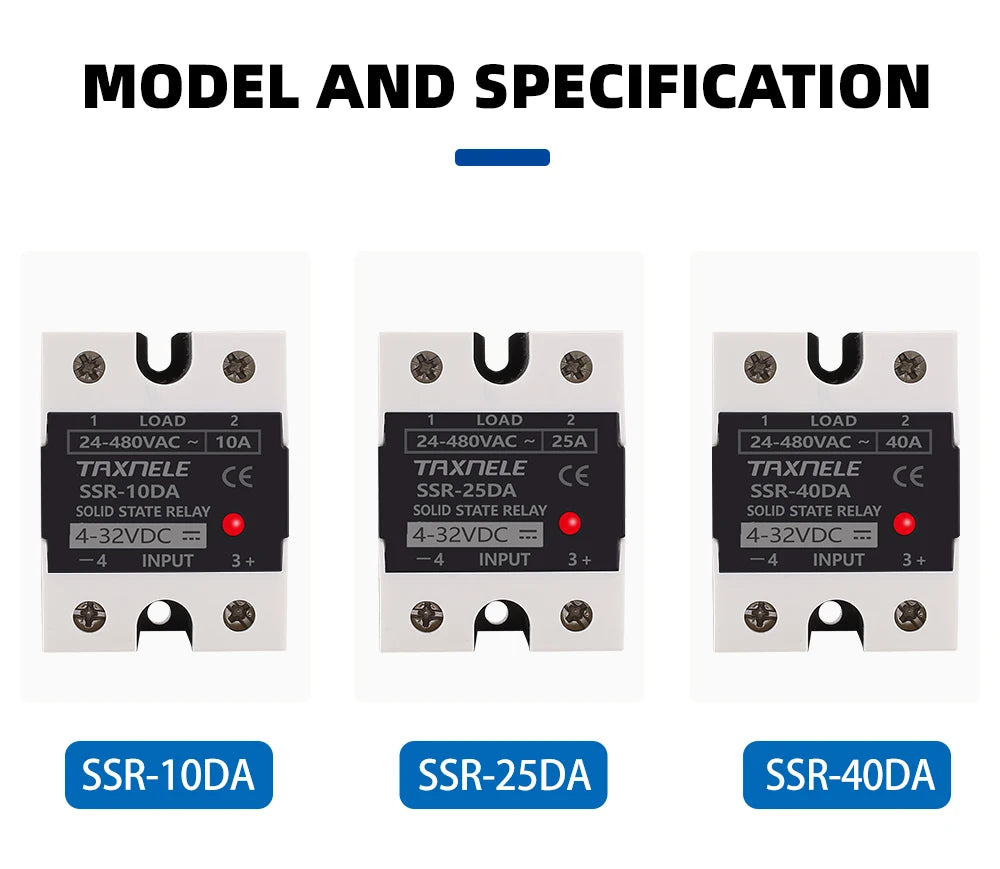

Parameter

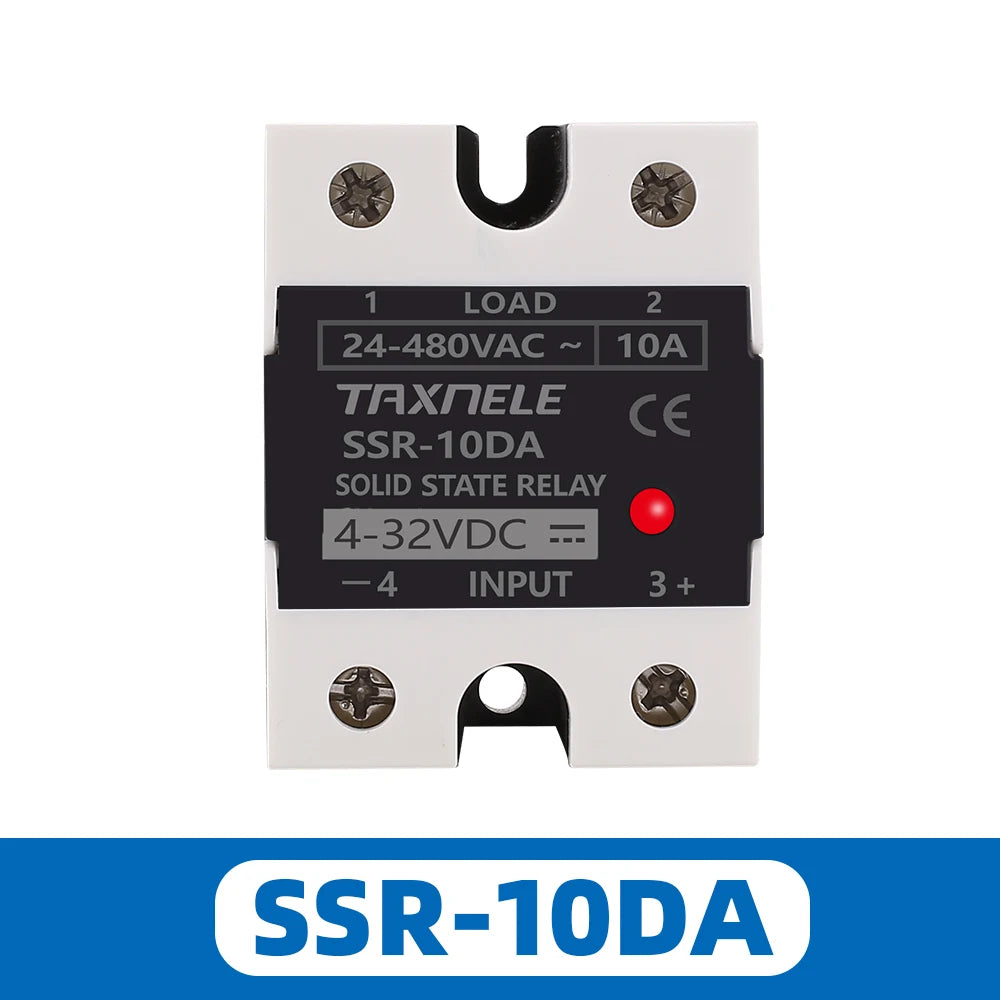

SSR -10DA Single phase Solid state relay

Load Current:

10A

Load Voltage:

24~480VAC

Control Voltage:

4~32VDC

Control Current:

3~25MA

On Voltage:

≤ 1.5VAC

Off Leakage Current:

≤4MA

On-off Time:

≤ 10MS

Dielectric Strength:

2500VAC

Insulation Resistance:

100M Ω /500VDC

Ambient Temperature:

-25~+75°C

Work instruction:

LED

Weight

90g

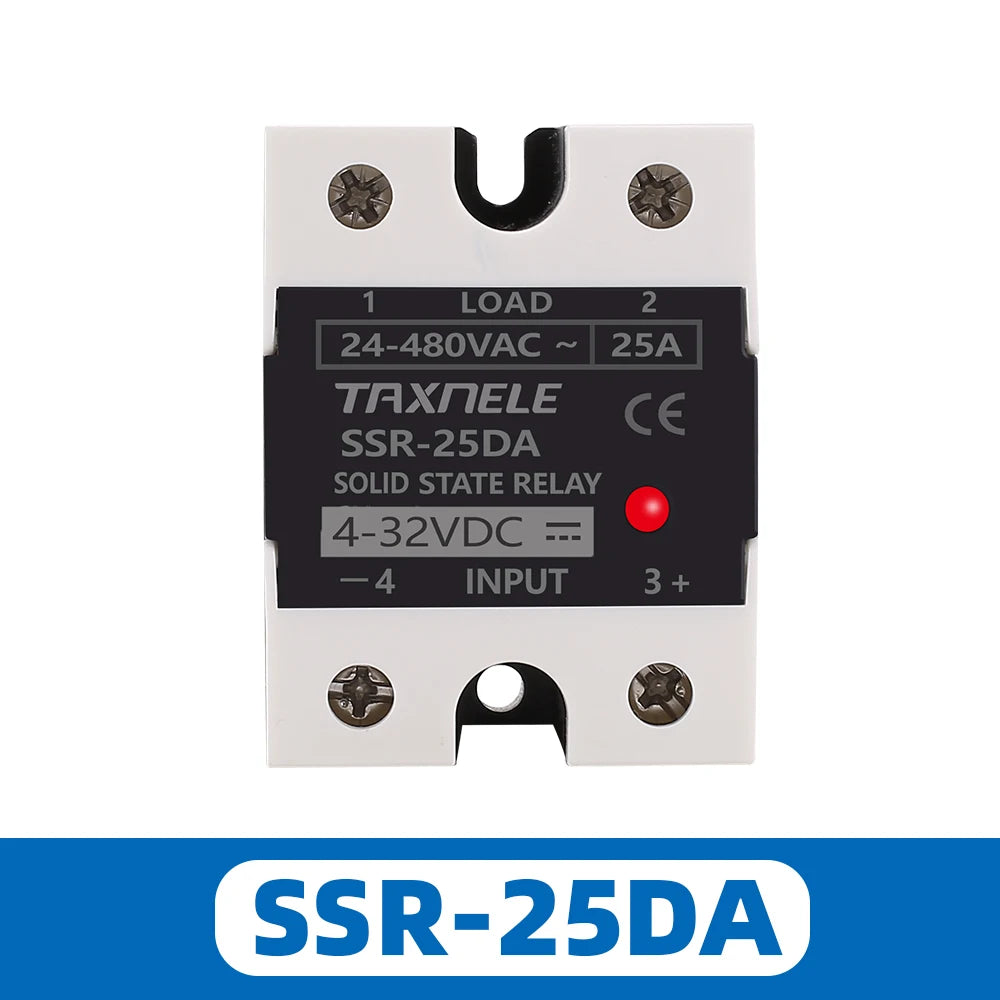

SSR -25DA Single phase Solid state relay

Load Current:

25A

Load Voltage:

24~480VAC

Control Voltage:

4~32VDC

Control Current:

3~25MA

On Voltage:

≤ 1.5VAC

Off Leakage Current:

≤4MA

On-off Time:

≤ 10MS

Dielectric Strength:

2500VAC

Insulation Resistance:

100M Ω /500VDC

Ambient Temperature:

-25~+75°C

Work instruction:

LED

Weight

90g

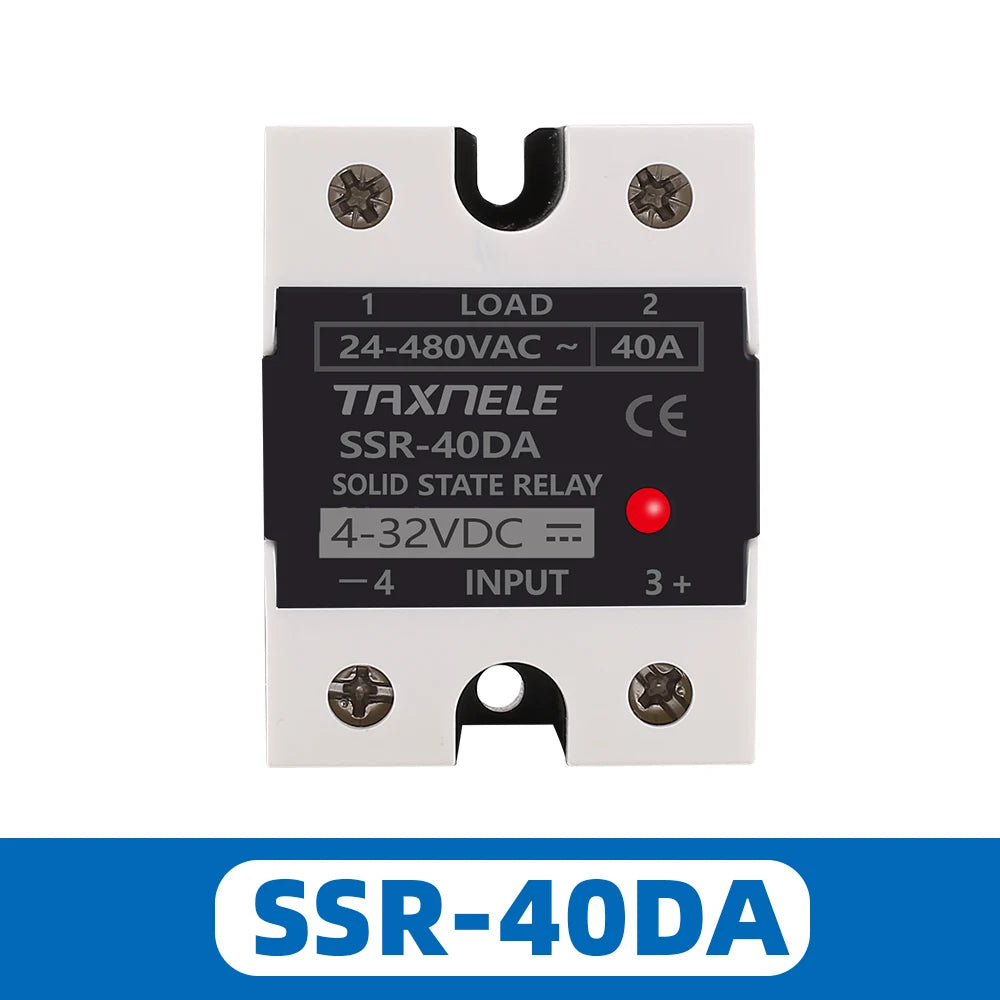

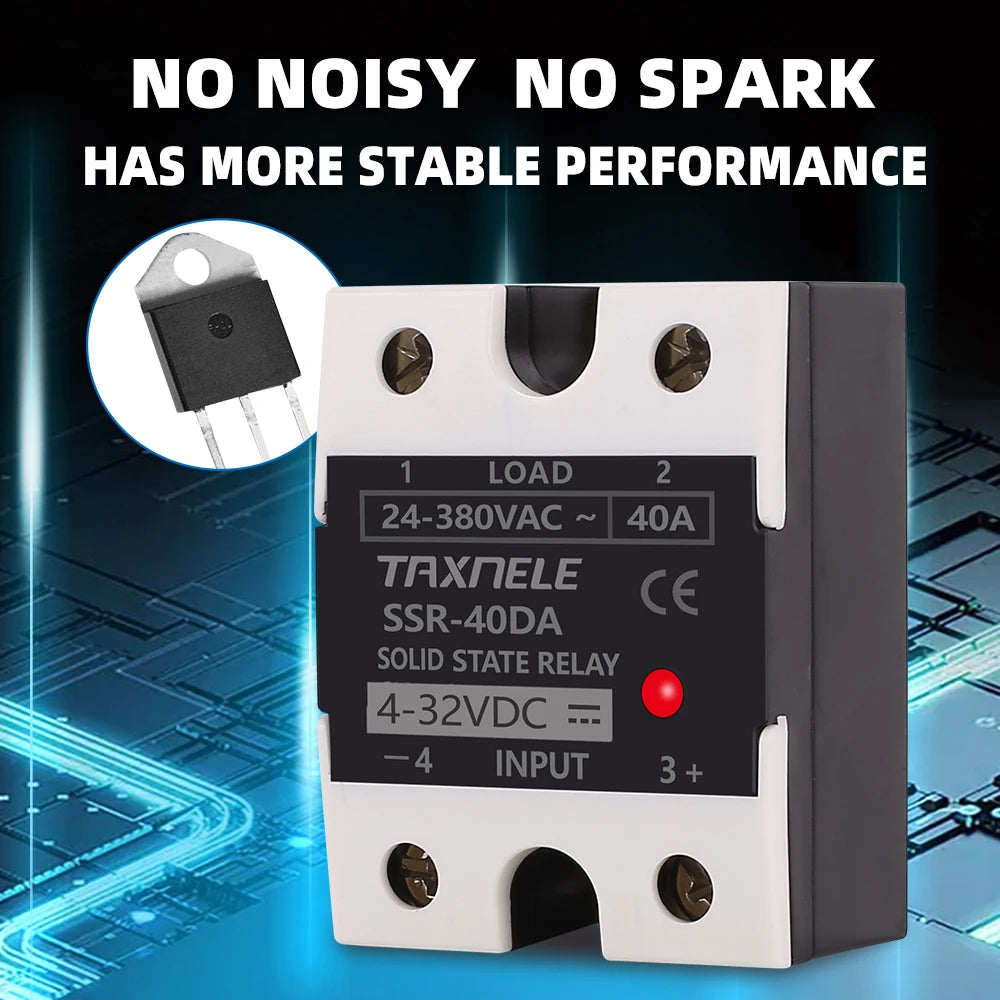

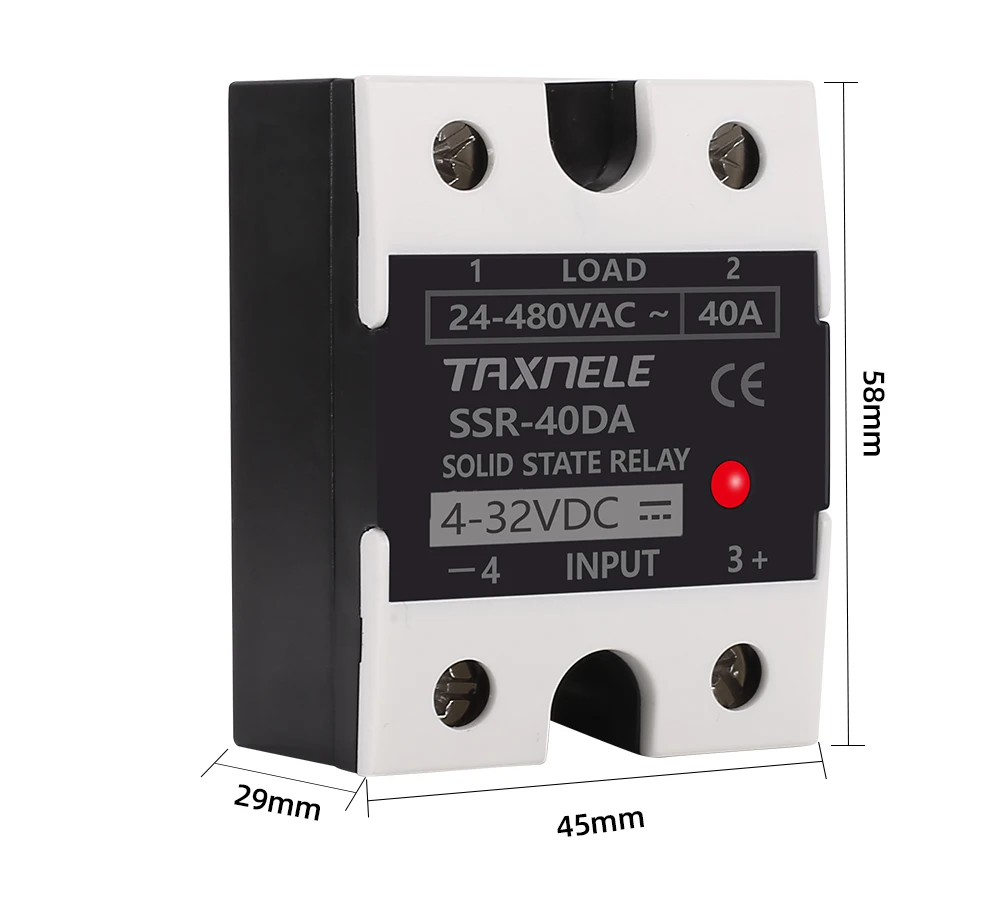

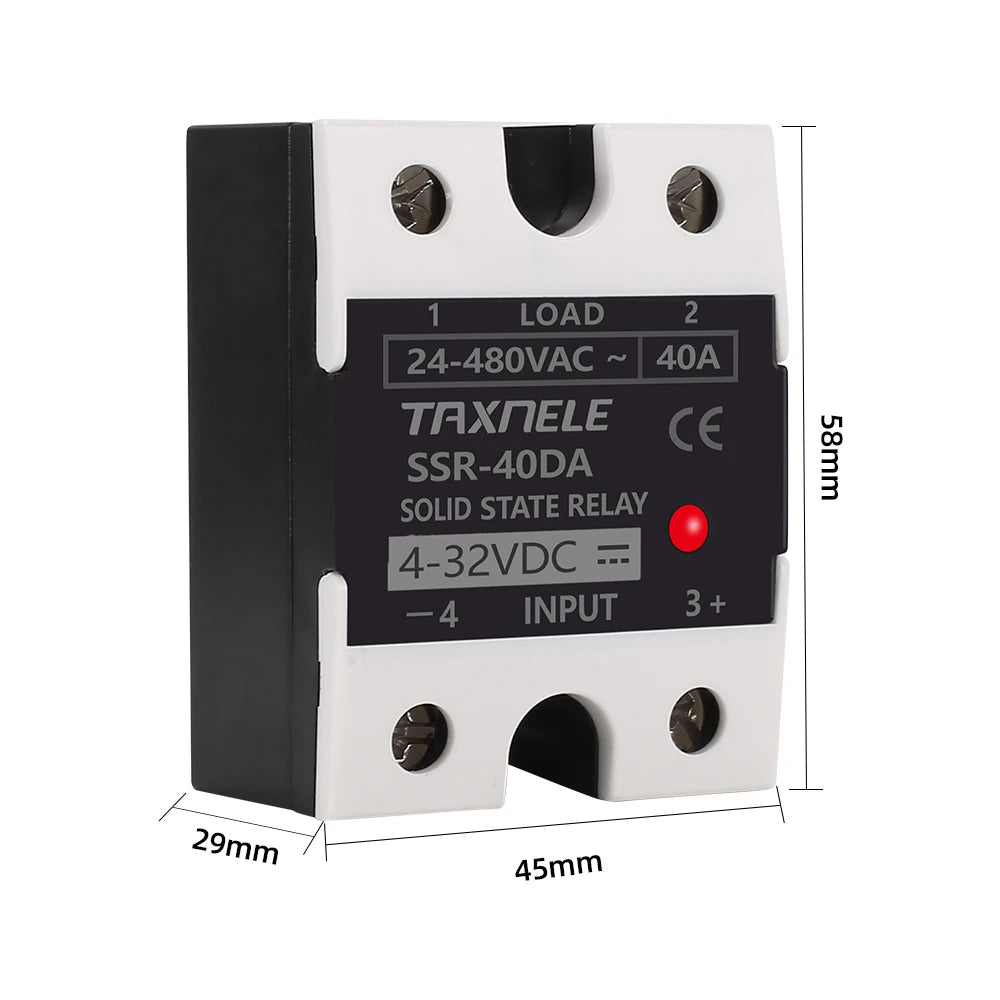

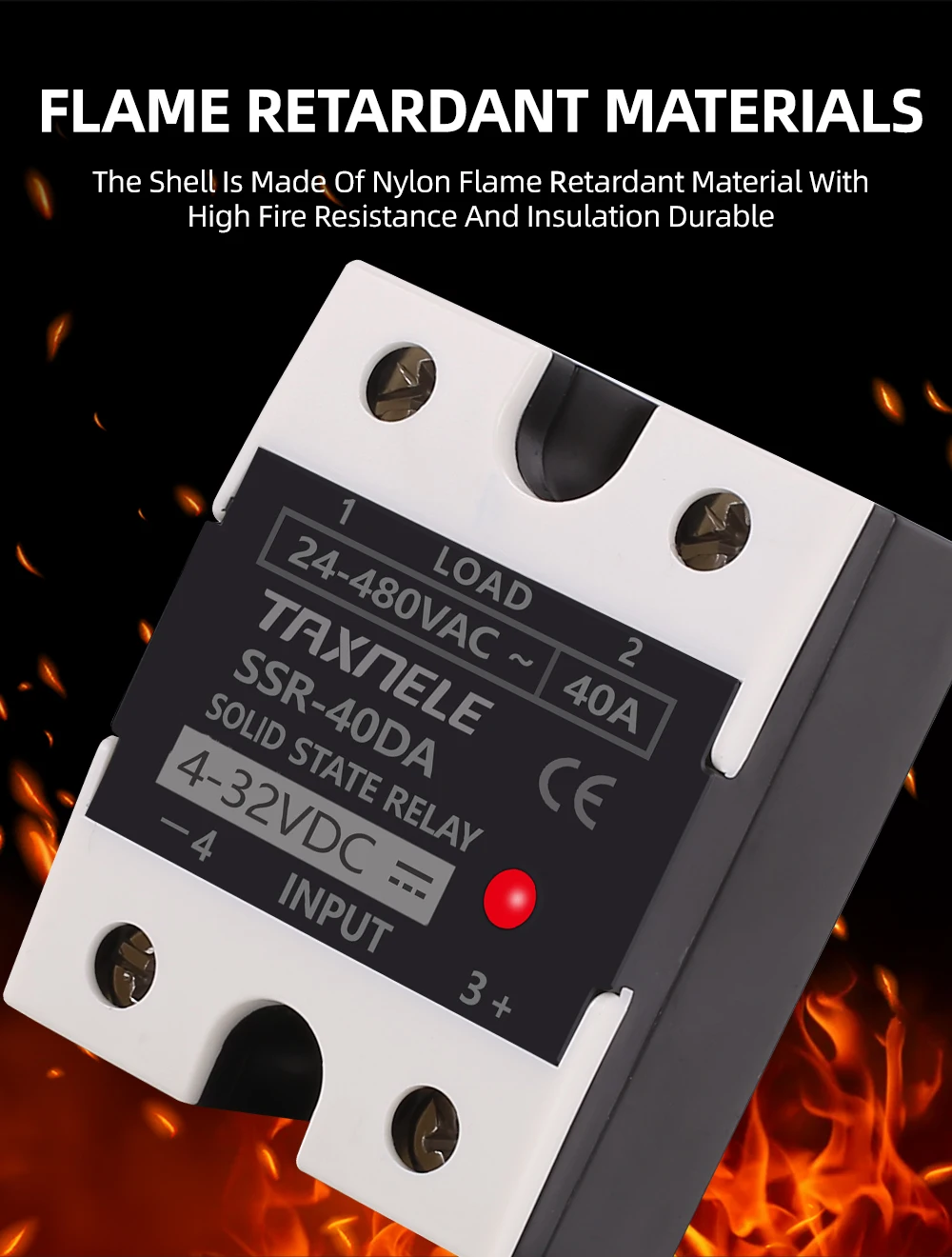

SSR -40DA Single phase Solid state relay

Load Current:

40A

Load Voltage:

24~480VAC

Control Voltage:

4~32VDC

Control Current:

3~25MA

On Voltage:

≤ 1.5VAC

Off Leakage Current:

≤4MA

On-off Time:

≤ 10MS

Dielectric Strength:

2500VAC

Insulation Resistance:

100M Ω /500VDC

Ambient Temperature:

-25~+75°C

Work instruction:

LED

Weight

90g

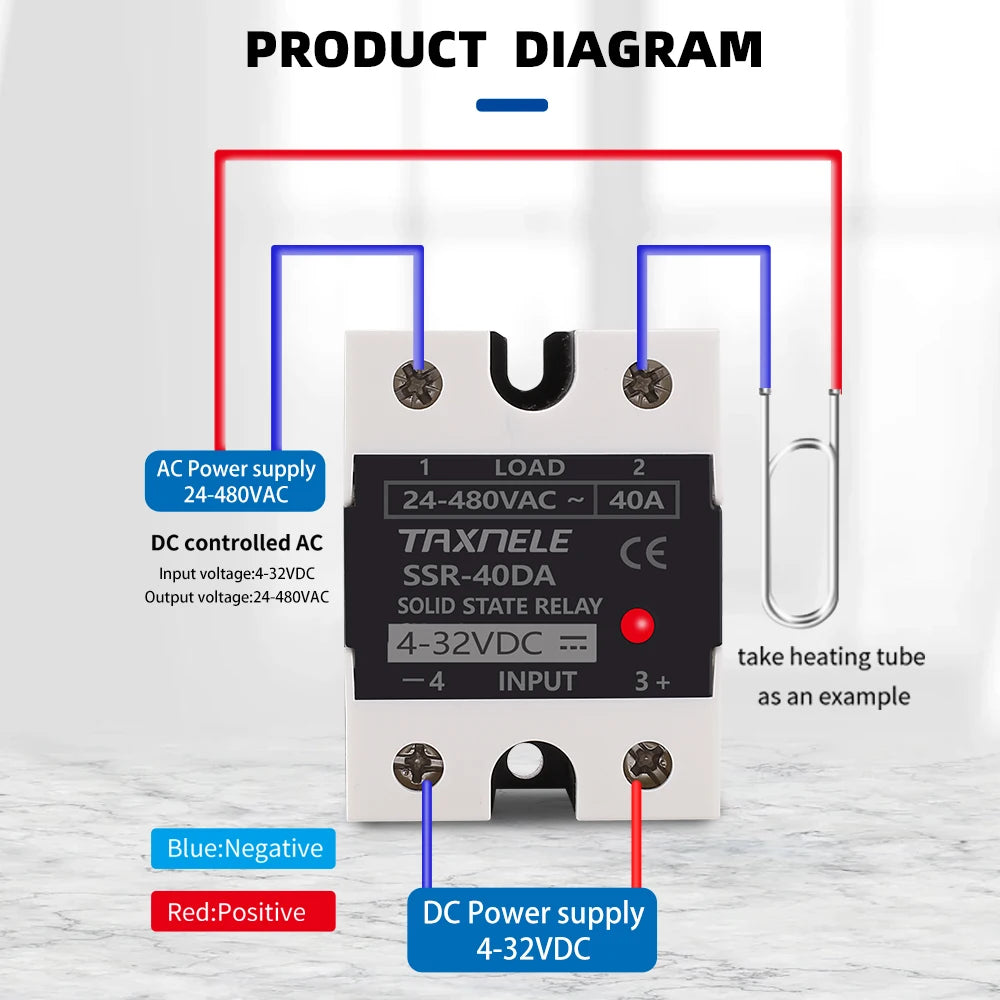

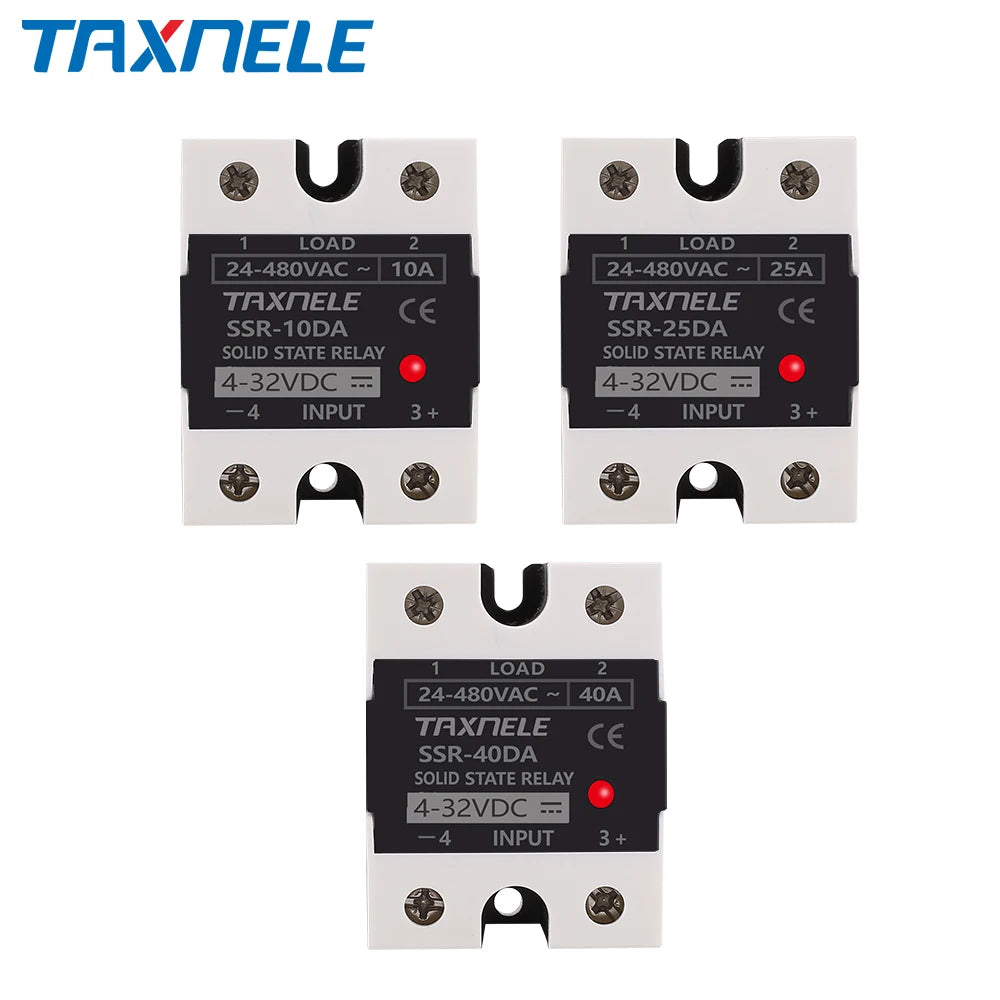

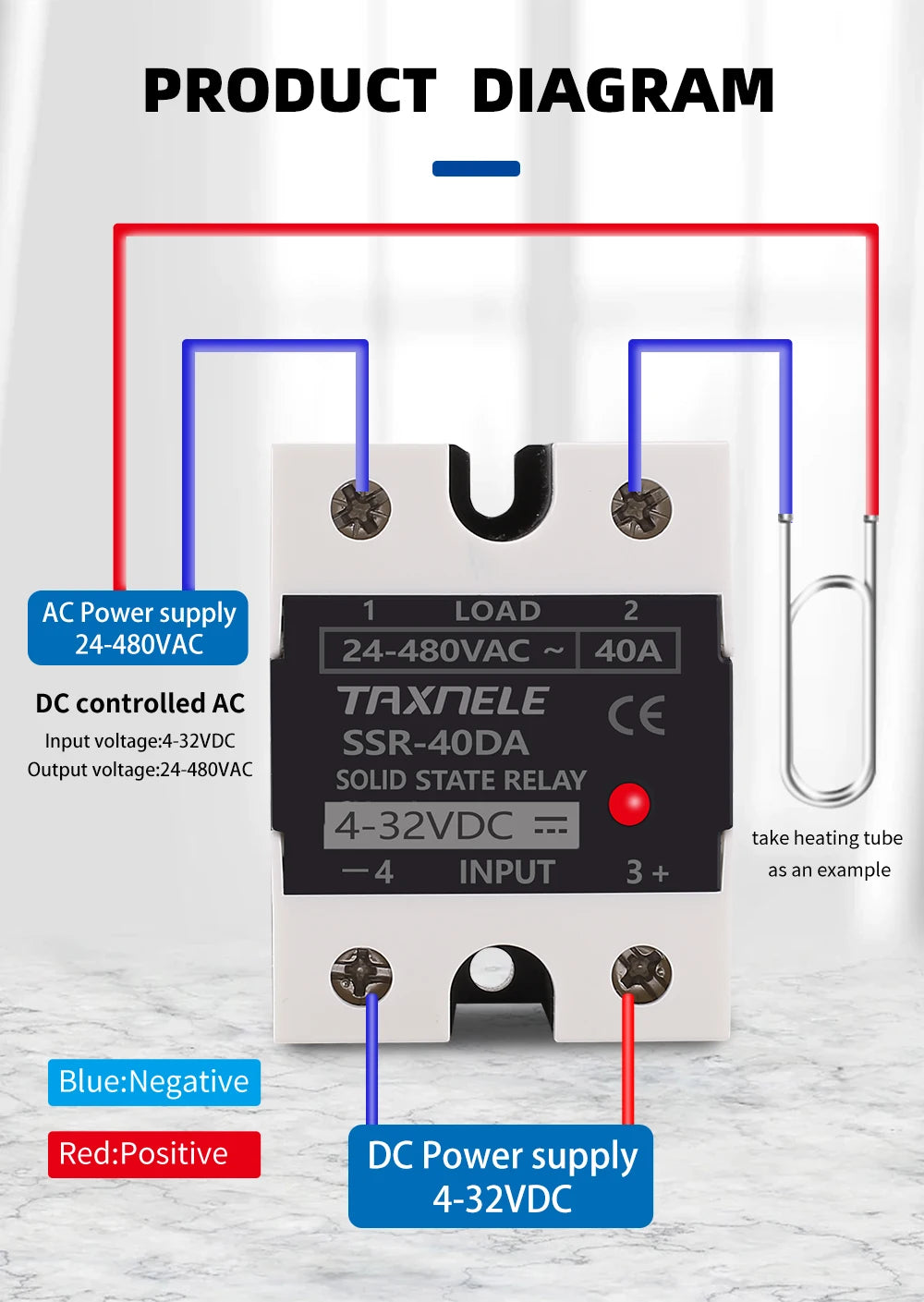

Product Display
