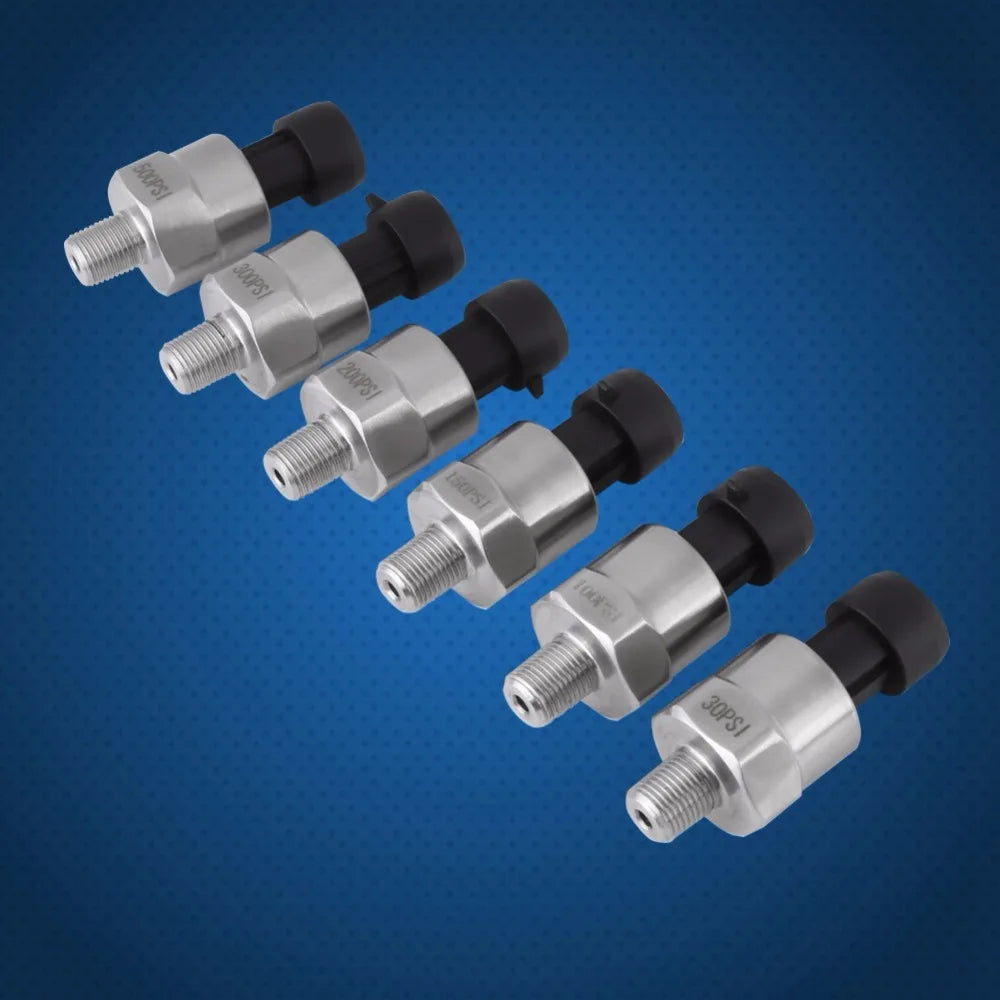

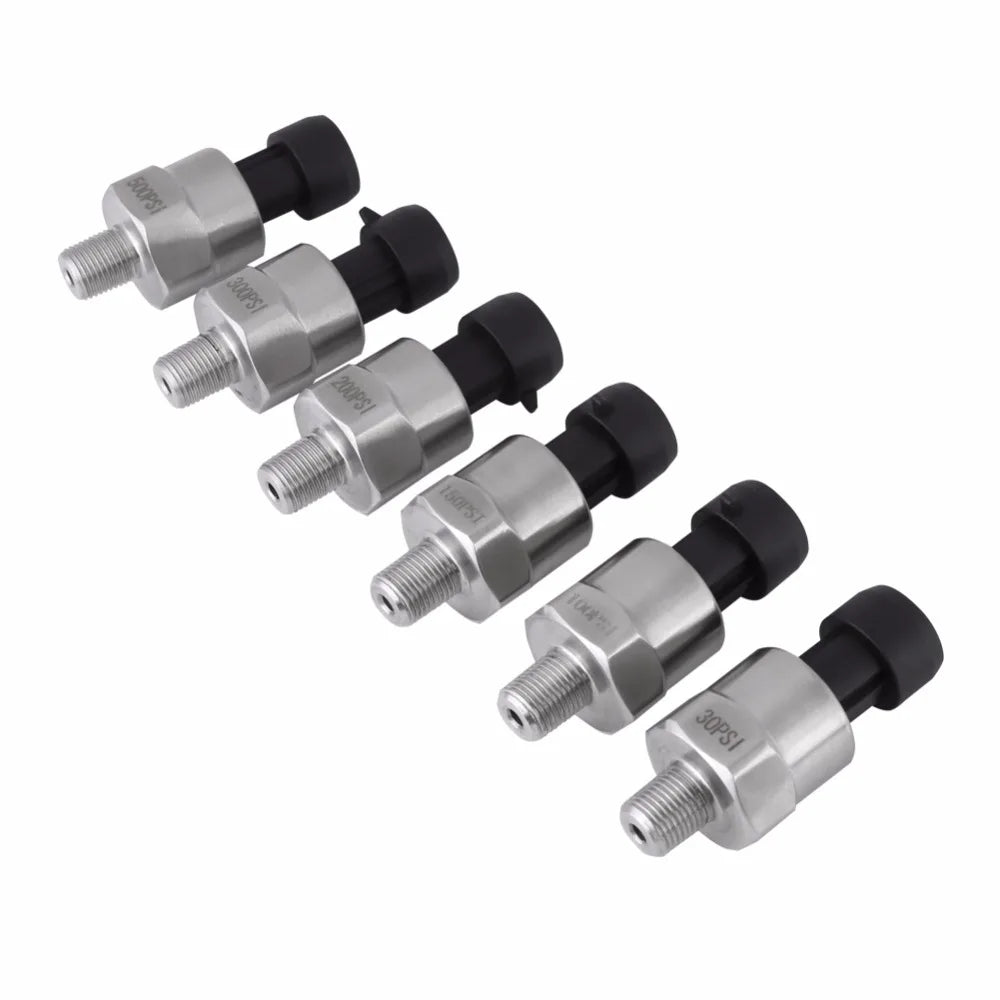

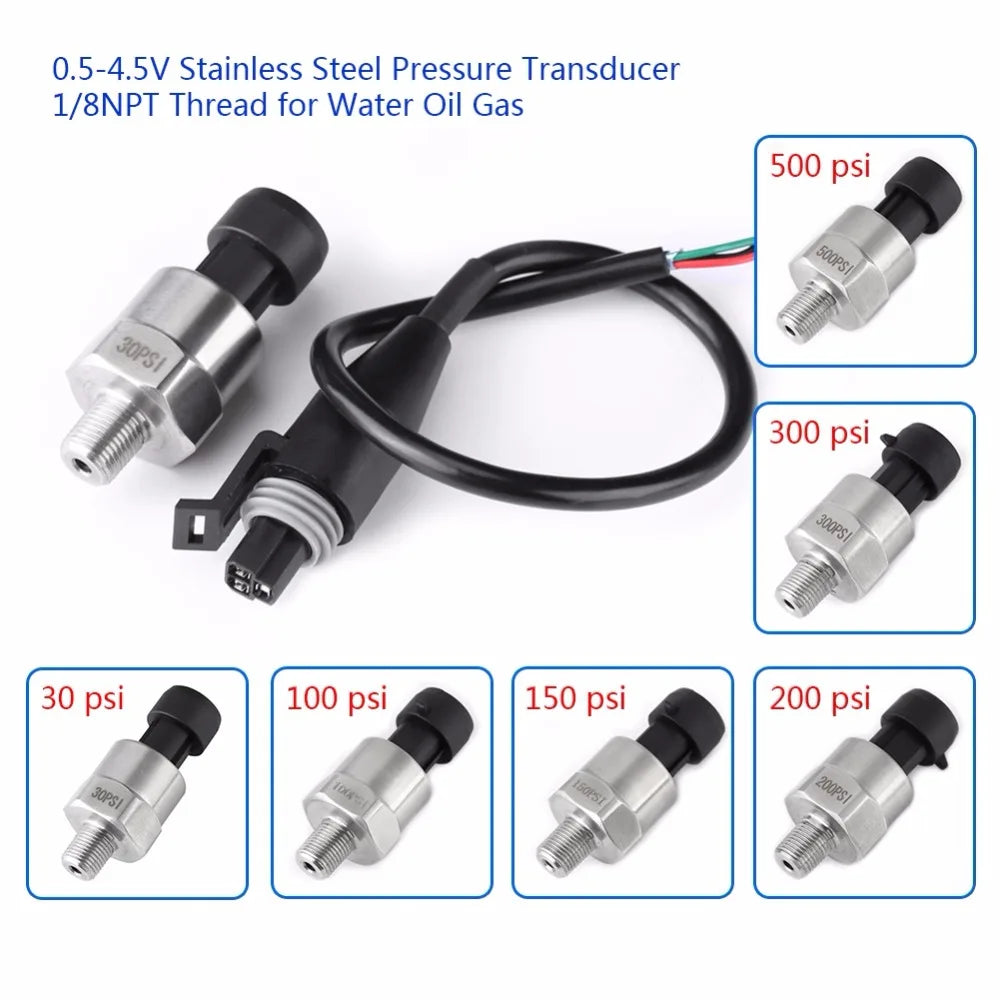

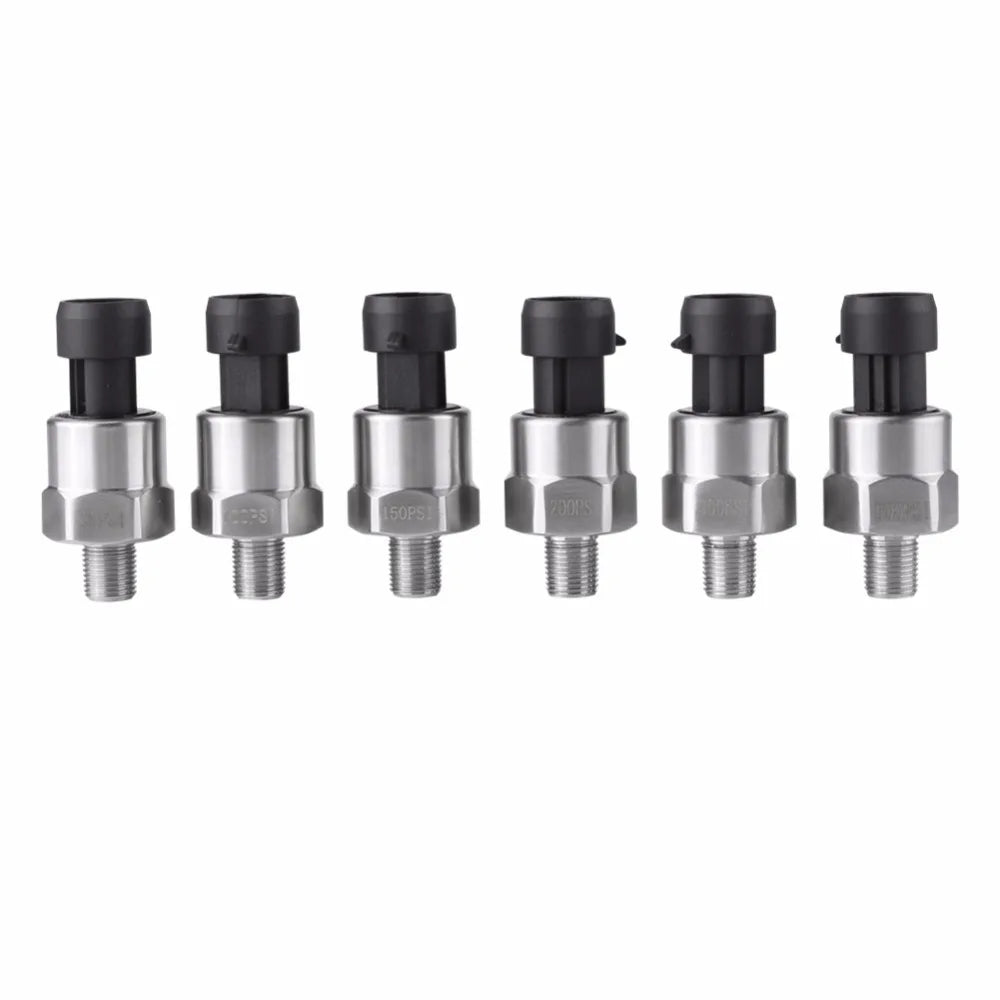

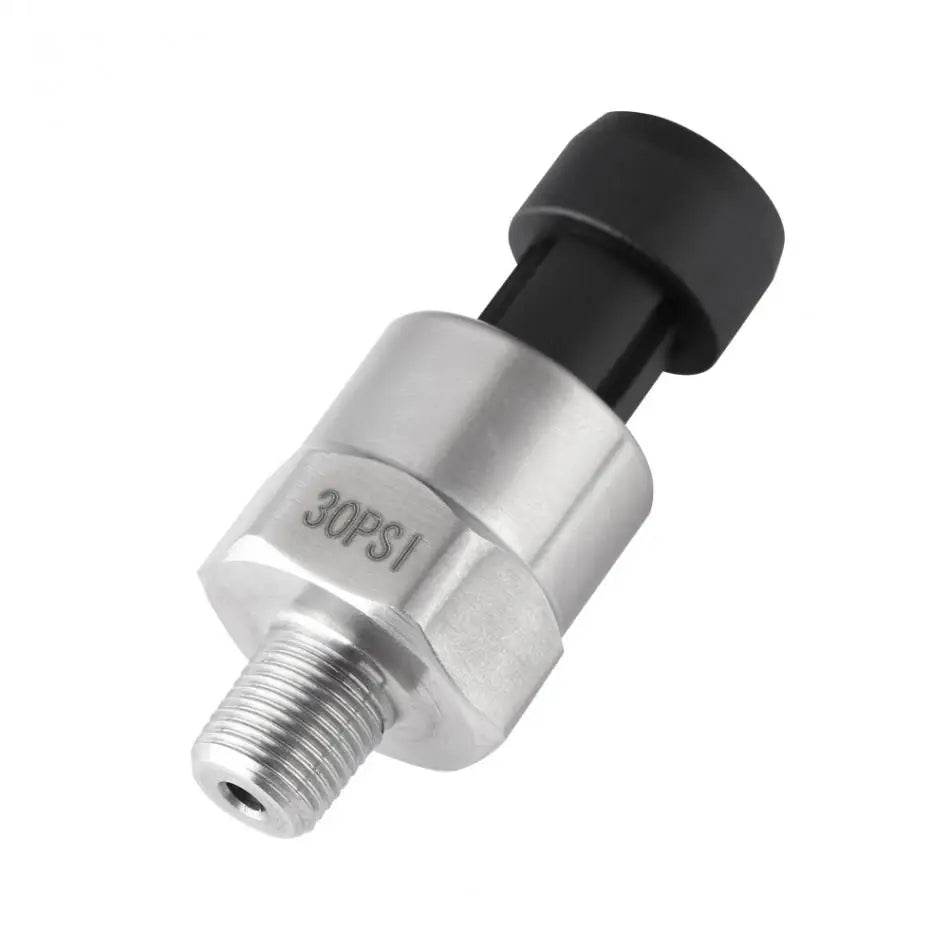

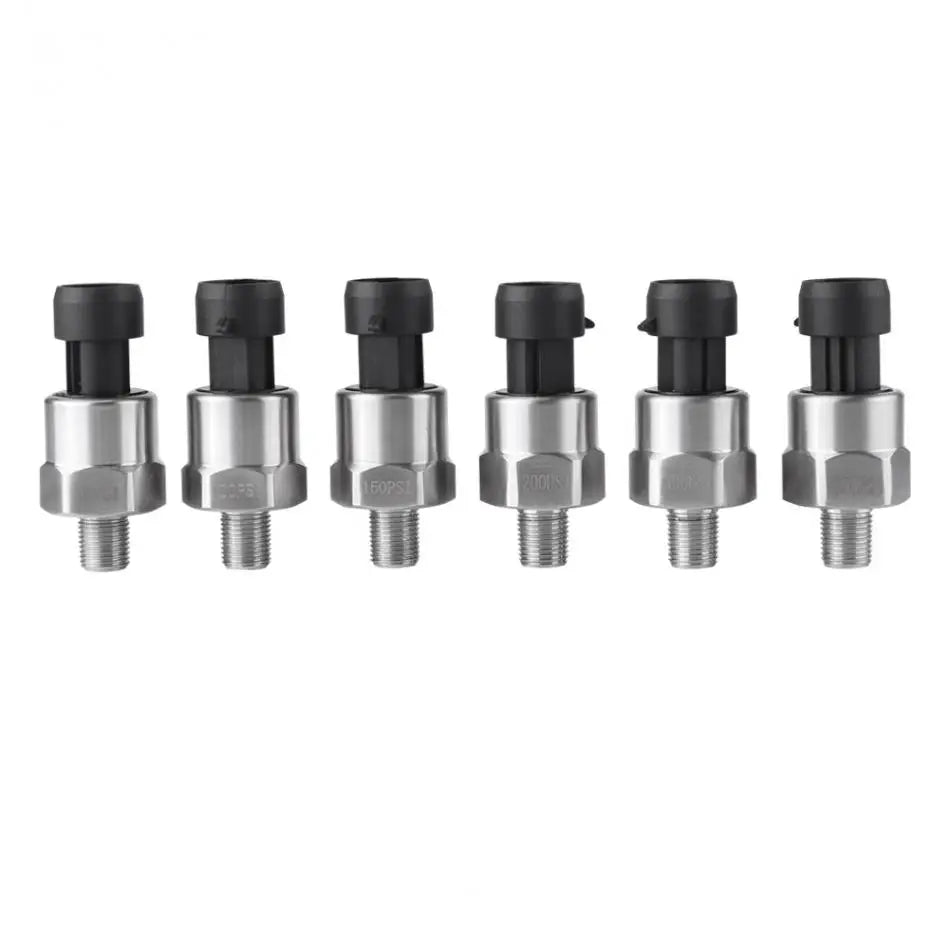

1Pcs 1/8NPT Thread Stainless Steel Pressure Transducer Sender Sensor For Oil Fuel Water

Features:

1. It's an advance pressure transducer than traditional mechanical pressure transducer.

2. ±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.

3. Light weight and small size, convenient to install and operate.

4. It has complete voltage protection function.

5. Works for oil, fuel, diesel, gas, water, pressure, can be used in oil tank, gas tank, diesel tank etc.

Specifications:

Material: Stainless Steel

Voltage: DC 5V

Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional)

Thread Type: 1/8" NPT

30 psi

Input: 0-30 psi

Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V.

Accuracy: within 2% of reading (full scale).

Thread: 1/8"-27 NPT.

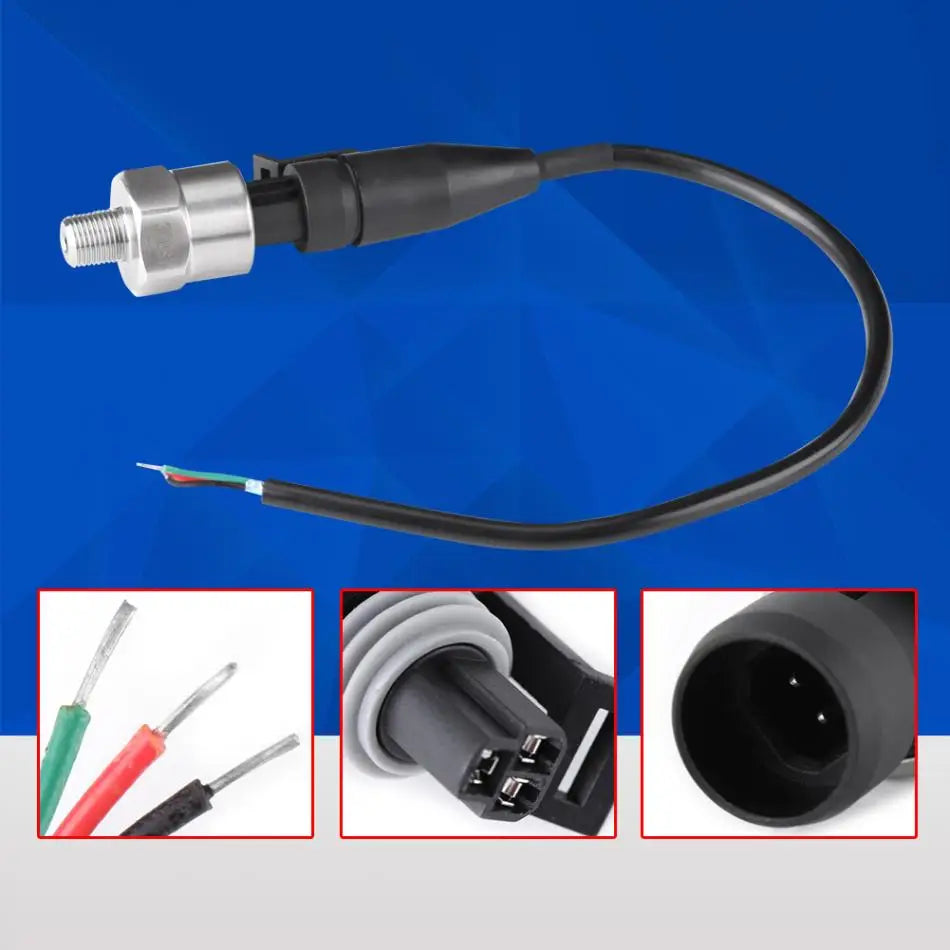

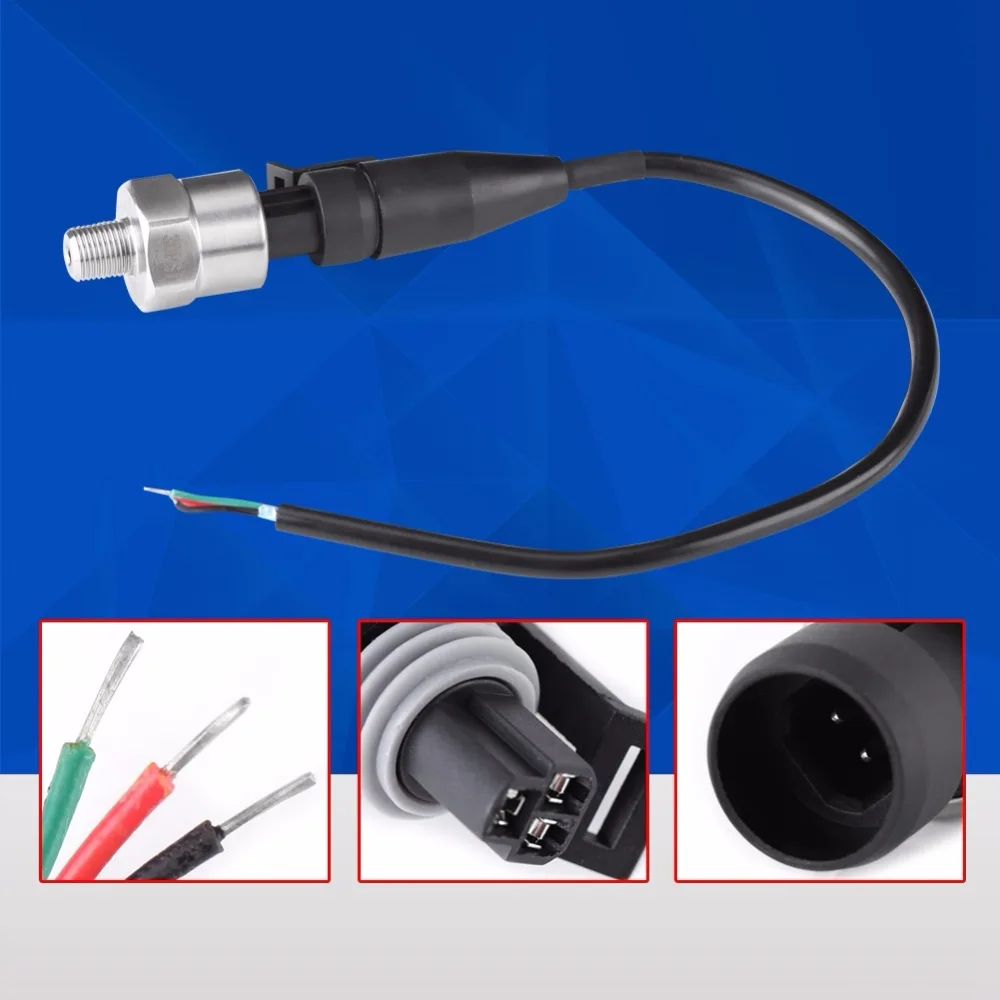

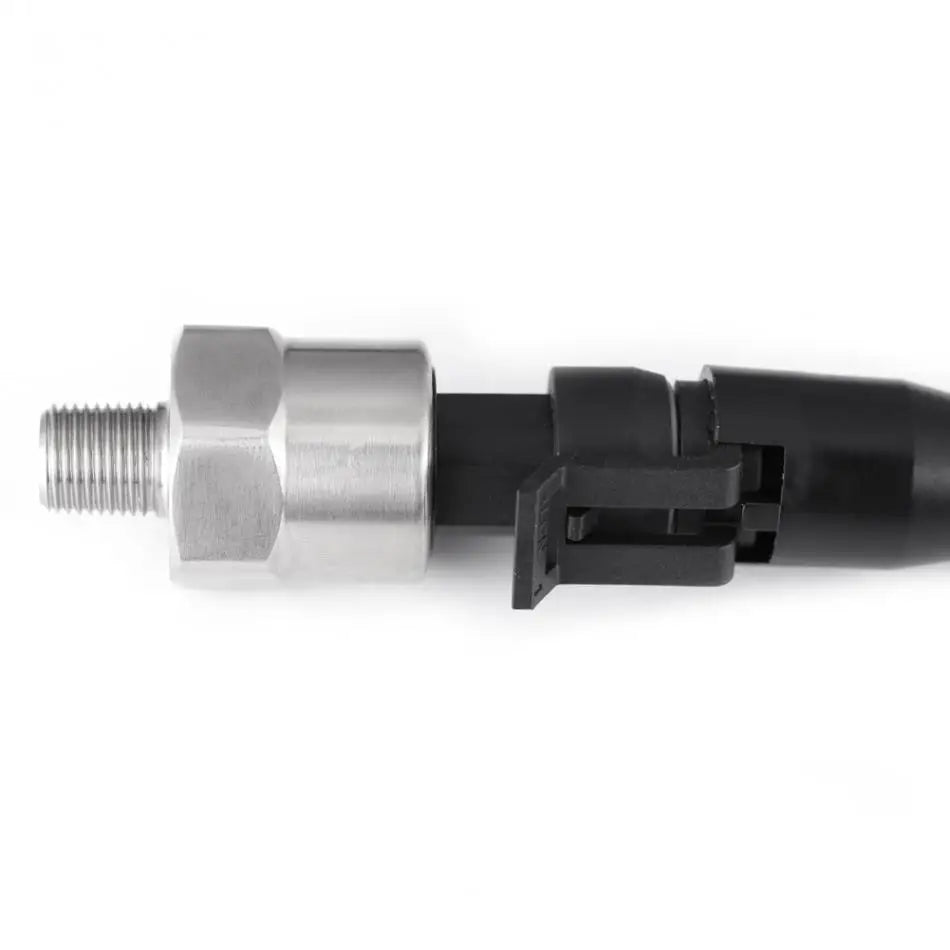

Wiring Connector: Water sealed quick disconnect. Mating connector is included.

Wiring: Red for +5V; Black for ground; Blue for output.

100 psi

Input: 0-100 psi

Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V.

Accuracy: within 2% of reading (full scale).

Thread: 1/8"-27 NPT

Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.

Wiring: Red for +5V; Black for ground; Blue for output.

150 psi

Input: 0-150 psi

Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V

Accuracy: +/-0.5%FS

Thread: 1/8" NPT

Wiring: Red for +5V; Black for ground; Green for output

Overload Capacity: 2-4 times of rated pressure

Working Temperature: -40℃~+120℃

Compensation Temperature: 0℃~+80℃

Protection Class: IP67

Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel

Load Resistance: ≤(supply power-6.5V/0.02A)Ω

Long-term Stability: Less than 0.1%FS/year

Temperature Effect on Zero: Typical:0.02%FS/℃; Maximum:0.05%FS/℃

Temperature Effect on Sensitivity: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃

Shock Resistance: 1000g

Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)

Response Time: ≤1ms

Insulation Resistance: >100mΩ 500VDC

Explosion-proof Class: ExiaTTCT6

Electromagnetism Compatibility: EN50051-1

200 psi

Input: 0-200 psi

Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V, and 200 psi outputs 4.5V

Working Temperature: -40~+125℃

Accuracy: ±1%FS

Thread: 1/8"-27 NPT

Overload Capacity: 2 times of rated pressure

Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel

Load Resistance: ≤(supply power-6.5V/0.02A)Ω

Long-term Stability: ± 0.2%FS/year

Temperature Effect on Zero: Typical: ±0.02%FS/℃; Maximum: ±0.05%FS/℃

Temperature Effect on Sensitivity: Typical: ±0.02%FS/℃; Maximum: ±0.05%FS/℃

Shock Resistance: 100g

Anti-Shock: ≤±0.01%FS(X,Y,Z axes, 200Hz/g)

Response Time: ≤1ms

Insulation Resistance: >100mΩ 500VDC

Explosion-proof Class: ExiaTTCT6

Electromagnetism Compatibility: EN50081-1; EN50082-2; IEC6 1000-4-3

Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.

Wiring: Red for IN+; Black for GND; Green for OUT.

300 psi

Input: 0-300 psi

Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300 psi outputs 4.5V

Accuracy: +/-0.5%FS

Thread: 1/8" NPT

Wiring: Red: +5V; Black: ground; Green: output

Overload Capacity: 2-4 times of rated pressure

Working Temperature: -40~+120℃

Compensation Temperature: 0℃~+80℃

Protection Class: IP67

Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel

Load Resistance: ≤ (supply power-6.5V/0.02A)Ω

Long-term stability: Less than 0.1%FS/year

Temperature Effect on Zero: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃

Temperature Effect on Sensitivity: Typical:0.02%FS/℃; Maximum:0.05%FS/℃

Shock Resistance: 1000g

Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)

Response Time: ≤1ms

Insulation Resistance: >100mΩ 500VDC

Explosion-proof Class: ExiaTTCT6

Electromagnetism Compatibility: EN50051-1.

500 psi

Input: 0-500 psi (Gauge Pressure)

Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 250 psi outputs 2.5V, and 500 psi outputs 4.5V.

Accuracy: +/-1%FS

Thread: 1/8" NPT

Wiring: Red for +5V; Black for ground; Yellow (Green) for output

Overload Capacity: 2-4 times of rated pressure

Working Temperature: -40℃~+120℃

Compensation Temperature: 0℃~+80℃

Protection Class: IP67

Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel

Load Resistance: ≤ (supply power-6.5V/0.02A)Ω

Long-term stability: Less than 0.1%FS/year

Temperature Effect on Zero: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃

Temperature Effect on Sensitivity: Typical: 0.02%FS/℃; Maximum:0.05%FS/℃

Shock Resistance: 1000g

Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)

Response Time: ≤1ms

Insulation Resistance: >100mΩ 500VDC

Explosion-proof Class: ExiaTTCT6

Electromagnetism Compatibility: EN50051-1.

Package Includes:

1 x Pressure Transducer (With Cable)
