Description

SPECIFICATIONS

Accuracy: ≤±1.0% of full scale

Battery Included: no

Brand Name: YD WZYDDZ

Choice: yes

Electrical connection: Hirschman DIN43650A

Electromagnetism Compatibility: EN50051-1

Explosion-proof class: Exia2CT6

High-concerned chemical: none

Housing material: 304 Stainless Steel

Max Measuring Range: 400 Bar & Above

Measuring range: 0-600bar

Model Number: 0-600bar

Operating temperature: -40-105 ℃

Origin: Mainland China

Output signal: 0-10V 4-20mpa or other

Paired cable: 1m

Pressure connection: g1/4

Protection class: IP65

Semi-finishedproduct: No

Supply voltage: 9-36VDC

semi_Choice: yes

Wenzhou yuanda electronic technology co., ltd. is a professional manufacturer engaged in pressure sensors

We support customized services covering appearance materials, measuring ranges, thread interfaces, supply voltages and output modes to meet diverse customer demands. products can generally be finished on the same day.

All sensors are strictly tested and inspected before delivery, you can place orders with full confidence.

Parameters

Measuring range: 0～600 bar
Näituvus: ±1,0%fs
Output signal: 4-20ma (2 wire)
Supply voltage: 12~36(24)vdc
Operating temperature: -40～105℃
Temperature compensation: -20～80℃
Operating current: ≤3ma
Temperature drift (zero&sensitivity): ≤±0.03%fs/℃
Long-term stability: ≤±0.2%fs/year
Response time: ≤3ms.
Overload pressure: 150% of fs
Burst pressure: 300% of full scale
Cycle life: 500,000 times
Pressure medium: non-corrosive liquid or gas
Pressure connection: g1/4, other pressure connection is on request

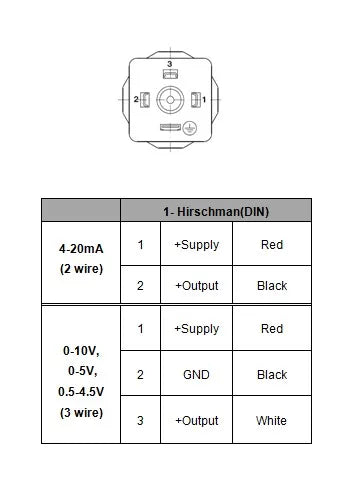

Electrical connection: hirschman din43650c
Housing material: 304 stainless steel
Protection class: ip65
Explosion-proof class: exiaⅱct6
Weight: ≈0.200 kg

◆ intelligent iot constant pressure water
Supply
◆ engineering machinery, industrial process
Control and monitoring
◆ energy and water treatment systems
Steel, light industry, environmental protection
◆ medical, agricultural machinery, testing
Equipment
◆ flow measurement equipment
◆ hydraulic and pneumatic control systems
◆ air-conditioning unit and refrigeration
Equipment
◆ water pump, air compressor pressure
Monitoring

Applications

◆ ce compliance
◆ low cost and high quality
◆ all stainless steel integrated structure
◆ small size, convenient to install and operate
◆ 4-20ma, 0.5-4.5v, 0-5v, 0-10v, i2c, various voltage
Output
◆ complete surge voltage protection function
◆ for applications such as air, water, oil
◆ provide oem, flexible customization

Features

The yd6080 series of pressure transmitters adopts the internationally advanced piezoresistive sensing technology for production. different sensing cores can be selected depending on the application. the all-stainless steel package is suitable for most media, with good long-term stability. multiple signal outputs are available to choose from, making it suitable for use in various environments and climates. therefore, it is widely used in various fields.
