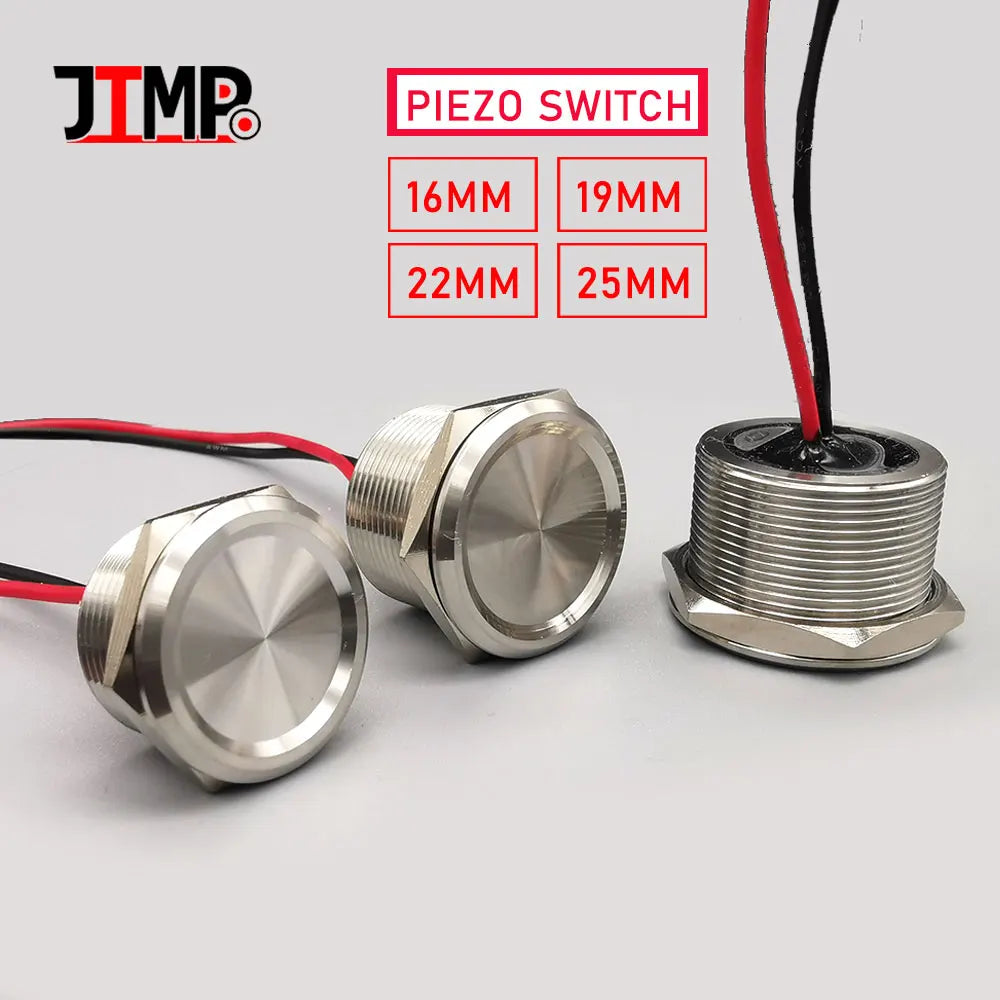

Stainless Steel Waterproof Piezo Touch Switches 16mm 19mm 22mm 25mm Normal Open Capacitive Momentary Push Button

Stainless Steel Waterproof Piezo Touch Switches 16mm 19mm 22mm 25mm Normal Open Capacitive Momentary Push Button

$33.57

$33.57 $0.00

Size 19mm 16mm 25mm 22mm

Description

SPECIFICATIONS

Brand Name: NONE

Certification: CCC,ce,CQC,ROHS

Current: 200 mA

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: Piezo Touch Switch

High-concerned chemical: none

Item Type: SWITCHES

Material: Stainless Steel

Model Number: YD??-10/S

Origin: Mainland China

Style 1: Piezo switch

Style 2: Touch switch

Style 3: Capacitive Touch Button

Style 4: Press Switch

Style 5: Power button switch

Style 6: Push button switch

Switch Type: Pressure Switch

Warranty: One Year

Stainless Steel Waterproof Piezo Touch Switches 16mm 19mm 22mm 25mm Normal open Capacitive Momentary Push Button

How does the piezoelectric switch work?

When you push it, it has short pulse contact about 50mS and will off soon no matter how long you push it！

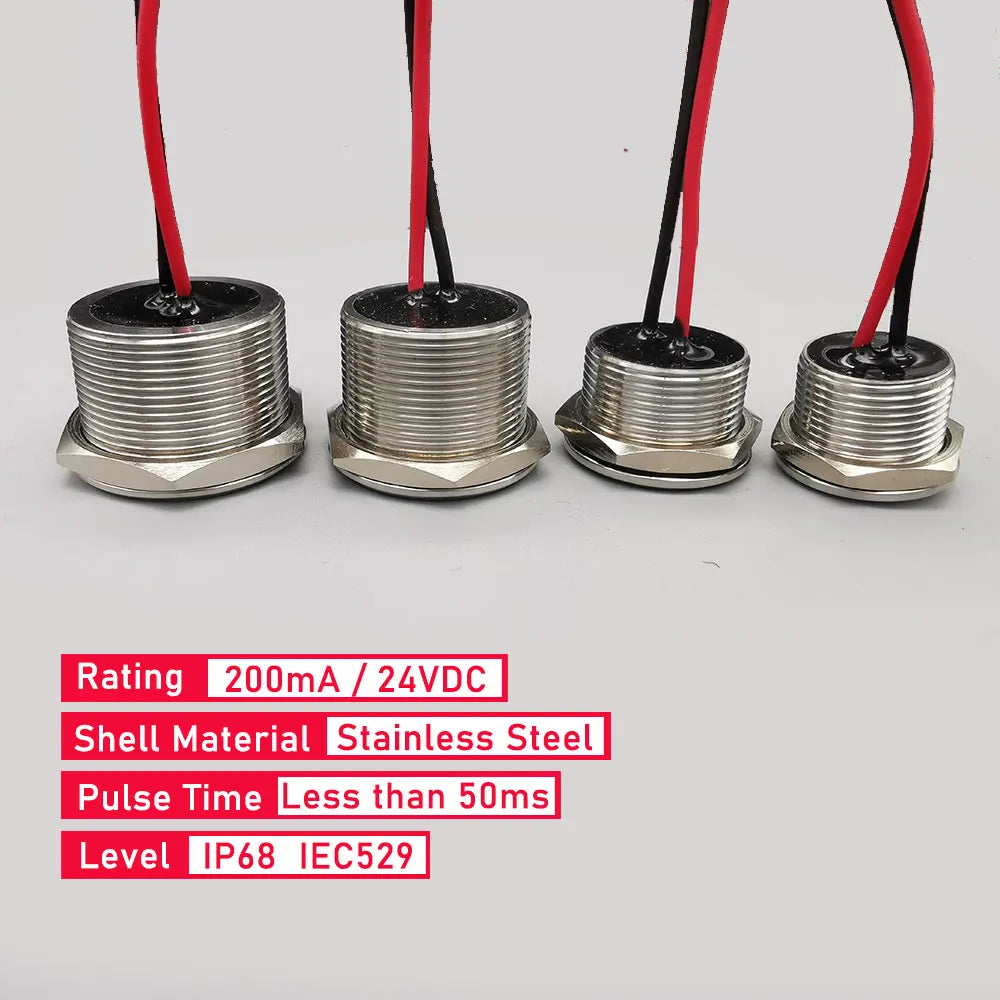

Product Parameter

Model Number ; YD16-10/S,YD19-10/S,YD22-10/S,YD25-10/S ;
Diameter :16mm 19mm 22mm 25mm ;
Switch Rating : 200mA / 24VDC/AC ;
Pulse Time : Less than or equal to 50ms ;
Body Material : Stainless Steel ;
Mounting panel thickness :
- 16mm : 1-6 mm ;
- 19mm : 1-8 mm ;
- 22mm : 1-12 mm ;
- 25mm : 1-10 mm ;
Shell Color : Silver Color ;
Terminal Type : 0.22 Square wire ;
Working Pressure : 3~8N ;
Mechanical life : More than1,000,000 cycles ;
IP Rating : IP68 ;

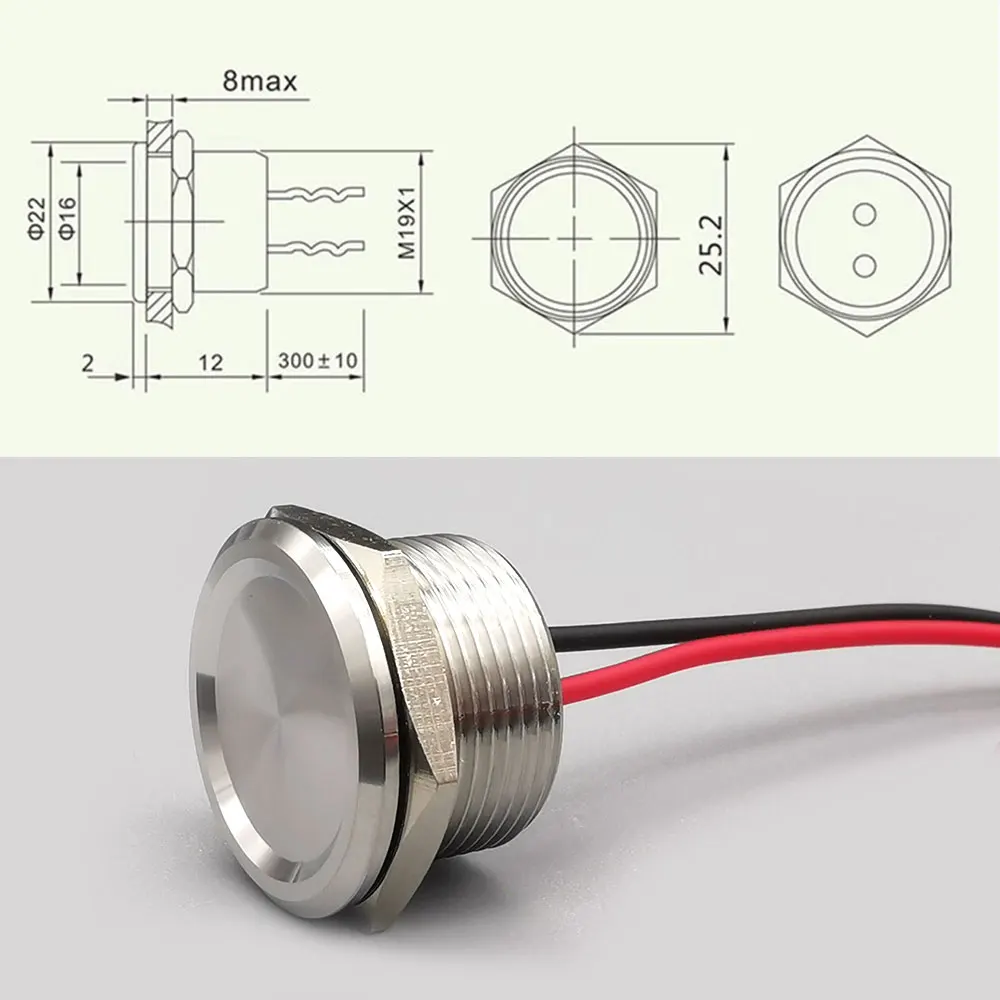

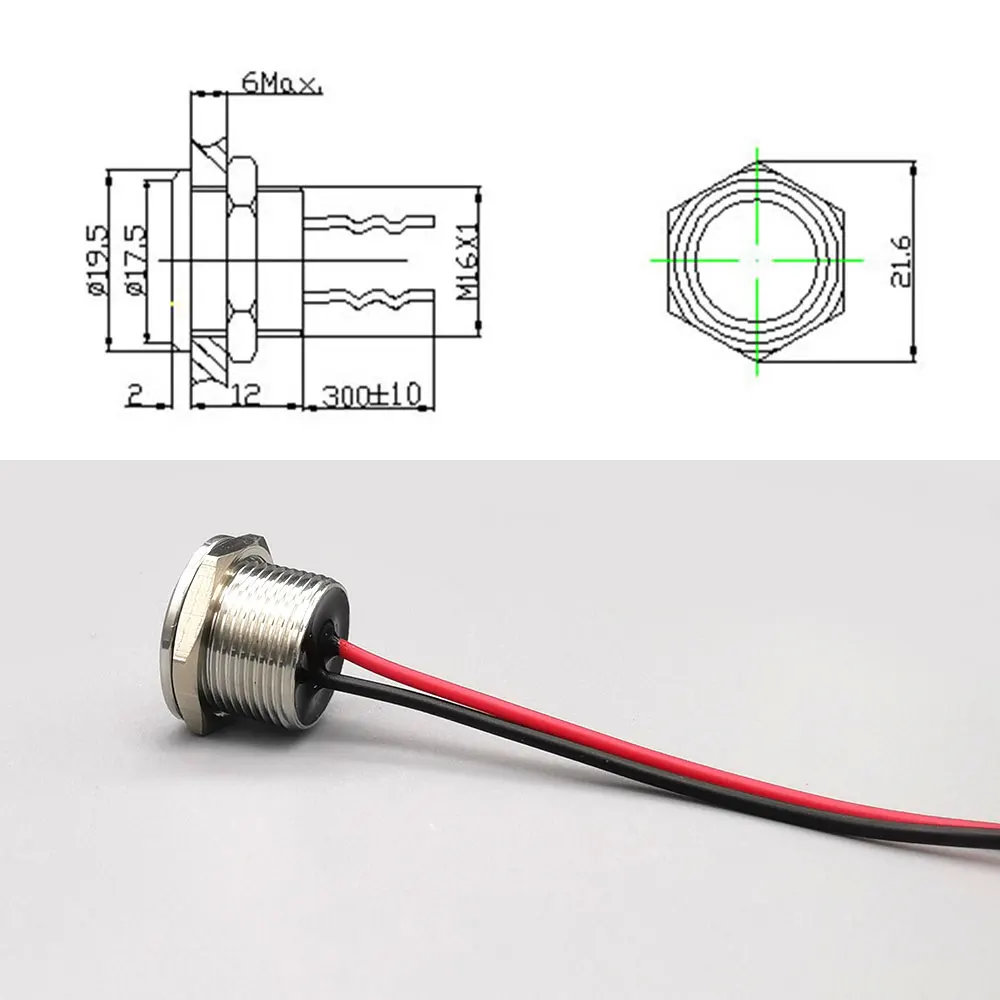

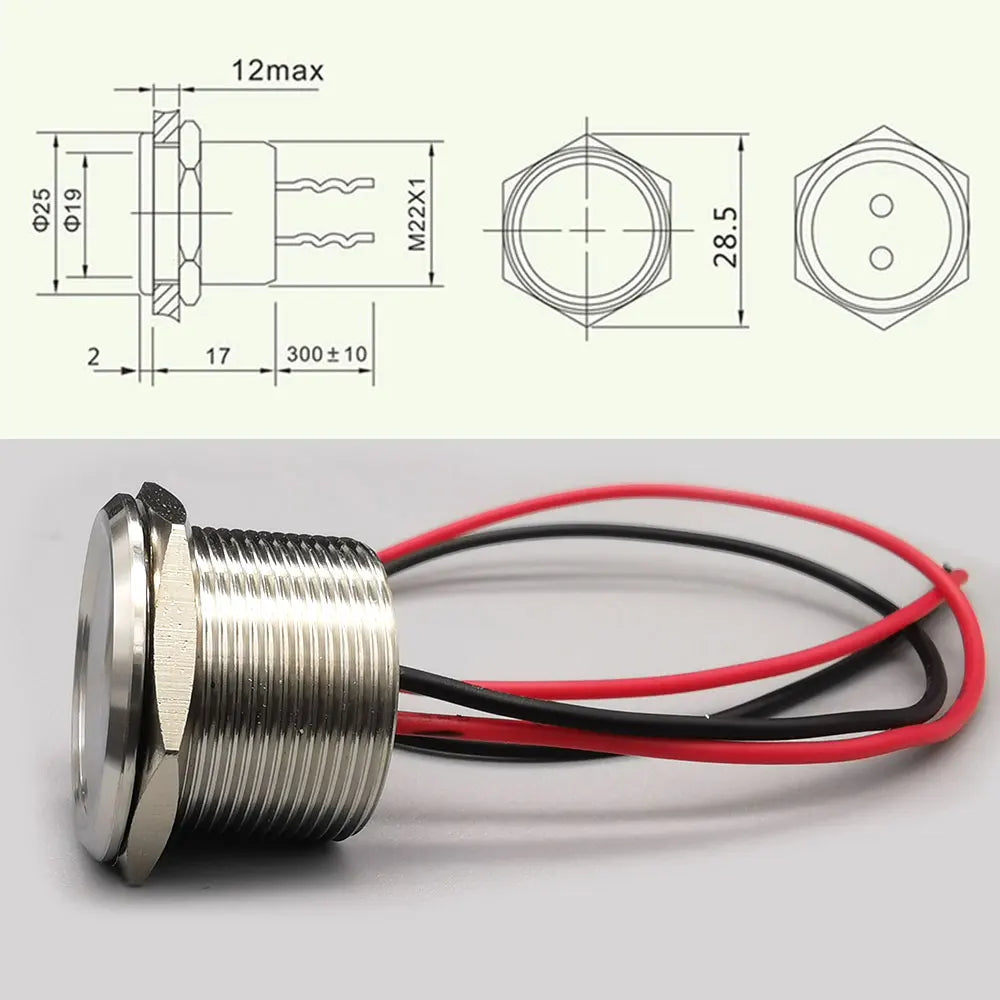

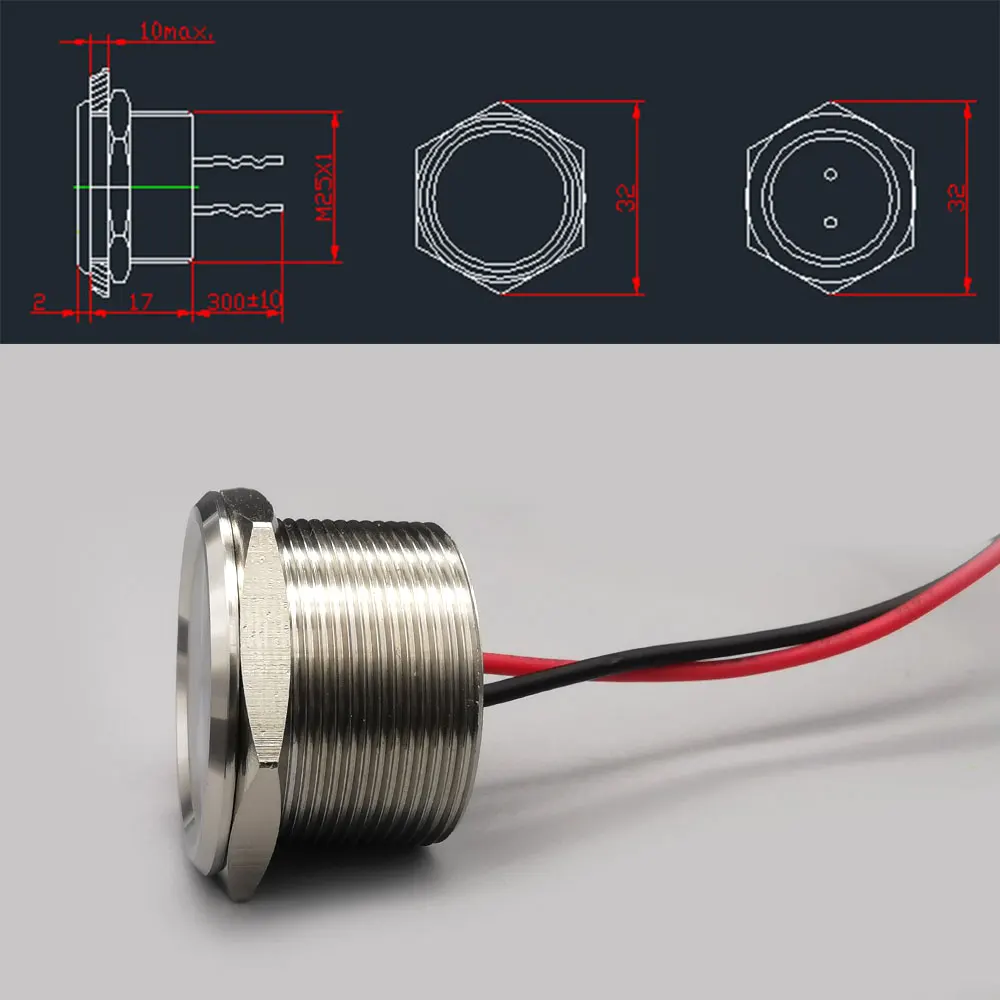

Product Size

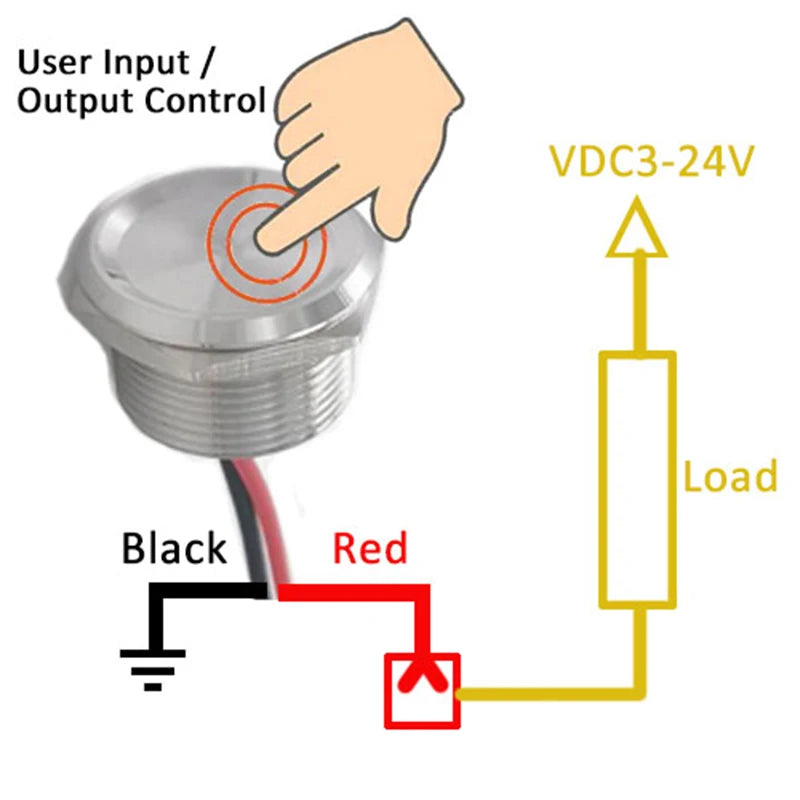

Electrical Connection

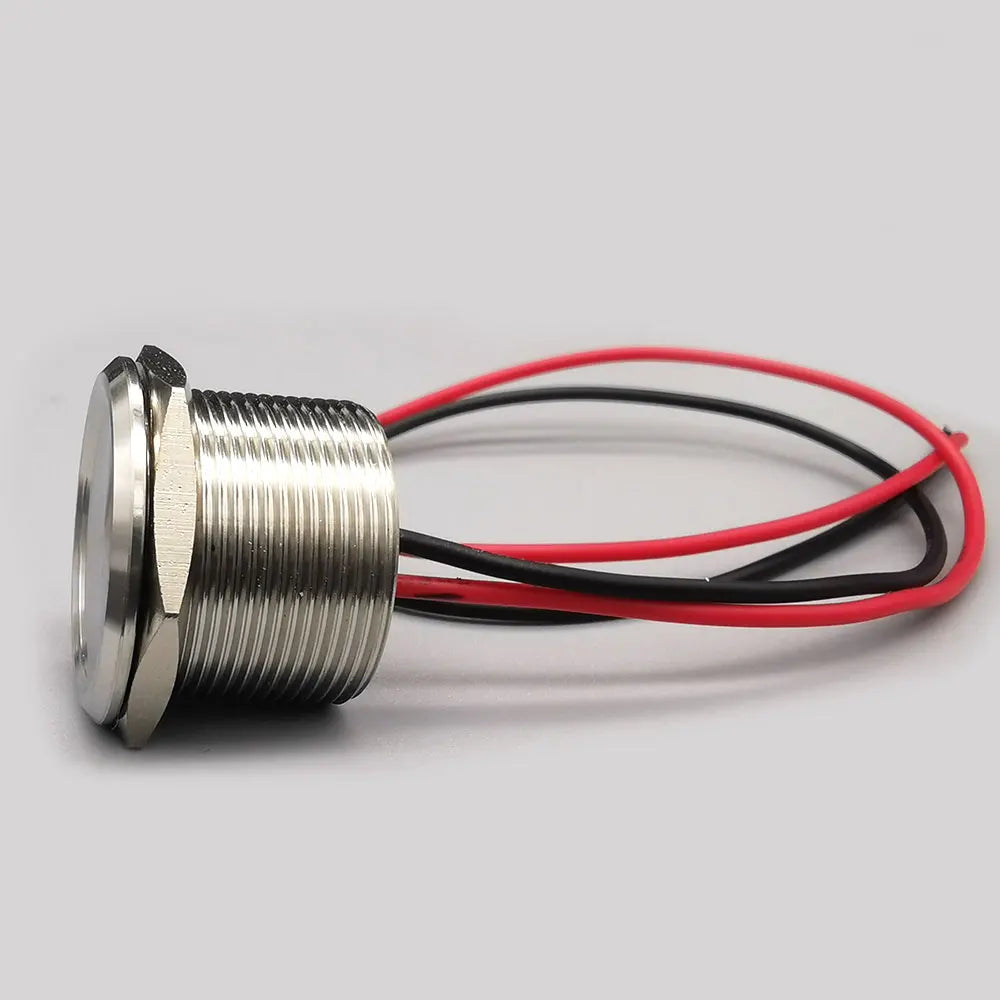

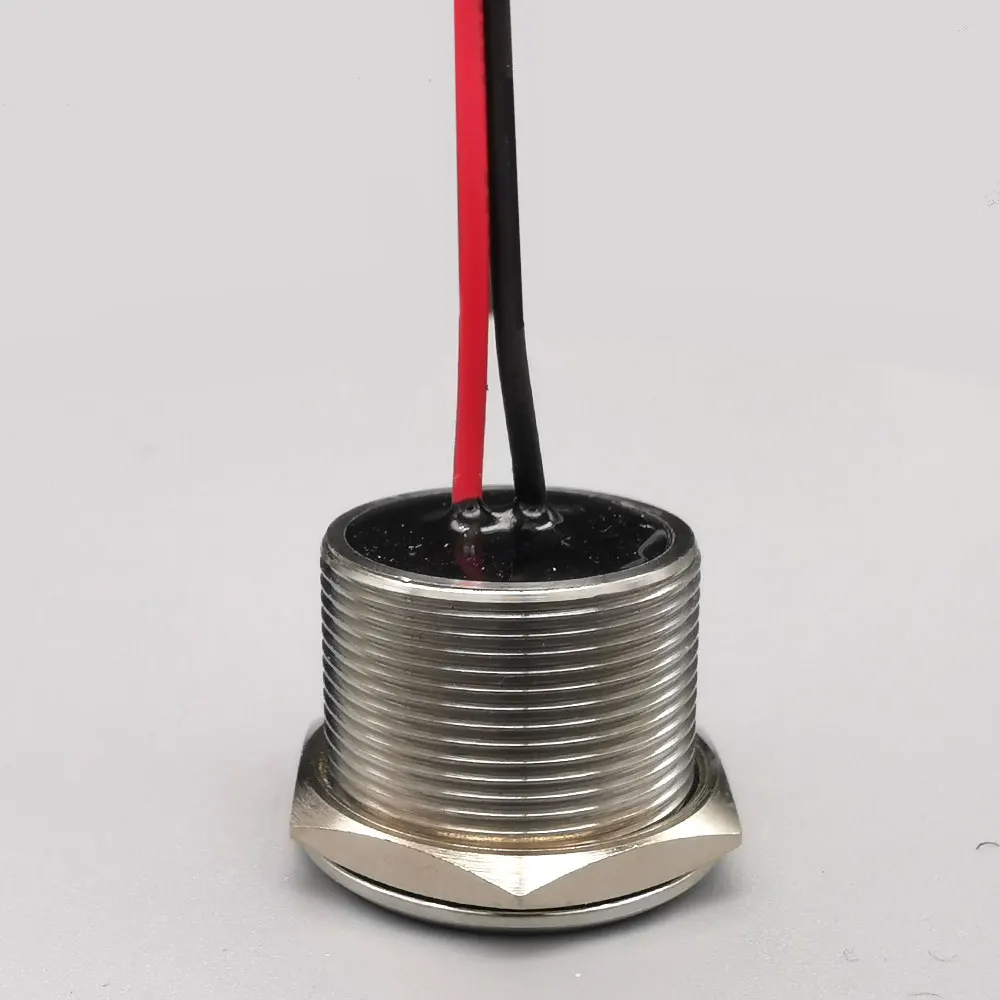

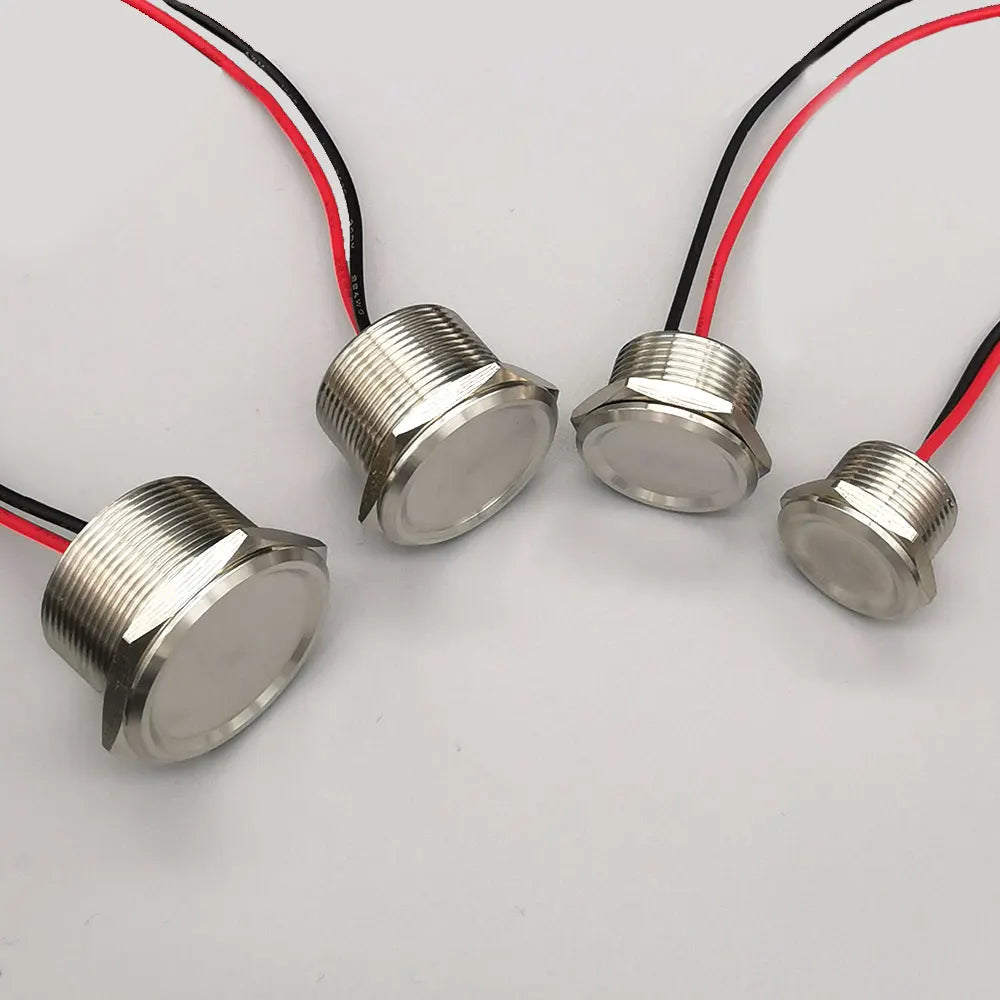

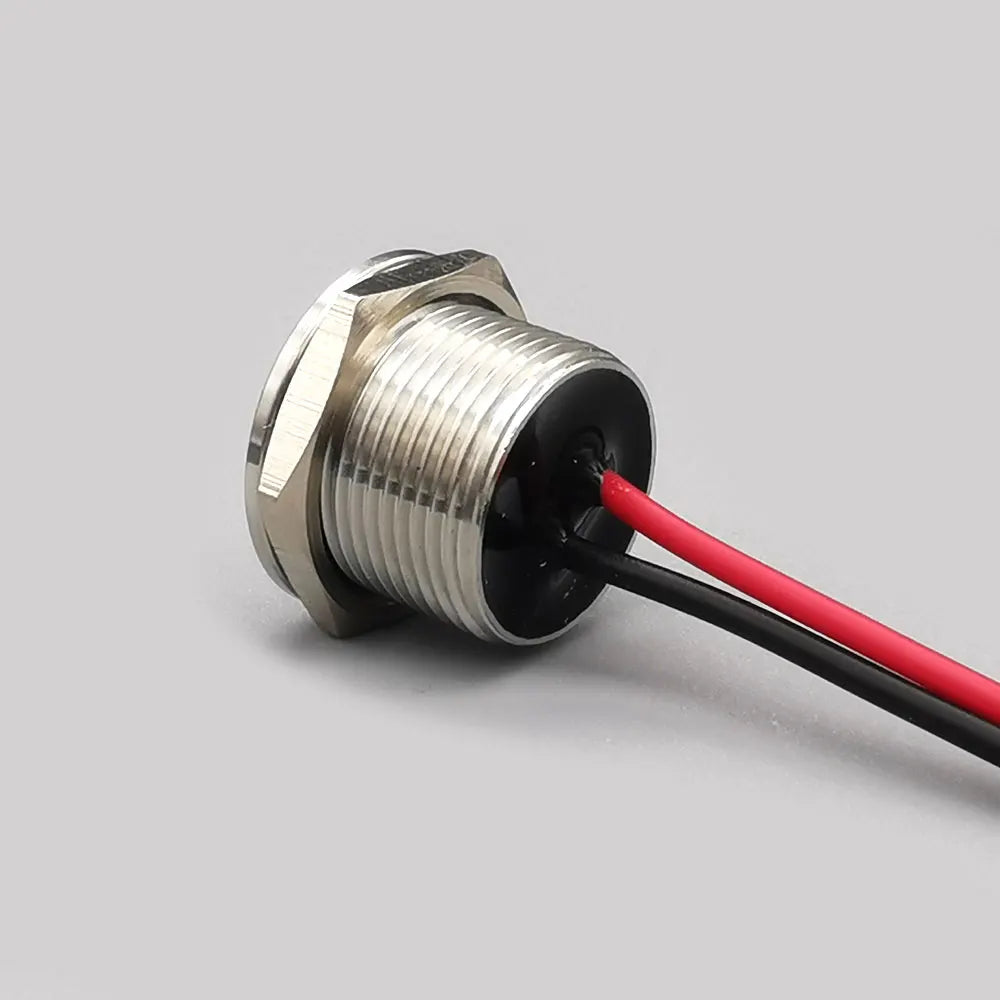

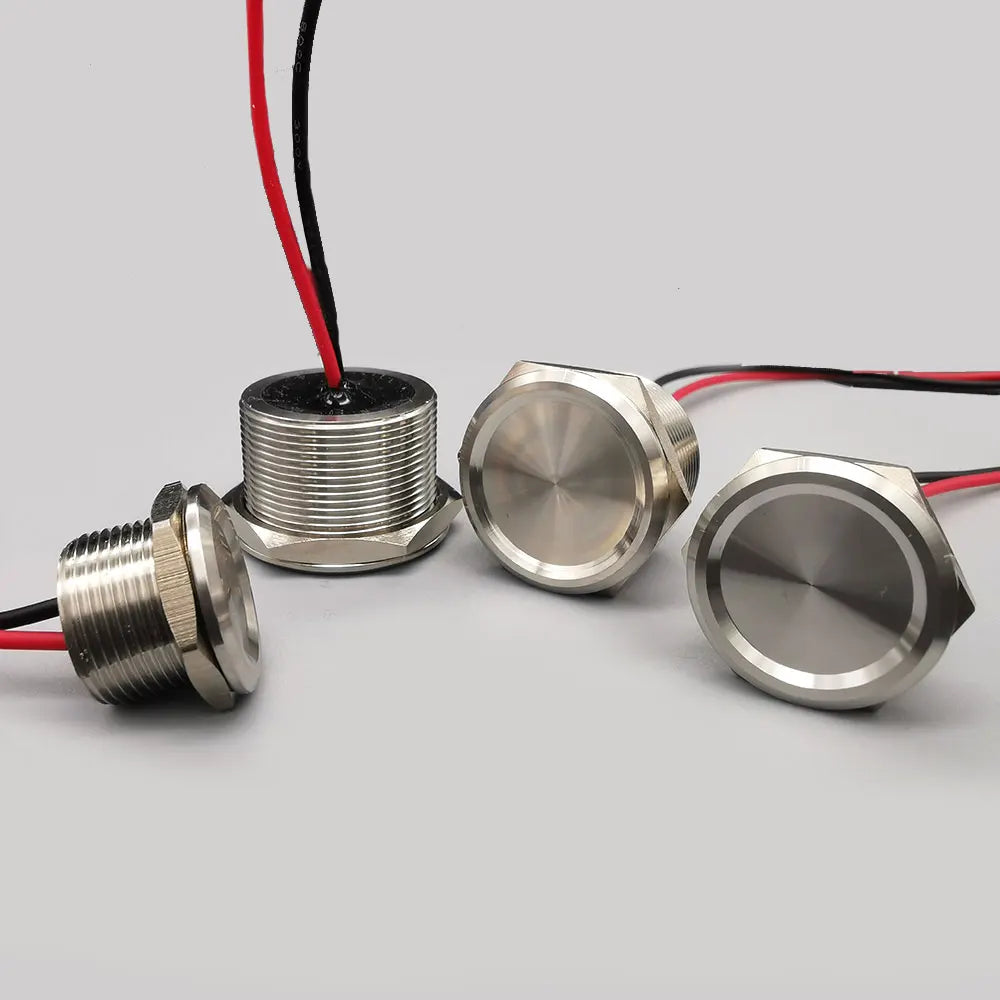

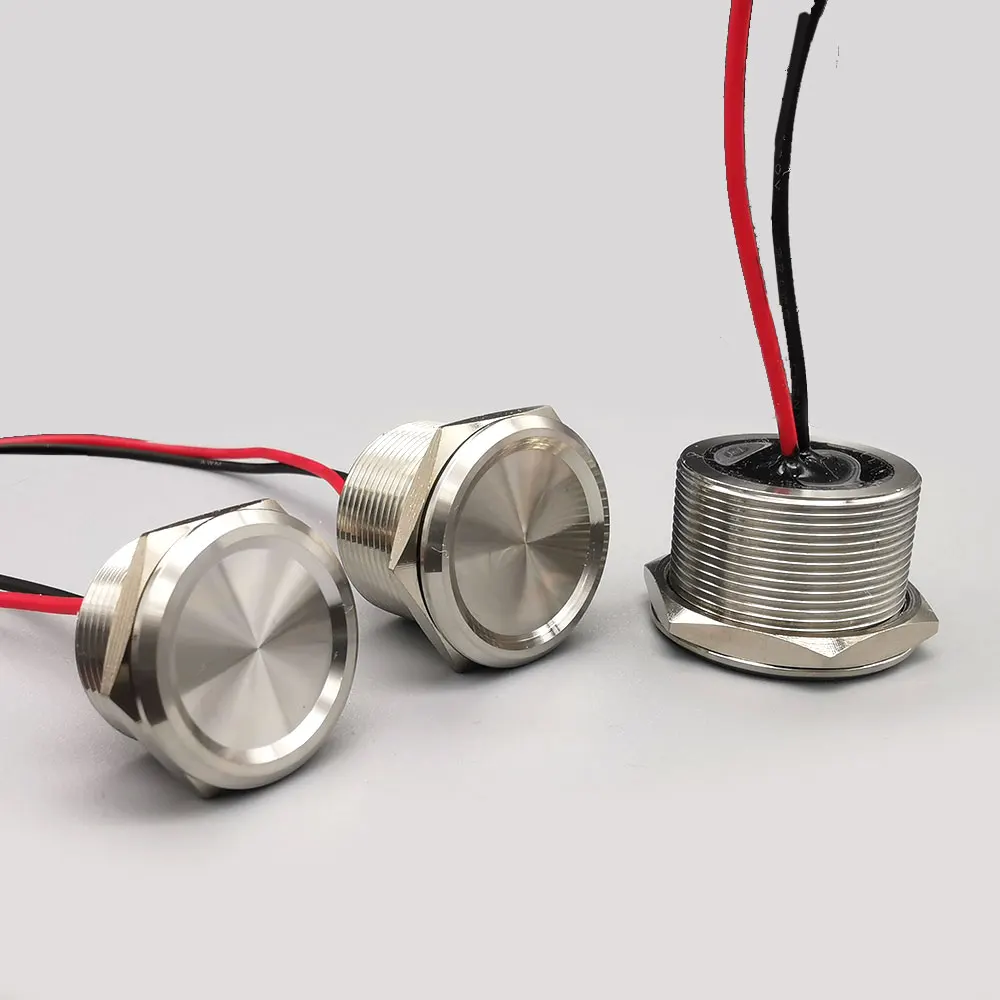

Procuct Display

- Waterproof and dustproof design, it can be used in harsh environment.
- Strong electric conductivity, sense of touch, good material, long service life.
- Widely used in various fields, such as mining equipment, access control system, medical equipment, household appliances
